DA116L-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

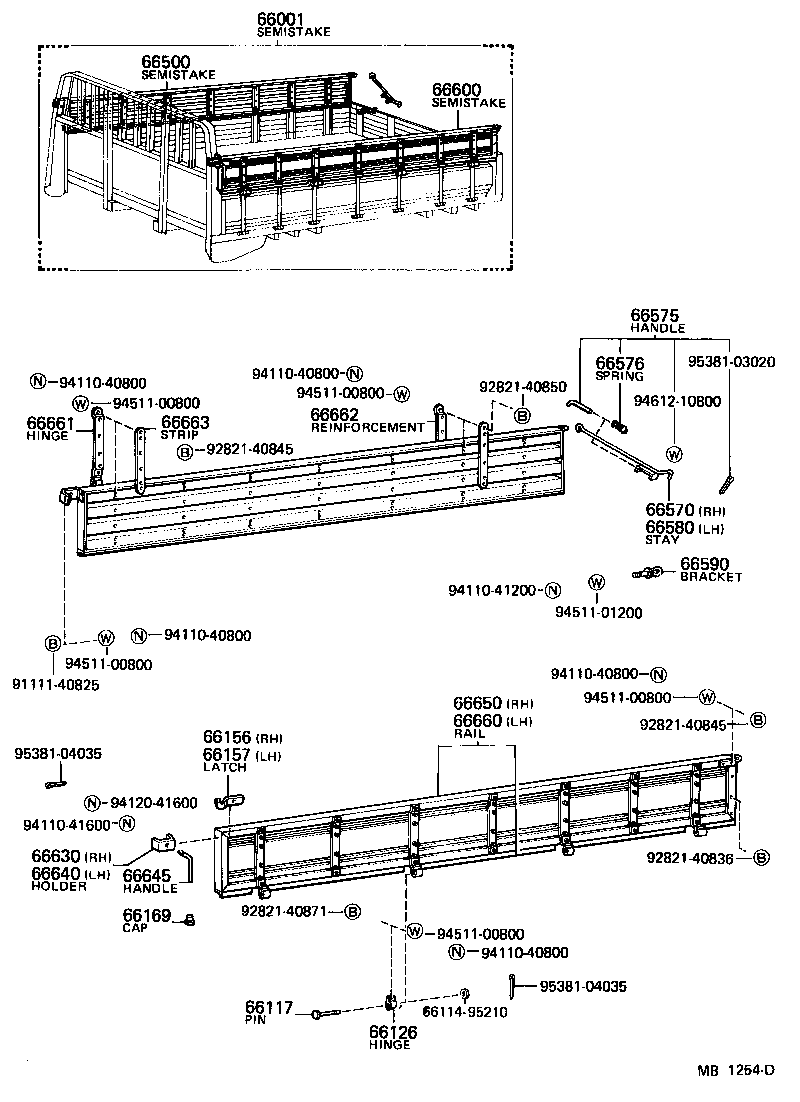

ILLUST NO. 2 OF 2(6903- )BTR

Click highlighted areas on diagram

diagram 66001 6611495210 66117 66126 66156 66157 66169 66500 66570 66575 66576 66580 66590 66600 66630 66640 66645 66650 66660 66661 66662 66663 9111140825 9282140836 9282140845 9282140845 9282140850 9282140871 9411040800 9411040800 9411040800 9411040800 9411040800 9411041200 9411041600 9412041600 9451100800 9451100800 9451100800 9451100800 9451100800 9451101200 9461210800 9538103020 9538104035 9538104035
Part # Description Qty Price
66001 - SEMISTAKE SET
66001-95214

DA116

 1
66117 - PIN, SEMISTAKE GATE HINGE
66113-95212

DA11#,FA100,11#..BTR

 10
90240-16106

DA11#,FA100,11#..BTR

 10
66126 - HINGE, SEMISTAKE FEMALE
66112-95213

DA11#,FA100,11#..BTR

 10
66156 - LATCH, SEMISTAKE FEMALE, RH
66151-95212

DA11#,FA100,11#..BTR

 1
66157 - LATCH, SEMISTAKE FEMALE, LH
66152-95212

DA11#,FA100,11#..BTR

 1
66169 - CAP, SEMISTAKE GATE LATCH HANDLE
66165-95210

DA11#,FA100,11#..BTR

 2
66500 - SEMISTAKE ASSY, SIDE, RH
66500-95218

DA116

 1
66570 - STAY ASSY, STAKE, RH
66570-95210

DA11#,FA100,11#..BTR

 2
66575 - HANDLE, STAKE STAY SET
66575-95210

DA11#,FA100,11#..BTR

 2
66576 - SPRING, STAKE STAY SET HANDLE
66576-95210

DA11#,FA100,11#..BTR

 2
66580 - STAY ASSY, STAKE, LH
66580-95210

DA11#,FA100,11#..BTR

 1
66590 - BRACKET ASSY, STAKE STAY, LOWER
66590-95211

DA11#,FA100,11#..BTR

 2
66600 - SEMISTAKE ASSY, SIDE, LH
66600-95218

DA116

 1
66630 - HOLDER ASSY, SEMISTAKE LATCH HANDLE, RH
66630-95212

DA11#,FA100,11#..BTR

 1
66640 - HOLDER ASSY, SEMISTAKE LATCH HANDLE, LH
66640-95212

DA11#,FA100,11#..BTR

 1
66645 - HANDLE, SEMISTAKE LATCH
66645-95211

DA11#,FA100,11#..BTR

 2
66650 - RAIL ASSY, SEMISTAKE, RH
66650-95214

DA116

 1
66660 - RAIL ASSY, SEMISTAKE, LH
66660-95214

DA116

 1
66661 - HINGE, SEMISTAKE MALE
66661-95210

DA11#,FA100,11#..BTR

 10
66662 - REINFORCEMENT, SEMISTAKE
66662-95210

DA11#,FA100,11#..BTR

 6
66663 - STRIP, SEMISTAKE INSIDE
66663-95210

DA11#,FA100,11#..BTR

 16
Common parts
66114-95210
91111-40825
92821-40836
92821-40845
92821-40850
92821-40871
94110-40800
94110-41200
94110-41600
94120-41600
94511-00800
94511-01200
94612-10800
95381-03020
95381-04035

ILLUST NO. 1 OF 2(6903- )DA11#,FA100,11#,FC100

Click highlighted areas on diagram

diagram 65500 65500 6553 6553 65550 65560 65570 65580 65600 65600 65613 66114 66115 66115 66120 66122 66151 66152 66153 66154 66314 9017908083 9020117362 9281108052 9281108053 9281140850 9538103022 9538104035
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95221

DA116

 1
65500-95229

DA116

 1
65500-95225

DA116

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95221

DA116

 1
65500-95229

DA116

 1
65500-95225

DA116

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95220

DA116

 1
65600-95224

DA116

 1
65600-95228

DA116

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95220

DA116

 1
65600-95224

DA116

 1
65600-95228

DA116

 1
65613 - STRIP, SIDE GATE HINGE, INSIDE
65513-95210

DA11#,FA100,11#,FC100..BTR

 16
66115 - PIN, GATE HINGE
66113-95210

DA11#,FA100,11#,FC100..BTR

 24
90240-16108

DA11#,FA100,11#,FC100..BTR

 24
66119-95210

DA11#,FA100,115..BTR

 16
66115 - PIN, GATE HINGE
66113-95210

DA11#,FA100,11#,FC100..BTR

 24
90240-16108

DA11#,FA100,11#,FC100..BTR

 24
66119-95210

DA11#,FA100,115..BTR

 16
66122 - HINGE, SIDE GATE, MALE
66121-95210

DA11#,FA100,11#..BTR

 16
66151 - LATCH, SIDE GATE FEMALE, RH
66151-95210

DA11#,FA100,11#..BTR

 1
66151-95213

DA11#,FA100,11#..BTR

 1
66152 - LATCH, SIDE GATE FEMALE, LH
66152-95213

DA11#,FA100,11#..BTR

 1
66152-95210

DA11#,FA100,11#..BTR

 1
66153 - LATCH, TAIL GATE FEMALE, RH
66153-95210

DA11#,FA100,11#,FC100..BTR

 1
66154 - LATCH, TAIL GATE FEMALE, LH
66154-95210

DA11#,FA100,11#,FC100..BTR

 1
66314 - PROTECTOR, ROPE HOOK
66314-95210

DA11#,FA100,11#,FC100

 28
66314-95211

DA11#,FA100,115

 28
Common parts
90179-08083
90201-17362
92811-08052
92811-08053
92811-40850
95381-03022
95381-04035
Linked diagrams
6553
