DA116L-H (1969)
Toyota Heavy Duty Truck
ILLUST NO. 2 OF 2(6903- )DA11#,DB10#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04451 - END KIT, STEERING TIE ROD | ||||
| 04451-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45046-59015 |
DA11# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 90171-18034 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 90171-18034 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45046B - RING, SET(FOR TIE ROD END DUST SEAL) | ||||
| 90522-48025 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-59015 |
DA11# |
1 | ||
| 45047-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-55071 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45440-55072 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45440-55074 |
DA11#,FA100,115..LHD |
1 | ||
| 45440-55075 |
DA11#..LHD |
1 | ||
| 45440-55073 |
DA11#,FA100,115..LHD |
1 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-55020 |
DA11#,FA100,11#,FC100..LHD |
2 | ||
| 45447-55040 |
DA11#,FA100,115..LHD |
2 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-55020 |
DA11#,FA100,11#,FC100..LHD |
2 | ||
| 45447-55040 |
DA11#,FA100,115..LHD |
2 | ||
| 45447A - CLIP(FOR DRAG LINK DUST SEAL) | ||||
| 90467-40040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45447A - CLIP(FOR DRAG LINK DUST SEAL) | ||||
| 90467-40040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45447A - CLIP(FOR DRAG LINK DUST SEAL) | ||||
| 90467-40040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45447A - CLIP(FOR DRAG LINK DUST SEAL) | ||||
| 90467-40040 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45449 - PLATE, DRAG LINK DUST SEAL | ||||
| 45449-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-55031 |
DA11#,FA100,115 |
1 | ||
| 45461-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 45471 - STUD, STEERING LINK JOINT | ||||
| 45471-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
4 | ||
| 45473-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
4 | ||
| 45473-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
4 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
4 | ||
| 45473-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
4 | ||
| 45474 - SOCKET, BALL STUD SEAT | ||||
| 45474-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 45475-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45475-55030 |
DA11#,DB10#,FA100,11#,FC100 DRAG LINK |
2 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 45475-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45475-55030 |
DA11#,DB10#,FA100,11#,FC100 DRAG LINK |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-65559 |
DA11#,DB10#,FA100,11#,FC100 DRAG LINK |
2 | ||
| 90501-23104 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 90501-55119 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-65559 |
DA11#,DB10#,FA100,11#,FC100 DRAG LINK |
2 | ||
| 90501-23104 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 90501-55119 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-48007 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 90340-33015 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 90340-33019 |
DA11#,FA100,115 DRAG LINK |
2 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-48007 |
DA11#,DB10#,FA100,11#,FB100,FC100 TIE ROD END |
2 | ||
| 90340-33015 |
DA11#,DB10#,FA100,11#,FB100,FC100 DRAG LINK |
2 | ||
| 90340-33019 |
DA11#,FA100,115 DRAG LINK |
2 | ||
| 45476 - PLATE, TURNING STOPPER | ||||
| 45476-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45477 - PLATE, STOPPER | ||||
| 45477-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45601-55110 |
DA11#,FA100,115..LHD |
1 | ||
| 45601-55090 |
DA11#,DB10#,FA100,11#,FC100..LHD |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-55070 |
DA11#,DB10#,FA100,11#,FC100..LHD |
1 | ||
| Common parts | ||||
| 90252-02005 | ||||
| 91111-51250 | ||||
| 91161-51250 | ||||
| 94110-41200 | ||||
| 94115-41200 | ||||
| 94512-01200 | ||||
| 95381-03045 | ||||
| 95381-04035 | ||||
| 95381-04050 | ||||
| 96451-00600 | ||||
| 96456-00609 | ||||

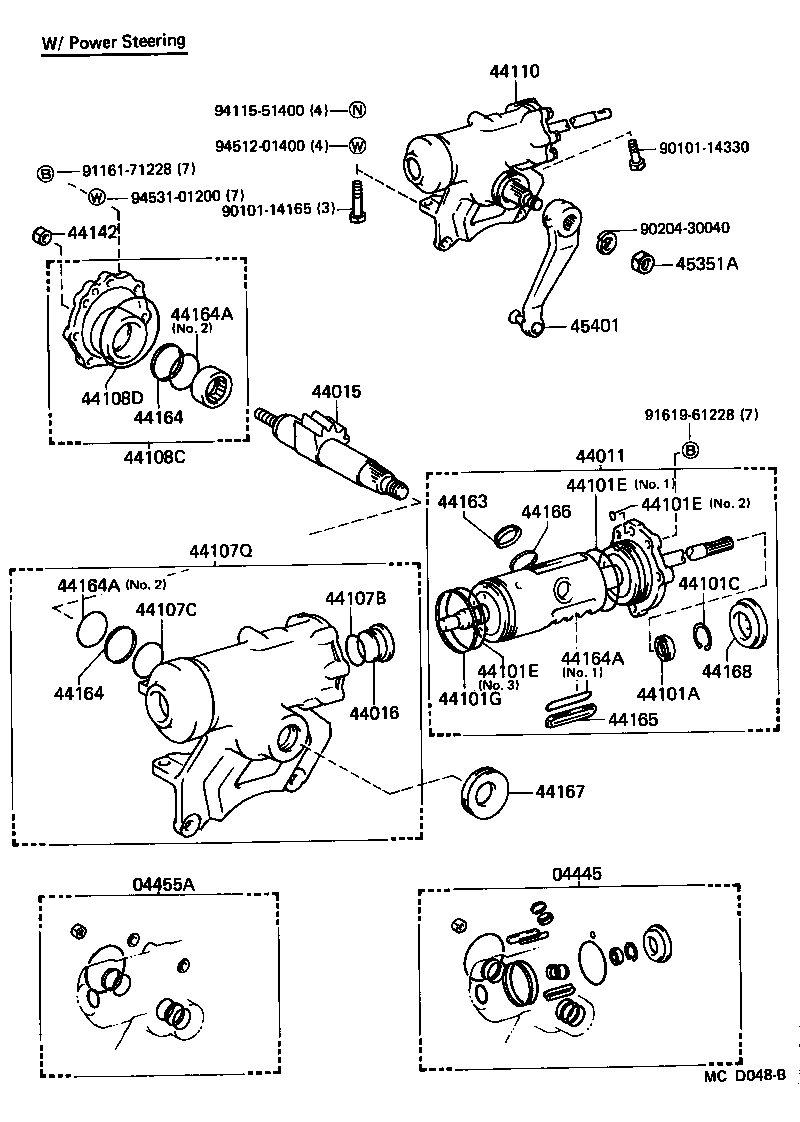

ILLUST NO. 1 OF 2(8511- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-55010 |
DA11#..LHD |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-55010 |
DA11#..LHD |
1 | ||
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-36060 |
DA11#..LHD |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36060 |
DA11#..LHD |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-36030 |
DA11#..LHD |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21002 |
DA11#..LHD |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 90029-52002 |
DA11#..LHD |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 96711-19009 |
DA11#..LHD NO.2 |
1 | ||
| 90029-20015 |
DA11#..LHD NO.3 |
1 | ||
| 90029-20008 |
DA11#..LHD NO.1 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 96711-19009 |
DA11#..LHD NO.2 |
1 | ||
| 90029-20015 |
DA11#..LHD NO.3 |
1 | ||
| 90029-20008 |
DA11#..LHD NO.1 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 96711-19009 |
DA11#..LHD NO.2 |
1 | ||
| 90029-20015 |
DA11#..LHD NO.3 |
1 | ||
| 90029-20008 |
DA11#..LHD NO.1 |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20703 |
DA11#..LHD |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20007 |
DA11#..LHD ID=39.4 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35042 |
DA11#..LHD |
1 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-36060 |
DA11#..LHD |
1 | ||
| 44108C - COVER SUB-ASSY, SECTOR | ||||
| 44108-36060 |
DA11#..LHD |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20016 |
DA11#..LHD |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-55010 |
DA11#..LHD |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
DA11#..LHD |
1 | ||
| 44163 - RING, POWER PISTON BACK UP, NO.1 | ||||
| 44163-36060 |
DA11#..LHD |
2 | ||
| 44164 - RING, POWER PISTON BACK UP, NO.2 | ||||
| 90029-56602 |
DA11#..LHD |
2 | ||
| 44164 - RING, POWER PISTON BACK UP, NO.2 | ||||
| 90029-56602 |
DA11#..LHD |
2 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36030 |
DA11#..LHD NO.1 |
2 | ||
| 90029-20009 |
DA11#..LHD NO.2 |
2 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36030 |
DA11#..LHD NO.1 |
2 | ||
| 90029-20009 |
DA11#..LHD NO.2 |
2 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36030 |
DA11#..LHD NO.1 |
2 | ||
| 90029-20009 |
DA11#..LHD NO.2 |
2 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36030 |
DA11#..LHD |
2 | ||
| 44166 - RING, SEAL, NO.2 | ||||
| 44166-36060 |
DA11#..LHD |
2 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
DA11#..LHD |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-36011 |
DA11#..LHD |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-30171 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 90170-27033 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-55091 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45401-55093 |
DA11#,FA100,115..LHD |
1 | ||
| 45401-55094 |
DA11#,FA100,115..LHD |
1 | ||
| 45401-55092 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45401-55110 |
DA11#..LHD W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90101-14165 | ||||
| 90101-14330 | ||||
| 90204-30040 | ||||
| 91161-71228 | ||||
| 91619-61228 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||
| 94531-01200 | ||||

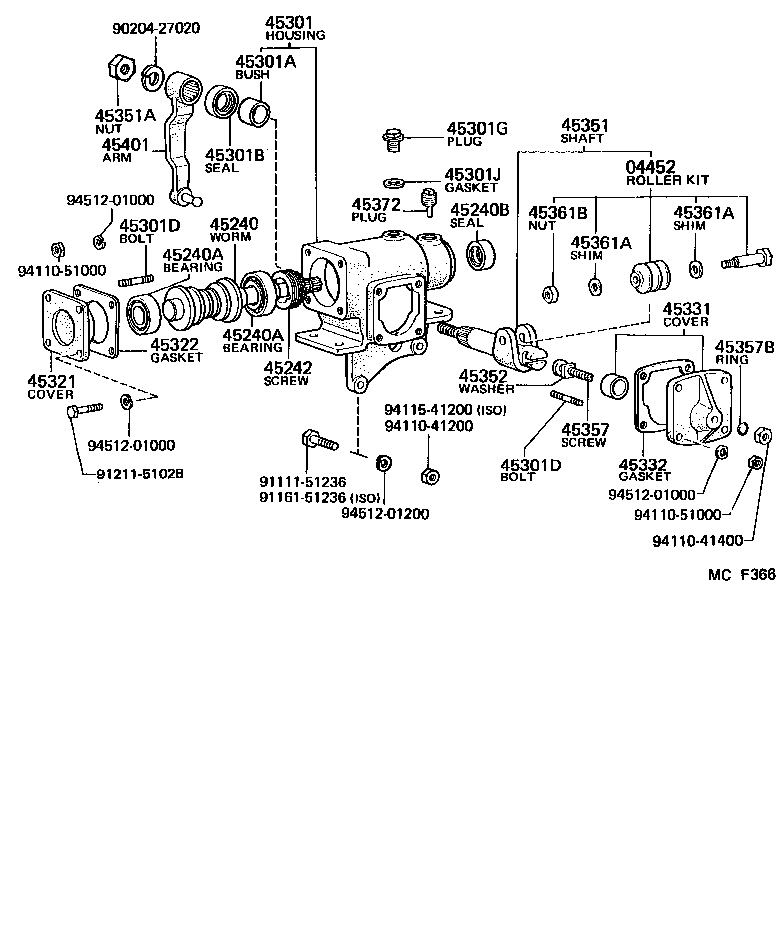

ILLUST NO. 1 OF 2(6903-7003)DA11#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04452 - ROLLER KIT, STEERING SECTOR | ||||
| 04452-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45241-55051 |
DA11#,DB10#,FA100,11#,FC100..LHD |
1 | ||
| 45240-55020 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45240-55021 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97619-30306 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 97600-30206 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 90366-30039 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97619-30306 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 97600-30206 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 90366-30039 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-25110 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 90311-24052 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-55010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-55070 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45301-55071 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45311-55073 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-70032 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 90364-41039 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-41109 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 90311-36035 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-10102 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
6 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-10102 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
6 | ||
| 45301G - PLUG, STEERING GEAR BOX OIL | ||||
| 90341-18002 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 90345-54001 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45301J - GASKET, STEERING GEAR HOUSING OIL PLUG | ||||
| 90430-18012 |
DA11#,DB10#,FA100,11#,FC100 ID=18.5,OD=26 |
2 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45321-57011 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45322-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.20 |
1 | ||
| 45323-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.30 |
2 | ||
| 45324-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.50 |
3 | ||
| 45323-55040 |
DA11#,DB10#,FA100,11#,FC100 T=0.08 |
1 | ||
| 45323-55020 |
DA11#,DB10#,FA100,11#,FC100 T=0.05 |
1 | ||
| 45323-55070 |
DA11#,DB10#,FA100,11#,FC100 T=0.50 |
1 | ||
| 45323-55060 |
DA11#,DB10#,FA100,11#,FC100 T=0.20 |
1 | ||
| 45323-55030 |
DA11#,DB10#,FA100,11#,FC100 T=0.07 |
1 | ||
| 45323-55050 |
DA11#,DB10#,FA100,11#,FC100 T=0.10 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45331-55012 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.15 |
1 | ||
| 45332-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.15 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45350-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100..LHD |
1 | ||
| 45351-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-30171 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 90170-27033 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.0 |
1 | ||
| 45352-55070 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.635-2.655 |
1 | ||
| 45352-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=3.9 |
1 | ||
| 45355-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.2 |
1 | ||
| 45352-55060 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.605-2.625 |
1 | ||
| 45352-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.515-2.535 |
1 | ||
| 45354-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.1 |
1 | ||
| 45352-55050 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.575-2.595 |
1 | ||
| 45352-55040 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.545-2.565 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-57012 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45357-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45357-55010 |
DA11#,FA100,115 |
1 | ||
| 45357B - RING, O, SECTOR SHAFT ADJUSTING SCREW | ||||
| 90301-10005 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45361A - SHIM(FOR STEERING SECTOR ROLLER ADJUST) | ||||
| 90564-15064 |
DA11#,DB10# |
2 | ||
| 45361A - SHIM(FOR STEERING SECTOR ROLLER ADJUST) | ||||
| 90564-15064 |
DA11#,DB10# |
2 | ||
| 45361B - NUT(FOR STEERING SECTOR ROLLER SETTING) | ||||
| 90170-12051 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 45372-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45372-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-55091 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45401-55093 |
DA11#,FA100,115..LHD |
1 | ||
| 45401-55094 |
DA11#,FA100,115..LHD |
1 | ||
| 45401-55092 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45401-55110 |
DA11#..LHD W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90204-27020 | ||||
| 91111-51236 | ||||
| 91161-51236 | ||||
| 91211-51028 | ||||
| 94110-41200 | ||||
| 94110-41400 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||

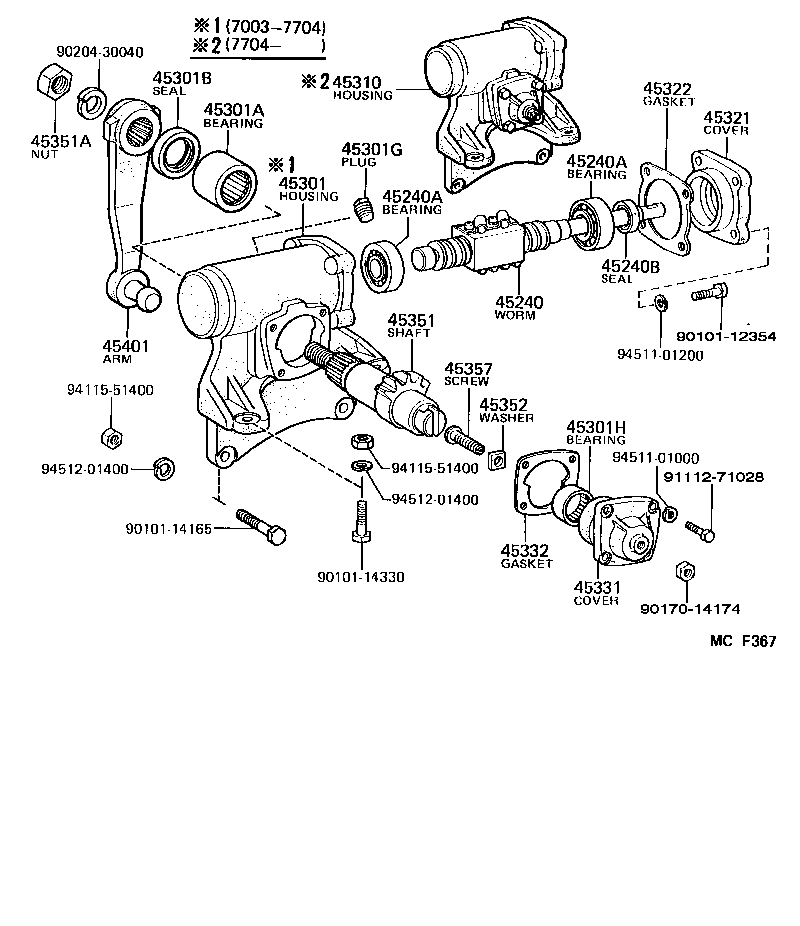

ILLUST NO. 1 OF 2(7003- )DA11#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45241-55051 |
DA11#,DB10#,FA100,11#,FC100..LHD |
1 | ||
| 45240-55020 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45240-55021 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97619-30306 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 97600-30206 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 90366-30039 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97619-30306 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 97600-30206 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 90366-30039 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-25110 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 90311-24052 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-55070 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45301-55071 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45311-55073 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-70032 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 90364-41039 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-41109 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 90311-36035 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45301G - PLUG, STEERING GEAR BOX OIL | ||||
| 90341-18002 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 90345-54001 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90364-41038 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-55034 |
DA11#,FA100,115..LHD |
1 | ||
| 45310-55035 |
DA11#..LHD |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45321-57011 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45322-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.20 |
1 | ||
| 45323-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.30 |
2 | ||
| 45324-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.50 |
3 | ||
| 45323-55040 |
DA11#,DB10#,FA100,11#,FC100 T=0.08 |
1 | ||
| 45323-55020 |
DA11#,DB10#,FA100,11#,FC100 T=0.05 |
1 | ||
| 45323-55070 |
DA11#,DB10#,FA100,11#,FC100 T=0.50 |
1 | ||
| 45323-55060 |
DA11#,DB10#,FA100,11#,FC100 T=0.20 |
1 | ||
| 45323-55030 |
DA11#,DB10#,FA100,11#,FC100 T=0.07 |
1 | ||
| 45323-55050 |
DA11#,DB10#,FA100,11#,FC100 T=0.10 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45331-55012 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.15 |
1 | ||
| 45332-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=0.15 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45350-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100..LHD |
1 | ||
| 45351-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-30171 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 90170-27033 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.0 |
1 | ||
| 45352-55070 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.635-2.655 |
1 | ||
| 45352-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=3.9 |
1 | ||
| 45355-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.2 |
1 | ||
| 45352-55060 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.605-2.625 |
1 | ||
| 45352-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.515-2.535 |
1 | ||
| 45354-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=4.1 |
1 | ||
| 45352-55050 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.575-2.595 |
1 | ||
| 45352-55040 |
DA11#,DB10#,FA100,11#,FB100,FC100 T=2.545-2.565 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-57012 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45357-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 45357-55010 |
DA11#,FA100,115 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-55091 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45401-55093 |
DA11#,FA100,115..LHD |
1 | ||
| 45401-55094 |
DA11#,FA100,115..LHD |
1 | ||
| 45401-55092 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 45401-55110 |
DA11#..LHD W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90101-12354 | ||||
| 90101-14165 | ||||
| 90101-14330 | ||||
| 90170-14174 | ||||
| 90204-30040 | ||||
| 91112-71028 | ||||
| 94115-51400 | ||||
| 94511-01000 | ||||
| 94511-01200 | ||||
| 94512-01400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
