DA116L-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7204-7403)2D..DA115..LHD ; (7404-7503)2D

Click highlighted areas on diagram

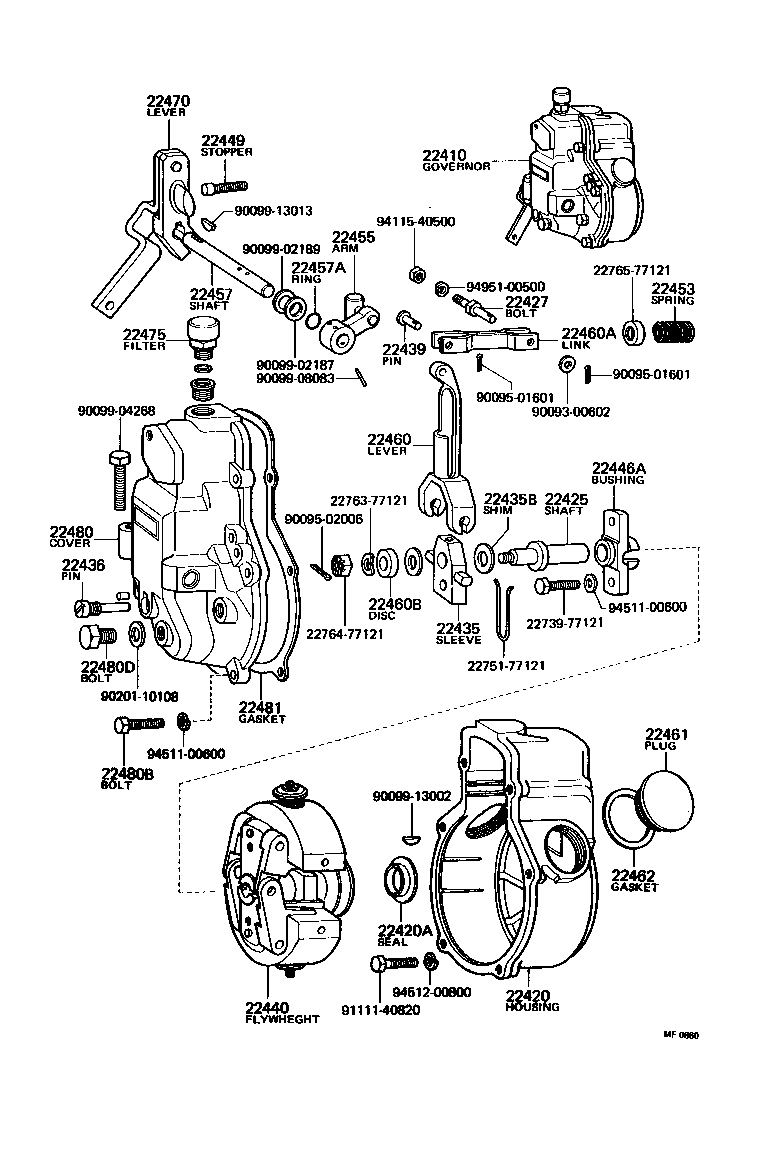

diagram 22410 22420 22420A 22425 22427 22435 22435B 22436 22439 22440 22446A 22449 22453 22455 22457 22457A 22460 22460A 22460B 22461 22462 22470 22475 22480 22480B 22480D 22481 2273977121 2275177121 2276377121 2276477121 2276577121 9009300602 9009501601 9009501601 9009502006 9009902187 9009902189 9009904268 9009908083 9009913002 9009913013 9020110108 9111140820 9411540500 9451100600 9451100600 9451200800 9495100500
Part # Description Qty Price
22410 - GOVERNOR ASSY, INJECTION PUMP MECHANICAL
22410-77121

2D..DA11#

 1
22410-77123

2D..DA11#

 1
22410-77124

2D..DA11#

 1
22420 - HOUSING SUB-ASSY, MECHANICAL GOVERNOR
22711-77121

2D..DA11#

 1
22401-77123

2D..DA11#

 1
22420A - SEAL, OIL
90099-05003

2D..DA11#

 1
90099-15002

2D..DA11#

 1
22425 - SHAFT SUB-ASSY, GOVERNOR
22802-77121

2D..DA11#

 1
22427 - BOLT, CONNECTING
22329-77021

2D..DA11#

 1
22435 - SLEEVE SUB-ASSY, FLY WEIGHT
22761-77121

2D..DA11#

 1
22405-77123

2D..DA11#

 1
22435B - SHIM
22797-77121

2D..DA11#

 1
22796-77121

2D..DA11#

 1
90093-31006

2D..DA11#

T=0.4

 1
22799-77121

2D..DA11#

 1
90093-31005

2D..DA11#

T=0.3

 1
90093-31004

2D..DA11#

T=0.2

 1
22798-77121

2D..DA11#

 1
22795-77121

2D..DA11#

 1
90093-31007

2D..DA11#

T=0.1

 1
90093-31008

2D..DA11#

T=1.0

 1
22436 - PIN, CONNECTING
22793-77121

2D..DA11#

 1
22439 - PIN, SHACKLE
22782-77121

2D..DA11#

 1
22440 - FLYWEIGHT SUB-ASSY
22404-77123

2D..DA11#

 1
22720-77121

2D..DA11#

 1
22446A - BUSH, BEARING
22738-77121

2D..DA11#

 1
22449 - STOPPER
22776-77121

2D..DA11#

 1
22443-77123

2D..DA11#

NO.1

 1
22443-77124

2D..DA11#

NO.2

 1
22453 - SPRING, ADAPTER
22783-77121

2D..DA11#

 1
22455 - ARM SUB-ASSY
22460-77121

2D..DA11#

 1
22457 - SHAFT
22466-77121

2D..DA11#

 1
22457A - SEAL, OIL
90099-04006

2D..DA11#

 1
22460 - LEVER SUB-ASSY, SUPPORT
22771-77121

2D..DA11#

 1
22409-77123

2D..DA11#

 1
22460A - LINK ASSY, FORK
22780-77121

2D..DA11#

 1
22460B - DISC, COVER
22762-77121

2D..DA11#

 1
22461 - PLUG, SCREW
22477-77123

2D..DA11#

MECHANICAL GOVERNOR SIDE

 2
22787-77121

2D..DA11#

 2
22446-47030

2D..DA11#

 1
22462 - WASHER, SEAL
22786-77121

2D..DA11#

 1
22447-47030

2D..DA11#

 1
22470 - LEVER SUB-ASSY, FLOATING
22470-77121

2D..DA11#

 1
22475 - FILTER SUB-ASSY
22450-77121

2D..DA11#

 1
22480 - COVER SUB-ASSY, GOVERNOR
22703-77121

2D..DA11#

 1
22703-77123

2D..DA11#

 1
22703-77124

2D..DA11#

 1
22480B - BOLT
90099-04262

2D..DA11#

 6
22480D - SCREW, ADJUSTING
22791-77121

2D..DA11#

 1
22776-77123

2D..DA11#

 1
22481 - GASKET
22442-77123

2D..DA11#

 1
22774-77121

2D..DA11#

 1
Common parts
22739-77121
22751-77121
22763-77121
22764-77121
22765-77121
90093-00602
90095-01601
90095-02006
90099-02187
90099-02189
90099-04268
90099-08083
90099-13002
90099-13013
90201-10108
91111-40820
94115-40500
94511-00600
94512-00800
94951-00500

ILLUST NO. 1 OF 2(7503-7704)2D

Click highlighted areas on diagram

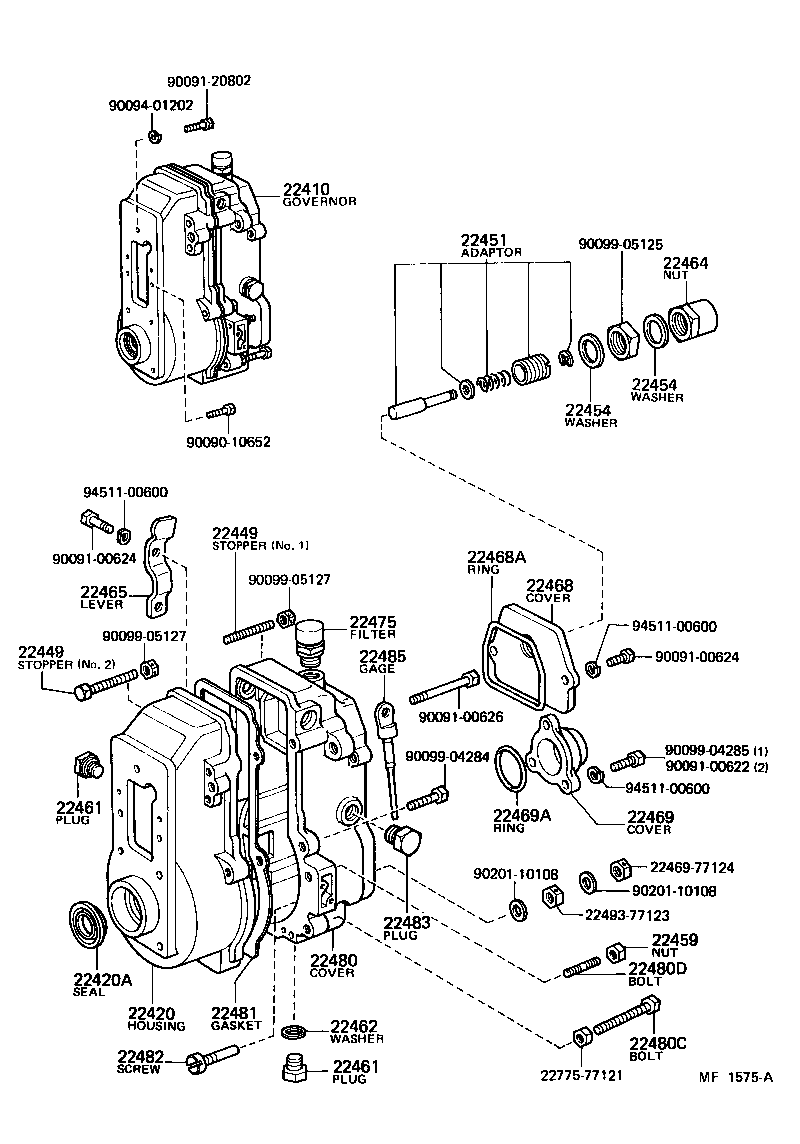

diagram 22410 22420 22420A 22449 22449 22451 22454 22454 22459 22461 22461 22462 22464 22465 22468 22468A 22469 2246977124 22469A 22475 22480 22480C 22480D 22481 22482 22483 22485 2249377123 2277577121 9009010652 9009100622 9009100624 9009100624 9009100626 9009120802 9009401202 9009904284 9009904285 9009905125 9009905127 9009905127 9020110108 9020110108 9451100600 9451100600 9451100600
Part # Description Qty Price
22410 - GOVERNOR ASSY, INJECTION PUMP MECHANICAL
22410-77121

2D..DA11#

 1
22410-77123

2D..DA11#

 1
22410-77124

2D..DA11#

 1
22420 - HOUSING SUB-ASSY, MECHANICAL GOVERNOR
22711-77121

2D..DA11#

 1
22401-77123

2D..DA11#

 1
22420A - SEAL, OIL
90099-05003

2D..DA11#

 1
90099-15002

2D..DA11#

 1
22449 - STOPPER
22776-77121

2D..DA11#

 1
22443-77123

2D..DA11#

NO.1

 1
22443-77124

2D..DA11#

NO.2

 1
22449 - STOPPER
22776-77121

2D..DA11#

 1
22443-77123

2D..DA11#

NO.1

 1
22443-77124

2D..DA11#

NO.2

 1
22451 - ADAPTER
22495-77123

2D..DA11#

 1
22454 - WASHER
90093-41601

2D..DA11#

 2
22454 - WASHER
90093-41601

2D..DA11#

 2
22459 - NUT
90099-05133

2D..DA11#

 1
22461 - PLUG, SCREW
22477-77123

2D..DA11#

MECHANICAL GOVERNOR SIDE

 2
22787-77121

2D..DA11#

 2
22446-47030

2D..DA11#

 1
22461 - PLUG, SCREW
22477-77123

2D..DA11#

MECHANICAL GOVERNOR SIDE

 2
22787-77121

2D..DA11#

 2
22446-47030

2D..DA11#

 1
22462 - WASHER, SEAL
22786-77121

2D..DA11#

 1
22447-47030

2D..DA11#

 1
22464 - NUT, CAP
22469-77123

2D..DA11#

 1
22465 - LEVER SUB-ASSY, ADJUSTING
22701-77123

2D..DA11#

 1
22701-77124

2D..DA11#

 1
22468 - COVER, PLATE
22458-77123

2D..DA11#

 1
22468A - O, RING
90099-14039

2D..DA11#

 1
22469 - COVER SUB-ASSY, PLATE
22459-77123

2D..DA11#

 1
22469A - O, RING
90099-14040

2D..DA11#

 1
22475 - FILTER SUB-ASSY
22450-77121

2D..DA11#

 1
22480 - COVER SUB-ASSY, GOVERNOR
22703-77121

2D..DA11#

 1
22703-77123

2D..DA11#

 1
22703-77124

2D..DA11#

 1
22480C - BOLT
90099-04286

2D..DA11#

 1
22480D - SCREW, ADJUSTING
22791-77121

2D..DA11#

 1
22776-77123

2D..DA11#

 1
22481 - GASKET
22442-77123

2D..DA11#

 1
22774-77121

2D..DA11#

 1
22482 - SCREW, STROKE ADJUSTING
22476-77123

2D..DA11#

 1
22483 - BUSHING, BEARING
22418-77124

2D..DA11#

 2
22485 - GAGE SUB-ASSY, GOVERNOR
22705-77123

2D..DA11#

 1
Common parts
22469-77124
22493-77123
22775-77121
90090-10652
90091-00622
90091-00624
90091-00626
90091-20802
90094-01202
90099-04284
90099-04285
90099-05125
90099-05127
90201-10108
94511-00600

ILLUST NO. 2 OF 2(7503-7704)2D

Click highlighted areas on diagram

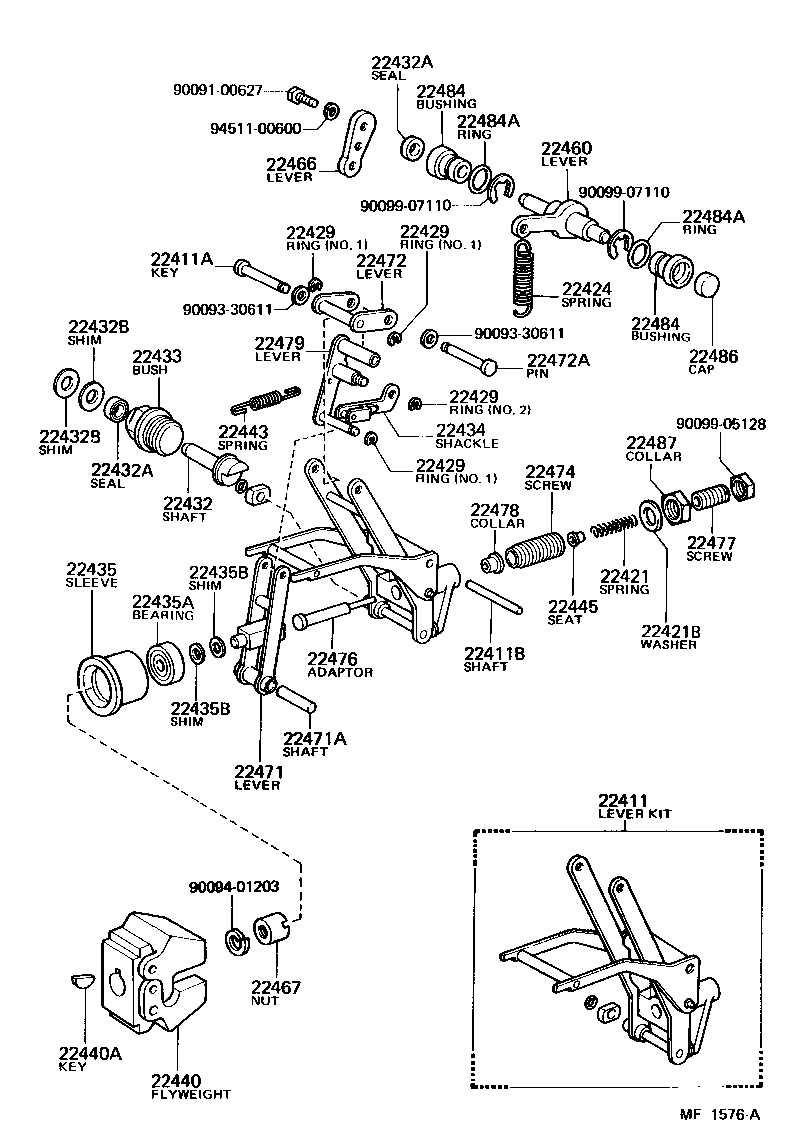

diagram 22411 22411A 22411B 22421 22421B 22424 22429 22429 22429 22429 22432 22432A 22432A 22432B 22432B 22433 22434 22435 22435A 22435B 22435B 22440 22440A 22443 22445 22460 22466 22467 22471 22471A 22472 22472A 22474 22476 22477 22478 22479 22484 22484 22484A 22484A 22486 22487 9009100627 9009330611 9009330611 9009401203 9009905128 9009907110 9009907110 9451100600
Part # Description Qty Price
22411 - LEVER KIT, CONTROL
22491-77123

2D..DA11#

 1
22491-77124

2D..DA11#

 1
22411A - PIN, CONNECTIONG
22423-77124

2D..DA11#

 1
22411B - SHAFT, MECHANICAL GOVERNOR
22429-77123

2D..DA11#

 1
22421 - SPRING, IDLING
22411-77123

2D..DA11#

 1
22421B - WASHER
90093-30505

2D..DA11#

T=0.5

 1
90093-30504

2D..DA11#

T=0.2

 1
22424 - SPRING, SAFETY
22449-77123

2D..DA11#

 1
22429 - RING, E
22499-77123

2D..DA11#

NO.2

 1
22498-77123

2D..DA11#

NO.1

 3
22429 - RING, E
22499-77123

2D..DA11#

NO.2

 1
22498-77123

2D..DA11#

NO.1

 3
22429 - RING, E
22499-77123

2D..DA11#

NO.2

 1
22498-77123

2D..DA11#

NO.1

 3
22429 - RING, E
22499-77123

2D..DA11#

NO.2

 1
22498-77123

2D..DA11#

NO.1

 3
22432 - SHAFT
22479-77123

2D..DA11#

 1
22479-77124

2D..DA11#

 1
22432A - SEAL, OIL
90099-15022

2D..DA11#

 2
22432A - SEAL, OIL
90099-15022

2D..DA11#

 2
22432B - SHIM
22788-77121

2D..DA11#

 2
22797-77121

2D..DA11#

T=1.00

 1
22785-77123

2D..DA11#

T=0.10

 1
22795-77121

2D..DA11#

T=0.30

 1
22796-77121

2D..DA11#

T=0.25

 1
22432B - SHIM
22788-77121

2D..DA11#

 2
22797-77121

2D..DA11#

T=1.00

 1
22785-77123

2D..DA11#

T=0.10

 1
22795-77121

2D..DA11#

T=0.30

 1
22796-77121

2D..DA11#

T=0.25

 1
22433 - BUSH, BEARING
22418-77123

2D..DA11#

 1
22434 - SHACKLE
22422-77123

2D..DA11#

 1
22435 - SLEEVE SUB-ASSY, FLY WEIGHT
22761-77121

2D..DA11#

 1
22405-77123

2D..DA11#

 1
22435A - BEARING
90099-10112

2D..DA11#

 1
22435B - SHIM
22797-77121

2D..DA11#

 1
22796-77121

2D..DA11#

 1
90093-31006

2D..DA11#

T=0.4

 1
22799-77121

2D..DA11#

 1
90093-31005

2D..DA11#

T=0.3

 1
90093-31004

2D..DA11#

T=0.2

 1
22798-77121

2D..DA11#

 1
22795-77121

2D..DA11#

 1
90093-31007

2D..DA11#

T=0.1

 1
90093-31008

2D..DA11#

T=1.0

 1
22435B - SHIM
22797-77121

2D..DA11#

 1
22796-77121

2D..DA11#

 1
90093-31006

2D..DA11#

T=0.4

 1
22799-77121

2D..DA11#

 1
90093-31005

2D..DA11#

T=0.3

 1
90093-31004

2D..DA11#

T=0.2

 1
22798-77121

2D..DA11#

 1
22795-77121

2D..DA11#

 1
90093-31007

2D..DA11#

T=0.1

 1
90093-31008

2D..DA11#

T=1.0

 1
22440 - FLYWEIGHT SUB-ASSY
22404-77123

2D..DA11#

 1
22720-77121

2D..DA11#

 1
22440A - KEY, WOODRUFF
90099-13002

2D..DA11#

 1
22443 - SPRING, START
22427-77123

2D..DA11#

 1
22445 - SEAT SUB-ASSY, SPRING
22497-77123

2D..DA11#

 1
22460 - LEVER SUB-ASSY, SUPPORT
22771-77121

2D..DA11#

 1
22409-77123

2D..DA11#

 1
22466 - LEVER, ADJUSTING
22445-77123

2D..DA11#

 1
22467 - NUT, ROUND
22451-77123

2D..DA11#

 1
22471 - LEVER SUB-ASSY, GUIDE
22467-77123

2D..DA11#

 1
22471A - SHAFT, LEVER SUPPORTING
22478-77123

2D..DA11#

 1
22472 - LEVER ASSY, CONTROL
22490-77123

2D..DA11#

 1
22472A - PIN, CONNECTING
22423-77123

2D..DA11#

 1
22474 - SCREW, ADAPTER
22496-77123

2D..DA11#

 1
22476 - ADAPTER
22433-77123

2D..DA11#

 1
22477 - SCREW, ADAPTER
22496-77124

2D..DA11#

 1
22478 - COLLAR
22431-77123

2D..DA11#

 1
22479 - LEVER SUB-ASSY, CONTROL
22490-77124

2D..DA11#

 1
22484 - BUSHING, LEVER
22468-77124

2D..DA11#

 1
22484 - BUSHING, LEVER
22468-77124

2D..DA11#

 1
22484A - RING, O
90099-14041

2D..DA11#

 2
22484A - RING, O
90099-14041

2D..DA11#

 2
22486 - CAP, LEVER
22457-77123

2D..DA11#

 1
22487 - NUT, ADAPTER LOCK
22494-77123

2D..DA11#

 1
Common parts
90091-00627
90093-30611
90094-01203
90099-05128
90099-07110
94511-00600
