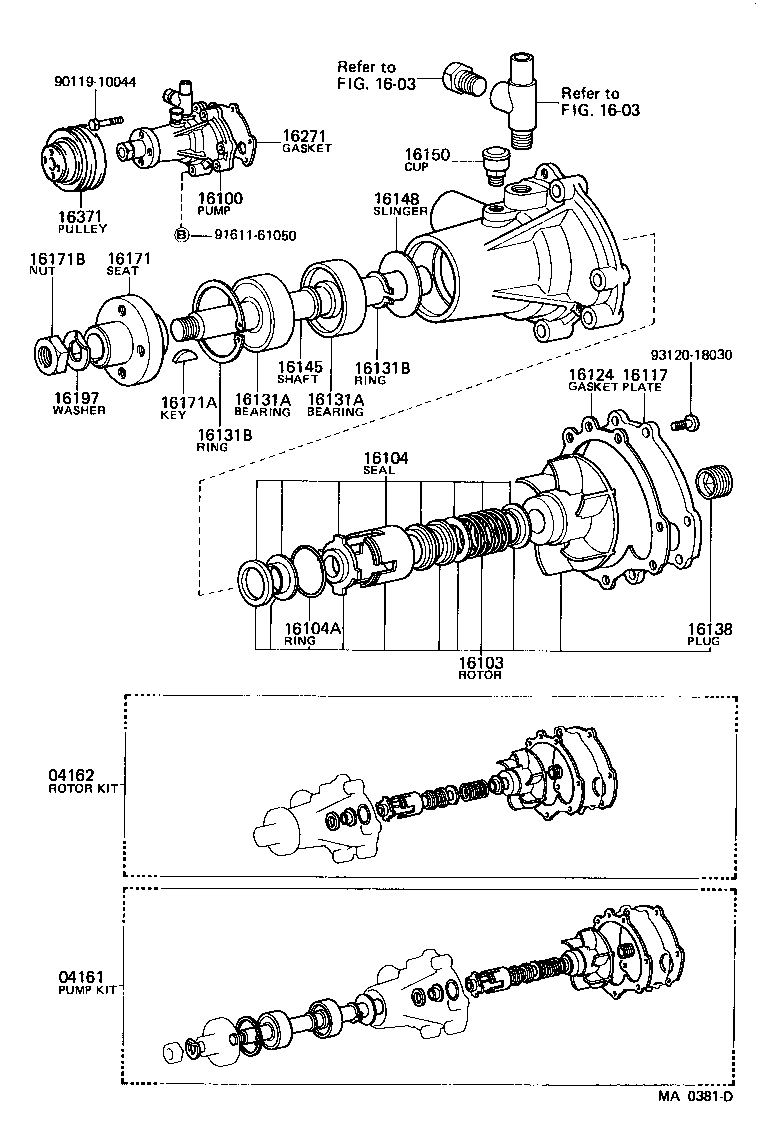

DA116L-H (1969)
Toyota Heavy Duty Truck
(6903-7310)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04161-76071 |
2D..DA11#,DB10# |
1 | ||
| 04161-77020 |
2D..DA11# |
1 | ||
| 04161-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162 - ROTOR KIT, WATER PUMP | ||||
| 04162-76071 |
2D..DA11#,DB105 |
1 | ||
| 04162-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04162-77010 |
2D..DA11# |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-60031 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76023 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-76013 |
2D..DA11#,DB10# |
1 | ||
| 16100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-60013 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-76014 |
2D..DA11#,DB10# |
1 | ||
| 16100-60032 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76024 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-77050 |
2D..DA11# |
1 | ||
| 16100-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16100-77051 |
2D..DA11# |
1 | ||
| 16103 - ROTOR SUB-ASSY, WATER PUMP | ||||
| 16103-76014 |
2D..DA11#,DB10# |
1 | ||
| 16103-76013 |
2D..DA11#,DB10# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-76011 |
2D..DA11#,DB10# |
1 | ||
| 16104-76012 |
2D..DA11#,DB10# |
1 | ||
| 16104-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16104A - RING, HOLE SNAP(FOR WATER PUMP SEAL SET) | ||||
| 16137-76010 |
2D..DA11#,DB10# |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16117-79420 |
2D..DA11#,DB10# |
1 | ||
| 16117-60013 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16124-76010 |
2D..DA11#,DB10# |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 97130-06304 |
2D..DA11#,DB10# FR,6304RS |
1 | ||
| 16142-77050 |
2D..DA11# FR |
1 | ||
| 90369-30009 |
F..FA100,11#,FB100,FC100 WPB16115F |
1 | ||
| 97130-06204 |
2D..DA11#,DB10# RR,6204RS |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 97130-06304 |
2D..DA11#,DB10# FR,6304RS |
1 | ||
| 16142-77050 |
2D..DA11# FR |
1 | ||
| 90369-30009 |
F..FA100,11#,FB100,FC100 WPB16115F |
1 | ||
| 97130-06204 |
2D..DA11#,DB10# RR,6204RS |
1 | ||
| 16131B - RING, RETAINER(FOR WATER PUMP BEARING) | ||||
| 16181-76013 |
2D..DA11#,DB10# FR |
1 | ||
| 16182-76013 |
2D..DA11#,DB10# RR |
1 | ||
| 16131B - RING, RETAINER(FOR WATER PUMP BEARING) | ||||
| 16181-76013 |
2D..DA11#,DB10# FR |
1 | ||
| 16182-76013 |
2D..DA11#,DB10# RR |
1 | ||
| 16138 - PLUG, WATER PUMP ROTOR END | ||||
| 16138-76013 |
2D..DA11#,DB10# |
1 | ||
| 16145 - SHAFT, WATER PUMP | ||||
| 16145-76013 |
2D..DA11#,DB10# |
1 | ||
| 16145-77040 |
2D..DA11# |
1 | ||
| 16148 - SLINGER, WATER PUMP | ||||
| 16148-76013 |
2D..DA11#,DB10# |
1 | ||
| 16150 - CUP, GREASE(FOR WATER PUMP) | ||||
| 16150-76013 |
2D..DA11#,DB10# |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16171-76013 |
2D..DA11#,DB10# |
1 | ||
| 16171-77040 |
2D..DA11# |
1 | ||
| 16171A - KEY, WOODRUFF(FOR WATER PUMP PULLEY SEAT) | ||||
| 90280-04007 |
2D..DA11#,DB10# |
1 | ||
| 16171B - NUT(FOR WATER PUMP PULLEY SEAT) | ||||
| 16199-77050 |
2D..DA11# |
1 | ||
| 94115-51800 |
2D..DA11# |
1 | ||
| 16199-76013 |
2D..DA11#,DB10# |
1 | ||
| 16197 - WASHER, CLAW(FOR WATER PUMP) | ||||
| 16197-77050 |
2D..DA11# |
1 | ||
| 16197-76013 |
2D..DA11#,DB10# |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-77010 |
2D..DA11#,DB10# |
1 | ||
| 16271-60030 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16271-77011 |
2D..DA11# |
1 | ||
| 16271-60031 |
F..FA100,11#,FC100 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16308-76020 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 90119-10044 | ||||
| 91611-61050 | ||||
| 93120-18030 | ||||
| Linked diagrams | ||||
| 1603 | ||||

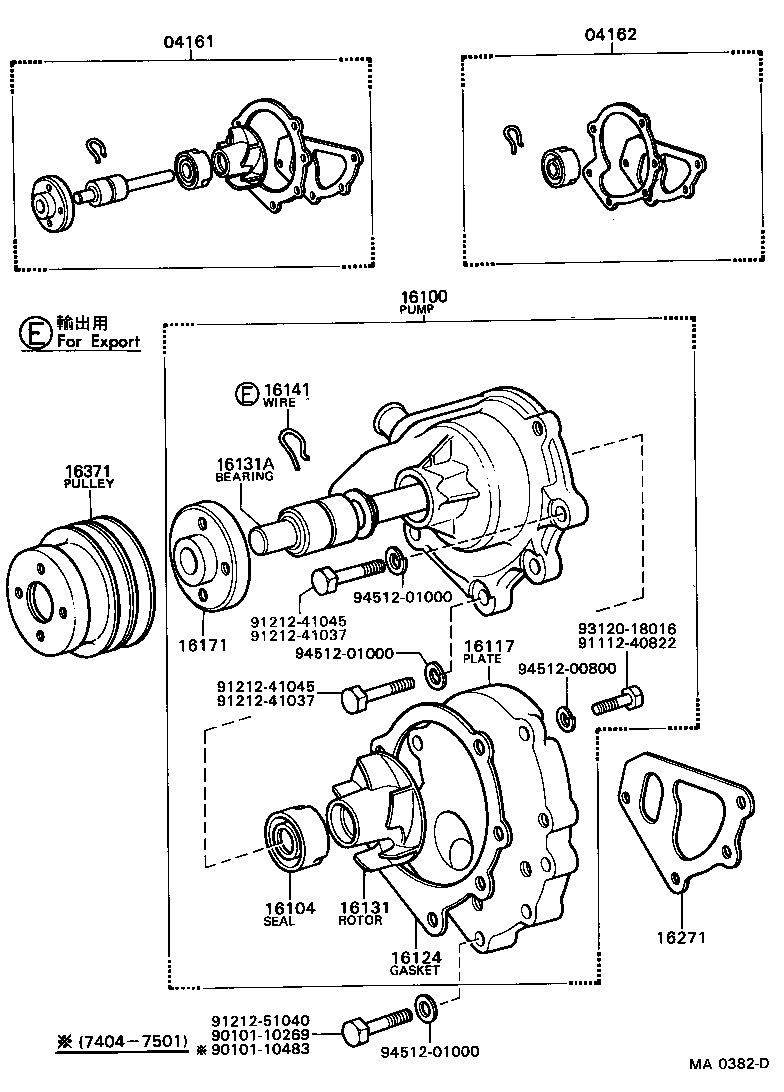

(6903-7501)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04161-76071 |
2D..DA11#,DB10# |
1 | ||
| 04161-77020 |
2D..DA11# |
1 | ||
| 04161-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162 - ROTOR KIT, WATER PUMP | ||||
| 04162-76071 |
2D..DA11#,DB105 |
1 | ||
| 04162-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04162-77010 |
2D..DA11# |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-60031 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76023 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-76013 |
2D..DA11#,DB10# |
1 | ||
| 16100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-60013 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-76014 |
2D..DA11#,DB10# |
1 | ||
| 16100-60032 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76024 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-77050 |
2D..DA11# |
1 | ||
| 16100-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16100-77051 |
2D..DA11# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-76011 |
2D..DA11#,DB10# |
1 | ||
| 16104-76012 |
2D..DA11#,DB10# |
1 | ||
| 16104-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16117-79420 |
2D..DA11#,DB10# |
1 | ||
| 16117-60013 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16124-76010 |
2D..DA11#,DB10# |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 97130-06304 |
2D..DA11#,DB10# FR,6304RS |
1 | ||
| 16142-77050 |
2D..DA11# FR |
1 | ||
| 90369-30009 |
F..FA100,11#,FB100,FC100 WPB16115F |
1 | ||
| 97130-06204 |
2D..DA11#,DB10# RR,6204RS |
1 | ||
| 16141 - WIRE, WATER PUMP BEARING RETAINING | ||||
| 16141-60010 |
F..FA100,11#,FC100 CAST IRON BODY |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16171-76013 |
2D..DA11#,DB10# |
1 | ||
| 16171-77040 |
2D..DA11# |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-77010 |
2D..DA11#,DB10# |
1 | ||
| 16271-60030 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16271-77011 |
2D..DA11# |
1 | ||
| 16271-60031 |
F..FA100,11#,FC100 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16308-76020 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 90101-10269 | ||||
| 90101-10483 | ||||
| 91112-40822 | ||||
| 91212-41037 | ||||
| 91212-41045 | ||||
| 91212-51040 | ||||
| 93120-18016 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||

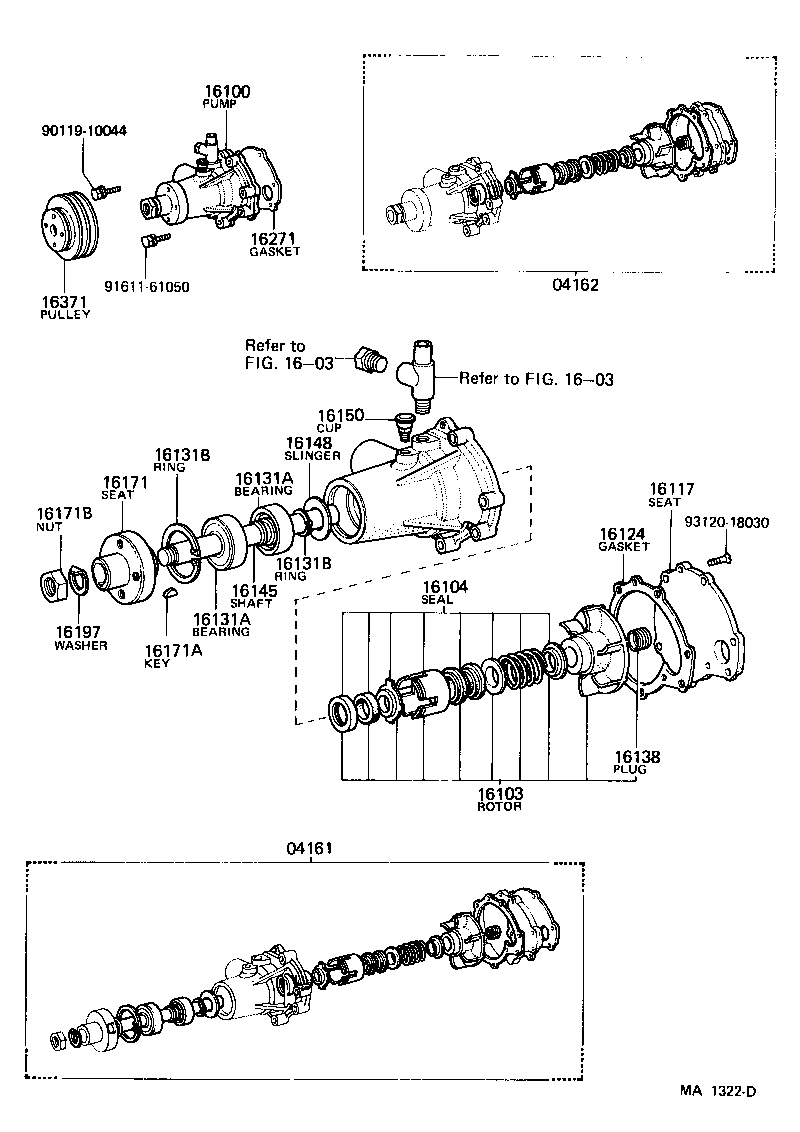

(7310-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04161-76071 |
2D..DA11#,DB10# |
1 | ||
| 04161-77020 |
2D..DA11# |
1 | ||
| 04161-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162 - ROTOR KIT, WATER PUMP | ||||
| 04162-76071 |
2D..DA11#,DB105 |
1 | ||
| 04162-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04162-77010 |
2D..DA11# |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-60031 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76023 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-76013 |
2D..DA11#,DB10# |
1 | ||
| 16100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-60013 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-76014 |
2D..DA11#,DB10# |
1 | ||
| 16100-60032 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76024 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-77050 |
2D..DA11# |
1 | ||
| 16100-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16100-77051 |
2D..DA11# |
1 | ||
| 16103 - ROTOR SUB-ASSY, WATER PUMP | ||||
| 16103-76014 |
2D..DA11#,DB10# |
1 | ||
| 16103-76013 |
2D..DA11#,DB10# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-76011 |
2D..DA11#,DB10# |
1 | ||
| 16104-76012 |
2D..DA11#,DB10# |
1 | ||
| 16104-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16117-79420 |
2D..DA11#,DB10# |
1 | ||
| 16117-60013 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16124-76010 |
2D..DA11#,DB10# |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 97130-06304 |
2D..DA11#,DB10# FR,6304RS |
1 | ||
| 16142-77050 |
2D..DA11# FR |
1 | ||
| 90369-30009 |
F..FA100,11#,FB100,FC100 WPB16115F |
1 | ||
| 97130-06204 |
2D..DA11#,DB10# RR,6204RS |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 97130-06304 |
2D..DA11#,DB10# FR,6304RS |
1 | ||
| 16142-77050 |
2D..DA11# FR |
1 | ||
| 90369-30009 |
F..FA100,11#,FB100,FC100 WPB16115F |
1 | ||
| 97130-06204 |
2D..DA11#,DB10# RR,6204RS |
1 | ||
| 16131B - RING, RETAINER(FOR WATER PUMP BEARING) | ||||
| 16181-76013 |
2D..DA11#,DB10# FR |
1 | ||
| 16182-76013 |
2D..DA11#,DB10# RR |
1 | ||
| 16131B - RING, RETAINER(FOR WATER PUMP BEARING) | ||||
| 16181-76013 |
2D..DA11#,DB10# FR |
1 | ||
| 16182-76013 |
2D..DA11#,DB10# RR |
1 | ||
| 16138 - PLUG, WATER PUMP ROTOR END | ||||
| 16138-76013 |
2D..DA11#,DB10# |
1 | ||
| 16145 - SHAFT, WATER PUMP | ||||
| 16145-76013 |
2D..DA11#,DB10# |
1 | ||
| 16145-77040 |
2D..DA11# |
1 | ||
| 16148 - SLINGER, WATER PUMP | ||||
| 16148-76013 |
2D..DA11#,DB10# |
1 | ||
| 16150 - CUP, GREASE(FOR WATER PUMP) | ||||
| 16150-76013 |
2D..DA11#,DB10# |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16171-76013 |
2D..DA11#,DB10# |
1 | ||
| 16171-77040 |
2D..DA11# |
1 | ||
| 16171A - KEY, WOODRUFF(FOR WATER PUMP PULLEY SEAT) | ||||
| 90280-04007 |
2D..DA11#,DB10# |
1 | ||
| 16171B - NUT(FOR WATER PUMP PULLEY SEAT) | ||||
| 16199-77050 |
2D..DA11# |
1 | ||
| 94115-51800 |
2D..DA11# |
1 | ||
| 16199-76013 |
2D..DA11#,DB10# |
1 | ||
| 16197 - WASHER, CLAW(FOR WATER PUMP) | ||||
| 16197-77050 |
2D..DA11# |
1 | ||
| 16197-76013 |
2D..DA11#,DB10# |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-77010 |
2D..DA11#,DB10# |
1 | ||
| 16271-60030 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16271-77011 |
2D..DA11# |
1 | ||
| 16271-60031 |
F..FA100,11#,FC100 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16308-76020 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 90119-10044 | ||||
| 91611-61050 | ||||
| 93120-18030 | ||||
| Linked diagrams | ||||
| 1603 | ||||

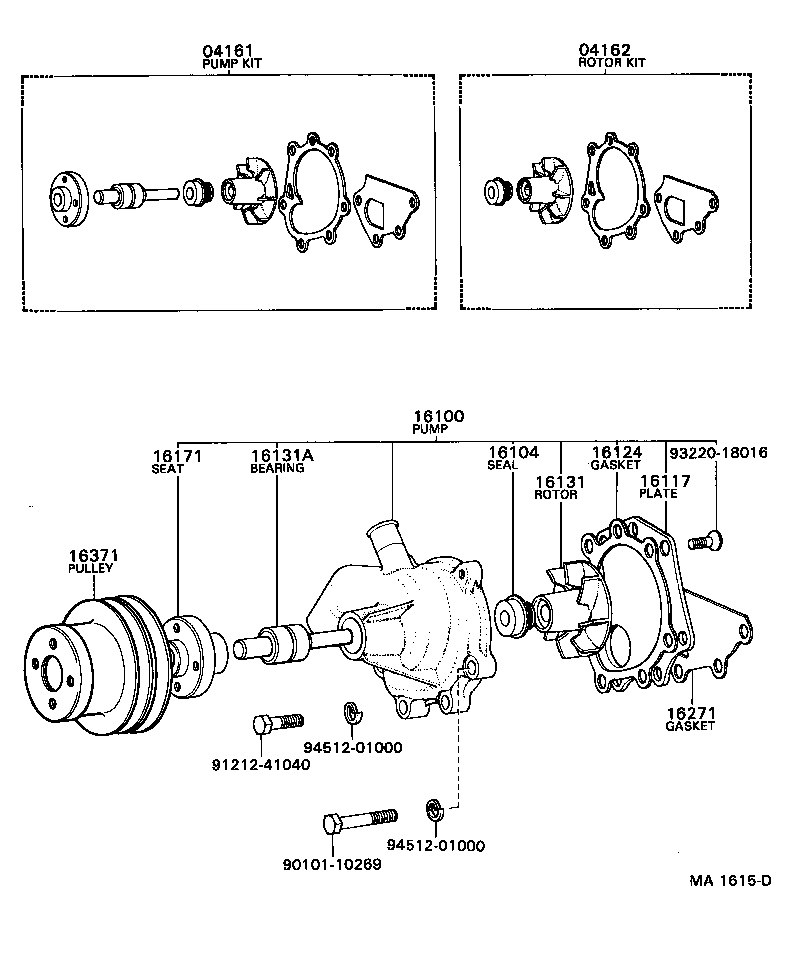

(7501-8207)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04161-76071 |
2D..DA11#,DB10# |
1 | ||
| 04161-77020 |
2D..DA11# |
1 | ||
| 04161-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162 - ROTOR KIT, WATER PUMP | ||||
| 04162-76071 |
2D..DA11#,DB105 |
1 | ||
| 04162-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04162-77010 |
2D..DA11# |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-60031 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76023 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-76013 |
2D..DA11#,DB10# |
1 | ||
| 16100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-60013 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-76014 |
2D..DA11#,DB10# |
1 | ||
| 16100-60032 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76024 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-77050 |
2D..DA11# |
1 | ||
| 16100-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16100-77051 |
2D..DA11# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-76011 |
2D..DA11#,DB10# |
1 | ||
| 16104-76012 |
2D..DA11#,DB10# |
1 | ||
| 16104-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16117-79420 |
2D..DA11#,DB10# |
1 | ||
| 16117-60013 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16124-76010 |
2D..DA11#,DB10# |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 97130-06304 |
2D..DA11#,DB10# FR,6304RS |
1 | ||
| 16142-77050 |
2D..DA11# FR |
1 | ||
| 90369-30009 |
F..FA100,11#,FB100,FC100 WPB16115F |
1 | ||
| 97130-06204 |
2D..DA11#,DB10# RR,6204RS |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16171-76013 |
2D..DA11#,DB10# |
1 | ||
| 16171-77040 |
2D..DA11# |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-77010 |
2D..DA11#,DB10# |
1 | ||
| 16271-60030 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16271-77011 |
2D..DA11# |
1 | ||
| 16271-60031 |
F..FA100,11#,FC100 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16308-76020 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 90101-10269 | ||||
| 91212-41040 | ||||
| 93220-18016 | ||||
| 94512-01000 | ||||

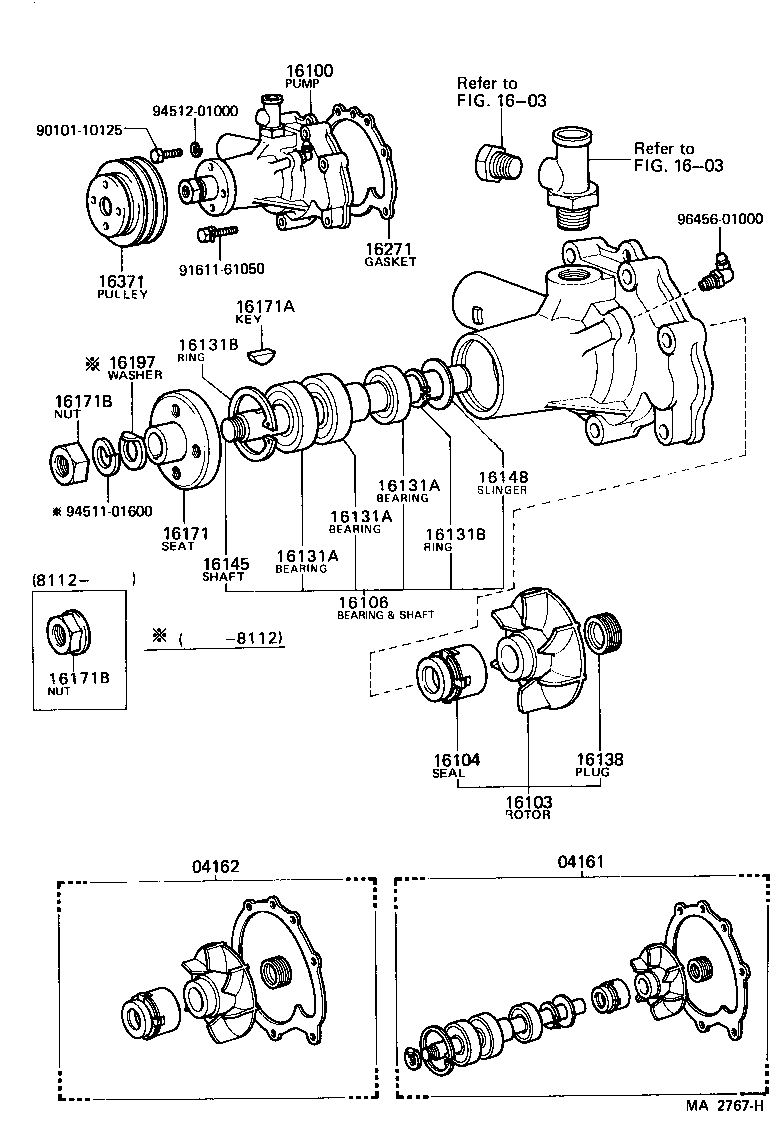

(7704- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04161 - PUMP KIT, WATER | ||||
| 04161-60100 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04161-76071 |
2D..DA11#,DB10# |
1 | ||
| 04161-77020 |
2D..DA11# |
1 | ||
| 04161-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162 - ROTOR KIT, WATER PUMP | ||||
| 04162-76071 |
2D..DA11#,DB105 |
1 | ||
| 04162-76070 |
2D..DA11#,DB10# |
1 | ||
| 04162-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04162-77010 |
2D..DA11# |
1 | ||
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-60031 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76023 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-76013 |
2D..DA11#,DB10# |
1 | ||
| 16100-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-60013 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16100-76014 |
2D..DA11#,DB10# |
1 | ||
| 16100-60032 |
F..FA100,11#,FC100 W/O THERMOSTAT |
1 | ||
| 16100-76024 |
2D..DA11#,DB10# OVER SIZE FAN |
1 | ||
| 16100-77050 |
2D..DA11# |
1 | ||
| 16100-77060 |
2D..DA11# W/O THERMOSTAT |
1 | ||
| 16100-77051 |
2D..DA11# |
1 | ||
| 16103 - ROTOR SUB-ASSY, WATER PUMP | ||||
| 16103-76014 |
2D..DA11#,DB10# |
1 | ||
| 16103-76013 |
2D..DA11#,DB10# |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-76011 |
2D..DA11#,DB10# |
1 | ||
| 16104-76012 |
2D..DA11#,DB10# |
1 | ||
| 16104-60080 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16106 - BEARING & SHAFT SUB-ASSY, WATER PUMP | ||||
| 16106-77040 |
2D..DA11# |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 97130-06304 |
2D..DA11#,DB10# FR,6304RS |
1 | ||
| 16142-77050 |
2D..DA11# FR |
1 | ||
| 90369-30009 |
F..FA100,11#,FB100,FC100 WPB16115F |
1 | ||
| 97130-06204 |
2D..DA11#,DB10# RR,6204RS |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 97130-06304 |
2D..DA11#,DB10# FR,6304RS |
1 | ||
| 16142-77050 |
2D..DA11# FR |
1 | ||
| 90369-30009 |
F..FA100,11#,FB100,FC100 WPB16115F |
1 | ||
| 97130-06204 |
2D..DA11#,DB10# RR,6204RS |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 97130-06304 |
2D..DA11#,DB10# FR,6304RS |
1 | ||
| 16142-77050 |
2D..DA11# FR |
1 | ||
| 90369-30009 |
F..FA100,11#,FB100,FC100 WPB16115F |
1 | ||
| 97130-06204 |
2D..DA11#,DB10# RR,6204RS |
1 | ||
| 16131B - RING, RETAINER(FOR WATER PUMP BEARING) | ||||
| 16181-76013 |
2D..DA11#,DB10# FR |
1 | ||
| 16182-76013 |
2D..DA11#,DB10# RR |
1 | ||
| 16131B - RING, RETAINER(FOR WATER PUMP BEARING) | ||||
| 16181-76013 |
2D..DA11#,DB10# FR |
1 | ||
| 16182-76013 |
2D..DA11#,DB10# RR |
1 | ||
| 16138 - PLUG, WATER PUMP ROTOR END | ||||
| 16138-76013 |
2D..DA11#,DB10# |
1 | ||
| 16145 - SHAFT, WATER PUMP | ||||
| 16145-76013 |
2D..DA11#,DB10# |
1 | ||
| 16145-77040 |
2D..DA11# |
1 | ||
| 16148 - SLINGER, WATER PUMP | ||||
| 16148-76013 |
2D..DA11#,DB10# |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-60012 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16171-76013 |
2D..DA11#,DB10# |
1 | ||
| 16171-77040 |
2D..DA11# |
1 | ||
| 16171A - KEY, WOODRUFF(FOR WATER PUMP PULLEY SEAT) | ||||
| 90280-04007 |
2D..DA11#,DB10# |
1 | ||
| 16171B - NUT(FOR WATER PUMP PULLEY SEAT) | ||||
| 16199-77050 |
2D..DA11# |
1 | ||
| 94115-51800 |
2D..DA11# |
1 | ||
| 16199-76013 |
2D..DA11#,DB10# |
1 | ||
| 16171B - NUT(FOR WATER PUMP PULLEY SEAT) | ||||
| 16199-77050 |
2D..DA11# |
1 | ||
| 94115-51800 |
2D..DA11# |
1 | ||
| 16199-76013 |
2D..DA11#,DB10# |
1 | ||
| 16197 - WASHER, CLAW(FOR WATER PUMP) | ||||
| 16197-77050 |
2D..DA11# |
1 | ||
| 16197-76013 |
2D..DA11#,DB10# |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-77010 |
2D..DA11#,DB10# |
1 | ||
| 16271-60030 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16271-77011 |
2D..DA11# |
1 | ||
| 16271-60031 |
F..FA100,11#,FC100 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-60070 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 16308-76020 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 90101-10125 | ||||
| 91611-61050 | ||||
| 94511-01600 | ||||
| 94512-01000 | ||||
| 96456-01000 | ||||
| Linked diagrams | ||||
| 1603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
