DA116L-H (1969)
Toyota Heavy Duty Truck
(6903-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

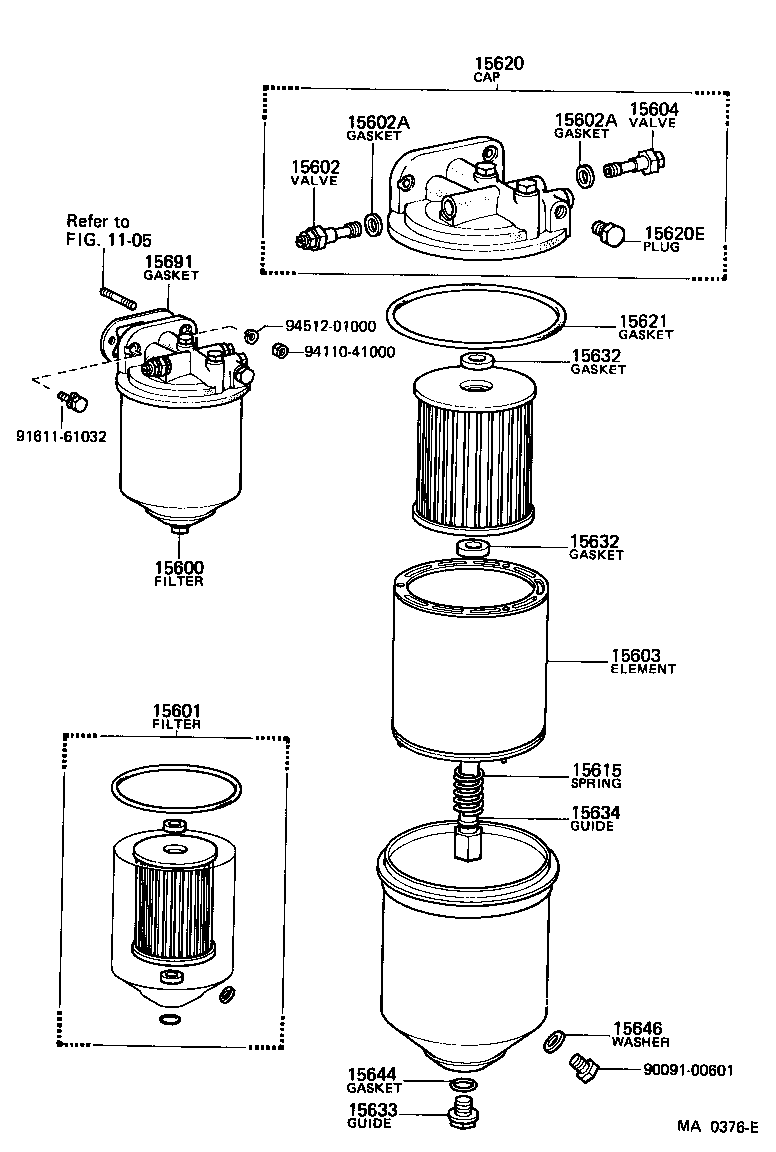

| 15600 - FILTER ASSY, OIL | ||||
| 15600-76013 |
2D..DA11#,DB10# |
1 | ||
| 15600-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15600-77020 |
2D..DA11# |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
F..FA100,11#,FC100 |
1 | ||
| 04152-76080 |
2D..DA11#,DB10# |
1 | ||
| 15600-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04152-77010 |
2D..DA11# |
1 | ||
| 15602 - VALVE SUB-ASSY, OIL PRESSURE | ||||
| 15602-76012 |
2D..DA11#,DB10# |
1 | ||
| 15602A - GASKET, OIL PRESSURE VALVE | ||||
| 15627-76010 |
2D..DA11#,DB10# |
2 | ||
| 90099-01010 |
2D..DA11# |
1 | ||
| 15602A - GASKET, OIL PRESSURE VALVE | ||||
| 15627-76010 |
2D..DA11#,DB10# |
2 | ||
| 90099-01010 |
2D..DA11# |
1 | ||
| 15603 - ELEMENT SUB-ASSY, OIL FILTER, OUTER | ||||
| 15603-76012 |
2D..DA11#,DB10# |
1 | ||
| 15603-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15604-76010 |
2D..DA11#,DB10# |
1 | ||
| 15615 - SPRING, OIL FILTER ELEMENT SUPPORT, OUTER | ||||
| 15615-76012 |
2D..DA11#,DB10# |
1 | ||
| 15631-77020 |
2D..DA11# |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-77020 |
2D..DA11# |
1 | ||
| 15620-76013 |
2D..DA11#,DB10# |
1 | ||
| 15620E - PLUG(FOR OIL FILTER CAP) | ||||
| 15643-77010 |
2D..DA11#,DB10# |
4 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 90430-99070 |
2D..DA11#,DB10# |
1 | ||
| 15621-41010 |
F..FA100,11#,FC100 |
1 | ||
| 15621-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
2D..DA11#,DB10# |
2 | ||
| 15632-77020 |
2D..DA11# |
2 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
2D..DA11#,DB10# |
2 | ||
| 15632-77020 |
2D..DA11# |
2 | ||
| 15633 - GUIDE, OIL FILTER CARTRIDGE | ||||
| 15633-77020 |
2D..DA11# |
1 | ||
| 15651-76012 |
2D..DA11#,DB10# |
1 | ||
| 15634 - GUIDE, OIL FILTER CARTRIDGE, OUTER | ||||
| 15633-76012 |
2D..DA11#,DB10# |
1 | ||
| 15633-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15634-77020 |
2D..DA11# |
1 | ||
| 15644 - GASKET, OIL FILTER CARTRIDGE GUIDE | ||||
| 15644-76012 |
2D..DA11#,DB10# |
1 | ||
| 96710-01019 |
2D..DA11# |
1 | ||
| 15646 - WASHER OR GASKET, OIL FILTER DRAIN COCK | ||||
| 90099-01010 |
2D..DA11#,DB10# |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-60010 |
F..FA100,11#,FC100 |
1 | ||
| 15691-77011 |
2D..DA11# |
1 | ||
| 15691-77010 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 90091-00601 | ||||
| 91611-61032 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 1105 | ||||

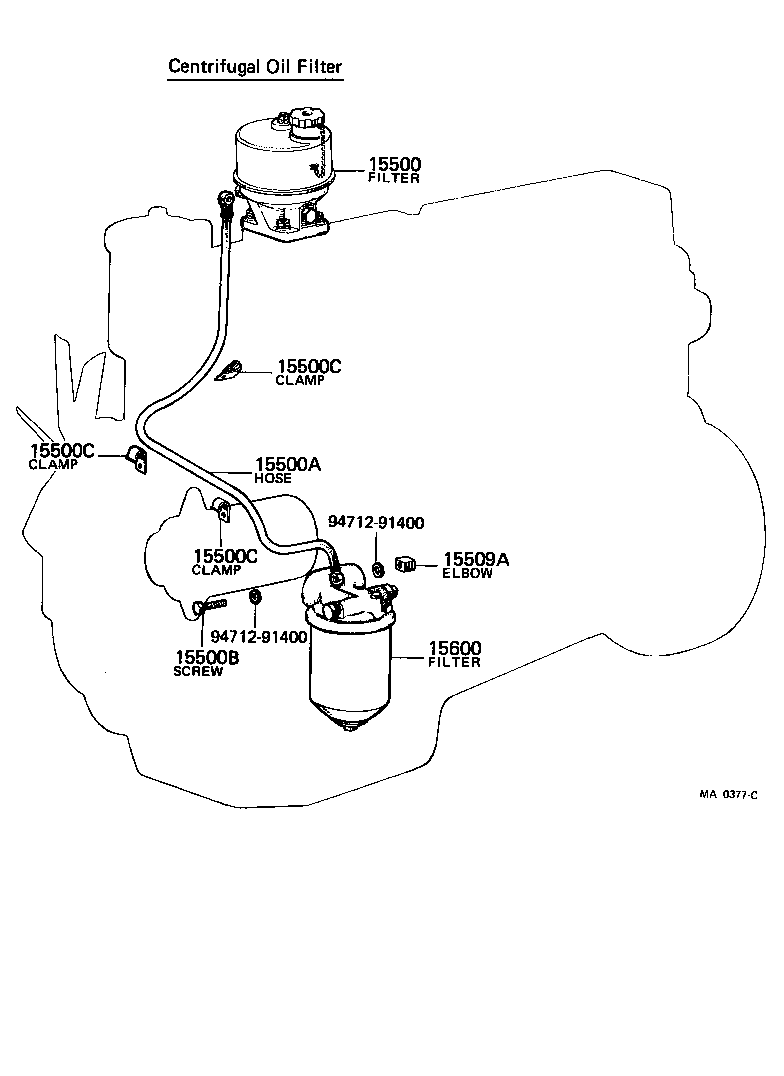

ILLUST NO. 1 OF 3(6903-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15500 - FILTER ASSY, OIL, CENTRIFUGAL | ||||
| 15500-76010 |
2D..DA11# |
1 | ||
| 15500-77011 |
2D..DA11# |
1 | ||
| 15500-77010 |
2D..DA11# |
1 | ||
| 15500A - HOSE, OIL(FOR CENTRIFUGAL OIL FILTER) | ||||
| 90923-02004 |
2D..DA11# |
1 | ||
| 15500B - SCREW(FOR CENTRIFUGAL OIL FILTER HOSE SETTING) | ||||
| 90401-14060 |
2D..DA11# |
1 | ||
| 15500C - CLAMP(FOR CENTRIFUGAL OIL FILTER HOSE) | ||||
| 90461-10675 |
2D..DA11# |
1 | ||
| 90461-12208 |
2D..DA11# |
2 | ||
| 15500C - CLAMP(FOR CENTRIFUGAL OIL FILTER HOSE) | ||||
| 90461-10675 |
2D..DA11# |
1 | ||
| 90461-12208 |
2D..DA11# |
2 | ||
| 15500C - CLAMP(FOR CENTRIFUGAL OIL FILTER HOSE) | ||||
| 90461-10675 |
2D..DA11# |
1 | ||
| 90461-12208 |
2D..DA11# |
2 | ||
| 15509A - ELBOW(FOR OIL FILTER OIL COCK) | ||||
| 90407-14015 |
2D..DA11# |
1 | ||
| 15600 - FILTER ASSY, OIL | ||||
| 15600-76013 |
2D..DA11#,DB10# |
1 | ||
| 15600-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15600-77020 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 94712-91400 | ||||

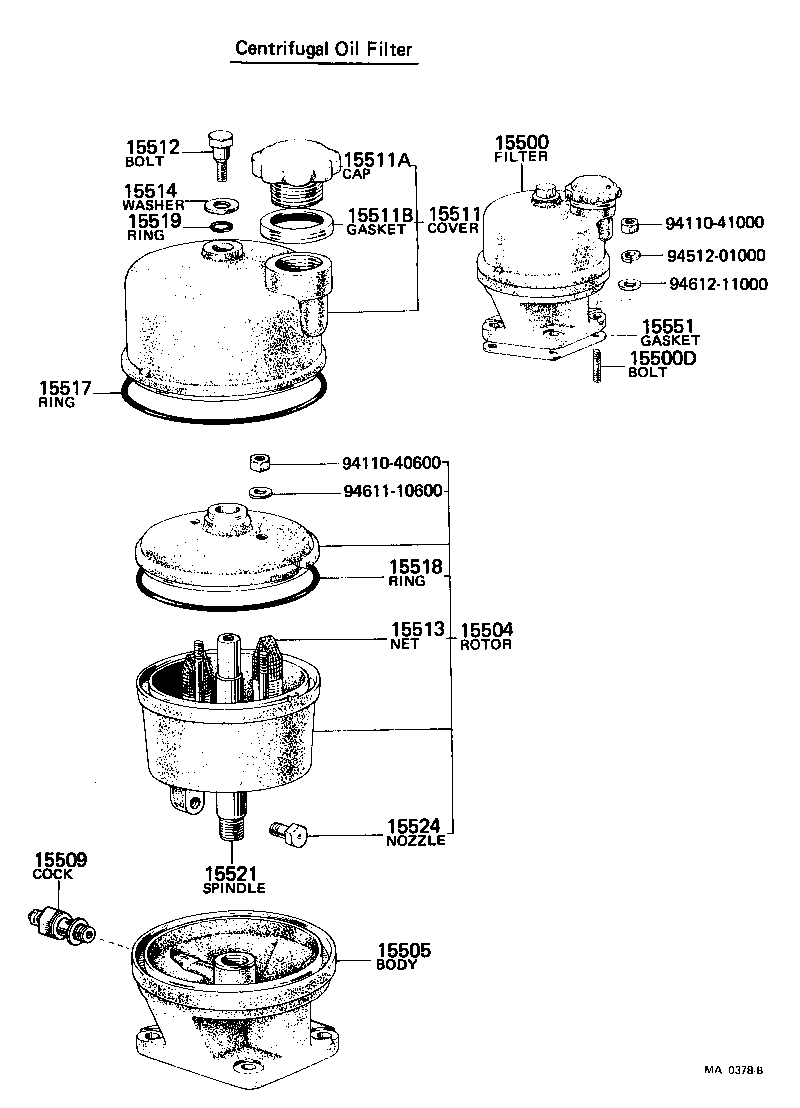

ILLUST NO. 2 OF 3(6903-7005)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15500 - FILTER ASSY, OIL, CENTRIFUGAL | ||||
| 15500-76010 |
2D..DA11# |
1 | ||
| 15500-77011 |
2D..DA11# |
1 | ||
| 15500-77010 |
2D..DA11# |
1 | ||
| 15500D - BOLT, STUD(FOR CENTRIFUGAL OIL FILTER SETTING) | ||||
| 90116-10070 |
2D..DA11# |
4 | ||
| 15504 - ROTOR SUB-ASSY, CENTRIFUGAL OIL FILTER | ||||
| 15504-76010 |
2D..DA11# |
1 | ||
| 15504-76011 |
2D..DA11# |
1 | ||
| 15504-76012 |
2D..DA11# |
1 | ||
| 15504-77010 |
2D..DA11# |
1 | ||
| 15505 - BODY SUB-ASSY, CENTRIFUGAL OIL FILTER | ||||
| 15505-76011 |
2D..DA11# |
1 | ||
| 15505-77010 |
2D..DA11# |
1 | ||
| 15505-76012 |
2D..DA11# |
1 | ||
| 15505-76010 |
2D..DA11# |
1 | ||
| 15509 - COCK SUB-ASSY, OIL FILTER | ||||
| 15509-76010 |
2D..DA11# |
1 | ||
| 15511 - COVER, CENTRIFUGAL OIL FILTER | ||||
| 15506-76012 |
2D..DA11# |
1 | ||
| 15506-76011 |
2D..DA11# |
1 | ||
| 15506-77010 |
2D..DA11# |
1 | ||
| 15506-76013 |
2D..DA11# |
1 | ||
| 15511A - CAP, CENTRIFUGAL OIL FILTER FILLER | ||||
| 15533-76011 |
2D..DA11# |
1 | ||
| 15533-76010 |
2D..DA11# |
1 | ||
| 04115-76060 |
2D..DA11# |
1 | ||
| 15511B - GASKET, CENTRIFUGAL OIL FILTER FILLER CAP | ||||
| 12109-76010 |
2D..DA11# |
1 | ||
| 15512 - BOLT(FOR CENTRIFUGAL OIL FILTER COVER SETTING) | ||||
| 15512-76010 |
2D..DA11# |
1 | ||
| 15513 - NET, WIRE(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15513-76010 |
2D..DA11# |
2 | ||
| 15514 - WASHER(FOR CENTRIFUGAL OIL FILTER COVER SETTING) | ||||
| 15514-76010 |
2D..DA11# |
1 | ||
| 15517 - RING, O, NO.1(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15517-76010 |
2D..DA11# |
1 | ||
| 15518 - RING, O, NO.2(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15518-76010 |
2D..DA11# |
1 | ||
| 15519 - RING, O, NO.3(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15519-76010 |
2D..DA11# |
1 | ||
| 15521 - SPINDLE, CENTRIFUGAL OIL FILTER | ||||
| 15521-77010 |
2D..DA11# |
1 | ||
| 15521-76010 |
2D..DA11# |
1 | ||
| 15521-76011 |
2D..DA11# |
1 | ||
| 15524 - NOZZLE, CENTRIFUGAL OIL FILTER ROTOR | ||||
| 15524-76010 |
2D..DA11# |
2 | ||
| 15524-76011 |
2D..DA11# |
1 | ||
| 15551 - GASKET, CENTRIFUGAL OIL FILTER | ||||
| 15551-77011 |
2D..DA11# |
1 | ||
| 15551-76010 |
2D..DA11# |
1 | ||
| 15551-77010 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94611-10600 | ||||
| 94612-11000 | ||||

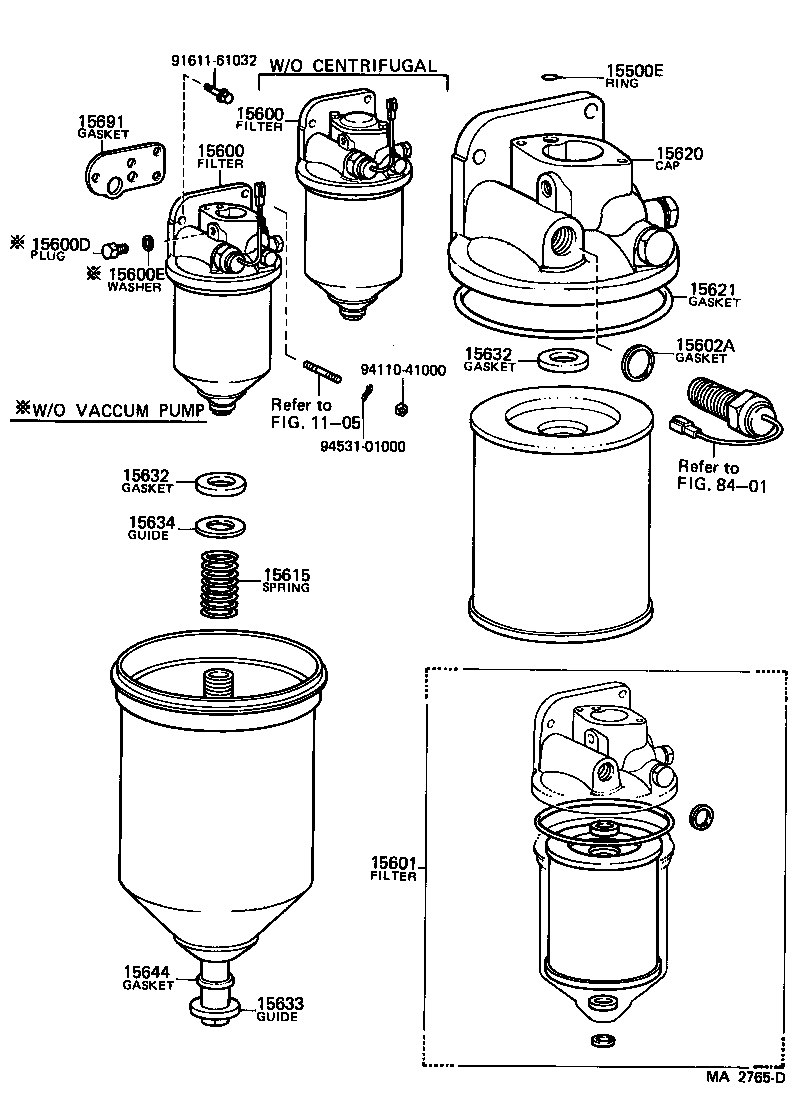

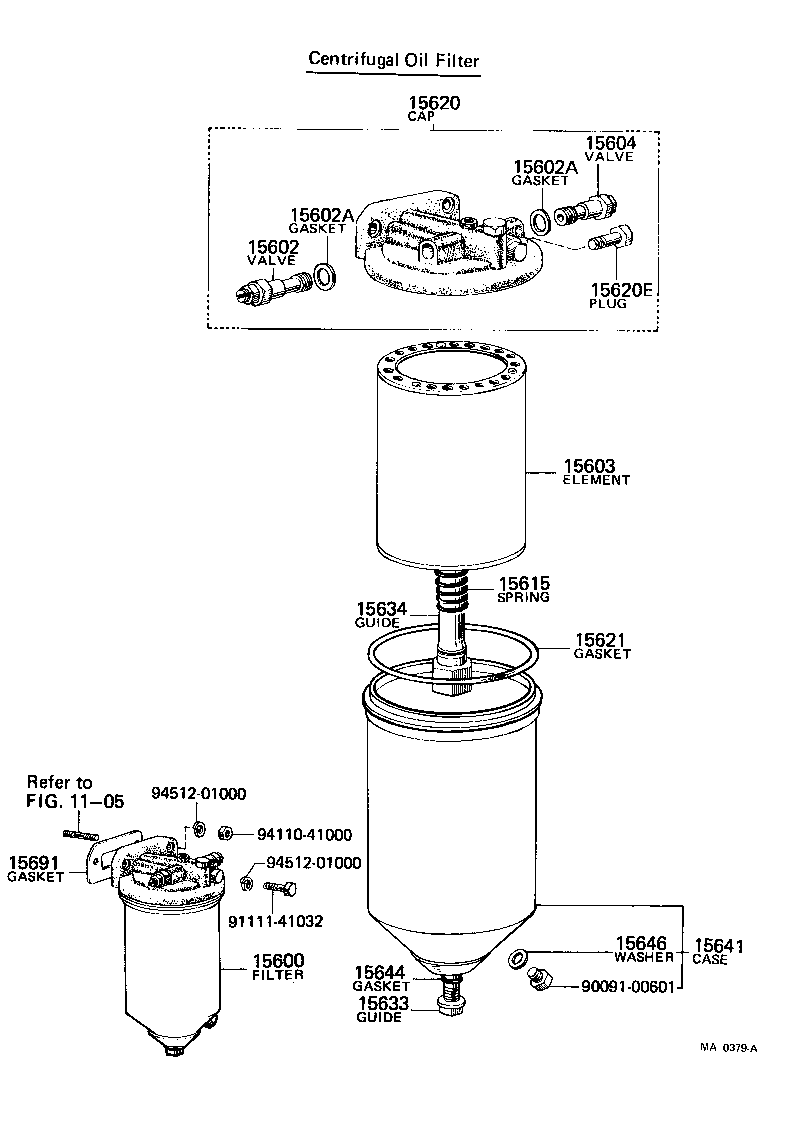

ILLUST NO. 3 OF 3(6903-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600 - FILTER ASSY, OIL | ||||
| 15600-76013 |
2D..DA11#,DB10# |
1 | ||
| 15600-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15600-77020 |
2D..DA11# |
1 | ||
| 15602 - VALVE SUB-ASSY, OIL PRESSURE | ||||
| 15602-76012 |
2D..DA11#,DB10# |
1 | ||
| 15602A - GASKET, OIL PRESSURE VALVE | ||||
| 15627-76010 |
2D..DA11#,DB10# |
2 | ||
| 90099-01010 |
2D..DA11# |
1 | ||
| 15602A - GASKET, OIL PRESSURE VALVE | ||||
| 15627-76010 |
2D..DA11#,DB10# |
2 | ||
| 90099-01010 |
2D..DA11# |
1 | ||
| 15603 - ELEMENT SUB-ASSY, OIL FILTER, OUTER | ||||
| 15603-76012 |
2D..DA11#,DB10# |
1 | ||
| 15603-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15604-76010 |
2D..DA11#,DB10# |
1 | ||
| 15615 - SPRING, OIL FILTER ELEMENT SUPPORT, OUTER | ||||
| 15615-76012 |
2D..DA11#,DB10# |
1 | ||
| 15631-77020 |
2D..DA11# |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-77020 |
2D..DA11# |
1 | ||
| 15620-76013 |
2D..DA11#,DB10# |
1 | ||
| 15620E - PLUG(FOR OIL FILTER CAP) | ||||
| 15643-77010 |
2D..DA11#,DB10# |
4 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 90430-99070 |
2D..DA11#,DB10# |
1 | ||
| 15621-41010 |
F..FA100,11#,FC100 |
1 | ||
| 15621-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15633 - GUIDE, OIL FILTER CARTRIDGE | ||||
| 15633-77020 |
2D..DA11# |
1 | ||
| 15651-76012 |
2D..DA11#,DB10# |
1 | ||
| 15634 - GUIDE, OIL FILTER CARTRIDGE, OUTER | ||||
| 15633-76012 |
2D..DA11#,DB10# |
1 | ||
| 15633-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15634-77020 |
2D..DA11# |
1 | ||
| 15641 - CASE, OIL FILTER | ||||
| 15641-76012 |
2D..DA11#,DB10# |
1 | ||
| 15644 - GASKET, OIL FILTER CARTRIDGE GUIDE | ||||
| 15644-76012 |
2D..DA11#,DB10# |
1 | ||
| 96710-01019 |
2D..DA11# |
1 | ||
| 15646 - WASHER OR GASKET, OIL FILTER DRAIN COCK | ||||
| 90099-01010 |
2D..DA11#,DB10# |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-60010 |
F..FA100,11#,FC100 |
1 | ||
| 15691-77011 |
2D..DA11# |
1 | ||
| 15691-77010 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 90091-00601 | ||||
| 91111-41032 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 1105 | ||||

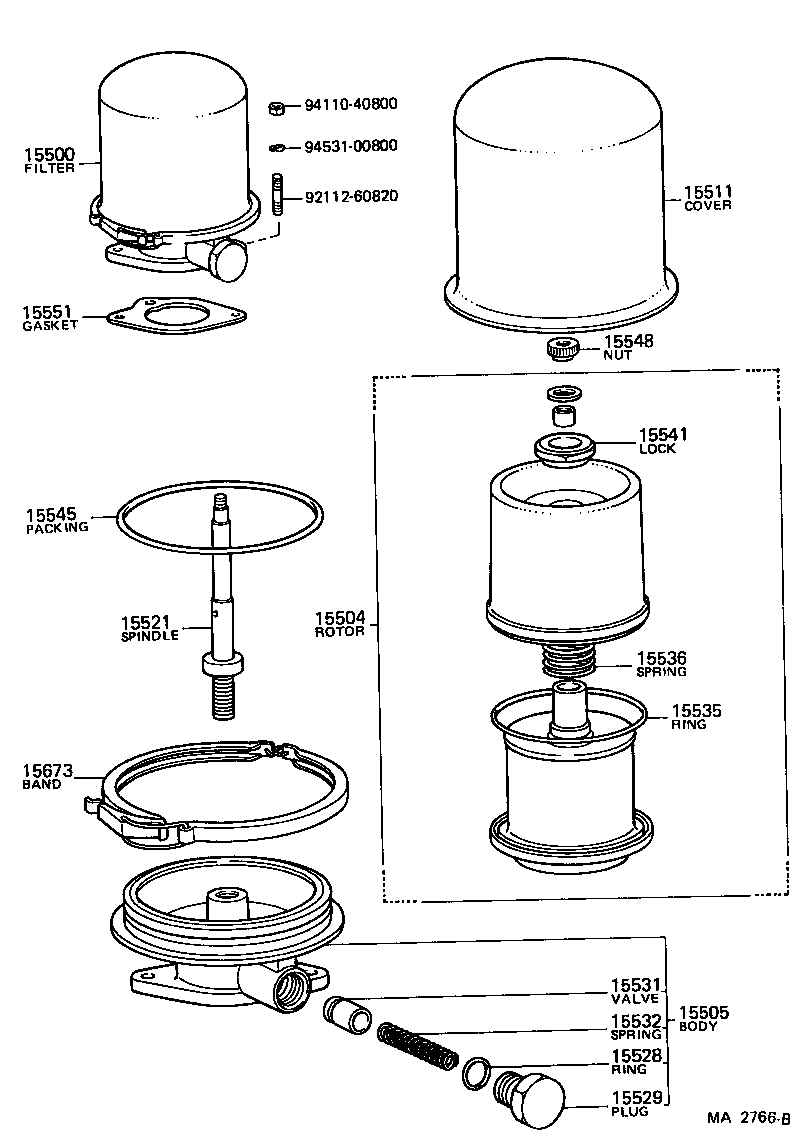

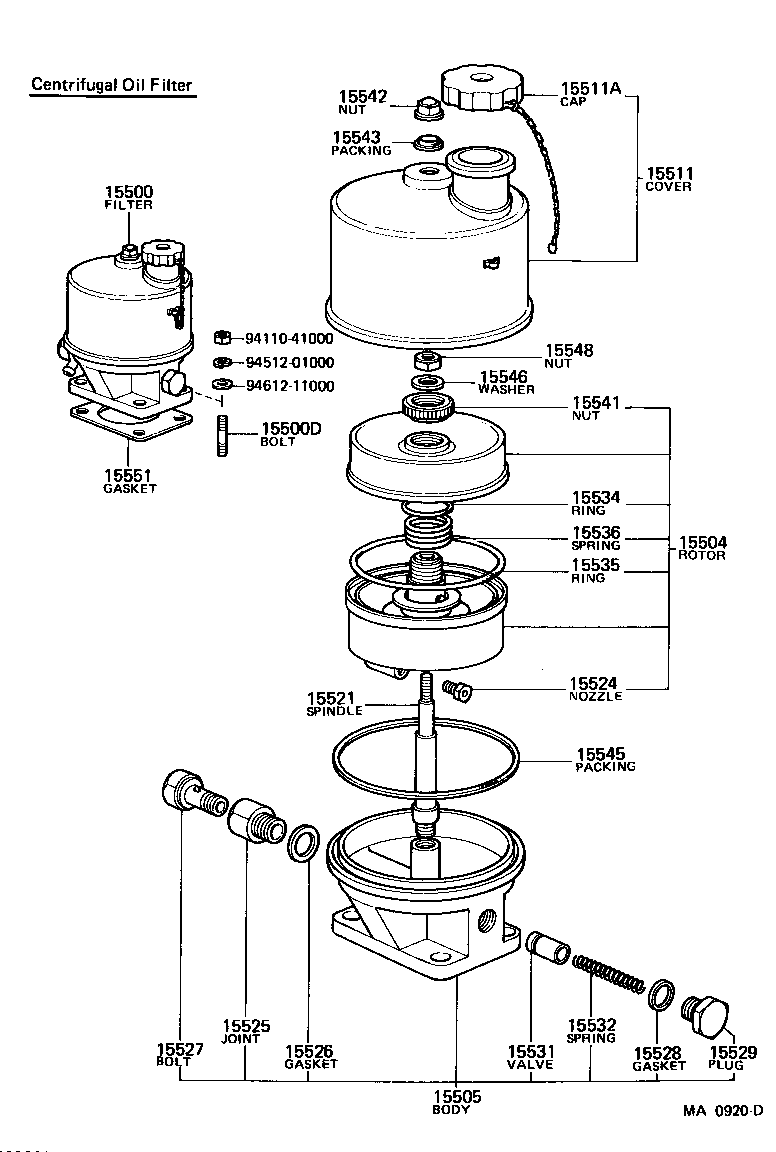

ILLUST NO. 2 OF 3(7005-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15500 - FILTER ASSY, OIL, CENTRIFUGAL | ||||
| 15500-76010 |
2D..DA11# |
1 | ||
| 15500-77011 |
2D..DA11# |
1 | ||
| 15500-77010 |
2D..DA11# |
1 | ||
| 15500D - BOLT, STUD(FOR CENTRIFUGAL OIL FILTER SETTING) | ||||
| 90116-10070 |
2D..DA11# |
4 | ||
| 15504 - ROTOR SUB-ASSY, CENTRIFUGAL OIL FILTER | ||||
| 15504-76010 |
2D..DA11# |
1 | ||
| 15504-76011 |
2D..DA11# |
1 | ||
| 15504-76012 |
2D..DA11# |
1 | ||
| 15504-77010 |
2D..DA11# |
1 | ||
| 15505 - BODY SUB-ASSY, CENTRIFUGAL OIL FILTER | ||||
| 15505-76011 |
2D..DA11# |
1 | ||
| 15505-77010 |
2D..DA11# |
1 | ||
| 15505-76012 |
2D..DA11# |
1 | ||
| 15505-76010 |
2D..DA11# |
1 | ||
| 15511 - COVER, CENTRIFUGAL OIL FILTER | ||||
| 15506-76012 |
2D..DA11# |
1 | ||
| 15506-76011 |
2D..DA11# |
1 | ||
| 15506-77010 |
2D..DA11# |
1 | ||
| 15506-76013 |
2D..DA11# |
1 | ||
| 15511A - CAP, CENTRIFUGAL OIL FILTER FILLER | ||||
| 15533-76011 |
2D..DA11# |
1 | ||
| 15533-76010 |
2D..DA11# |
1 | ||
| 04115-76060 |
2D..DA11# |
1 | ||
| 15521 - SPINDLE, CENTRIFUGAL OIL FILTER | ||||
| 15521-77010 |
2D..DA11# |
1 | ||
| 15521-76010 |
2D..DA11# |
1 | ||
| 15521-76011 |
2D..DA11# |
1 | ||
| 15524 - NOZZLE, CENTRIFUGAL OIL FILTER ROTOR | ||||
| 15524-76010 |
2D..DA11# |
2 | ||
| 15524-76011 |
2D..DA11# |
1 | ||
| 15525 - JOINT, BODY(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15525-76010 |
2D..DA11# |
1 | ||
| 15526 - GASKET, JOINT (FOR CENTRIFUGAL OIL FILTER) | ||||
| 15526-76010 |
2D..DA11# |
1 | ||
| 15527 - BOLT, UNION(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15527-76010 |
2D..DA11# |
1 | ||
| 15528 - GASKET, VALVE(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15528-77010 |
2D..DA11# |
1 | ||
| 15528-76010 |
2D..DA11# |
1 | ||
| 15529 - PLUG(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15529-77010 |
2D..DA11# |
1 | ||
| 15529-76010 |
2D..DA11# |
1 | ||
| 15531 - VALVE(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15531-77010 |
2D..DA11# |
1 | ||
| 15531-76010 |
2D..DA11# |
1 | ||
| 15532 - SPRING, VALVE(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15532-76010 |
2D..DA11# |
1 | ||
| 15532-77010 |
2D..DA11# |
1 | ||
| 15534 - RING, NO.4 (FOR CENTRIFUGAL OIL FILTER) | ||||
| 15534-76010 |
2D..DA11# |
1 | ||
| 15535 - RING, NO.5 (FOR CENTRIFUGAL OIL FILTER) | ||||
| 15535-76010 |
2D..DA11# |
1 | ||
| 15535-77010 |
2D..DA11# |
1 | ||
| 15536 - SPRING(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15536-77010 |
2D..DA11# |
1 | ||
| 15536-76010 |
2D..DA11# |
1 | ||
| 15541 - LOCK NUT(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15541-77010 |
2D..DA11# |
1 | ||
| 15541-76010 |
2D..DA11# |
1 | ||
| 15542 - NUT, CAP(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15542-76010 |
2D..DA11# |
1 | ||
| 15543 - PACKING, SEAL(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15543-76010 |
2D..DA11# |
1 | ||
| 15545 - PACKING, BODY(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15545-76010 |
2D..DA11# |
1 | ||
| 15545-77010 |
2D..DA11# |
1 | ||
| 15546 - WASHER, THRUST (FOR CENTRIFUGAL OIL FILTER) | ||||
| 15546-76010 |
2D..DA11# |
1 | ||
| 15548 - NUT, THRUST(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15548-76010 |
2D..DA11# |
1 | ||
| 15548-77010 |
2D..DA11# |
1 | ||
| 15551 - GASKET, CENTRIFUGAL OIL FILTER | ||||
| 15551-77011 |
2D..DA11# |
1 | ||
| 15551-76010 |
2D..DA11# |
1 | ||
| 15551-77010 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||

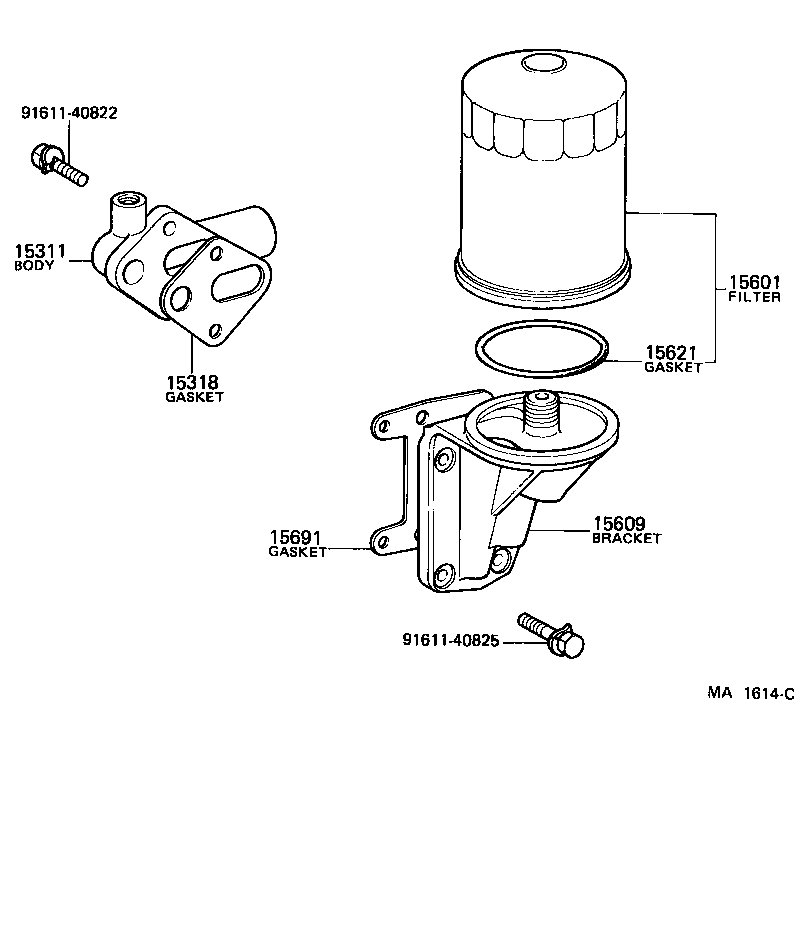

(7309-8207)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15318 - GASKET, OIL PRESSURE REGULATOR BODY | ||||
| 15318-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
F..FA100,11#,FC100 |
1 | ||
| 04152-76080 |
2D..DA11#,DB10# |
1 | ||
| 15600-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04152-77010 |
2D..DA11# |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-60011 |
F..FA100,11#,FC100 |
1 | ||
| 15609-60010 |
F..FA100,11#,FC100 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 90430-99070 |
2D..DA11#,DB10# |
1 | ||
| 15621-41010 |
F..FA100,11#,FC100 |
1 | ||
| 15621-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-60010 |
F..FA100,11#,FC100 |
1 | ||
| 15691-77011 |
2D..DA11# |
1 | ||
| 15691-77010 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 91611-40822 | ||||
| 91611-40825 | ||||

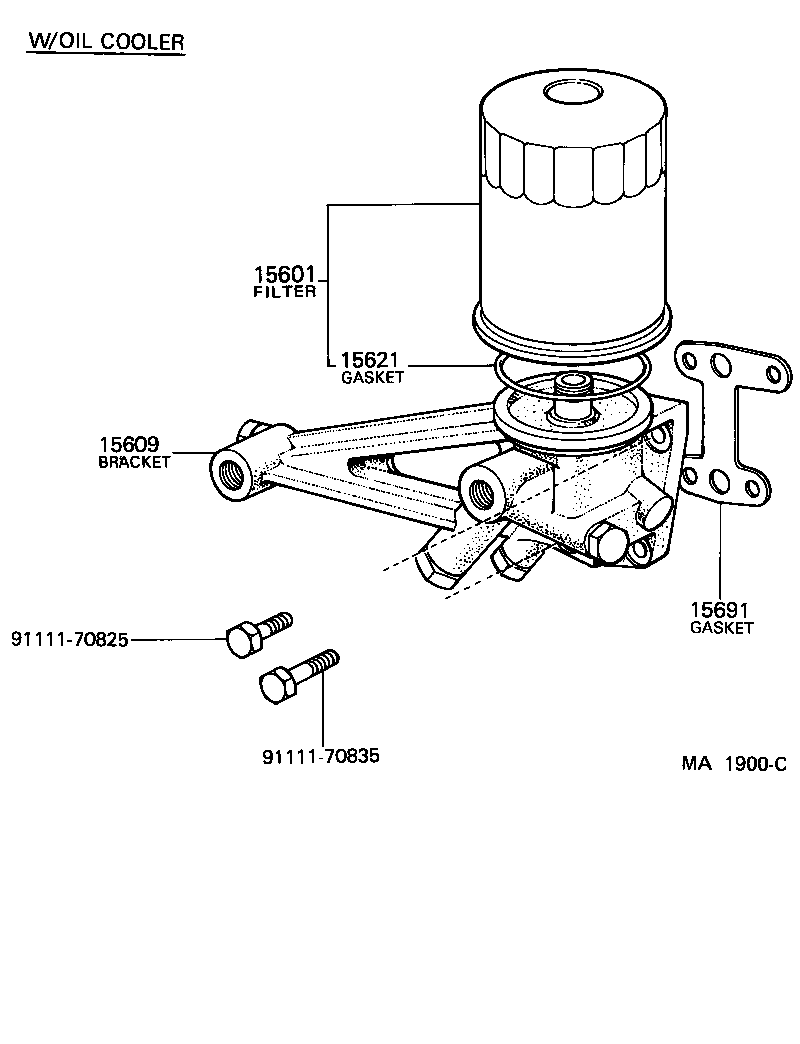

(7704-8207)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
F..FA100,11#,FC100 |
1 | ||
| 04152-76080 |
2D..DA11#,DB10# |
1 | ||
| 15600-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04152-77010 |
2D..DA11# |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-60011 |
F..FA100,11#,FC100 |
1 | ||
| 15609-60010 |
F..FA100,11#,FC100 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 90430-99070 |
2D..DA11#,DB10# |
1 | ||
| 15621-41010 |
F..FA100,11#,FC100 |
1 | ||
| 15621-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-60010 |
F..FA100,11#,FC100 |
1 | ||
| 15691-77011 |
2D..DA11# |
1 | ||
| 15691-77010 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 91111-70825 | ||||
| 91111-70835 | ||||

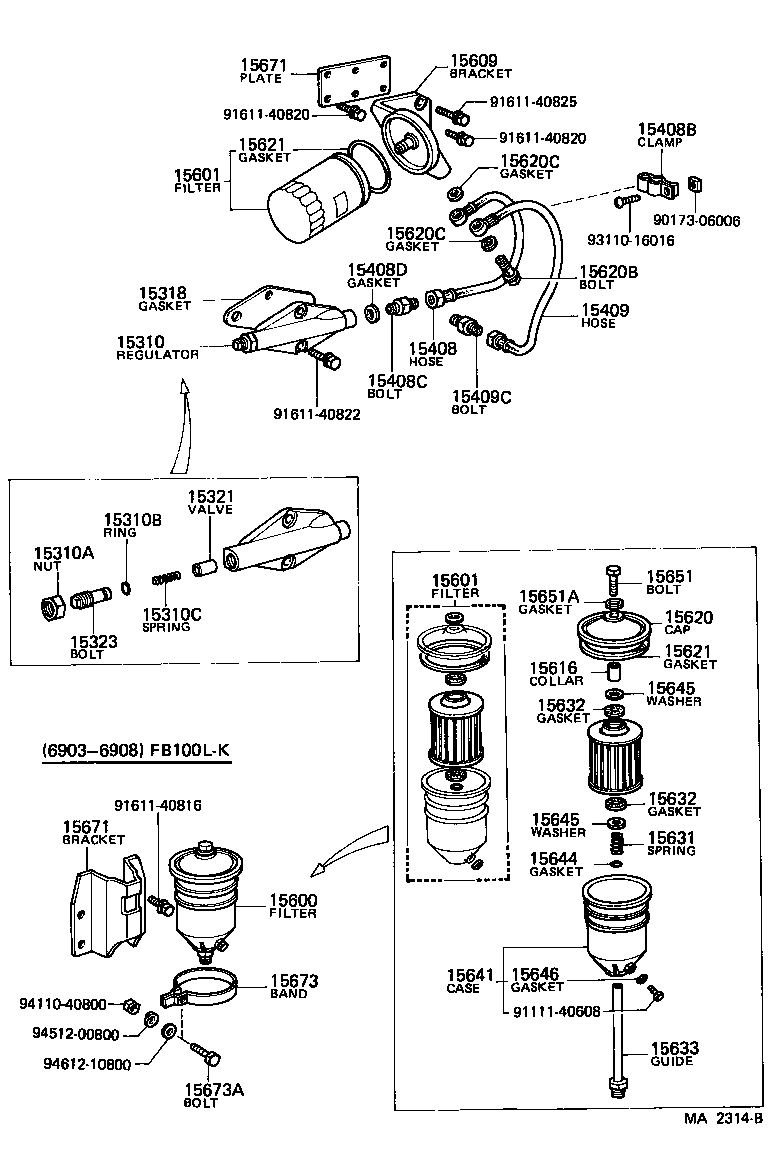

(6903-7309)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15310 - REGULATOR ASSY, OIL PRESSURE | ||||
| 15310-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15310-60011 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15310-60020 |
F..FA100,11#,FC100 |
1 | ||
| 15310-60031 |
F..FA100,11#,FC100 |
1 | ||
| 15310A - NUT, OIL PRESSURE REGULATOR CAP LOCK | ||||
| 90170-18032 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 90170-18142 |
F..FA100,11#,FC100 |
1 | ||
| 15310B - RING, OIL PRESSURE REGULATOR OIL | ||||
| 90301-10042 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15310C - SPRING, OIL PRESSURE REGULATOR | ||||
| 90501-16096 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15318 - GASKET, OIL PRESSURE REGULATOR BODY | ||||
| 15318-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15321 - VALVE, OIL ADJUSTING | ||||
| 15321-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15323 - BOLT, OIL PRESSURE ADJUSTING | ||||
| 15323-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15408 - PIPE OR HOSE, OIL FILTER INLET | ||||
| 90923-03010 |
F..FA100,11#,FC100 |
1 | ||
| 90923-03010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15408B - CLAMP(FOR OIL FILTER INLET PIPE) | ||||
| 90461-06059 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15408C - BOLT, UNION(FOR OIL FILTER INLET PIPE) | ||||
| 90404-13105 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15408D - GASKET(FOR OIL FILTER INLET PIPE) | ||||
| 90430-10074 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 90430-10074 |
F..FA100,11#,FC100 |
4 | ||
| 15409 - PIPE OR HOSE, OIL FILTER OUTLET | ||||
| 90923-03010 |
F..FA100,11#,FC100 |
1 | ||
| 90923-03010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE) | ||||
| 90404-13105 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15600 - FILTER ASSY, OIL | ||||
| 15600-76013 |
2D..DA11#,DB10# |
1 | ||
| 15600-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15600-77020 |
2D..DA11# |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
F..FA100,11#,FC100 |
1 | ||
| 04152-76080 |
2D..DA11#,DB10# |
1 | ||
| 15600-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04152-77010 |
2D..DA11# |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
F..FA100,11#,FC100 |
1 | ||
| 04152-76080 |
2D..DA11#,DB10# |
1 | ||
| 15600-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04152-77010 |
2D..DA11# |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-60011 |
F..FA100,11#,FC100 |
1 | ||
| 15609-60010 |
F..FA100,11#,FC100 |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-77020 |
2D..DA11# |
1 | ||
| 15620-76013 |
2D..DA11#,DB10# |
1 | ||
| 15620B - BOLT, UNION(FOR OIL FILTER CAP) | ||||
| 90401-10051 |
F..FA100,11#,FB100,FC100 |
2 | ||
| 90401-10051 |
F..FA100,11#,FC100 |
2 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 90430-10074 |
F..FA100,11#,FC100 |
4 | ||
| 90430-10074 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 90430-10074 |
F..FA100,11#,FC100 |
4 | ||
| 90430-10074 |
F..FA100,11#,FB100,FC100 |
4 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 90430-99070 |
2D..DA11#,DB10# |
1 | ||
| 15621-41010 |
F..FA100,11#,FC100 |
1 | ||
| 15621-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 90430-99070 |
2D..DA11#,DB10# |
1 | ||
| 15621-41010 |
F..FA100,11#,FC100 |
1 | ||
| 15621-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
2D..DA11#,DB10# |
2 | ||
| 15632-77020 |
2D..DA11# |
2 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
2D..DA11#,DB10# |
2 | ||
| 15632-77020 |
2D..DA11# |
2 | ||
| 15633 - GUIDE, OIL FILTER CARTRIDGE | ||||
| 15633-77020 |
2D..DA11# |
1 | ||
| 15651-76012 |
2D..DA11#,DB10# |
1 | ||
| 15641 - CASE, OIL FILTER | ||||
| 15641-76012 |
2D..DA11#,DB10# |
1 | ||
| 15644 - GASKET, OIL FILTER CARTRIDGE GUIDE | ||||
| 15644-76012 |
2D..DA11#,DB10# |
1 | ||
| 96710-01019 |
2D..DA11# |
1 | ||
| 15646 - WASHER OR GASKET, OIL FILTER DRAIN COCK | ||||
| 90099-01010 |
2D..DA11#,DB10# |
1 | ||
| 15671 - BRACKET, OIL FILTER | ||||
| 15144-60030 |
F..FA100,11#,FC100 |
1 | ||
| 15671 - BRACKET, OIL FILTER | ||||
| 15144-60030 |
F..FA100,11#,FC100 |
1 | ||
| 15673 - BAND, OIL FILTER CLAMP | ||||
| 15549-77010 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 90173-06006 | ||||
| 91111-40608 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-40822 | ||||
| 91611-40825 | ||||
| 93110-16016 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
ILLUST NO. 1 OF 2(7704- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15500E - RING, O(FOR CENTRIFUGAL OIL FILTER) | ||||
| 96711-19006 |
2D..DA11# |
1 | ||
| 96710-01006 |
2D..DA11# |
1 | ||
| 15600 - FILTER ASSY, OIL | ||||
| 15600-76013 |
2D..DA11#,DB10# |
1 | ||
| 15600-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15600-77020 |
2D..DA11# |
1 | ||
| 15600 - FILTER ASSY, OIL | ||||
| 15600-76013 |
2D..DA11#,DB10# |
1 | ||
| 15600-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15600-77020 |
2D..DA11# |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
F..FA100,11#,FC100 |
1 | ||
| 04152-76080 |
2D..DA11#,DB10# |
1 | ||
| 15600-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 04152-77010 |
2D..DA11# |
1 | ||
| 15602A - GASKET, OIL PRESSURE VALVE | ||||
| 15627-76010 |
2D..DA11#,DB10# |
2 | ||
| 90099-01010 |
2D..DA11# |
1 | ||
| 15615 - SPRING, OIL FILTER ELEMENT SUPPORT, OUTER | ||||
| 15615-76012 |
2D..DA11#,DB10# |
1 | ||
| 15631-77020 |
2D..DA11# |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-77020 |
2D..DA11# |
1 | ||
| 15620-76013 |
2D..DA11#,DB10# |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 90430-99070 |
2D..DA11#,DB10# |
1 | ||
| 15621-41010 |
F..FA100,11#,FC100 |
1 | ||
| 15621-41010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
2D..DA11#,DB10# |
2 | ||
| 15632-77020 |
2D..DA11# |
2 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
2D..DA11#,DB10# |
2 | ||
| 15632-77020 |
2D..DA11# |
2 | ||
| 15633 - GUIDE, OIL FILTER CARTRIDGE | ||||
| 15633-77020 |
2D..DA11# |
1 | ||
| 15651-76012 |
2D..DA11#,DB10# |
1 | ||
| 15634 - GUIDE, OIL FILTER CARTRIDGE, OUTER | ||||
| 15633-76012 |
2D..DA11#,DB10# |
1 | ||
| 15633-76030 |
2D..DA11# W/CENTRIFUGAL |
1 | ||
| 15634-77020 |
2D..DA11# |
1 | ||
| 15644 - GASKET, OIL FILTER CARTRIDGE GUIDE | ||||
| 15644-76012 |
2D..DA11#,DB10# |
1 | ||
| 96710-01019 |
2D..DA11# |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-60010 |
F..FA100,11#,FC100 |
1 | ||
| 15691-77011 |
2D..DA11# |
1 | ||
| 15691-77010 |
2D..DA11#,DB10# |
1 | ||
| Common parts | ||||
| 91611-61032 | ||||
| 94110-41000 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(7704- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15500 - FILTER ASSY, OIL, CENTRIFUGAL | ||||
| 15500-76010 |
2D..DA11# |
1 | ||
| 15500-77011 |
2D..DA11# |
1 | ||
| 15500-77010 |
2D..DA11# |
1 | ||
| 15504 - ROTOR SUB-ASSY, CENTRIFUGAL OIL FILTER | ||||
| 15504-76010 |
2D..DA11# |
1 | ||
| 15504-76011 |
2D..DA11# |
1 | ||
| 15504-76012 |
2D..DA11# |
1 | ||
| 15504-77010 |
2D..DA11# |
1 | ||
| 15505 - BODY SUB-ASSY, CENTRIFUGAL OIL FILTER | ||||
| 15505-76011 |
2D..DA11# |
1 | ||
| 15505-77010 |
2D..DA11# |
1 | ||
| 15505-76012 |
2D..DA11# |
1 | ||
| 15505-76010 |
2D..DA11# |
1 | ||
| 15511 - COVER, CENTRIFUGAL OIL FILTER | ||||
| 15506-76012 |
2D..DA11# |
1 | ||
| 15506-76011 |
2D..DA11# |
1 | ||
| 15506-77010 |
2D..DA11# |
1 | ||
| 15506-76013 |
2D..DA11# |
1 | ||
| 15521 - SPINDLE, CENTRIFUGAL OIL FILTER | ||||
| 15521-77010 |
2D..DA11# |
1 | ||
| 15521-76010 |
2D..DA11# |
1 | ||
| 15521-76011 |
2D..DA11# |
1 | ||
| 15528 - GASKET, VALVE(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15528-77010 |
2D..DA11# |
1 | ||
| 15528-76010 |
2D..DA11# |
1 | ||
| 15529 - PLUG(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15529-77010 |
2D..DA11# |
1 | ||
| 15529-76010 |
2D..DA11# |
1 | ||
| 15531 - VALVE(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15531-77010 |
2D..DA11# |
1 | ||
| 15531-76010 |
2D..DA11# |
1 | ||
| 15532 - SPRING, VALVE(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15532-76010 |
2D..DA11# |
1 | ||
| 15532-77010 |
2D..DA11# |
1 | ||
| 15535 - RING, NO.5 (FOR CENTRIFUGAL OIL FILTER) | ||||
| 15535-76010 |
2D..DA11# |
1 | ||
| 15535-77010 |
2D..DA11# |
1 | ||
| 15536 - SPRING(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15536-77010 |
2D..DA11# |
1 | ||
| 15536-76010 |
2D..DA11# |
1 | ||
| 15541 - LOCK NUT(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15541-77010 |
2D..DA11# |
1 | ||
| 15541-76010 |
2D..DA11# |
1 | ||
| 15545 - PACKING, BODY(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15545-76010 |
2D..DA11# |
1 | ||
| 15545-77010 |
2D..DA11# |
1 | ||
| 15548 - NUT, THRUST(FOR CENTRIFUGAL OIL FILTER) | ||||
| 15548-76010 |
2D..DA11# |
1 | ||
| 15548-77010 |
2D..DA11# |
1 | ||
| 15551 - GASKET, CENTRIFUGAL OIL FILTER | ||||
| 15551-77011 |
2D..DA11# |
1 | ||
| 15551-76010 |
2D..DA11# |
1 | ||
| 15551-77010 |
2D..DA11# |
1 | ||
| 15673 - BAND, OIL FILTER CLAMP | ||||
| 15549-77010 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 92112-60820 | ||||
| 94110-40800 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
