DA116-Q (1969)
Toyota Heavy Duty Truck
(6903- )DA11#,FA100,11#,FC100

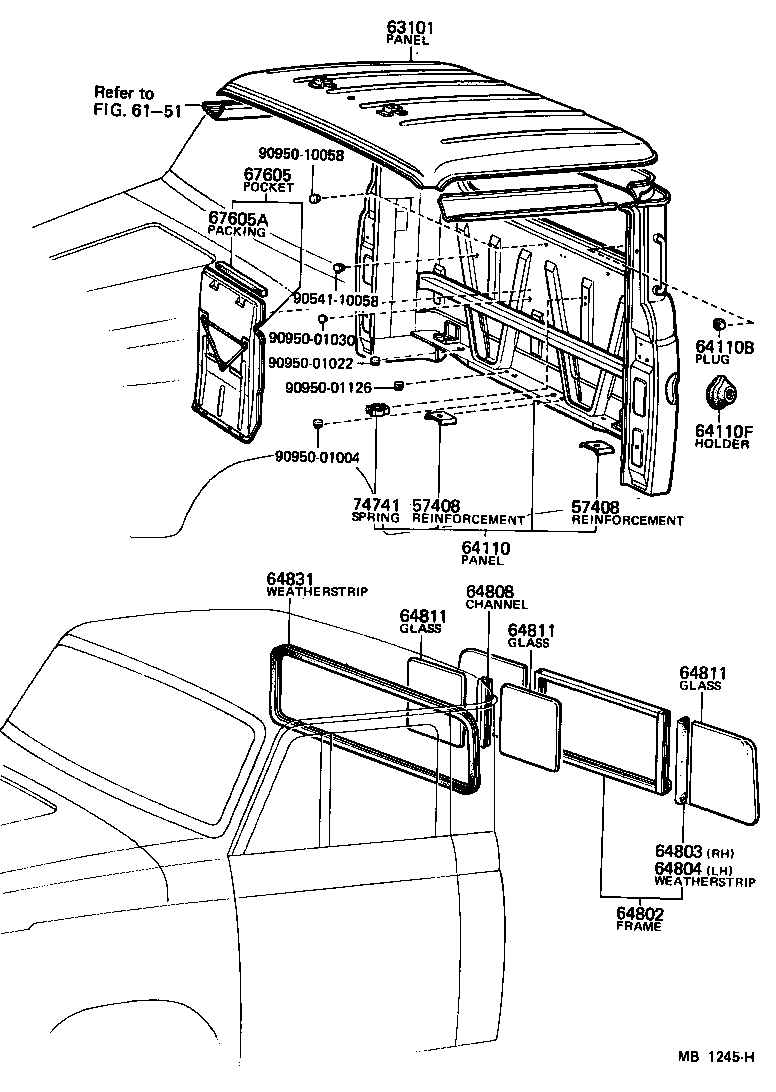

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57408 - REINFORCEMENT SUB-ASSY, SAFETY BAND ANCHORAGE, FRONT | ||||
| 57408-95210 |
DA11#,FA100,115 CTR |
1 | ||
| 57408-95010 |
DA11#,FA100,115 SIDE |
2 | ||
| 57408 - REINFORCEMENT SUB-ASSY, SAFETY BAND ANCHORAGE, FRONT | ||||
| 57408-95210 |
DA11#,FA100,115 CTR |
1 | ||
| 57408-95010 |
DA11#,FA100,115 SIDE |
2 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63111-95212 |
DA11#,FA100,11#,FC100 |
1 | ||
| 64110 - PANEL ASSY, FRONT BODY BACK | ||||
| 64100-95211 |
DA11#,FA100,11#,FC100 |
1 | ||
| 64100-95218 |
DA11#,FA100,115..RHD |
1 | ||
| 64100-95230 |
DA11#,FA100,115..RHD |
1 | ||
| 64110B - PLUG, HOLE(FOR FRONT BODY BACK PANEL) | ||||
| 90950-01027 |
DA11#,FA100,11# |
4 | ||
| 64110F - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-55030 |
DA11# |
1 | ||
| 77289-55041 |
DA11#,FA100,11#,FC100 |
1 | ||
| 77289-55040 |
FA100,11#,FC100 |
1 | ||
| 64802 - FRAME SUB-ASSY, BACK WINDOW FIX | ||||
| 64801-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 64803 - WEATHERSTRIP SUB-ASSY, BACK WINDOW, RH | ||||
| 64835-95210 |
FA100,11#,FC100 |
2 | ||
| 64835-95210 |
DA11# |
1 | ||
| 64804 - WEATHERSTRIP SUB-ASSY, BACK WINDOW, LH | ||||
| 64835-95210 |
FA100,11#,FC100 |
1 | ||
| 64835-95210 |
DA11# |
1 | ||
| 64808 - CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS | ||||
| 64808-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95212 |
DA11#,FA100,11#,FC100 *TEM,T=5.0,SLIDE GLASS |
2 | ||
| 64813-95212 |
DA11#,FA100,11#,FC100 *TEM,T=5.0,FIX GLASS |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95212 |
DA11#,FA100,11#,FC100 *TEM,T=5.0,SLIDE GLASS |
2 | ||
| 64813-95212 |
DA11#,FA100,11#,FC100 *TEM,T=5.0,FIX GLASS |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95212 |
DA11#,FA100,11#,FC100 *TEM,T=5.0,SLIDE GLASS |
2 | ||
| 64813-95212 |
DA11#,FA100,11#,FC100 *TEM,T=5.0,FIX GLASS |
2 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95212 |
DA11#,FA100,11#,FC100 |
1 | ||
| 67605 - POCKET, BACK PANEL | ||||
| 67603-95211 |
DA11#,FA100,115 |
1 | ||
| 67605A - PACKING, BACK PANEL POCKET | ||||
| 58435-95214 |
DA11#,FA100,115 |
1 | ||
| 74741 - SPRING, STARTING HANDLE SUPPORT | ||||
| 74741-95110 |
DA11#,FA100,115 |
3 | ||
| Common parts | ||||
| 90541-10058 | ||||
| 90950-01004 | ||||
| 90950-01022 | ||||
| 90950-01030 | ||||
| 90950-01126 | ||||
| 90950-10058 | ||||
| Linked diagrams | ||||
| 6151 | ||||
