DA116-Q (1969)
Toyota Heavy Duty Truck
(6903-7101)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28011-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28012-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28126-51010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28012-77061 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28012-47013 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28012A - CUP, OIL, STARTER CENTER BEARING | ||||
| 90099-50001 |
2D..DA11#,DB10# 24V 4.5KW |
2 | ||
| 28100 - STARTER ASSY | ||||
| 28100-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28100-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77110 |
2D..DA11# 24V 4.5KW,24V 4.5KW |
1 | ||
| 28100-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28100-77041 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-77043 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77061 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77044 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77045 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28115-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28110-77062 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10050 |
F..FA100,11#,FB100,FC100 12V 1.0KW,STD |
1 | ||
| 90099-10052 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.3 |
1 | ||
| 28111-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10053 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.5 |
1 | ||
| 28111-51011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28113-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28113-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-76010 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28114-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28114-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28114-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28114-76010 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-56071 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28120-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28121-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28121-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28121-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28123-76010 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28123-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28125 - BUSH, STARTER CENTER BEARING | ||||
| 28125-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28130-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10040 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.5 |
1 | ||
| 28111-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28131-76010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10039 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.3 |
1 | ||
| 28131-20010 |
F..FA100,11#,FB100,FC100 12V 1.0KW,STD |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28132-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28132-47011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28132-21010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28148-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-10011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28143-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-21011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28150-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28150-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28150-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28152 - PLATE, SWITCH CONNECTING | ||||
| 28151-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28151-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-50012 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28163-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28163-47011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28170 - COVER ASSY, STARTER | ||||
| 28170-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28170A - RING, O(FOR STARTER COVER) | ||||
| 90099-06022 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28175 - PACKING, STARTER BEARING COVER | ||||
| 28175-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28212 - DISC, STARTER CLUTCH HOUSING | ||||
| 28212-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28212A - RING, SNAP, STARTER CLUTCH HOUSING DISC | ||||
| 90099-07031 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28213 - PINION, STARTER CLUTCH | ||||
| 28213-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28215 - PLATE, STARTER CLUTCH, NO.1 | ||||
| 28215-76010 |
2D..DA11#,DB10# 24V 4.5KW |
7 | ||
| 28216 - SPRING, STARTER CLUTCH HELICAL | ||||
| 28216-76010 |
2D..DA11#,DB10# 24V 4.5KW |
2 | ||
| 28217 - PLATE, STARTER CLUTCH, NO.2 | ||||
| 28217-76010 |
2D..DA11#,DB10# 24V 4.5KW |
7 | ||
| 28218 - RING, STARTER CLUTCH THRUST | ||||
| 28218-76010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28219 - WASHER, STARTER CLUTCH SPRING, A | ||||
| 28219-76010 |
2D..DA11#,DB10# 24V 4.5KW |
2 | ||
| 28219A - WASHER, STARTER CLUTCH SPRING, B | ||||
| 90099-01187 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-01188 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28224 - FLANGE, SPLINE TUBE | ||||
| 28224-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| Common parts | ||||
| 28161-77040 | ||||
| 90011-04151 | ||||
| 90091-00503 | ||||
| 90092-11001 | ||||
| 90092-20801 | ||||
| 90092-21001 | ||||
| 90093-00501 | ||||
| 90093-01010 | ||||
| 90094-00502 | ||||
| 90094-00602 | ||||
| 90094-00701 | ||||
| 90094-01001 | ||||
| 90099-00020 | ||||
| 90099-00060 | ||||
| 90099-00093 | ||||
| 90099-00094 | ||||
| 90099-00402 | ||||
| 90099-00801 | ||||
| 90099-01132 | ||||
| 90099-01133 | ||||
| 90099-01134 | ||||
| 90099-12004 | ||||
| 91111-41232 | ||||
| 91161-41232 | ||||
| 93219-14008 | ||||
| 93219-15008 | ||||
| 94512-01200 | ||||
(7101-7704)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28011-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28012-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28126-51010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28012-77061 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28012-47013 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28100-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77110 |
2D..DA11# 24V 4.5KW,24V 4.5KW |
1 | ||
| 28100-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28100-77041 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-77043 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77061 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77044 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77045 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28115-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28110-77062 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10050 |
F..FA100,11#,FB100,FC100 12V 1.0KW,STD |
1 | ||
| 90099-10052 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.3 |
1 | ||
| 28111-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10053 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.5 |
1 | ||
| 28111-51011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28113-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28113-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-76010 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28114-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28114-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28114-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28114-76010 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-56071 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28120-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28121-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28121-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28121-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28123-76010 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28123-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28130-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10040 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.5 |
1 | ||
| 28111-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28131-76010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10039 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.3 |
1 | ||
| 28131-20010 |
F..FA100,11#,FB100,FC100 12V 1.0KW,STD |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28132-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28132-47011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28132-21010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28148-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-10011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28143-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-21011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28150-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28150-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28150-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28150A - PACKING(FOR STARTER MAGNET SWITCH) | ||||
| 90092-06026 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28152 - PLATE, SWITCH CONNECTING | ||||
| 28151-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28151-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28153 - COVER, MAGNET SWITCH | ||||
| 28152-47011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28155 - WIRE, LEAD, SWITCH CONNECTING | ||||
| 28155-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-50012 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28163-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28163-47011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 90099-07096 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28170 - COVER ASSY, STARTER | ||||
| 28170-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28170A - RING, O(FOR STARTER COVER) | ||||
| 90099-06022 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28181 - TERMINAL, STARTER | ||||
| 28181-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28212A - RING, SNAP, STARTER CLUTCH HOUSING DISC | ||||
| 90099-07031 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| Common parts | ||||
| 28161-77040 | ||||
| 90092-11001 | ||||
| 90092-20582 | ||||
| 90092-21001 | ||||
| 90094-00701 | ||||
| 90098-00501 | ||||
| 90098-00601 | ||||
| 90099-00904 | ||||
| 90099-01132 | ||||
| 90099-01134 | ||||
| 90099-01324 | ||||
| 90099-04234 | ||||
| 90099-05809 | ||||
| 91161-41232 | ||||
| 93219-15008 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 94611-11000 | ||||

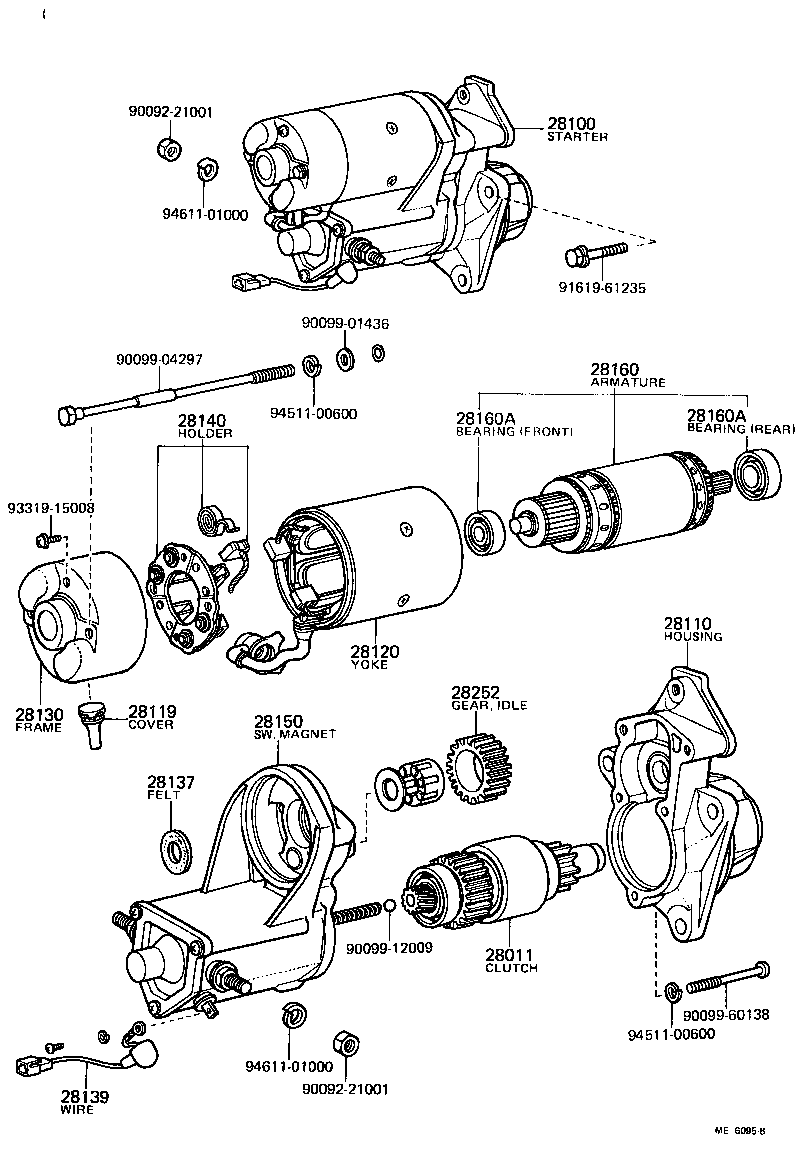

(7704-8002)2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28011-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28100-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77110 |
2D..DA11# 24V 4.5KW,24V 4.5KW |
1 | ||
| 28100-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28100-77041 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-77043 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77061 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77044 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77045 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28115-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28110-77062 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28119-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-56071 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28120-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28130-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28139-77110 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28140-50011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28140-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-21011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28150-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28150-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28150-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-50012 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2D..DA11# 24V 4.5KW,RR |
1 | ||
| 90099-10107 |
2D..DA11# 24V 4.5KW,FR |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2D..DA11# 24V 4.5KW,RR |
1 | ||
| 90099-10107 |
2D..DA11# 24V 4.5KW,FR |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-01436 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 90099-60138 | ||||
| 91619-61235 | ||||
| 93319-15008 | ||||
| 94511-00600 | ||||
| 94611-01000 | ||||
(6903-6907)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28011-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28100-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77110 |
2D..DA11# 24V 4.5KW,24V 4.5KW |
1 | ||
| 28100-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28100-77041 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-77043 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77061 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77044 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77045 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28115-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28110-77062 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10050 |
F..FA100,11#,FB100,FC100 12V 1.0KW,STD |
1 | ||
| 90099-10052 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.3 |
1 | ||
| 28111-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10053 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.5 |
1 | ||
| 28111-51011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28113-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28113-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-76010 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28114-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28114-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28114-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28114-76010 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-56071 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28120-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28121-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28121-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28121-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28123-76010 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28123-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28130-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10040 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.5 |
1 | ||
| 28111-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28131-76010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10039 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.3 |
1 | ||
| 28131-20010 |
F..FA100,11#,FB100,FC100 12V 1.0KW,STD |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28140-50011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28140-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28148-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-10011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28142 - BRUSH, STARTER | ||||
| 28148-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-10011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28143-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-21011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28150-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28150-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28150-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-50012 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28163-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28163-47011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 90099-07096 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28166 - BUSH, STARTER INSULATION | ||||
| 28166-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||

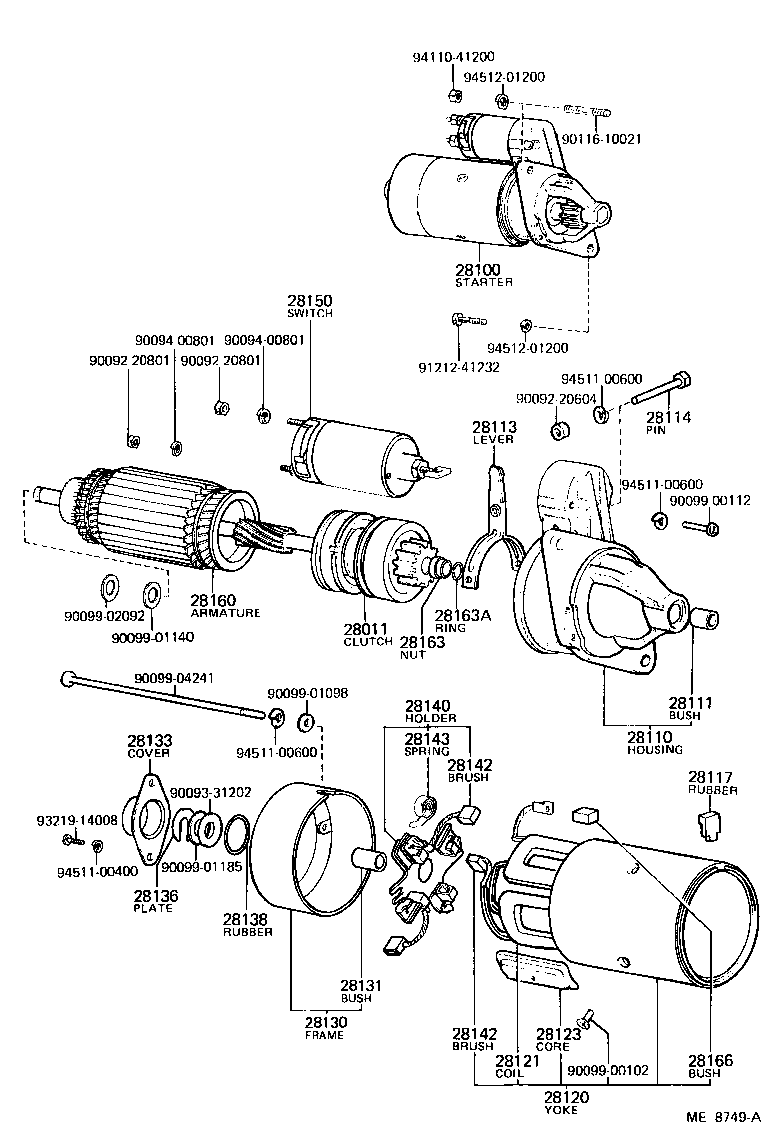

| Common parts | ||||
| 90092-20604 | ||||
| 90092-20801 | ||||
| 90093-31202 | ||||
| 90094-00801 | ||||
| 90099-00102 | ||||
| 90099-00112 | ||||
| 90099-01098 | ||||
| 90099-01140 | ||||
| 90099-01185 | ||||
| 90099-02092 | ||||
| 90099-04241 | ||||
| 90116-10021 | ||||
| 91212-41232 | ||||
| 93219-14008 | ||||
| 94110-41200 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
| 94512-01200 | ||||
(8002- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28011-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28100-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77110 |
2D..DA11# 24V 4.5KW,24V 4.5KW |
1 | ||
| 28100-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28100-77041 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-77043 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77061 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77044 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77045 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28115-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28110-77062 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28119-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-56071 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28120-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28130-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02205 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28139-77110 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28140-50011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28140-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-21011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28150-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28150-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28150-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-50012 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2D..DA11# 24V 4.5KW,RR |
1 | ||
| 90099-10107 |
2D..DA11# 24V 4.5KW,FR |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10119 |
2D..DA11# 24V 4.5KW,RR |
1 | ||
| 90099-10107 |
2D..DA11# 24V 4.5KW,FR |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28222 - WASHER, STARTER IDLE GEAR CLUTCH | ||||
| 28222-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-56080 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-56080 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00138 | ||||
| 90099-01436 | ||||
| 90099-02325 | ||||
| 90099-04297 | ||||
| 90099-12009 | ||||
| 91619-61235 | ||||
| 93319-15008 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||

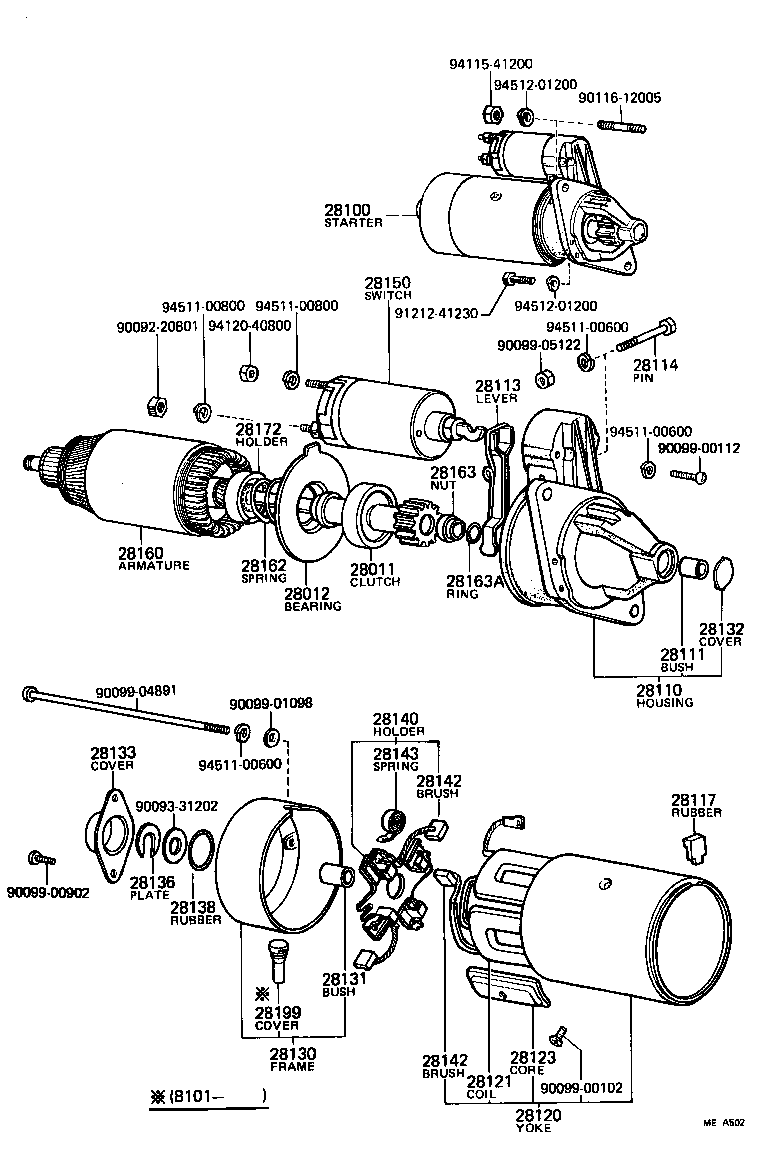

(6907-8207)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28011-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28011-54010 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28011-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28012-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28126-51010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28012-77061 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28012-47013 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28100-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28100-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28100-77110 |
2D..DA11# 24V 4.5KW,24V 4.5KW |
1 | ||
| 28100-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28100-77041 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-77043 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77061 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28110-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28110-77044 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28110-77045 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28110-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28115-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28110-77062 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10050 |
F..FA100,11#,FB100,FC100 12V 1.0KW,STD |
1 | ||
| 90099-10052 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.3 |
1 | ||
| 28111-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10053 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.5 |
1 | ||
| 28111-51011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28113-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28113-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28113-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-76010 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28114-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28114-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28114-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28114-76010 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-56071 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-60041 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28120-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28120-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28120-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28121-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28121-60040 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28121-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28123-76010 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28123-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28130-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28130-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10040 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.5 |
1 | ||
| 28111-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28131-76010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 90099-10039 |
F..FA100,11#,FB100,FC100 12V 1.0KW,U/S 0.3 |
1 | ||
| 28131-20010 |
F..FA100,11#,FB100,FC100 12V 1.0KW,STD |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28132-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28132-47011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28132-21010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28140-50011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28140-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28148-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-10011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28142 - BRUSH, STARTER | ||||
| 28148-50010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-10011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28142-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
4 | ||
| 28143-77040 |
2D..DA11#,DB10# 24V 4.5KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-21011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB105 24V 4.5KW |
1 | ||
| 28150-66011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-77060 |
2D..DA11#,DB10# 24V 4.5KW,EXHAUST BRAKE |
1 | ||
| 28150-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28150-66010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28150-41011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-50012 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77041 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-47010 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-77042 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28160-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28160-77090 |
2D..DA11# 24V 4.5KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 28163-77040 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28163-47011 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| 90099-07096 |
2D..DA11#,DB10# 24V 4.5KW |
1 | ||
| 28172 - HOLDER, STARTER SPRING | ||||
| 28172-41020 |
F..FA100,11#,FB100,FC100 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90092-20801 | ||||
| 90093-31202 | ||||
| 90099-00102 | ||||
| 90099-00112 | ||||
| 90099-00902 | ||||
| 90099-01098 | ||||
| 90099-04891 | ||||
| 90099-05122 | ||||
| 90116-12005 | ||||
| 91212-41230 | ||||
| 94115-41200 | ||||
| 94120-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
