Toyota Heavy duty truck DA115 WIRING & CLAMP

DA115L-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

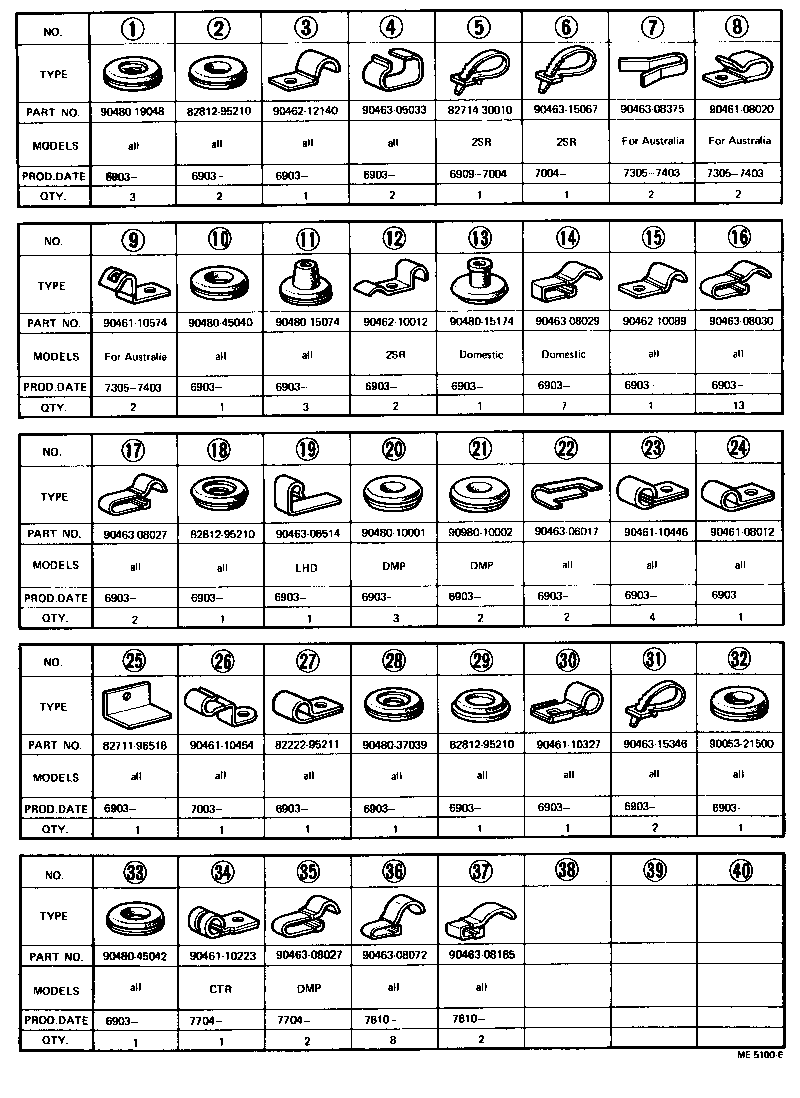

ILLUST NO. 2 OF 2(6903-8002)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
82222-95211
82711-96518
82714-30010
82812-95210
90053-21500
90461-08012
90461-08020
90461-10223
90461-10327
90461-10446
90461-10454
90461-10574
90462-10012
90462-10089
90462-12140
90463-05033
90463-06017
90463-06514
90463-08027
90463-08029
90463-08030
90463-08072
90463-08185
90463-08375
90463-15067
90463-15346
90480-10001
90480-15074
90480-15174
90480-19048
90480-37039
90480-45040
90480-45042
90980-10002

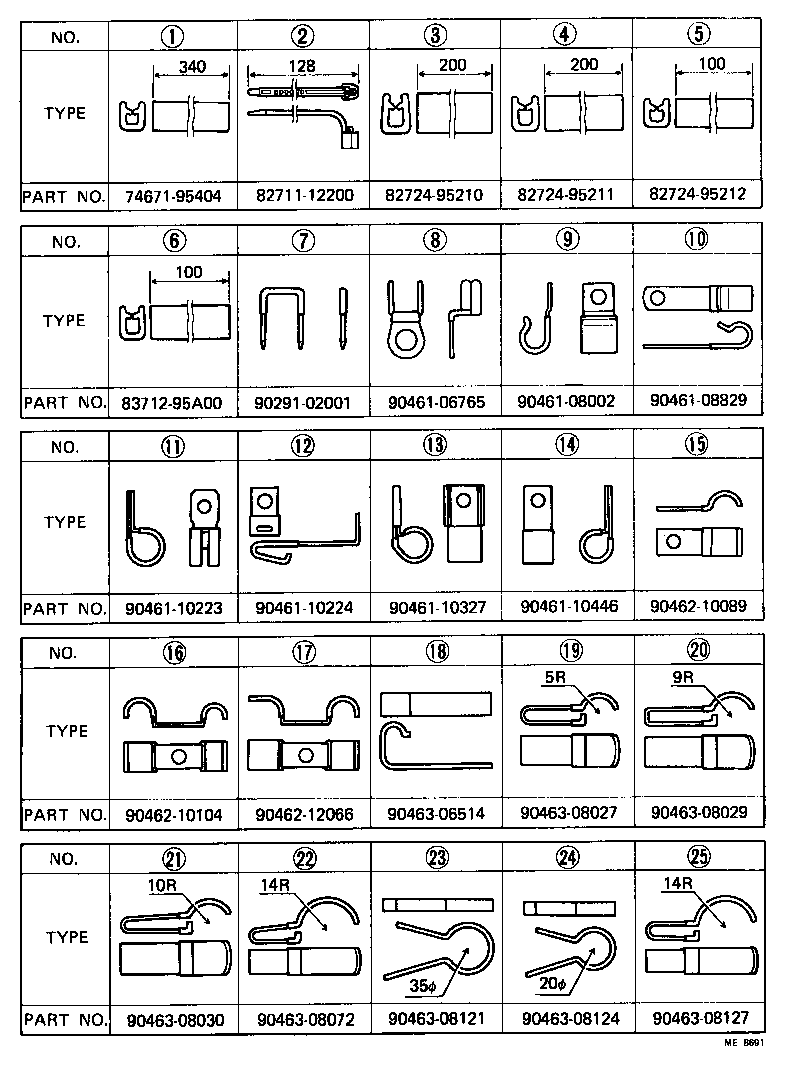

ILLUST NO. 2 OF 3(8002- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
74671-95404
82711-12200
82724-95210
82724-95211
82724-95212
83712-95A00
90291-02001
90461-06765
90461-08002
90461-08829
90461-10223
90461-10224
90461-10327
90461-10446
90462-10089
90462-10104
90462-12066
90463-06514
90463-08027
90463-08029
90463-08030
90463-08072
90463-08121
90463-08124
90463-08127

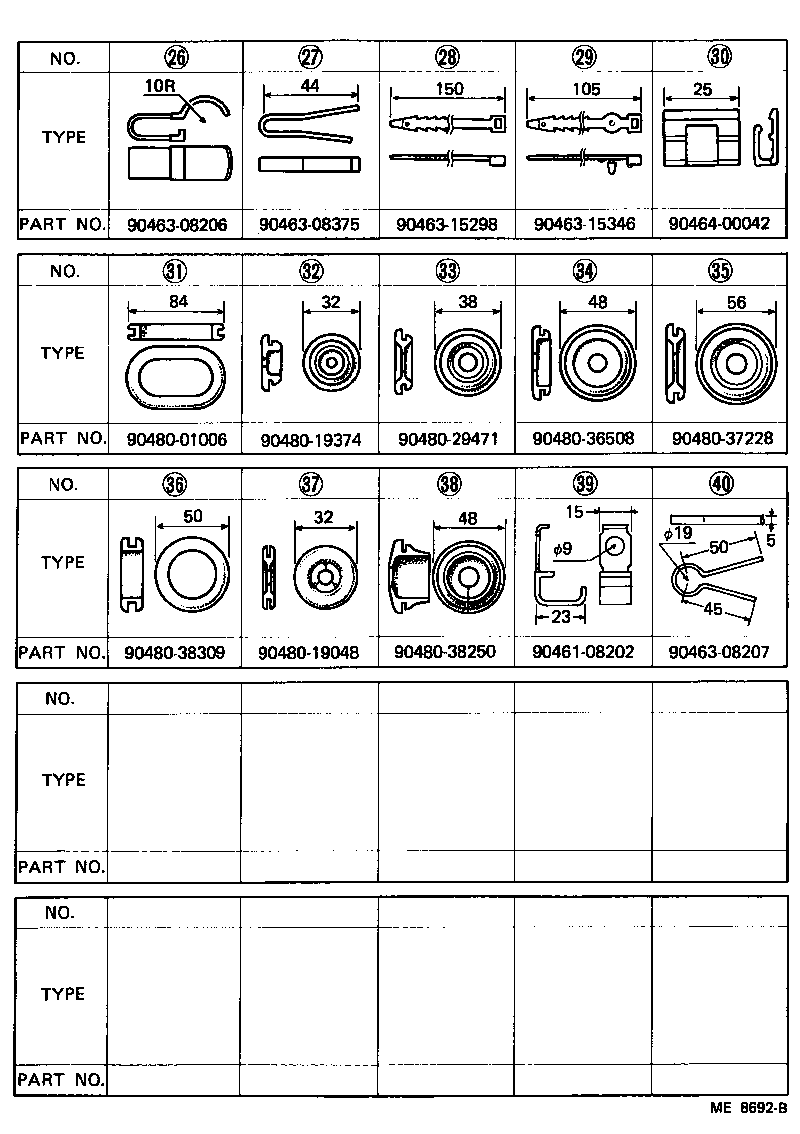

ILLUST NO. 3 OF 3(8002- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90461-08202
90463-08206
90463-08207
90463-08375
90463-15298
90463-15346
90464-00042
90480-01006
90480-19048
90480-19374
90480-29471
90480-36508
90480-37228
90480-38250
90480-38309

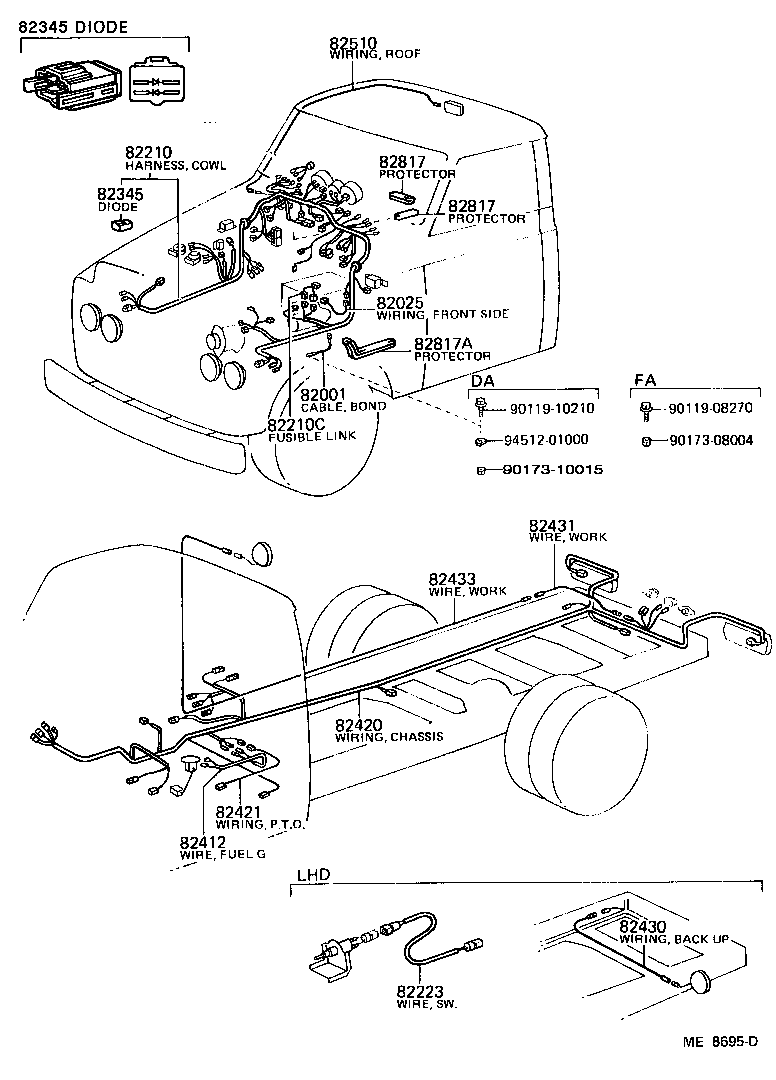

ILLUST NO. 1 OF 3(8002- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07040	FA100,11#,FB100,FC100	03/1969 - 04/1980	1
90980-07187	FA100,115	04/1980 - 07/1982	1
90980-07039	DA11#,DB10#	03/1969 - 12/2001	1
82025 - WIRING SUB-ASSY, FRONT SIDE
82025-55011	DA11# L=500	03/1969 - 03/1974	1
82025-55021	DA11# L=380	03/1969 - 03/1974	1
82025-55011	DA11#,DB105 L=500,W/EXHAUST BRAKE	04/1974 - 04/1977	1
82025-55030	DA11# MECHA.GOVERNOR EXHUST BRAKE	04/1974 - 04/1977	1
82025-55021	DA11#,DB105 L=500,W/EXHAUST BRAKE	04/1974 - 04/1977	1
82025-55040	DA11# MECHA.GOVERNOR EXHUST BRAKE	04/1974 - 04/1977	1
82025-55040	DA11#..LHD W/MECHANICAL GAVERNOR	06/1971 - 03/1974	1
82025-95210	DA11#..GEN L=500,W/EXHAUST BRAKE	04/1977 - 12/2001	2
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-95237	FA100,11#,FC100..LHD	03/1969 - 03/1970	1
82210-95232	DA11#..LHD	03/1969 - 03/1970	1
82210-95244	DA11#..LHD	03/1970 - 03/1974	1
82210-95249	FA100,11#,FC100..LHD	03/1970 - 03/1974	1
82220-95205	DA11#..LHD	04/1974 - 04/1977	1
82220-95234	DA11#..LHD	01/1979 - 02/1980	1
82220-95206	FA100,115..LHD	04/1974 - 04/1977	1
82220-95221	DA11#..LHD	04/1977 - 01/1979	1
82220-95238	DA11#..LHD W/EXHAUST BRAKE & SEDIMENTER	05/1980 - 10/1980	1
82220-95245	DA11#..LHD	03/1980 - 05/1980	1
82220-95238	DA11#..LHD W/EXHAUST BRAKE OR SEDIMENTER	02/1980 - 05/1980	1
82220-95245	DA11#..LHD W/FUEL SEDIMENTER	05/1980 - 10/1980	1
82220-95253	DA11#..LHD..1SR *SAA OR GULF SPEC	08/1983 - 09/1985	1
82220-95249	FA100,115..LHD	10/1980 - 07/1982	1
82220-95220	FA100,115..LHD	04/1977 - 02/1980	1
82220-95239	FA100,115..LHD	02/1980 - 10/1980	1
82220-95251	DA11#..LHD W/FUEL SEDIMENTER	10/1980 - 04/1998	1
82220-95253	DA11#..LHD *SAA OR GULF SPEC	09/1985 - 04/1998	1
82220-95247	DA11#..LHD W/EXHAUST BRAKE & SEDIMENTER	10/1980 - 04/1998	1
82220-55040	DA11#..LHD W/FUEL SEDIMENTER	04/1998 - 12/2001	1
82220-55050	DA11#..LHD *SAA OR GULF SPEC	04/1998 - 12/2001	1
82220-55020	DA11#..LHD W/EXHAUST BRAKE & SEDIMENTER	04/1998 - 12/2001	1
82210C - FUSIBLE LINK
90982-08062	DA11# L=130	04/1977 - 12/2001	1
90982-08097	FA100,115	08/1978 - 07/1982	1
90982-08013	DA11# L=120	01/1979 - 12/2001	1
90982-08035	FA100,115	04/1974 - 08/1978	1
82223 - WIRE, SWITCH
82406-95211	DA11#,FA100,115..LHD	02/1980 - 12/2001	1
82406-95210	DA11#..LHD W/AIR SERVO BRAKE	04/1977 - 02/1980	1
82345 - DIODE
82345-22010	DA11#	10/1986 - 12/2001	2
82345 - DIODE
82345-22010	DA11#	10/1986 - 12/2001	2
82412 - WIRE, FUEL GAGE
82503-95210	DA11#,FA100,115	04/1974 - 10/1980	1
82503-95216	DA11#..LHD..1SR *SAA OR GULF SPEC	08/1983 - 09/1985	1
82503-95213	DA11#,FA100,115..GEN	10/1980 - 12/2001	1
82503-95216	DA11#..LHD *SAA OR GULF SPEC	09/1985 - 12/2001	1
82420 - WIRING ASSY, CHASSIS
82420-95230	DA110,115,FA100,11#	03/1969 - 03/1970	1
82420-95245	DA110,115,FA100,115 W/VACUUM SERVO BRAKE	04/1977 - 02/1980	1
82420-95248	DA110,115 W/AIR SERVO BRAKE	04/1977 - 02/1980	1
82420-95254	DA110,115 W/AIR OVER BRAKE	02/1980 - 10/1980	1
82430-95215	DA110,115,FA100,115 W/VACUUM OR AIR SERVO BRAKE	10/1980 - 11/1986	1
82420-95240	DA110,115,FA100,115	04/1974 - 04/1977	1
82420-95278	DA110,115..GEN W/VACUUM OR AIR SERVO BRAKE	11/1986 - 12/2001	1
82420-95252	DA110,115,FA100,115 W/VACUUM OR AIR SERVO BRAKE	02/1980 - 10/1980	1
82420-95234	DA110,115,FA100,11#	03/1970 - 03/1974	1
82430-95217	DA110,115 W/AIR OVER BRAKE	10/1980 - 11/1986	1
82420-95280	DA110,115 W/AIR OVER BRAKE	11/1986 - 12/2001	1
82430 - WIRING ASSY, BACK-UP LAMP FEED
82405-55010	DA11#,FA100,11#..LHD	03/1969 - 12/2001	1
82510 - WIRING ASSY, ROOF
82522-95211	DA11#,FA100,11#,FC100	03/1969 - 10/1980	1
82522-95212	DA11#,FA100,115	10/1980 - 12/2001	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
83712-95A00	DA11#,FA100,115	04/1977 - 12/2001	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
83712-95A00	DA11#,FA100,115	04/1977 - 12/2001	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
58293-95700	DA11#	01/1986 - 12/2001	1
Common parts
90119-08270
90119-10210
90173-08004
90173-10015
94512-01000

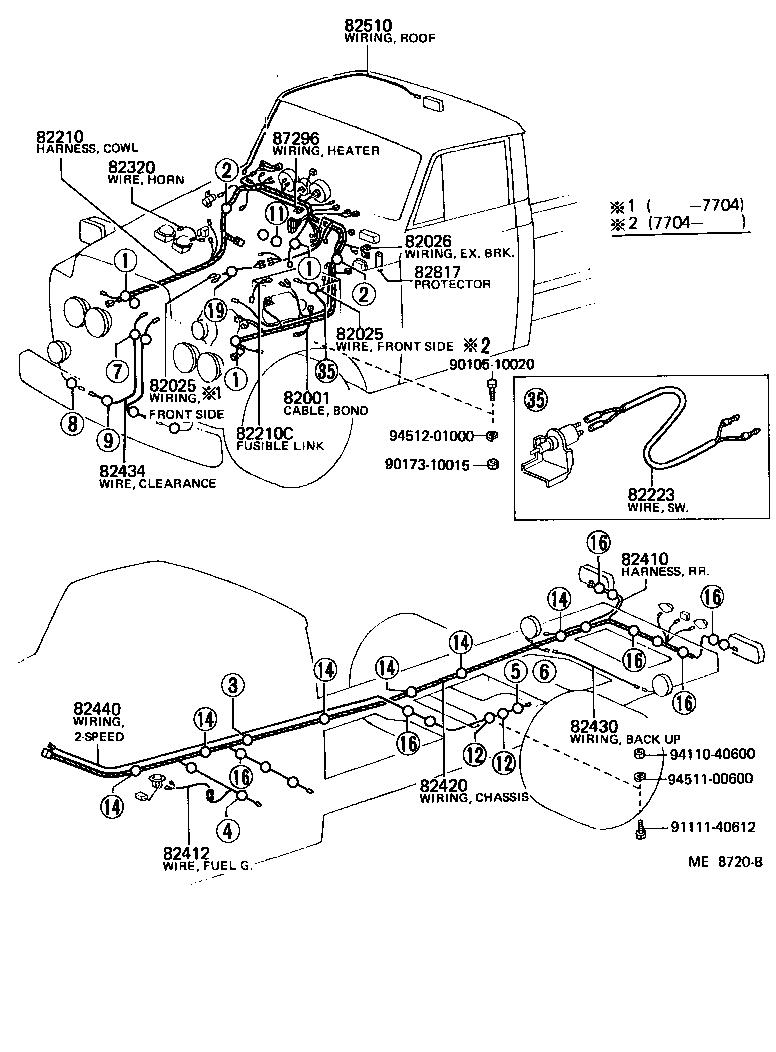

ILLUST NO. 1 OF 2(6903-8002)BTR

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07040	FA100,11#,FB100,FC100	03/1969 - 04/1980	1
90980-07187	FA100,115	04/1980 - 07/1982	1
90980-07039	DA11#,DB10#	03/1969 - 12/2001	1
82025 - WIRING SUB-ASSY, FRONT SIDE
82025-55011	DA11# L=500	03/1969 - 03/1974	1
82025-55021	DA11# L=380	03/1969 - 03/1974	1
82025-55011	DA11#,DB105 L=500,W/EXHAUST BRAKE	04/1974 - 04/1977	1
82025-55030	DA11# MECHA.GOVERNOR EXHUST BRAKE	04/1974 - 04/1977	1
82025-55021	DA11#,DB105 L=500,W/EXHAUST BRAKE	04/1974 - 04/1977	1
82025-55040	DA11# MECHA.GOVERNOR EXHUST BRAKE	04/1974 - 04/1977	1
82025-55040	DA11#..LHD W/MECHANICAL GAVERNOR	06/1971 - 03/1974	1
82025-95210	DA11#..GEN L=500,W/EXHAUST BRAKE	04/1977 - 12/2001	2
82025 - WIRING SUB-ASSY, FRONT SIDE
82025-55011	DA11# L=500	03/1969 - 03/1974	1
82025-55021	DA11# L=380	03/1969 - 03/1974	1
82025-55011	DA11#,DB105 L=500,W/EXHAUST BRAKE	04/1974 - 04/1977	1
82025-55030	DA11# MECHA.GOVERNOR EXHUST BRAKE	04/1974 - 04/1977	1
82025-55021	DA11#,DB105 L=500,W/EXHAUST BRAKE	04/1974 - 04/1977	1
82025-55040	DA11# MECHA.GOVERNOR EXHUST BRAKE	04/1974 - 04/1977	1
82025-55040	DA11#..LHD W/MECHANICAL GAVERNOR	06/1971 - 03/1974	1
82025-95210	DA11#..GEN L=500,W/EXHAUST BRAKE	04/1977 - 12/2001	2
82026 - WIRING SUB-ASSY EXHAUST BRAKE
82026-95217	DA11#..LHD	05/1978 - 02/1980	1
82026-95211	DA11#..LHD	03/1969 - 04/1977	1
82026-95214	DA11#..LHD	04/1977 - 05/1978	1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-95237	FA100,11#,FC100..LHD	03/1969 - 03/1970	1
82210-95232	DA11#..LHD	03/1969 - 03/1970	1
82210-95244	DA11#..LHD	03/1970 - 03/1974	1
82210-95249	FA100,11#,FC100..LHD	03/1970 - 03/1974	1
82220-95205	DA11#..LHD	04/1974 - 04/1977	1
82220-95234	DA11#..LHD	01/1979 - 02/1980	1
82220-95206	FA100,115..LHD	04/1974 - 04/1977	1
82220-95221	DA11#..LHD	04/1977 - 01/1979	1
82220-95238	DA11#..LHD W/EXHAUST BRAKE & SEDIMENTER	05/1980 - 10/1980	1
82220-95245	DA11#..LHD	03/1980 - 05/1980	1
82220-95238	DA11#..LHD W/EXHAUST BRAKE OR SEDIMENTER	02/1980 - 05/1980	1
82220-95245	DA11#..LHD W/FUEL SEDIMENTER	05/1980 - 10/1980	1
82220-95253	DA11#..LHD..1SR *SAA OR GULF SPEC	08/1983 - 09/1985	1
82220-95249	FA100,115..LHD	10/1980 - 07/1982	1
82220-95220	FA100,115..LHD	04/1977 - 02/1980	1
82220-95239	FA100,115..LHD	02/1980 - 10/1980	1
82220-95251	DA11#..LHD W/FUEL SEDIMENTER	10/1980 - 04/1998	1
82220-95253	DA11#..LHD *SAA OR GULF SPEC	09/1985 - 04/1998	1
82220-95247	DA11#..LHD W/EXHAUST BRAKE & SEDIMENTER	10/1980 - 04/1998	1
82220-55040	DA11#..LHD W/FUEL SEDIMENTER	04/1998 - 12/2001	1
82220-55050	DA11#..LHD *SAA OR GULF SPEC	04/1998 - 12/2001	1
82220-55020	DA11#..LHD W/EXHAUST BRAKE & SEDIMENTER	04/1998 - 12/2001	1
82210C - FUSIBLE LINK
90982-08062	DA11# L=130	04/1977 - 12/2001	1
90982-08097	FA100,115	08/1978 - 07/1982	1
90982-08013	DA11# L=120	01/1979 - 12/2001	1
90982-08035	FA100,115	04/1974 - 08/1978	1
82223 - WIRE, SWITCH
82406-95211	DA11#,FA100,115..LHD	02/1980 - 12/2001	1
82406-95210	DA11#..LHD W/AIR SERVO BRAKE	04/1977 - 02/1980	1
82320 - WIRE ASSY, TO HORN
82320-55010	DA11#,FA100,11#,FC100	03/1969 - 08/1974	1
82410 - HARNESS ASSY, WIRING TO REAR LAMP
82490-95210	DA11#,FA100,11#,FC100	03/1969 - 03/1974	1
82412 - WIRE, FUEL GAGE
82503-95210	DA11#,FA100,115	04/1974 - 10/1980	1
82503-95216	DA11#..LHD..1SR *SAA OR GULF SPEC	08/1983 - 09/1985	1
82503-95213	DA11#,FA100,115..GEN	10/1980 - 12/2001	1
82503-95216	DA11#..LHD *SAA OR GULF SPEC	09/1985 - 12/2001	1
82420 - WIRING ASSY, CHASSIS
82420-95230	DA110,115,FA100,11#	03/1969 - 03/1970	1
82420-95245	DA110,115,FA100,115 W/VACUUM SERVO BRAKE	04/1977 - 02/1980	1
82420-95248	DA110,115 W/AIR SERVO BRAKE	04/1977 - 02/1980	1
82420-95254	DA110,115 W/AIR OVER BRAKE	02/1980 - 10/1980	1
82430-95215	DA110,115,FA100,115 W/VACUUM OR AIR SERVO BRAKE	10/1980 - 11/1986	1
82420-95240	DA110,115,FA100,115	04/1974 - 04/1977	1
82420-95278	DA110,115..GEN W/VACUUM OR AIR SERVO BRAKE	11/1986 - 12/2001	1
82420-95252	DA110,115,FA100,115 W/VACUUM OR AIR SERVO BRAKE	02/1980 - 10/1980	1
82420-95234	DA110,115,FA100,11#	03/1970 - 03/1974	1
82430-95217	DA110,115 W/AIR OVER BRAKE	10/1980 - 11/1986	1
82420-95280	DA110,115 W/AIR OVER BRAKE	11/1986 - 12/2001	1
82430 - WIRING ASSY, BACK-UP LAMP FEED
82405-55010	DA11#,FA100,11#..LHD	03/1969 - 12/2001	1
82510 - WIRING ASSY, ROOF
82522-95211	DA11#,FA100,11#,FC100	03/1969 - 10/1980	1
82522-95212	DA11#,FA100,115	10/1980 - 12/2001	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
83712-95A00	DA11#,FA100,115	04/1977 - 12/2001	1
Common parts
90105-10020
90173-10015
91111-40612
94110-40600
94511-00600
94512-01000
