DA115L-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )

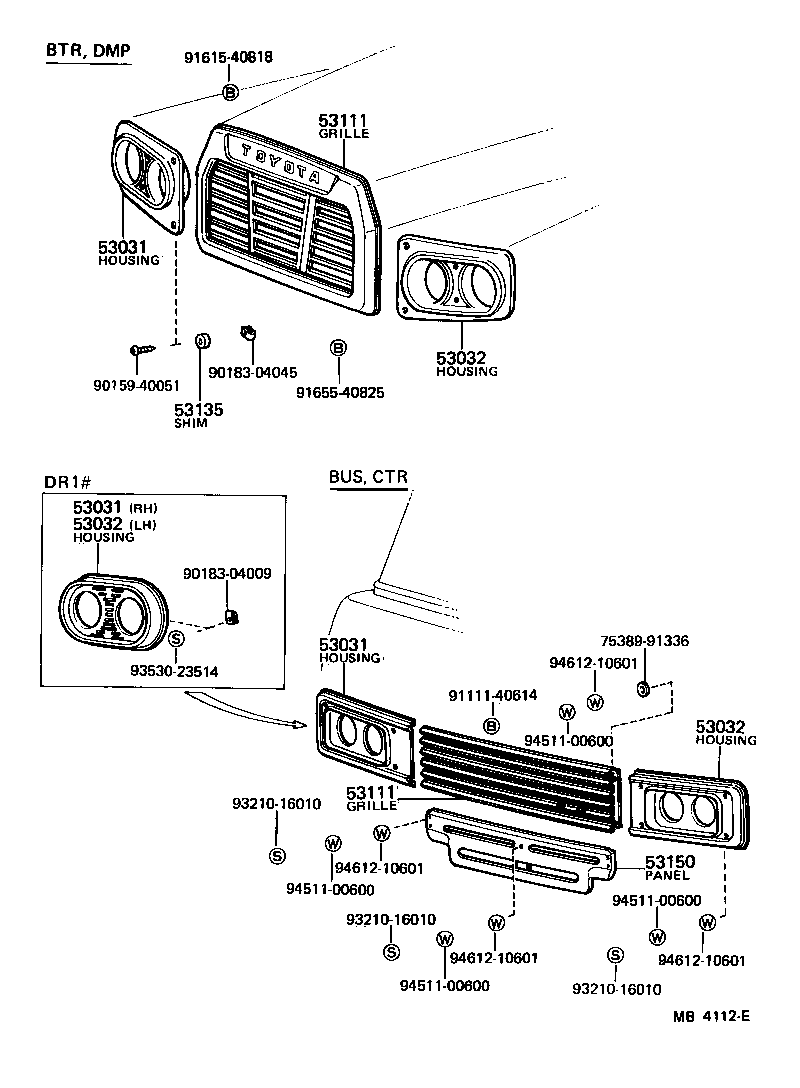

Click highlighted areas on diagram

diagram 53031 53031 53031 53032 53032 53032 53111 53111 53135 53150 7538991336 9015940051 9018304009 9018304045 9111140614 9161540818 9165540825 9321016010 9321016010 9321016010 9353023514 9451100600 9451100600 9451100600 9451100600 9461210601 9461210601 9461210601 9461210601
Part # Description Qty Price
53031 - HOUSING, HEADLAMP, RH
53131-95215

DA11#,FA100,115

 1
53131-95211

DA11#,FA100,11#,FC100

 1
53031 - HOUSING, HEADLAMP, RH
53131-95215

DA11#,FA100,115

 1
53131-95211

DA11#,FA100,11#,FC100

 1
53031 - HOUSING, HEADLAMP, RH
53131-95215

DA11#,FA100,115

 1
53131-95211

DA11#,FA100,11#,FC100

 1
53032 - HOUSING, HEADLAMP, LH
53131-95211

DA11#,FA100,11#,FC100

 1
53131-95215

DA11#,FA100,115

 1
53032 - HOUSING, HEADLAMP, LH
53131-95211

DA11#,FA100,11#,FC100

 1
53131-95215

DA11#,FA100,115

 1
53032 - HOUSING, HEADLAMP, LH
53131-95211

DA11#,FA100,11#,FC100

 1
53131-95215

DA11#,FA100,115

 1
53111 - GRILLE, RADIATOR
53110-95215

DA11#,FA100,115

 1
53110-95211

DA11#,FA100,11#,FC100

 1
53110-95216

DA11#,FA100,115

 1
53111 - GRILLE, RADIATOR
53110-95215

DA11#,FA100,115

 1
53110-95211

DA11#,FA100,11#,FC100

 1
53110-95216

DA11#,FA100,115

 1
53135 - SHIM, HEADLAMP DOOR
53135-95211

DA11#,FA100,11#,FC100

 8
Common parts
75389-91336
90159-40051
90183-04009
90183-04045
91111-40614
91615-40818
91655-40825
93210-16010
93530-23514
94511-00600
94612-10601
