Toyota Heavy duty truck DA115 MIRROR

DA115L-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

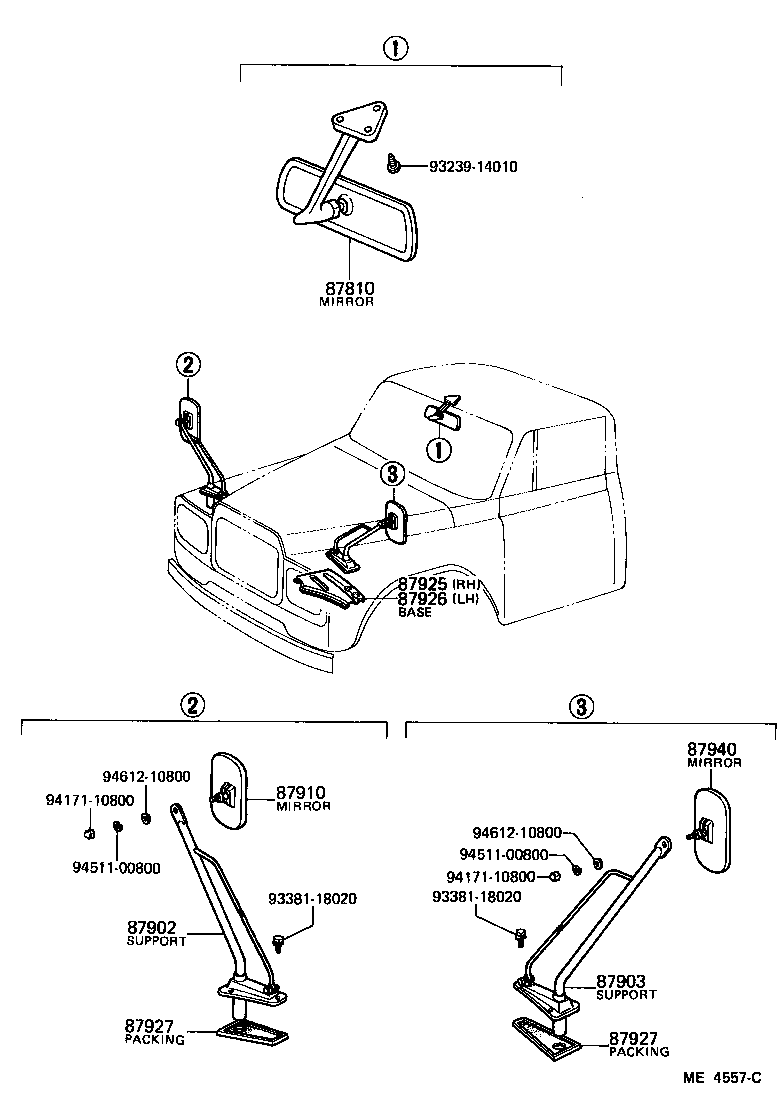

(6903- )DA11#,FA100,11#,FC100

Click highlighted areas on diagram

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95211	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
87902 - SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87903-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87903-95214	DA11#,FA100,11#,FC100	09/1973 - 12/2001	1
87903-95213	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	1
87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87904-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87904-95216	DA11#,FA100,11#,FC100	09/1973 - 12/2001	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-95212	DA11#,FA100,115	06/1975 - 12/2001	1
87902-95211	DA11#,FA100,11#,FC100	09/1973 - 06/1975	1
87901-95411	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	1
87902-95210	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87925 - BASE, REAR VIEW OUTSIDE MIRROR SUPPORT, RH
53837-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87926 - BASE, REAR VIEW OUTSIDE MIRROR SUPPORT, LH
53808-95210	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87933-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	2
87933-95212	DA11#,FA100,11#,FC100	09/1973 - 12/2001	2
87933-95214	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	2
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87933-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	2
87933-95212	DA11#,FA100,11#,FC100	09/1973 - 12/2001	2
87933-95214	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87902-95210	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87901-95212	DA11#,FA100,115	06/1975 - 12/2001	1
87902-95211	DA11#,FA100,11#,FC100	09/1973 - 06/1975	1
Common parts
93239-14010
93381-18020
94171-10800
94511-00800
94612-10800

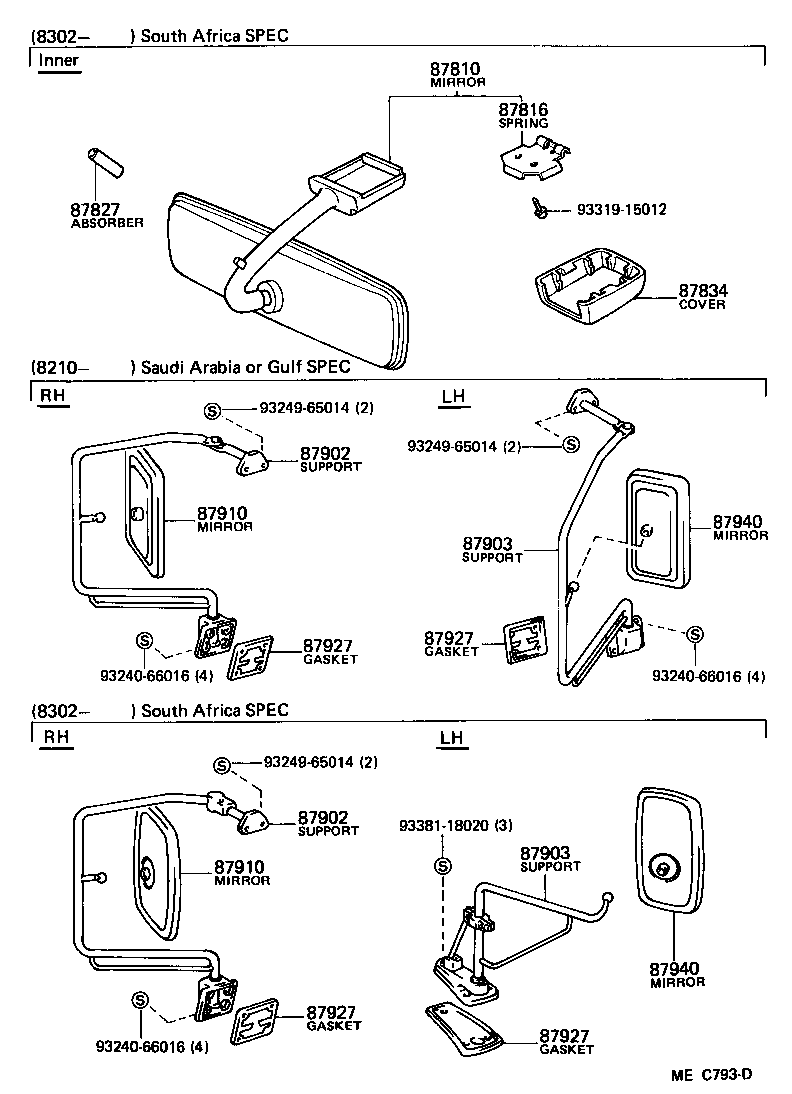

(8210- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95211	DA11#,FA100,11#,FC100	03/1969 - 12/2001	1
87902 - SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87903-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87903-95214	DA11#,FA100,11#,FC100	09/1973 - 12/2001	1
87903-95213	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	1
87902 - SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87903-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87903-95214	DA11#,FA100,11#,FC100	09/1973 - 12/2001	1
87903-95213	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	1
87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87904-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87904-95216	DA11#,FA100,11#,FC100	09/1973 - 12/2001	1
87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87904-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87904-95216	DA11#,FA100,11#,FC100	09/1973 - 12/2001	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-95212	DA11#,FA100,115	06/1975 - 12/2001	1
87902-95211	DA11#,FA100,11#,FC100	09/1973 - 06/1975	1
87901-95411	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	1
87902-95210	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-95212	DA11#,FA100,115	06/1975 - 12/2001	1
87902-95211	DA11#,FA100,11#,FC100	09/1973 - 06/1975	1
87901-95411	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	1
87902-95210	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87933-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	2
87933-95212	DA11#,FA100,11#,FC100	09/1973 - 12/2001	2
87933-95214	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	2
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87933-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	2
87933-95212	DA11#,FA100,11#,FC100	09/1973 - 12/2001	2
87933-95214	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	2
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87933-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	2
87933-95212	DA11#,FA100,11#,FC100	09/1973 - 12/2001	2
87933-95214	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	2
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87933-95211	DA11#,FA100,11#,FC100	03/1969 - 09/1973	2
87933-95212	DA11#,FA100,11#,FC100	09/1973 - 12/2001	2
87933-95214	DA11#..LHD *SAA OR GULF SPEC	08/1983 - 12/2001	2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87902-95210	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87901-95212	DA11#,FA100,115	06/1975 - 12/2001	1
87902-95211	DA11#,FA100,11#,FC100	09/1973 - 06/1975	1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87902-95210	DA11#,FA100,11#,FC100	03/1969 - 09/1973	1
87901-95212	DA11#,FA100,115	06/1975 - 12/2001	1
87902-95211	DA11#,FA100,11#,FC100	09/1973 - 06/1975	1
Common parts
93240-66016
93249-65014
93319-15012
93381-18020

DA115L-H (1969)

(6903- )DA11#,FA100,11#,FC100

(8210- )
