DA115L-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )DA11#,DB10#,FA100,11#,FB100

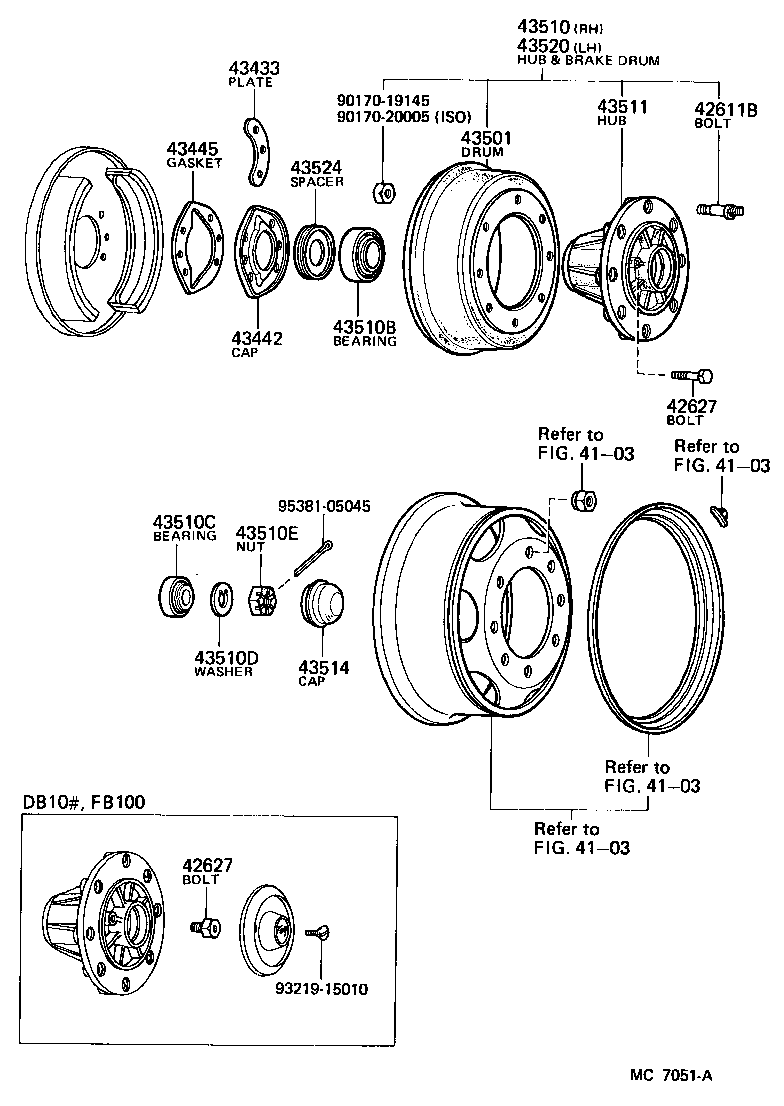

Click highlighted areas on diagram

diagram 4103 4103 4103 4103 42611B 42627 42627 43433 43442 43445 43501 43510 43510B 43510C 43510D 43510E 43511 43514 43520 43524 9017019145 9017020005 9321915010 9538105045
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02007

DA11#,DB10#,FA100,11#,FB100

RH

 8
90942-02008

DA11#,DB10#,FA100,11#,FB100

LH

 8
90942-02028

DA11#,DB10#,FA100,11#,FB100

RH

 8
90942-02029

DA11#,DB10#,FA100,11#,FB100

LH

 8
42627 - BOLT, FRONT WHEEL CAP SET
91211-51032

DA11#,FA100,11#

 4
42627 - BOLT, FRONT WHEEL CAP SET
91211-51032

DA11#,FA100,11#

 4
43433 - PLATE, KNUCKLE GREASE RETAINER
43433-55010

DA11#,FA100,115

 4
43442 - CAP, KNUCKLE GREASE RETAINER, INNER
43442-55020

DA11#,DB10#,FA100,11#,FB100,FC100

 2
43442-55040

DA11#,DB10#,FA100,11#,FB100

 2
43442-55041

DA11#,FA100,115

 2
43445 - GASKET, KNUCKLE GREASE RETAINER CAP
43445-55010

DA11#,DB10#,FA100,11#,FB100,FC100

T=1.0

 2
43445-55030

DA11#,DB10#,FA100,11#,FB100

T=0.5

 2
43501 - DRUM SUB-ASSY, FRONT BRAKE
43512-55020

DA11#,DB10#,FA100,11#,FB100

 2
43512-55022

DA11#,DB10#,FA100,11#,FB100

 2
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-55901

DA11#,DB10#,FA100,11#,FB100

 1
43510-59025

DA11#,DB10#,FA100,11#,FB100

 1
43510-59026

DA11#,DB10#,FA100,11#

ISO

 1
43510-55904

DA11#,DB105,FA100,115

 1
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90366-55016

DA11#,DB10#,FA100,11#,FB100,FC100

 2
90366-55029

DA11#,DB10#,FA100,11#,FB100,FC100

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90366-35015

DA11#,DB10#,FA100,11#,FB100,FC100

 2
90366-35032

DA11#,DB10#,FA100,11#,FB100,FC100

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-28014

DA11#,DB10#,FA100,11#,FB100,FC100

 2
43510E - NUT (FOR STEERING KNUCKLE)
90171-28006

DA11#,DB10#,FA100,11#,FB100,FC100

 2
43511 - HUB, FRONT AXLE
43511-55031

DA11#,DB10#,FA100,11#,FB100

 2
43511-55030

DA11#,DB10#,FA100,11#,FB100

 2
43514 - CAP, FRONT HUB GREASE
43423-55030

DA11#,DB10#,FA100,11#,FB100,FC100

 2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520-55901

DA11#,DB10#,FA100,11#

 1
43520-59025

DA11#,DB10#,FA100,11#

 1
43520-55902

DA11#,DB105,FA100,115

 1
43520-59026

DA11#,DB10#,FA100,11#

ISO

 1
43524 - SPACER, FRONT WHEEL INNER BEARING
43524-55010

DA11#,DB10#,FA100,11#,FB100,FC100

 2
Common parts
90170-19145
90170-20005
93219-15010
95381-05045
Linked diagrams
4103
