DA115L-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )

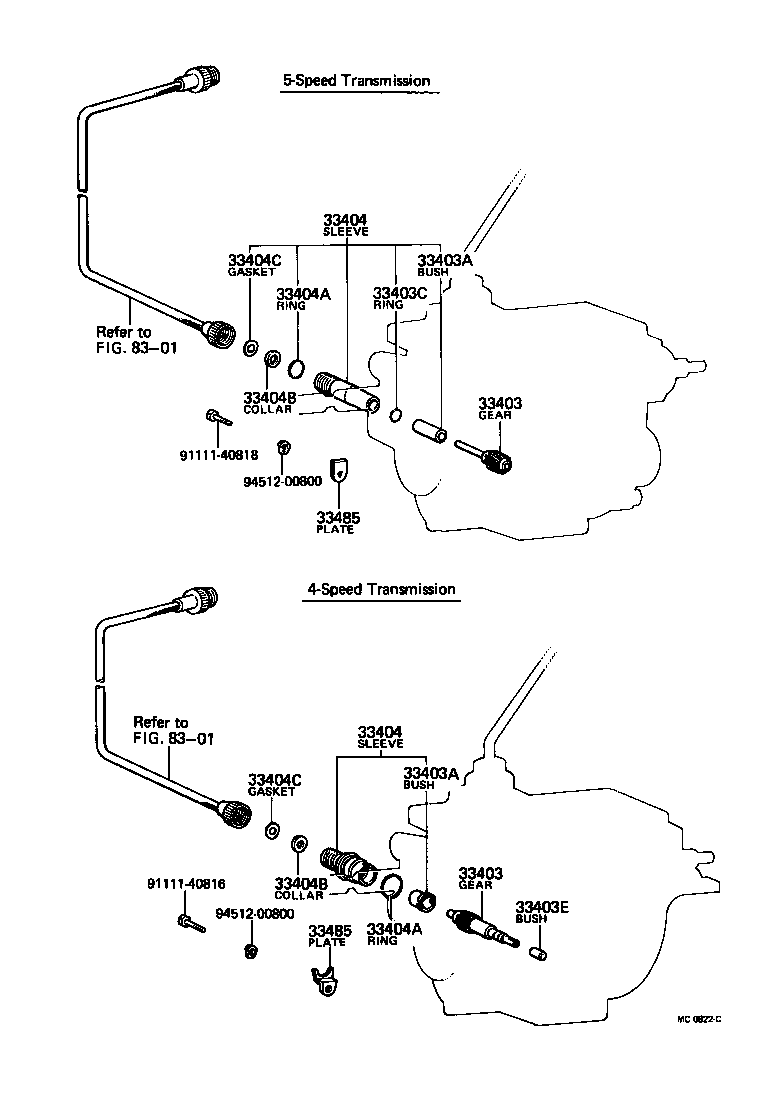

Click highlighted areas on diagram

diagram 33403 33403 33403A 33403A 33403C 33403E 33404 33404 33404A 33404A 33404B 33404B 33404C 33404C 33485 33485 8301 8301 9111140816 9111140818 9451200800 9451200800
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-55100

DA11#..2SR

N=14

 1
33403-55040

DA11#..2SR

N=15

 1
33403-55020

FB100;FA100,11#..2SR

N=18

 1
33403-55091

FA100,115..2SR

N=17

 1
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-55100

DA11#..2SR

N=14

 1
33403-55040

DA11#..2SR

N=15

 1
33403-55020

FB100;FA100,11#..2SR

N=18

 1
33403-55091

FA100,115..2SR

N=17

 1
33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
90386-09008

DA11#,DB10#,FA100,11#,FB100..5F

 1
33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
90386-09008

DA11#,DB10#,FA100,11#,FB100..5F

 1
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
90301-09010

DA11#,DB10#,FA100,11#,FB100..5F

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-29015

DA11#,DB10#,FA100,11#,FB100..5F

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-29015

DA11#,DB10#,FA100,11#,FB100..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

DA11#,DB10#,FA100,11#,FB100..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

DA11#,DB10#,FA100,11#,FB100..5F

 1
33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)
90201-07069

DA11#,DB10#,FA100,11#,FB100,FC100

 1
33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)
90201-07069

DA11#,DB10#,FA100,11#,FB100,FC100

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

DA11#,DB10#,FA100,11#,FB100,FC100

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

DA11#,DB10#,FA100,11#,FB100,FC100

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30010

DA11#,DB10#,FA100,11#,FB100..5F

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30010

DA11#,DB10#,FA100,11#,FB100..5F

 1
Common parts
91111-40816
91111-40818
94512-00800
Linked diagrams
8301
