DA115L-H (1969)
Toyota Heavy Duty Truck
(7704-8008)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-77010 |
2D..DA11# |
1 | ||
| 15710-61010 |
F..FA100,115 |
1 | ||
| 15710A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-18083 |
F..FA100,115 |
1 | ||
| 90401-18084 |
F..FA100,115 W/SWITCH HOLE |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-21176 |
2D..DA11# |
2 | ||
| 90301-21176 |
F..FA100,115 |
2 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90430-18012 |
F..FA100,115 |
2 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90910-05155 |
F..FA100,115 PIPE TO WATER PUMP |
1 | ||
| 99553-30210 |
F..FA100,115 PIPE TO OIL COOLER LOWER |
1 | ||
| 15779-61010 |
F..FA100,115 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 99553-30280 |
F..FA100,115 |
1 | ||
| 15778-61010 |
F..FA100,115 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15707-61010 |
F..FA100,115 UPR |
1 | ||
| 15771-61010 |
F..FA100,115 LWR |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15777-61011 |
F..FA100,115 |
1 | ||
| 15777-61010 |
F..FA100,115 |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90461-10139 |
F..FA100,115 |
1 | ||
| Common parts | ||||
| 90445-30001 | ||||
| 90464-00107 | ||||
| 93381-16008 | ||||
| 93381-16016 | ||||
| 94110-40600 | ||||

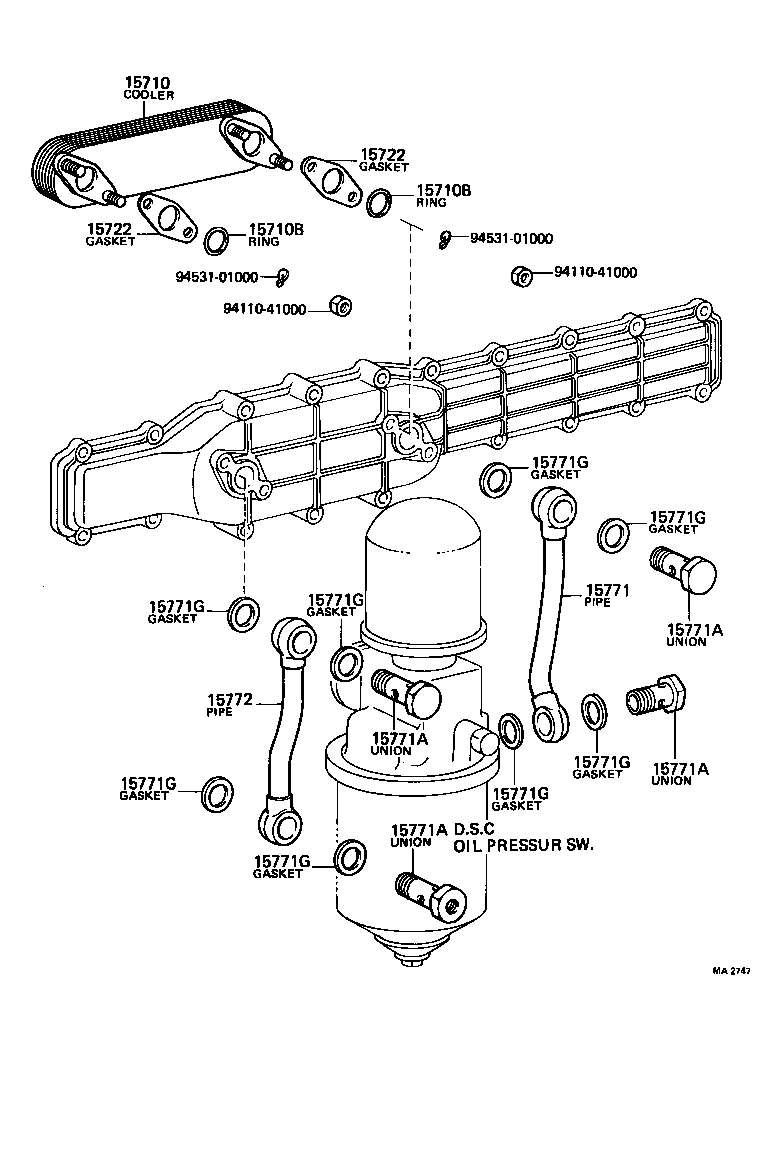

(7704- )2D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-77010 |
2D..DA11# |
1 | ||
| 15710-61010 |
F..FA100,115 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-21176 |
2D..DA11# |
2 | ||
| 90301-21176 |
F..FA100,115 |
2 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-21176 |
2D..DA11# |
2 | ||
| 90301-21176 |
F..FA100,115 |
2 | ||
| 15722 - GASKET, OIL COOLER | ||||
| 90923-05008 |
2D..DA11# |
2 | ||
| 15722 - GASKET, OIL COOLER | ||||
| 90923-05008 |
2D..DA11# |
2 | ||
| 15771 - PIPE, OIL, NO.1 | ||||
| 15772-77010 |
2D..DA11# |
1 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-18003 |
2D..DA11# |
3 | ||
| 90401-18004 |
2D..DA11# OIL PRESSURE SWICH |
1 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-18003 |
2D..DA11# |
3 | ||
| 90401-18004 |
2D..DA11# OIL PRESSURE SWICH |
1 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-18003 |
2D..DA11# |
3 | ||
| 90401-18004 |
2D..DA11# OIL PRESSURE SWICH |
1 | ||
| 15771A - UNION(FOR OIL PIPE) | ||||
| 90401-18003 |
2D..DA11# |
3 | ||
| 90401-18004 |
2D..DA11# OIL PRESSURE SWICH |
1 | ||
| 15771G - GASKET | ||||
| 90430-18002 |
2D..DA11# |
8 | ||
| 90430-18012 |
2D..DA11# |
8 | ||
| 15771G - GASKET | ||||
| 90430-18002 |
2D..DA11# |
8 | ||
| 90430-18012 |
2D..DA11# |
8 | ||
| 15771G - GASKET | ||||
| 90430-18002 |
2D..DA11# |
8 | ||
| 90430-18012 |
2D..DA11# |
8 | ||
| 15771G - GASKET | ||||
| 90430-18002 |
2D..DA11# |
8 | ||
| 90430-18012 |
2D..DA11# |
8 | ||
| 15771G - GASKET | ||||
| 90430-18002 |
2D..DA11# |
8 | ||
| 90430-18012 |
2D..DA11# |
8 | ||
| 15771G - GASKET | ||||
| 90430-18002 |
2D..DA11# |
8 | ||
| 90430-18012 |
2D..DA11# |
8 | ||
| 15771G - GASKET | ||||
| 90430-18002 |
2D..DA11# |
8 | ||
| 90430-18012 |
2D..DA11# |
8 | ||
| 15771G - GASKET | ||||
| 90430-18002 |
2D..DA11# |
8 | ||
| 90430-18012 |
2D..DA11# |
8 | ||
| 15772 - PIPE, OIL, NO.2 | ||||
| 15773-77011 |
2D..DA11# |
1 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94531-01000 | ||||

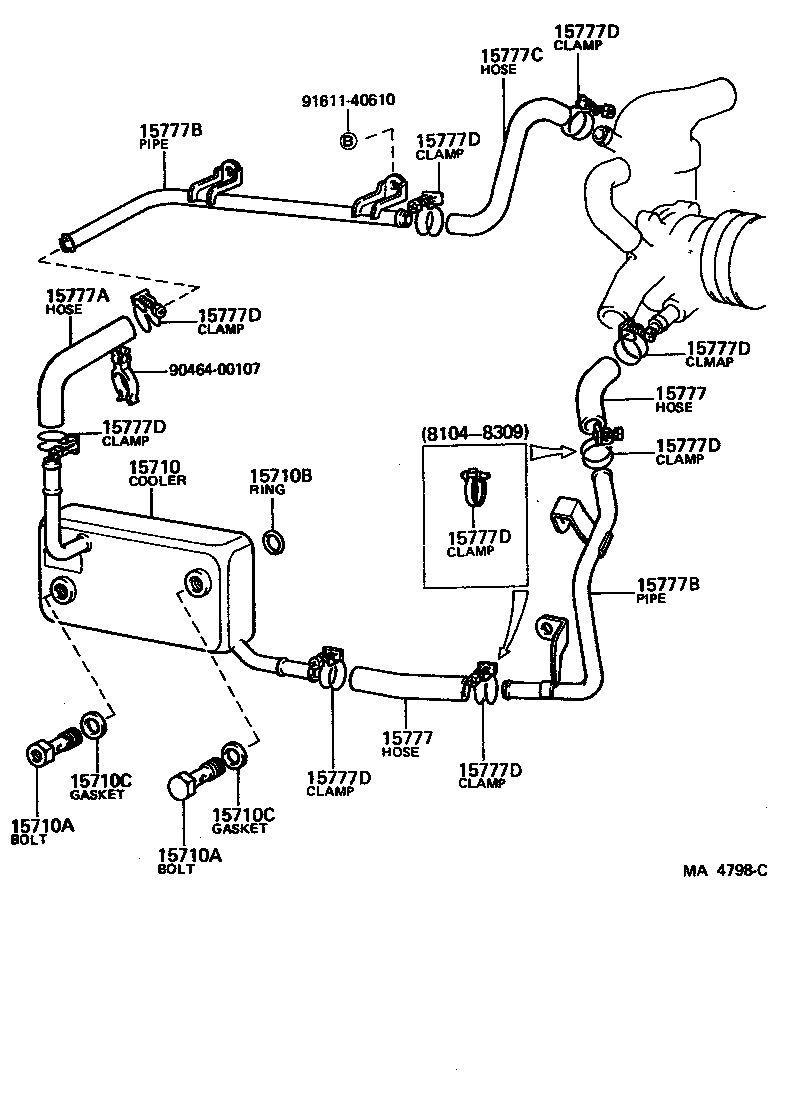

(8008-8207)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-77010 |
2D..DA11# |
1 | ||
| 15710-61010 |
F..FA100,115 |
1 | ||
| 15710A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-18083 |
F..FA100,115 |
1 | ||
| 90401-18084 |
F..FA100,115 W/SWITCH HOLE |
1 | ||
| 15710A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-18083 |
F..FA100,115 |
1 | ||
| 90401-18084 |
F..FA100,115 W/SWITCH HOLE |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-21176 |
2D..DA11# |
2 | ||
| 90301-21176 |
F..FA100,115 |
2 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90430-18012 |
F..FA100,115 |
2 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90430-18012 |
F..FA100,115 |
2 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90910-05155 |
F..FA100,115 PIPE TO WATER PUMP |
1 | ||
| 99553-30210 |
F..FA100,115 PIPE TO OIL COOLER LOWER |
1 | ||
| 15779-61010 |
F..FA100,115 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90910-05155 |
F..FA100,115 PIPE TO WATER PUMP |
1 | ||
| 99553-30210 |
F..FA100,115 PIPE TO OIL COOLER LOWER |
1 | ||
| 15779-61010 |
F..FA100,115 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 99553-30280 |
F..FA100,115 |
1 | ||
| 15778-61010 |
F..FA100,115 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15707-61010 |
F..FA100,115 UPR |
1 | ||
| 15771-61010 |
F..FA100,115 LWR |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15707-61010 |
F..FA100,115 UPR |
1 | ||
| 15771-61010 |
F..FA100,115 LWR |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15777-61011 |
F..FA100,115 |
1 | ||
| 15777-61010 |
F..FA100,115 |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96111-10270 |
F..FA100,115 |
8 | ||
| 96111-10270 |
F..FA100,115 |
6 | ||
| 90460-24039 |
F..FA100,115 LWR PIPE SIDE |
2 | ||
| Common parts | ||||
| 90464-00107 | ||||
| 91611-40610 | ||||
