DA115L- (1969)
Toyota Heavy Duty Truck

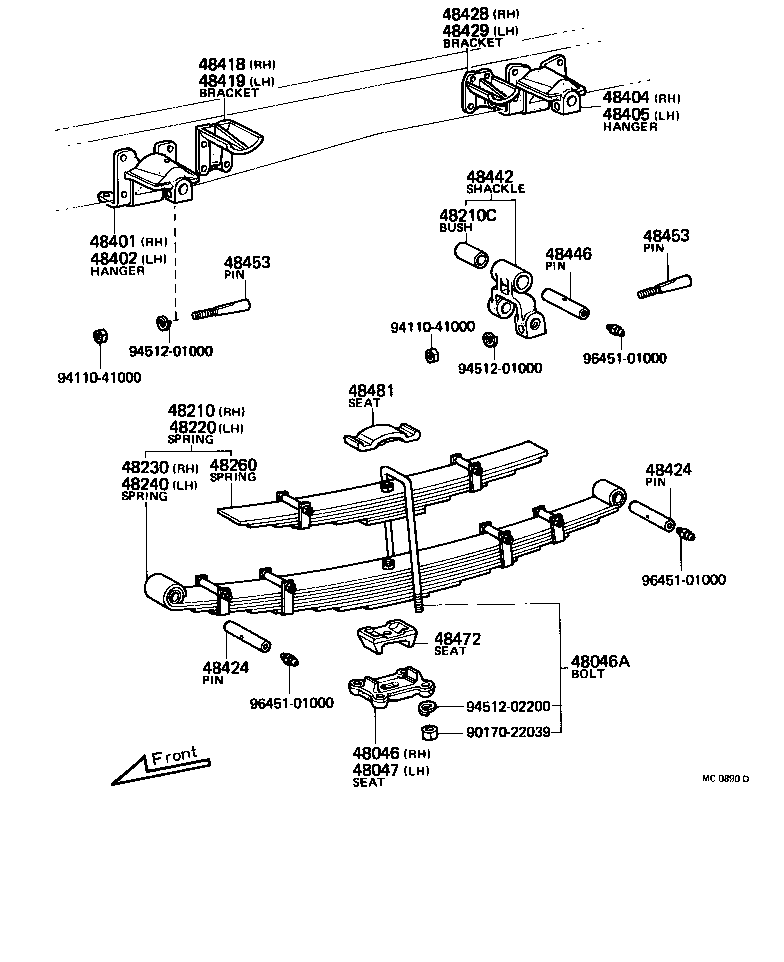

ILLUST NO. 1 OF 2(6903- )DA11#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 42152-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 42152-55031 |
DA11#,FA100,11# |
1 | ||
| 42152-55031 |
FA100,115..1SR |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-22042 |
DA11#,FA11# |
4 | ||
| 90118-22130 |
DA11#;FA115..2SR |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 42152-55031 |
FA100,115..1SR |
1 | ||
| 42152-55060 |
DA11#;FA100,115..2SR |
1 | ||
| 42152-55031 |
DA11#,FA100,11# |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-55141 |
DA11#,FA115 |
1 | ||
| 48210-55140 |
DA11#,FA115 |
1 | ||
| 48210-55100 |
DA11#,FA11# |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90999-73016 |
DA11#,FA100,11#,FC100 ID=32,OD=38.3,L=78 |
6 | ||
| 48283-55140 |
DA11#,FA100,115 ID=32,OD=38,L=78 |
6 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-55090 |
DA11#,FA11# |
1 | ||
| 48210-55140 |
DA11#,FA115 |
1 | ||
| 48210-55141 |
DA11#,FA115 |
1 | ||
| 48230 - SPRING ASSY, REAR MAIN, RH | ||||
| 48230-55140 |
DA11#,FA115 |
1 | ||
| 48230-55090 |
DA11#,FA11# |
1 | ||
| 48230-55141 |
DA11#,FA115 |
1 | ||
| 48240 - SPRING ASSY, REAR MAIN, LH | ||||
| 48230-55141 |
DA11#,FA115 |
1 | ||
| 48230-55140 |
DA11#,FA115 |
1 | ||
| 48240-55080 |
DA11#,FA11# |
1 | ||
| 48260 - SPRING ASSY, REAR HELPER | ||||
| 48260-55100 |
DA11#,FA11# |
2 | ||
| 48260-55140 |
DA11#,FA115 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-55010 |
DA11#,FA100,11#,FC100 |
2 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48418 - BRACKET, HELPER SPRING, FRONT RH | ||||
| 48418-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48419 - BRACKET, HELPER SPRING, FRONT LH | ||||
| 48418-55030 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48424 - PIN, SPRING BRACKET, NO.2 | ||||
| 48455-55010 |
DA11#,FA100,11#,FC100 RR,LH |
1 | ||
| 48424-55020 |
DA11#,FA100,11#,FC100 FR |
2 | ||
| 48456-55010 |
DA11#,FA100,11#,FC100 RR,RH |
1 | ||
| 48424 - PIN, SPRING BRACKET, NO.2 | ||||
| 48455-55010 |
DA11#,FA100,11#,FC100 RR,LH |
1 | ||
| 48424-55020 |
DA11#,FA100,11#,FC100 FR |
2 | ||
| 48456-55010 |
DA11#,FA100,11#,FC100 RR,RH |
1 | ||
| 48428 - BRACKET, HELPER SPRING, REAR RH | ||||
| 48419-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48429 - BRACKET, HELPER SPRING, REAR LH | ||||
| 48419-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-55020 |
DA11#,FA100,11#,FC100 |
2 | ||
| 48446 - PIN, REAR SPRING SHACKLE | ||||
| 48424-55020 |
DA11#,FA100,11#,FC100 |
2 | ||
| 48453 - PIN, REAR SPRING PIN LOCK | ||||
| 48453-55010 |
DA11#,FA100,11#,FC100 |
6 | ||
| 48453 - PIN, REAR SPRING PIN LOCK | ||||
| 48453-55010 |
DA11#,FA100,11#,FC100 |
6 | ||
| 48472 - SEAT, REAR SPRING, LOWER | ||||
| 42151-55060 |
DA11#,FA100,11#,FB100 |
2 | ||
| 42151-55060 |
FA100,115..1SR |
2 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-55050 |
DA11#;FA100,115..2SR |
2 | ||
| 48481-55031 |
DA11#,FA100,11# |
2 | ||
| 48481-55031 |
FA100,115..1SR |
2 | ||
| Common parts | ||||
| 90170-22039 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94512-02200 | ||||
| 96451-01000 | ||||

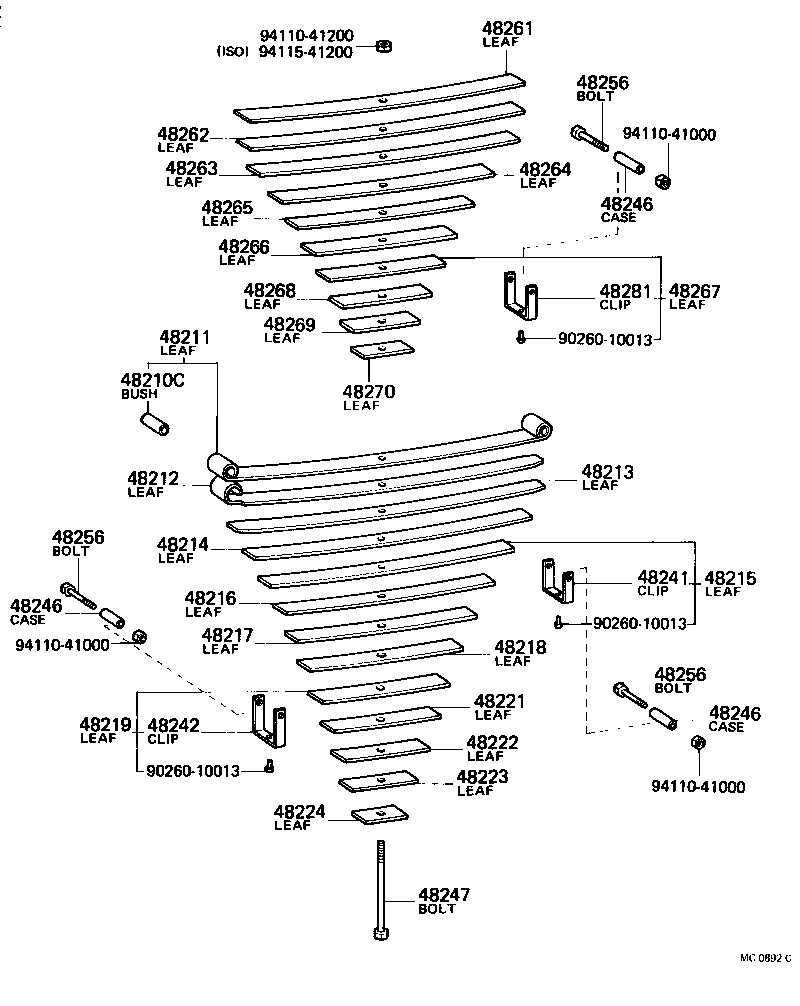

ILLUST NO. 2 OF 2(6903-7510)DA11#,FA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90999-73016 |
DA11#,FA100,11#,FC100 ID=32,OD=38.3,L=78 |
6 | ||
| 48283-55140 |
DA11#,FA100,115 ID=32,OD=38,L=78 |
6 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-55090 |
DA11#,FA100,11# |
2 | ||
| 48201-55140 |
DA11#,FA115 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-55090 |
DA11#,FA11# |
2 | ||
| 48212-55140 |
DA11#,FA115 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-55140 |
DA11#,FA115 |
2 | ||
| 48213-55090 |
DA11#,FA11# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-55090 |
DA11#,FA11# |
2 | ||
| 48214-55140 |
DA11#,FA115 |
2 | ||
| 48203-55141 |
DA11#,FA115 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-55140 |
DA11#,FA115 |
2 | ||
| 48202-55090 |
DA11#,FA11# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-55090 |
DA11#,FA11# |
2 | ||
| 48202-55140 |
DA11#,FA115 |
2 | ||
| 48202-55141 |
DA11#,FA115 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-55090 |
DA11#,FA11# |
2 | ||
| 48217-55140 |
DA11#,FA115 |
2 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-55090 |
DA11#,FA11# |
2 | ||
| 48218-55140 |
DA11#,FA115 |
2 | ||
| 48219 - LEAF, REAR SPRING, NO.9 | ||||
| 48203-55090 |
DA11#,FA11# |
2 | ||
| 48219-55140 |
DA11#,FA115 |
2 | ||
| 48221 - LEAF, REAR SPRING, NO.10 | ||||
| 48221-55090 |
DA11#,FA11# |
2 | ||
| 48222 - LEAF, REAR SPRING, NO.11 | ||||
| 48222-55090 |
DA11#,FA11# |
2 | ||
| 48223 - LEAF, REAR SPRING NO.12 | ||||
| 48223-55090 |
DA11#,FA11# |
2 | ||
| 48224 - LEAF, REAR SPRING NO.13 | ||||
| 48224-55090 |
DA11#,FA11# |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-55140 |
DA11#,FA115 |
4 | ||
| 48241-55090 |
DA11#,FA100,11# |
4 | ||
| 48281-55130 |
DA11#,FA115 |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-55090 |
DA11#,FA11# |
4 | ||
| 48241-96518 |
DA11#,FA115 |
4 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-55092 |
DA11#,FA11# |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-55090 |
DA11#,FA11# |
2 | ||
| 48261-55140 |
DA11#,FA115 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-55090 |
DA11#,FA11# |
2 | ||
| 48262-55140 |
DA11#,FA115 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48262-55090 |
DA11#,FA11# |
2 | ||
| 48263-55140 |
DA11#,FA115 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-55140 |
DA11#,FA115 |
2 | ||
| 48263-55090 |
DA11#,FA11# |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48207-55140 |
DA11#,FA115 |
2 | ||
| 48264-55090 |
DA11#,FA11# |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-55140 |
DA11#,FA115 |
2 | ||
| 48265-55090 |
DA11#,FA11# |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48207-55100 |
DA11#,FA11# |
2 | ||
| 48267-55140 |
DA11#,FA115 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48268-55140 |
DA11#,FA115 |
2 | ||
| 48267-55090 |
DA11#,FA11# |
2 | ||
| 48269 - LEAF, REAR HELPER SPRING, NO.9 | ||||
| 48268-55090 |
DA11#,FA11# |
2 | ||
| 48270 - LEAF, REAR HELPER SPRING, NO.10 | ||||
| 48269-55090 |
DA11#,FA11# |
2 | ||
| 48281 - CLIP, REAR HELPER SPRING, NO.1 | ||||
| 48241-55130 |
DA11#,FA115 |
4 | ||
| 48281-55100 |
DA11#,FA11# |
4 | ||
| Common parts | ||||
| 90260-10013 | ||||
| 94110-41000 | ||||
| 94110-41200 | ||||
| 94115-41200 | ||||

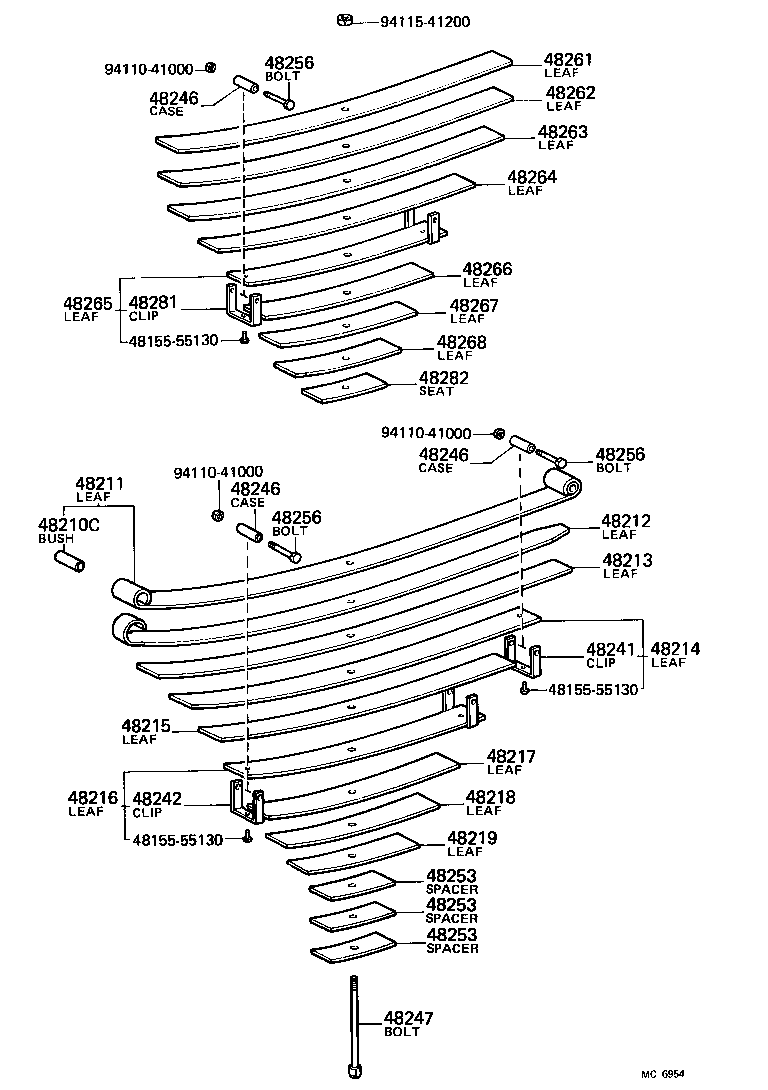

ILLUST NO. 2 OF 2(7510-8002)DA11#,FA115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90999-73016 |
DA11#,FA100,11#,FC100 ID=32,OD=38.3,L=78 |
6 | ||
| 48283-55140 |
DA11#,FA100,115 ID=32,OD=38,L=78 |
6 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-55090 |
DA11#,FA100,11# |
2 | ||
| 48201-55140 |
DA11#,FA115 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-55090 |
DA11#,FA11# |
2 | ||
| 48212-55140 |
DA11#,FA115 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-55140 |
DA11#,FA115 |
2 | ||
| 48213-55090 |
DA11#,FA11# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-55090 |
DA11#,FA11# |
2 | ||
| 48214-55140 |
DA11#,FA115 |
2 | ||
| 48203-55141 |
DA11#,FA115 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-55140 |
DA11#,FA115 |
2 | ||
| 48202-55090 |
DA11#,FA11# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-55090 |
DA11#,FA11# |
2 | ||
| 48202-55140 |
DA11#,FA115 |
2 | ||
| 48202-55141 |
DA11#,FA115 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-55090 |
DA11#,FA11# |
2 | ||
| 48217-55140 |
DA11#,FA115 |
2 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-55090 |
DA11#,FA11# |
2 | ||
| 48218-55140 |
DA11#,FA115 |
2 | ||
| 48219 - LEAF, REAR SPRING, NO.9 | ||||
| 48203-55090 |
DA11#,FA11# |
2 | ||
| 48219-55140 |
DA11#,FA115 |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-55140 |
DA11#,FA115 |
4 | ||
| 48241-55090 |
DA11#,FA100,11# |
4 | ||
| 48281-55130 |
DA11#,FA115 |
4 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-55092 |
DA11#,FA11# |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-55130 |
DA11#,FA100,115 |
6 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-55130 |
DA11#,FA100,115 |
6 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-55130 |
DA11#,FA100,115 |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-55090 |
DA11#,FA11# |
2 | ||
| 48261-55140 |
DA11#,FA115 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-55090 |
DA11#,FA11# |
2 | ||
| 48262-55140 |
DA11#,FA115 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48262-55090 |
DA11#,FA11# |
2 | ||
| 48263-55140 |
DA11#,FA115 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-55140 |
DA11#,FA115 |
2 | ||
| 48263-55090 |
DA11#,FA11# |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48207-55140 |
DA11#,FA115 |
2 | ||
| 48264-55090 |
DA11#,FA11# |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-55140 |
DA11#,FA115 |
2 | ||
| 48265-55090 |
DA11#,FA11# |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48207-55100 |
DA11#,FA11# |
2 | ||
| 48267-55140 |
DA11#,FA115 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48268-55140 |
DA11#,FA115 |
2 | ||
| 48267-55090 |
DA11#,FA11# |
2 | ||
| 48281 - CLIP, REAR HELPER SPRING, NO.1 | ||||
| 48241-55130 |
DA11#,FA115 |
4 | ||
| 48281-55100 |
DA11#,FA11# |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-55130 |
DA11#,FA100,115 |
2 | ||
| Common parts | ||||
| 48155-55130 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||

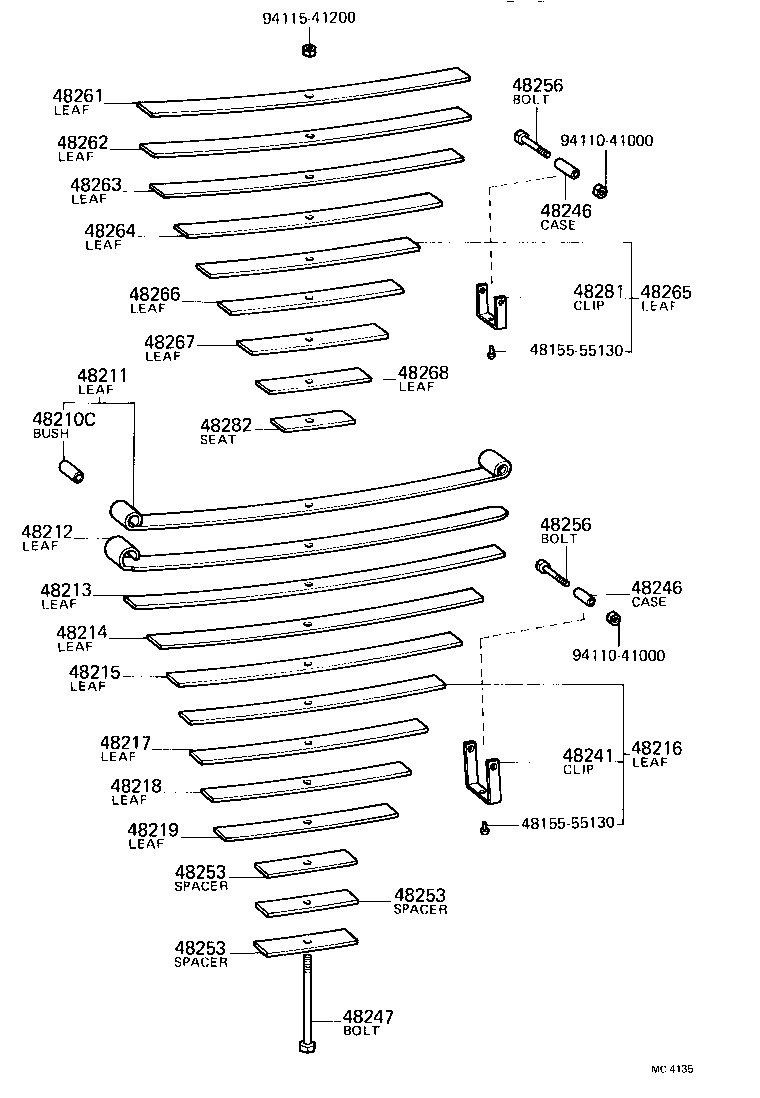

ILLUST NO. 2 OF 2(8002- )DA11#,FA115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90999-73016 |
DA11#,FA100,11#,FC100 ID=32,OD=38.3,L=78 |
6 | ||
| 48283-55140 |
DA11#,FA100,115 ID=32,OD=38,L=78 |
6 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-55090 |
DA11#,FA100,11# |
2 | ||
| 48201-55140 |
DA11#,FA115 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-55090 |
DA11#,FA11# |
2 | ||
| 48212-55140 |
DA11#,FA115 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-55140 |
DA11#,FA115 |
2 | ||
| 48213-55090 |
DA11#,FA11# |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-55090 |
DA11#,FA11# |
2 | ||
| 48214-55140 |
DA11#,FA115 |
2 | ||
| 48203-55141 |
DA11#,FA115 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-55140 |
DA11#,FA115 |
2 | ||
| 48202-55090 |
DA11#,FA11# |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-55090 |
DA11#,FA11# |
2 | ||
| 48202-55140 |
DA11#,FA115 |
2 | ||
| 48202-55141 |
DA11#,FA115 |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-55090 |
DA11#,FA11# |
2 | ||
| 48217-55140 |
DA11#,FA115 |
2 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48218-55090 |
DA11#,FA11# |
2 | ||
| 48218-55140 |
DA11#,FA115 |
2 | ||
| 48219 - LEAF, REAR SPRING, NO.9 | ||||
| 48203-55090 |
DA11#,FA11# |
2 | ||
| 48219-55140 |
DA11#,FA115 |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-55140 |
DA11#,FA115 |
4 | ||
| 48241-55090 |
DA11#,FA100,11# |
4 | ||
| 48281-55130 |
DA11#,FA115 |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-55090 |
DA11#,FA11# |
4 | ||
| 48241-96518 |
DA11#,FA115 |
4 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-55092 |
DA11#,FA11# |
2 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-55130 |
DA11#,FA100,115 |
6 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-55130 |
DA11#,FA100,115 |
6 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-55130 |
DA11#,FA100,115 |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48156-56010 |
DA11#,FA100,11#,FC100 |
12 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-55090 |
DA11#,FA11# |
2 | ||
| 48261-55140 |
DA11#,FA115 |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-55090 |
DA11#,FA11# |
2 | ||
| 48262-55140 |
DA11#,FA115 |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48262-55090 |
DA11#,FA11# |
2 | ||
| 48263-55140 |
DA11#,FA115 |
2 | ||
| 48264 - LEAF, REAR HELPER SPRING, NO.4 | ||||
| 48264-55140 |
DA11#,FA115 |
2 | ||
| 48263-55090 |
DA11#,FA11# |
2 | ||
| 48265 - LEAF, REAR HELPER SPRING, NO.5 | ||||
| 48207-55140 |
DA11#,FA115 |
2 | ||
| 48264-55090 |
DA11#,FA11# |
2 | ||
| 48266 - LEAF, REAR HELPER SPRING, NO.6 | ||||
| 48266-55140 |
DA11#,FA115 |
2 | ||
| 48265-55090 |
DA11#,FA11# |
2 | ||
| 48267 - LEAF, REAR HELPER SPRING, NO.7 | ||||
| 48207-55100 |
DA11#,FA11# |
2 | ||
| 48267-55140 |
DA11#,FA115 |
2 | ||
| 48268 - LEAF, REAR HELPER SPRING, NO.8 | ||||
| 48268-55140 |
DA11#,FA115 |
2 | ||
| 48267-55090 |
DA11#,FA11# |
2 | ||
| 48281 - CLIP, REAR HELPER SPRING, NO.1 | ||||
| 48241-55130 |
DA11#,FA115 |
4 | ||
| 48281-55100 |
DA11#,FA11# |
4 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-55130 |
DA11#,FA100,115 |
2 | ||
| Common parts | ||||
| 48155-55130 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
