DA115L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8511- )LHD

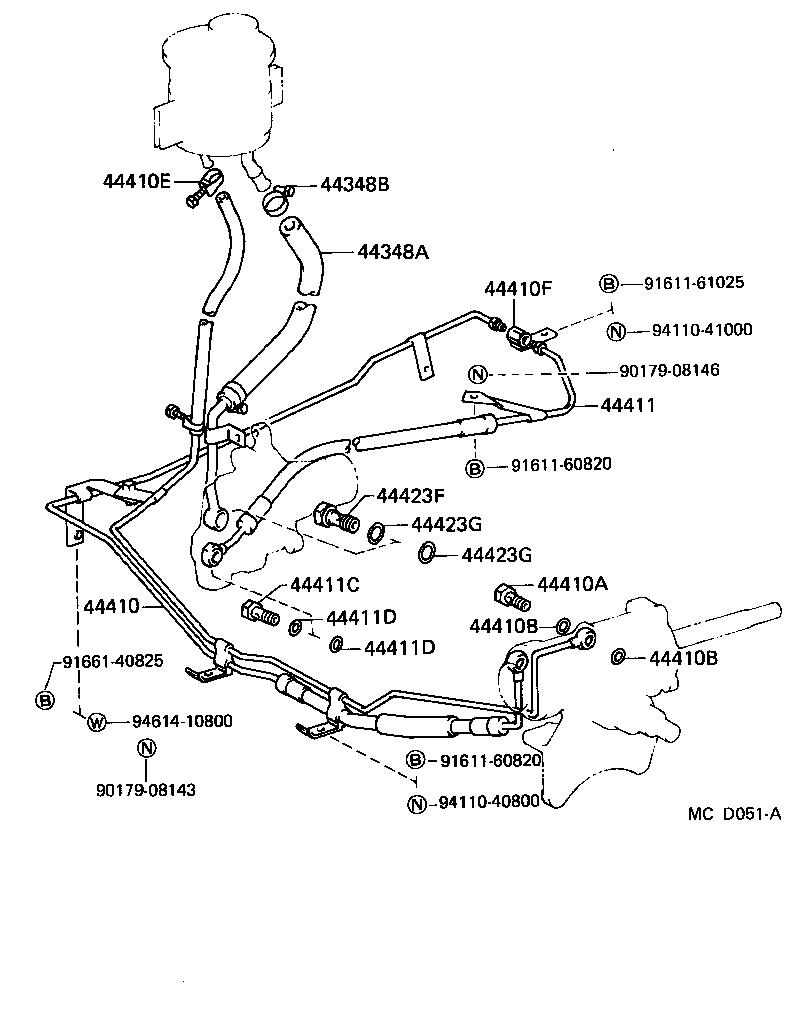

Click highlighted areas on diagram

diagram 44348A 44348B 44410 44410A 44410B 44410B 44410E 44410F 44411 44411C 44411D 44411D 44423F 44423G 44423G 9017908143 9017908146 9161160820 9161160820 9161161025 9166140825 9411040800 9411041000 9461410800
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-55010

DA11#..LHD

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

DA11#..LHD

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-55010

DA11#..LHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-14003

DA11#..LHD

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

DA11#..LHD

 4
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-14235

DA11#..LHD

 4
44410E - CLAMP(FOR PRESSURE FEED TUBE)
90460-01001

DA11#..LHD

 1
44410F - WAY, 2(FOR PRESSURE FEED TUBE)
90412-16001

DA11#..LHD

 1
44411 - HOSE, PRESSURE FEED
44411-55010

DA11#..LHD

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16004

DA11#..LHD

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

DA11#..LHD

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16168

DA11#..LHD

 2
44423F - BOLT, UNION
90401-22003

DA11#..LHD

 1
44423G - GASKET, UNION BOLT
90430-22001

DA11#..LHD

 2
44423G - GASKET, UNION BOLT
90430-22001

DA11#..LHD

 2
Common parts
90179-08143
90179-08146
91611-60820
91611-61025
91661-40825
94110-40800
94110-41000
94614-10800
