DA115L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

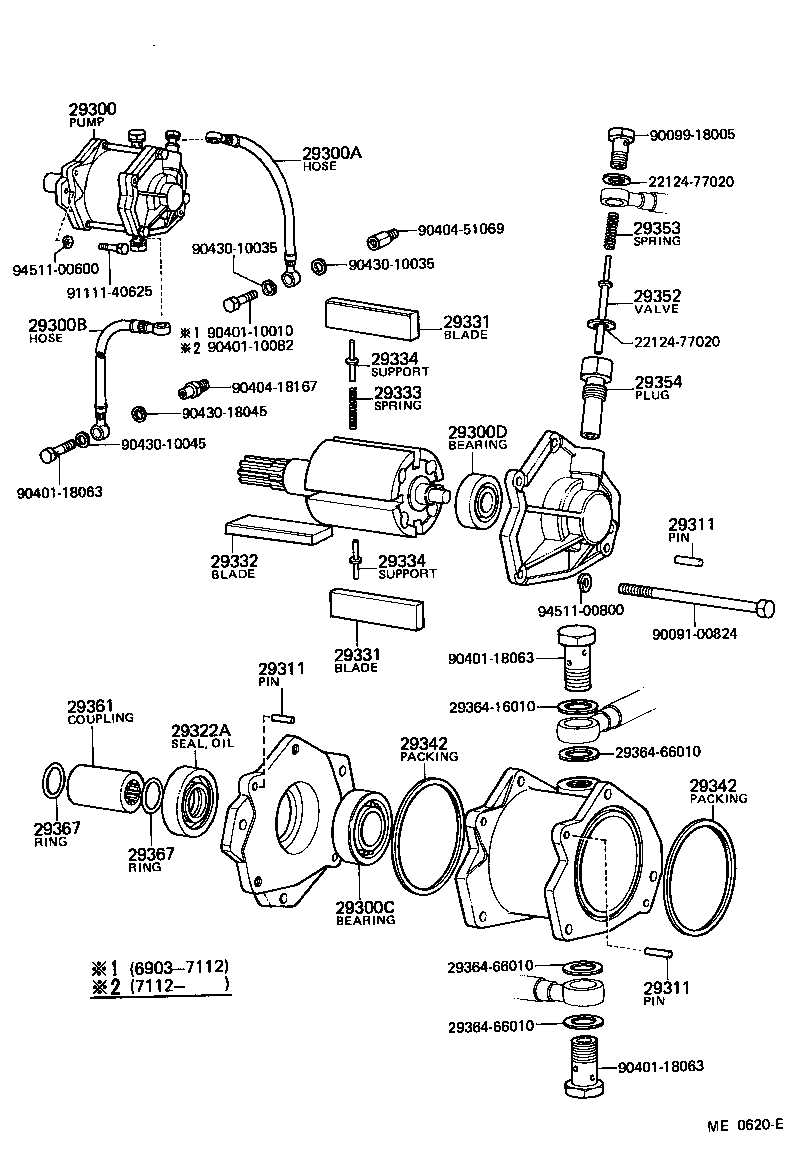

(6903-7207)2D

Click highlighted areas on diagram

diagram 2212477020 2212477020 29300 29300A 29300B 29300C 29300D 29311 29311 29311 29322A 29331 29331 29332 29333 29334 29334 29342 29342 29352 29353 29354 29361 2936416010 2936466010 2936466010 2936466010 29367 29367 9009100824 9009918005 9040110010 9040110082 9040118063 9040118063 9040118063 9040418167 9040451069 9043010035 9043010035 9043010045 9043018045 9111140625 9451100600 9451100800
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-77011

2D..DA11#,DB10#

 1
29300-77020

F..FA100,115

 1
29300-77040

2D..DA11#,DB105

 1
29300-77020

F,2D..DA11#,DB105,FA100,115

 1
29300-77020

2D..DA11#,DB10#

 1
29300-77041

2D..DA11#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02030

2D..DA11#,DB10#

 1
90923-02039

2D..DA11#,DB10#

 1
90923-02012

2D..DA11#,DB10#

 1
90923-02043

F..FA100,115

 1
90923-02039

F..FA100,115

 1
90923-02024

2D..DA11#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29602-76030

2D..DA11#,DB10#

 1
90923-02031

2D..DA11#,DB10#

 1
90923-02031

F..FA100,115

 1
90923-02044

F..FA100,115

 1
90923-02031

2D..DA11#,DB10#

 1
90923-02040

2D..DA11#,DB10#

 1
90445-20010

2D..DA11#

 1
90923-02060

2D..DA11#

 1
29300C - BEARING, VACUUM PUMP ROTOR, FRONT
90099-10002

2D..DA11#,DB10#

20B60

 1
90099-12002

2D..DA11#,DB10#

20B60

 1
29300D - BEARING, VACUUM PUMP ROTOR, REAR
90099-60020

2D..DA11#,DB10#

6002

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

F,2D..DA11#,DB105,FA100,115

 4
29311-76010

2D..DA11#,DB10#

 4
90099-08082

2D..DA11#

 4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

F,2D..DA11#,DB105,FA100,115

 4
29311-76010

2D..DA11#,DB10#

 4
90099-08082

2D..DA11#

 4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

F,2D..DA11#,DB105,FA100,115

 4
29311-76010

2D..DA11#,DB10#

 4
90099-08082

2D..DA11#

 4
29322A - SEAL, VACUUM PUMP OIL
29341-77011

2D..DA11#,DB10#

 1
90099-15017

F,2D..DA11#,DB105,FA100,115

 1
90099-15017

2D..DA11#,DB10#

 1
29331 - BLADE, VACUUM PUMP, A
29331-77020

2D..DA11#,DB10#

 4
29331-77020

F,2D..DA11#,DB105,FA100,115

 4
29331-77011

2D..DA11#,DB10#

 2
29331-66011

2D..DA11#,DB10#

 2
29331 - BLADE, VACUUM PUMP, A
29331-77020

2D..DA11#,DB10#

 4
29331-77020

F,2D..DA11#,DB105,FA100,115

 4
29331-77011

2D..DA11#,DB10#

 2
29331-66011

2D..DA11#,DB10#

 2
29332 - BLADE, VACUUM PUMP, B
29332-66011

2D..DA11#,DB10#

 2
29332-77011

2D..DA11#,DB10#

 2
29333 - SPRING, VACUUM PUMP BLADE
29333-66011

2D..DA11#,DB10#

 8
29333-77011

2D..DA11#,DB10#

 8
29334 - SUPPORT, VACUUM PUMP BLADE SPRING
29334-66011

2D..DA11#,DB10#

 4
29334-76010

2D..DA11#,DB10#

 4
29334 - SUPPORT, VACUUM PUMP BLADE SPRING
29334-66011

2D..DA11#,DB10#

 4
29334-76010

2D..DA11#,DB10#

 4
29342 - PACKING, VACUUM PUMP
29342-76010

2D..DA11#,DB10#

 2
90099-14031

2D..DA11#,DB10#

 2
90099-14031

F,2D..DA11#,DB105,FA100,115

 2
29342 - PACKING, VACUUM PUMP
29342-76010

2D..DA11#,DB10#

 2
90099-14031

2D..DA11#,DB10#

 2
90099-14031

F,2D..DA11#,DB105,FA100,115

 2
29352 - VALVE, VACUUM PUMP
29352-76010

2D..DA11#,DB10#

 1
29353 - SPRING, OIL VALVE
29353-76010

2D..DA11#,DB10#

 1
29354 - PLUG, VACUUM PUMP OIL
29354-76010

2D..DA11#,DB10#

 1
29361 - COUPLING, VACUUM PUMP
29361-77011

2D..DA11#,DB10#

 1
29367 - RING, GREASE SEAL
29367-77011

2D..DA11#,DB10#

 2
29367 - RING, GREASE SEAL
29367-77011

2D..DA11#,DB10#

 2
Common parts
22124-77020
29364-16010
29364-66010
90091-00824
90099-18005
90401-10010
90401-10082
90401-18063
90404-18167
90404-51069
90430-10035
90430-10045
90430-18045
91111-40625
94511-00600
94511-00800

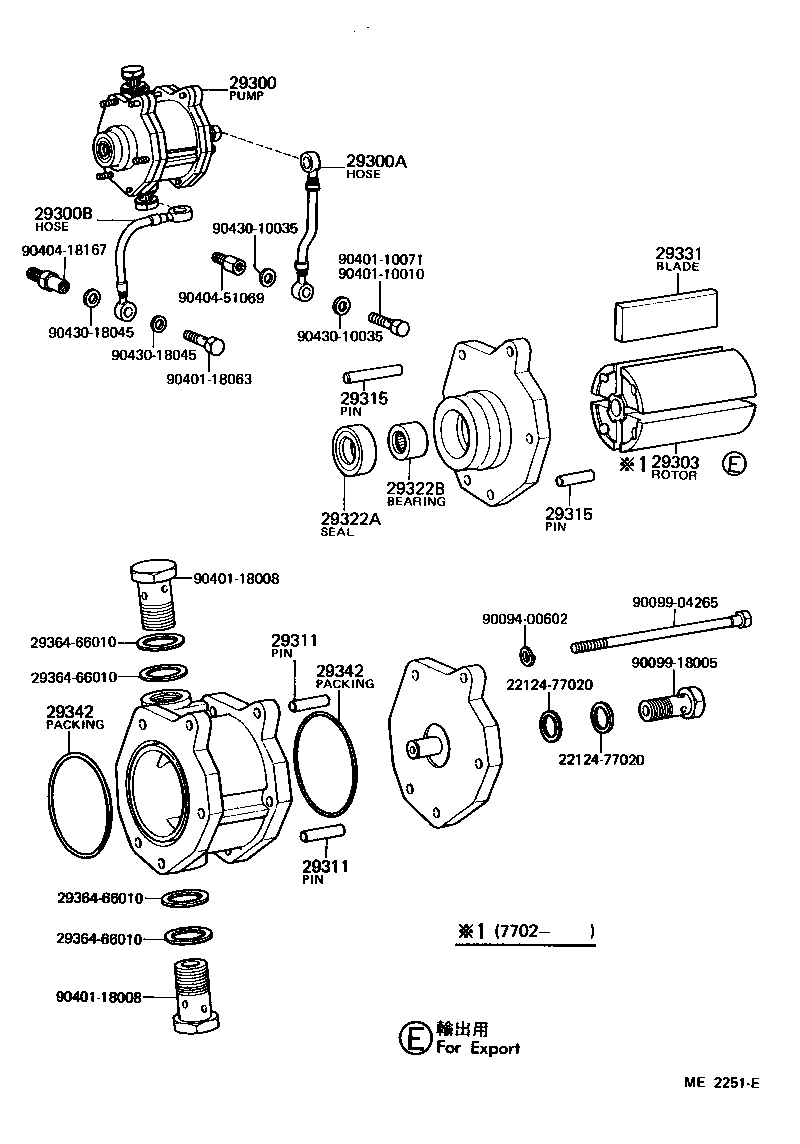

(7207-7704)2D ; (7404-8207)F

Click highlighted areas on diagram

diagram 2212477020 2212477020 29300 29300A 29300B 29303 29311 29311 29315 29315 29322A 29322B 29331 29342 29342 2936466010 2936466010 2936466010 2936466010 9009400602 9009904265 9009918005 9040110010 9040110071 9040118008 9040118008 9040118063 9040418167 9040451069 9043010035 9043010035 9043018045 9043018045
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-77011

2D..DA11#,DB10#

 1
29300-77020

F..FA100,115

 1
29300-77040

2D..DA11#,DB105

 1
29300-77020

F,2D..DA11#,DB105,FA100,115

 1
29300-77020

2D..DA11#,DB10#

 1
29300-77041

2D..DA11#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02030

2D..DA11#,DB10#

 1
90923-02039

2D..DA11#,DB10#

 1
90923-02012

2D..DA11#,DB10#

 1
90923-02043

F..FA100,115

 1
90923-02039

F..FA100,115

 1
90923-02024

2D..DA11#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29602-76030

2D..DA11#,DB10#

 1
90923-02031

2D..DA11#,DB10#

 1
90923-02031

F..FA100,115

 1
90923-02044

F..FA100,115

 1
90923-02031

2D..DA11#,DB10#

 1
90923-02040

2D..DA11#,DB10#

 1
90445-20010

2D..DA11#

 1
90923-02060

2D..DA11#

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-77040

2D..DA11#,DB105

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

F,2D..DA11#,DB105,FA100,115

 4
29311-76010

2D..DA11#,DB10#

 4
90099-08082

2D..DA11#

 4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

F,2D..DA11#,DB105,FA100,115

 4
29311-76010

2D..DA11#,DB10#

 4
90099-08082

2D..DA11#

 4
29315 - PIN, VACUUM PUMP DOWEL, NO.2
90099-08082

2D..DA11#,DB10#

 1
90099-08082

F,2D..DA11#,DB105,FA100,115

 1
29315 - PIN, VACUUM PUMP DOWEL, NO.2
90099-08082

2D..DA11#,DB10#

 1
90099-08082

F,2D..DA11#,DB105,FA100,115

 1
29322A - SEAL, VACUUM PUMP OIL
90099-15017

F,2D..DA11#,DB105,FA100,115

 1
29341-77011

2D..DA11#,DB10#

 1
90099-15017

2D..DA11#,DB10#

 1
29331 - BLADE, VACUUM PUMP, A
29331-77020

2D..DA11#,DB10#

 4
29331-77020

F,2D..DA11#,DB105,FA100,115

 4
29331-77011

2D..DA11#,DB10#

 2
29331-66011

2D..DA11#,DB10#

 2
29342 - PACKING, VACUUM PUMP
29342-76010

2D..DA11#,DB10#

 2
90099-14031

2D..DA11#,DB10#

 2
90099-14031

F,2D..DA11#,DB105,FA100,115

 2
29342 - PACKING, VACUUM PUMP
29342-76010

2D..DA11#,DB10#

 2
90099-14031

2D..DA11#,DB10#

 2
90099-14031

F,2D..DA11#,DB105,FA100,115

 2
Common parts
22124-77020
29364-66010
90094-00602
90099-04265
90099-18005
90401-10010
90401-10071
90401-18008
90401-18063
90404-18167
90404-51069
90430-10035
90430-18045

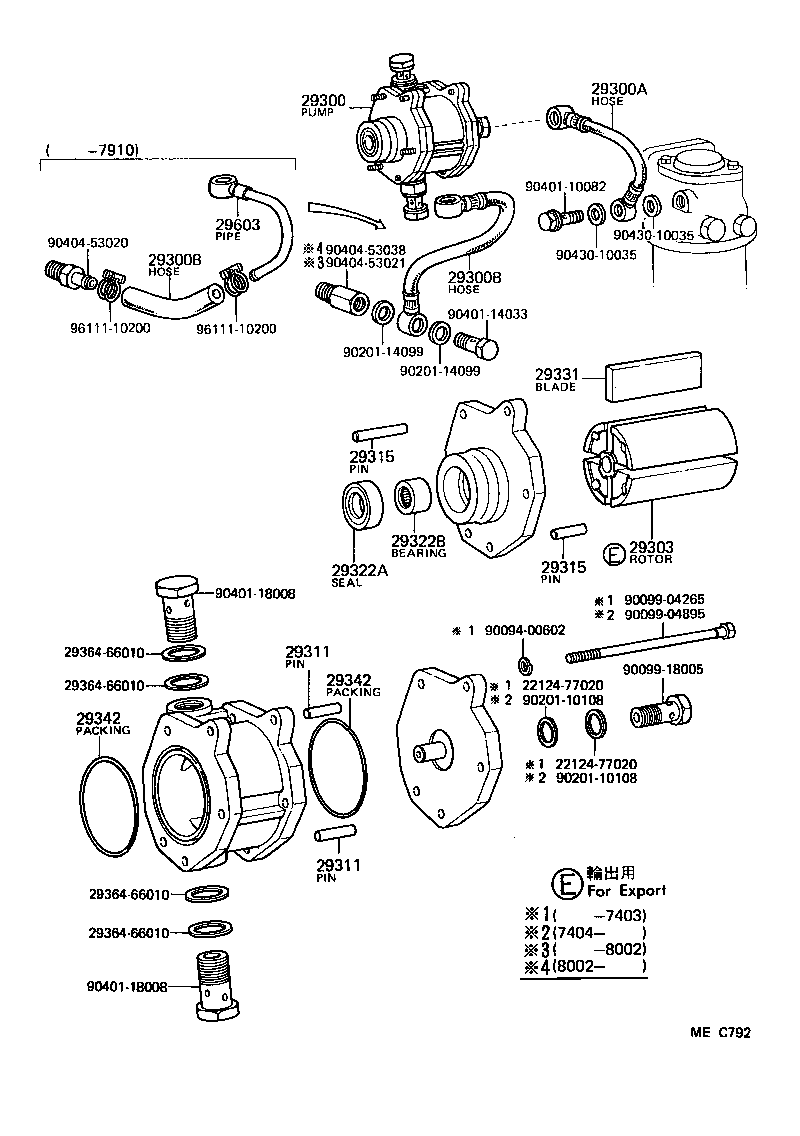

(7704- )2D

Click highlighted areas on diagram

diagram 2212477020 2212477020 29300 29300A 29300B 29300B 29303 29311 29311 29315 29315 29322A 29322B 29331 29342 29342 2936466010 2936466010 2936466010 2936466010 29603 9009400602 9009904265 9009904895 9009918005 9020110108 9020110108 9020114099 9020114099 9040110082 9040114033 9040118008 9040118008 9040453020 9040453021 9040453038 9043010035 9043010035 9611110200 9611110200
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-77011

2D..DA11#,DB10#

 1
29300-77020

F..FA100,115

 1
29300-77040

2D..DA11#,DB105

 1
29300-77020

F,2D..DA11#,DB105,FA100,115

 1
29300-77020

2D..DA11#,DB10#

 1
29300-77041

2D..DA11#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02030

2D..DA11#,DB10#

 1
90923-02039

2D..DA11#,DB10#

 1
90923-02012

2D..DA11#,DB10#

 1
90923-02043

F..FA100,115

 1
90923-02039

F..FA100,115

 1
90923-02024

2D..DA11#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29602-76030

2D..DA11#,DB10#

 1
90923-02031

2D..DA11#,DB10#

 1
90923-02031

F..FA100,115

 1
90923-02044

F..FA100,115

 1
90923-02031

2D..DA11#,DB10#

 1
90923-02040

2D..DA11#,DB10#

 1
90445-20010

2D..DA11#

 1
90923-02060

2D..DA11#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29602-76030

2D..DA11#,DB10#

 1
90923-02031

2D..DA11#,DB10#

 1
90923-02031

F..FA100,115

 1
90923-02044

F..FA100,115

 1
90923-02031

2D..DA11#,DB10#

 1
90923-02040

2D..DA11#,DB10#

 1
90445-20010

2D..DA11#

 1
90923-02060

2D..DA11#

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-77040

2D..DA11#,DB105

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

F,2D..DA11#,DB105,FA100,115

 4
29311-76010

2D..DA11#,DB10#

 4
90099-08082

2D..DA11#

 4
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

F,2D..DA11#,DB105,FA100,115

 4
29311-76010

2D..DA11#,DB10#

 4
90099-08082

2D..DA11#

 4
29315 - PIN, VACUUM PUMP DOWEL, NO.2
90099-08082

2D..DA11#,DB10#

 1
90099-08082

F,2D..DA11#,DB105,FA100,115

 1
29315 - PIN, VACUUM PUMP DOWEL, NO.2
90099-08082

2D..DA11#,DB10#

 1
90099-08082

F,2D..DA11#,DB105,FA100,115

 1
29322A - SEAL, VACUUM PUMP OIL
90099-15017

F,2D..DA11#,DB105,FA100,115

 1
29341-77011

2D..DA11#,DB10#

 1
90099-15017

2D..DA11#,DB10#

 1
29331 - BLADE, VACUUM PUMP, A
29331-77020

2D..DA11#,DB10#

 4
29331-77020

F,2D..DA11#,DB105,FA100,115

 4
29331-77011

2D..DA11#,DB10#

 2
29331-66011

2D..DA11#,DB10#

 2
29342 - PACKING, VACUUM PUMP
29342-76010

2D..DA11#,DB10#

 2
90099-14031

2D..DA11#,DB10#

 2
90099-14031

F,2D..DA11#,DB105,FA100,115

 2
29342 - PACKING, VACUUM PUMP
29342-76010

2D..DA11#,DB10#

 2
90099-14031

2D..DA11#,DB10#

 2
90099-14031

F,2D..DA11#,DB105,FA100,115

 2
29603 - PIPE, VACUUM PUMP OIL OUTLET
29612-77010

2D..DA11#

 1
Common parts
22124-77020
29364-66010
90094-00602
90099-04265
90099-04895
90099-18005
90201-10108
90201-14099
90401-10082
90401-14033
90401-18008
90404-53020
90404-53021
90404-53038
90430-10035
96111-10200
