DA115-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )BTR

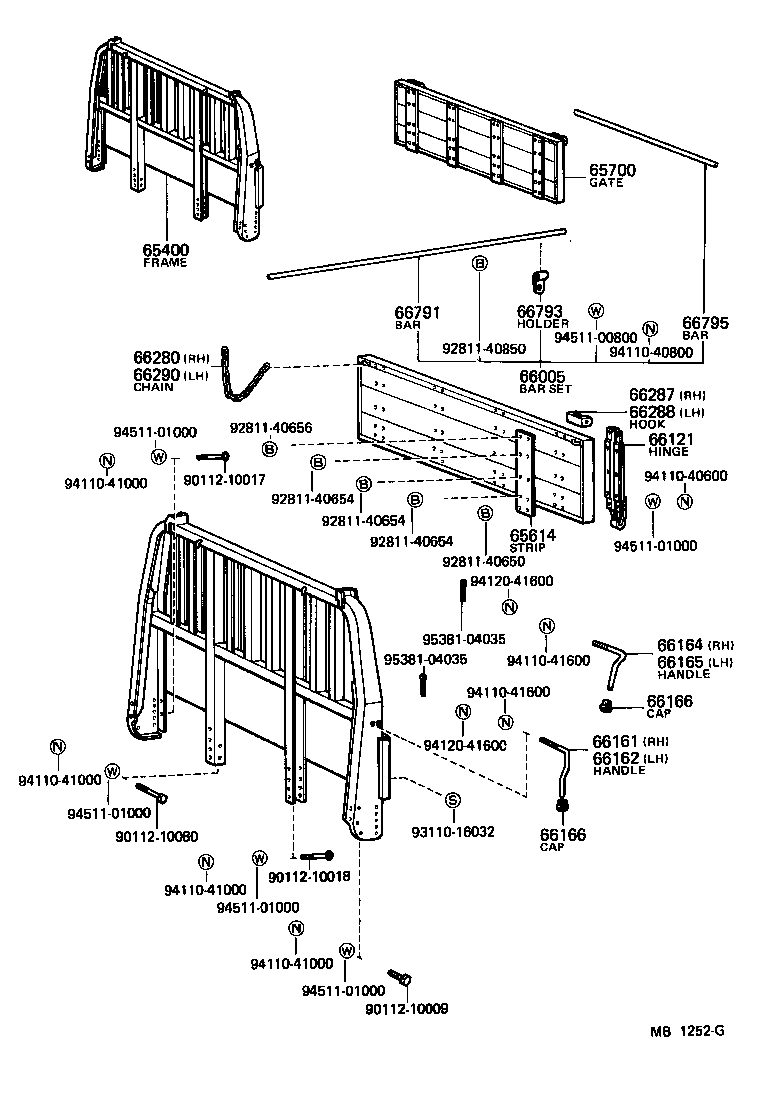

Click highlighted areas on diagram

diagram 65400 65614 65700 66005 66121 66161 66162 66164 66165 66166 66166 66280 66287 66288 66290 66791 66793 66795 9011210009 9011210017 9011210018 9011210080 9281140650 9281140654 9281140654 9281140654 9281140656 9281140850 9311016032 9411040600 9411040800 9411041000 9411041000 9411041000 9411041000 9411041600 9411041600 9412041600 9412041600 9451100800 9451101000 9451101000 9451101000 9451101000 9451101000 9538104035 9538104035
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65410-95220

DA11#,FC100..BTR

 1
65410-95223

DA11#,FA100,115..BTR

 1
65410-95219

FA100,11#..BTR

 1
65410-95223

DA11#,FC100..BTR

 1
65410-95222

FA100,11#..BTR

 1
65400-95210

DA11#..BTR

 1
65614 - STRIP, TAIL GATE HINGE, INSIDE
65753-95210

DA11#,FA100,11#,FC100..BTR

 4
65700 - GATE ASSY, REAR BODY TAIL
65700-95217

DA11#,FA100,115..BTR

 1
65700-95216

DA11#,FA100,11#,FC100..BTR

 1
66005 - BAR SET, GATE
66005-95211

DA115,116,FA115

 1
66121 - HINGE, TAIL GATE, MALE
66110-95212

DA11#,FA100,11#,FC100..BTR

 4
66161 - HANDLE, SIDE GATE LATCH, RH
66161-95210

DA11#,FA100,11#,FC100..BTR

 1
66161-95211

DA11#,FA100,11#,FC100..BTR

 1
66162 - HANDLE, SIDE GATE LATCH, LH
66162-95210

DA11#,FA100,11#,FC100..BTR

 1
66162-95211

DA11#,FA100,11#,FC100..BTR

 1
66164 - HANDLE, TAIL GATE LATCH, RH
66163-95210

DA11#,FA100,11#,FC100..BTR

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66164-95210

DA11#,FA100,11#,FC100..BTR

 1
66166 - CAP, GATE LATCH HANDLE
66165-95210

DA11#,FA100,11#,FC100..BTR

 4
66166 - CAP, GATE LATCH HANDLE
66165-95210

DA11#,FA100,11#,FC100..BTR

 4
66280 - CHAIN ASSY, TAIL GATE, RH
66280-95210

DA11#,FA100,11#,FC100..BTR

 1
66287 - HOOK, TAIL GATE CHAIN, RH
66171-95210

DA11#,FA100,11#,FC100..BTR

 1
66288 - HOOK, TAIL GATE CHAIN, LH
66171-95210

DA11#,FA100,11#,FC100..BTR

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-95210

DA11#,FA100,11#,FC100..BTR

 1
66791 - BAR, SIDE GATE
66791-95211

DA115,116,FA115

 1
66793 - HOLDER, SIDE GATE BAR
66793-95210

DA11#,FA100,11#..BTR

 14
66795 - BAR, TAIL GATE
66795-95210

DA11#,FA100,11#,FC100..BTR

 1
Common parts
90112-10009
90112-10017
90112-10018
90112-10080
92811-40650
92811-40654
92811-40656
92811-40850
93110-16032
94110-40600
94110-40800
94110-41000
94110-41600
94120-41600
94511-00800
94511-01000
95381-04035
