DA115-H (1969)
Toyota Heavy Duty Truck
Production
Mar 1969
-
Dec 2001
Engine
2D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903- )DA11#,FA100,11#,FB100,FC100

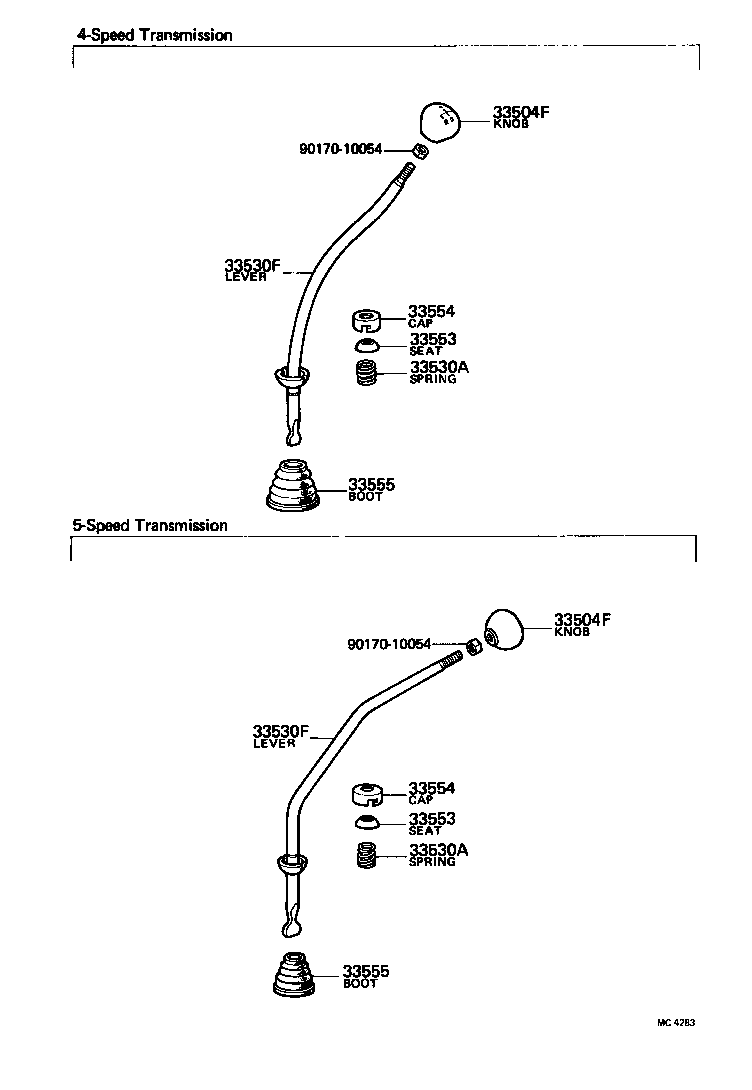

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-55040 |
FA100,11#,FB100..5F |
1 | ||
| 33504-55040 |
DA11#..5FD |
1 | ||
| 33504-55081 |
DA11#,FA100,115..5FD |
1 | ||
| 33504-55080 |
DA11#,FA100,115..5FD |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-55040 |
FA100,11#,FB100..5F |
1 | ||
| 33504-55040 |
DA11#..5FD |
1 | ||
| 33504-55081 |
DA11#,FA100,115..5FD |
1 | ||
| 33504-55080 |
DA11#,FA100,115..5FD |
1 | ||
| 33530A - SPRING, COMPRESSION (FOR SHIFT LEVER) | ||||
| 90501-35217 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 33530A - SPRING, COMPRESSION (FOR SHIFT LEVER) | ||||
| 90501-35217 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33541-55140 |
DA11#,FA100,11#..RHD..2SR |
1 | ||
| 33541-55141 |
DA11#,FA100,115..RHD..2SR |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33541-55140 |
DA11#,FA100,11#..RHD..2SR |
1 | ||
| 33541-55141 |
DA11#,FA100,115..RHD..2SR |
1 | ||
| 33553 - SEAT, SHIFT LEVER SPRING | ||||
| 33553-55030 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 33553 - SEAT, SHIFT LEVER SPRING | ||||
| 33553-55030 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-55030 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-55030 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-55030 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-55030 |
DA11#,FA100,11#,FB100..5F |
1 | ||
| Common parts | ||||
| 90170-10054 | ||||
