DA115- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7404- )DA11#,FA100,115

Click highlighted areas on diagram

diagram 55906 55907 55910 55937 8401 87125 87201 87231 87232 87233 8729237010 8729237010 9046108065 9165640612 9165641016 9321914008 9321914008 9321914008 9353025014
Part # Description Qty Price
55906 - CABLE SUB-ASSY, HEATER CONTROL
87286-55020

DA11#,FA100,115..RHD

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
87286-55010

DA11#,FA100,115

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-55010

DA11#,FA100,115..RHD

 1
55910-95210

DA11#,FA100,115..RHD

 1
55910-95214

DA11#,FA100,115..RHD

 1
55910-95216

DA11#,FA100,115..RHD

 1
55937 - KNOB, HEATER CONTROL LEVER
87123-55010

DA11#,FA100,115

 2
87125 - LOUVER, VENTILATION
88570-55010

DA11#,FA100,115

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-55040

DA11#,FA100,11#,FC100..RHD

 1
87211-22010

DA11#,FA100,115

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-55041

DA11#,FA100,11#,FC100..RHD

 1
87232-55010

DA11#,FA100,115

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-55041

DA11#,FA100,11#,FC100..RHD

 1
87232-55010

DA11#,FA100,115

 1
87233 - HOSE, HEATER DEFROSTER, CENTER
87231-55010

DA11#,FA100,115..RHD

 1
Common parts
87292-37010
90461-08065
91656-40612
91656-41016
93219-14008
93530-25014
Linked diagrams
8401

(6903-7403)DA11#,FA100,11#,FC100..RHD

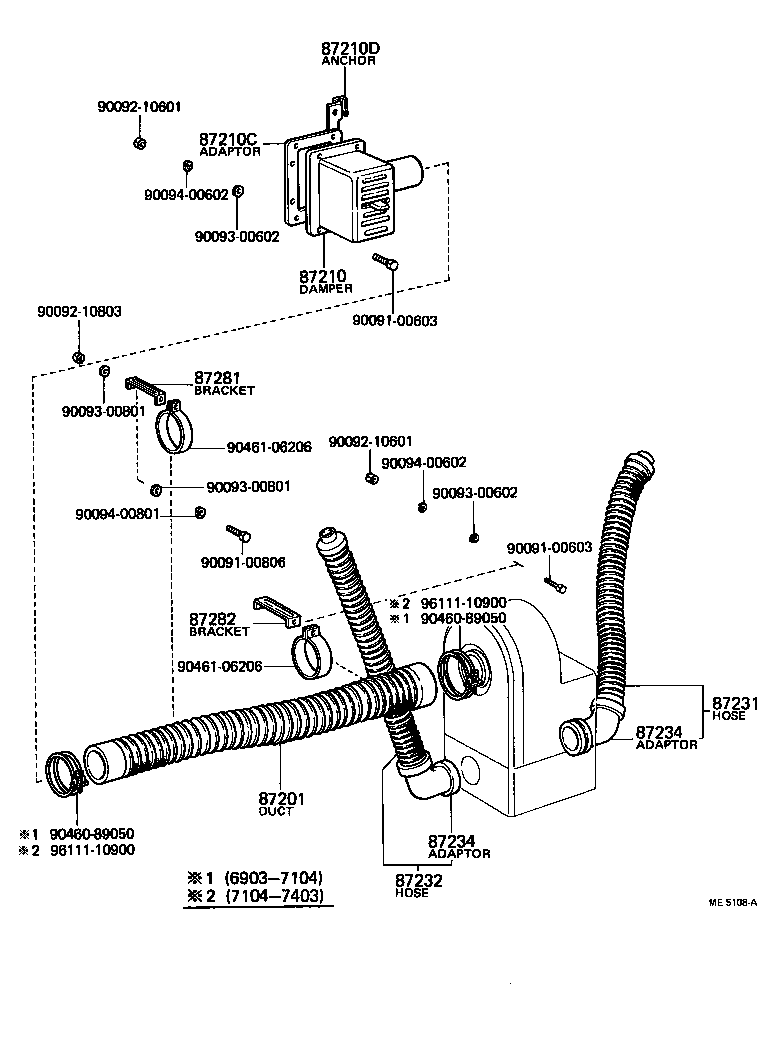

Click highlighted areas on diagram

diagram 87201 87210 87210C 87210D 87231 87232 87234 87234 87281 87282 9009100603 9009100603 9009100806 9009210601 9009210601 9009210803 9009300602 9009300602 9009300801 9009300801 9009400602 9009400602 9009400801 9046089050 9046089050 9046106206 9046106206 9611110900 9611110900
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-55040

DA11#,FA100,11#,FC100..RHD

 1
87211-22010

DA11#,FA100,115

 1
87210 - DAMPER ASSY, AIR
87220-55040

DA11#,FA100,11#,FC100..RHD

 1
87210C - ADAPTER, HEATER AIR DAMPER
87293-55040

DA11#,FA100,11#,FC100..RHD

 1
87210D - ANCHOR, AIR DAMPER ADAPTER
87294-55040

DA11#,FA100,11#,FC100..RHD

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-55041

DA11#,FA100,11#,FC100..RHD

 1
87232-55010

DA11#,FA100,115

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-55041

DA11#,FA100,11#,FC100..RHD

 1
87232-55010

DA11#,FA100,115

 1
87234 - ADAPTER, DEFROSTER HOSE
87117-55041

DA11#,FA100,11#,FC100..RHD

 2
87234 - ADAPTER, DEFROSTER HOSE
87117-55041

DA11#,FA100,11#,FC100..RHD

 2
87281 - BRACKET, AIR DUCT
87291-55040

DA11#,FA100,11#,FC100..RHD

 1
87282 - BRACKET, AIR DUCT
87292-55040

DA11#,FA100,11#,FC100..RHD

 1
Common parts
90091-00603
90091-00806
90092-10601
90092-10803
90093-00602
90093-00801
90094-00602
90094-00801
90460-89050
90461-06206
96111-10900
