DA115- (1969)
Toyota Heavy Duty Truck

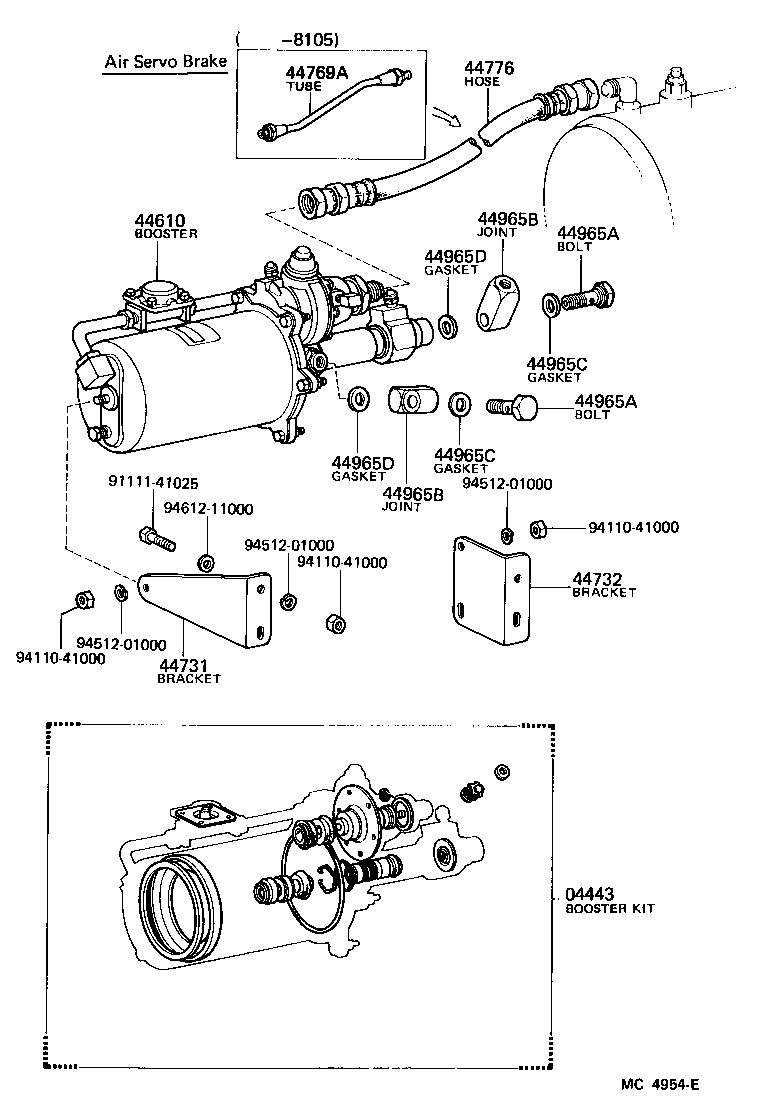

ILLUST NO. 1 OF 6(6903-8002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100 MINOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11# MAJOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11#,FC100 MAJOR |
1 | ||
| 04443-55071 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04443-55060 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 04441-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55050 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 04443-55070 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR |
1 | ||
| 04443-55051 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 04443-55021 |
DA11#,DB10#,FA100,11#,FC100 MAJOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55061 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100 MINOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11# MAJOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11#,FC100 MAJOR |
1 | ||
| 04443-55071 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04443-55060 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 04441-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55050 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 04443-55070 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR |
1 | ||
| 04443-55051 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 04443-55021 |
DA11#,DB10#,FA100,11#,FC100 MAJOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55061 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44620-55041 |
DA11# |
1 | ||
| 44620-55051 |
DB10#,FA100,11# |
1 | ||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44610-55171 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44610-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44610-55170 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44610-55140 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44610-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-55020 |
DA11# |
1 | ||
| 44704-55060 |
DA11#,FA100,11# |
1 | ||
| 44704-55050 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44704-55060 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 90445-24318 |
DA11#,FA100,11#,FB100 L=185 |
1 | ||
| 90445-24346 |
DA11#,FA100,115..GEN L=115,W/SPLIT BOOSTER |
1 | ||
| 90445-24318 |
DA11#,FA100,11#,FB100,FC100 L=185,W/SINGLE BOOSTER |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 96112-10250 |
DA11#..GEN |
2 | ||
| 96111-10250 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90460-25019 |
DA11#;DB10#..RHD |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 96112-10250 |
DA11#..GEN |
2 | ||
| 96111-10250 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90460-25019 |
DA11#;DB10#..RHD |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53020 |
DA11#,DB10#,FA100,11# |
1 | ||
| 90345-53008 |
DA11#,DB10# |
1 | ||
| 90345-53020 |
DA11#,DB10# |
1 | ||
| 90345-53020 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 44710 - CLEANER ASSY, BRAKE BOOSTER AIR | ||||
| 44710-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44710-66011 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44710-55010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44710A - HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 90447-21014 |
DA11#,FA100,11#..1SR L=750 |
1 | ||
| 44710B - CLAMP, HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 96112-10240 |
DB105;DA11#,FA100,115..1SR |
2 | ||
| 90460-23022 |
DB10#,FC100;DA11#,FA100,11#..1SR |
2 | ||
| 44710B - CLAMP, HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 96112-10240 |
DB105;DA11#,FA100,115..1SR |
2 | ||
| 90460-23022 |
DB10#,FC100;DA11#,FA100,11#..1SR |
2 | ||
| 44710C - GROMMET, BOOSTER AIR CLEANER HOSE | ||||
| 90480-30078 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 90480-30078 |
DA11#,FA100,115..GEN |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44733-55010 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44732-55060 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-55030 |
DA11#,DB10#,FA100,11#,FB100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55061 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44734-55010 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44752 - BAND, VACUUM RESERVOIR | ||||
| 44751-55020 |
DA11#,DB10# |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44707-55010 |
DB105;DA11#,FA100,115..1SR |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44752 - BAND, VACUUM RESERVOIR | ||||
| 44751-55020 |
DA11#,DB10# |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44707-55010 |
DB105;DA11#,FA100,115..1SR |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44769 - TUBE, VACUUM RESERVOIR CONNECT | ||||
| 44769-55060 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44769-55030 |
DA11#,FA100,11# |
1 | ||
| 44769-55030 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44769-55030 |
DA11# |
1 | ||
| Common parts | ||||
| 90101-10085 | ||||
| 90461-12198 | ||||
| 90461-16210 | ||||
| 90462-12065 | ||||
| 91111-41020 | ||||
| 91111-41025 | ||||
| 91111-41028 | ||||
| 91111-41032 | ||||
| 91111-41045 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||

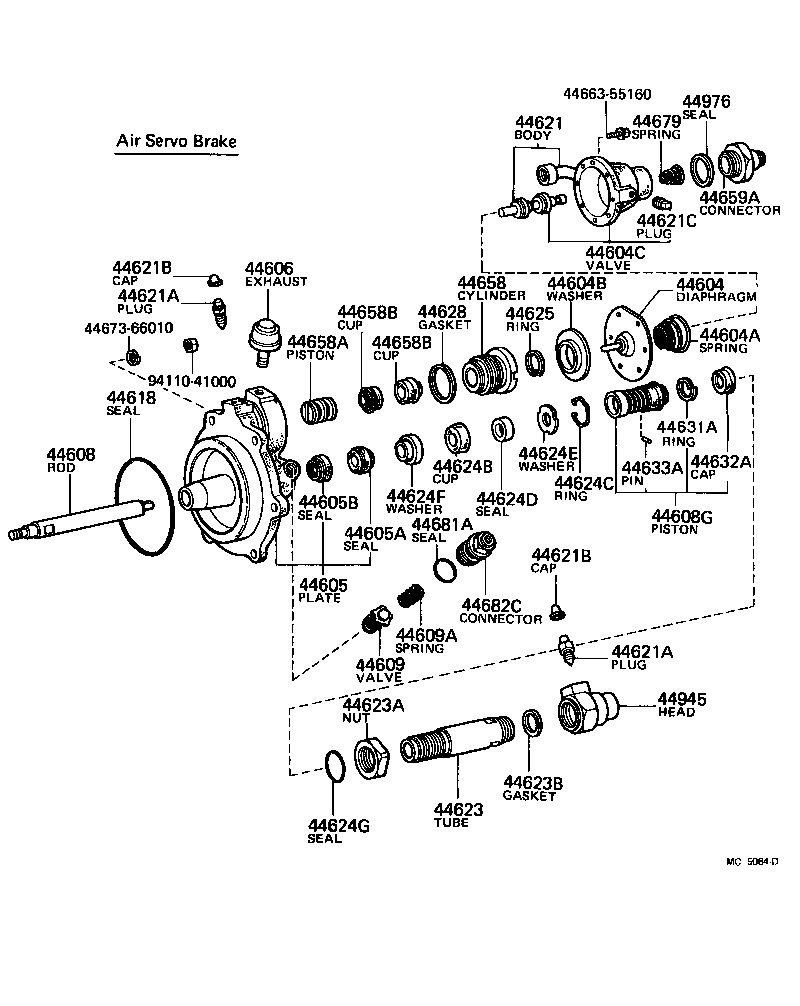

ILLUST NO. 2 OF 6(6903-8002)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44604 - DIAPHRAGM & PLATE SUB-ASSY, BOOSTER VALVE | ||||
| 44604-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44908-55080 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44602-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44604A - SPRING, COMPRESSION(FOR DIAPHRAGM RETURN) | ||||
| 44677-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44669-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44696-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-55050 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44605-66011 |
DA11#,DB10#,FA100,11# |
1 | ||
| 44605-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44605-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44605-66011 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44605-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44605A - SEAL, BOOSTER OIL | ||||
| 44636-55160 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44636-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44636-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44647-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44647-55092 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44647-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44647-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44647-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44608B - PIN, BOOSTER PUSH ROD | ||||
| 44664-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44608C - SEAL, BOOSTER PISTON ROD | ||||
| 44644-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44608D - SHIM(FOR BOOSTER PUSH ROD) | ||||
| 44632-66010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44632-66010 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44608D - SHIM(FOR BOOSTER PUSH ROD) | ||||
| 44632-66010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44632-66010 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44613 - GASKET, BOOSTER PIPE HOLDER | ||||
| 44685-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44613-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44614 - SPRING, BOOSTER POPET | ||||
| 44614-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44615 - COVER, BOOSTER SHELL | ||||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44607-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44607-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44607-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44637-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44637-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44683-55160 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44683-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 44621 - BODY, BOOSTER VALVE | ||||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44651-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44621-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44651-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44651-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44621D - UNION, BRAKE BOOSTER | ||||
| 90404-20074 |
DA11# |
1 | ||
| 90404-20074 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
1 | ||
| 90404-20082 |
FA100,11# |
1 | ||
| 90404-20074 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44621D - UNION, BRAKE BOOSTER | ||||
| 90404-20074 |
DA11# |
1 | ||
| 90404-20074 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
1 | ||
| 90404-20082 |
FA100,11# |
1 | ||
| 90404-20074 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44621G - TUBE & COVER, BOOSTER | ||||
| 44601-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44601-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44609-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44621H - RING, BOOSTER SNAP | ||||
| 44611-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44622 - GASKET, BOOSTER VALVE BODY | ||||
| 44622-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44623 - TUBE, BOOSTER SLAVE CYLINDER | ||||
| 44658-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44621-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44658-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44621-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44621-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44621-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44623A - NUT, BOOSTER SLAVE CYLINDER | ||||
| 44688-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44659-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44688-55121 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44688-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44688-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44624 - PISTON, HYDRAULIC CYLINDER | ||||
| 44608-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44073-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44608-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44624A - CUP, BOOSTER HYDRAULIC PISTON, NO.1 | ||||
| 44663-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44625-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44663-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44624B - CUP, BOOSTER HYDRAULIC PISTON, NO.2 | ||||
| 44668-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44625-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44624C - RING, BOOSTER SNAP | ||||
| 44665-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44629-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44624D - RETAINER, BOOSTER SEAL | ||||
| 44626-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44626-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44667-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44624E - WASHER, BOOSTER PISTON STOP | ||||
| 44666-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44628-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44628-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44624F - WASHER, BOOSTER PISTON | ||||
| 44627-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44669-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44627-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44624G - SEAL, BOOSTER HYDRAULIC PISTON | ||||
| 44672-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44638-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44625 - RING, BOOSTER STOP WASHER SNAP | ||||
| 96151-02200 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44654-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44625-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44628 - GASKET, BOOSTER VALVE CYLINDER | ||||
| 44628-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44664-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44641A - SPRING, COMPRESSION(FOR RETURN) | ||||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44639-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44639-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44639-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44641C - PLATE, BOOSTER PISTON, FRONT | ||||
| 44641-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44641-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44641D - PLATE, BOOSTER PISTON, REAR | ||||
| 44643-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44643-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44645A - RETAINER, BOOSTER PISTON WICK | ||||
| 44647-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44647-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44646 - GASKET, BOOSTER PISTON | ||||
| 44642-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44642-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44646A - RING, BOOSTER PISTON GASKET | ||||
| 44646-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44646-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44646B - WICK, BOOSTER GASKET | ||||
| 44643-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44645-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44645-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44649 - CLAMP, BOOSTER VACUUM HOSE | ||||
| 44649-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44689-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44649 - CLAMP, BOOSTER VACUUM HOSE | ||||
| 44649-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44689-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44654 - BOLT, BOOSTER HOOK | ||||
| 44654-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 44654-57010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 44654A - NUT, BOOSTER | ||||
| 44648-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44655 - PLUG, BOOSTER | ||||
| 44655-66010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44655-59810 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44684-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44684-55041 |
DA11#,DB105,FA100,115 |
1 | ||
| 44658 - CYLINDER, CONTROL VALVE PISTON | ||||
| 44627-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44627-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44658-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44658A - PISTON, CONTROL VALVE | ||||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44670-36040 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44657-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44658A - PISTON, CONTROL VALVE | ||||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44670-36040 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44657-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44656-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44656-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44656-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44656-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44658C - WASHER, BOOSTER PISTON STOP | ||||
| 44626-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44653-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44661 - TUBE, BOOSTER VACUUM | ||||
| 44604-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44609-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44609-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44675 - HOSE, BOOSTER VACUUM | ||||
| 44675-57010 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44688-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44682 - VALVE, BOOSTER VACUUM | ||||
| 44602-55070 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44603-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44603-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44945 - HEAD, BOOSTER CYLINDER | ||||
| 44656-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44622-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44622-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44622-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44656-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44947 - RING, BOOSTER BACK UP | ||||
| 44657-55111 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44657-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44949 - RING, O, BOOSTER PISTON | ||||
| 44661-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| Common parts | ||||
| 44616-55010 | ||||
| 44652-66010 | ||||
| 44673-66010 | ||||
| 94511-00400 | ||||

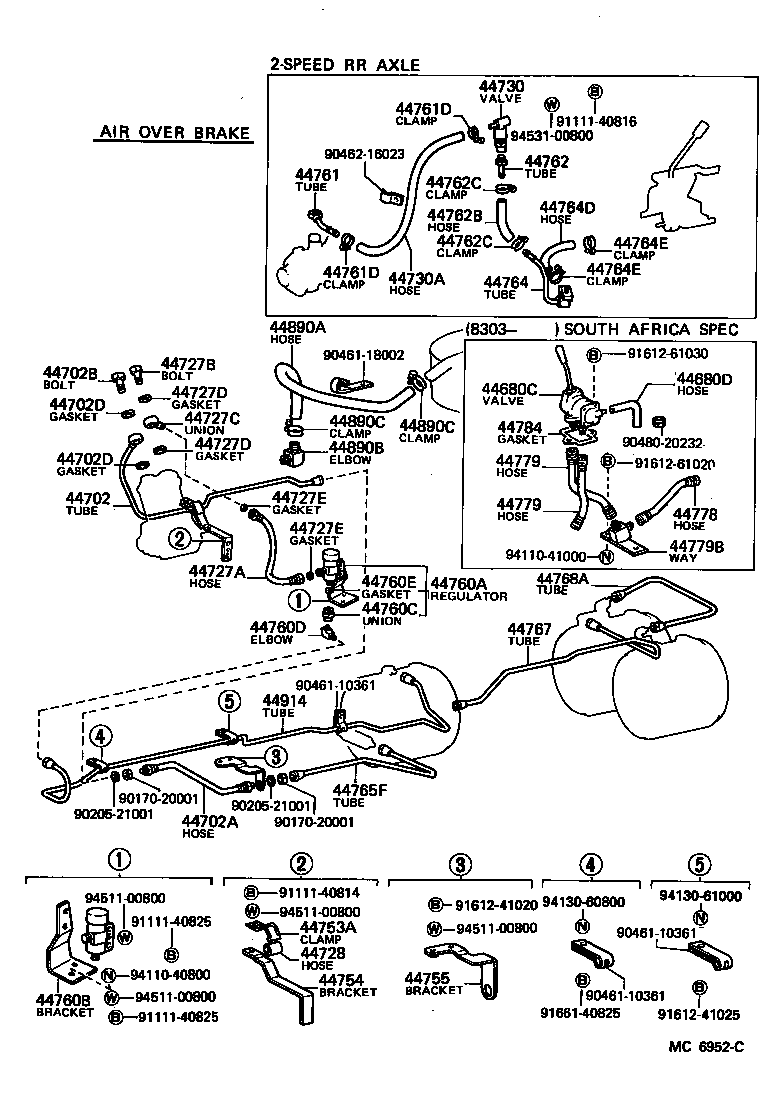

ILLUST NO. 6 OF 6(6903-7703)DB10#..LHD ; (6903- )DA11#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44730-55030 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-24204 |
DB10#..LHD;DA11#,FC100 |
1 | ||
| 90445-24204 |
DA11#,FC100 |
1 | ||
| 90445-24864 |
DA11#,DB105,FA100,115 L=1060 |
1 | ||
| 90445-24199 |
FA100,11# |
1 | ||
| 90445-24080 |
DA11#,FA100,115 L=930 |
2 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-24204 |
DB10#..LHD;DA11#,FC100 |
1 | ||
| 90445-24204 |
DA11#,FC100 |
1 | ||
| 90445-24864 |
DA11#,DB105,FA100,115 L=1060 |
1 | ||
| 90445-24199 |
FA100,11# |
1 | ||
| 90445-24080 |
DA11#,FA100,115 L=930 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-18028 |
FA100,11#,FB100,FC100 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-55031 |
DA11#,DB10# |
1 | ||
| 44761-55031 |
DA11#,DB105,FA100,115 |
1 | ||
| 44761-55032 |
DA11#,FA100,115 |
1 | ||
| 44761-55020 |
FA100,11#,FB100,FC100 |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-55031 |
DA11#,DB10# |
1 | ||
| 44761-55031 |
DA11#,DB105,FA100,115 |
1 | ||
| 44761-55032 |
DA11#,FA100,115 |
1 | ||
| 44761-55020 |
FA100,11#,FB100,FC100 |
1 | ||
| 44761D - CLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE | ||||
| 96112-10250 |
DA11# |
1 | ||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 96111-10250 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44761D - CLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE | ||||
| 96112-10250 |
DA11# |
1 | ||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 96111-10250 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44762-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44762-55050 |
DA11#,FA100,115 |
1 | ||
| 44762B - HOSE, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE | ||||
| 90445-24317 |
DA11#,DB10#,FA100,11#,FC100 L=160 |
1 | ||
| 90445-24403 |
DA11#,FA100,115 L=250 |
1 | ||
| 95443-13250 |
DA11# |
1 | ||
| 44762C - CLAMP, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE HOSE | ||||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 96111-10250 |
DA11#,FA100,11#,FC100 |
2 | ||
| 96112-10250 |
DA11#..GEN |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-55051 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-55051 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-55070 |
DA11#,FA100,11# |
1 | ||
| 44765-55111 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44765-55071 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-55070 |
DA11#,FA100,11# |
1 | ||
| 44765-55111 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44765-55071 |
DA11#,FA100,11# W/SINGLE BOOSTER |
1 | ||
| 44765A - UNION, CONNECTOR TO BRAKE BOOSTER TUBE | ||||
| 90404-20171 |
DA11#,FA100,11#,FB100,FC100..GEN ISO |
1 | ||
| 90404-20073 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| Common parts | ||||
| 90461-08133 | ||||
| 90461-10012 | ||||
| 90462-12065 | ||||
| 90462-12066 | ||||
| 90462-16023 | ||||
| 90462-23001 | ||||
| 91111-40816 | ||||
| 91111-40820 | ||||
| 91111-40825 | ||||
| 91111-41020 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||

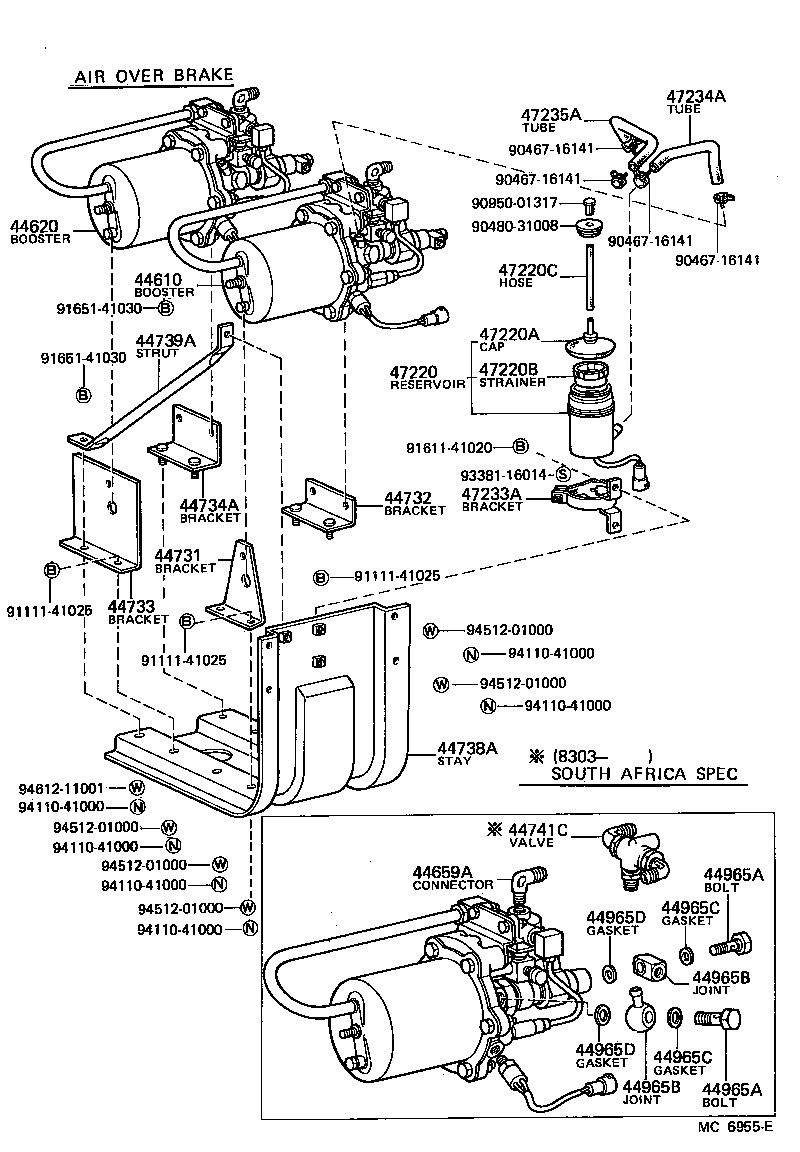

ILLUST NO. 1 OF 6(7511-7611)DA11#,FA100,115..LHD ; (7611- )DA11#,FA100,115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

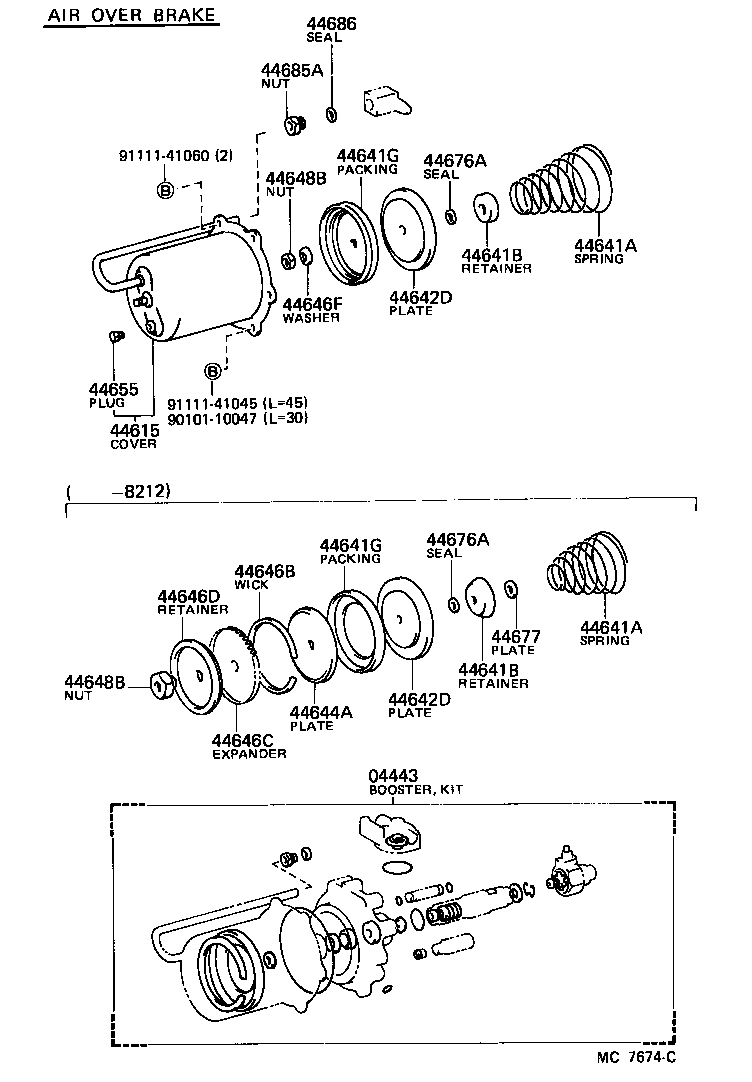

| 04443 - BOOSTER KIT, BRAKE | ||||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100 MINOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11# MAJOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11#,FC100 MAJOR |
1 | ||
| 04443-55071 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04443-55060 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 04441-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55050 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 04443-55070 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR |
1 | ||
| 04443-55051 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 04443-55021 |
DA11#,DB10#,FA100,11#,FC100 MAJOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55061 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44620-55041 |
DA11# |
1 | ||
| 44620-55051 |
DB10#,FA100,11# |
1 | ||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44610-55171 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44610-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44610-55170 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44610-55140 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44610-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-55020 |
DA11# |
1 | ||
| 44704-55060 |
DA11#,FA100,11# |
1 | ||
| 44704-55050 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44704-55060 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 90445-24318 |
DA11#,FA100,11#,FB100 L=185 |
1 | ||
| 90445-24346 |
DA11#,FA100,115..GEN L=115,W/SPLIT BOOSTER |
1 | ||
| 90445-24318 |
DA11#,FA100,11#,FB100,FC100 L=185,W/SINGLE BOOSTER |
1 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 96112-10250 |
DA11#..GEN |
2 | ||
| 96111-10250 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90460-25019 |
DA11#;DB10#..RHD |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 44704B - CLIP(FOR HOSE) | ||||
| 96112-10250 |
DA11#..GEN |
2 | ||
| 96111-10250 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11# |
2 | ||
| 90460-25019 |
DA11#;DB10#..RHD |
2 | ||
| 90460-25019 |
DB10#..RHD;DA11#,FA100,11#,FC100 |
2 | ||
| 44704D - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53020 |
DA11#,DB10#,FA100,11# |
1 | ||
| 90345-53008 |
DA11#,DB10# |
1 | ||
| 90345-53020 |
DA11#,DB10# |
1 | ||
| 90345-53020 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 44710 - CLEANER ASSY, BRAKE BOOSTER AIR | ||||
| 44710-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44710-66011 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44710-55010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44710A - HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 90447-21014 |
DA11#,FA100,11#..1SR L=750 |
1 | ||
| 44710B - CLAMP, HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 96112-10240 |
DB105;DA11#,FA100,115..1SR |
2 | ||
| 90460-23022 |
DB10#,FC100;DA11#,FA100,11#..1SR |
2 | ||
| 44710B - CLAMP, HOSE(FOR BOOSTER AIR CLEANER) | ||||
| 96112-10240 |
DB105;DA11#,FA100,115..1SR |
2 | ||
| 90460-23022 |
DB10#,FC100;DA11#,FA100,11#..1SR |
2 | ||
| 44710C - GROMMET, BOOSTER AIR CLEANER HOSE | ||||
| 90480-30078 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 90480-30078 |
DA11#,FA100,115..GEN |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44733-55010 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44732-55060 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-55030 |
DA11#,DB10#,FA100,11#,FB100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55061 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44734-55010 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44752 - BAND, VACUUM RESERVOIR | ||||
| 44751-55020 |
DA11#,DB10# |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44707-55010 |
DB105;DA11#,FA100,115..1SR |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44752 - BAND, VACUUM RESERVOIR | ||||
| 44751-55020 |
DA11#,DB10# |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44707-55010 |
DB105;DA11#,FA100,115..1SR |
2 | ||
| 44707-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44769 - TUBE, VACUUM RESERVOIR CONNECT | ||||
| 44769-55060 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44769-55030 |
DA11#,FA100,11# |
1 | ||
| 44769-55030 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44769-55030 |
DA11# |
1 | ||
| Common parts | ||||
| 90101-10085 | ||||
| 90461-12198 | ||||
| 91111-41028 | ||||
| 91112-41025 | ||||
| 91611-41020 | ||||
| 94110-41000 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01000 | ||||
| 94612-11000 | ||||
| 94612-11001 | ||||

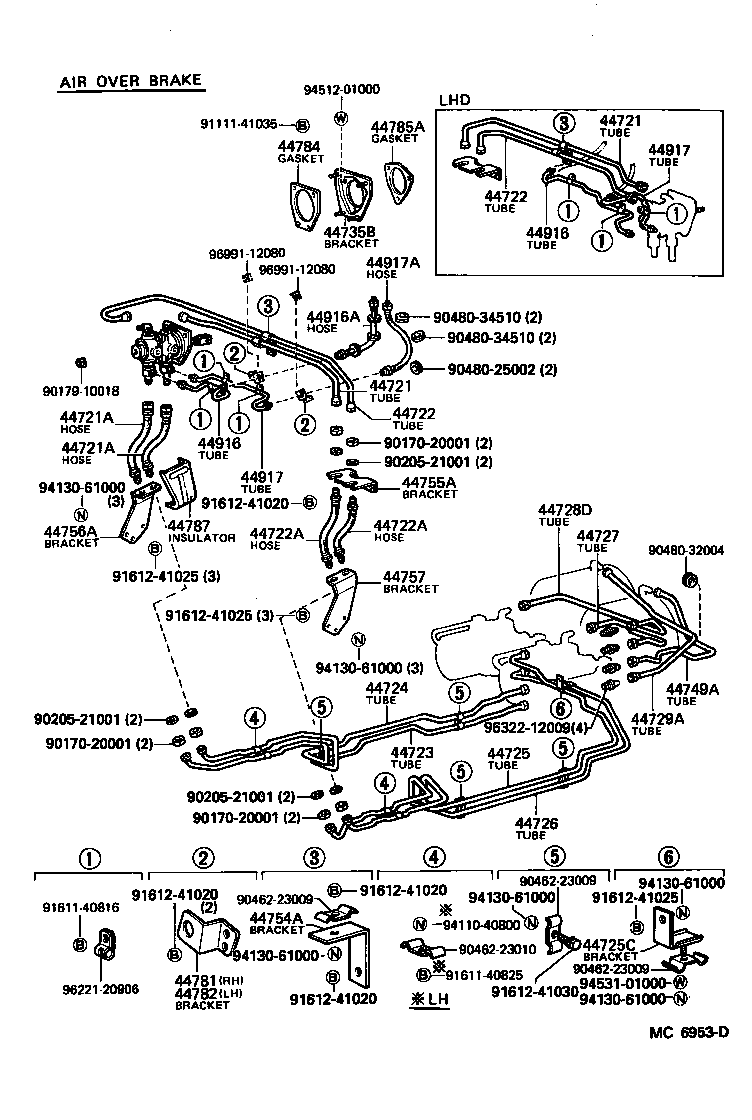

ILLUST NO. 2 OF 6(7511-7611)DA11#,FA100,115..LHD ; (7611- )DA11#,FA100,115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44073 - PISTON, BOOSTER HYDRAULIC REPLACEMENT | ||||
| 44905-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44073 - PISTON, BOOSTER HYDRAULIC REPLACEMENT | ||||
| 44905-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44073G - RETAINER, PISTON RETURN SPRING | ||||
| 44956-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44073G - RETAINER, PISTON RETURN SPRING | ||||
| 44956-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44073J - SPRING, BOOSTER PISTON RETURN | ||||
| 44955-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44073J - SPRING, BOOSTER PISTON RETURN | ||||
| 44955-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44604 - DIAPHRAGM & PLATE SUB-ASSY, BOOSTER VALVE | ||||
| 44604-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44908-55080 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44602-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44604A - SPRING, COMPRESSION(FOR DIAPHRAGM RETURN) | ||||
| 44677-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44669-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44696-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44647-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44647-55092 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44647-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44647-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44647-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44610D - PLUG, HYDRAULIC CYLINDER | ||||
| 44622-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44610F - GASKET(FOR BRAKE BOOSTER) | ||||
| 90430-24105 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44610G - RING(FOR HYDRAULIC CYLINDER BODY) | ||||
| 44618-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44610H - PLUG(FOR HYDRAULIC CYLINDER BODY) | ||||
| 90345-53007 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44613 - GASKET, BOOSTER PIPE HOLDER | ||||
| 44685-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44613-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44621 - BODY, BOOSTER VALVE | ||||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44651-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44621-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44651-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44651-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44621G - TUBE & COVER, BOOSTER | ||||
| 44601-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44601-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44609-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44624 - PISTON, HYDRAULIC CYLINDER | ||||
| 44608-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44073-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44608-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44624A - CUP, BOOSTER HYDRAULIC PISTON, NO.1 | ||||
| 44663-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44625-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44663-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44625 - RING, BOOSTER STOP WASHER SNAP | ||||
| 96151-02200 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44654-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44625-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44632 - YOKE, HYDRAULIC VALVE | ||||
| 44632-20010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44634 - PLUG, PISTON VALVE | ||||
| 44634-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44634A - PIN, STRAIGHT(FOR BOOSTER PISTON VALVE) | ||||
| 90250-03134 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44634B - RING, SET(FOR BOOSTER PISTON VALVE) | ||||
| 90522-15012 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44658A - PISTON, CONTROL VALVE | ||||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44670-36040 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44657-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44658C - WASHER, BOOSTER PISTON STOP | ||||
| 44626-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44653-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44676 - SEAL, AIR VALVE | ||||
| 44676-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44676-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44680 - VALVE ASSY, BOOSTER OUTLET CHECK | ||||
| 47280-20010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44680A - GASKET, BOOSTER OUTLET CHECK VALVE | ||||
| 44962-37010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44680B - SPRING, BOOSTER OUTLET CHECK VALVE | ||||
| 90502-12034 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44961-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44681 - PLUG, BOOSTER | ||||
| 44681-36020 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44682 - VALVE, BOOSTER VACUUM | ||||
| 44602-55070 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44603-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44603-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44682A - SPRING, COMPRESSION(FOR VACUUM VALVE) | ||||
| 44614-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44905 - PISTON SUB-ASSY, SUBCYLINDER | ||||
| 44905-55140 |
DA11#,FA100,115..GEN RR |
1 | ||
| 44905-55120 |
DA11#,FA100,115..GEN FR |
1 | ||
| 44905 - PISTON SUB-ASSY, SUBCYLINDER | ||||
| 44905-55140 |
DA11#,FA100,115..GEN RR |
1 | ||
| 44905-55120 |
DA11#,FA100,115..GEN FR |
1 | ||
| 44951A - PLUG, BOOSTER SUB CYLINDER | ||||
| 44953-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44951A - PLUG, BOOSTER SUB CYLINDER | ||||
| 44953-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44951B - GASKET, BOOSTER SUB CYLINDER | ||||
| 44656-36020 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44951B - GASKET, BOOSTER SUB CYLINDER | ||||
| 44656-36020 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44965 - CONNECTOR, BOOSTER | ||||
| 44965-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 44966 - GASKET, BOOSTER CONNECTOR | ||||
| 44966-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 90430-22184 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44968 - ROD, BOOSTER SUB PISTON | ||||
| 44957-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44968 - ROD, BOOSTER SUB PISTON | ||||
| 44957-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44968A - RETAINER, BOOSTER SUB PISTON ROD | ||||
| 44948-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44968A - RETAINER, BOOSTER SUB PISTON ROD | ||||
| 44948-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44968B - SPACER, BOOSTER SUB CYLINDER | ||||
| 44949-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44969 - VALVE, BOOSTER SUB CYLINDER | ||||
| 44946-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44969 - VALVE, BOOSTER SUB CYLINDER | ||||
| 44946-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44969A - SPRING, BOOSTER SUB CYLINDER VALVE | ||||
| 44947-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44969A - SPRING, BOOSTER SUB CYLINDER VALVE | ||||
| 44947-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
2 | ||
| 44971A - BOLT, BOOSTER PIPE JOINT | ||||
| 44977-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44971B - COVER, BOOSTER RESERVOIR | ||||
| 44971-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44971C - GASKET, BOOSTER RESERVOIR COVER | ||||
| 44976-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44974 - CAP, BOOSTER OIL RESERVOIR | ||||
| 44974-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44976 - SEAL, BOOSTER | ||||
| 44628-36020 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44976-55071 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| Common parts | ||||
| 91111-40640 | ||||
| 91611-40618 | ||||
| 93319-15010 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
ILLUST NO. 3 OF 6(7511-7611)DA11#,FA100,115..LHD ; (7611- )DA11#,FA100,115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44074 - GUIDE SUB-ASSY, BOOSTER ROD | ||||
| 44074-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44074A - RING(FOR BOOSTER ROD GUIDE) | ||||
| 90301-34086 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44074A - RING(FOR BOOSTER ROD GUIDE) | ||||
| 90301-34086 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44608A - SEAL, OIL(FOR PUSH ROD DUST) | ||||
| 44635-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44608E - BUSH(FOR BOOSTER PUSH ROD) | ||||
| 44628-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44608E - BUSH(FOR BOOSTER PUSH ROD) | ||||
| 44628-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44608F - BUSH(FOR BOOSTER PUSH ROD) | ||||
| 44669-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44627A - CUP, CYLINDER(FOR BOOSTER ROD) | ||||
| 44629-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44627B - RING, HOLE SNAP(FOR ROD CUP RETAINER) | ||||
| 90521-26087 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44637 - NUT OR RING SNAP, BOOSTER DIAPHRAGM SET | ||||
| 44637-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44641 - DIAPHRAGM, BOOSTER | ||||
| 44075-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44641B - RETAINER, BOOSTER SPRING | ||||
| 44649-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44649-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44649-55170 |
DA11# W/AIR OVER,FR BRAKE BOOSTER |
1 | ||
| 44649-55160 |
DA11#..GEN W/AIR OVER,RR BRAKE BOOSTER |
1 | ||
| 44641E - DIAPHRAGM, BOOSTER | ||||
| 44641-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44641F - RING, O | ||||
| 96710-01028 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44648 - END, PISTON ROD | ||||
| 44648-55092 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44648A - PIN, BOOSTER ROD END | ||||
| 44636-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44649 - CLAMP, BOOSTER VACUUM HOSE | ||||
| 44649-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44689-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44649 - CLAMP, BOOSTER VACUUM HOSE | ||||
| 44649-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44689-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44661 - TUBE, BOOSTER VACUUM | ||||
| 44604-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44609-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44609-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44675 - HOSE, BOOSTER VACUUM | ||||
| 44675-57010 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44688-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44681 - PLUG, BOOSTER | ||||
| 44681-36020 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44685 - RING, O OR GROMMET(FOR BOOSTER PISTON ROD END) | ||||
| 96720-02020 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44697-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44983-55090 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44698 - CONNECTOR, BOOSTER VACUUM | ||||
| 44698-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| Common parts | ||||
| 91111-51032 | ||||
| 94110-70600 | ||||
| 94120-40800 | ||||
| 94511-01000 | ||||
| 94531-00600 | ||||
| 94613-00800 | ||||
| 94613-12000 | ||||
ILLUST NO. 1 OF 6(7704- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100 MINOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11# MAJOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11#,FC100 MAJOR |
1 | ||
| 04443-55071 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04443-55060 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 04441-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55050 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 04443-55070 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR |
1 | ||
| 04443-55051 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 04443-55021 |
DA11#,DB10#,FA100,11#,FC100 MAJOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55061 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44620-55041 |
DA11# |
1 | ||
| 44620-55051 |
DB10#,FA100,11# |
1 | ||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44610-55171 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44610-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44610-55170 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44610-55140 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44610-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44733-55010 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44732-55060 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-55030 |
DA11#,DB10#,FA100,11#,FB100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55061 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44734-55010 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44769A - TUBE, AIR, NO.3 | ||||
| 44769-55070 |
DA11# |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-55050 |
DA11#..GEN |
1 | ||
| 44776-55100 |
DA11#..GEN |
1 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| Common parts | ||||
| 91111-41025 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||
ILLUST NO. 2 OF 6(7704- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44741C - VALVE ASSY, CHECK | ||||
| 44730-55060 |
DA11#..GEN RESERVOIR N0.3 |
1 | ||
| 44730-55040 |
DA11# RESERVOIR N0.1 |
1 | ||
| 44730-55050 |
DA11#..GEN RESERVOIR N0.2 |
1 | ||
| 44780 - VALVE ASSY, SAFETY | ||||
| 44720-55010 |
DA11# |
1 | ||
| 44780A - ELBOW(FOR SAFETY VALVE) | ||||
| 90407-53002 |
DA11#..GEN |
1 | ||
| 90407-54001 |
DA11# |
1 | ||
| 44801 - RESERVOIR SUB-ASSY, AIR, NO.1(FOR AIR COMPRESSOR) | ||||
| 44801-55011 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44801-55020 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44801-55010 |
DA11# |
1 | ||
| 44801A - ELBOW, NO.1(FOR AIR RESERVOIR) | ||||
| 90407-16001 |
DA11# |
1 | ||
| 44801B - ELBOW, NO.2(FOR AIR RESERVOIR) | ||||
| 90407-20001 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 90404-20009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44801C - CLAMP, AIR RESERVOIR | ||||
| 44751-55060 |
DA11#..GEN |
2 | ||
| 44801C - CLAMP, AIR RESERVOIR | ||||
| 44751-55060 |
DA11#..GEN |
2 | ||
| 44801D - BRACKET, AIR RESERVOIR | ||||
| 44759-55010 |
DA11#..GEN FR |
1 | ||
| 44757-55020 |
DA11#..GEN RR |
1 | ||
| 44801D - BRACKET, AIR RESERVOIR | ||||
| 44759-55010 |
DA11#..GEN FR |
1 | ||
| 44757-55020 |
DA11#..GEN RR |
1 | ||
| 44850 - COCK ASSY, DRAIN | ||||
| 44850-55010 |
DA11# |
3 | ||
| 44850 - COCK ASSY, DRAIN | ||||
| 44850-55010 |
DA11# |
3 | ||
| Common parts | ||||
| 90345-54007 | ||||
| 91111-41025 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 4712 | ||||
| 8401 | ||||
ILLUST NO. 5 OF 6(7704- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44702 - TUBE SUB-ASSY, AIR, NO.1 | ||||
| 44702-55130 |
DA11# |
1 | ||
| 44702-55131 |
DA11# |
1 | ||
| 44702A - HOSE, AIR, NO.1 | ||||
| 44726-55030 |
DA11# |
1 | ||
| 44726-55010 |
DA11# |
1 | ||
| 44702B - BOLT, UNION(FOR AIR TUBE NO.1) | ||||
| 90401-18063 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90401-20002 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44702D - GASKET(FOR AIR TUBE NO.1, UNION BOLT) | ||||
| 90430-18001 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90430-20018 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44702D - GASKET(FOR AIR TUBE NO.1, UNION BOLT) | ||||
| 90430-18001 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90430-20018 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44727A - HOSE, AIR, NO.2 | ||||
| 44727-55040 |
DA11# |
1 | ||
| 44727-55010 |
DA11# |
1 | ||
| 44727B - BOLT, UNION(FOR AIR HOSE NO.2) | ||||
| 90401-18063 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 90401-20002 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90401-20067 |
DA11# |
1 | ||
| 44727C - UNION(FOR AIR TUBE NO.2) | ||||
| 90405-20003 |
DA11# |
1 | ||
| 44727D - GASKET(FOR AIR HOSE NO.2, UNION BOLT) | ||||
| 90430-20018 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90430-18001 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44727D - GASKET(FOR AIR HOSE NO.2, UNION BOLT) | ||||
| 90430-20018 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90430-18001 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44727E - GASKET(FOR AIR HOSE NO.2) | ||||
| 90430-10003 |
DA11# |
2 | ||
| 44727E - GASKET(FOR AIR HOSE NO.2) | ||||
| 90430-10003 |
DA11# |
2 | ||
| 44728A - HOSE, AIR, NO.3 | ||||
| 44728-55070 |
DA11#..RHD..GEN |
1 | ||
| 44728-55020 |
DA11#..RHD..GEN |
1 | ||
| 44728B - BOLT, UNION(FOR AIR HOSE NO.3) | ||||
| 90401-10004 |
DA11#..GEN |
2 | ||
| 44728B - BOLT, UNION(FOR AIR HOSE NO.3) | ||||
| 90401-10004 |
DA11#..GEN |
2 | ||
| 44728C - GASKET (FOR AIR HOSE NO.3, UNION BOLT) | ||||
| 90430-10204 |
DA11#..GEN |
4 | ||
| 44728C - GASKET (FOR AIR HOSE NO.3, UNION BOLT) | ||||
| 90430-10204 |
DA11#..GEN |
4 | ||
| 44728C - GASKET (FOR AIR HOSE NO.3, UNION BOLT) | ||||
| 90430-10204 |
DA11#..GEN |
4 | ||
| 44728C - GASKET (FOR AIR HOSE NO.3, UNION BOLT) | ||||
| 90430-10204 |
DA11#..GEN |
4 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44730-55030 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-24204 |
DB10#..LHD;DA11#,FC100 |
1 | ||
| 90445-24204 |
DA11#,FC100 |
1 | ||
| 90445-24864 |
DA11#,DB105,FA100,115 L=1060 |
1 | ||
| 90445-24199 |
FA100,11# |
1 | ||
| 90445-24080 |
DA11#,FA100,115 L=930 |
2 | ||
| 44755 - BRACKET, AIR HOSE, NO.1 | ||||
| 44755-55010 |
DA11# |
1 | ||
| 44760A - REGULATOR ASSY, PRESSURE | ||||
| 44760-55011 |
DA11# |
1 | ||
| 44760-55010 |
DA11# |
1 | ||
| 44760C - UNION(FOR PRESSURE REGULATOR) | ||||
| 90404-20006 |
DA11# |
1 | ||
| 44760D - ELBOW(FOR PRESSURE REGULATOR) | ||||
| 90407-16001 |
DA11# |
1 | ||
| 44760E - GASKET(FOR PRESSURE REGULATOR UNION) | ||||
| 90430-10003 |
DA11# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-55031 |
DA11#,DB10# |
1 | ||
| 44761-55031 |
DA11#,DB105,FA100,115 |
1 | ||
| 44761-55032 |
DA11#,FA100,115 |
1 | ||
| 44761-55020 |
FA100,11#,FB100,FC100 |
1 | ||
| 44761D - CLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE | ||||
| 96112-10250 |
DA11# |
1 | ||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 96111-10250 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44762-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44762-55050 |
DA11#,FA100,115 |
1 | ||
| 44762B - HOSE, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE | ||||
| 90445-24317 |
DA11#,DB10#,FA100,11#,FC100 L=160 |
1 | ||
| 90445-24403 |
DA11#,FA100,115 L=250 |
1 | ||
| 95443-13250 |
DA11# |
1 | ||
| 44762C - CLAMP, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE HOSE | ||||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 96111-10250 |
DA11#,FA100,11#,FC100 |
2 | ||
| 96112-10250 |
DA11#..GEN |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-55051 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 44765F - TUBE, CONNECTOR TO CHECK VALVE | ||||
| 44765-55160 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44765-55150 |
DA11#..GEN |
1 | ||
| 44890A - HOSE, SUCTION(FOR AIR CLEANER TO COMPRESSOR) | ||||
| 44725-55010 |
DA11# |
1 | ||
| 44890B - ELBOW(FOR AIR CLEANER TO COMPRESSOR SUCTION HOSE) | ||||
| 90407-55001 |
DA11# |
1 | ||
| 44890C - CLAMP(FOR AIR CLEANER TO COMPRESSOR SUCTION HOSE) | ||||
| 96111-10380 |
DA11# |
2 | ||
| 44914 - TUBE, AIR RESERVOIR TO PRESSURE REGULATOR | ||||
| 44914-55010 |
DA11#..GEN |
1 | ||
| 44914-55021 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44915 - TUBE, AIR PRESSURE GAGE | ||||
| 44915-55010 |
DA11#..GEN |
1 | ||
| 44915B - WAY,2(FOR AIR PRESSURE GAGE TUBE TO AIR HOSE) | ||||
| 90412-12004 |
DA11#..GEN |
1 | ||
| Common parts | ||||
| 90170-20001 | ||||
| 90205-21001 | ||||
| 90461-18002 | ||||
| 90462-16023 | ||||
| 90463-15454 | ||||
| 90480-25002 | ||||
| 90480-32004 | ||||
| 90480-34510 | ||||
| 91111-40816 | ||||
| 91111-40825 | ||||
| 91111-41016 | ||||
| 91111-41025 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||
ILLUST NO. 6 OF 6(7704- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44728 - HOSE, AIR TUBE | ||||
| 44728-55010 |
DA11# |
1 | ||
| 44753A - CLAMP, AIR TUBE | ||||
| 44753-55010 |
DA11# |
1 | ||
| 44754 - BRACKET, AIR TUBE | ||||
| 44754-55010 |
DA11# |
1 | ||
| 44760A - REGULATOR ASSY, PRESSURE | ||||
| 44760-55011 |
DA11# |
1 | ||
| 44760-55010 |
DA11# |
1 | ||
| 44760A - REGULATOR ASSY, PRESSURE | ||||
| 44760-55011 |
DA11# |
1 | ||
| 44760-55010 |
DA11# |
1 | ||
| 44760B - BRACKET, PRESSURE REGULATOR | ||||
| 44758-55020 |
DA11# |
1 | ||
| 44760C - UNION(FOR PRESSURE REGULATOR) | ||||
| 90404-20006 |
DA11# |
1 | ||
| 44760E - GASKET(FOR PRESSURE REGULATOR UNION) | ||||
| 90430-10003 |
DA11# |
1 | ||
| 44915A - BRACKET, AIR PRESSURE GAGE TUBE CLAMP | ||||
| 47381-55020 |
DA11#..GEN |
1 | ||
| Common parts | ||||
| 90461-08444 | ||||
| 90461-10157 | ||||
| 90461-10770 | ||||
| 90462-10104 | ||||
| 90560-11001 | ||||
| 91111-40814 | ||||
| 91111-40816 | ||||
| 91111-40825 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
ILLUST NO. 3 OF 6(7704- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44604 - DIAPHRAGM & PLATE SUB-ASSY, BOOSTER VALVE | ||||
| 44604-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44908-55080 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44602-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44604A - SPRING, COMPRESSION(FOR DIAPHRAGM RETURN) | ||||
| 44677-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44669-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44696-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44604B - WASHER, BOOSTER DIAPHRAGM | ||||
| 44653-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44694-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44604C - VALVE BODY SUB-ASSY, BOOSTER | ||||
| 44601-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-55050 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44605-66011 |
DA11#,DB10#,FA100,11# |
1 | ||
| 44605-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44605-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44605-66011 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44605-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44605A - SEAL, BOOSTER OIL | ||||
| 44636-55160 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44636-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44636-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44605B - SEAL, BOOSTER DUST | ||||
| 44635-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44606 - EXHAUST SUB-ASSY, BOOSTER | ||||
| 44606-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44606-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44647-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44647-55092 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44647-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44647-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44647-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44608G - PISTON SUB-ASSY, BOOSTER HYDRAULIC | ||||
| 44608-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44608-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44608-55121 |
DA11# W/AIR SERVO OR OVER BRAKE |
2 | ||
| 44609 - VALVE SUB-ASSY, BOOSTER OUTLET | ||||
| 44609-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44609-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44609A - SPRING, BOOSTER CHECK VALVE | ||||
| 44624-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44624-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44637-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44637-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44683-55160 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44683-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 44621 - BODY, BOOSTER VALVE | ||||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44621-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44651-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44621-57011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44651-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44651-55091 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44621C - PLUG, BOOSTER VALVE | ||||
| 44652-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44623 - TUBE, BOOSTER SLAVE CYLINDER | ||||
| 44658-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44621-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44658-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44621-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44621-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44621-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44623A - NUT, BOOSTER SLAVE CYLINDER | ||||
| 44688-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44659-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44688-55121 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44688-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44688-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44623B - GASKET, BOOSTER PLUG | ||||
| 44623-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44624B - CUP, BOOSTER HYDRAULIC PISTON, NO.2 | ||||
| 44668-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44625-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44624C - RING, BOOSTER SNAP | ||||
| 44665-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44629-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44624D - RETAINER, BOOSTER SEAL | ||||
| 44626-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44626-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44667-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44624E - WASHER, BOOSTER PISTON STOP | ||||
| 44666-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44628-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44628-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44624F - WASHER, BOOSTER PISTON | ||||
| 44627-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44669-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44627-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44624G - SEAL, BOOSTER HYDRAULIC PISTON | ||||
| 44672-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44638-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44625 - RING, BOOSTER STOP WASHER SNAP | ||||
| 96151-02200 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44654-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44625-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44628 - GASKET, BOOSTER VALVE CYLINDER | ||||
| 44628-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44664-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44631A - RING, BOOSTER CUP BACK UP | ||||
| 44631-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44632A - CUP, BOOSTER HYDRAULIC PISTON | ||||
| 44632-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44633A - PIN, BOOSTER PUSH ROD | ||||
| 44633-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44633-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44658 - CYLINDER, CONTROL VALVE PISTON | ||||
| 44627-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44627-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44658-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44658A - PISTON, CONTROL VALVE | ||||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44629-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44670-36040 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44657-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44656-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44658B - CUP, CYLINDER(FOR BOOSTER CONTROL VALVE) | ||||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 44656-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 44674-55011 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 44659A - CONNECTOR, BOOSTER AIR | ||||
| 44659-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90407-20003 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44659-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44679 - SPRING, BOOSTER POPPET | ||||
| 44679-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44681A - SEAL, BOOSTER INLET | ||||
| 44681-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44682C - CONNECTOR, BOOSTER INLET | ||||
| 44682-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44945 - HEAD, BOOSTER CYLINDER | ||||
| 44656-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44622-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44622-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44622-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44656-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44976 - SEAL, BOOSTER | ||||
| 44628-36020 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 44976-55071 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| Common parts | ||||
| 44663-55160 | ||||
| 44673-66010 | ||||
| 94110-41000 | ||||
ILLUST NO. 4 OF 6(7704- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44603 - VALVE SUB-ASSY, BOOSTER DELAY | ||||
| 44603-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44615 - COVER, BOOSTER SHELL | ||||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44607-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44607-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44607-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44615 - COVER, BOOSTER SHELL | ||||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44607-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44607-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44607-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44641A - SPRING, COMPRESSION(FOR RETURN) | ||||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44639-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44639-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44639-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44641A - SPRING, COMPRESSION(FOR RETURN) | ||||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44639-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44639-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44639-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44641B - RETAINER, BOOSTER SPRING | ||||
| 44649-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44649-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44649-55170 |
DA11# W/AIR OVER,FR BRAKE BOOSTER |
1 | ||
| 44649-55160 |
DA11#..GEN W/AIR OVER,RR BRAKE BOOSTER |
1 | ||
| 44641B - RETAINER, BOOSTER SPRING | ||||
| 44649-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44649-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44649-55170 |
DA11# W/AIR OVER,FR BRAKE BOOSTER |
1 | ||
| 44649-55160 |
DA11#..GEN W/AIR OVER,RR BRAKE BOOSTER |
1 | ||
| 44641G - PACKING, BOOSTER POWER PISTON | ||||
| 04447-55020 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44641-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44641G - PACKING, BOOSTER POWER PISTON | ||||
| 04447-55020 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44641-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44642D - PLATE, BOOSTER POWER PISTON | ||||
| 44642-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44642D - PLATE, BOOSTER POWER PISTON | ||||
| 44642-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44644A - PLATE, BOOSTER PACKING RETAINING | ||||
| 44644-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44646B - WICK, BOOSTER GASKET | ||||
| 44643-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44645-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44645-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44646C - EXPANDER, BOOSTER | ||||
| 44646-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44646D - RETAINER, BOOSTER EXPANDER | ||||
| 44645-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44646F - WASHER, BOOSTER | ||||
| 44646-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44648B - NUT, BOOSTER POWER PISTON | ||||
| 44648-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44648-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44648B - NUT, BOOSTER POWER PISTON | ||||
| 44648-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44648-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44655 - PLUG, BOOSTER | ||||
| 44655-66010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44655-59810 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44684-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44684-55041 |
DA11#,DB105,FA100,115 |
1 | ||
| 44676A - SEAL, BOOSTER POWER PISTON | ||||
| 44676-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44676A - SEAL, BOOSTER POWER PISTON | ||||
| 44676-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44677 - PLATE, BOOSTER PUSH ROD | ||||
| 44677-55160 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44677 - PLATE, BOOSTER PUSH ROD | ||||
| 44677-55160 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44685A - NUT, BOOSTER PIPE | ||||
| 44685-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44686 - SEAL, BOOSTER PIPE | ||||
| 44686-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44687 - PIPE, BOOSTER VALVE | ||||
| 44603-55120 |
DA11# |
2 | ||
| 44687-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44689 - PIPE, BOOSTER SHELL | ||||
| 44689-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44691A - BODY, BOOSTER DELAY VALVE | ||||
| 44691-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44692A - DIAPHRAGM, BOOSTER DELAY VALVE | ||||
| 44692-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44693B - RETAINER, BOOSTER DELAY VALVE | ||||
| 44693-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44694A - SPRING, BOOSTER DELAY VALVE | ||||
| 44694-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44695A - COVER, BOOSTER DELAY VALVE | ||||
| 44695-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44697B - COVER, BOOSTER DELAY VALVE GUARD | ||||
| 44697-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44698A - GASKET, BOOSTER DELAY VALVE | ||||
| 44698-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| Common parts | ||||
| 44696-55160 | ||||
| 91111-41028 | ||||
| 91111-41045 | ||||
ILLUST NO. 5 OF 8(8002- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44702 - TUBE SUB-ASSY, AIR, NO.1 | ||||
| 44702-55130 |
DA11# |
1 | ||
| 44702-55131 |
DA11# |
1 | ||
| 44702A - HOSE, AIR, NO.1 | ||||
| 44726-55030 |
DA11# |
1 | ||
| 44726-55010 |
DA11# |
1 | ||
| 44702B - BOLT, UNION(FOR AIR TUBE NO.1) | ||||
| 90401-18063 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90401-20002 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44702D - GASKET(FOR AIR TUBE NO.1, UNION BOLT) | ||||
| 90430-18001 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90430-20018 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44702D - GASKET(FOR AIR TUBE NO.1, UNION BOLT) | ||||
| 90430-18001 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90430-20018 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44727A - HOSE, AIR, NO.2 | ||||
| 44727-55040 |
DA11# |
1 | ||
| 44727-55010 |
DA11# |
1 | ||
| 44727B - BOLT, UNION(FOR AIR HOSE NO.2) | ||||
| 90401-18063 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 90401-20002 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90401-20067 |
DA11# |
1 | ||
| 44727C - UNION(FOR AIR TUBE NO.2) | ||||
| 90405-20003 |
DA11# |
1 | ||
| 44727D - GASKET(FOR AIR HOSE NO.2, UNION BOLT) | ||||
| 90430-20018 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90430-18001 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44727D - GASKET(FOR AIR HOSE NO.2, UNION BOLT) | ||||
| 90430-20018 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90430-18001 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44727E - GASKET(FOR AIR HOSE NO.2) | ||||
| 90430-10003 |
DA11# |
2 | ||
| 44727E - GASKET(FOR AIR HOSE NO.2) | ||||
| 90430-10003 |
DA11# |
2 | ||
| 44728 - HOSE, AIR TUBE | ||||
| 44728-55010 |
DA11# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44730-55030 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-24204 |
DB10#..LHD;DA11#,FC100 |
1 | ||
| 90445-24204 |
DA11#,FC100 |
1 | ||
| 90445-24864 |
DA11#,DB105,FA100,115 L=1060 |
1 | ||
| 90445-24199 |
FA100,11# |
1 | ||
| 90445-24080 |
DA11#,FA100,115 L=930 |
2 | ||
| 44753A - CLAMP, AIR TUBE | ||||
| 44753-55010 |
DA11# |
1 | ||
| 44754 - BRACKET, AIR TUBE | ||||
| 44754-55010 |
DA11# |
1 | ||
| 44755 - BRACKET, AIR HOSE, NO.1 | ||||
| 44755-55010 |
DA11# |
1 | ||
| 44760A - REGULATOR ASSY, PRESSURE | ||||
| 44760-55011 |
DA11# |
1 | ||
| 44760-55010 |
DA11# |
1 | ||
| 44760B - BRACKET, PRESSURE REGULATOR | ||||
| 44758-55020 |
DA11# |
1 | ||
| 44760C - UNION(FOR PRESSURE REGULATOR) | ||||
| 90404-20006 |
DA11# |
1 | ||
| 44760D - ELBOW(FOR PRESSURE REGULATOR) | ||||
| 90407-16001 |
DA11# |
1 | ||
| 44760E - GASKET(FOR PRESSURE REGULATOR UNION) | ||||
| 90430-10003 |
DA11# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-55031 |
DA11#,DB10# |
1 | ||
| 44761-55031 |
DA11#,DB105,FA100,115 |
1 | ||
| 44761-55032 |
DA11#,FA100,115 |
1 | ||
| 44761-55020 |
FA100,11#,FB100,FC100 |
1 | ||
| 44761D - CLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE | ||||
| 96112-10250 |
DA11# |
1 | ||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 96111-10250 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44761D - CLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE | ||||
| 96112-10250 |
DA11# |
1 | ||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 96111-10250 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44762-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44762-55050 |
DA11#,FA100,115 |
1 | ||
| 44762B - HOSE, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE | ||||
| 90445-24317 |
DA11#,DB10#,FA100,11#,FC100 L=160 |
1 | ||
| 90445-24403 |
DA11#,FA100,115 L=250 |
1 | ||
| 95443-13250 |
DA11# |
1 | ||
| 44762C - CLAMP, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE HOSE | ||||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 96111-10250 |
DA11#,FA100,11#,FC100 |
2 | ||
| 96112-10250 |
DA11#..GEN |
1 | ||
| 44762C - CLAMP, BRAKE BOOSTER TO VACUUM CHECK VALVE TUBE HOSE | ||||
| 90460-25019 |
DA11#,DB10#,FA100,11#,FC100 |
2 | ||
| 96111-10250 |
DA11#,FA100,11#,FC100 |
2 | ||
| 96112-10250 |
DA11#..GEN |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-55051 |
DA11#,FA100,11#,FC100..1SR |
1 | ||
| 44765F - TUBE, CONNECTOR TO CHECK VALVE | ||||
| 44765-55160 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44765-55150 |
DA11#..GEN |
1 | ||
| 44767 - TUBE, RESERVOIR TO CHECK VALVE | ||||
| 44767-55020 |
DA11# |
1 | ||
| 44768A - TUBE, AIR CHECK VALVE TO CHECK VALVE | ||||
| 44768-55020 |
DA11# |
1 | ||
| 44784 - GASKET, CONTROL VALVE | ||||
| 44784-55010 |
DA11# |
1 | ||
| 44890A - HOSE, SUCTION(FOR AIR CLEANER TO COMPRESSOR) | ||||
| 44725-55010 |
DA11# |
1 | ||
| 44890B - ELBOW(FOR AIR CLEANER TO COMPRESSOR SUCTION HOSE) | ||||
| 90407-55001 |
DA11# |
1 | ||
| 44890C - CLAMP(FOR AIR CLEANER TO COMPRESSOR SUCTION HOSE) | ||||
| 96111-10380 |
DA11# |
2 | ||
| 44890C - CLAMP(FOR AIR CLEANER TO COMPRESSOR SUCTION HOSE) | ||||
| 96111-10380 |
DA11# |
2 | ||
| 44914 - TUBE, AIR RESERVOIR TO PRESSURE REGULATOR | ||||
| 44914-55010 |
DA11#..GEN |
1 | ||
| 44914-55021 |
DA11# W/AIR OVER BRAKE |
1 | ||
| Common parts | ||||
| 90170-20001 | ||||
| 90205-21001 | ||||
| 90461-10361 | ||||
| 90461-18002 | ||||
| 90462-16023 | ||||
| 90480-20232 | ||||
| 91111-40814 | ||||
| 91111-40816 | ||||
| 91111-40825 | ||||
| 91612-41020 | ||||
| 91612-41025 | ||||
| 91612-61020 | ||||
| 91612-61030 | ||||
| 91661-40825 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94130-60800 | ||||
| 94130-61000 | ||||
| 94511-00800 | ||||
| 94531-00800 | ||||
ILLUST NO. 6 OF 8(8002- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44721 - TUBE, CONTROL VALVE TO CONNECTOR | ||||
| 44721-55030 |
DA11#..RHD |
1 | ||
| 44721 - TUBE, CONTROL VALVE TO CONNECTOR | ||||
| 44721-55030 |
DA11#..RHD |
1 | ||
| 44721A - HOSE, CONTROL VALVE TO CONNECTOR TUBE | ||||
| 44776-55010 |
DA11#..RHD RR,L=410 |
1 | ||
| 44776-55070 |
DA11#..RHD FR,L=445 |
1 | ||
| 44776-55020 |
DA11#..RHD FR,L=445 |
1 | ||
| 44776-55060 |
DA11#..RHD RR,L=410 |
1 | ||
| 44721A - HOSE, CONTROL VALVE TO CONNECTOR TUBE | ||||
| 44776-55010 |
DA11#..RHD RR,L=410 |
1 | ||
| 44776-55070 |
DA11#..RHD FR,L=445 |
1 | ||
| 44776-55020 |
DA11#..RHD FR,L=445 |
1 | ||
| 44776-55060 |
DA11#..RHD RR,L=410 |
1 | ||
| 44722 - TUBE, CONTROL VALVE TO BRAKE BOOSTER, NO.1 | ||||
| 44722-55040 |
DA11#..RHD |
1 | ||
| 44722 - TUBE, CONTROL VALVE TO BRAKE BOOSTER, NO.1 | ||||
| 44722-55040 |
DA11#..RHD |
1 | ||
| 44722A - HOSE, CONTROL VALVE TO BRAKE BOOSTER TUBE | ||||
| 44777-55010 |
DA11# |
2 | ||
| 44777-55020 |
DA11# |
2 | ||
| 44722A - HOSE, CONTROL VALVE TO BRAKE BOOSTER TUBE | ||||
| 44777-55010 |
DA11# |
2 | ||
| 44777-55020 |
DA11# |
2 | ||
| 44723 - TUBE, CONTROL VALVE TO BRAKE BOOSTER, NO.2 | ||||
| 44723-55040 |
DA11# |
1 | ||
| 44724 - TUBE, CONTROL VALVE TO BRAKE BOOSTER, NO.3 | ||||
| 44724-55020 |
DA11# |
1 | ||
| 44725 - TUBE, CONTROL VALVE TO CONNECTOR, NO.2 | ||||
| 44725-55020 |
DA11# |
1 | ||
| 44725C - BRACKET, TUBE CLAMP | ||||
| 47373-55011 |
DA11# |
1 | ||
| 44726 - TUBE, CONTROL VALVE TO CONNECTOR, NO.3 | ||||
| 44726-55020 |
DA11# |
1 | ||
| 44727 - TUBE, CONTROL VALVE TO BRAKE BOOSTER, NO.4 | ||||
| 44727-55020 |
DA11#..RHD |
1 | ||
| 44728D - TUBE, CONTROL VALVE TO BRAKE BOOSTER, NO.5 | ||||
| 44728-55040 |
DA11#..RHD |
1 | ||
| 44729A - TUBE, CONTROL VALVE TO CONNECTOR, NO.4 | ||||
| 44729-55010 |
DA11#..RHD |
1 | ||
| 44735B - BRACKET, CONTROL VALVE | ||||
| 44735-55010 |
DA11# |
1 | ||
| 44749A - TUBE, CONTROL VALVE TO CONNECTOR, NO.5 | ||||
| 44749-55010 |
DA11#..RHD |
1 | ||
| 44754A - BRACKET, AIR TUBE | ||||
| 44754-55020 |
DA11# |
1 | ||
| 44755A - BRACKET, AIR HOSE, NO.1 | ||||
| 44755-55020 |
DA11# |
1 | ||
| 44756A - BRACKET, AIR HOSE, RH | ||||
| 44756-55030 |
DA11# |
1 | ||
| 44757 - BRACKET, AIR HOSE, LH | ||||
| 44757-55040 |
DA11# |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-55010 |
DA11# |
1 | ||
| 44782 - BRACKET, HOSE | ||||
| 44782-55010 |
DA11# |
1 | ||
| 44784 - GASKET, CONTROL VALVE | ||||
| 44784-55010 |
DA11# |
1 | ||
| 44785A - GASKET, CONTROL VALVE BRACKET | ||||
| 44785-55010 |
DA11# |
1 | ||
| 44787 - INSULATOR, AIR HOSE HEAT | ||||
| 44787-55010 |
DA11# |
1 | ||
| 44916 - TUBE, AIR PRESSURE GAGE, FRONT | ||||
| 44916-55010 |
DA11#..RHD |
1 | ||
| 44916 - TUBE, AIR PRESSURE GAGE, FRONT | ||||
| 44916-55010 |
DA11#..RHD |
1 | ||
| 44916A - HOSE, AIR PRESSURE GAGE, FRONT | ||||
| 44778-55030 |
DA11# |
1 | ||
| 44778-55010 |
DA11# |
1 | ||
| 44917 - TUBE, AIR PRESSURE GAGE, REAR | ||||
| 44917-55010 |
DA11#..RHD |
1 | ||
| 44917 - TUBE, AIR PRESSURE GAGE, REAR | ||||
| 44917-55010 |
DA11#..RHD |
1 | ||
| 44917A - HOSE, AIR PRESSURE GAGE, REAR | ||||
| 44779-55010 |
DA11# |
1 | ||
| 44779-55030 |
DA11# |
1 | ||
| Common parts | ||||
| 90170-20001 | ||||
| 90179-10018 | ||||
| 90205-21001 | ||||
| 90462-23009 | ||||
| 90462-23010 | ||||
| 90480-25002 | ||||
| 90480-32004 | ||||
| 90480-34510 | ||||
| 91111-41035 | ||||
| 91611-40816 | ||||
| 91611-40825 | ||||
| 91612-41020 | ||||
| 91612-41025 | ||||
| 91612-41030 | ||||
| 94110-40800 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| 94531-01000 | ||||
| 96221-20906 | ||||
| 96322-12009 | ||||
| 96991-12080 | ||||
ILLUST NO. 1 OF 8(8002- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11# |
1 | ||
| 44620-55041 |
DA11# |
1 | ||
| 44620-55051 |
DB10#,FA100,11# |
1 | ||
| 44620-55041 |
DB10#..RHD;DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 44610-55171 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44610-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44610-55170 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44610-55140 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44610-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44620 - BOOSTER ASSY, BRAKE | ||||
| 44620-55120 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44620-55121 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44659A - CONNECTOR, BOOSTER AIR | ||||
| 44659-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90407-20003 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44659-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44733-55010 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44732-55060 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-55030 |
DA11#,DB10#,FA100,11#,FB100 W/SINGLE VACUUM BOOSTER |
1 | ||
| 44731-55061 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44734-55010 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44733 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-55070 |
DA11# |
1 | ||
| 44734A - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-55070 |
DA11# |
1 | ||
| 44738A - STAY, BOOSTER | ||||
| 44738-55030 |
DA11# |
1 | ||
| 44739A - STRUT, STAY BOOSTER | ||||
| 44739-55011 |
DA11# |
1 | ||
| 44739-55010 |
DA11# |
1 | ||
| 44741C - VALVE ASSY, CHECK | ||||
| 44730-55060 |
DA11#..GEN RESERVOIR N0.3 |
1 | ||
| 44730-55040 |
DA11# RESERVOIR N0.1 |
1 | ||
| 44730-55050 |
DA11#..GEN RESERVOIR N0.2 |
1 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 47220 - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-55010 |
DA11# |
1 | ||
| 47220A - CAP ASSY, RESERVOIR FILLER | ||||
| 47230-55030 |
DA11# |
1 | ||
| 47220B - STRAINER, RESERVOIR | ||||
| 47299-55010 |
DA11# |
1 | ||
| 47220C - HOSE, SUCTION | ||||
| 90445-08195 |
DA11# |
1 | ||
| 47233A - BRACKET, RESERVOIR | ||||
| 47233-55020 |
DA11# |
1 | ||
| 47234A - TUBE, RESERVOIR, NO.1 | ||||
| 47234-55030 |
DA11# |
1 | ||
| 47235A - TUBE, BRAKE BOOSTER RESERVOIR, NO.2 | ||||
| 47235-55020 |
DA11# |
1 | ||
| Common parts | ||||
| 90467-16141 | ||||
| 90480-31008 | ||||
| 90950-01317 | ||||
| 91111-41025 | ||||
| 91611-41020 | ||||
| 91651-41030 | ||||
| 93381-16014 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
ILLUST NO. 2 OF 8(8002- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44741C - VALVE ASSY, CHECK | ||||
| 44730-55060 |
DA11#..GEN RESERVOIR N0.3 |
1 | ||
| 44730-55040 |
DA11# RESERVOIR N0.1 |
1 | ||
| 44730-55050 |
DA11#..GEN RESERVOIR N0.2 |
1 | ||
| 44741C - VALVE ASSY, CHECK | ||||
| 44730-55060 |
DA11#..GEN RESERVOIR N0.3 |
1 | ||
| 44730-55040 |
DA11# RESERVOIR N0.1 |
1 | ||
| 44730-55050 |
DA11#..GEN RESERVOIR N0.2 |
1 | ||
| 44741C - VALVE ASSY, CHECK | ||||
| 44730-55060 |
DA11#..GEN RESERVOIR N0.3 |
1 | ||
| 44730-55040 |
DA11# RESERVOIR N0.1 |
1 | ||
| 44730-55050 |
DA11#..GEN RESERVOIR N0.2 |
1 | ||
| 44758A - BRACKET, AIR RESERVOIR TO AIR BOOSTER | ||||
| 44758-55030 |
DA11# |
1 | ||
| 44759 - STAY, AIR RESERVOIR | ||||
| 44759-55020 |
DA11# |
1 | ||
| 44780 - VALVE ASSY, SAFETY | ||||
| 44720-55010 |
DA11# |
1 | ||
| 44780 - VALVE ASSY, SAFETY | ||||
| 44720-55010 |
DA11# |
1 | ||
| 44780A - ELBOW(FOR SAFETY VALVE) | ||||
| 90407-53002 |
DA11#..GEN |
1 | ||
| 90407-54001 |
DA11# |
1 | ||
| 44780A - ELBOW(FOR SAFETY VALVE) | ||||
| 90407-53002 |
DA11#..GEN |
1 | ||
| 90407-54001 |
DA11# |
1 | ||
| 44801 - RESERVOIR SUB-ASSY, AIR, NO.1(FOR AIR COMPRESSOR) | ||||
| 44801-55011 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44801-55020 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44801-55010 |
DA11# |
1 | ||
| 44801 - RESERVOIR SUB-ASSY, AIR, NO.1(FOR AIR COMPRESSOR) | ||||
| 44801-55011 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44801-55020 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44801-55010 |
DA11# |
1 | ||
| 44801A - ELBOW, NO.1(FOR AIR RESERVOIR) | ||||
| 90407-16001 |
DA11# |
1 | ||
| 44801A - ELBOW, NO.1(FOR AIR RESERVOIR) | ||||
| 90407-16001 |
DA11# |
1 | ||
| 44801A - ELBOW, NO.1(FOR AIR RESERVOIR) | ||||
| 90407-16001 |
DA11# |
1 | ||
| 44801B - ELBOW, NO.2(FOR AIR RESERVOIR) | ||||
| 90407-20001 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 90404-20009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44801B - ELBOW, NO.2(FOR AIR RESERVOIR) | ||||
| 90407-20001 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 90404-20009 |
DA11# W/AIR OVER BRAKE |
1 | ||
| 44802 - RESERVOIR SUB-ASSY, AIR, NO.2(FOR AIR COMPRESSOR) | ||||
| 44802-55010 |
DA11# |
1 | ||
| 44802A - ELBOW, NO.3(FOR AIR RESERVOIR) | ||||
| 90407-20003 |
DA11# |
3 | ||
| 44802A - ELBOW, NO.3(FOR AIR RESERVOIR) | ||||
| 90407-20003 |
DA11# |
3 | ||
| 44802A - ELBOW, NO.3(FOR AIR RESERVOIR) | ||||
| 90407-20003 |
DA11# |
3 | ||
| 44802B - ELBOW, NO.4(FOR AIR RESERVOIR) | ||||
| 90407-20001 |
DA11# |
2 | ||
| 44802B - ELBOW, NO.4(FOR AIR RESERVOIR) | ||||
| 90407-20001 |
DA11# |
2 | ||
| 44830 - RESERVOIR SUB-ASSY, AIR, NO.3(FOR AIR COMPRESSOR) | ||||
| 44803-55010 |
DA11# |
1 | ||
| 44850 - COCK ASSY, DRAIN | ||||
| 44850-55010 |
DA11# |
3 | ||
| 44850 - COCK ASSY, DRAIN | ||||
| 44850-55010 |
DA11# |
3 | ||
| 44850 - COCK ASSY, DRAIN | ||||
| 44850-55010 |
DA11# |
3 | ||
| 44850 - COCK ASSY, DRAIN | ||||
| 44850-55010 |
DA11# |
3 | ||
| Common parts | ||||
| 90179-08041 | ||||
| 90345-54007 | ||||
| 91111-41030 | ||||
| 91651-41025 | ||||
| 91661-40822 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
ILLUST NO. 3 OF 8(8002- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100 MINOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11# MAJOR |
1 | ||
| 04443-55020 |
DA11#,DB10#,FA100,11#,FC100 MAJOR |
1 | ||
| 04443-55071 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04443-55060 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 04441-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55050 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 04443-55070 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 04441-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 MINOR |
1 | ||
| 04443-55051 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 04443-55021 |
DA11#,DB10#,FA100,11#,FC100 MAJOR,W/SINGLE BOOSTER |
1 | ||
| 04443-55061 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44615 - COVER, BOOSTER SHELL | ||||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44604-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44607-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44607-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44607-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44641A - SPRING, COMPRESSION(FOR RETURN) | ||||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44639-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44639-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44639-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44641A - SPRING, COMPRESSION(FOR RETURN) | ||||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44638-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44639-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44639-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44639-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44641B - RETAINER, BOOSTER SPRING | ||||
| 44649-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44649-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44649-55170 |
DA11# W/AIR OVER,FR BRAKE BOOSTER |
1 | ||
| 44649-55160 |
DA11#..GEN W/AIR OVER,RR BRAKE BOOSTER |
1 | ||
| 44641B - RETAINER, BOOSTER SPRING | ||||
| 44649-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44649-55091 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44649-55170 |
DA11# W/AIR OVER,FR BRAKE BOOSTER |
1 | ||
| 44649-55160 |
DA11#..GEN W/AIR OVER,RR BRAKE BOOSTER |
1 | ||
| 44641G - PACKING, BOOSTER POWER PISTON | ||||
| 04447-55020 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44641-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44641G - PACKING, BOOSTER POWER PISTON | ||||
| 04447-55020 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44641-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44642D - PLATE, BOOSTER POWER PISTON | ||||
| 44642-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44642D - PLATE, BOOSTER POWER PISTON | ||||
| 44642-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44644A - PLATE, BOOSTER PACKING RETAINING | ||||
| 44644-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44646B - WICK, BOOSTER GASKET | ||||
| 44643-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44645-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44645-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44646C - EXPANDER, BOOSTER | ||||
| 44646-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44646D - RETAINER, BOOSTER EXPANDER | ||||
| 44645-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44646F - WASHER, BOOSTER | ||||
| 44646-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44648B - NUT, BOOSTER POWER PISTON | ||||
| 44648-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44648-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44648B - NUT, BOOSTER POWER PISTON | ||||
| 44648-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44648-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44655 - PLUG, BOOSTER | ||||
| 44655-66010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44655-59810 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44684-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44684-55041 |
DA11#,DB105,FA100,115 |
1 | ||
| 44676A - SEAL, BOOSTER POWER PISTON | ||||
| 44676-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44676A - SEAL, BOOSTER POWER PISTON | ||||
| 44676-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44677 - PLATE, BOOSTER PUSH ROD | ||||
| 44677-55160 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44685A - NUT, BOOSTER PIPE | ||||
| 44685-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44686 - SEAL, BOOSTER PIPE | ||||
| 44686-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| Common parts | ||||
| 90101-10047 | ||||
| 91111-41045 | ||||
| 91111-41060 | ||||
ILLUST NO. 4 OF 8(8002- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44604 - DIAPHRAGM & PLATE SUB-ASSY, BOOSTER VALVE | ||||
| 44604-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44908-55080 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44604-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44602-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44604A - SPRING, COMPRESSION(FOR DIAPHRAGM RETURN) | ||||
| 44677-37030 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44623-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44669-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44696-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44604B - WASHER, BOOSTER DIAPHRAGM | ||||
| 44653-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44694-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44604D - BRACKET, BOOSTER VALVE | ||||
| 44693-55120 |
DA11# |
2 | ||
| 44604E - RETAINER, BOOSTER DIAPHRAGM | ||||
| 44695-55120 |
DA11# |
2 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-55050 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44605-66011 |
DA11#,DB10#,FA100,11# |
1 | ||
| 44605-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44605-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44605-66011 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 44605-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44605A - SEAL, BOOSTER OIL | ||||
| 44636-55160 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44636-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44636-55011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44605B - SEAL, BOOSTER DUST | ||||
| 44635-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44606 - EXHAUST SUB-ASSY, BOOSTER | ||||
| 44606-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44606-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44606 - EXHAUST SUB-ASSY, BOOSTER | ||||
| 44606-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44606-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44606A - PIPE, BOOSTER EXHAUST | ||||
| 44691-55120 |
DA11# |
2 | ||
| 44606B - GASKET, BOOSTER EXHAUST | ||||
| 44692-55120 |
DA11# |
4 | ||
| 44606B - GASKET, BOOSTER EXHAUST | ||||
| 44692-55120 |
DA11# |
4 | ||
| 44606C - CONNECTOR, BOOSTER EXHAUST | ||||
| 44651-55120 |
DA11# |
2 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44647-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44606-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
1 | ||
| 44647-55092 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 44647-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44647-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44647-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44608G - PISTON SUB-ASSY, BOOSTER HYDRAULIC | ||||
| 44608-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44608-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44608-55121 |
DA11# W/AIR SERVO OR OVER BRAKE |
2 | ||
| 44609 - VALVE SUB-ASSY, BOOSTER OUTLET | ||||
| 44609-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44609-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44609A - SPRING, BOOSTER CHECK VALVE | ||||
| 44624-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44624-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44609B - RING, BOOSTER SEAL RETAINING | ||||
| 44614-55120 |
DA11# |
2 | ||
| 44609C - WASHER, BOOSTER SPRING RETAINER | ||||
| 44634-55120 |
DA11# |
2 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44637-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44637-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44683-55160 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44683-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 44621A - PLUG, BLEEDER(FOR BOOSTER VALVE BODY) | ||||
| 47547-35011 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44634-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44634-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 44633-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 31478-30010 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
6 | ||
| 44633-55010 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44623 - TUBE, BOOSTER SLAVE CYLINDER | ||||
| 44658-57010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44621-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44658-57010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44621-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44621-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44621-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44623A - NUT, BOOSTER SLAVE CYLINDER | ||||
| 44688-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44659-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44688-55121 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44688-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44688-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44623B - GASKET, BOOSTER PLUG | ||||
| 44623-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44624B - CUP, BOOSTER HYDRAULIC PISTON, NO.2 | ||||
| 44668-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44625-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44624C - RING, BOOSTER SNAP | ||||
| 44665-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44629-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44624D - RETAINER, BOOSTER SEAL | ||||
| 44626-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44626-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44667-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44624E - WASHER, BOOSTER PISTON STOP | ||||
| 44666-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44628-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44628-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44624F - WASHER, BOOSTER PISTON | ||||
| 44627-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44669-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44627-55120 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44624G - SEAL, BOOSTER HYDRAULIC PISTON | ||||
| 44672-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44638-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44624H - SPRING, BOOSTER SEAL RETAINING | ||||
| 44637-55120 |
DA11# |
2 | ||
| 44631A - RING, BOOSTER CUP BACK UP | ||||
| 44631-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44632A - CUP, BOOSTER HYDRAULIC PISTON | ||||
| 44632-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44633A - PIN, BOOSTER PUSH ROD | ||||
| 44633-55121 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44633-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44652A - CONNECTOR, BOOSTER VALVE CONTROL | ||||
| 44652-55120 |
DA11# |
2 | ||
| 44653C - CONNECTOR, BOOSTER SWITCH | ||||
| 44653-55120 |
DA11# |
2 | ||
| 44659A - CONNECTOR, BOOSTER AIR | ||||
| 44659-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 90407-20003 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44659-55160 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 44661B - SHIM, BOOSTER SWITCH | ||||
| 44661-55120 |
DA11# |
2 | ||
| 44662L - ROD, BOOSTER SWITCH | ||||
| 44662-55170 |
DA11# W/AIR OVER,FR BRAKE BOOSTER |
1 | ||
| 44662-55120 |
DA11# W/AIR OVER,RR BRAKE BOOSTER |
1 | ||
| 44663A - RETAINER, BOOSTER SWITCH | ||||
| 44663-55120 |
DA11# |
2 | ||
| 44664A - PISTON, BOOSTER SWITCH | ||||
| 44664-55120 |
DA11# |
2 | ||
| 44665A - SPRING, BOOSTER ROD RETURN | ||||
| 44665-55170 |
DA11# W/AIR OVER,FR BRAKE BOOSTER |
1 | ||
| 44665-55120 |
DA11# W/AIR OVER,RR BRAKE BOOSTER |
1 | ||
| 44666A - WASHER, BOOSTER SPRING RETURN | ||||
| 44666-55120 |
DA11# |
2 | ||
| 44667A - COVER, BOOSTER SWITCH | ||||
| 44667-55120 |
DA11# |
2 | ||
| 44668A - SPRING, BOOSTER PISTON RETURN | ||||
| 44668-55120 |
DA11# |
2 | ||
| 44669A - SEAL, BOOSTER PISTON | ||||
| 44669-55120 |
DA11# |
2 | ||
| 44671A - SLEEVE, BOOSTER SWITCH | ||||
| 44671-55120 |
DA11# W/AIR OVER,RR BRAKE BOOSTER |
1 | ||
| 44671-55170 |
DA11# W/AIR OVER,FR BRAKE BOOSTER |
1 | ||
| 44672A - SCREW, BOOSTER SLEEVE SET | ||||
| 44672-55120 |
DA11# |
2 | ||
| 44673B - PIN, BOOSTER SPRING SET | ||||
| 44673-55120 |
DA11# |
2 | ||
| 44687 - PIPE, BOOSTER VALVE | ||||
| 44603-55120 |
DA11# |
2 | ||
| 44687-55160 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44698B - BODY, BOOSTER VALVE | ||||
| 44698-55120 |
DA11# |
2 | ||
| 44699 - VALVE, BODY(FOR BRAKE BOOSTER) | ||||
| 44699-55121 |
DA11# |
2 | ||
| 44699-55120 |
DA11# |
2 | ||
| 44699A - GASKET, BOOSTER VALVE | ||||
| 44697-55120 |
DA11# |
2 | ||
| 44945 - HEAD, BOOSTER CYLINDER | ||||
| 44656-66010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 44622-55160 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
2 | ||
| 44622-55121 |
DA11# W/AIR OVER BRAKE |
2 | ||
| 44622-55161 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 44656-66010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965A - BOLT, BOOSTER PIPE JOINT | ||||
| 44969-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
2 | ||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
2 | ||
| 90401-18085 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 90401-12030 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90401-12030 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965B - JOINT, BOOSTER PIPE | ||||
| 90405-14060 |
DA11#,DB10#,FA100,11#,FB100,FC100 W/SINGLE BOOSTER |
2 | ||
| 90405-15002 |
DA11# W/AIR OVER BRAKE,INLET |
2 | ||
| 44968-55090 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
3 | ||
| 90405-14060 |
DA11#..GEN W/AIR SERVO BRAKE |
2 | ||
| 90405-14060 |
DA11# W/AIR OVER BRAKE,OUTLET |
2 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965C - GASKET, BOOSTER JOINT, A | ||||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
2 | ||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| 44965D - GASKET, BOOSTER JOINT, B | ||||
| 90430-18152 |
DA11# W/AIR OVER BRAKE,ID=18,OD=25 |
4 | ||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
2 | ||
| Common parts | ||||
| 44673-66010 | ||||
| 91111-50822 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94521-00800 | ||||
ILLUST NO. 7 OF 8(8002- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04444 - VALVE KIT, BOOSTER CONTROL | ||||
| 04444-55030 |
DA11# |
1 | ||
| 44602 - VALVE KIT, BOOSTER CONTROL VALVE POPPET REPLACEMENT | ||||
| 44691-55090 |
DA11# |
1 | ||
| 44602A - SPRING, BOOSTER CONTROL VALVE POPPET | ||||
| 44658-55090 |
DA11# |
1 | ||
| 44602B - SEAL(FOR BOOSTER CONTROL VALVE) | ||||
| 44623-55090 |
DA11# |
1 | ||
| 44602C - WASHER, CONTROL VALVE SPRING | ||||
| 44659-55090 |
DA11# |
1 | ||
| 44602D - RETAINER, CONTROL VALVE | ||||
| 44668-55090 |
DA11# |
1 | ||
| 44602E - RING, CONTROL VALVE RETAINER | ||||
| 44674-55090 |
DA11# |
1 | ||
| 44602F - RING, CONTROL VALVE | ||||
| 44667-55090 |
DA11# |
1 | ||
| 44602G - RING, CONTROL VALVE RETAINER | ||||
| 44675-55090 |
DA11# |
1 | ||
| 44606D - EXHAUST SUB-ASSY, VALVE | ||||
| 44606-55090 |
DA11# |
1 | ||
| 44619A - SPRING, VALVE RELAY PISTON | ||||
| 44619-55090 |
DA11# |
1 | ||
| 44639A - RETAINER, BOOSTER DIAPHRAGM, FRONT, NO.1 | ||||
| 44639-55090 |
DA11# |
1 | ||
| 44650 - VALVE ASSY, BOOSTER CONTROL | ||||
| 44650-55090 |
DA11#..RHD |
1 | ||
| 44650B - ELBOW(FOR BRAKE VALVE) | ||||
| 90407-20003 |
DA11# |
2 | ||
| 44654C - SCREW SUB-ASSY, VALVE | ||||
| 44654-55090 |
DA11# |
1 | ||
| 44661C - RETAINER, SECONDARY VALVE | ||||
| 44661-55090 |
DA11# |
1 | ||
| 44662M - SPRING, SECONDARY VALVE | ||||
| 44662-55090 |
DA11# |
1 | ||
| 44663B - RING, SECONDARY VALVE | ||||
| 44663-55090 |
DA11# |
1 | ||
| 44664B - RETAINER, SECONDARY VALVE | ||||
| 44664-55090 |
DA11# |
1 | ||
| 44665B - WASHER, SECONDARY VALVE | ||||
| 44665-55090 |
DA11# |
1 | ||
| 44666B - RING, SECONDARY VALVE RETAINING | ||||
| 44666-55090 |
DA11# |
1 | ||
| 44667B - RING, SECONDARY VALVE | ||||
| 44667-55090 |
DA11# |
1 | ||
| 44671B - RING, VALVE EXHAUST RETAINING | ||||
| 44671-55090 |
DA11# |
1 | ||
| 44682D - CONNECTOR, VALVE | ||||
| 44682-55090 |
DA11# |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-55090 |
DA11# |
2 | ||
| 44684B - PISTON, VALVE RELAY | ||||
| 44684-55090 |
DA11# |
1 | ||
| 44686A - RING, VALVE RELAY PISTON | ||||
| 44686-55090 |
DA11# |
1 | ||
| 44695B - VALVE, SECONDARY | ||||
| 44695-55090 |
DA11# |
1 | ||
| 44906 - HOUSING SUB-ASSY, BOOSTER CONTROL VALVE | ||||
| 44646-55090 |
DA11# |
1 | ||
| 44906B - RING, O (FOR BOOSTER CONTROL VALVE) | ||||
| 44672-55090 |
DA11# |
1 | ||
| Common parts | ||||
| 44673-55090 | ||||
| 94125-41400 | ||||
ILLUST NO. 8 OF 8(8002- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44607C - PLATE, VALVE MOUNTING | ||||
| 44607-55090 |
DA11# |
1 | ||
| 44612A - PISTON, VALVE PRIMARY | ||||
| 44612-55090 |
DA11# |
1 | ||
| 44615C - SPRING, VALVE PRIMARY PISTON | ||||
| 44615-55090 |
DA11# |
1 | ||
| 44616A - SEAT, VALVE PRIMARY PISTON | ||||
| 44616-55090 |
DA11# |
1 | ||
| 44617A - RING, VALVE PRIMARY PISTON | ||||
| 44617-55090 |
DA11# |
1 | ||
| 44631B - RING, VALVE PISTON | ||||
| 44631-55090 |
DA11# |
1 | ||
| 44633B - RETAINER, VALVE PISTON | ||||
| 44633-55090 |
DA11# |
1 | ||
| 44644B - CONNECTOR, VALVE | ||||
| 44644-55090 |
DA11# |
1 | ||
| 44645B - BOLT, SELF LOCKING | ||||
| 44645-55090 |
DA11# |
1 | ||
| 44650B - ELBOW(FOR BRAKE VALVE) | ||||
| 90407-20003 |
DA11# |
2 | ||
| 44655A - SPRING, VALVE PRIMARY PISTON | ||||
| 44655-55090 |
DA11# |
1 | ||
| 44678C - SPRING, PISTON RETURN | ||||
| 44678-55090 |
DA11# |
1 | ||
| 44679A - FILTER, VALVE VENT | ||||
| 44679-55090 |
DA11# |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-55090 |
DA11# |
2 | ||
| 44692B - PLUNGER, VALVE | ||||
| 44692-55090 |
DA11# |
1 | ||
| 44693C - BOOT, VALVE DUST | ||||
| 44693-55090 |
DA11# |
1 | ||
| 44694B - ROD, VALVE PUSH | ||||
| 44694-55090 |
DA11# |
1 | ||
| 44907A - SPRING, BOOSTER CONTROL VALVE SEAT | ||||
| 44613-55090 |
DA11# |
1 | ||
| 44994 - BODY, BOOSTER CONTROL VALVE | ||||
| 44611-55090 |
DA11# |
1 | ||
| Common parts | ||||
| 44696-55090 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
