DA110LD-Q (1969)
Toyota Heavy Duty Truck
Production
Mar 1969
-
Dec 2001
Engine
2D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7404-7704)DA11#,FA100,115

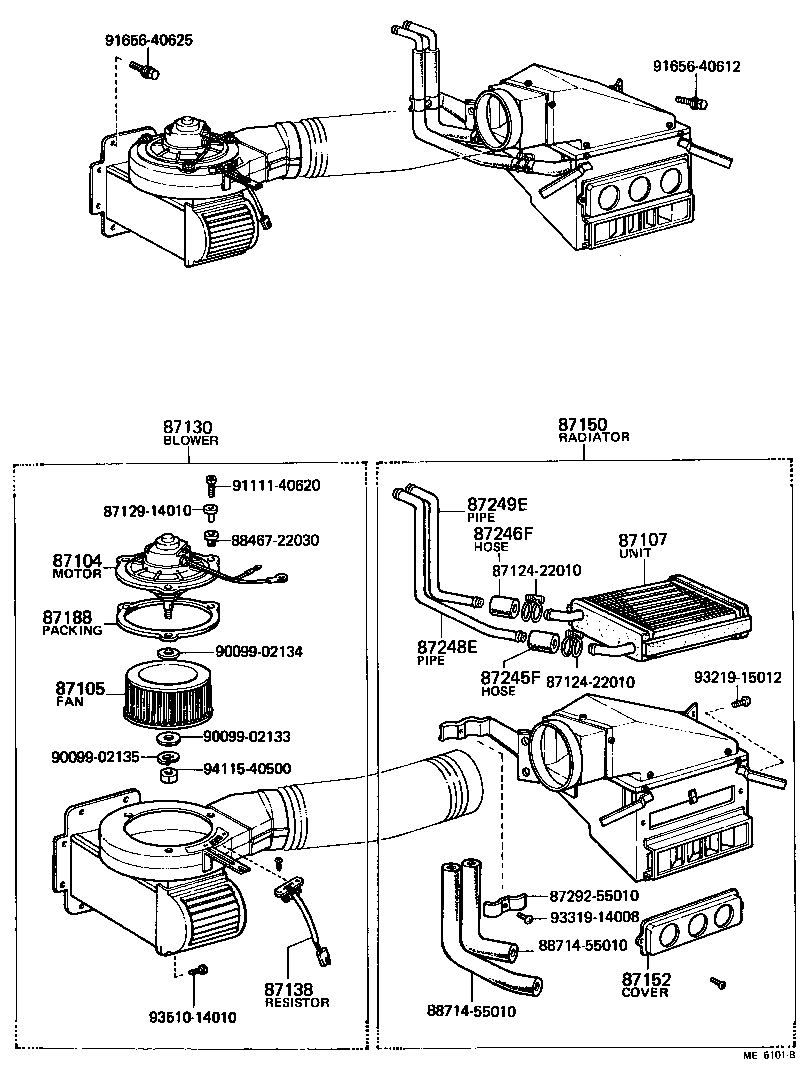

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-55070 |
DA11# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20060 |
DA11#,FA100,115 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-55011 |
DA11#,FA100,115 |
1 | ||
| 87107-55010 |
DA11#,FA100,115 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-55040 |
DA11#..LHD |
1 | ||
| 87130-55041 |
DA11#..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87291-37010 |
DA11# |
1 | ||
| 87291-37011 |
DA11# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-55040 |
DA11#..LHD |
1 | ||
| 87150-55021 |
DA11#,FA100,115..LHD |
1 | ||
| 87152 - COVER, HEATER DEFROSTER | ||||
| 87114-55010 |
DA11#,FA100,115 |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87127-30010 |
DA11#,FA100,115 |
1 | ||
| 87245F - HOSE, HEATER WATER, INLET F | ||||
| 99552-30035 |
DA11#,FA100,115 *H,L=35 |
1 | ||
| 99552-30100 |
DA11#,FA100,115 *H,L=35 |
1 | ||
| 87246F - HOSE, HEATER WATER, OUTLET F | ||||
| 99552-30100 |
DA11#,FA100,115 *H,L=35 |
1 | ||
| 99552-30035 |
DA11#,FA100,115 *H,L=35 |
1 | ||
| 87248E - PIPE, HEATER WATER INLET, E | ||||
| 87157-55020 |
DA11# |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87156-55020 |
DA11# |
1 | ||
| Common parts | ||||
| 87124-22010 | ||||
| 87129-14010 | ||||
| 87292-50010 | ||||
| 88467-22030 | ||||
| 88714-55010 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 91111-40620 | ||||
| 91656-40612 | ||||
| 91656-40625 | ||||
| 93219-15012 | ||||
| 93319-14008 | ||||
| 93510-14010 | ||||
| 94115-40500 | ||||
(7704- )

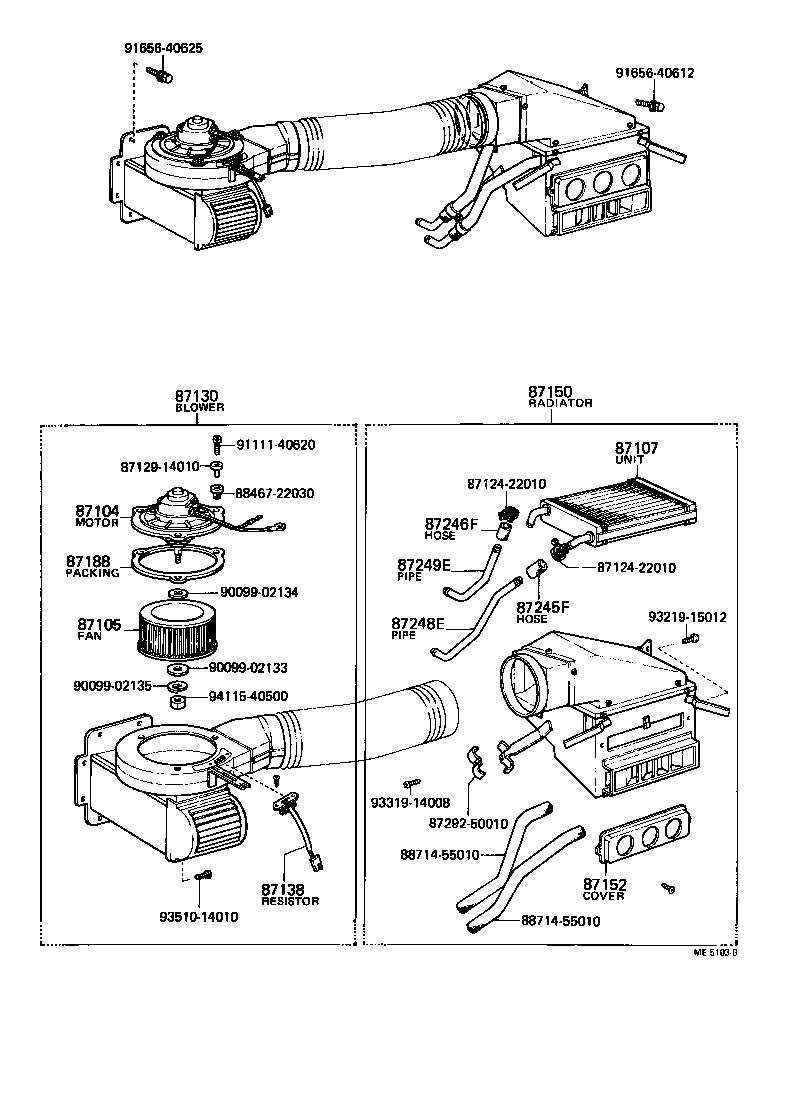

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-55070 |
DA11# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20060 |
DA11#,FA100,115 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-55011 |
DA11#,FA100,115 |
1 | ||
| 87107-55010 |
DA11#,FA100,115 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-55040 |
DA11#..LHD |
1 | ||
| 87130-55041 |
DA11#..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87291-37010 |
DA11# |
1 | ||
| 87291-37011 |
DA11# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-55040 |
DA11#..LHD |
1 | ||
| 87150-55021 |
DA11#,FA100,115..LHD |
1 | ||
| 87152 - COVER, HEATER DEFROSTER | ||||
| 87114-55010 |
DA11#,FA100,115 |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87127-30010 |
DA11#,FA100,115 |
1 | ||
| 87245F - HOSE, HEATER WATER, INLET F | ||||
| 99552-30035 |
DA11#,FA100,115 *H,L=35 |
1 | ||
| 99552-30100 |
DA11#,FA100,115 *H,L=35 |
1 | ||
| 87246F - HOSE, HEATER WATER, OUTLET F | ||||
| 99552-30100 |
DA11#,FA100,115 *H,L=35 |
1 | ||
| 99552-30035 |
DA11#,FA100,115 *H,L=35 |
1 | ||
| 87248E - PIPE, HEATER WATER INLET, E | ||||
| 87157-55020 |
DA11# |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87156-55020 |
DA11# |
1 | ||
| Common parts | ||||
| 87124-22010 | ||||
| 87129-14010 | ||||
| 87292-55010 | ||||
| 88467-22030 | ||||
| 88714-55010 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 91111-40620 | ||||
| 91656-40612 | ||||
| 91656-40625 | ||||
| 93219-15012 | ||||
| 93319-14008 | ||||
| 93510-14010 | ||||
| 94115-40500 | ||||
