DA110LD-Q (1969)
Toyota Heavy Duty Truck
Production
Mar 1969
-
Dec 2001
Engine
2D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

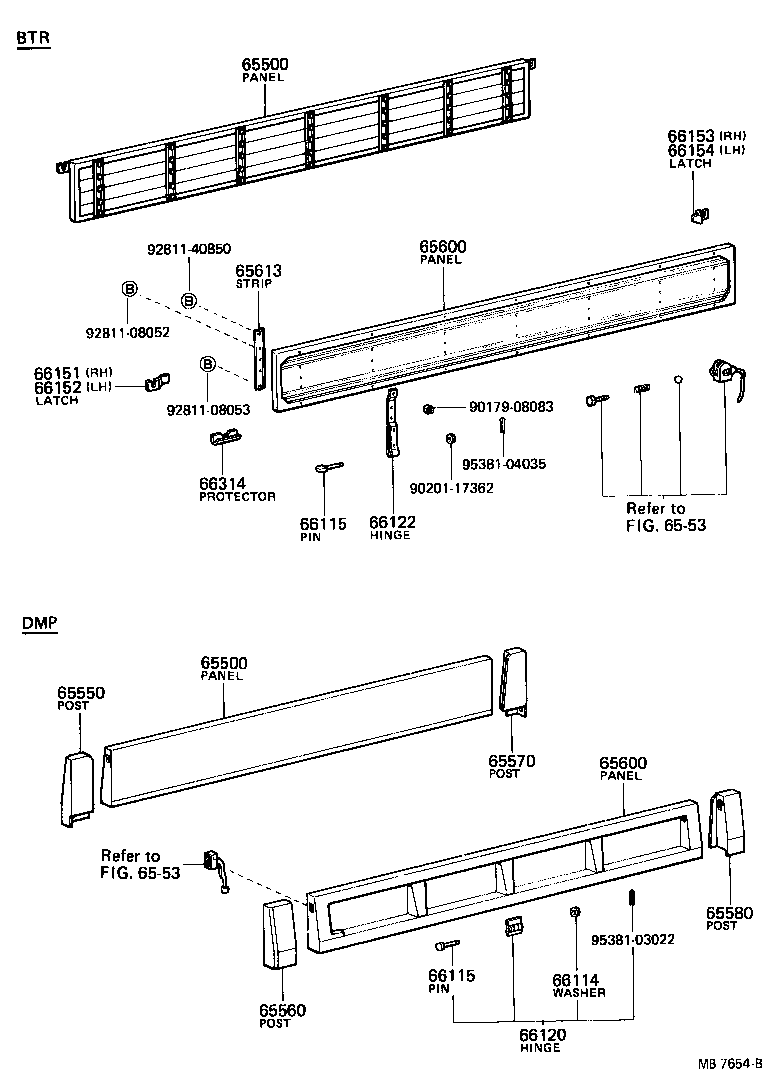

ILLUST NO. 1 OF 2(6903- )DA11#,FA100,11#,FC100
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-93002 |
DA110,FA110..DMP |
1 | ||
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-93002 |
DA110,FA110..DMP |
1 | ||
| 65550 - POST ASSY, SIDE PANEL FRONT END, RH | ||||
| 65233-93001 |
DA110..DMP |
1 | ||
| 65560 - POST ASSY, SIDE PANEL FRONT END, LH | ||||
| 65234-93001 |
DA110..DMP |
1 | ||
| 65570 - POST ASSY, SIDE PANEL REAR END, RH | ||||
| 65231-93000 |
DA110..DMP |
1 | ||
| 65580 - POST ASSY, SIDE PANEL REAR END, LH | ||||
| 65232-93000 |
DA110..DMP |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-93002 |
DA110,FA110..DMP |
1 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-93002 |
DA110,FA110..DMP |
1 | ||
| 66114 - WASHER, GATE HINGE PIN | ||||
| 66134-93001 |
DA110,FA100,110..DMP |
10 | ||
| 66115 - PIN, GATE HINGE | ||||
| 66133-93000 |
DA110,FA100..DMP |
10 | ||
| 66133-93000 |
DA110,FA100,110..DMP |
10 | ||
| 66133-93001 |
DA110,FA100,110..DMP |
10 | ||
| 66115 - PIN, GATE HINGE | ||||
| 66133-93000 |
DA110,FA100..DMP |
10 | ||
| 66133-93000 |
DA110,FA100,110..DMP |
10 | ||
| 66133-93001 |
DA110,FA100,110..DMP |
10 | ||
| 66120 - HINGE ASSY, SIDE GATE | ||||
| 66130-93001 |
DA110,FA100,110..DMP |
10 | ||
| 66314 - PROTECTOR, ROPE HOOK | ||||
| 66314-95210 |
DA11#,FA100,11#,FC100 |
28 | ||
| 66314-95211 |
DA11#,FA100,115 |
28 | ||
| Common parts | ||||
| 90179-08083 | ||||
| 90201-17362 | ||||
| 92811-08052 | ||||
| 92811-08053 | ||||
| 92811-40850 | ||||
| 95381-03022 | ||||
| 95381-04035 | ||||
| Linked diagrams | ||||
| 6553 | ||||
