DA110LD-Q (1969)
Toyota Heavy Duty Truck

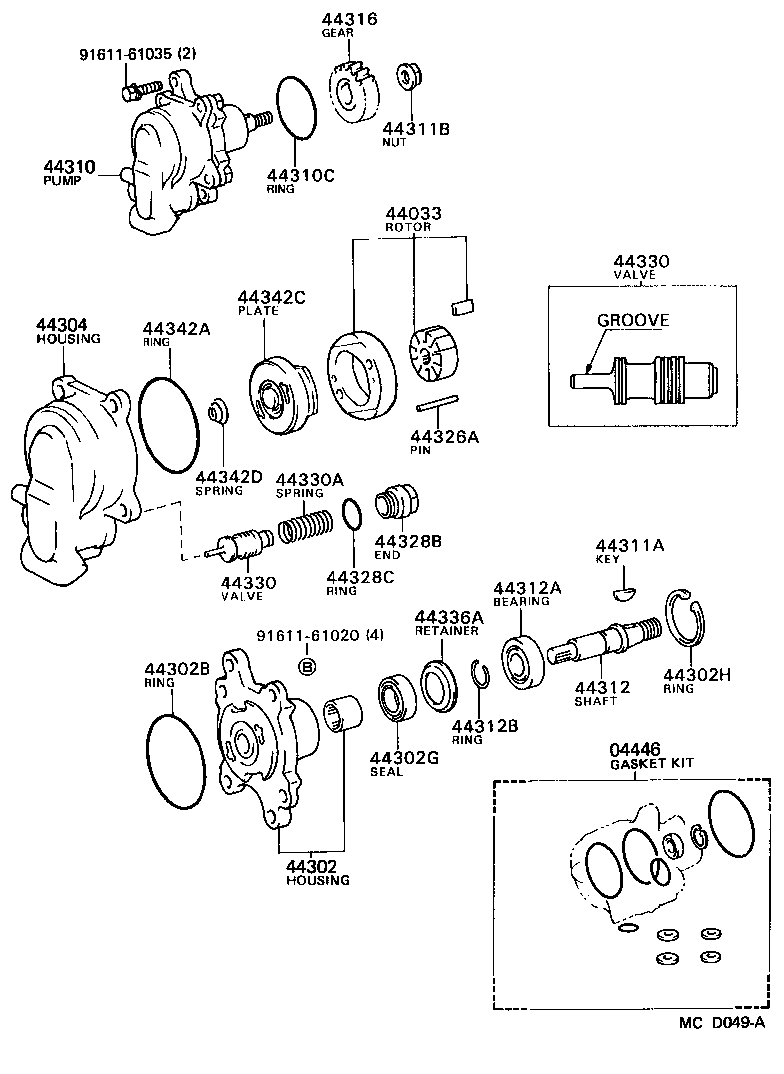

ILLUST NO. 1 OF 2(8511- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-36030 |
DA11#..LHD |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-89102 |
DA11#..LHD |
1 | ||
| 44033-36030 |
DA11#..LHD |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-36160 |
DA11#..LHD |
1 | ||
| 44302-36070 |
DA11#..LHD |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20003 |
DA11#..LHD |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21004 |
DA11#..LHD |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 96151-04000 |
DA11#..LHD |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-89102 |
DA11#..LHD |
1 | ||
| 44304-89103 |
DA11#..LHD |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-55010 |
DA11#..LHD |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
DA11#..LHD |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90029-18002 |
DA11#..LHD |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-14009 |
DA11#..LHD |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-89101 |
DA11#..LHD |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
DA11#..LHD |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
DA11#..LHD |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-55010 |
DA11#..LHD |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 44347-89101 |
DA11#..LHD L=29.1 |
1 | ||
| 44328B - END, VANE PUMP HOUSING | ||||
| 44328-89101 |
DA11#..LHD |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 96711-19020 |
DA11#..LHD |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36050 |
DA11#..LHD TWO GROOVE,TWO GROOVE |
1 | ||
| 44330-36060 |
DA11#..LHD ONE GROOVE,ONE GROOVE |
1 | ||
| 44330-36070 |
DA11#..LHD NO GROOVE,NO GROOVE |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-36050 |
DA11#..LHD TWO GROOVE,TWO GROOVE |
1 | ||
| 44330-36060 |
DA11#..LHD ONE GROOVE,ONE GROOVE |
1 | ||
| 44330-36070 |
DA11#..LHD NO GROOVE,NO GROOVE |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60002 |
DA11#..LHD |
1 | ||
| 44336A - RETAINER, VANE PUMP OIL SEAL | ||||
| 44336-89101 |
DA11#..LHD |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 96711-24060 |
DA11#..LHD |
1 | ||
| 44342C - PLATE, PRESSURE | ||||
| 44342-89102 |
DA11#..LHD |
1 | ||
| 44342D - SPRING, COMPRESSION(FOR PRESSURE PLATE) | ||||
| 90029-60003 |
DA11#..LHD |
1 | ||
| Common parts | ||||
| 91611-61020 | ||||
| 91611-61035 | ||||

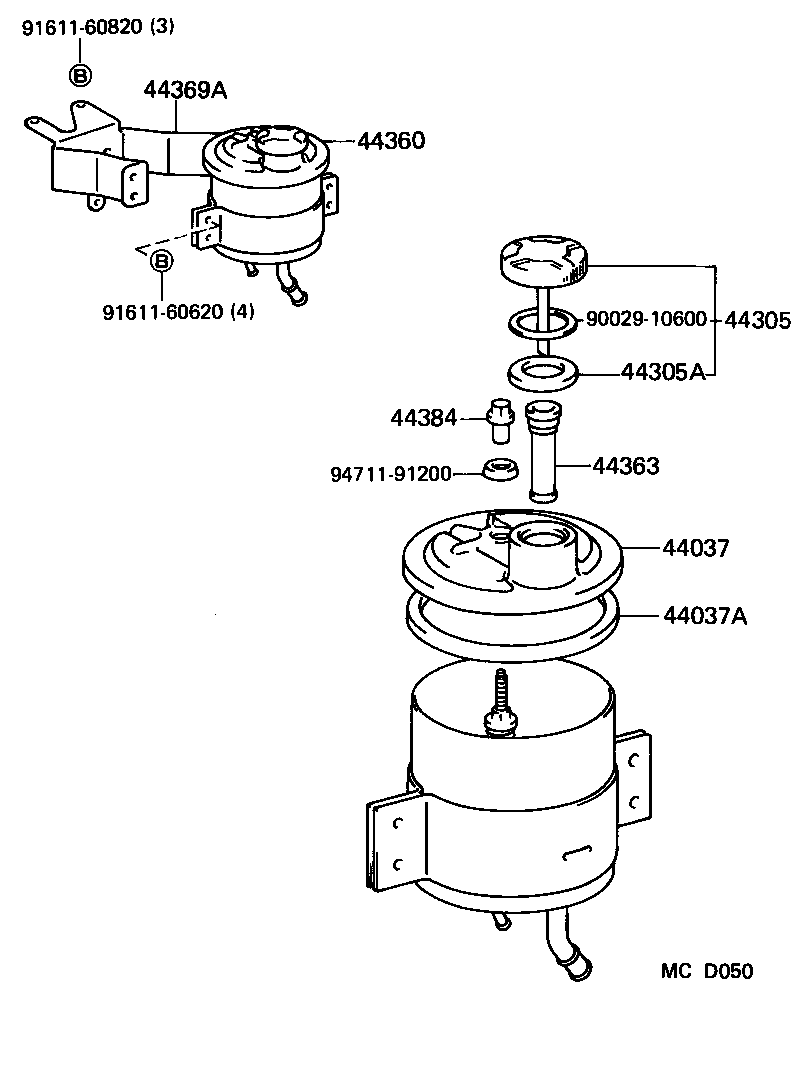

ILLUST NO. 2 OF 2(8511- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44037 - COVER SUB-ASSY, OIL RESERVOIR | ||||
| 44037-36020 |
DA11#..LHD |
1 | ||
| 44037A - SEAL, DUST(FOR OIL RESERVOIR COVER) | ||||
| 90029-20704 |
DA11#..LHD |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-36010 |
DA11#..LHD |
1 | ||
| 44305A - SEAL, DUST(FOR RESERVOIR CAP) | ||||
| 90029-20701 |
DA11#..LHD |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-55010 |
DA11#..LHD |
1 | ||
| 44363 - STRAINER, OIL(FOR VANE PUMP) | ||||
| 44363-36040 |
DA11#..LHD |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-55010 |
DA11#..LHD |
1 | ||
| 44384 - NUT(FOR OIL RESERVOIR COVER) | ||||
| 44384-37010 |
DA11#..LHD |
1 | ||
| Common parts | ||||
| 90029-10600 | ||||
| 91611-60620 | ||||
| 91611-60820 | ||||
| 94711-91200 | ||||
