DA110LD-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )

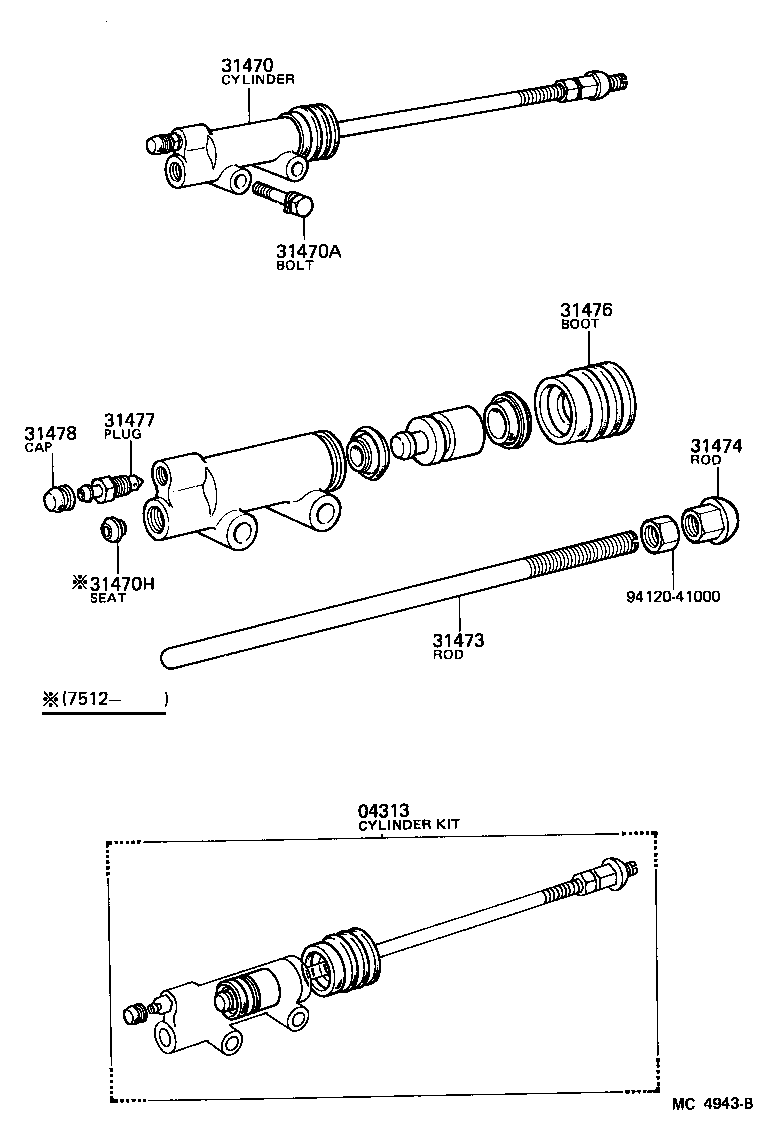

Click highlighted areas on diagram

diagram 04313 31470 31470A 31470H 31473 31474 31476 31477 31478 9412041000
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-55012

DA11#,DB10#,FA100,11#,FB100,FC100

 1
04313-55020

DA11#,FA100,115

 1
04313-55010

DA11#,DB10#,FA100,11#,FB100,FC100

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-55010

DA11#,DB10#

 1
31470-55020

FA100,11#,FB100,FC100

 1
31470-55021

FA100,11#,FB100,FC100

 1
31470-55030

DA11#,DB105

 1
31470-55041

DA11#

 1
31470-55011

DA11#,DB10#

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91111-41063

FA100,11#,FB100,FC100

 2
91611-41055

DA11#,DB105

 2
91611-41060

FA100,11#,FC100

 2
91611-61055

DA11#

 2
31470H - SEAT, UNION(FOR CLUTCH RELEASE CYLINDER)
96390-71400

DA11#,DB105,FA100,115

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-55020

FA100,11#,FB100,FC100

 1
31473-55010

DA11#,DB10#

 1
31473-55030

DA11#

 1
31474 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2
31475-55010

DA11#

 1
31475-57010

DA11#,DB10#,FA100,11#,FB100,FC100

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-60010

DA11#,DB10#,FA100,11#,FB100,FC100

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-35011

DA11#,DB10#,FA100,11#,FB100,FC100

OD=10,P=1.25

 1
47547-12010

DA11#,DB105,FA100,115

OD=10,P=1.00

 1
47547-35010

DA11#,DB10#,FA100,11#,FB100,FC100

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

DA11#,DB10#,FA100,11#,FB100,FC100

 1
Common parts
94120-41000
