Toyota Heavy duty truck DA110 DECOMPRESSION

DA110LD-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

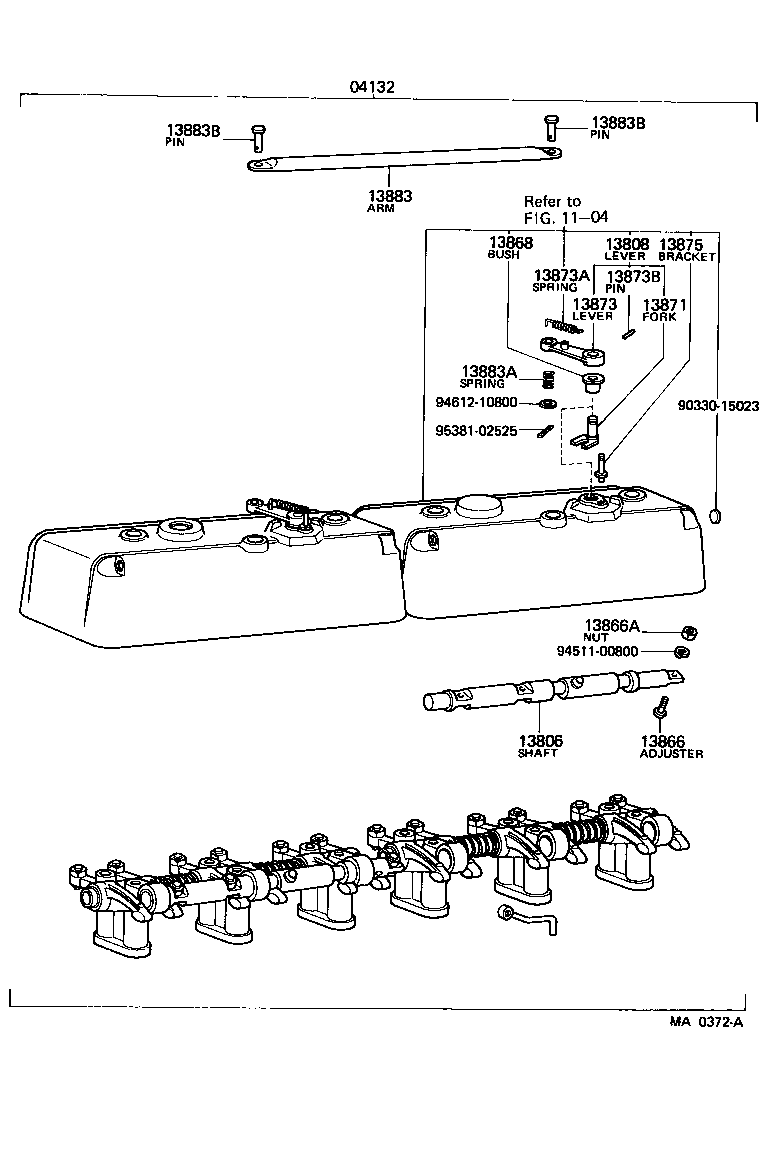

(6903-7704)2D

Click highlighted areas on diagram

Part #	Description	Period	Qty
04132 - FITTING KIT, DECOMPRESSION ENGINE
04132-77040	2D..DA11# W/CENTRIFUGAL	03/1969 - 01/1975	1
04132-77041	2D..DA11# W/CENTRIFUGAL	01/1975 - 04/1977	1
04132-77050	2D..DA11# W/CENTRIFUGAL	04/1977 - 12/2001	1
13806 - SHAFT SUB-ASSY, DECOMPRESSION, NO.1
13806-77010	2D..DA11#	04/1977 - 12/2001	2
13806-76010	2D..DA11#,DB10#	03/1969 - 04/1977	2
13808 - LEVER SET, DECOMPRESSION SHIFT
13808-77010	2D..DA11#,DB10#	03/1969 - 04/1977	2
13808-77011	2D..DA11#	04/1977 - 12/2001	2
13866 - ADJUSTER, DECOMPRESSION CAM
13866-47010	2D..DA11#,DB10#	03/1969 - 12/2001	6
13866A - NUT, VALVE ADJUSTING SCREW LOCK
90170-08043	2D..DA11#,DB10#	03/1969 - 12/2001	6
13868 - BUSH, DECOMPRESSION SHIFT LEVER
13868-47010	2D..DA11#,DB10#	03/1969 - 04/1977	2
13871 - FORK, DECOMPRESSION SHIFT
13871-77010	2D..DA11#	04/1977 - 12/2001	2
13871-76011	2D..DA11#,DB10#	03/1969 - 04/1977	2
13873 - LEVER, DECOMPRESSION SHIFT
13873-47011	2D..DA11#,DB10# RR	03/1969 - 04/1977	2
13873A - SPRING, TENSION(FOR DECOMPRESSION SHIFT LEVER)
90506-12209	2D..DA11#,DB10#	03/1969 - 04/1977	2
13873B - PIN, STRAIGHT(FOR DECOMPRESSION SHIFT LEVER)
90250-06072	2D..DA11#,DB10#	03/1969 - 04/1977	2
13875 - BRACKET, DECOMPRESSION LEVER SPRING
13875-76010	2D..DA11#,DB10#	03/1969 - 04/1977	2
13883 - ARM, DECOMPRESSION SHIFT
13883-76010	2D..DA11#,DB10#	03/1969 - 12/2001	1
13883A - SPRING, COMPRESSION(FOR DECOMPRESSION SHIFT ARM)
90501-10090	2D..DA11#,DB10#	03/1969 - 12/2001	3
13883B - PIN, W/HOLE(FOR DECOMPRESSION SHIFT ARM)
90240-08052	2D..DA11#,DB10#	03/1969 - 12/2001	2
13883B - PIN, W/HOLE(FOR DECOMPRESSION SHIFT ARM)
90240-08052	2D..DA11#,DB10#	03/1969 - 12/2001	2
Common parts
90330-15023
94511-00800
94612-10800
95381-02525
Linked diagrams
1104

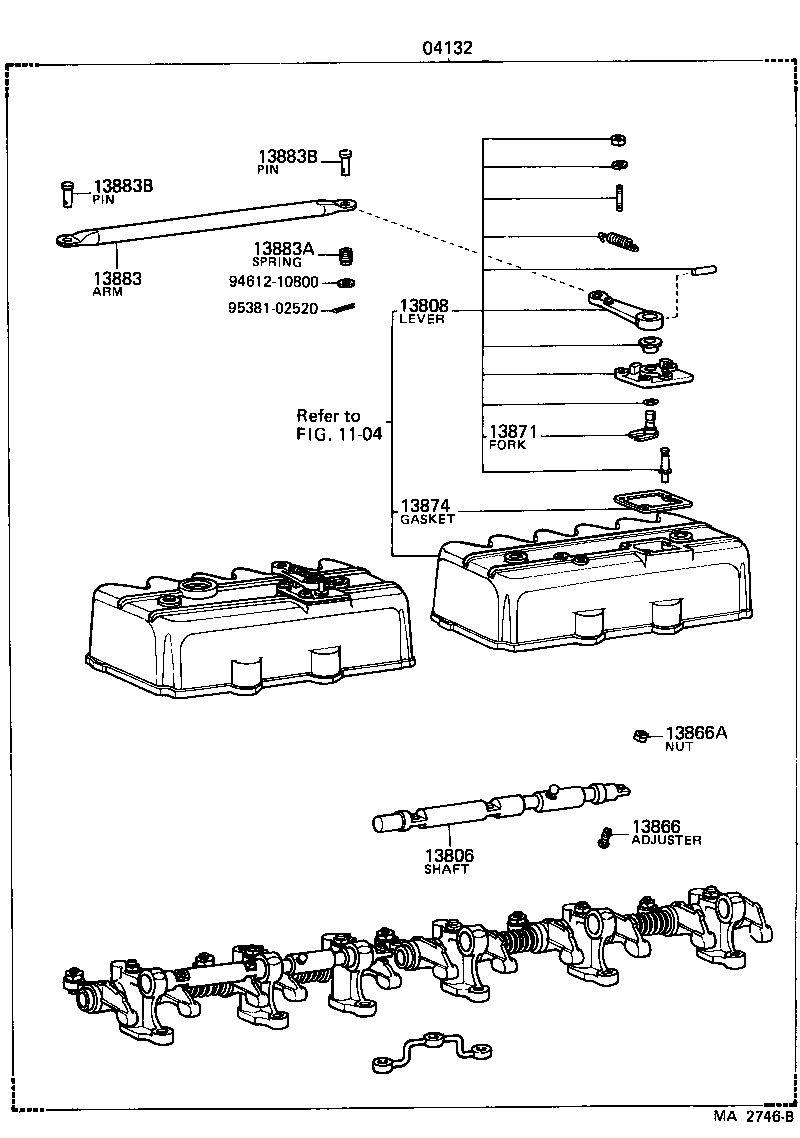

(7704- )2D

Click highlighted areas on diagram

Part #	Description	Period	Qty
04132 - FITTING KIT, DECOMPRESSION ENGINE
04132-77040	2D..DA11# W/CENTRIFUGAL	03/1969 - 01/1975	1
04132-77041	2D..DA11# W/CENTRIFUGAL	01/1975 - 04/1977	1
04132-77050	2D..DA11# W/CENTRIFUGAL	04/1977 - 12/2001	1
13806 - SHAFT SUB-ASSY, DECOMPRESSION, NO.1
13806-77010	2D..DA11#	04/1977 - 12/2001	2
13806-76010	2D..DA11#,DB10#	03/1969 - 04/1977	2
13808 - LEVER SET, DECOMPRESSION SHIFT
13808-77010	2D..DA11#,DB10#	03/1969 - 04/1977	2
13808-77011	2D..DA11#	04/1977 - 12/2001	2
13866 - ADJUSTER, DECOMPRESSION CAM
13866-47010	2D..DA11#,DB10#	03/1969 - 12/2001	6
13866A - NUT, VALVE ADJUSTING SCREW LOCK
90170-08043	2D..DA11#,DB10#	03/1969 - 12/2001	6
13871 - FORK, DECOMPRESSION SHIFT
13871-77010	2D..DA11#	04/1977 - 12/2001	2
13871-76011	2D..DA11#,DB10#	03/1969 - 04/1977	2
13874 - GASKET, DECOMPRESSION SHIFT FORK HOUSING
13874-77010	2D..DA11#	04/1977 - 12/2001	2
13883 - ARM, DECOMPRESSION SHIFT
13883-76010	2D..DA11#,DB10#	03/1969 - 12/2001	1
13883A - SPRING, COMPRESSION(FOR DECOMPRESSION SHIFT ARM)
90501-10090	2D..DA11#,DB10#	03/1969 - 12/2001	3
13883B - PIN, W/HOLE(FOR DECOMPRESSION SHIFT ARM)
90240-08052	2D..DA11#,DB10#	03/1969 - 12/2001	2
13883B - PIN, W/HOLE(FOR DECOMPRESSION SHIFT ARM)
90240-08052	2D..DA11#,DB10#	03/1969 - 12/2001	2
Common parts
94612-10800
95381-02520
Linked diagrams
1104

DA110LD-Q (1969)

(6903-7704)2D

(7704- )2D
