DA110LD-H (1969)
Toyota Heavy Duty Truck
Production
Mar 1969
-
Dec 2001
Engine
2D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

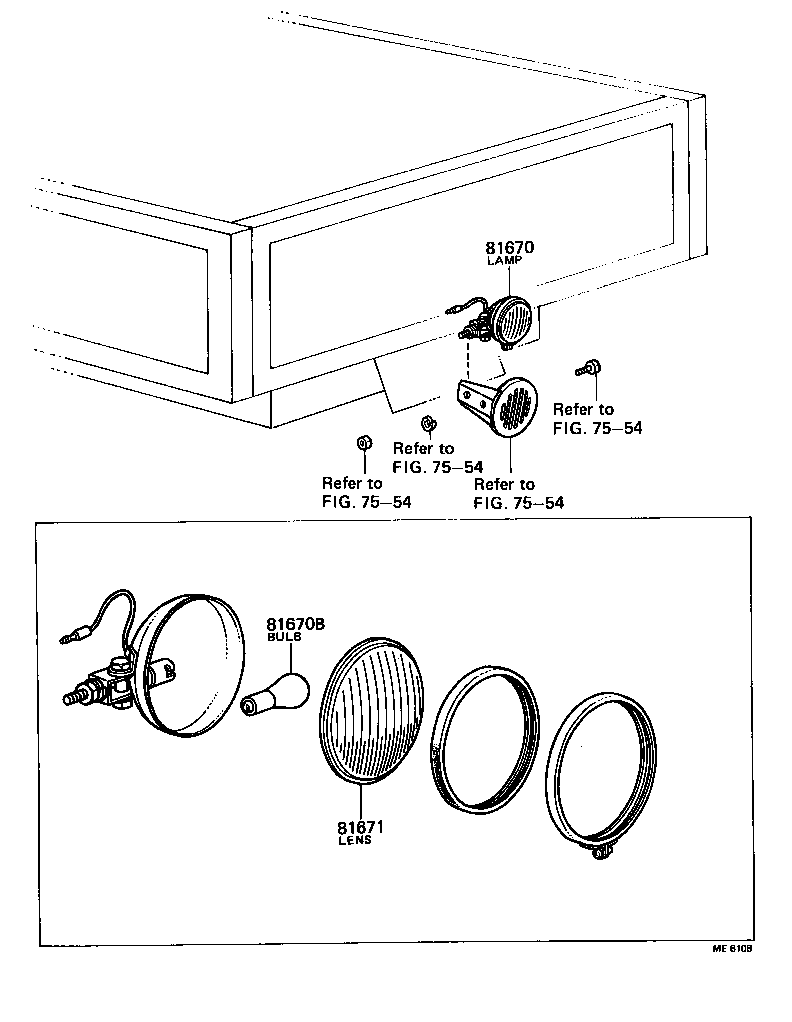

(6903-7704)FA100,110..DMP ; (6903-7809)DA110..DMP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81670 - LAMP ASSY, BACK-UP, RH | ||||
| 81670-93001 |
FA100,110..DMP |
1 | ||
| 81670-93000 |
DA110..DMP |
1 | ||
| 81680-55020 |
DA110..LHD..DMP |
1 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 99134-11250 |
DA11# 24V 25W,24V 25W |
1 | ||
| 99132-11230 |
FA100,11#,FC100 12V 23W,12V 23W |
1 | ||
| 99132-11250 |
FA100,11#,FC100 12V 25W |
1 | ||
| 81671 - LENS, BACK-UP LAMP, RH | ||||
| 81671-55010 |
DA110..DMP |
1 | ||
| 81671-93001 |
DA110..DMP |
1 | ||
| 81671-93001 |
FA100,110..DMP |
1 | ||
| Linked diagrams | ||||
| 7554 | ||||

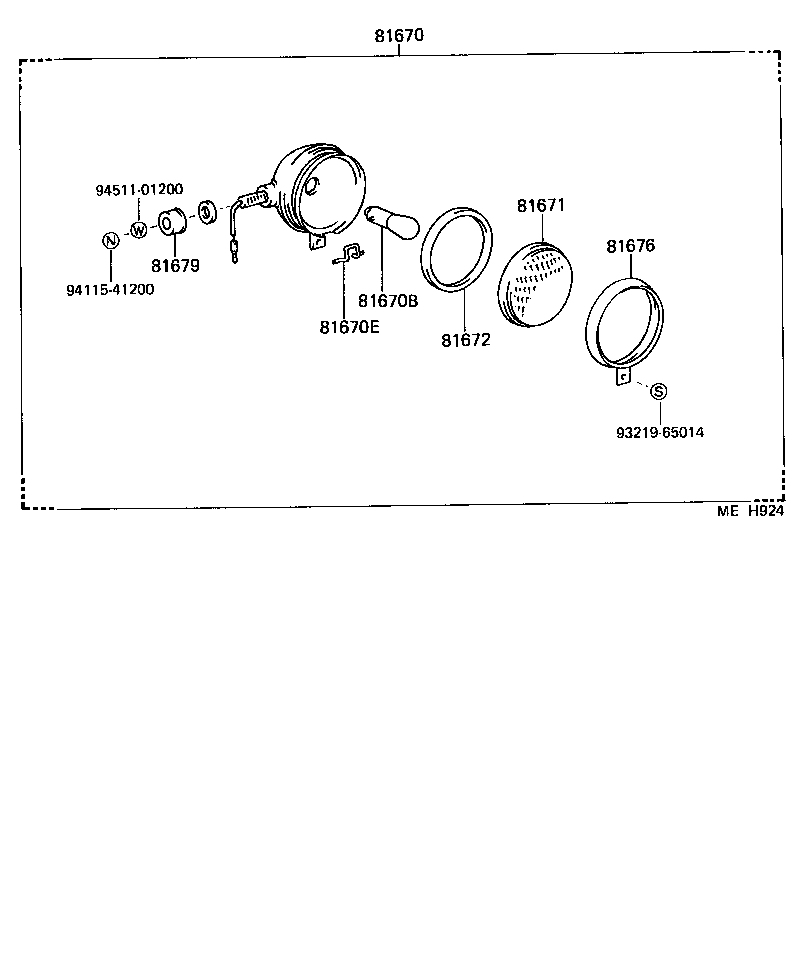

(7704-8207)FA100..DMP ; (7809- )DA110..DMP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81670 - LAMP ASSY, BACK-UP, RH | ||||
| 81670-93001 |
FA100,110..DMP |
1 | ||
| 81670-93000 |
DA110..DMP |
1 | ||
| 81680-55020 |
DA110..LHD..DMP |
1 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 99134-11250 |
DA11# 24V 25W,24V 25W |
1 | ||
| 99132-11230 |
FA100,11#,FC100 12V 23W,12V 23W |
1 | ||
| 99132-11250 |
FA100,11#,FC100 12V 25W |
1 | ||
| 81670E - STOPPER, BACK-UP LAMP REFLECTOR | ||||
| 81517-20010 |
DA110..DMP |
4 | ||
| 81671 - LENS, BACK-UP LAMP, RH | ||||
| 81671-55010 |
DA110..DMP |
1 | ||
| 81671-93001 |
DA110..DMP |
1 | ||
| 81671-93001 |
FA100,110..DMP |
1 | ||
| 81672 - GASKET, BACK-UP LAMP LENS, RH | ||||
| 81512-20010 |
DA110..DMP |
1 | ||
| 81676 - RIM, BACK-UP LAMP, RH | ||||
| 81676-55010 |
DA110..DMP |
1 | ||
| 81679 - BRACKET, BACK UP LAMP BODY | ||||
| 81678-55010 |
DA110..DMP |
1 | ||
| Common parts | ||||
| 93219-65014 | ||||
| 94115-41200 | ||||
| 94511-01200 | ||||
