DA110LD-H (1969)
Toyota Heavy Duty Truck
Production
Mar 1969
-
Dec 2001
Engine
2D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

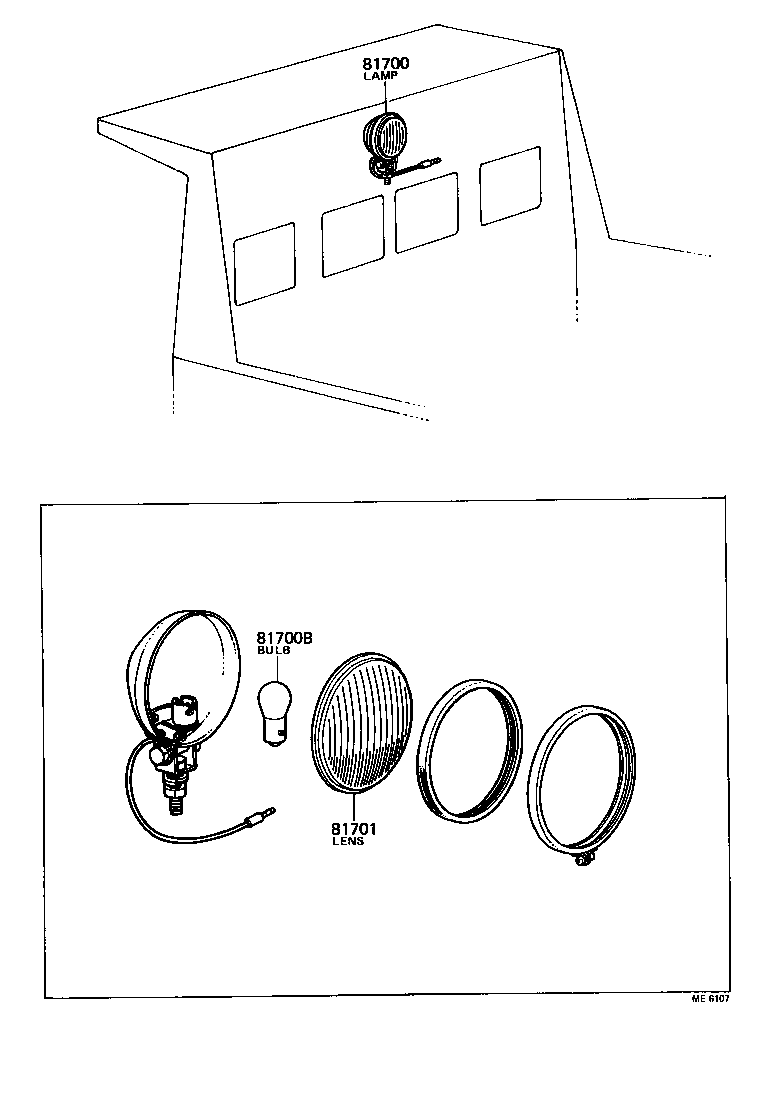

(6903-7704)DMP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81700 - LAMP ASSY, WORK | ||||
| 81670-93001 |
FA100,110..DMP |
1 | ||
| 81680-55020 |
DA110..LHD..DMP |
1 | ||
| 81670-93000 |
DA110..DMP |
1 | ||
| 81700B - BULB, WORK LAMP | ||||
| 99134-11250 |
DA110..DMP 24V 25W,24V 25W |
1 | ||
| 99132-11250 |
FA100,110..DMP 12V 25W |
1 | ||
| 81701 - LENS, WORK LAMP | ||||
| 81671-55010 |
DA110,FA100..DMP |
1 | ||
| 81671-93001 |
DA110,FA100,110..DMP |
1 | ||

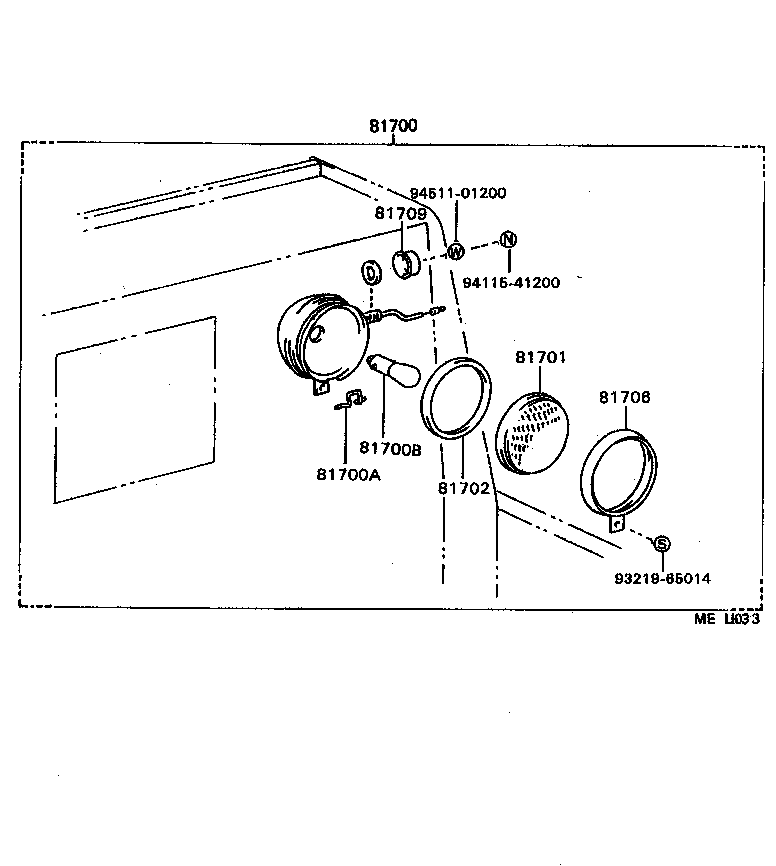

(7704- )DMP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81700 - LAMP ASSY, WORK | ||||
| 81670-93001 |
FA100,110..DMP |
1 | ||
| 81680-55020 |
DA110..LHD..DMP |
1 | ||
| 81670-93000 |
DA110..DMP |
1 | ||
| 81700A - SPRING, WORK LAMP | ||||
| 81517-20010 |
DA110,FA100..DMP |
4 | ||
| 81700B - BULB, WORK LAMP | ||||
| 99134-11250 |
DA110..DMP 24V 25W,24V 25W |
1 | ||
| 99132-11250 |
FA100,110..DMP 12V 25W |
1 | ||
| 81701 - LENS, WORK LAMP | ||||
| 81671-55010 |
DA110,FA100..DMP |
1 | ||
| 81671-93001 |
DA110,FA100,110..DMP |
1 | ||
| 81702 - GASKET, WORK LAMP | ||||
| 81512-20010 |
DA110,FA100..DMP |
1 | ||
| 81706 - RIM, WORK LAMP | ||||
| 81676-55010 |
DA110,FA100..DMP |
1 | ||
| 81709 - BRACKET, WORK LAMP | ||||
| 81678-55010 |
DA110,FA100..DMP |
1 | ||
| Common parts | ||||
| 93219-65014 | ||||
| 94115-41200 | ||||
| 94511-01200 | ||||
