DA110LD-H (1969)
Toyota Heavy Duty Truck

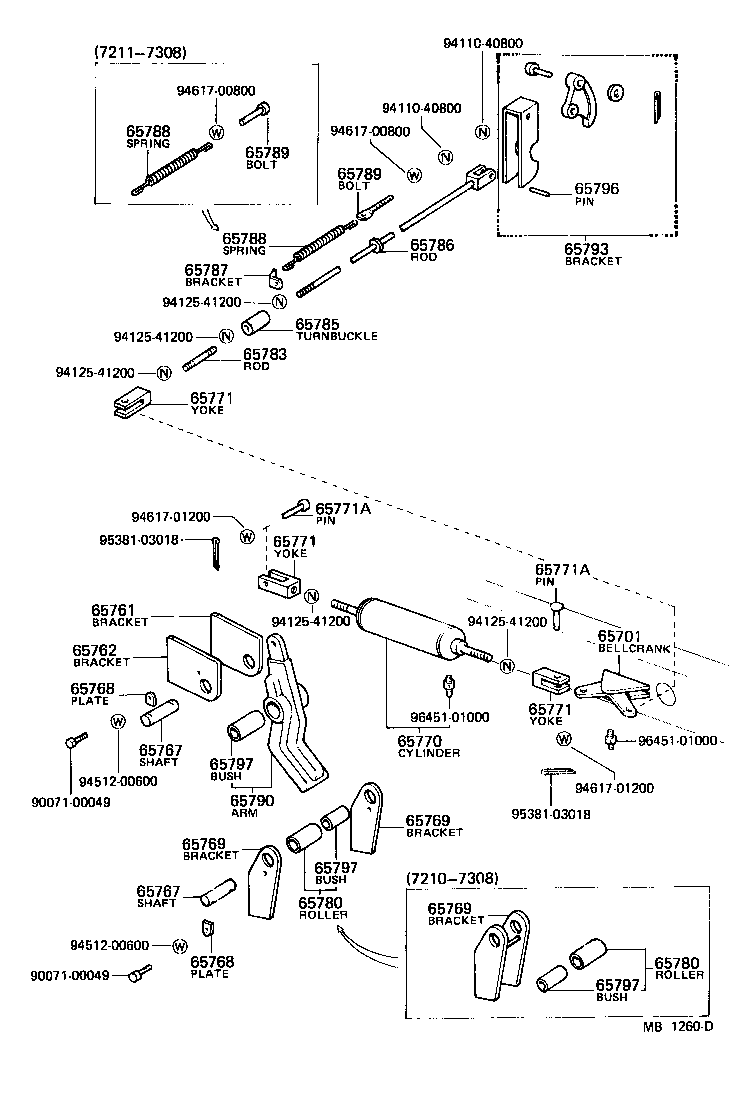

(6903-7308)DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65701 - BELLCRANK SUB-ASSY | ||||
| 65701-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65761 - BRACKET, ROLLER ARM, RH | ||||
| 65761-93001 |
DA110,FA100,110..DMP |
2 | ||
| 65762 - BRACKET, ROLLER ARM, LH | ||||
| 65762-93001 |
DA110,FA100,110..DMP |
2 | ||
| 65767 - SHAFT, ROLLER | ||||
| 65767-93001 |
DA110,FA100,110..DMP |
4 | ||
| 65767-93010 |
DA110,FA100,110..DMP LWR |
2 | ||
| 65767 - SHAFT, ROLLER | ||||
| 65767-93001 |
DA110,FA100,110..DMP |
4 | ||
| 65767-93010 |
DA110,FA100,110..DMP LWR |
2 | ||
| 65768 - PLATE, LOCK(FOR ROLLER ARM BRACKET) | ||||
| 65768-93000 |
DA110,FA100,110..DMP |
10 | ||
| 65768 - PLATE, LOCK(FOR ROLLER ARM BRACKET) | ||||
| 65768-93000 |
DA110,FA100,110..DMP |
10 | ||
| 65769 - BRACKET, ROLLER | ||||
| 65769-93002 |
DA110,FA100,110..DMP |
2 | ||
| 65769-93001 |
DA110,FA100,110..DMP |
4 | ||
| 65769 - BRACKET, ROLLER | ||||
| 65769-93002 |
DA110,FA100,110..DMP |
2 | ||
| 65769-93001 |
DA110,FA100,110..DMP |
4 | ||
| 65769 - BRACKET, ROLLER | ||||
| 65769-93002 |
DA110,FA100,110..DMP |
2 | ||
| 65769-93001 |
DA110,FA100,110..DMP |
4 | ||
| 65770 - CYLINDER ASSY, TAIL GATE CONTROL SPRING | ||||
| 65770-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65771 - YOKE, TAIL GATE CONTROL SPRING CYLINDER | ||||
| 65771-93001 |
DA110,FA100,110..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP BELLCRANK |
2 | ||
| 65771-93001 |
DA110,FA100..DMP |
4 | ||
| 65771 - YOKE, TAIL GATE CONTROL SPRING CYLINDER | ||||
| 65771-93001 |
DA110,FA100,110..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP BELLCRANK |
2 | ||
| 65771-93001 |
DA110,FA100..DMP |
4 | ||
| 65771 - YOKE, TAIL GATE CONTROL SPRING CYLINDER | ||||
| 65771-93001 |
DA110,FA100,110..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP BELLCRANK |
2 | ||
| 65771-93001 |
DA110,FA100..DMP |
4 | ||
| 65771A - PIN, TAIL GATE CONTROL CYLINDER YOKE | ||||
| 38929-93000 |
DA110,FA100,110..DMP |
6 | ||
| 90240-10006 |
DA110,FA100..DMP |
6 | ||
| 65771A - PIN, TAIL GATE CONTROL CYLINDER YOKE | ||||
| 38929-93000 |
DA110,FA100,110..DMP |
6 | ||
| 90240-10006 |
DA110,FA100..DMP |
6 | ||
| 65780 - ROLLER SUB-ASSY | ||||
| 65780-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65802-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65780 - ROLLER SUB-ASSY | ||||
| 65780-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65802-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65783 - ROD, TURNBUCKLE THREADED | ||||
| 65783-93001 |
DA110,FA100,110..DMP |
2 | ||
| 65785 - TURNBUCKLE, TAIL GATE CONTROL | ||||
| 65785-93001 |
DA110,FA100,110..DMP |
2 | ||
| 65786 - ROD, TAIL GATE CONTROL | ||||
| 65786-93001 |
DA110,FA110..DMP |
2 | ||
| 65787 - BRACKET, RETURN SPRING | ||||
| 65689-93200 |
DA110,FA100..DMP |
2 | ||
| 65787-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65788 - SPRING, TAIL GATE CONTROL ROD RETURN | ||||
| 65788-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65788 - SPRING, TAIL GATE CONTROL ROD RETURN | ||||
| 65788-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65789 - BOLT, RETURN SPRING EYE | ||||
| 65789-93001 |
DA110,FA100,110..DMP |
2 | ||
| 65789-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65789 - BOLT, RETURN SPRING EYE | ||||
| 65789-93001 |
DA110,FA100,110..DMP |
2 | ||
| 65789-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65790 - ARM SUB-ASSY, ROLLER | ||||
| 65790-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65793 - BRACKET, TAIL GATE CONTROL HOOK | ||||
| 65702-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65796 - PIN, TAIL GATE CONTROL ROD | ||||
| 65796-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65797 - BUSH, ROLLER | ||||
| 65797-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65797 - BUSH, ROLLER | ||||
| 65797-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65797 - BUSH, ROLLER | ||||
| 65797-93000 |
DA110,FA100,110..DMP |
2 | ||
| Common parts | ||||
| 90071-00049 | ||||
| 94110-40800 | ||||
| 94125-41200 | ||||
| 94512-00600 | ||||
| 94617-00800 | ||||
| 94617-01200 | ||||
| 95381-03018 | ||||
| 96451-01000 | ||||

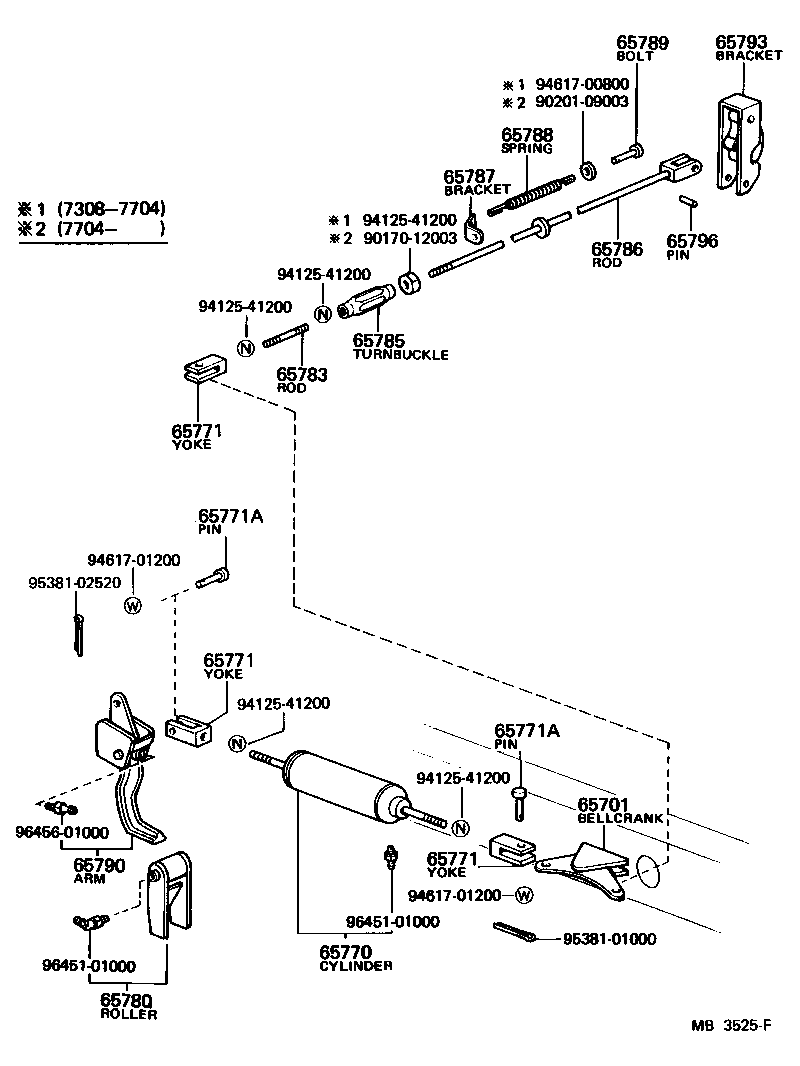

(7308- )DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65701 - BELLCRANK SUB-ASSY | ||||
| 65701-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65770 - CYLINDER ASSY, TAIL GATE CONTROL SPRING | ||||
| 65770-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65771 - YOKE, TAIL GATE CONTROL SPRING CYLINDER | ||||
| 65771-93001 |
DA110,FA100,110..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP BELLCRANK |
2 | ||
| 65771-93001 |
DA110,FA100..DMP |
4 | ||
| 65771 - YOKE, TAIL GATE CONTROL SPRING CYLINDER | ||||
| 65771-93001 |
DA110,FA100,110..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP BELLCRANK |
2 | ||
| 65771-93001 |
DA110,FA100..DMP |
4 | ||
| 65771 - YOKE, TAIL GATE CONTROL SPRING CYLINDER | ||||
| 65771-93001 |
DA110,FA100,110..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP |
6 | ||
| 65681-93200 |
DA110,FA100..DMP BELLCRANK |
2 | ||
| 65771-93001 |
DA110,FA100..DMP |
4 | ||
| 65771A - PIN, TAIL GATE CONTROL CYLINDER YOKE | ||||
| 38929-93000 |
DA110,FA100,110..DMP |
6 | ||
| 90240-10006 |
DA110,FA100..DMP |
6 | ||
| 65771A - PIN, TAIL GATE CONTROL CYLINDER YOKE | ||||
| 38929-93000 |
DA110,FA100,110..DMP |
6 | ||
| 90240-10006 |
DA110,FA100..DMP |
6 | ||
| 65780 - ROLLER SUB-ASSY | ||||
| 65780-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65802-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65783 - ROD, TURNBUCKLE THREADED | ||||
| 65783-93001 |
DA110,FA100,110..DMP |
2 | ||
| 65785 - TURNBUCKLE, TAIL GATE CONTROL | ||||
| 65785-93001 |
DA110,FA100,110..DMP |
2 | ||
| 65786 - ROD, TAIL GATE CONTROL | ||||
| 65786-93001 |
DA110,FA110..DMP |
2 | ||
| 65787 - BRACKET, RETURN SPRING | ||||
| 65689-93200 |
DA110,FA100..DMP |
2 | ||
| 65787-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65788 - SPRING, TAIL GATE CONTROL ROD RETURN | ||||
| 65788-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65789 - BOLT, RETURN SPRING EYE | ||||
| 65789-93001 |
DA110,FA100,110..DMP |
2 | ||
| 65789-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65790 - ARM SUB-ASSY, ROLLER | ||||
| 65790-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65793 - BRACKET, TAIL GATE CONTROL HOOK | ||||
| 65702-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65796 - PIN, TAIL GATE CONTROL ROD | ||||
| 65796-93000 |
DA110,FA100,110..DMP |
2 | ||
| Common parts | ||||
| 90170-12003 | ||||
| 90201-09003 | ||||
| 94125-41200 | ||||
| 94617-00800 | ||||
| 94617-01200 | ||||
| 95381-01000 | ||||
| 95381-02520 | ||||
| 96451-01000 | ||||
| 96456-01000 | ||||
