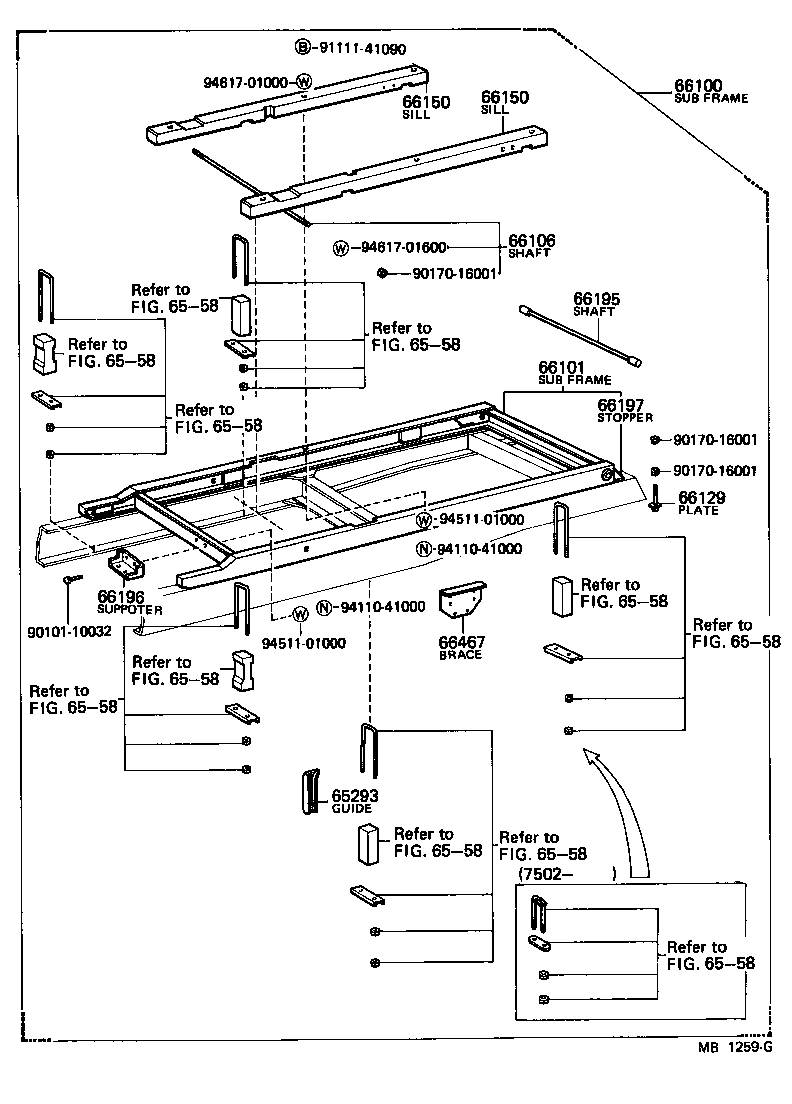

Toyota Heavy duty truck DA110 REAR BODY SUB FRAME

Part #	Description	Period	Qty
65293 - GUIDE, VESSEL
65293-93001	DA110,FA100,110..DMP	03/1969 - 04/1977	2
65293-93002	DA110,FA100..DMP	04/1977 - 12/2001	2
66100 - SUB-FRAME ASSY
51110-93002	DA110,FA100,110..DMP	03/1969 - 04/1977	1
66101 - SUB-FRAME SUB-ASSY
51101-93000	DA110,FA100,110..DMP	03/1969 - 04/1977	1
51101-93005	DA110..DMP	08/1977 - 12/2001	1
51101-93002	DA110..DMP	04/1977 - 08/1977	1
66106 - SHAFT, SUB-FRAME
51106-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
66129 - PLATE, SUB-FRAME REAR SET
51102-93000	DA110,FA100,110..DMP	03/1969 - 04/1977	2
66150 - SILL ASSY, WOOD
51295-93002	DA110,FA100,110..DMP RH	11/1970 - 09/1971	1
51295-93001	DA110,FA100,110..DMP RH	03/1969 - 11/1970	1
51297-93002	DA110,FA100,110..DMP LH	11/1970 - 09/1971	1
51295-93003	DA110,FA100,110..DMP RH	09/1971 - 02/1975	1
51297-93001	DA110,FA100,110..DMP LH	03/1969 - 11/1970	1
51295-93004	DA110,FA100..DMP RH	02/1975 - 04/1977	1
51297-93004	DA110,FA100..DMP LH	02/1975 - 04/1977	1
51297-93003	DA110,FA100,110..DMP LH	09/1971 - 02/1975	1
66150 - SILL ASSY, WOOD
51295-93002	DA110,FA100,110..DMP RH	11/1970 - 09/1971	1
51295-93001	DA110,FA100,110..DMP RH	03/1969 - 11/1970	1
51297-93002	DA110,FA100,110..DMP LH	11/1970 - 09/1971	1
51295-93003	DA110,FA100,110..DMP RH	09/1971 - 02/1975	1
51297-93001	DA110,FA100,110..DMP LH	03/1969 - 11/1970	1
51295-93004	DA110,FA100..DMP RH	02/1975 - 04/1977	1
51297-93004	DA110,FA100..DMP LH	02/1975 - 04/1977	1
51297-93003	DA110,FA100,110..DMP LH	09/1971 - 02/1975	1
66195 - SHAFT, HINGE
51195-93001	DA110,FA100,110..DMP	03/1969 - 12/2001	1
66196 - SUPPOTER, BEARING
51196-93001	DA110,FA100,110..DMP	03/1969 - 12/2001	1
66197 - STOPPER, SUB-FRAME REAR END
51197-93000	DA110,FA100,110..DMP	03/1969 - 04/1977	2
66115-93000	DA110,FA100..DMP	04/1977 - 12/2001	2
66467 - BRACE, SUB FRAME
51192-93001	DA110,FA100,110..DMP	03/1969 - 04/1977	2
Common parts
90101-10032
90170-16001
91111-41090
94110-41000
94511-01000
94617-01000
94617-01600
Linked diagrams
6558

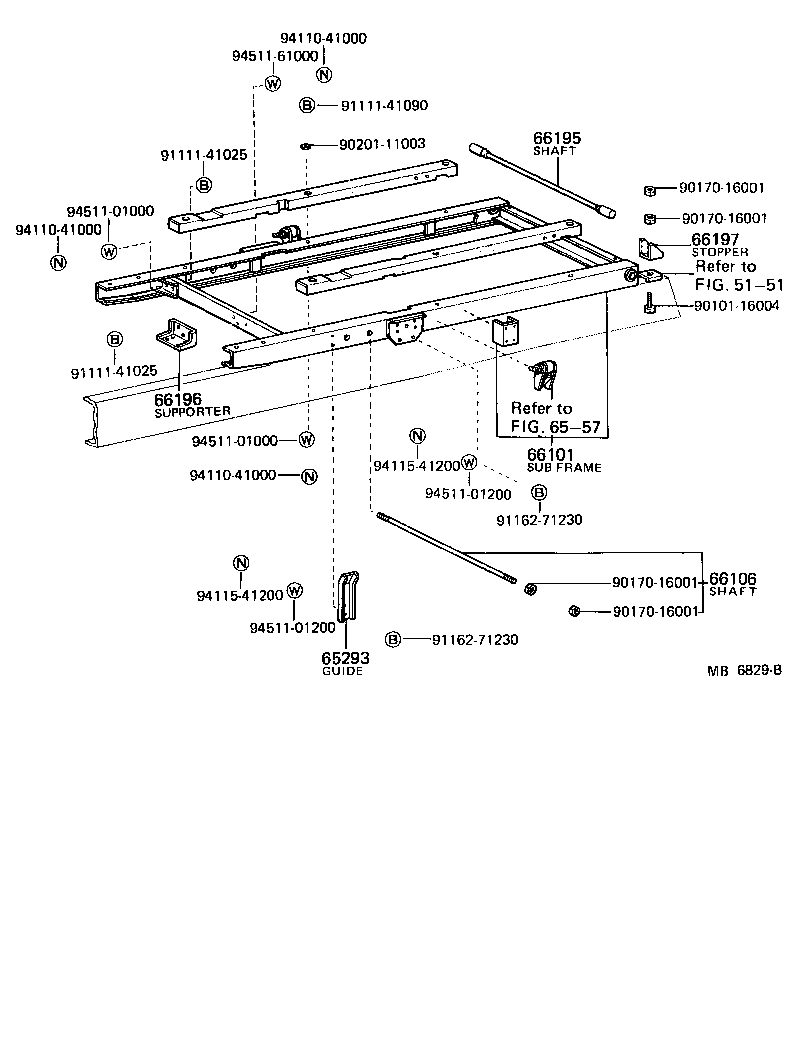

Part #	Description	Period	Qty
65293 - GUIDE, VESSEL
65293-93001	DA110,FA100,110..DMP	03/1969 - 04/1977	2
65293-93002	DA110,FA100..DMP	04/1977 - 12/2001	2
66101 - SUB-FRAME SUB-ASSY
51101-93000	DA110,FA100,110..DMP	03/1969 - 04/1977	1
51101-93005	DA110..DMP	08/1977 - 12/2001	1
51101-93002	DA110..DMP	04/1977 - 08/1977	1
66106 - SHAFT, SUB-FRAME
51106-93000	DA110,FA100,110..DMP	03/1969 - 12/2001	1
66195 - SHAFT, HINGE
51195-93001	DA110,FA100,110..DMP	03/1969 - 12/2001	1
66196 - SUPPOTER, BEARING
51196-93001	DA110,FA100,110..DMP	03/1969 - 12/2001	1
66197 - STOPPER, SUB-FRAME REAR END
51197-93000	DA110,FA100,110..DMP	03/1969 - 04/1977	2
66115-93000	DA110,FA100..DMP	04/1977 - 12/2001	2
Common parts
90101-16004
90170-16001
90201-11003
91111-41025
91111-41090
91162-71230
94110-41000
94115-41200
94511-01000
94511-01200
94511-61000
Linked diagrams
5151
6557

DA110LD-H (1969)

(6903-7704)DMP

(7704- )DMP
