DA110LD-H (1969)
Toyota Heavy Duty Truck
Production
Mar 1969
-
Dec 2001
Engine
2D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903- )DMP

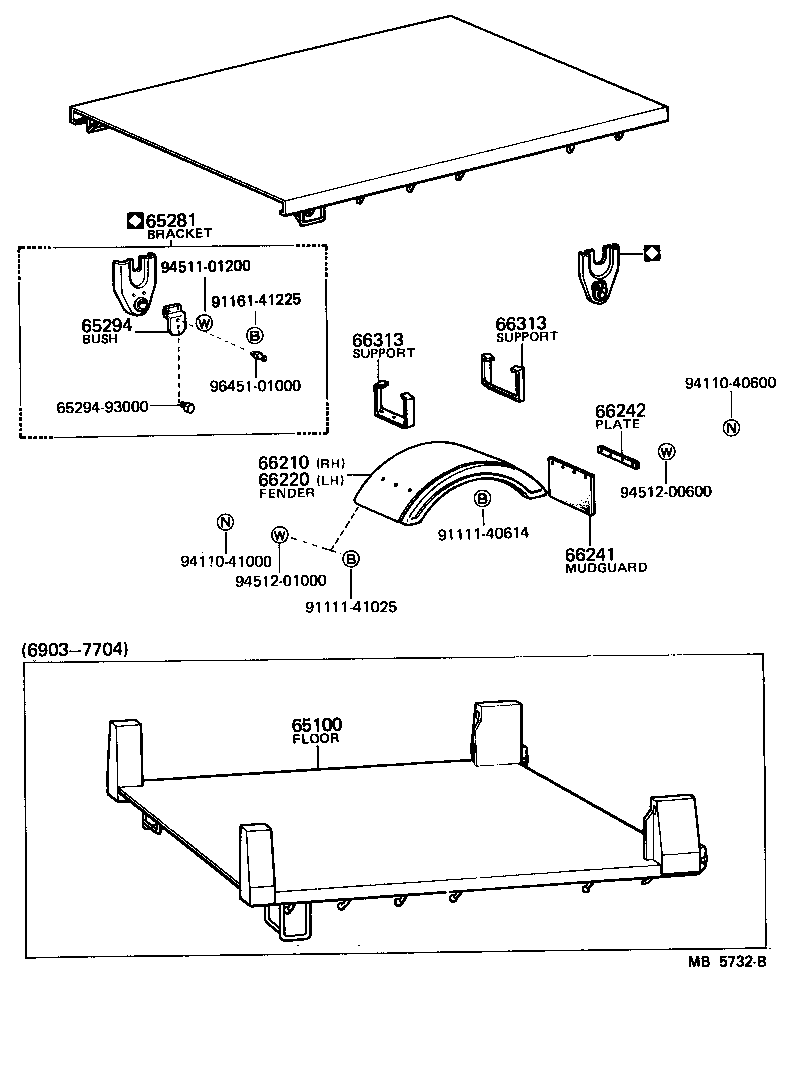

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-93003 |
DA110,FA110..DMP |
1 | ||
| 65281 - BRACKET, BEZEL HINGE | ||||
| 65281-93000 |
DA110 |
2 | ||
| 65290-93000 |
DA110,FA100,110..DMP |
2 | ||
| 65294 - BUSH, VESSEL HINGE | ||||
| 65292-93002 |
DA110,FA100,110..DMP |
2 | ||
| 66210 - FENDER ASSY, REAR BODY, FRONT RH | ||||
| 66211-95215 |
DA11# IV3 |
1 | ||
| 66211-93002 |
DA110,FA100,110..DMP 9.00 TIRE |
1 | ||
| 66211-93001 |
DA110,FA100,110..DMP |
1 | ||
| 61601-93000 |
DA110..DMP 9.00 TIRE |
1 | ||
| 66220 - FENDER ASSY, REAR BODY, FRONT LH | ||||
| 66212-93001 |
DA110,FA100,110..DMP |
1 | ||
| 66212-93002 |
DA110,FA100,110..DMP 9.00 TIRE |
1 | ||
| 61602-93000 |
DA110..DMP 9.00 TIRE |
1 | ||
| 66211-95215 |
DA11# IV3 |
1 | ||
| 66241 - MUDGUARD, REAR | ||||
| 53883-93000 |
DA110..DMP RH |
1 | ||
| 53884-93000 |
DA110..DMP LH |
1 | ||
| 66215-93000 |
DA110,FA100,110..DMP |
2 | ||
| 66215-93002 |
DA110,FA100..DMP |
2 | ||
| 66242 - PLATE, REAR MUDGUARD SET RETAINER | ||||
| 66332-93000 |
DA110,FA100..DMP |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66213-93003 |
DA110,FA100,110..DMP FR |
2 | ||
| 66235-93000 |
DA110..DMP RR |
4 | ||
| 66216-93000 |
DA110,FA100,110..DMP RR |
2 | ||
| 66313 - SUPPORT, REAR FENDER | ||||
| 66213-93003 |
DA110,FA100,110..DMP FR |
2 | ||
| 66235-93000 |
DA110..DMP RR |
4 | ||
| 66216-93000 |
DA110,FA100,110..DMP RR |
2 | ||
| Common parts | ||||
| 65294-93000 | ||||
| 91111-40614 | ||||
| 91111-41025 | ||||
| 91161-41225 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94511-01200 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 96451-01000 | ||||
