DA110LD-H (1969)
Toyota Heavy Duty Truck

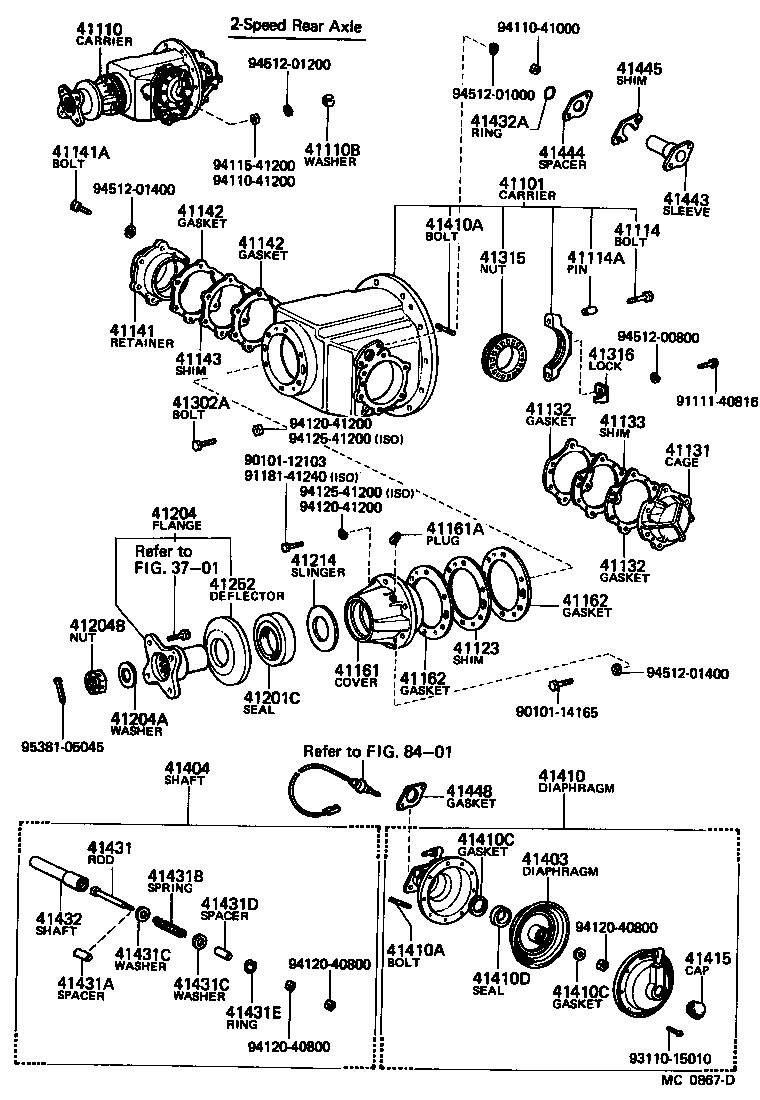

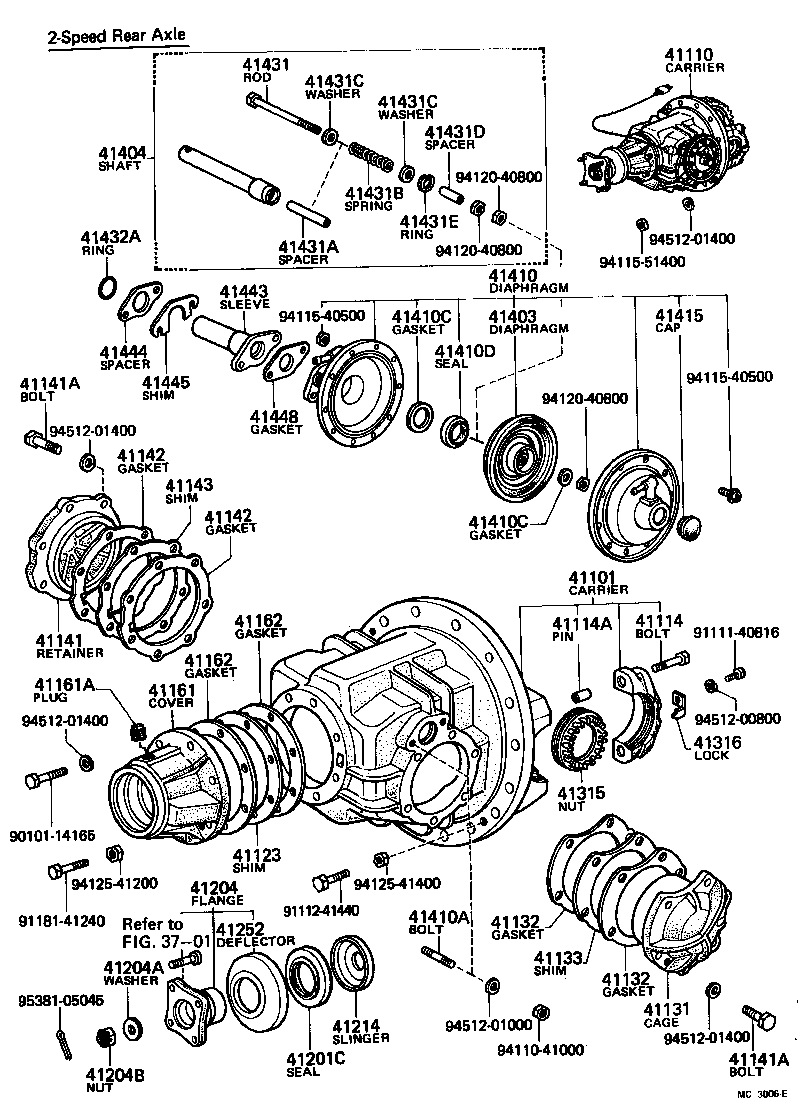

ILLUST NO. 2 OF 4(6903-7403)2SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-55023 |
DA11#,FA100,11#..2SR |
1 | ||
| 41101-55022 |
DA11#,FA100,11#..2SR |
1 | ||
| 41101-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-55120 |
DA11#..2SR 5-SPEED |
1 | ||
| 41110-55032 |
FA100,11#..2SR R=21:8=2.625 |
1 | ||
| 41110-55121 |
DA11#..2SR R=21:8=2.625 |
1 | ||
| 41110-55033 |
FA100,11#..2SR R=21:8=2.625 |
1 | ||
| 41110-55130 |
DA11#..2SR HIGH R=4.807,LWR R=6.591 |
1 | ||
| 41110B - WASHER, CONE (FOR DIFFERENTIAL CARRIER SET) | ||||
| 42323-55020 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90930-04007 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90103-18021 |
DA11#,FA100,115..2SR |
4 | ||
| 90930-04004 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 41114A - PIN, RING, REAR DIFFERENTIAL BEARING CAP BOLT | ||||
| 90253-22002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90253-24019 |
DA11#,FA100,115..2SR |
4 | ||
| 41123 - SHIM, DIFFERENTIAL DRIVE PINION CARRIER | ||||
| 41124-55011 |
DA11#,FA100,11#..2SR T=0.10 |
3 | ||
| 41123-55011 |
DA11#,FA100,11#..2SR T=0.03 |
3 | ||
| 41126-55011 |
DA11#,FA100,11#..2SR T=0.45 |
3 | ||
| 41124-55020 |
DA11#,FA100,115..2SR T=0.10 |
3 | ||
| 41126-55020 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 41125-55011 |
DA11#,FA100,11#..2SR T=0.25 |
3 | ||
| 41125-55020 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 41131 - CAGE, DIFFERENTIAL CROSS SHAFT BEARING | ||||
| 41131-55030 |
DA11#,FA100,115..2SR |
1 | ||
| 41131-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41132 - GASKET, DIFFERENTIAL CROSS SHAFT BEARING CAGE | ||||
| 41132-55011 |
DA11#,FA100,11#..2SR |
2 | ||
| 41132-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41132 - GASKET, DIFFERENTIAL CROSS SHAFT BEARING CAGE | ||||
| 41132-55011 |
DA11#,FA100,11#..2SR |
2 | ||
| 41132-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41133 - SHIM, CROSS SHAFT BEARING CAGE | ||||
| 41135-55011 |
DA11#,FA100,11#..2SR T=0.25 |
3 | ||
| 41133-55011 |
DA11#,FA100,11#..2SR T=0.03 |
3 | ||
| 41136-55020 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 41134-55011 |
DA11#,FA100,11#..2SR T=0.10 |
3 | ||
| 41133-55020 |
DA11#,FA100,115..2SR T=0.13 |
3 | ||
| 41134-55020 |
DA11#,FA100,115..2SR T=0.10 |
3 | ||
| 41136-55011 |
DA11#,FA100,11#..2SR T=0.45 |
3 | ||
| 41135-55020 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 41141 - RETAINER, DIAPHRAGM CROSS SHAFT BEARING | ||||
| 41141-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41141-55030 |
DA11#,FA100,115..2SR |
1 | ||
| 41141A - BOLT, DIFFERENTIAL CROSS SHAFT BEARING RETAINER | ||||
| 90101-14165 |
DA11#,FA100,11#..2SR *14-1.5PX37-25 |
13 | ||
| 41142 - GASKET, CROSS SHAFT BEARING RETAINER | ||||
| 41142-55011 |
DA11#,FA100,11#..2SR T=0.20 |
2 | ||
| 41142-55020 |
DA11#,FA100,115..2SR T=0.20 |
2 | ||
| 41142 - GASKET, CROSS SHAFT BEARING RETAINER | ||||
| 41142-55011 |
DA11#,FA100,11#..2SR T=0.20 |
2 | ||
| 41142-55020 |
DA11#,FA100,115..2SR T=0.20 |
2 | ||
| 41143 - SHIM, SHAFT BEARING RETAINER | ||||
| 41143-55011 |
DA11#,FA100,11#..2SR T=0.03 |
3 | ||
| 41145-55011 |
DA11#,FA100,11#..2SR T=0.25 |
3 | ||
| 41143-55020 |
DA11#,FA100,115..2SR T=0.13 |
3 | ||
| 41144-55011 |
DA11#,FA100,11#..2SR T=0.10 |
3 | ||
| 41145-55020 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 41147-55010 |
DA11#,FA100,115..2SR T=1.0 |
3 | ||
| 41146-55020 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 41146-55011 |
DA11#,FA100,11#..2SR T=0.45 |
3 | ||
| 41144-55020 |
DA11#,FA100,115..2SR T=0.10 |
3 | ||
| 41161 - COVER, DIFFERENTIAL DRIVE PINION | ||||
| 41121-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41121-55012 |
DA11#,FA100,11#..2SR |
1 | ||
| 41121-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41161A - PLUG, DIFFERENTIAL DRIVE PINION COVER | ||||
| 90345-53020 |
DA11#,FA100,11#..2SR ISO |
1 | ||
| 90345-53008 |
DA11#,FA100,11#..2SR |
1 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41122-55011 |
DA11#,FA100,11#..2SR T=0.2 |
2 | ||
| 41122-55020 |
DA11#,FA100,115..2SR T=0.2 |
2 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41122-55011 |
DA11#,FA100,11#..2SR T=0.2 |
2 | ||
| 41122-55020 |
DA11#,FA100,115..2SR T=0.2 |
2 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-70143 |
DA11#,FA100,115..2SR |
1 | ||
| 90311-70072 |
DA11#,FA100,11#..2SR |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41204-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41204-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-31125 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 90201-31563 |
DA11#,FA100,115..2SR |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90171-30008 |
DA11#..2SR;DB105,FA100,115 |
1 | ||
| 90171-30008 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-55031 |
DA11#,FA100,11#..2SR |
1 | ||
| 41214-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41252-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90101-12103 |
DA11#,FA100,11#..2SR |
4 | ||
| 90101-12288 |
DA11#,FA100,11#..2SR |
4 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41315-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41316-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41403 - DIAPHRAGM SUB-ASSY | ||||
| 41403-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41403-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41404 - SHAFT SUB-ASSY, SHIFT FORK | ||||
| 41404-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41404-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41410 - DIAPHRAGM ASSY | ||||
| 41410-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41410-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41410A - BOLT (FOR DIAPHRAGM SET) | ||||
| 90116-10031 |
DA11#,FA100,11#..2SR |
2 | ||
| 41410A - BOLT (FOR DIAPHRAGM SET) | ||||
| 90116-10031 |
DA11#,FA100,11#..2SR |
2 | ||
| 41410C - GASKET, DIAPHRAGM | ||||
| 90430-36054 |
DA11#,FA100,11#..2SR T=1.5 |
1 | ||
| 90430-08033 |
DA11#,FA100,115..2SR T=0.8,OD=14,ID=8.4 |
1 | ||
| 41410C - GASKET, DIAPHRAGM | ||||
| 90430-36054 |
DA11#,FA100,11#..2SR T=1.5 |
1 | ||
| 90430-08033 |
DA11#,FA100,115..2SR T=0.8,OD=14,ID=8.4 |
1 | ||
| 41410D - SEAL, OIL DIAPHRAGM | ||||
| 90310-32009 |
DA11#,FA100,11#..2SR |
1 | ||
| 41415 - CAP, DIAPHRAGM CHAMBER | ||||
| 41415-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41431 - ROD, PUSH | ||||
| 41431-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41431-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41431A - SPACER, PUSH ROD, NO.1 | ||||
| 90560-09104 |
DA11#,FA100,11#..2SR |
1 | ||
| 90560-09446 |
DA11#,FA100,115..2SR |
1 | ||
| 41431B - SPRING, COMPRESSION, PUSH ROD | ||||
| 90501-32001 |
DA11#,FA100,115..2SR |
1 | ||
| 90501-26154 |
DA11#,FA100,11#..2SR |
1 | ||
| 41431C - WASHER, PUSH ROD | ||||
| 90201-08135 |
DA11#,FA100,11#..2SR |
2 | ||
| 41431C - WASHER, PUSH ROD | ||||
| 90201-08135 |
DA11#,FA100,11#..2SR |
2 | ||
| 41431D - SPACER, PUSH ROD, NO.2 | ||||
| 90560-09445 |
DA11#,FA100,115..2SR |
1 | ||
| 90560-09103 |
DA11#,FA100,11#..2SR |
1 | ||
| 41431E - RING, HOLE SNAP, PUSH ROD | ||||
| 96151-02100 |
DA11#,FA100,11#..2SR |
1 | ||
| 90521-23060 |
DA11#,FA100,11#..2SR |
1 | ||
| 41432 - SHAFT, SHIFT FORK | ||||
| 41432-55010 |
DA11#..2SR |
1 | ||
| 41404-55010 |
FA100,11#..2SR |
1 | ||
| 41432A - RING, O, SHIFT FORK SHAFT | ||||
| 90301-44040 |
DA11#,FA100,11#..2SR |
1 | ||
| 41443 - SLEEVE, DIAPHRAGM | ||||
| 41443-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41443-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41444 - SPACER, SHIFT FORK | ||||
| 41444-55010 |
DA11#,FA100,11#..2SR T=0.45 |
1 | ||
| 41445 - SHIM, FORK SHAFT ADJUSTING | ||||
| 41445-55010 |
DA11#,FA100,11#..2SR T=0.05 |
3 | ||
| 41447-55010 |
DA11#,FA100,11#..2SR T=0.228 |
3 | ||
| 41446-55010 |
DA11#,FA100,11#..2SR T=0.1 |
3 | ||
| 41448 - GASKET, DIAPHRAGM CHAMBER FLANGE | ||||
| 41448-55010 |
DA11#,FA100,11#..2SR T=0.5 |
1 | ||
| Common parts | ||||
| 90101-12103 | ||||
| 90101-14165 | ||||
| 91111-40816 | ||||
| 91181-41240 | ||||
| 93110-15010 | ||||
| 94110-41000 | ||||
| 94110-41200 | ||||
| 94115-41200 | ||||
| 94120-40800 | ||||
| 94120-41200 | ||||
| 94125-41200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 95381-05045 | ||||
| Linked diagrams | ||||
| 3701 | ||||
| 8401 | ||||

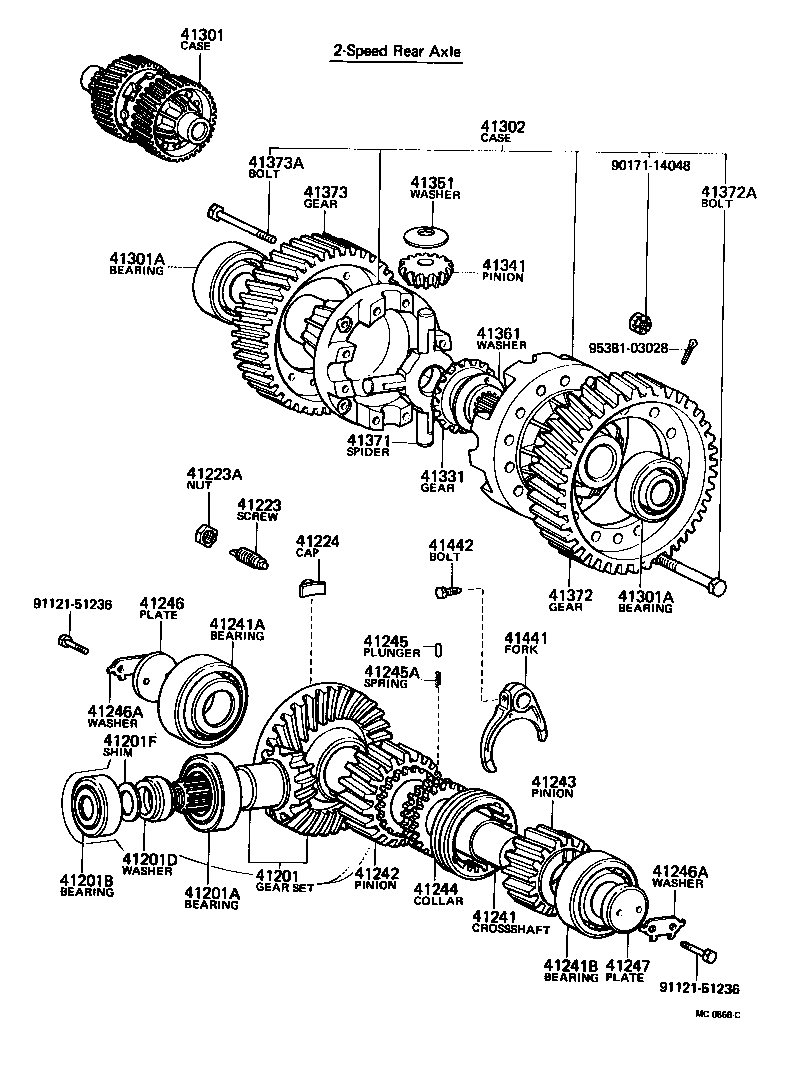

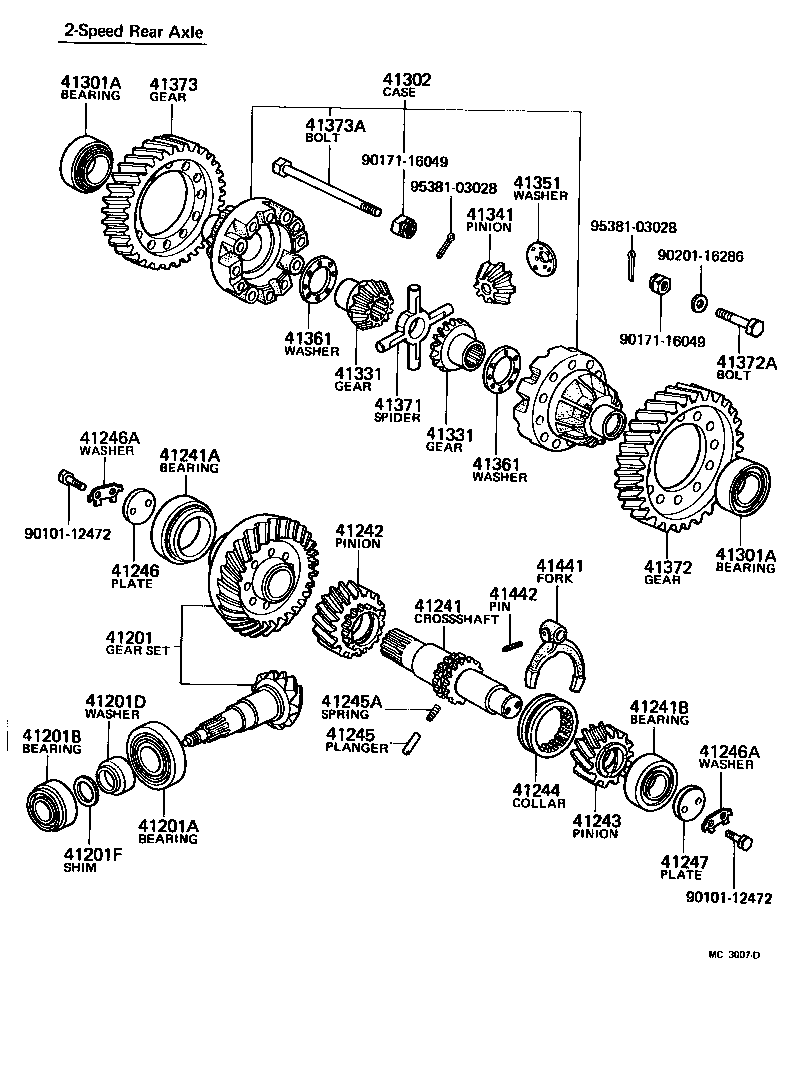

ILLUST NO. 3 OF 4(6903-7403)2SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-55041 |
DA11#,FA100,11#..2SR N=21:8 |
1 | ||
| 41201-55080 |
DA11#,FA100,115..2SR N=29:11 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97609-32311 |
DA11#,FA100,11#..2SR |
1 | ||
| 97619-32314 |
DA11#,FA100,115..2SR |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-32311 |
DA11#,FA100,115..2SR |
1 | ||
| 97609-32310 |
DA11#,FA100,11#..2SR |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 41231-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41231-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-50045 |
DA11#,DB10#,FA100,11#,FB100 T=0.100 |
3 | ||
| 90564-50046 |
DA11#,DB10#,FA100,11#,FB100 T=0.228 |
3 | ||
| 90564-55180 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 90564-50044 |
DA11#,DB10#,FA100,11#,FB100 T=0.030 |
3 | ||
| 90564-55178 |
DA11#,FA100,115..2SR T=0.03 |
3 | ||
| 90564-55179 |
DA11#,FA100,115..2SR T=0.1 |
3 | ||
| 90564-55182 |
DA11#,FA100,115..2SR T=0.7 |
3 | ||
| 90564-55181 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 90564-50047 |
DA11#,DB10#,FA100,11#,FB100 T=0.450 |
3 | ||
| 41223 - SCREW, DIFFERENTIAL RING GEAR THRUST | ||||
| 41223-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 41223A - NUT, HEXAGON (FOR RING GEAR THRUST SCREW LOCK) | ||||
| 90170-25034 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 41224 - CAP, DIFFERENTIAL DRIVE GEAR SCREW | ||||
| 41224-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 41241 - CROSS SHAFT, DIFFERENTIAL | ||||
| 41241-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41241-55012 |
DA11#,FA100,11#..2SR |
1 | ||
| 41241-55013 |
DA11#,FA100,11#..2SR |
1 | ||
| 41241A - BEARING, DIFFERENTIAL CROSS SHAFT, RH | ||||
| 97609-32311 |
DA11#,FA100,11#..2SR |
1 | ||
| 90368-99081 |
DA11#,FA100,115..2SR |
1 | ||
| 41241B - BEARING, DIFFERENTIAL CROSS SHAFT, LH | ||||
| 97609-32310 |
DA11#,FA100,11#..2SR |
1 | ||
| 90368-54079 |
DA11#,FA100,115..2SR |
1 | ||
| 41242 - PINION, DIFFERENTIAL HIGH SPEED | ||||
| 41242-55030 |
DA11#..2SR N=17 |
1 | ||
| 41242-55021 |
DA11#,FA100,11#..2SR N=17 |
1 | ||
| 41243 - PINION, DIFFERENTIAL LOW SPEED | ||||
| 41243-55021 |
DA11#,FA100,11#..2SR N=12 |
1 | ||
| 41243-55030 |
DA11#..2SR N=12 |
1 | ||
| 41244 - COLLAR, DIFFERENTIAL PINION SHIFT | ||||
| 41244-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41244-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41245 - PLUNGER, SHIFT COLLAR LOCK | ||||
| 41245-55010 |
DA11#,FA100,11#..2SR |
3 | ||
| 41245A - SPRING, COMPRESSION, SHIFT COLLAR | ||||
| 90501-08084 |
DA11#,FA100,11#..2SR |
3 | ||
| 41246 - PLATE, DIFFERENTIAL CROSS SHAFT THRUST, RH | ||||
| 41246-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41246-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41246A - WASHER, DIFFERENTIAL CROSS SHAFT THRUST PLATE | ||||
| 33434-55020 |
DA11#,FA100,11#..2SR |
2 | ||
| 41248-55010 |
DA11#,FA100,115..2SR |
2 | ||
| 41246A - WASHER, DIFFERENTIAL CROSS SHAFT THRUST PLATE | ||||
| 33434-55020 |
DA11#,FA100,11#..2SR |
2 | ||
| 41248-55010 |
DA11#,FA100,115..2SR |
2 | ||
| 41247 - PLATE, DIFFERENTIAL CROSS SHAFT THRUST, LH | ||||
| 41247-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41246-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41310-55051 |
DA11#,FA100,11#..2SR |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-76080 |
DA11#,FA100,115..2SR |
2 | ||
| 90368-66006 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-76080 |
DA11#,FA100,115..2SR |
2 | ||
| 90368-66006 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-55040 |
DA11#,FA100,11#..2SR |
1 | ||
| 41301-55050 |
DA11#,FA100,115..2SR |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-55041 |
DA11#,DB10#,FA100,11#,FB100 N=14 |
2 | ||
| 41331-55050 |
DA11#,FA100,115..2SR N=14 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55041 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41341-55050 |
DA11#,FA100,115..2SR N=10 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-55030 |
DA11#,FA100,115..2SR |
4 | ||
| 41351-55020 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-55030 |
DA11#,FA100,115..2SR |
2 | ||
| 41361-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-55031 |
DA11#,FA100,11#..2SR |
1 | ||
| 41371-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41372 - GEAR, DIFFERENTIAL LOW SPEED | ||||
| 41372-55020 |
DA11#,FA100,11#..2SR N=31 |
1 | ||
| 41372-55030 |
DA11#..2SR N=30 |
1 | ||
| 41372A - BOLT, DIFFERENTIAL LOW SPEED, GEAR | ||||
| 90930-04002 |
DA11#,FA100,11#..2SR |
8 | ||
| 90102-16063 |
DA11#,FA100,115..2SR *16-1.5PX61.5-31.5 |
8 | ||
| 41373 - GEAR, DIFFERENTIAL HIGH SPEED | ||||
| 41373-55030 |
DA11#..2SR N=31 |
1 | ||
| 41373-55020 |
DA11#,FA100,11#..2SR N=31 |
1 | ||
| 41373A - BOLT, DIFFERENTIAL HIGH SPEED SET | ||||
| 90930-04003 |
DA11#,FA100,11#..2SR |
8 | ||
| 90102-16064 |
DA11#,FA100,115..2SR *16-1.5PX151-26 |
8 | ||
| 41441 - FORK, SHIFT | ||||
| 41441-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41441-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41441-55021 |
DA11#,FA100,115..2SR |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-09046 |
DA11#,FA100,115..2SR |
1 | ||
| 41442-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| Common parts | ||||
| 90171-14048 | ||||
| 91121-51236 | ||||
| 95381-03028 | ||||

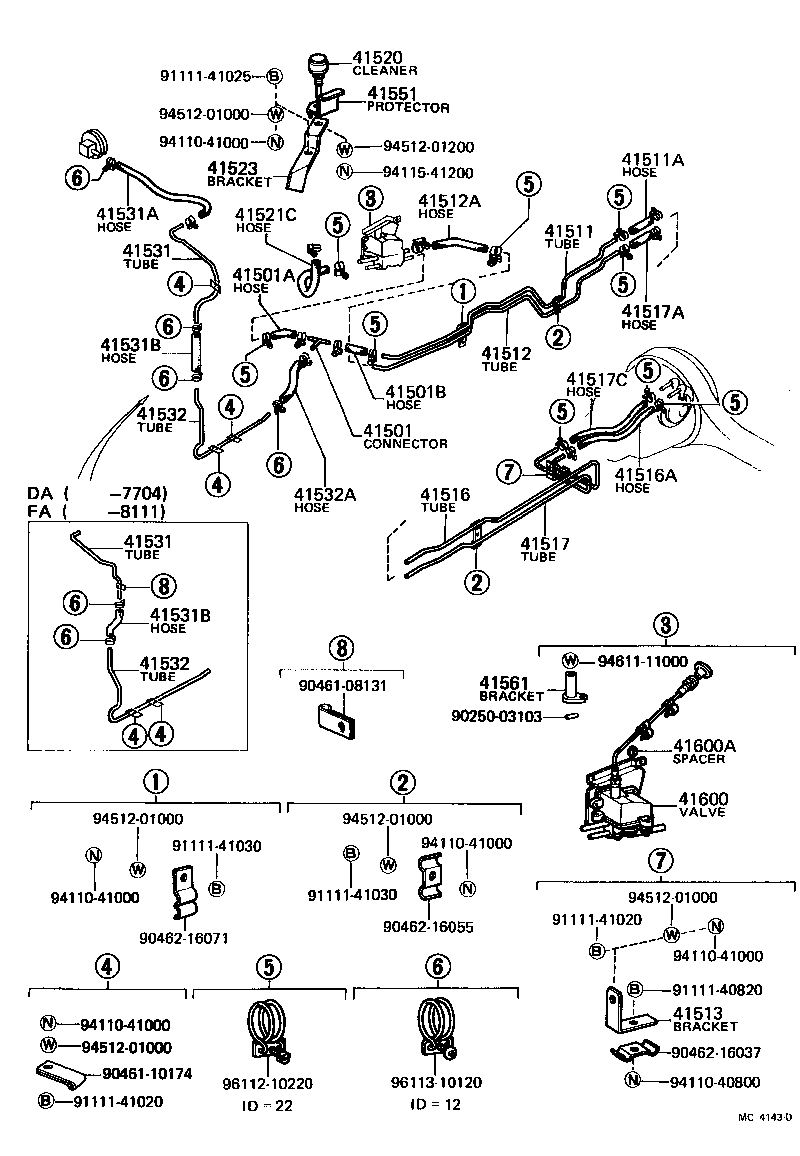

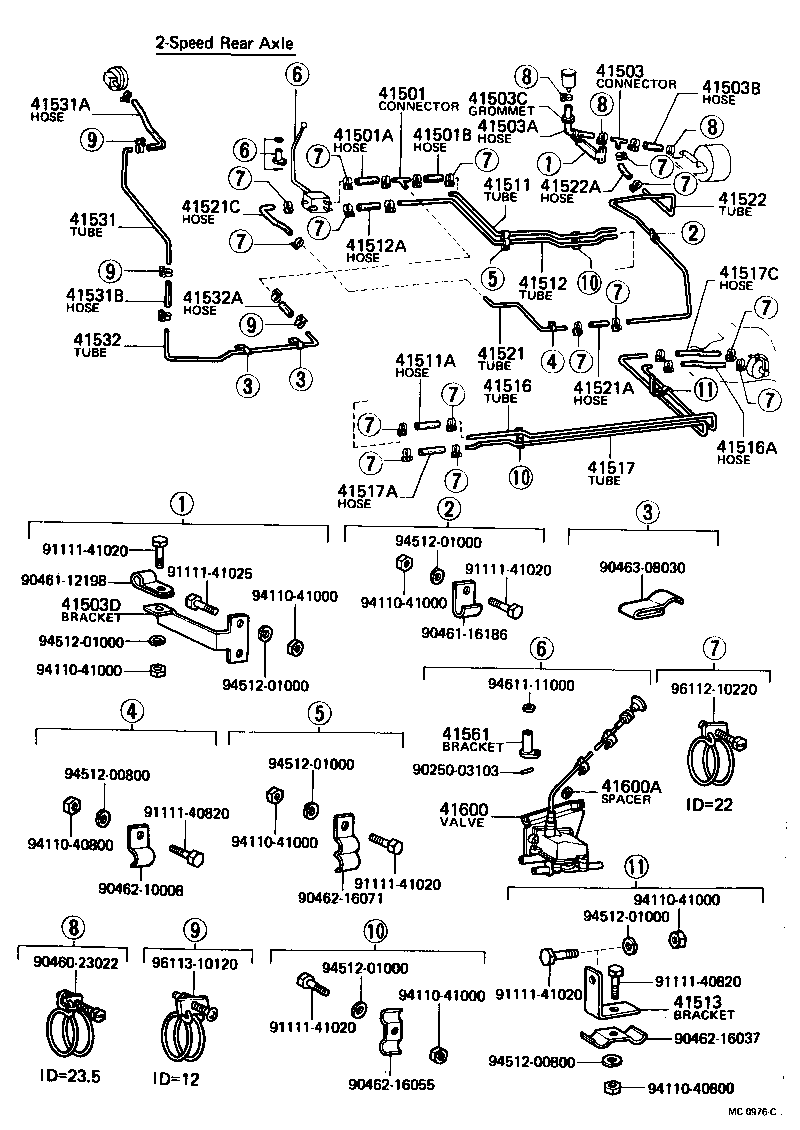

ILLUST NO. 4 OF 4(6903-7510)2SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41501 - CONNECTOR SUB-ASSY, SPEED VACUUM TUBE | ||||
| 41501-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41501A - HOSE, SHIFT VALVE TO CONNECTOR | ||||
| 90445-21503 |
DA11#,FA100,11#..2SR L=135 |
1 | ||
| 90445-21198 |
DA11#,FA100,11#..2SR L=210 |
1 | ||
| 90445-21614 |
DA11#,FA100,115..2SR L=70 |
1 | ||
| 41501B - HOSE, CONNECTOR TO LOW GEAR SHIFT VACUUM TUBE | ||||
| 90445-21614 |
DA11#,FA100,11#..2SR L=70 |
1 | ||
| 90445-21194 |
DA11#,FA100,11#..2SR L=85 |
1 | ||
| 41503 - CONNECTOR SUB-ASSY, HYDRAULIC AIR CLEANER | ||||
| 41503-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41503A - HOSE, W/SPRING, AIR CLEANER TO CONNECTOR | ||||
| 90447-21001 |
DA11#,FA100,11#..2SR |
1 | ||
| 41503B - HOSE, W/SPRING, CONNECTOR TO BOOSTER | ||||
| 90447-21007 |
FA100,11#..2SR L=235 |
1 | ||
| 90447-21017 |
DA11#,FA100,115..2SR L=100 |
1 | ||
| 90447-21011 |
DA11#..2SR L=140 |
1 | ||
| 90447-21011 |
DA11#,FA100,11#..2SR L=140 |
1 | ||
| 41503C - GROMMET, HYDRAULIC AIR CLEANER CONNECTOR | ||||
| 90480-30078 |
DA11#,FA100,11#..2SR |
1 | ||
| 41503D - BRACKET, AIR CLEANER TO CONNECTOR HOSE | ||||
| 44738-55010 |
FA100,11#..2SR |
1 | ||
| 41511 - TUBE, LOW GEAR SHIFT VACUUM | ||||
| 41511-55051 |
DA11#,FA100,11#..2SR..GEN |
1 | ||
| 41511-55060 |
DA11#,FA100,115..2SR W/AIR OVER BRAKE |
1 | ||
| 41511-55050 |
DA11#,FA100,11#..2SR |
1 | ||
| 41511A - HOSE, LOW GEAR SHIFT VACUUM TUBE | ||||
| 90445-21192 |
DA11#,FA100,11#..2SR L=120 |
1 | ||
| 41512 - TUBE, HIGH GEAR SHIFT VACUUM | ||||
| 41512-55050 |
DA11#,FA100,11#..2SR |
1 | ||
| 41512-55051 |
DA11#,FA100,11#..2SR..GEN |
1 | ||
| 41512-55060 |
DA11#,FA100,115..2SR W/AIR OVER BRAKE |
1 | ||
| 41512A - HOSE, VACUUM SHIFT VALVE TO HIGH GEAR SHIFT VACUUM TUBE | ||||
| 90445-21503 |
DA11#,FA100,115..2SR L=135 |
1 | ||
| 90445-21198 |
DA11#,FA100,11#..2SR L=210 |
1 | ||
| 90445-21614 |
DA11#,FA100,11#..2SR L=70 |
1 | ||
| 41513 - BRACKET, GEAR SHIFT VACUUM TUBE | ||||
| 41513-55021 |
DA11#,FA100,11#..2SR |
1 | ||
| 41516 - TUBE, LOW GEAR SHIFT VACUUM, NO.2 | ||||
| 41516-55010 |
DA110,FA100,110..2SR |
1 | ||
| 41516A - HOSE, LOW GEAR SHIFT VACUUM, REAR | ||||
| 90445-21195 |
DA11#,FA100,11#..2SR L=360 |
1 | ||
| 41517 - TUBE, HIGH GEAR SHIFT VACUUM, NO.2 | ||||
| 41517-55010 |
DA110,FA100,110..2SR |
1 | ||
| 41517A - HOSE, HIGH GEAR SHIFT VACUUM TUBE | ||||
| 90445-21192 |
DA11#,FA100,11#..2SR L=120 |
1 | ||
| 41517C - HOSE, HIGH GEAR SHIFT VACUUM, REAR | ||||
| 90445-21195 |
DA11#,FA100,11#..2SR L=360 |
1 | ||
| 41521 - TUBE, CHANGE VALVE TO AIR CLEANER, FRONT | ||||
| 41521-55020 |
DA11#,FA100,11#..2SR |
1 | ||
| 41521-55021 |
DA11#,FA100,11#..2SR |
1 | ||
| 41521A - HOSE, CHANGE VALVE AIR CLEANER FRONT TUBE | ||||
| 90445-21194 |
DA11#,FA100,115..2SR L=85 |
1 | ||
| 90445-21014 |
DA110,115,FA100,11#..2SR L=85 |
1 | ||
| 41521C - HOSE, CHANGE VALVE AIR CLEANER FRONT, TUBE | ||||
| 90445-21198 |
DA11#,FA100,11#..2SR L=210 |
1 | ||
| 90445-21193 |
DA11#,FA100,11#..2SR L=250 |
1 | ||
| 90445-21364 |
DA11#,FA100,115..2SR L=320 |
1 | ||
| 90445-21364 |
DA11#,FA100,115..2SR L=320 |
1 | ||
| 90445-21195 |
DA11#,FA100,115..2SR L=360 |
1 | ||
| 90445-21004 |
DA11#,FA100,115..2SR |
1 | ||
| 41522 - TUBE, CHANGE VALVE AIR CLEANER, REAR | ||||
| 41522-55040 |
DA11#,FA100,11#..2SR |
1 | ||
| 41522-55041 |
DA11#,FA100,11#..2SR |
1 | ||
| 41522A - HOSE, CHANGE VALVE AIR CLEANER REAR TUBE | ||||
| 90445-21193 |
DA11#,FA100,11#..2SR L=250 |
1 | ||
| 90445-21004 |
DA11#,FA100,115..2SR L=290 |
1 | ||
| 41531 - TUBE, SPEEDOMETER VACUUM, FRONT | ||||
| 41531-55040 |
DA11#..2SR |
1 | ||
| 41531-55040 |
DA11#,FA100,115..2SR..GEN |
1 | ||
| 41531-55050 |
DA11#..2SR W/AIR OVER BRAKE |
1 | ||
| 41531-55030 |
DA11#,FA100,11#..2SR |
1 | ||
| 41531A - HOSE, ADAPTER TO FRONT VACUUM TUBE | ||||
| 90445-12009 |
DA11#,FA100,11#..2SR L=620 |
1 | ||
| 90445-12041 |
DA11#,FA100,115..2SR..GEN L=600,W/TACHOGRAPH |
1 | ||
| 90445-12060 |
DA11#,FA100,115..2SR L=730 |
1 | ||
| 41531B - HOSE, FRONT VACUUM TUBE TO REAR VACUUM TUBE | ||||
| 90445-12010 |
DA11#,FA100,11#..2SR..GEN L=120 |
1 | ||
| 90445-12094 |
DA11#..2SR L=230,W/AIR OVER BRAKE |
1 | ||
| 41532 - TUBE, SPEEDOMETER VACUUM, REAR | ||||
| 41532-55030 |
DA11#..2SR |
1 | ||
| 41532-55022 |
DA11#,FA100,115..2SR |
1 | ||
| 41532-55021 |
DA11#,FA100,11#..2SR |
1 | ||
| 41532-55030 |
DA11#,FA100,115..2SR |
1 | ||
| 41532-55020 |
DA11#,FA100,11#..2SR |
1 | ||
| 41532A - HOSE, SPEEDOMETER VACUUM REAR TUBE | ||||
| 90445-12010 |
DA11#,FA100,11#..2SR L=120 |
1 | ||
| 90445-12601 |
DA11#,FA100,11#..2SR L=100 |
1 | ||
| 41561 - BRACKET, VACUUM SHIFT VALVE | ||||
| 41561-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41600 - VALVE ASSY, VACUUM SHIFT | ||||
| 41600-55030 |
DA11#,FA100,11#..2SR |
1 | ||
| 41600-55033 |
DA11#,FA100,11#..2SR |
1 | ||
| 41600-55034 |
DA11#,FA100,115..2SR |
1 | ||
| 41600-55032 |
DA11#,FA100,11#..2SR |
1 | ||
| Common parts | ||||
| 90250-03103 | ||||
| 90460-23022 | ||||
| 90461-12198 | ||||
| 90461-16186 | ||||
| 90462-10008 | ||||
| 90462-16037 | ||||
| 90462-16055 | ||||
| 90462-16071 | ||||
| 90463-08030 | ||||
| 91111-40820 | ||||
| 91111-41020 | ||||
| 91111-41025 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94611-11000 | ||||
| 96112-10220 | ||||
| 96113-10120 | ||||
ILLUST NO. 1 OF 4(6903- )DA11#,DB10#,FA100,11#,FB100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-12047 |
DA11#,DB10#,FA100,11#,FB100,FC100 L=32 |
10 | ||
| 90116-14300 |
DA11#;FA100,115..2SR L=32 |
16 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-12047 |
DA11#,DB10#,FA100,11#,FB100,FC100 L=32 |
10 | ||
| 90116-14300 |
DA11#;FA100,115..2SR L=32 |
16 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-55041 |
DA11#,FA100,11#..2SR |
1 | ||
| 42110-55902 |
DA11#,FA100,11#,FB100 |
1 | ||
| 42110-55903 |
DA11#;FA100,115..2SR |
1 | ||
| 42110-55910 |
DA11# |
1 | ||
| 42110-55901 |
DA11#,FA100,11#,FB100 |
1 | ||
| 42110-55907 |
DA11#;FA100,115..2SR |
1 | ||
| 42110-55909 |
DA11# |
1 | ||
| 42110-55905 |
DA11#;FA100,115..2SR |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-55041 |
DA11#,FA100,11#..2SR |
1 | ||
| 42110-55902 |
DA11#,FA100,11#,FB100 |
1 | ||
| 42110-55903 |
DA11#;FA100,115..2SR |
1 | ||
| 42110-55910 |
DA11# |
1 | ||
| 42110-55901 |
DA11#,FA100,11#,FB100 |
1 | ||
| 42110-55907 |
DA11#;FA100,115..2SR |
1 | ||
| 42110-55909 |
DA11# |
1 | ||
| 42110-55905 |
DA11#;FA100,115..2SR |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-25022 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-25022 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 90430-25077 |
DA11#,DB10#,FA100,11#,FB100 T=0.8 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 90430-25077 |
DA11#,DB10#,FA100,11#,FB100 T=0.8 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03011 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 90430-25077 |
DA11#,DB10#,FA100,11#,FB100 T=0.8 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 90430-25077 |
DA11#,DB10#,FA100,11#,FB100 T=0.8 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-25034 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-25034 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-55021 |
DA11#,DB10#,FA100,11#,FB100 T=1.0 |
1 | ||
| 42181-55040 |
DA11#;FA100,115..2SR |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-55021 |
DA11#,DB10#,FA100,11#,FB100 T=1.0 |
1 | ||
| 42181-55040 |
DA11#;FA100,115..2SR |
1 | ||
| 42181A - RING, O (FOR DIFFERENTIAL CARRIER GASKET) | ||||
| 90301-99091 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 42181A - RING, O (FOR DIFFERENTIAL CARRIER GASKET) | ||||
| 90301-99091 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| Linked diagrams | ||||
| 4706 | ||||
ILLUST NO. 2 OF 4(6903-7403)DA11#..1SR ; (6903-7403)DA11#..1SR ;(6903-8202)FA100,11#..1SR ; (6903-8
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-55023 |
DA11#,FA100,11#..2SR |
1 | ||
| 41101-55022 |
DA11#,FA100,11#..2SR |
1 | ||
| 41101-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-55120 |
DA11#..2SR 5-SPEED |
1 | ||
| 41110-55032 |
FA100,11#..2SR R=21:8=2.625 |
1 | ||
| 41110-55121 |
DA11#..2SR R=21:8=2.625 |
1 | ||
| 41110-55033 |
FA100,11#..2SR R=21:8=2.625 |
1 | ||
| 41110-55130 |
DA11#..2SR HIGH R=4.807,LWR R=6.591 |
1 | ||
| 41110B - WASHER, CONE (FOR DIFFERENTIAL CARRIER SET) | ||||
| 42323-55020 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90930-04007 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90103-18021 |
DA11#,FA100,115..2SR |
4 | ||
| 90930-04004 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 41114A - PIN, RING, REAR DIFFERENTIAL BEARING CAP BOLT | ||||
| 90253-22002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90253-24019 |
DA11#,FA100,115..2SR |
4 | ||
| 41161 - COVER, DIFFERENTIAL DRIVE PINION | ||||
| 41121-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41121-55012 |
DA11#,FA100,11#..2SR |
1 | ||
| 41121-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41122-55011 |
DA11#,FA100,11#..2SR T=0.2 |
2 | ||
| 41122-55020 |
DA11#,FA100,115..2SR T=0.2 |
2 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-55041 |
DA11#,FA100,11#..2SR N=21:8 |
1 | ||
| 41201-55080 |
DA11#,FA100,115..2SR N=29:11 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97609-32311 |
DA11#,FA100,11#..2SR |
1 | ||
| 97619-32314 |
DA11#,FA100,115..2SR |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-32311 |
DA11#,FA100,115..2SR |
1 | ||
| 97609-32310 |
DA11#,FA100,11#..2SR |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-70143 |
DA11#,FA100,115..2SR |
1 | ||
| 90311-70072 |
DA11#,FA100,11#..2SR |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 41231-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41231-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-50045 |
DA11#,DB10#,FA100,11#,FB100 T=0.100 |
3 | ||
| 90564-50046 |
DA11#,DB10#,FA100,11#,FB100 T=0.228 |
3 | ||
| 90564-55180 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 90564-50044 |
DA11#,DB10#,FA100,11#,FB100 T=0.030 |
3 | ||
| 90564-55178 |
DA11#,FA100,115..2SR T=0.03 |
3 | ||
| 90564-55179 |
DA11#,FA100,115..2SR T=0.1 |
3 | ||
| 90564-55182 |
DA11#,FA100,115..2SR T=0.7 |
3 | ||
| 90564-55181 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 90564-50047 |
DA11#,DB10#,FA100,11#,FB100 T=0.450 |
3 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-50045 |
DA11#,DB10#,FA100,11#,FB100 T=0.100 |
3 | ||
| 90564-50046 |
DA11#,DB10#,FA100,11#,FB100 T=0.228 |
3 | ||
| 90564-55180 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 90564-50044 |
DA11#,DB10#,FA100,11#,FB100 T=0.030 |
3 | ||
| 90564-55178 |
DA11#,FA100,115..2SR T=0.03 |
3 | ||
| 90564-55179 |
DA11#,FA100,115..2SR T=0.1 |
3 | ||
| 90564-55182 |
DA11#,FA100,115..2SR T=0.7 |
3 | ||
| 90564-55181 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 90564-50047 |
DA11#,DB10#,FA100,11#,FB100 T=0.450 |
3 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-50045 |
DA11#,DB10#,FA100,11#,FB100 T=0.100 |
3 | ||
| 90564-50046 |
DA11#,DB10#,FA100,11#,FB100 T=0.228 |
3 | ||
| 90564-55180 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 90564-50044 |
DA11#,DB10#,FA100,11#,FB100 T=0.030 |
3 | ||
| 90564-55178 |
DA11#,FA100,115..2SR T=0.03 |
3 | ||
| 90564-55179 |
DA11#,FA100,115..2SR T=0.1 |
3 | ||
| 90564-55182 |
DA11#,FA100,115..2SR T=0.7 |
3 | ||
| 90564-55181 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 90564-50047 |
DA11#,DB10#,FA100,11#,FB100 T=0.450 |
3 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41204-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41204-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-31125 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 90201-31563 |
DA11#,FA100,115..2SR |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90171-30008 |
DA11#..2SR;DB105,FA100,115 |
1 | ||
| 90171-30008 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-55031 |
DA11#,FA100,11#..2SR |
1 | ||
| 41214-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41223 - SCREW, DIFFERENTIAL RING GEAR THRUST | ||||
| 41223-55021 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 41223A - NUT, HEXAGON (FOR RING GEAR THRUST SCREW LOCK) | ||||
| 90170-25034 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 41224 - CAP, DIFFERENTIAL DRIVE GEAR SCREW | ||||
| 41224-55022 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41252-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-76080 |
DA11#,FA100,115..2SR |
2 | ||
| 90368-66006 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-76080 |
DA11#,FA100,115..2SR |
2 | ||
| 90368-66006 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-55040 |
DA11#,FA100,11#..2SR |
1 | ||
| 41301-55050 |
DA11#,FA100,115..2SR |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90101-12103 |
DA11#,FA100,11#..2SR |
4 | ||
| 90101-12288 |
DA11#,FA100,11#..2SR |
4 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41315-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41315-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41316-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-55041 |
DA11#,DB10#,FA100,11#,FB100 N=14 |
2 | ||
| 41331-55050 |
DA11#,FA100,115..2SR N=14 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-55041 |
DA11#,DB10#,FA100,11#,FB100 N=14 |
2 | ||
| 41331-55050 |
DA11#,FA100,115..2SR N=14 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55041 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41341-55050 |
DA11#,FA100,115..2SR N=10 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55041 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41341-55050 |
DA11#,FA100,115..2SR N=10 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-55030 |
DA11#,FA100,115..2SR |
4 | ||
| 41351-55020 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-55030 |
DA11#,FA100,115..2SR |
4 | ||
| 41351-55020 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-55030 |
DA11#,FA100,115..2SR |
2 | ||
| 41361-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-55030 |
DA11#,FA100,115..2SR |
2 | ||
| 41361-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-55031 |
DA11#,FA100,11#..2SR |
1 | ||
| 41371-55040 |
DA11#,FA100,115..2SR |
1 | ||
| Common parts | ||||
| 91111-40816 | ||||
| 91112-71445 | ||||
| 91181-41240 | ||||
| 93180-16035 | ||||
| 94110-40600 | ||||
| 94115-51400 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-41200 | ||||
| 95381-05045 | ||||
| Linked diagrams | ||||
| 3701 | ||||
ILLUST NO. 2 OF 4(7404- )2SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-55023 |
DA11#,FA100,11#..2SR |
1 | ||
| 41101-55022 |
DA11#,FA100,11#..2SR |
1 | ||
| 41101-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-55120 |
DA11#..2SR 5-SPEED |
1 | ||
| 41110-55032 |
FA100,11#..2SR R=21:8=2.625 |
1 | ||
| 41110-55121 |
DA11#..2SR R=21:8=2.625 |
1 | ||
| 41110-55033 |
FA100,11#..2SR R=21:8=2.625 |
1 | ||
| 41110-55130 |
DA11#..2SR HIGH R=4.807,LWR R=6.591 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90930-04007 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90103-18021 |
DA11#,FA100,115..2SR |
4 | ||
| 90930-04004 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 41114A - PIN, RING, REAR DIFFERENTIAL BEARING CAP BOLT | ||||
| 90253-22002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90253-24019 |
DA11#,FA100,115..2SR |
4 | ||
| 41123 - SHIM, DIFFERENTIAL DRIVE PINION CARRIER | ||||
| 41124-55011 |
DA11#,FA100,11#..2SR T=0.10 |
3 | ||
| 41123-55011 |
DA11#,FA100,11#..2SR T=0.03 |
3 | ||
| 41126-55011 |
DA11#,FA100,11#..2SR T=0.45 |
3 | ||
| 41124-55020 |
DA11#,FA100,115..2SR T=0.10 |
3 | ||
| 41126-55020 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 41125-55011 |
DA11#,FA100,11#..2SR T=0.25 |
3 | ||
| 41125-55020 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 41131 - CAGE, DIFFERENTIAL CROSS SHAFT BEARING | ||||
| 41131-55030 |
DA11#,FA100,115..2SR |
1 | ||
| 41131-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41132 - GASKET, DIFFERENTIAL CROSS SHAFT BEARING CAGE | ||||
| 41132-55011 |
DA11#,FA100,11#..2SR |
2 | ||
| 41132-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41132 - GASKET, DIFFERENTIAL CROSS SHAFT BEARING CAGE | ||||
| 41132-55011 |
DA11#,FA100,11#..2SR |
2 | ||
| 41132-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41133 - SHIM, CROSS SHAFT BEARING CAGE | ||||
| 41135-55011 |
DA11#,FA100,11#..2SR T=0.25 |
3 | ||
| 41133-55011 |
DA11#,FA100,11#..2SR T=0.03 |
3 | ||
| 41136-55020 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 41134-55011 |
DA11#,FA100,11#..2SR T=0.10 |
3 | ||
| 41133-55020 |
DA11#,FA100,115..2SR T=0.13 |
3 | ||
| 41134-55020 |
DA11#,FA100,115..2SR T=0.10 |
3 | ||
| 41136-55011 |
DA11#,FA100,11#..2SR T=0.45 |
3 | ||
| 41135-55020 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 41141 - RETAINER, DIAPHRAGM CROSS SHAFT BEARING | ||||
| 41141-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41141-55030 |
DA11#,FA100,115..2SR |
1 | ||
| 41141A - BOLT, DIFFERENTIAL CROSS SHAFT BEARING RETAINER | ||||
| 90101-14165 |
DA11#,FA100,11#..2SR *14-1.5PX37-25 |
13 | ||
| 41141A - BOLT, DIFFERENTIAL CROSS SHAFT BEARING RETAINER | ||||
| 90101-14165 |
DA11#,FA100,11#..2SR *14-1.5PX37-25 |
13 | ||
| 41142 - GASKET, CROSS SHAFT BEARING RETAINER | ||||
| 41142-55011 |
DA11#,FA100,11#..2SR T=0.20 |
2 | ||
| 41142-55020 |
DA11#,FA100,115..2SR T=0.20 |
2 | ||
| 41142 - GASKET, CROSS SHAFT BEARING RETAINER | ||||
| 41142-55011 |
DA11#,FA100,11#..2SR T=0.20 |
2 | ||
| 41142-55020 |
DA11#,FA100,115..2SR T=0.20 |
2 | ||
| 41143 - SHIM, SHAFT BEARING RETAINER | ||||
| 41143-55011 |
DA11#,FA100,11#..2SR T=0.03 |
3 | ||
| 41145-55011 |
DA11#,FA100,11#..2SR T=0.25 |
3 | ||
| 41143-55020 |
DA11#,FA100,115..2SR T=0.13 |
3 | ||
| 41144-55011 |
DA11#,FA100,11#..2SR T=0.10 |
3 | ||
| 41145-55020 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 41147-55010 |
DA11#,FA100,115..2SR T=1.0 |
3 | ||
| 41146-55020 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 41146-55011 |
DA11#,FA100,11#..2SR T=0.45 |
3 | ||
| 41144-55020 |
DA11#,FA100,115..2SR T=0.10 |
3 | ||
| 41161 - COVER, DIFFERENTIAL DRIVE PINION | ||||
| 41121-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41121-55012 |
DA11#,FA100,11#..2SR |
1 | ||
| 41121-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41161A - PLUG, DIFFERENTIAL DRIVE PINION COVER | ||||
| 90345-53020 |
DA11#,FA100,11#..2SR ISO |
1 | ||
| 90345-53008 |
DA11#,FA100,11#..2SR |
1 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41122-55011 |
DA11#,FA100,11#..2SR T=0.2 |
2 | ||
| 41122-55020 |
DA11#,FA100,115..2SR T=0.2 |
2 | ||
| 41162 - GASKET, DIFFERENTIAL DRIVE PINION COVER | ||||
| 41122-55011 |
DA11#,FA100,11#..2SR T=0.2 |
2 | ||
| 41122-55020 |
DA11#,FA100,115..2SR T=0.2 |
2 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-70143 |
DA11#,FA100,115..2SR |
1 | ||
| 90311-70072 |
DA11#,FA100,11#..2SR |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41204-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41204-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-31125 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 90201-31563 |
DA11#,FA100,115..2SR |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90171-30008 |
DA11#..2SR;DB105,FA100,115 |
1 | ||
| 90171-30008 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-55031 |
DA11#,FA100,11#..2SR |
1 | ||
| 41214-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41252-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41315-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-55010 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41316-55020 |
DA11#,FA100,115..2SR |
2 | ||
| 41403 - DIAPHRAGM SUB-ASSY | ||||
| 41403-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41403-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41404 - SHAFT SUB-ASSY, SHIFT FORK | ||||
| 41404-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41404-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41410 - DIAPHRAGM ASSY | ||||
| 41410-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41410-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41410A - BOLT (FOR DIAPHRAGM SET) | ||||
| 90116-10031 |
DA11#,FA100,11#..2SR |
2 | ||
| 41410C - GASKET, DIAPHRAGM | ||||
| 90430-36054 |
DA11#,FA100,11#..2SR T=1.5 |
1 | ||
| 90430-08033 |
DA11#,FA100,115..2SR T=0.8,OD=14,ID=8.4 |
1 | ||
| 41410C - GASKET, DIAPHRAGM | ||||
| 90430-36054 |
DA11#,FA100,11#..2SR T=1.5 |
1 | ||
| 90430-08033 |
DA11#,FA100,115..2SR T=0.8,OD=14,ID=8.4 |
1 | ||
| 41410D - SEAL, OIL DIAPHRAGM | ||||
| 90310-32009 |
DA11#,FA100,11#..2SR |
1 | ||
| 41415 - CAP, DIAPHRAGM CHAMBER | ||||
| 41415-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41431 - ROD, PUSH | ||||
| 41431-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41431-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41431A - SPACER, PUSH ROD, NO.1 | ||||
| 90560-09104 |
DA11#,FA100,11#..2SR |
1 | ||
| 90560-09446 |
DA11#,FA100,115..2SR |
1 | ||
| 41431B - SPRING, COMPRESSION, PUSH ROD | ||||
| 90501-32001 |
DA11#,FA100,115..2SR |
1 | ||
| 90501-26154 |
DA11#,FA100,11#..2SR |
1 | ||
| 41431C - WASHER, PUSH ROD | ||||
| 90201-08135 |
DA11#,FA100,11#..2SR |
2 | ||
| 41431C - WASHER, PUSH ROD | ||||
| 90201-08135 |
DA11#,FA100,11#..2SR |
2 | ||
| 41431D - SPACER, PUSH ROD, NO.2 | ||||
| 90560-09445 |
DA11#,FA100,115..2SR |
1 | ||
| 90560-09103 |
DA11#,FA100,11#..2SR |
1 | ||
| 41431E - RING, HOLE SNAP, PUSH ROD | ||||
| 96151-02100 |
DA11#,FA100,11#..2SR |
1 | ||
| 90521-23060 |
DA11#,FA100,11#..2SR |
1 | ||
| 41432A - RING, O, SHIFT FORK SHAFT | ||||
| 90301-44040 |
DA11#,FA100,11#..2SR |
1 | ||
| 41443 - SLEEVE, DIAPHRAGM | ||||
| 41443-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41443-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41444 - SPACER, SHIFT FORK | ||||
| 41444-55010 |
DA11#,FA100,11#..2SR T=0.45 |
1 | ||
| 41445 - SHIM, FORK SHAFT ADJUSTING | ||||
| 41445-55010 |
DA11#,FA100,11#..2SR T=0.05 |
3 | ||
| 41447-55010 |
DA11#,FA100,11#..2SR T=0.228 |
3 | ||
| 41446-55010 |
DA11#,FA100,11#..2SR T=0.1 |
3 | ||
| 41448 - GASKET, DIAPHRAGM CHAMBER FLANGE | ||||
| 41448-55010 |
DA11#,FA100,11#..2SR T=0.5 |
1 | ||
| Common parts | ||||
| 90101-14165 | ||||
| 91111-40816 | ||||
| 91112-41440 | ||||
| 91181-41240 | ||||
| 94110-41000 | ||||
| 94115-40500 | ||||
| 94115-51400 | ||||
| 94120-40800 | ||||
| 94125-41200 | ||||
| 94125-41400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01400 | ||||
| 95381-05045 | ||||
| Linked diagrams | ||||
| 3701 | ||||
ILLUST NO. 3 OF 4(7404- )2SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-55041 |
DA11#,FA100,11#..2SR N=21:8 |
1 | ||
| 41201-55080 |
DA11#,FA100,115..2SR N=29:11 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97609-32311 |
DA11#,FA100,11#..2SR |
1 | ||
| 97619-32314 |
DA11#,FA100,115..2SR |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-32311 |
DA11#,FA100,115..2SR |
1 | ||
| 97609-32310 |
DA11#,FA100,11#..2SR |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 41231-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41231-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-50045 |
DA11#,DB10#,FA100,11#,FB100 T=0.100 |
3 | ||
| 90564-50046 |
DA11#,DB10#,FA100,11#,FB100 T=0.228 |
3 | ||
| 90564-55180 |
DA11#,FA100,115..2SR T=0.25 |
3 | ||
| 90564-50044 |
DA11#,DB10#,FA100,11#,FB100 T=0.030 |
3 | ||
| 90564-55178 |
DA11#,FA100,115..2SR T=0.03 |
3 | ||
| 90564-55179 |
DA11#,FA100,115..2SR T=0.1 |
3 | ||
| 90564-55182 |
DA11#,FA100,115..2SR T=0.7 |
3 | ||
| 90564-55181 |
DA11#,FA100,115..2SR T=0.45 |
3 | ||
| 90564-50047 |
DA11#,DB10#,FA100,11#,FB100 T=0.450 |
3 | ||
| 41241 - CROSS SHAFT, DIFFERENTIAL | ||||
| 41241-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41241-55012 |
DA11#,FA100,11#..2SR |
1 | ||
| 41241-55013 |
DA11#,FA100,11#..2SR |
1 | ||
| 41241A - BEARING, DIFFERENTIAL CROSS SHAFT, RH | ||||
| 97609-32311 |
DA11#,FA100,11#..2SR |
1 | ||
| 90368-99081 |
DA11#,FA100,115..2SR |
1 | ||
| 41241B - BEARING, DIFFERENTIAL CROSS SHAFT, LH | ||||
| 97609-32310 |
DA11#,FA100,11#..2SR |
1 | ||
| 90368-54079 |
DA11#,FA100,115..2SR |
1 | ||
| 41242 - PINION, DIFFERENTIAL HIGH SPEED | ||||
| 41242-55030 |
DA11#..2SR N=17 |
1 | ||
| 41242-55021 |
DA11#,FA100,11#..2SR N=17 |
1 | ||
| 41243 - PINION, DIFFERENTIAL LOW SPEED | ||||
| 41243-55021 |
DA11#,FA100,11#..2SR N=12 |
1 | ||
| 41243-55030 |
DA11#..2SR N=12 |
1 | ||
| 41244 - COLLAR, DIFFERENTIAL PINION SHIFT | ||||
| 41244-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41244-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41245 - PLUNGER, SHIFT COLLAR LOCK | ||||
| 41245-55010 |
DA11#,FA100,11#..2SR |
3 | ||
| 41245A - SPRING, COMPRESSION, SHIFT COLLAR | ||||
| 90501-08084 |
DA11#,FA100,11#..2SR |
3 | ||
| 41246 - PLATE, DIFFERENTIAL CROSS SHAFT THRUST, RH | ||||
| 41246-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41246-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41246A - WASHER, DIFFERENTIAL CROSS SHAFT THRUST PLATE | ||||
| 33434-55020 |
DA11#,FA100,11#..2SR |
2 | ||
| 41248-55010 |
DA11#,FA100,115..2SR |
2 | ||
| 41246A - WASHER, DIFFERENTIAL CROSS SHAFT THRUST PLATE | ||||
| 33434-55020 |
DA11#,FA100,11#..2SR |
2 | ||
| 41248-55010 |
DA11#,FA100,115..2SR |
2 | ||
| 41247 - PLATE, DIFFERENTIAL CROSS SHAFT THRUST, LH | ||||
| 41247-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41246-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-76080 |
DA11#,FA100,115..2SR |
2 | ||
| 90368-66006 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-76080 |
DA11#,FA100,115..2SR |
2 | ||
| 90368-66006 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-55040 |
DA11#,FA100,11#..2SR |
1 | ||
| 41301-55050 |
DA11#,FA100,115..2SR |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-55041 |
DA11#,DB10#,FA100,11#,FB100 N=14 |
2 | ||
| 41331-55050 |
DA11#,FA100,115..2SR N=14 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-55041 |
DA11#,DB10#,FA100,11#,FB100 N=14 |
2 | ||
| 41331-55050 |
DA11#,FA100,115..2SR N=14 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55041 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41341-55050 |
DA11#,FA100,115..2SR N=10 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-55030 |
DA11#,FA100,115..2SR |
4 | ||
| 41351-55020 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-55030 |
DA11#,FA100,115..2SR |
2 | ||
| 41361-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-55030 |
DA11#,FA100,115..2SR |
2 | ||
| 41361-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-55031 |
DA11#,FA100,11#..2SR |
1 | ||
| 41371-55040 |
DA11#,FA100,115..2SR |
1 | ||
| 41372 - GEAR, DIFFERENTIAL LOW SPEED | ||||
| 41372-55020 |
DA11#,FA100,11#..2SR N=31 |
1 | ||
| 41372-55030 |
DA11#..2SR N=30 |
1 | ||
| 41372A - BOLT, DIFFERENTIAL LOW SPEED, GEAR | ||||
| 90930-04002 |
DA11#,FA100,11#..2SR |
8 | ||
| 90102-16063 |
DA11#,FA100,115..2SR *16-1.5PX61.5-31.5 |
8 | ||
| 41373 - GEAR, DIFFERENTIAL HIGH SPEED | ||||
| 41373-55030 |
DA11#..2SR N=31 |
1 | ||
| 41373-55020 |
DA11#,FA100,11#..2SR N=31 |
1 | ||
| 41373A - BOLT, DIFFERENTIAL HIGH SPEED SET | ||||
| 90930-04003 |
DA11#,FA100,11#..2SR |
8 | ||
| 90102-16064 |
DA11#,FA100,115..2SR *16-1.5PX151-26 |
8 | ||
| 41441 - FORK, SHIFT | ||||
| 41441-55011 |
DA11#,FA100,11#..2SR |
1 | ||
| 41441-55020 |
DA11#,FA100,115..2SR |
1 | ||
| 41441-55021 |
DA11#,FA100,115..2SR |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-09046 |
DA11#,FA100,115..2SR |
1 | ||
| 41442-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| Common parts | ||||
| 90101-12472 | ||||
| 90171-16049 | ||||
| 90201-16286 | ||||
| 95381-03028 | ||||
ILLUST NO. 4 OF 4(7510- )2SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41501 - CONNECTOR SUB-ASSY, SPEED VACUUM TUBE | ||||
| 41501-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41501A - HOSE, SHIFT VALVE TO CONNECTOR | ||||
| 90445-21503 |
DA11#,FA100,11#..2SR L=135 |
1 | ||
| 90445-21198 |
DA11#,FA100,11#..2SR L=210 |
1 | ||
| 90445-21614 |
DA11#,FA100,115..2SR L=70 |
1 | ||
| 41501B - HOSE, CONNECTOR TO LOW GEAR SHIFT VACUUM TUBE | ||||
| 90445-21614 |
DA11#,FA100,11#..2SR L=70 |
1 | ||
| 90445-21194 |
DA11#,FA100,11#..2SR L=85 |
1 | ||
| 41511 - TUBE, LOW GEAR SHIFT VACUUM | ||||
| 41511-55051 |
DA11#,FA100,11#..2SR..GEN |
1 | ||
| 41511-55060 |
DA11#,FA100,115..2SR W/AIR OVER BRAKE |
1 | ||
| 41511-55050 |
DA11#,FA100,11#..2SR |
1 | ||
| 41511A - HOSE, LOW GEAR SHIFT VACUUM TUBE | ||||
| 90445-21192 |
DA11#,FA100,11#..2SR L=120 |
1 | ||
| 41512 - TUBE, HIGH GEAR SHIFT VACUUM | ||||
| 41512-55050 |
DA11#,FA100,11#..2SR |
1 | ||
| 41512-55051 |
DA11#,FA100,11#..2SR..GEN |
1 | ||
| 41512-55060 |
DA11#,FA100,115..2SR W/AIR OVER BRAKE |
1 | ||
| 41512A - HOSE, VACUUM SHIFT VALVE TO HIGH GEAR SHIFT VACUUM TUBE | ||||
| 90445-21503 |
DA11#,FA100,115..2SR L=135 |
1 | ||
| 90445-21198 |
DA11#,FA100,11#..2SR L=210 |
1 | ||
| 90445-21614 |
DA11#,FA100,11#..2SR L=70 |
1 | ||
| 41513 - BRACKET, GEAR SHIFT VACUUM TUBE | ||||
| 41513-55021 |
DA11#,FA100,11#..2SR |
1 | ||
| 41516 - TUBE, LOW GEAR SHIFT VACUUM, NO.2 | ||||
| 41516-55010 |
DA110,FA100,110..2SR |
1 | ||
| 41516A - HOSE, LOW GEAR SHIFT VACUUM, REAR | ||||
| 90445-21195 |
DA11#,FA100,11#..2SR L=360 |
1 | ||
| 41517 - TUBE, HIGH GEAR SHIFT VACUUM, NO.2 | ||||
| 41517-55010 |
DA110,FA100,110..2SR |
1 | ||
| 41517A - HOSE, HIGH GEAR SHIFT VACUUM TUBE | ||||
| 90445-21192 |
DA11#,FA100,11#..2SR L=120 |
1 | ||
| 41517C - HOSE, HIGH GEAR SHIFT VACUUM, REAR | ||||
| 90445-21195 |
DA11#,FA100,11#..2SR L=360 |
1 | ||
| 41520 - CLEANER ASSY, AIR (FOR CHANGE VALVE) | ||||
| 41520-55010 |
DA11#,FA100,115..2SR |
1 | ||
| 41521C - HOSE, CHANGE VALVE AIR CLEANER FRONT, TUBE | ||||
| 90445-21198 |
DA11#,FA100,11#..2SR L=210 |
1 | ||
| 90445-21193 |
DA11#,FA100,11#..2SR L=250 |
1 | ||
| 90445-21364 |
DA11#,FA100,115..2SR L=320 |
1 | ||
| 90445-21364 |
DA11#,FA100,115..2SR L=320 |
1 | ||
| 90445-21195 |
DA11#,FA100,115..2SR L=360 |
1 | ||
| 90445-21004 |
DA11#,FA100,115..2SR |
1 | ||
| 41523 - BRACKET, AIR CLEANER (FOR CHANGE VALVE) | ||||
| 41523-55010 |
DA11#,FA100,115..2SR |
1 | ||
| 41523-55011 |
DA11#,FA100,115..2SR |
1 | ||
| 41531 - TUBE, SPEEDOMETER VACUUM, FRONT | ||||
| 41531-55040 |
DA11#..2SR |
1 | ||
| 41531-55040 |
DA11#,FA100,115..2SR..GEN |
1 | ||
| 41531-55050 |
DA11#..2SR W/AIR OVER BRAKE |
1 | ||
| 41531-55030 |
DA11#,FA100,11#..2SR |
1 | ||
| 41531 - TUBE, SPEEDOMETER VACUUM, FRONT | ||||
| 41531-55040 |
DA11#..2SR |
1 | ||
| 41531-55040 |
DA11#,FA100,115..2SR..GEN |
1 | ||
| 41531-55050 |
DA11#..2SR W/AIR OVER BRAKE |
1 | ||
| 41531-55030 |
DA11#,FA100,11#..2SR |
1 | ||
| 41531A - HOSE, ADAPTER TO FRONT VACUUM TUBE | ||||
| 90445-12009 |
DA11#,FA100,11#..2SR L=620 |
1 | ||
| 90445-12041 |
DA11#,FA100,115..2SR..GEN L=600,W/TACHOGRAPH |
1 | ||
| 90445-12060 |
DA11#,FA100,115..2SR L=730 |
1 | ||
| 41531B - HOSE, FRONT VACUUM TUBE TO REAR VACUUM TUBE | ||||
| 90445-12010 |
DA11#,FA100,11#..2SR..GEN L=120 |
1 | ||
| 90445-12094 |
DA11#..2SR L=230,W/AIR OVER BRAKE |
1 | ||
| 41531B - HOSE, FRONT VACUUM TUBE TO REAR VACUUM TUBE | ||||
| 90445-12010 |
DA11#,FA100,11#..2SR..GEN L=120 |
1 | ||
| 90445-12094 |
DA11#..2SR L=230,W/AIR OVER BRAKE |
1 | ||
| 41532 - TUBE, SPEEDOMETER VACUUM, REAR | ||||
| 41532-55030 |
DA11#..2SR |
1 | ||
| 41532-55022 |
DA11#,FA100,115..2SR |
1 | ||
| 41532-55021 |
DA11#,FA100,11#..2SR |
1 | ||
| 41532-55030 |
DA11#,FA100,115..2SR |
1 | ||
| 41532-55020 |
DA11#,FA100,11#..2SR |
1 | ||
| 41532 - TUBE, SPEEDOMETER VACUUM, REAR | ||||
| 41532-55030 |
DA11#..2SR |
1 | ||
| 41532-55022 |
DA11#,FA100,115..2SR |
1 | ||
| 41532-55021 |
DA11#,FA100,11#..2SR |
1 | ||
| 41532-55030 |
DA11#,FA100,115..2SR |
1 | ||
| 41532-55020 |
DA11#,FA100,11#..2SR |
1 | ||
| 41532A - HOSE, SPEEDOMETER VACUUM REAR TUBE | ||||
| 90445-12010 |
DA11#,FA100,11#..2SR L=120 |
1 | ||
| 90445-12601 |
DA11#,FA100,11#..2SR L=100 |
1 | ||
| 41551 - PROTECTOR, AIR CLEANER (FOR CHANGE VALVE) | ||||
| 41551-55010 |
DA11#,FA100,115..2SR |
1 | ||
| 41561 - BRACKET, VACUUM SHIFT VALVE | ||||
| 41561-55010 |
DA11#,FA100,11#..2SR |
1 | ||
| 41600 - VALVE ASSY, VACUUM SHIFT | ||||
| 41600-55030 |
DA11#,FA100,11#..2SR |
1 | ||
| 41600-55033 |
DA11#,FA100,11#..2SR |
1 | ||
| 41600-55034 |
DA11#,FA100,115..2SR |
1 | ||
| 41600-55032 |
DA11#,FA100,11#..2SR |
1 | ||
| Common parts | ||||
| 90250-03103 | ||||
| 90461-08131 | ||||
| 90461-10174 | ||||
| 90462-16037 | ||||
| 90462-16055 | ||||
| 90462-16071 | ||||
| 91111-40820 | ||||
| 91111-41020 | ||||
| 91111-41025 | ||||
| 91111-41030 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94611-11000 | ||||
| 96112-10220 | ||||
| 96113-10120 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
