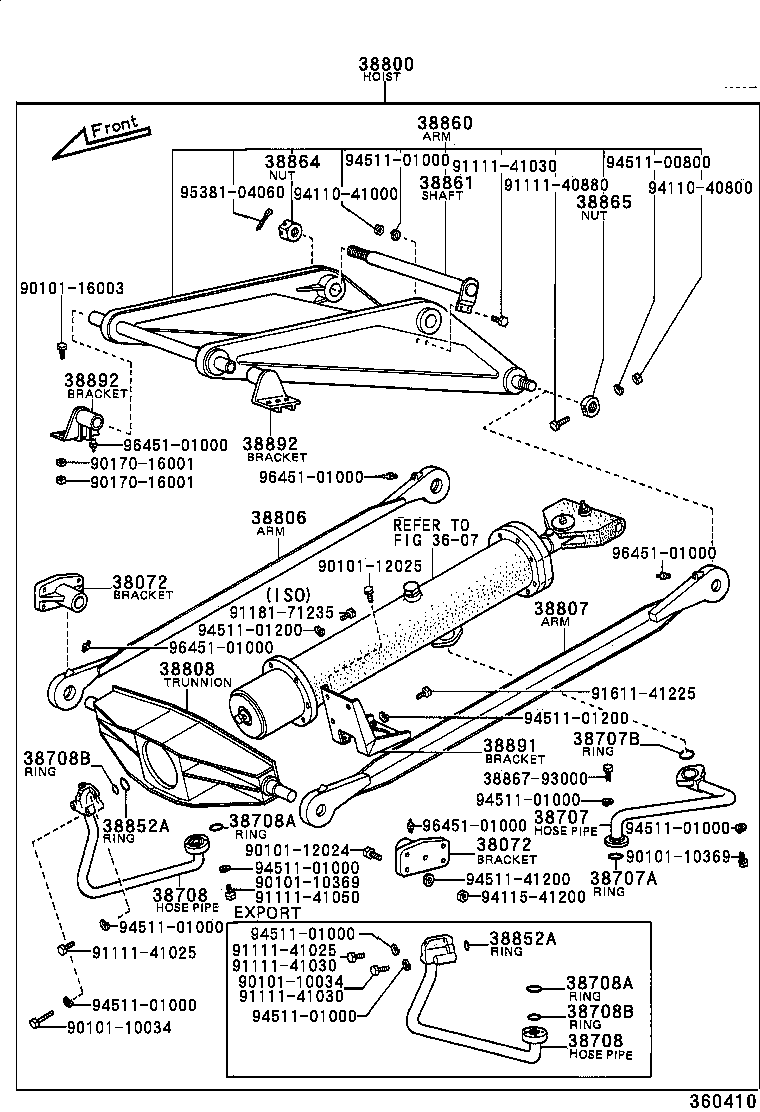

DA110LD-H (1969)
Toyota Heavy Duty Truck
(6903- )DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38072 - BRACKET SUB-ASSY, TRUNNION | ||||
| 38883-93200 |
DA110,FA100,110..DMP |
2 | ||
| 38072 - BRACKET SUB-ASSY, TRUNNION | ||||
| 38883-93200 |
DA110,FA100,110..DMP |
2 | ||
| 38707 - HOSE SUB-ASSY, SUCTION | ||||
| 38708-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38707A - RING, O, SUCTION PIPE NO.1 | ||||
| 96710-03038 |
DA110,FA100,110..DMP T=3.1,OD=45 |
1 | ||
| 38707B - RING, O, SUCTION PIPE NO.2 | ||||
| 90301-34001 |
DA110,FA100,110..DMP T=3.1,OD=40 |
1 | ||
| 38708 - HOSE SUB-ASSY, DELIVERY | ||||
| 38707-93012 |
DA110,FA100..DMP |
1 | ||
| 38707-93010 |
DA110,FA100,110..DMP |
1 | ||
| 38707-93011 |
DA110,FA100..DMP |
1 | ||
| 38708 - HOSE SUB-ASSY, DELIVERY | ||||
| 38707-93012 |
DA110,FA100..DMP |
1 | ||
| 38707-93010 |
DA110,FA100,110..DMP |
1 | ||
| 38707-93011 |
DA110,FA100..DMP |
1 | ||
| 38708A - RING, O, DELIVERY PIPE NO.1 | ||||
| 90301-39174 |
DA110,FA100,110..DMP T=3.1,OD=45 |
1 | ||
| 38708A - RING, O, DELIVERY PIPE NO.1 | ||||
| 90301-39174 |
DA110,FA100,110..DMP T=3.1,OD=45 |
1 | ||
| 38708B - RING, O, DELIVERY PIPE NO.2 | ||||
| 96710-03028 |
DA110,FA100,110..DMP T=3.5,OD=34 |
1 | ||
| 38708B - RING, O, DELIVERY PIPE NO.2 | ||||
| 96710-03028 |
DA110,FA100,110..DMP T=3.5,OD=34 |
1 | ||
| 38800 - HOIST, MECHANISM ASSY | ||||
| 38800-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38806 - ARM SUB-ASSY, TENSION, RH | ||||
| 38806-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38807 - ARM SUB-ASSY, TENSION, LH | ||||
| 38807-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38808 - TRUNNION SUB-ASSY | ||||
| 38808-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38852A - RING, O, BUFFER VALVE SEAT | ||||
| 90301-39174 |
DA110,FA100,110..DMP T=3.1,OD=45 |
1 | ||
| 38852A - RING, O, BUFFER VALVE SEAT | ||||
| 90301-39174 |
DA110,FA100,110..DMP T=3.1,OD=45 |
1 | ||
| 38860 - ARM ASSY, LIFT | ||||
| 38860-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38861 - SHAFT, CROSSHEAD | ||||
| 38861-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38864 - NUT, CROSSHEAD SHAFT | ||||
| 38864-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38865 - NUT, TENSION ARM SHAFT | ||||
| 38865-93000 |
DA110,FA100,110..DMP |
2 | ||
| 38891 - BRACKET, PUMP | ||||
| 38891-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38892 - BRACKET, LINK ARM BODY | ||||
| 38893-93000 |
DA110,FA100,110..DMP |
2 | ||
| 38892 - BRACKET, LINK ARM BODY | ||||
| 38893-93000 |
DA110,FA100,110..DMP |
2 | ||
| Common parts | ||||
| 38867-93000 | ||||
| 90101-10034 | ||||
| 90101-10369 | ||||
| 90101-12024 | ||||
| 90101-12025 | ||||
| 90101-16003 | ||||
| 90170-16001 | ||||
| 91111-40880 | ||||
| 91111-41025 | ||||
| 91111-41030 | ||||
| 91111-41050 | ||||
| 91181-71235 | ||||
| 91611-41225 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94511-01200 | ||||
| 94511-41200 | ||||
| 95381-04060 | ||||
| 96451-01000 | ||||
| Linked diagrams | ||||
| 3607 | ||||
