DA110LD-H (1969)
Toyota Heavy Duty Truck

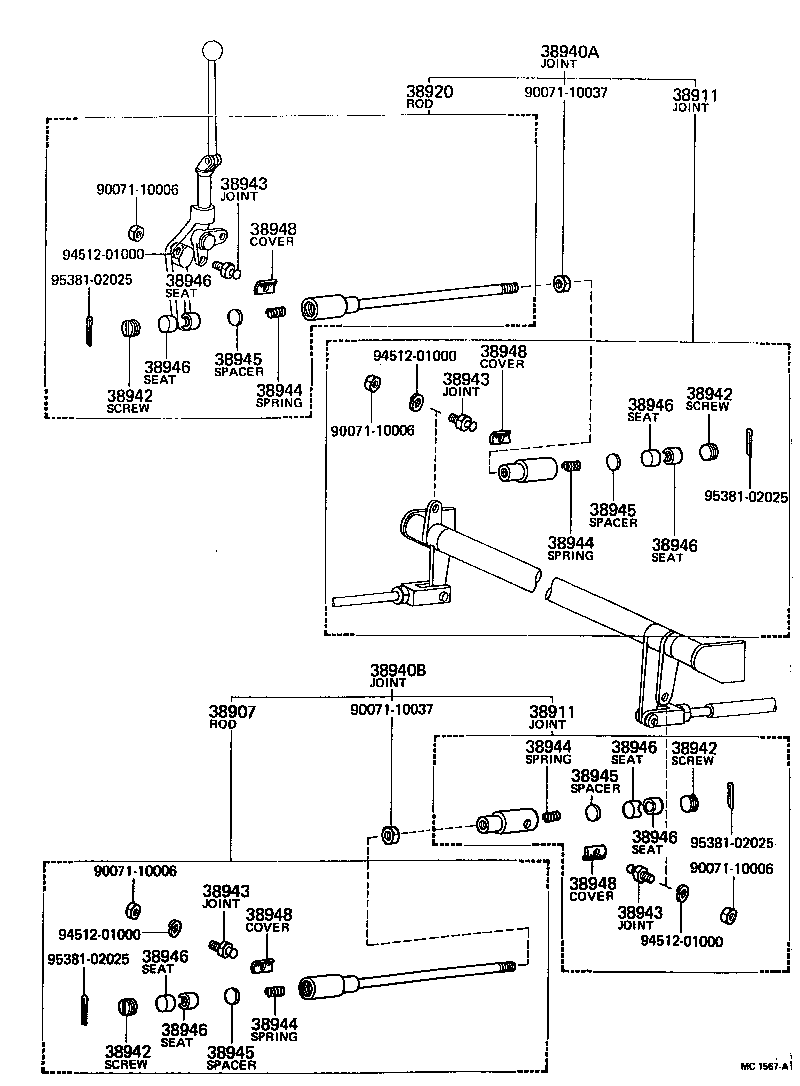

ILLUST NO. 2 OF 3(6903-7305)LHD..DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38907 - ROD ASSY, BALL JOINT, NO.2 | ||||
| 38902-93006 |
DA110,FA100,110..LHD..DMP..5F |
1 | ||
| 38956-93030 |
DA110,FA100,110..LHD..DMP..5F |
1 | ||
| 38911 - JOINT, BALL | ||||
| 38901-93000 |
DA110,FA100,110..DMP |
2 | ||
| 38901-93002 |
DA110,FA100..DMP |
4 | ||
| 38906-93101 |
DA110,FA100..DMP |
4 | ||
| 38901-93001 |
DA110,FA100,110..DMP |
4 | ||
| 38911 - JOINT, BALL | ||||
| 38901-93000 |
DA110,FA100,110..DMP |
2 | ||
| 38901-93002 |
DA110,FA100..DMP |
4 | ||
| 38906-93101 |
DA110,FA100..DMP |
4 | ||
| 38901-93001 |
DA110,FA100,110..DMP |
4 | ||
| 38920 - ROD ASSY, BALL JOINT, NO.1 | ||||
| 38902-93004 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38956-93040 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38940A - JOINT ASSY, BALL, A | ||||
| 38940-93005 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38940B - JOINT ASSY, BALL, B | ||||
| 38940-93007 |
DA110,FA100,110..LHD..DMP..5F |
1 | ||
| 38942 - SCREW, BALL JOINT SEAT | ||||
| 38947-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38942 - SCREW, BALL JOINT SEAT | ||||
| 38947-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38942 - SCREW, BALL JOINT SEAT | ||||
| 38947-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38942 - SCREW, BALL JOINT SEAT | ||||
| 38947-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38943 - JOINT, BALL | ||||
| 38943-93000 |
DA110,FA100,110..DMP |
6 | ||
| 38943 - JOINT, BALL | ||||
| 38943-93000 |
DA110,FA100,110..DMP |
6 | ||
| 38943 - JOINT, BALL | ||||
| 38943-93000 |
DA110,FA100,110..DMP |
6 | ||
| 38943 - JOINT, BALL | ||||
| 38943-93000 |
DA110,FA100,110..DMP |
6 | ||
| 38944 - SPRING, BALL JOINT | ||||
| 38944-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38944 - SPRING, BALL JOINT | ||||
| 38944-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38944 - SPRING, BALL JOINT | ||||
| 38944-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38944 - SPRING, BALL JOINT | ||||
| 38944-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38945 - SPACER, BALL JOINT SEAT | ||||
| 38945-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38945 - SPACER, BALL JOINT SEAT | ||||
| 38945-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38945 - SPACER, BALL JOINT SEAT | ||||
| 38945-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38945 - SPACER, BALL JOINT SEAT | ||||
| 38945-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38946 - SEAT, BALL JOINT | ||||
| 38946-93000 |
DA110,FA100,110..DMP |
8 | ||
| 38946 - SEAT, BALL JOINT | ||||
| 38946-93000 |
DA110,FA100,110..DMP |
8 | ||
| 38946 - SEAT, BALL JOINT | ||||
| 38946-93000 |
DA110,FA100,110..DMP |
8 | ||
| 38946 - SEAT, BALL JOINT | ||||
| 38946-93000 |
DA110,FA100,110..DMP |
8 | ||
| 38946 - SEAT, BALL JOINT | ||||
| 38946-93000 |
DA110,FA100,110..DMP |
8 | ||
| 38946 - SEAT, BALL JOINT | ||||
| 38946-93000 |
DA110,FA100,110..DMP |
8 | ||
| 38946 - SEAT, BALL JOINT | ||||
| 38946-93000 |
DA110,FA100,110..DMP |
8 | ||
| 38946 - SEAT, BALL JOINT | ||||
| 38946-93000 |
DA110,FA100,110..DMP |
8 | ||
| 38948 - COVER, BALL JOINT DUST | ||||
| 38948-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38948 - COVER, BALL JOINT DUST | ||||
| 38948-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38948 - COVER, BALL JOINT DUST | ||||
| 38948-93000 |
DA110,FA100,110..DMP |
4 | ||
| 38948 - COVER, BALL JOINT DUST | ||||
| 38948-93000 |
DA110,FA100,110..DMP |
4 | ||
| Common parts | ||||
| 90071-10006 | ||||
| 90071-10037 | ||||
| 94512-01000 | ||||
| 95381-02025 | ||||

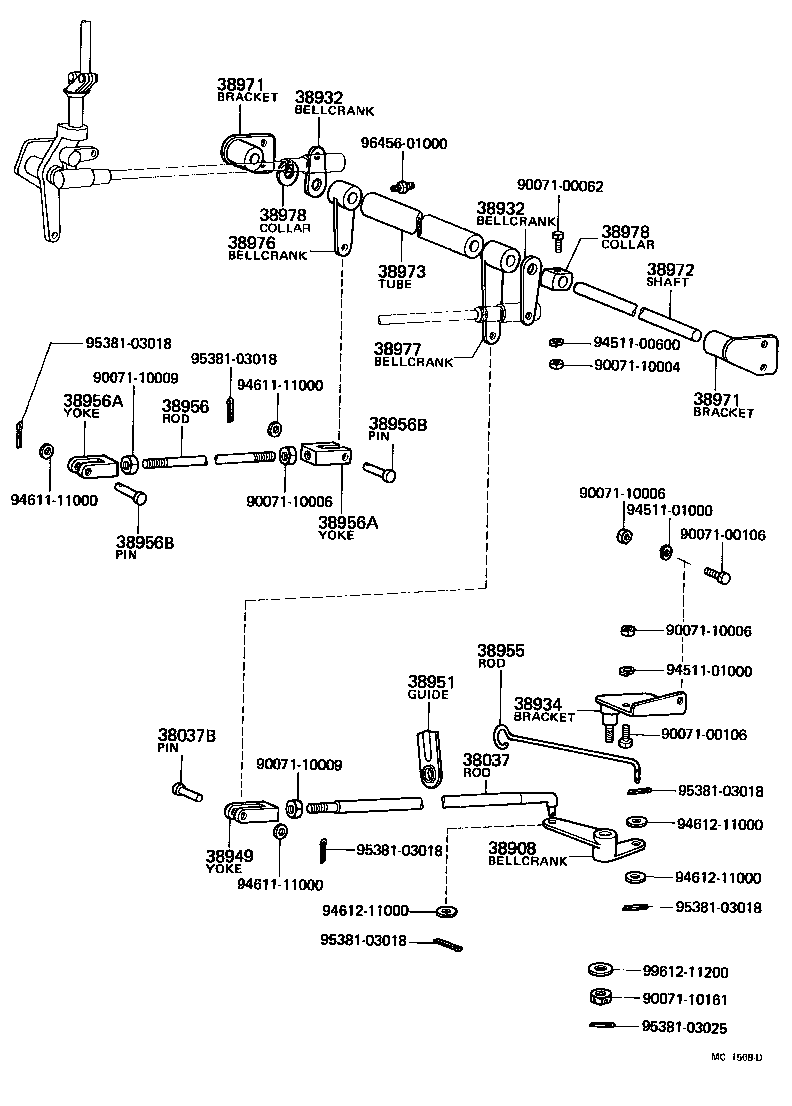

ILLUST NO. 3 OF 3(6903-7704)LHD..DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38037 - ROD SUB-ASSY, VALVE CONTROL, REAR | ||||
| 38905-93004 |
DA110,FA100..DMP |
1 | ||
| 38953-93003 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38037B - PIN, VALVE CONTROL REAR ROD | ||||
| 38925-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38908 - BELLCRANK SUB-ASSY, REAR SHIFT ROD | ||||
| 38908-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38932 - BELLCRANK, POWER TAKE-OFF GEAR SHIFT | ||||
| 38974-93000 |
DA110,FA100,110..LHD..DMP RH |
1 | ||
| 38975-93000 |
DA110,FA100,110..LHD..DMP LH |
1 | ||
| 38932 - BELLCRANK, POWER TAKE-OFF GEAR SHIFT | ||||
| 38974-93000 |
DA110,FA100,110..LHD..DMP RH |
1 | ||
| 38975-93000 |
DA110,FA100,110..LHD..DMP LH |
1 | ||
| 38934 - BRACKET, BELLCRANK | ||||
| 38933-93003 |
DA110,FA100,110..DMP |
1 | ||
| 38949 - YOKE, VALVE CONTROL REAR ROD | ||||
| 38949-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38951 - GUIDE, OIL CONTROL ROD | ||||
| 38951-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38955 - ROD, BALL JOINT | ||||
| 38955-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38956 - ROD, OIL CONTROL, NO.2 | ||||
| 38954-93001 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38956A - YOKE (FOR OIL CONTROL ROD NO.2) | ||||
| 65771-93001 |
DA110,FA100,110..LHD..DMP |
2 | ||
| 38956A - YOKE (FOR OIL CONTROL ROD NO.2) | ||||
| 65771-93001 |
DA110,FA100,110..LHD..DMP |
2 | ||
| 38956B - PIN (FOR OIL CONTROL ROD NO.2) | ||||
| 38929-93000 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38956B - PIN (FOR OIL CONTROL ROD NO.2) | ||||
| 38929-93000 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38971 - BRACKET, TORQUE SHAFT | ||||
| 38971-93003 |
DA110,FA100,110..LHD..DMP LH |
1 | ||
| 38971-93002 |
DA110,FA100,110..LHD..DMP RH |
1 | ||
| 38971 - BRACKET, TORQUE SHAFT | ||||
| 38971-93003 |
DA110,FA100,110..LHD..DMP LH |
1 | ||
| 38971-93002 |
DA110,FA100,110..LHD..DMP RH |
1 | ||
| 38972 - SHAFT, TORQUE | ||||
| 38972-93001 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38973 - TUBE, TORQUE SHAFT | ||||
| 38973-93001 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38976 - STAY, POWER TAKE-OFF CONTROL | ||||
| 38976-93001 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38977 - BELLCRANK, OIL CONTROL, LH | ||||
| 38977-93001 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38978 - COLLAR, TORQUE TUBE | ||||
| 38978-93001 |
DA110,FA100,110..LHD..DMP LH |
1 | ||
| 38978-93000 |
DA110,FA100,110..LHD..DMP RH |
1 | ||
| 38978 - COLLAR, TORQUE TUBE | ||||
| 38978-93001 |
DA110,FA100,110..LHD..DMP LH |
1 | ||
| 38978-93000 |
DA110,FA100,110..LHD..DMP RH |
1 | ||
| Common parts | ||||
| 90071-00062 | ||||
| 90071-00106 | ||||
| 90071-10004 | ||||
| 90071-10006 | ||||
| 90071-10009 | ||||
| 90071-10161 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94611-11000 | ||||
| 94612-11000 | ||||
| 95381-03018 | ||||
| 95381-03025 | ||||
| 96456-01000 | ||||
| 99612-11200 | ||||

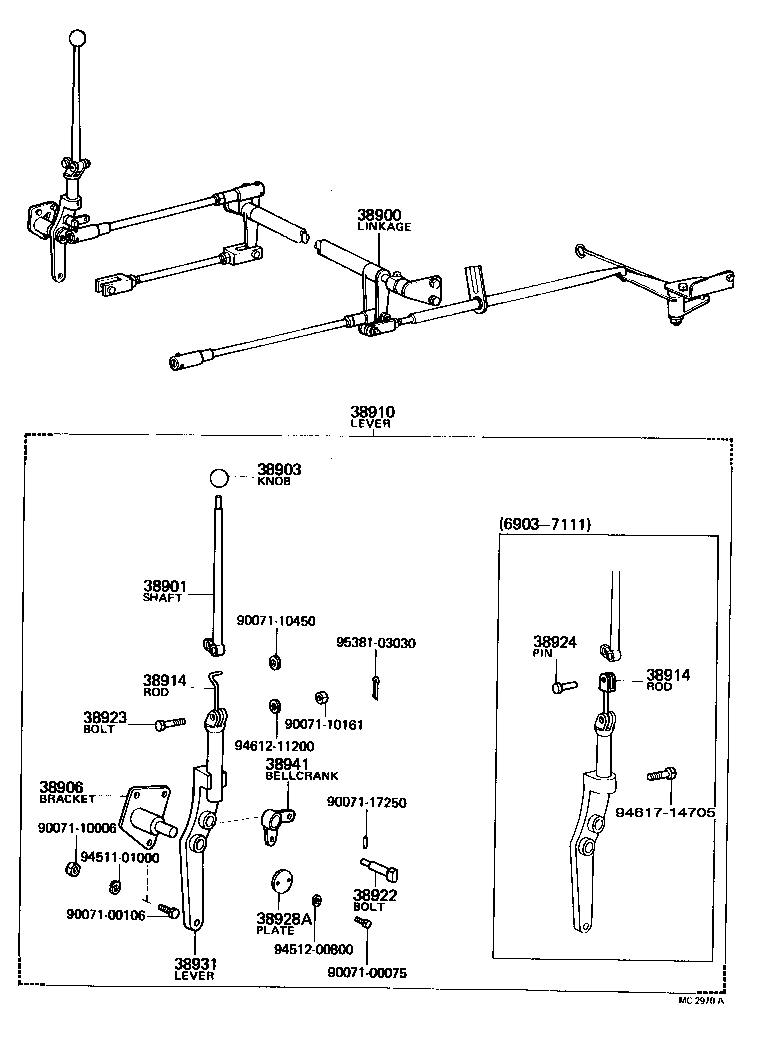

ILLUST NO. 1 OF 3(6903-7704)LHD..DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38900 - LINKAGE ASSY, CONTROL | ||||
| 38900-93013 |
DA110,FA100,110..LHD..DMP..5F |
1 | ||
| 38901 - SHAFT SUB-ASSY, CONTROL | ||||
| 38906-93000 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38903 - KNOB SUB-ASSY, CONTROL | ||||
| 38917-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38916-93004 |
DA110,FA100..DMP |
2 | ||
| 38906 - BRACKET SUB-ASSY, CONTROL SHAFT, LOWER | ||||
| 38916-93003 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38989-93001 |
DA110,FA100..LHD..DMP |
1 | ||
| 38910 - LEVER ASSY, DUMP | ||||
| 38910-93003 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38910-93005 |
DA110,FA100..LHD..DMP |
1 | ||
| 38914 - ROD, POWER TAKE-OFF GEAR SHIFT | ||||
| 38914-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38914-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38914 - ROD, POWER TAKE-OFF GEAR SHIFT | ||||
| 38914-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38914-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38922 - BOLT, POWER TAKE-OFF GEAR SHIFT BELLCRANK SET | ||||
| 38922-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38922-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38923 - BOLT, POWER TAKE-OFF GEAR SHIFT | ||||
| 38923-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38923-93002 |
DA110,FA100,110..DMP |
1 | ||
| 38924 - PIN, POWER TAKE-OFF GEAR SHIFT | ||||
| 38924-93000 |
DA110,FA100,110..DMP |
2 | ||
| 38928A - PLATE, DUMP LEVER LOWER BUSH | ||||
| 38918-93000 |
DA110,FA100,110..DMP |
1 | ||
| 38931 - LEVER, VALVE LINK | ||||
| 38905-93001 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38931-93002 |
DA110,FA100..DMP |
1 | ||
| 38905-93003 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38941 - BELLCRANK TAKE-OFF GEAR SHIFT | ||||
| 38904-93000 |
DA110,FA100,110..DMP |
1 | ||
| Common parts | ||||
| 90071-00075 | ||||
| 90071-00106 | ||||
| 90071-10006 | ||||
| 90071-10161 | ||||
| 90071-10450 | ||||
| 90071-17250 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
| 94612-11200 | ||||
| 94617-14705 | ||||
| 95381-03030 | ||||

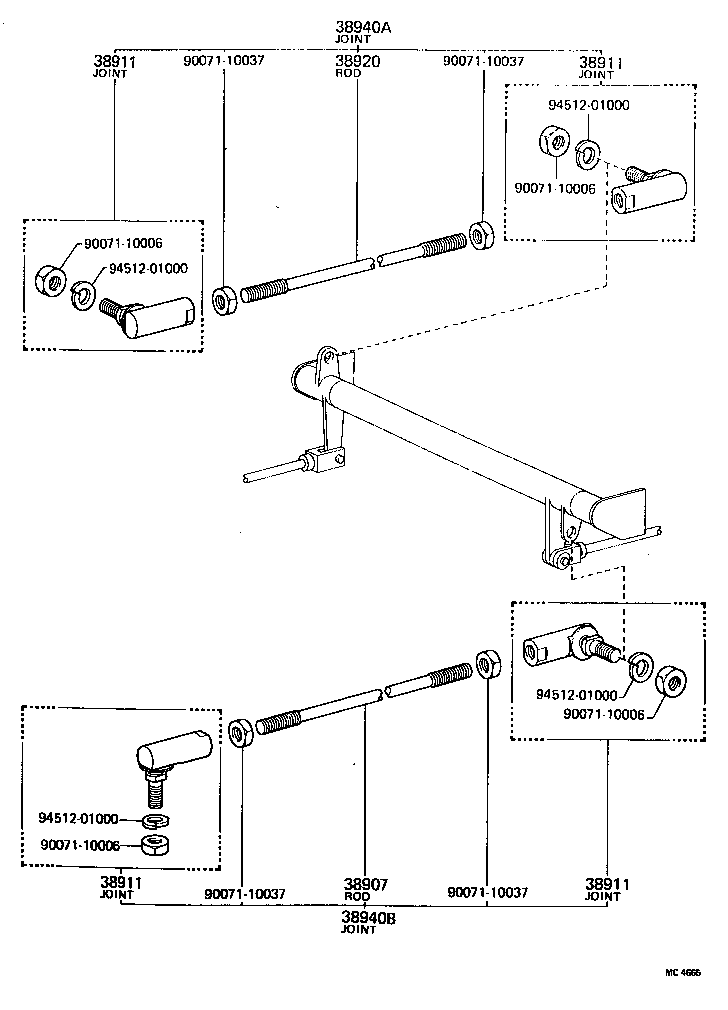

ILLUST NO. 2 OF 3(7305-7704)LHD..DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38907 - ROD ASSY, BALL JOINT, NO.2 | ||||
| 38902-93006 |
DA110,FA100,110..LHD..DMP..5F |
1 | ||
| 38956-93030 |
DA110,FA100,110..LHD..DMP..5F |
1 | ||
| 38911 - JOINT, BALL | ||||
| 38901-93000 |
DA110,FA100,110..DMP |
2 | ||
| 38901-93002 |
DA110,FA100..DMP |
4 | ||
| 38906-93101 |
DA110,FA100..DMP |
4 | ||
| 38901-93001 |
DA110,FA100,110..DMP |
4 | ||
| 38911 - JOINT, BALL | ||||
| 38901-93000 |
DA110,FA100,110..DMP |
2 | ||
| 38901-93002 |
DA110,FA100..DMP |
4 | ||
| 38906-93101 |
DA110,FA100..DMP |
4 | ||
| 38901-93001 |
DA110,FA100,110..DMP |
4 | ||
| 38911 - JOINT, BALL | ||||
| 38901-93000 |
DA110,FA100,110..DMP |
2 | ||
| 38901-93002 |
DA110,FA100..DMP |
4 | ||
| 38906-93101 |
DA110,FA100..DMP |
4 | ||
| 38901-93001 |
DA110,FA100,110..DMP |
4 | ||
| 38911 - JOINT, BALL | ||||
| 38901-93000 |
DA110,FA100,110..DMP |
2 | ||
| 38901-93002 |
DA110,FA100..DMP |
4 | ||
| 38906-93101 |
DA110,FA100..DMP |
4 | ||
| 38901-93001 |
DA110,FA100,110..DMP |
4 | ||
| 38920 - ROD ASSY, BALL JOINT, NO.1 | ||||
| 38902-93004 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38956-93040 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38940A - JOINT ASSY, BALL, A | ||||
| 38940-93005 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38940B - JOINT ASSY, BALL, B | ||||
| 38940-93007 |
DA110,FA100,110..LHD..DMP..5F |
1 | ||
| Common parts | ||||
| 90071-10006 | ||||
| 90071-10037 | ||||
| 94512-01000 | ||||

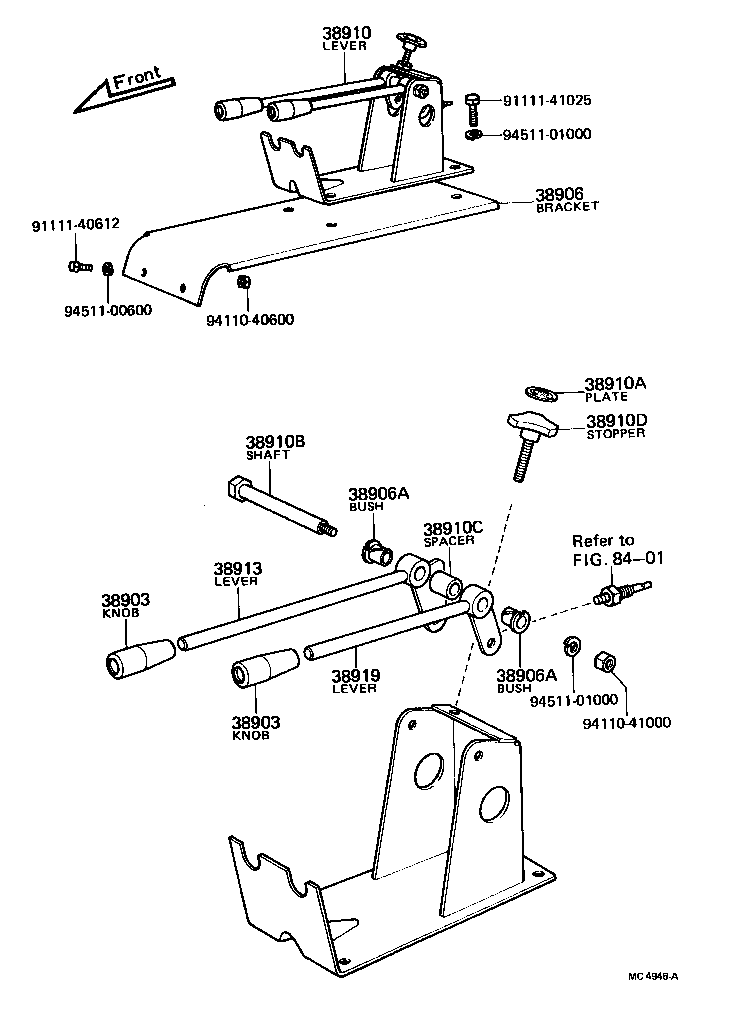

ILLUST NO. 1 OF 2(7704- )DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38903 - KNOB SUB-ASSY, CONTROL | ||||
| 38917-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38916-93004 |
DA110,FA100..DMP |
2 | ||
| 38903 - KNOB SUB-ASSY, CONTROL | ||||
| 38917-93001 |
DA110,FA100,110..DMP |
1 | ||
| 38916-93004 |
DA110,FA100..DMP |
2 | ||
| 38906 - BRACKET SUB-ASSY, CONTROL SHAFT, LOWER | ||||
| 38916-93003 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38989-93001 |
DA110,FA100..LHD..DMP |
1 | ||
| 38906A - BUSH, CONTROL LINK | ||||
| 90389-16001 |
DA110,FA100..DMP |
2 | ||
| 38906A - BUSH, CONTROL LINK | ||||
| 90389-16001 |
DA110,FA100..DMP |
2 | ||
| 38910 - LEVER ASSY, DUMP | ||||
| 38910-93003 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38910-93005 |
DA110,FA100..LHD..DMP |
1 | ||
| 38910A - PLATE, DUMP LEVER LOCK CAUTION | ||||
| 74536-93001 |
DA110,FA100..DMP |
1 | ||
| 38910B - SHAFT, CONTROL LEVER | ||||
| 38911-93002 |
DA110,FA100..DMP |
1 | ||
| 38910C - SPACER, CONTROL LEVER | ||||
| 38917-93002 |
DA110,FA100..DMP |
1 | ||
| 38910D - STOPPER, CONTROL LEVER | ||||
| 38918-93001 |
DA110,FA100..DMP |
1 | ||
| 38913 - LEVER, PUMP CONTROL | ||||
| 38913-93000 |
DA110,FA100..DMP |
1 | ||
| 38919 - LEVER, POWER TAKE-OFF CONTROL | ||||
| 38919-93000 |
DA110,FA100..DMP |
1 | ||
| Common parts | ||||
| 91111-40612 | ||||
| 91111-41025 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

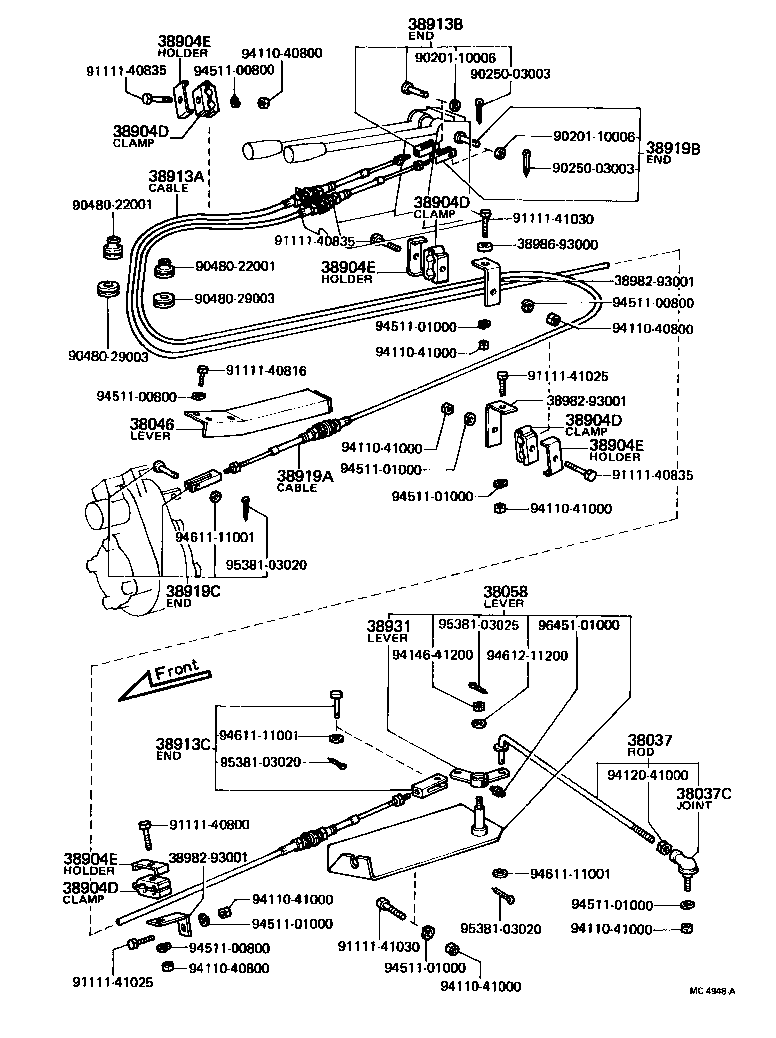

ILLUST NO. 2 OF 2(7704- )DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38037 - ROD SUB-ASSY, VALVE CONTROL, REAR | ||||
| 38905-93004 |
DA110,FA100..DMP |
1 | ||
| 38953-93003 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38037C - JOINT ASSY, BALL (FOR VALVE CONTROL ROD) | ||||
| 38906-93101 |
DA110,FA100..DMP |
1 | ||
| 38046 - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL | ||||
| 38046-93000 |
DA110,FA100..DMP..5F |
1 | ||
| 38058 - LEVER SUB-ASSY, VALVE CONTROL CENTER | ||||
| 38930-93002 |
DA110,FA100..DMP |
1 | ||
| 38904D - CLAMP, CABLE PUSH PULL | ||||
| 38987-93200 |
DA110,FA100..DMP |
4 | ||
| 38904D - CLAMP, CABLE PUSH PULL | ||||
| 38987-93200 |
DA110,FA100..DMP |
4 | ||
| 38904D - CLAMP, CABLE PUSH PULL | ||||
| 38987-93200 |
DA110,FA100..DMP |
4 | ||
| 38904D - CLAMP, CABLE PUSH PULL | ||||
| 38987-93200 |
DA110,FA100..DMP |
4 | ||
| 38904E - HOLDER, CABLE PUSH PULL CLAMP | ||||
| 38988-93200 |
DA110,FA100..DMP |
4 | ||
| 38904E - HOLDER, CABLE PUSH PULL CLAMP | ||||
| 38988-93200 |
DA110,FA100..DMP |
4 | ||
| 38904E - HOLDER, CABLE PUSH PULL CLAMP | ||||
| 38988-93200 |
DA110,FA100..DMP |
4 | ||
| 38904E - HOLDER, CABLE PUSH PULL CLAMP | ||||
| 38988-93200 |
DA110,FA100..DMP |
4 | ||
| 38913A - CABLE SUB-ASSY, PUSH PULL (FOR PUMP CONTROL) | ||||
| 38901-93007 |
DA110,FA100..LHD..DMP..5F |
1 | ||
| 38913B - END ASSY, CONTROL CABLE, NO.1 (FOR PUMP CONTROL) | ||||
| 38909-93200 |
DA110,FA100..DMP |
1 | ||
| 38913C - END ASSY, CONTROL CABLE, NO.2 (FOR PUMP CONTROL) | ||||
| 38909-93101 |
DA110,FA100..DMP |
1 | ||
| 38919A - CABLE SUB-ASSY, PUSH PULL (FOR POWER TAKE-OFF CONTROL) | ||||
| 38901-93005 |
DA110,FA100..LHD..DMP..5F |
1 | ||
| 38919B - END ASSY, CONTROL CABLE, NO.1(FOR POWER TAKE-OFF CONTRO | ||||
| 38909-93200 |
DA110,FA100..DMP |
1 | ||
| 38919C - END ASSY, CONTROL CABLE, NO.2(FOR POWER TAKE-OFF CONTRO | ||||
| 38909-93000 |
DA110,FA100..DMP |
1 | ||
| 38931 - LEVER, VALVE LINK | ||||
| 38905-93001 |
DA110,FA100,110..LHD..DMP |
1 | ||
| 38931-93002 |
DA110,FA100..DMP |
1 | ||
| 38905-93003 |
DA110,FA100,110..LHD..DMP |
1 | ||
| Common parts | ||||
| 38982-93001 | ||||
| 38986-93000 | ||||
| 90201-10006 | ||||
| 90250-03003 | ||||
| 90480-22001 | ||||
| 90480-29003 | ||||
| 91111-40800 | ||||
| 91111-40816 | ||||
| 91111-40835 | ||||
| 91111-41025 | ||||
| 91111-41030 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94146-41200 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 94612-11200 | ||||
| 95381-03020 | ||||
| 95381-03025 | ||||
| 96451-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
