DA110LD-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )DMP

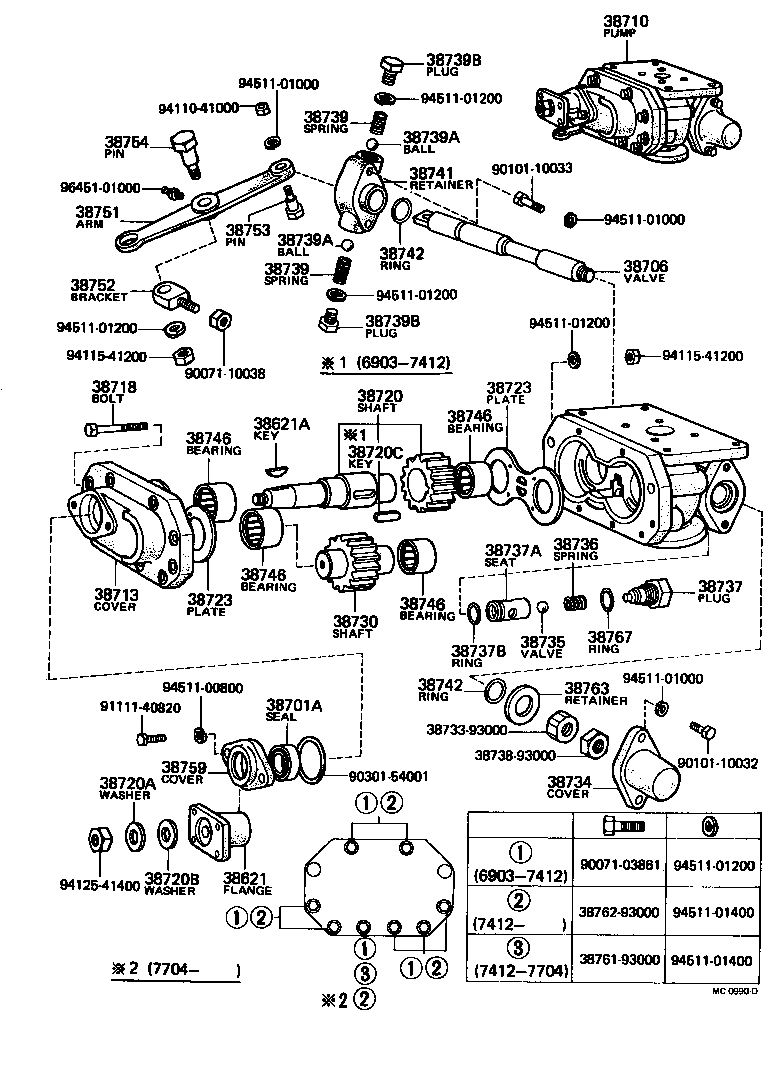

Click highlighted areas on diagram

diagram 38621 38621A 38701A 38706 38710 38713 38718 38720 38720A 38720B 38720C 38723 38723 38730 3873393000 38734 38735 38736 38737 38737A 38737B 3873893000 38739 38739 38739A 38739A 38739B 38739B 38741 38742 38742 38746 38746 38746 38746 38751 38752 38753 38754 38759 3876193000 3876293000 38763 38767 9007103861 9007110038 9010110032 9010110033 9030154001 9111140820 9411041000 9411541200 9411541200 9412541400 9451100800 9451101000 9451101000 9451101000 9451101200 9451101200 9451101200 9451101200 9451101200 9451101400 9451101400 9645101000
Part # Description Qty Price
38621 - FLANGE, OIL PUMP DRIVE SHAFT
38611-93000

DA110,FA100,110..DMP

 1
38621A - KEY, OIL PUMP DRIVE SHAFT FLANGE
90280-07011

DA110,FA100,110..DMP

 1
38701A - SEAL, OIL (FOR OIL PUMP BODY)
38748-93000

DA110,FA100,110..DMP

 1
38706 - VALVE SET, OIL PUMP
38731-93000

DA110,FA100,110..DMP

 1
38710 - PUMP ASSY, OIL
38710-93001

DA110,FA100,110..DMP

 1
38710-93003

DA110,FA100..DMP

 1
38710-93002

DA110,FA100..DMP

 1
38713 - COVER, OIL PUMP, FRONT
38713-93002

DA110,FA100..DMP

 1
38713-93001

DA110,FA100,110..DMP

 1
38718 - BOLT, COVER, LONG
38758-93001

DA110,FA100,110..DMP

 2
38720 - SHAFT ASSY, OIL PUMP DRIVE
38720-93002

DA110,FA100,110..DMP

 1
38720A - WASHER, LOCK (FOR OIL PUMP DRIVE SHAFT)
38631-93000

DA110,FA100,110..DMP

 1
38720B - WASHER, OIL PUMP DRIVE SHAFT
38635-93000

DA110,FA100,110..DMP

 1
38720C - KEY (FOR OIL PUMP DRIVE GEAR)
90071-18104

DA110,FA100,110..DMP

 1
38723 - PLATE, OIL PUMP GEAR SIDE
38723-93000

DA110,FA100,110..DMP

 2
38723 - PLATE, OIL PUMP GEAR SIDE
38723-93000

DA110,FA100,110..DMP

 2
38730 - SHAFT ASSY, OIL PUMP COUNTER
38730-93002

DA110,FA100,110..DMP

 1
38734 - COVER, PLUNGER
38734-93000

DA110,FA100,110..DMP

 1
38735 - VALVE, CHECK (FOR OIL PUMP)
38735-93000

DA110,FA100,110..DMP

 1
38736 - SPRING, CHECK VALVE
38736-93000

DA110,FA100,110..DMP

 1
38736-93001

DA110,FA100..DMP

 1
38737 - PLUG, CHECK VALVE
38737-93000

DA110,FA100,110..DMP

 1
38737-93001

DA110,FA100..DMP

 1
38737A - SEAT, CHECK VALVE
38763-93000

DA110,FA100..DMP

 1
38737B - RING, O (FOR CHECK VALVE SEAT)
96710-02021

DA110,FA100..DMP

 1
38739 - SPRING, PLUNGER NEUTRAL INDICATING BALL
38743-93000

DA110,FA100,110..DMP

 2
38739 - SPRING, PLUNGER NEUTRAL INDICATING BALL
38743-93000

DA110,FA100,110..DMP

 2
38739A - BALL, PLUNGER NEUTRAL INDICATING
90360-10001

DA110,FA100,110..DMP

 2
38739A - BALL, PLUNGER NEUTRAL INDICATING
90360-10001

DA110,FA100,110..DMP

 2
38739B - PLUG, CHECK BALL SPRING
38759-93001

DA110,FA100,110..DMP

 2
38739B - PLUG, CHECK BALL SPRING
38759-93001

DA110,FA100,110..DMP

 2
38741 - RETAINER, BALL
38741-93000

DA110,FA100,110..DMP

 1
38742 - RING, O (FOR OIL CHANGE SPOOL)
38746-93000

DA110,FA100,110..DMP

 2
38742 - RING, O (FOR OIL CHANGE SPOOL)
38746-93000

DA110,FA100,110..DMP

 2
38746 - BEARING, OIL PUMP SHAFT
38745-93000

DA110,FA100,110..DMP

 4
38746 - BEARING, OIL PUMP SHAFT
38745-93000

DA110,FA100,110..DMP

 4
38746 - BEARING, OIL PUMP SHAFT
38745-93000

DA110,FA100,110..DMP

 4
38746 - BEARING, OIL PUMP SHAFT
38745-93000

DA110,FA100,110..DMP

 4
38751 - ARM, CONTROL
38751-93001

DA110,FA100,110..DMP

 1
38752 - BRACKET, CONTROL ARM
38752-93001

DA110,FA100,110..DMP

ISO

 1
38753 - PIN, CONTROL ARM
38754-93000

DA110,FA100,110..DMP

 1
38754 - PIN, CONTROL ARM BRACKET
38753-93001

DA110,FA100,110..DMP

ISO

 1
38759 - COVER, SEAL (FOR OIL PUMP BODY)
38749-93000

DA110,FA100,110..DMP

 1
38763 - RETAINER, O RING(FOR OIL CHANGE SPOOL)
38732-93000

DA110,FA100,110..DMP

T=2.0,OD=32

 1
38767 - RING, O (FOR CHECK VALVE SPRING)
38747-93000

DA110,FA100,110..DMP

 1
Common parts
38733-93000
38738-93000
38761-93000
38762-93000
90071-03861
90071-10038
90101-10032
90101-10033
90301-54001
91111-40820
94110-41000
94115-41200
94125-41400
94511-00800
94511-01000
94511-01200
94511-01400
96451-01000
