Toyota Heavy duty truck DA110 ALTERNATOR

DA110LD- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7207-9804)2D

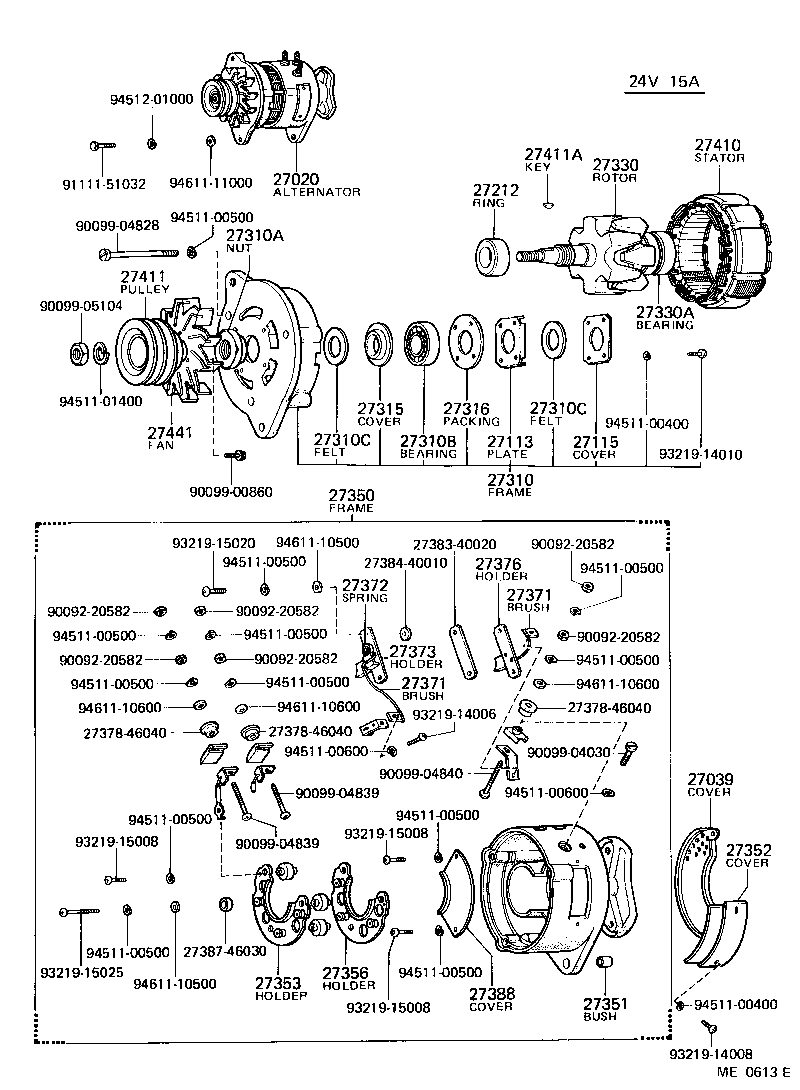

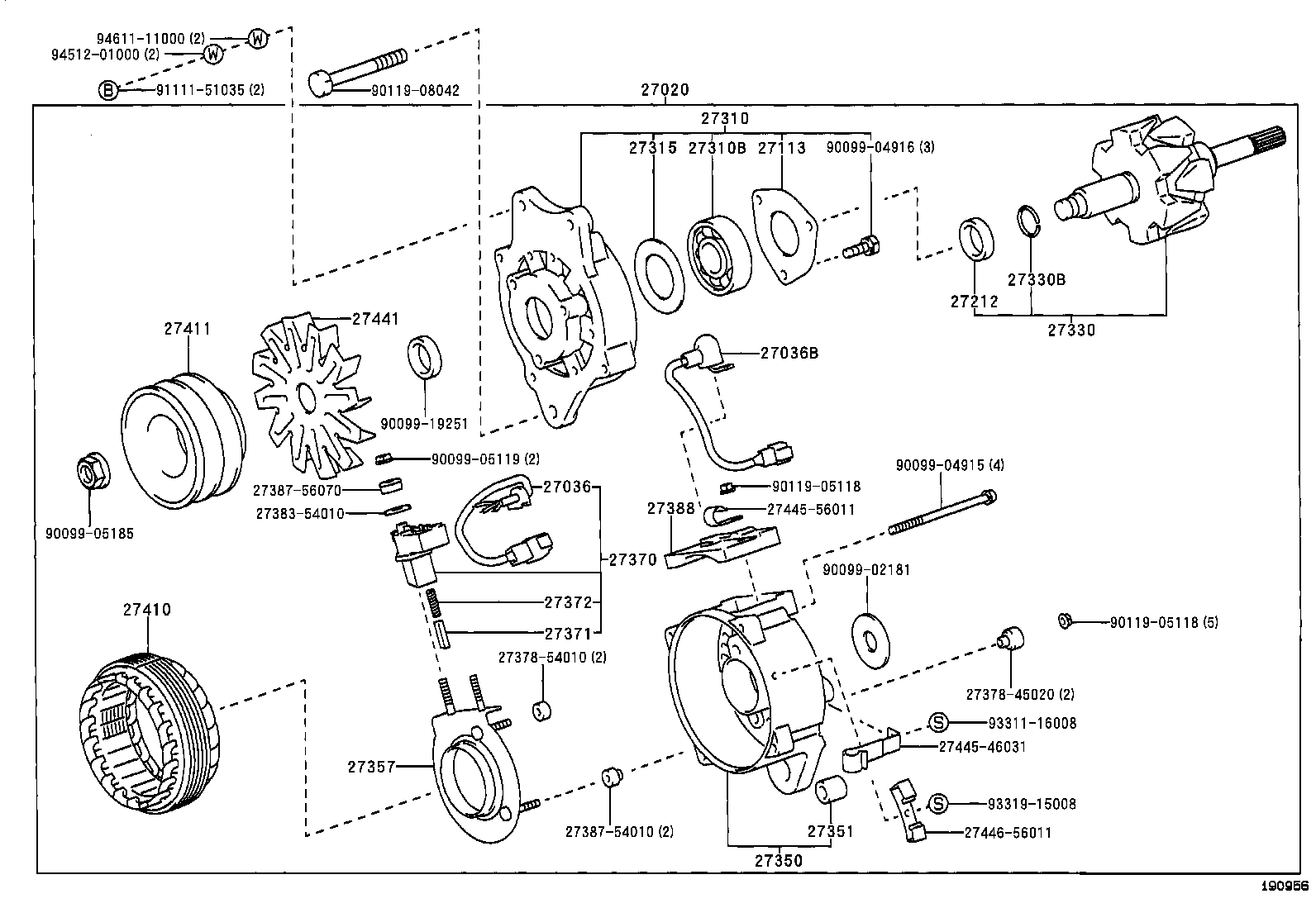

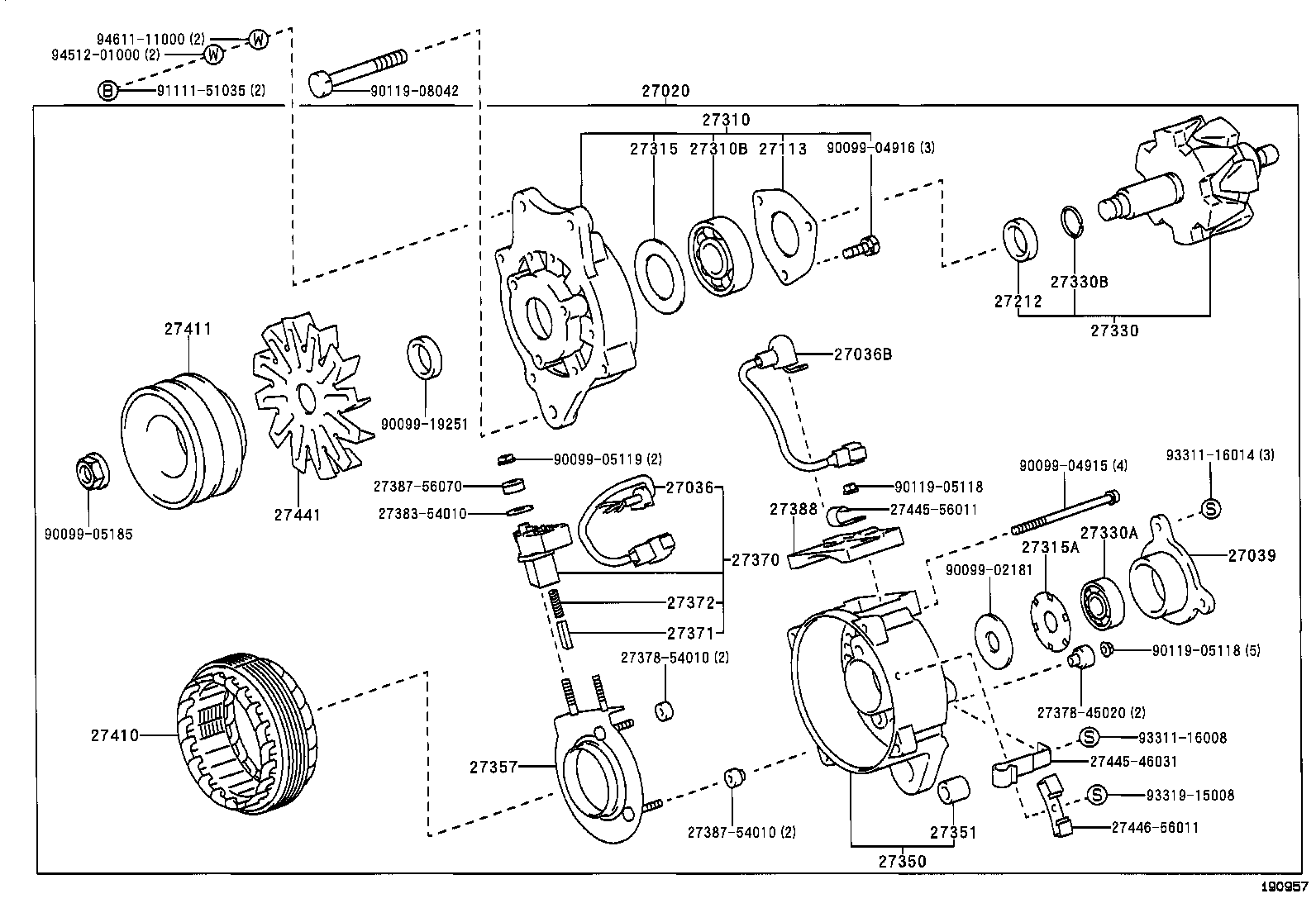

Click highlighted areas on diagram

24V 15A,W/VACUUM PUMP

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-77021	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27020-77022	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27020-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1971	1
27020-77023	2D..DA11#,DB10# 24V 15A	04/1973 - 02/1977	1
27020-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 01/1971	1
27020-60033	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27020-77060	2D..DA11#..1SR 24V 15A,24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27020-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27020-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27020-77070	2D..DA11#,DB105 24V 15A,24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27036-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27039 - COVER, ALTERNATOR REAR END
27039-46030	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27039-56040	2D..DA11#..1SR 24V 15A,RR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27041-56041	2D..DA11#..1SR 24V 15A,FR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27039-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27312-56011	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27312-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27312-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27312-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27212-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19206	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27212-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27212-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27310-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1982	1
27310-46032	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27310-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27314-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27314-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27314-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19203	F..FA100,11#,FC100 12V 40A	06/1970 - 03/1974	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
97100-06304	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10013	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-10188	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-10082	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
90099-10082	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27330 - ROTOR ASSY, ALTERNATOR
27330-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27330-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27330-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27330-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27330-77070	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27330-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27330-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-07108	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-07103	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-07103	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27350 - FRAME ASSY, RECTIFIER END
27350-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27350-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27350-77022	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27350-33011	F..FA100,11#,FC100 12V 40A	06/1970 - 01/1971	1
27350-33012	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27350-77023	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27350-77022	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27350-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27350-47042	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27350-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27350-77023	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	07/1975 - 02/1977	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 04/1973	1
27351-56012	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27351-56012	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27351-56013	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27351-30010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27353-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27353-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27356-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27356-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27370-77080	2D..DA11#	04/1998 - 12/2001	1
27370-60080	2D..DA11# 12V 40A,24V 15A	02/1977 - 04/1998	1
27370-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27371 - BRUSH, ALTERNATOR
27377-46030	2D..DA11#,DB10# 24V 15A,RED	03/1969 - 07/1972	2
27371-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27371-54412	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27371-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27371-46030	2D..DA11#,DB10# 24V 15A,BLACK	03/1969 - 07/1972	2
27372 - SPRING, ALTERNATOR BRUSH
27372-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27372-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27372-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27372-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27410 - STATOR ASSY, ALTERNATOR
27410-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27410-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27410-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411 - PULLEY, ALTERNATOR
27411-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27411-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27411-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27411A - KEY(FOR ALTERNATOR PULLEY)
90097-00465	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
90097-00465	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A,40A	04/1974 - 04/1998	1
27441 - FAN, ALTERNATOR
27441-46031	2D..DA11#,DB105 12V 40A,24V 15A	07/1975 - 04/1998	1
27441-46030	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27441-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27441-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27441-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
Common parts
27378-31011
27383-31011
27445-46031
27446-56011
90092-20582
90099-00862
90099-00891
90099-00893
90099-01014
90099-01390
90099-02181
90099-05060
90201-08065
91111-51032
91111-70825
93319-14025
93319-15008
94511-01400
94512-00800
94512-01000
94521-00500
94611-11000

(7704-9804)2D..1SR

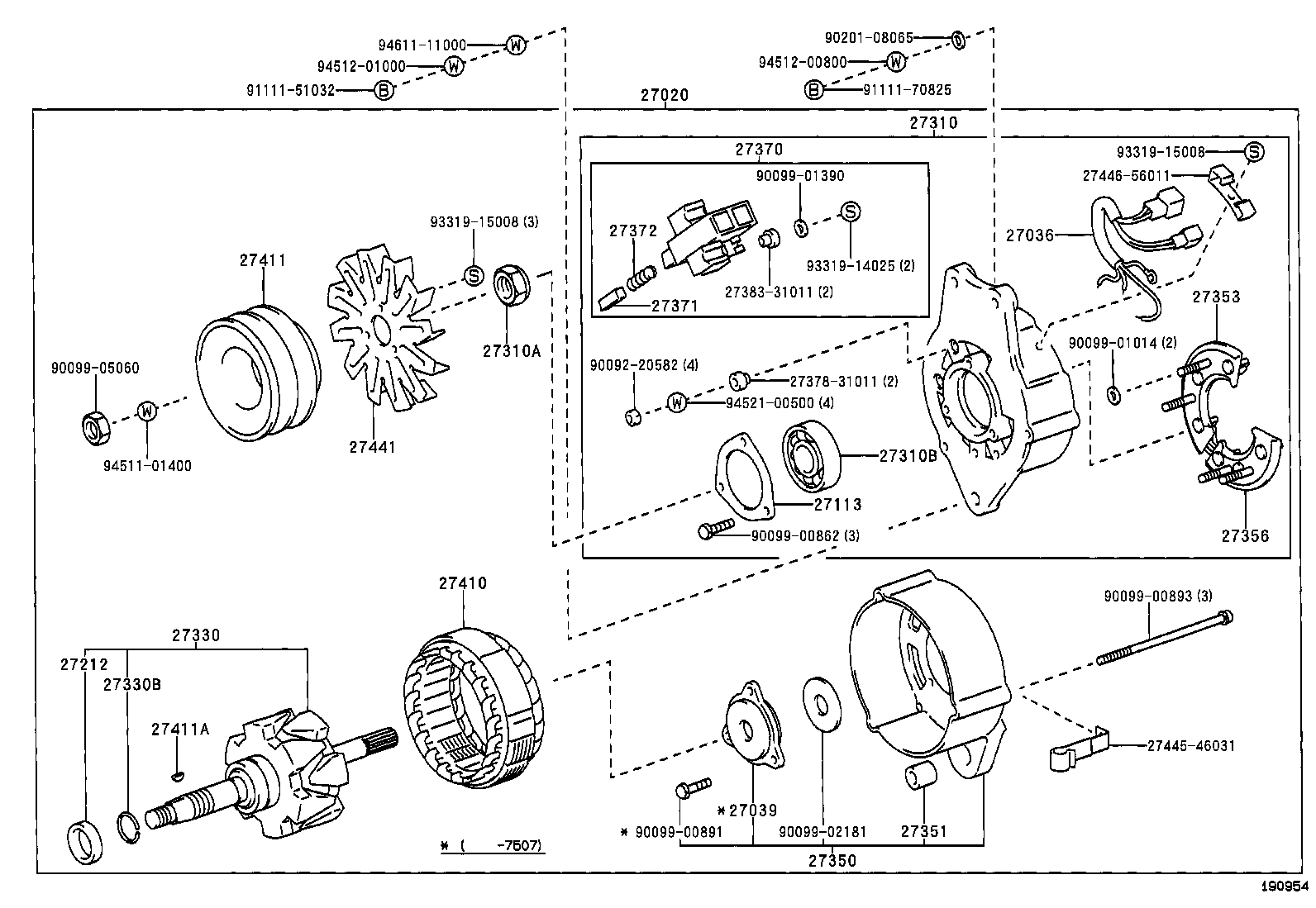

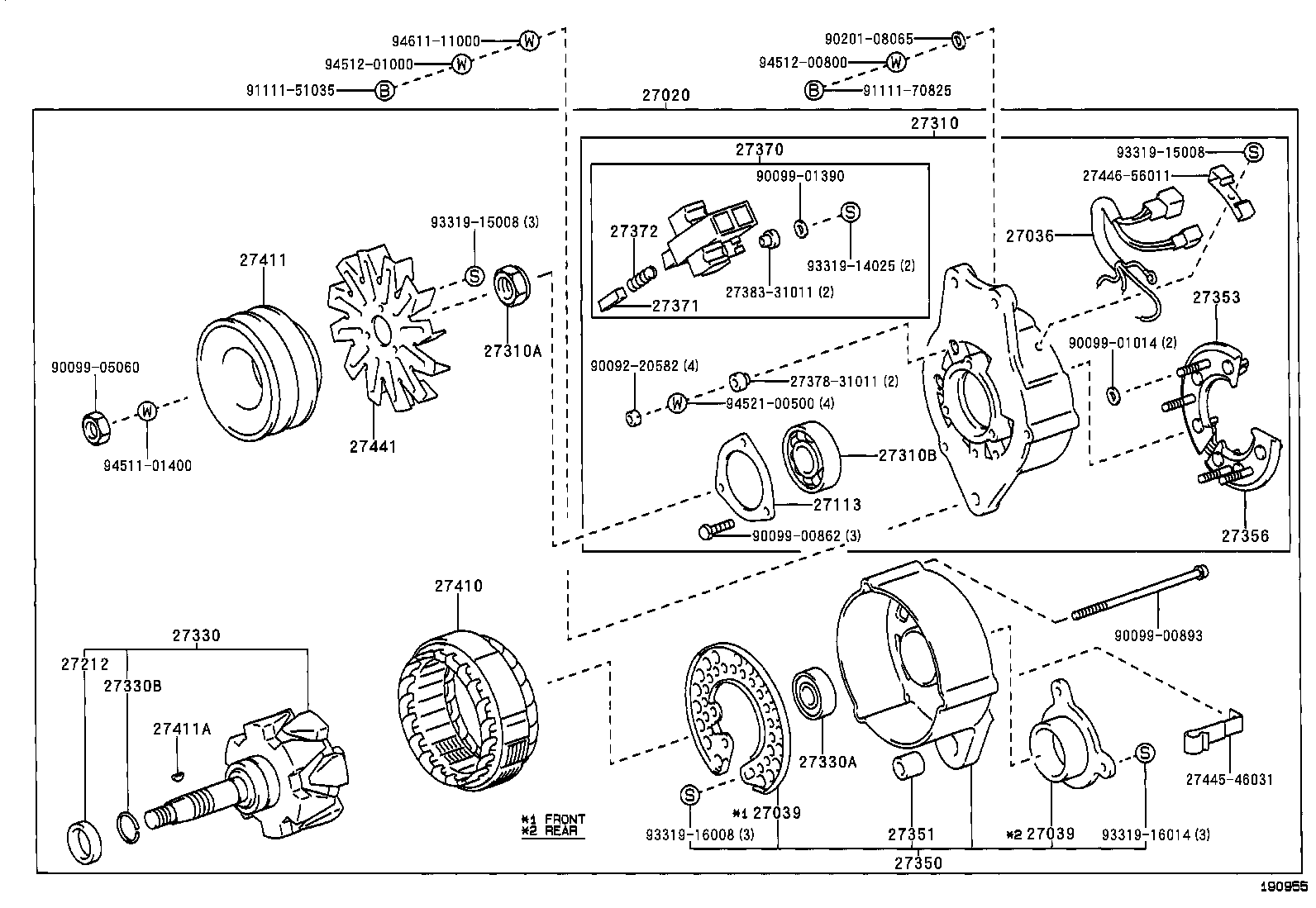

Click highlighted areas on diagram

24V 15A,W/O VACUUM PUMP

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-77021	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27020-77022	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27020-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1971	1
27020-77023	2D..DA11#,DB10# 24V 15A	04/1973 - 02/1977	1
27020-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 01/1971	1
27020-60033	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27020-77060	2D..DA11#..1SR 24V 15A,24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27020-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27020-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27020-77070	2D..DA11#,DB105 24V 15A,24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27036-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27039 - COVER, ALTERNATOR REAR END
27039-46030	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27039-56040	2D..DA11#..1SR 24V 15A,RR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27041-56041	2D..DA11#..1SR 24V 15A,FR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27039-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27039 - COVER, ALTERNATOR REAR END
27039-46030	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27039-56040	2D..DA11#..1SR 24V 15A,RR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27041-56041	2D..DA11#..1SR 24V 15A,FR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27039-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27312-56011	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27312-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27312-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27312-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27212-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19206	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27212-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27212-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27310-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1982	1
27310-46032	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27310-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27314-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27314-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27314-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19203	F..FA100,11#,FC100 12V 40A	06/1970 - 03/1974	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
97100-06304	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10013	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-10188	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-10082	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
90099-10082	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27330 - ROTOR ASSY, ALTERNATOR
27330-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27330-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27330-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27330-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27330-77070	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27330-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27330-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10141	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
97113-06201	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-10015	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10015	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-07108	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-07103	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-07103	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27350 - FRAME ASSY, RECTIFIER END
27350-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27350-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27350-77022	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27350-33011	F..FA100,11#,FC100 12V 40A	06/1970 - 01/1971	1
27350-33012	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27350-77023	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27350-77022	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27350-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27350-47042	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27350-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27350-77023	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	07/1975 - 02/1977	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 04/1973	1
27351-56012	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27351-56012	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27351-56013	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27351-30010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27353-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27353-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27356-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27356-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27370-77080	2D..DA11#	04/1998 - 12/2001	1
27370-60080	2D..DA11# 12V 40A,24V 15A	02/1977 - 04/1998	1
27370-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27371 - BRUSH, ALTERNATOR
27377-46030	2D..DA11#,DB10# 24V 15A,RED	03/1969 - 07/1972	2
27371-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27371-54412	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27371-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27371-46030	2D..DA11#,DB10# 24V 15A,BLACK	03/1969 - 07/1972	2
27372 - SPRING, ALTERNATOR BRUSH
27372-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27372-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27372-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27372-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27410 - STATOR ASSY, ALTERNATOR
27410-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27410-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27410-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411 - PULLEY, ALTERNATOR
27411-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27411-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27411-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27411A - KEY(FOR ALTERNATOR PULLEY)
90097-00465	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
90097-00465	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A,40A	04/1974 - 04/1998	1
27441 - FAN, ALTERNATOR
27441-46031	2D..DA11#,DB105 12V 40A,24V 15A	07/1975 - 04/1998	1
27441-46030	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27441-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27441-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27441-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
Common parts
27378-31011
27383-31011
27445-46031
27446-56011
90092-20582
90099-00862
90099-00893
90099-01014
90099-01390
90099-05060
90201-08065
91111-51035
91111-70825
93319-14025
93319-15008
93319-16008
93319-16014
94511-01400
94512-00800
94512-01000
94521-00500
94611-11000

(9804- )

Click highlighted areas on diagram

24V 15A,W/VACUUM PUMP

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-77021	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27020-77022	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27020-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1971	1
27020-77023	2D..DA11#,DB10# 24V 15A	04/1973 - 02/1977	1
27020-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 01/1971	1
27020-60033	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27020-77060	2D..DA11#..1SR 24V 15A,24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27020-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27020-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27020-77070	2D..DA11#,DB105 24V 15A,24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27036-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27036B - None
27036-77090	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27312-56011	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27312-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27312-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27312-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27212-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19206	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27212-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27212-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27310-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1982	1
27310-46032	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27310-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
97100-06304	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10013	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-10188	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-10082	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
90099-10082	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27315-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27313-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27330 - ROTOR ASSY, ALTERNATOR
27330-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27330-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27330-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27330-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27330-77070	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27330-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27330-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-07108	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-07103	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-07103	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27350 - FRAME ASSY, RECTIFIER END
27350-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27350-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27350-77022	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27350-33011	F..FA100,11#,FC100 12V 40A	06/1970 - 01/1971	1
27350-33012	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27350-77023	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27350-77022	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27350-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27350-47042	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27350-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27350-77023	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	07/1975 - 02/1977	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 04/1973	1
27351-56012	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27351-56012	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27351-56013	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27351-30010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27357-54190	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27370-77080	2D..DA11#	04/1998 - 12/2001	1
27370-60080	2D..DA11# 12V 40A,24V 15A	02/1977 - 04/1998	1
27370-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27371 - BRUSH, ALTERNATOR
27377-46030	2D..DA11#,DB10# 24V 15A,RED	03/1969 - 07/1972	2
27371-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27371-54412	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27371-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27371-46030	2D..DA11#,DB10# 24V 15A,BLACK	03/1969 - 07/1972	2
27372 - SPRING, ALTERNATOR BRUSH
27372-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27372-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27372-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27372-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27388 - COVER, ALTERNATOR BRUSH
27388-54110	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27388-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410 - STATOR ASSY, ALTERNATOR
27410-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27410-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27410-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411 - PULLEY, ALTERNATOR
27411-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27411-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27411-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27441 - FAN, ALTERNATOR
27441-46031	2D..DA11#,DB105 12V 40A,24V 15A	07/1975 - 04/1998	1
27441-46030	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27441-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27441-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27441-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
Common parts
27378-45020
27378-54010
27383-54010
27387-54010
27387-56070
27445-46031
27445-56011
27446-56011
90099-02181
90099-04915
90099-04916
90099-05119
90099-05185
90099-19251
90119-05118
90119-08042
91111-51035
93311-16008
93319-15008
94512-01000
94611-11000

(9804- )2D..1SR

Click highlighted areas on diagram

24V 15A,W/O VACUUM PUMP

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-77021	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27020-77022	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27020-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1971	1
27020-77023	2D..DA11#,DB10# 24V 15A	04/1973 - 02/1977	1
27020-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 01/1971	1
27020-60033	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27020-77060	2D..DA11#..1SR 24V 15A,24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27020-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27020-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27020-77070	2D..DA11#,DB105 24V 15A,24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27036-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27036B - None
27036-77090	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27039 - COVER, ALTERNATOR REAR END
27039-46030	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27039-56040	2D..DA11#..1SR 24V 15A,RR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27041-56041	2D..DA11#..1SR 24V 15A,FR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27039-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27312-56011	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27312-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27312-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27312-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27212-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19206	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27212-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27212-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27310-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1982	1
27310-46032	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27310-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
97100-06304	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10013	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-10188	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-10082	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
90099-10082	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27315-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27313-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27315A - COVER, ALTERNATOR FELT, INNER NO.1
27315-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27330 - ROTOR ASSY, ALTERNATOR
27330-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27330-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27330-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27330-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27330-77070	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27330-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27330-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10141	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
97113-06201	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-10015	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10015	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-07108	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-07103	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-07103	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27350 - FRAME ASSY, RECTIFIER END
27350-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27350-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27350-77022	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27350-33011	F..FA100,11#,FC100 12V 40A	06/1970 - 01/1971	1
27350-33012	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27350-77023	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27350-77022	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27350-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27350-47042	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27350-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27350-77023	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	07/1975 - 02/1977	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 04/1973	1
27351-56012	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27351-56012	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27351-56013	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27351-30010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27357-54190	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27370-77080	2D..DA11#	04/1998 - 12/2001	1
27370-60080	2D..DA11# 12V 40A,24V 15A	02/1977 - 04/1998	1
27370-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27371 - BRUSH, ALTERNATOR
27377-46030	2D..DA11#,DB10# 24V 15A,RED	03/1969 - 07/1972	2
27371-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27371-54412	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27371-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27371-46030	2D..DA11#,DB10# 24V 15A,BLACK	03/1969 - 07/1972	2
27372 - SPRING, ALTERNATOR BRUSH
27372-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27372-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27372-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27372-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27388 - COVER, ALTERNATOR BRUSH
27388-54110	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27388-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410 - STATOR ASSY, ALTERNATOR
27410-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27410-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27410-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411 - PULLEY, ALTERNATOR
27411-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27411-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27411-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27441 - FAN, ALTERNATOR
27441-46031	2D..DA11#,DB105 12V 40A,24V 15A	07/1975 - 04/1998	1
27441-46030	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27441-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27441-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27441-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
Common parts
27378-45020
27378-54010
27383-54010
27387-54010
27387-56070
27445-46031
27445-56011
27446-56011
90099-02181
90099-04915
90099-04916
90099-05119
90099-05185
90099-19251
90119-05118
90119-08042
91111-51035
93311-16008
93311-16014
93319-15008
94512-01000
94611-11000

(6903-7207)2D

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-77021	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27020-77022	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27020-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1971	1
27020-77023	2D..DA11#,DB10# 24V 15A	04/1973 - 02/1977	1
27020-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 01/1971	1
27020-60033	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27020-77060	2D..DA11#..1SR 24V 15A,24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27020-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27020-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27020-77070	2D..DA11#,DB105 24V 15A,24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27039 - COVER, ALTERNATOR REAR END
27039-46030	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27039-56040	2D..DA11#..1SR 24V 15A,RR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27041-56041	2D..DA11#..1SR 24V 15A,FR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27039-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27312-56011	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27312-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27312-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27312-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27115 - COVER, ALTERNATOR FELT, OUTER
27313-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27212-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19206	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27212-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27212-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27310-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1982	1
27310-46032	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27310-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27314-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27314-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27314-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19203	F..FA100,11#,FC100 12V 40A	06/1970 - 03/1974	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
97100-06304	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10013	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-10188	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-10082	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
90099-10082	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02004	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-02014	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02004	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-02014	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27315-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27313-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27316 - PACKING, RETAINER PLATE, ALTERNATOR
27316-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27330 - ROTOR ASSY, ALTERNATOR
27330-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27330-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27330-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27330-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27330-77070	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27330-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27330-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10141	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
97113-06201	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-10015	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10015	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27350 - FRAME ASSY, RECTIFIER END
27350-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27350-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27350-77022	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27350-33011	F..FA100,11#,FC100 12V 40A	06/1970 - 01/1971	1
27350-33012	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27350-77023	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27350-77022	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27350-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27350-47042	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27350-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27350-77023	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	07/1975 - 02/1977	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 04/1973	1
27351-56012	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27351-56012	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27351-56013	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27351-30010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27352 - COVER, FRAME BRUSH
27352-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27353-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27353-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27356-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27356-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27371 - BRUSH, ALTERNATOR
27377-46030	2D..DA11#,DB10# 24V 15A,RED	03/1969 - 07/1972	2
27371-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27371-54412	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27371-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27371-46030	2D..DA11#,DB10# 24V 15A,BLACK	03/1969 - 07/1972	2
27371 - BRUSH, ALTERNATOR
27377-46030	2D..DA11#,DB10# 24V 15A,RED	03/1969 - 07/1972	2
27371-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27371-54412	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27371-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27371-46030	2D..DA11#,DB10# 24V 15A,BLACK	03/1969 - 07/1972	2
27372 - SPRING, ALTERNATOR BRUSH
27372-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27372-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27372-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27372-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-30010	F,2D..DA11#,DB10#,FB100 12V 55A,24V 15A	03/1969 - 07/1972	1
27376 - HOLDER, ALTERNATOR BRUSH, B
27376-30010	F,2D..DA11#,DB10#,FB100 12V 55A,24V 15A	03/1969 - 07/1972	1
27388 - COVER, ALTERNATOR BRUSH
27388-54110	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27388-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410 - STATOR ASSY, ALTERNATOR
27410-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27410-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27410-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411 - PULLEY, ALTERNATOR
27411-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27411-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27411-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27411A - KEY(FOR ALTERNATOR PULLEY)
90097-00465	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
90097-00465	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A,40A	04/1974 - 04/1998	1
27441 - FAN, ALTERNATOR
27441-46031	2D..DA11#,DB105 12V 40A,24V 15A	07/1975 - 04/1998	1
27441-46030	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27441-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27441-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27441-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
Common parts
27378-46040
27383-40020
27384-40010
27387-46030
90092-20582
90099-00860
90099-04030
90099-04828
90099-04839
90099-04840
90099-05104
91111-51032
93219-14006
93219-14008
93219-14010
93219-15008
93219-15020
93219-15025
94511-00400
94511-00500
94511-00600
94511-01400
94512-01000
94611-10500
94611-10600
94611-11000

(7403-8207)F ; (7507-8002)F

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-77021	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27020-77022	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27020-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1971	1
27020-77023	2D..DA11#,DB10# 24V 15A	04/1973 - 02/1977	1
27020-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 01/1971	1
27020-60033	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27020-77060	2D..DA11#..1SR 24V 15A,24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27020-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27020-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27020-77070	2D..DA11#,DB105 24V 15A,24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27036-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27039 - COVER, ALTERNATOR REAR END
27039-46030	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27039-56040	2D..DA11#..1SR 24V 15A,RR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27041-56041	2D..DA11#..1SR 24V 15A,FR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27039-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27312-56011	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27312-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27312-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27312-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27310-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1982	1
27310-46032	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27310-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27314-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27314-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27314-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19203	F..FA100,11#,FC100 12V 40A	06/1970 - 03/1974	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
97100-06304	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10013	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-10188	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-10082	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
90099-10082	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27330 - ROTOR ASSY, ALTERNATOR
27330-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27330-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27330-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27330-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27330-77070	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27330-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27330-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-07108	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-07103	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-07103	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27350 - FRAME ASSY, RECTIFIER END
27350-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27350-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27350-77022	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27350-33011	F..FA100,11#,FC100 12V 40A	06/1970 - 01/1971	1
27350-33012	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27350-77023	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27350-77022	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27350-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27350-47042	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27350-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27350-77023	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	07/1975 - 02/1977	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 04/1973	1
27351-56012	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27351-56012	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27351-56013	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27351-30010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27353-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27353-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27356-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27356-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27370-77080	2D..DA11#	04/1998 - 12/2001	1
27370-60080	2D..DA11# 12V 40A,24V 15A	02/1977 - 04/1998	1
27370-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27371 - BRUSH, ALTERNATOR
27377-46030	2D..DA11#,DB10# 24V 15A,RED	03/1969 - 07/1972	2
27371-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27371-54412	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27371-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27371-46030	2D..DA11#,DB10# 24V 15A,BLACK	03/1969 - 07/1972	2
27372 - SPRING, ALTERNATOR BRUSH
27372-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27372-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27372-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27372-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27410 - STATOR ASSY, ALTERNATOR
27410-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27410-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27410-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411 - PULLEY, ALTERNATOR
27411-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27411-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27411-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27411A - KEY(FOR ALTERNATOR PULLEY)
90097-00465	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
90097-00465	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A,40A	04/1974 - 04/1998	1
27441 - FAN, ALTERNATOR
27441-46031	2D..DA11#,DB105 12V 40A,24V 15A	07/1975 - 04/1998	1
27441-46030	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27441-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27441-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27441-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
Common parts
27383-31011
27387-31011
27445-46031
27445-56010
90092-20582
90099-00862
90099-00891
90099-00893
90099-01014
90099-01390
90099-02181
90099-05060
90201-08065
91111-51032
91111-70825
93319-14025
93319-15008
94511-01400
94512-00800
94512-01000
94521-00500
94611-11000

(6903-7403)F..FA100,11#,FC100

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27020-77021	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27020-77022	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27020-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1971	1
27020-77023	2D..DA11#,DB10# 24V 15A	04/1973 - 02/1977	1
27020-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 01/1971	1
27020-60033	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27020-77060	2D..DA11#..1SR 24V 15A,24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27020-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27020-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27020-77070	2D..DA11#,DB105 24V 15A,24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27039 - COVER, ALTERNATOR REAR END
27039-46030	2D..DA11#,DB10# 24V 15A	03/1971 - 07/1972	1
27039-56040	2D..DA11#..1SR 24V 15A,RR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27041-56041	2D..DA11#..1SR 24V 15A,FR,W/O VACUUM PUMP	04/1977 - 04/1998	1
27039-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27039-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27312-56011	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27312-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27312-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27312-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27212-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19206	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27212-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27212-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27310-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1982	1
27310-46032	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27310-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
90099-19075	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27314-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27314-56010	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27314-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-19203	F..FA100,11#,FC100 12V 40A	06/1970 - 03/1974	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
97100-06304	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10013	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-10188	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-10082	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
90099-10082	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
27310C - FELT(FOR ALTERNATOR DRIVE END FRAME)
90099-02004	F..FA100,11#,FB100,FC100 12V 40A,55A	03/1969 - 03/1974	1
90099-02014	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27315-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27313-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27330 - ROTOR ASSY, ALTERNATOR
27330-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27330-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27330-77080	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
27330-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27330-77070	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27330-77090	2D..DA11# 24V 15A,W/VACUUM PUMP	04/1998 - 12/2001	1
27330-56040	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10141	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1998 - 12/2001	1
97113-06201	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-10015	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
90099-10015	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
90099-07108	2D..DA11# 24V 15A	04/1998 - 12/2001	1
90099-07103	2D..DA11#,DB10# 24V 15A	07/1972 - 03/1974	1
90099-07103	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27350 - FRAME ASSY, RECTIFIER END
27350-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 06/1970	1
27350-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27350-77022	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27350-33011	F..FA100,11#,FC100 12V 40A	06/1970 - 01/1971	1
27350-33012	F..FA100,11#,FC100 12V 40A	01/1971 - 03/1974	1
27350-77023	2D..DA11#,DB105 24V 15A,W/VACUUM PUMP	02/1977 - 04/1998	1
27350-77022	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27350-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27350-47042	2D..DA11#..1SR 24V 15A,W/O VACUUM PUMP	04/1977 - 04/1998	1
27350-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1973	1
27350-77023	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	07/1975 - 02/1977	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 04/1973	1
27351-56012	2D..DA11#,DB10# 24V 15A	04/1973 - 03/1974	1
27351-56012	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 04/1998	1
27351-56013	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27351-30010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27353-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27353-56011	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27356-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27356-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27357-54190	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 02/1977	1
27370-77080	2D..DA11#	04/1998 - 12/2001	1
27370-60080	2D..DA11# 12V 40A,24V 15A	02/1977 - 04/1998	1
27370-31012	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27371 - BRUSH, ALTERNATOR
27377-46030	2D..DA11#,DB10# 24V 15A,RED	03/1969 - 07/1972	2
27371-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27371-54412	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27371-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27371-46030	2D..DA11#,DB10# 24V 15A,BLACK	03/1969 - 07/1972	2
27372 - SPRING, ALTERNATOR BRUSH
27372-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	2
27372-31011	F,2D..DA11#,DB10#,FA100,11#,FC100 12V 40A,24V 15A,40A	07/1972 - 04/1998	2
27372-56070	2D..DA11# 24V 15A	04/1998 - 12/2001	2
27372-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 07/1972	2
27410 - STATOR ASSY, ALTERNATOR
27410-33010	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27410-46040	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27410-56010	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27410-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411 - PULLEY, ALTERNATOR
27411-60032	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27411-77080	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27411-77030	2D..DA11#,DB10# 24V 15A	07/1972 - 04/1998	1
27411-77020	2D..DA11#,DB10# 24V 15A	03/1969 - 07/1972	1
27441 - FAN, ALTERNATOR
27441-46031	2D..DA11#,DB105 12V 40A,24V 15A	07/1975 - 04/1998	1
27441-46030	F,2D..DA11#,DB105,FA100,115 12V 40A,24V 15A	04/1974 - 07/1975	1
27441-54040	2D..DA11# 24V 15A	04/1998 - 12/2001	1
27441-31011	F..FA100,11#,FC100 12V 40A	03/1969 - 03/1974	1
27441-46030	2D..DA11#,DB10# 24V 15A	03/1969 - 03/1974	1
Common parts
27378-31011
27383-31011
27387-31011
90092-20582
90099-00862
90099-01013
90099-01014
90099-01390
90099-04259
90099-04808
90099-05060
90101-10131
90201-08065
91111-70830
93219-14022
94110-41000
94120-40600
94511-00400
94511-00600
94511-01400
94512-00800
94512-01000
94521-00500
94525-00600
94612-11000

DA110LD- (1969)

(7207-9804)2D

(7704-9804)2D..1SR

(9804- )

(9804- )2D..1SR

(6903-7207)2D

(7403-8207)F ; (7507-8002)F

(6903-7403)F..FA100,11#,FC100

Part Price Details
