DA110L-Q (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )DA11#,DB10#,FA100,11#

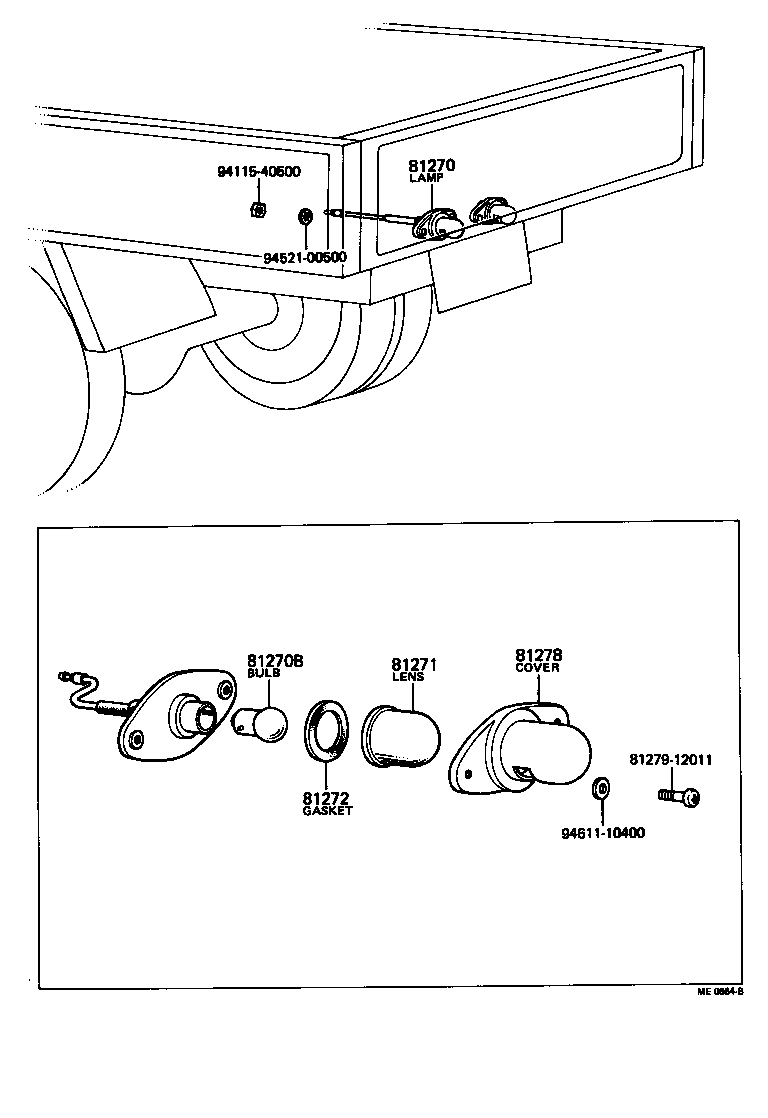

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 8127912011 9411540500 9452100500 9461110400
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-55032

DA11#,DB10#

 2
81270-55022

FA100,11#

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

FA100,11#,FC100

12V 10W,12V 10W

 2
99134-11120

DA11#,DB10#

24V 12W,24V 12W

 2
99134-11100

DA11#,DB10#

24V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-55021

DA11#,DB10#,FA100,11#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-55021

DA11#,DB10#,FA100,11#

 2
81278 - COVER, LICENSE PLATE LAMP
81278-55021

DA11#,DB10#,FA100,11#

 2
Common parts
81279-12011
94115-40500
94521-00500
94611-10400
