DA110L-Q (1969)
Toyota Heavy Duty Truck
Production
Mar 1969
-
Dec 2001
Engine
2D
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903- )DA11#,FA100,11#,FC100

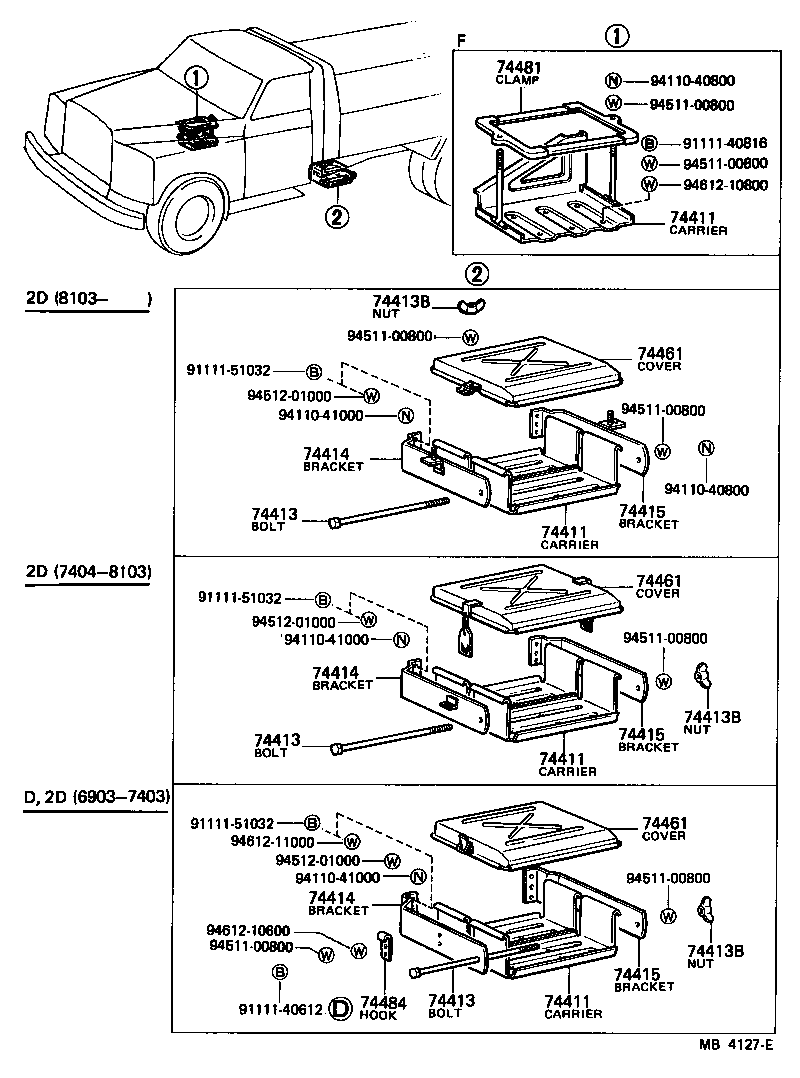

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74411 - CARRIER, BATTERY | ||||
| 74421-55040 |
DA11# |
2 | ||
| 74401-35050 |
FA100,11#,FC100..LHD |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-55040 |
DA11# |
2 | ||
| 74401-35050 |
FA100,11#,FC100..LHD |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-55040 |
DA11# |
2 | ||
| 74401-35050 |
FA100,11#,FC100..LHD |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74421-55040 |
DA11# |
2 | ||
| 74401-35050 |
FA100,11#,FC100..LHD |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08005 |
DA11# |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08005 |
DA11# |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 90101-08005 |
DA11# |
2 | ||
| 74413B - NUT, WING (FOR BATTERY CLAMP BOLT) | ||||
| 90175-08003 |
DA11# |
1 | ||
| 74413B - NUT, WING (FOR BATTERY CLAMP BOLT) | ||||
| 90175-08003 |
DA11# |
1 | ||
| 74413B - NUT, WING (FOR BATTERY CLAMP BOLT) | ||||
| 90175-08003 |
DA11# |
1 | ||
| 74414 - BRACKET, BATTERY, FR | ||||
| 74401-55011 |
DA11# |
1 | ||
| 74401-55010 |
DA11# |
1 | ||
| 74411-55050 |
DA11# |
1 | ||
| 74414 - BRACKET, BATTERY, FR | ||||
| 74401-55011 |
DA11# |
1 | ||
| 74401-55010 |
DA11# |
1 | ||
| 74411-55050 |
DA11# |
1 | ||
| 74414 - BRACKET, BATTERY, FR | ||||
| 74401-55011 |
DA11# |
1 | ||
| 74401-55010 |
DA11# |
1 | ||
| 74411-55050 |
DA11# |
1 | ||
| 74415 - BRACKET, BATTERY, REAR | ||||
| 74411-55050 |
DA11# |
1 | ||
| 74402-55010 |
DA11# |
1 | ||
| 74402-55011 |
DA11# |
1 | ||
| 74415 - BRACKET, BATTERY, REAR | ||||
| 74411-55050 |
DA11# |
1 | ||
| 74402-55010 |
DA11# |
1 | ||
| 74402-55011 |
DA11# |
1 | ||
| 74415 - BRACKET, BATTERY, REAR | ||||
| 74411-55050 |
DA11# |
1 | ||
| 74402-55010 |
DA11# |
1 | ||
| 74402-55011 |
DA11# |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-55021 |
DA11# |
1 | ||
| 74405-55022 |
DA11# |
1 | ||
| 74405-55020 |
DA11# |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-55021 |
DA11# |
1 | ||
| 74405-55022 |
DA11# |
1 | ||
| 74405-55020 |
DA11# |
1 | ||
| 74461 - COVER, BATTERY | ||||
| 74405-55021 |
DA11# |
1 | ||
| 74405-55022 |
DA11# |
1 | ||
| 74405-55020 |
DA11# |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74481-35020 |
FA100,11#,FC100 |
1 | ||
| 74484 - HOOK, BATTERY COVER CLAMP | ||||
| 74484-55010 |
DA11# |
1 | ||
| Common parts | ||||
| 91111-40612 | ||||
| 91111-40816 | ||||
| 91111-51032 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| 94612-10600 | ||||
| 94612-10800 | ||||
| 94612-11000 | ||||
