DA110L-Q (1969)
Toyota Heavy Duty Truck

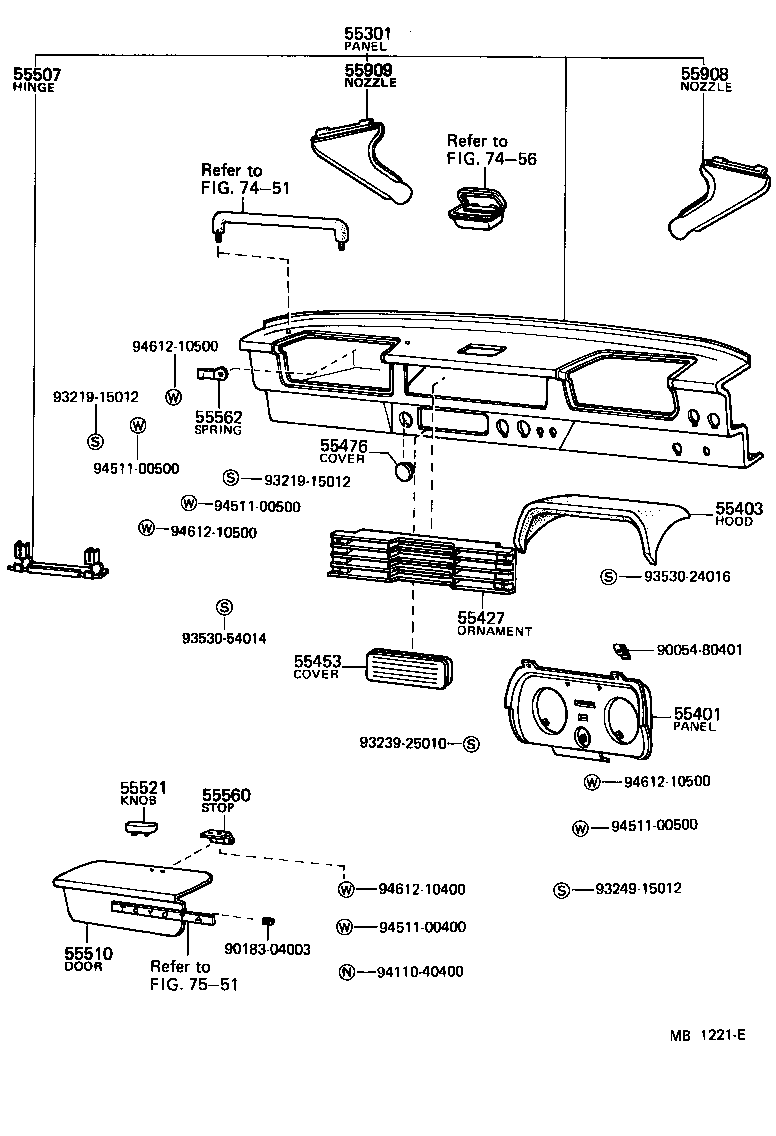

(6903-7403)DA11#,FA100,11#,FC100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55031-95220 |
DA11#..LHD |
1 | ||
| 55301-95235 |
DA11#..LHD |
1 | ||
| 55301-95237 |
FA100,11#,FC100..LHD |
1 | ||
| 55031-95228 |
DA11#..LHD W/HAZARD SWITCH |
1 | ||
| 55031-95245 |
DA11#..LHD |
1 | ||
| 55302-95214 |
DA11#..LHD |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55401-95225 |
DA11# |
1 | ||
| 55401-95222 |
FA100,11#,FC100 |
1 | ||
| 55401-95227 |
DA11#..BTR W/TACHOMETER |
1 | ||
| 55401-95232 |
DA11#..BTR |
1 | ||
| 55401-95221 |
DA11# |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-95211 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55431-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55431-95213 |
DA11#,FA100,115 |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55471-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55481-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55507-95212 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-95215 |
DA11#,FA100,115 |
1 | ||
| 55501-95214 |
DA11#,FA100,11#,FC100 ISO |
1 | ||
| 55521 - KNOB, GLOVE COMPARTMENT DOOR | ||||
| 55502-95213 |
DA11#,FA100,11#,FC100 ISO |
1 | ||
| 55560 - STOP SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55562 - SPRING, GLOVE COMPARTMENT DOOR STOP | ||||
| 55545-95212 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55950-95213 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55960-95213 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| Common parts | ||||
| 90054-80401 | ||||
| 90183-04003 | ||||
| 93219-15012 | ||||
| 93239-25010 | ||||
| 93249-15012 | ||||
| 93530-24016 | ||||
| 93530-54014 | ||||
| 94110-40400 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94612-10400 | ||||
| 94612-10500 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
| 7551 | ||||

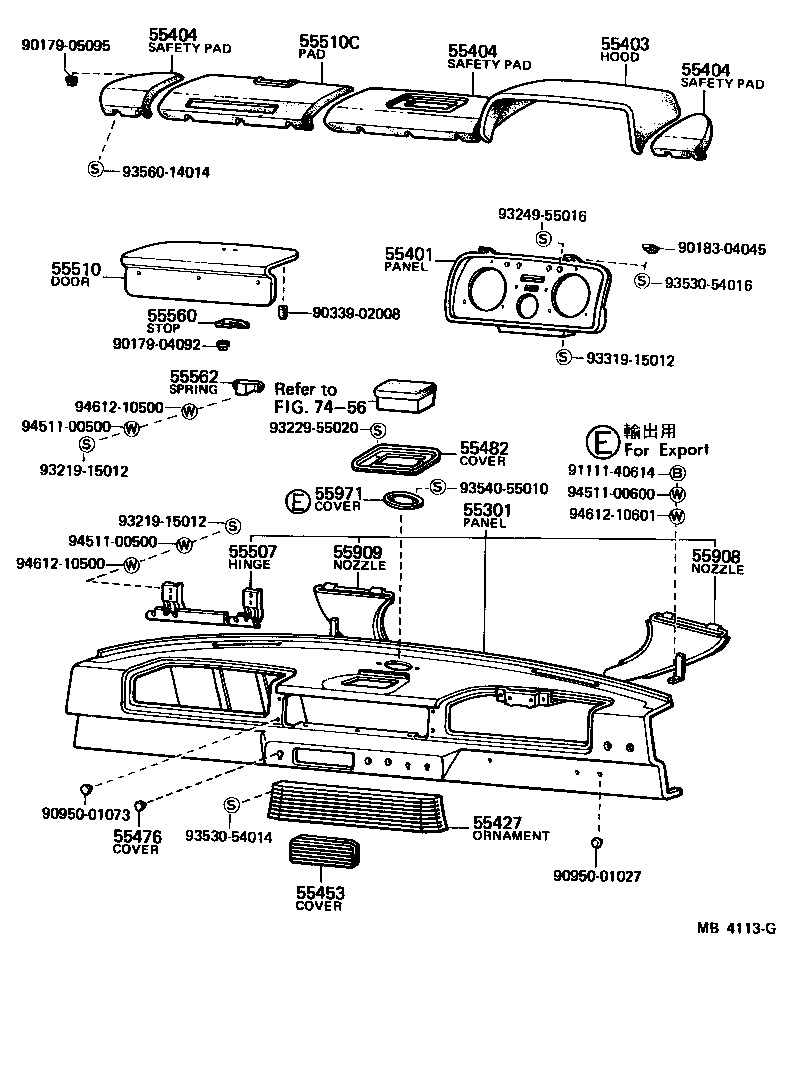

(7404- )DA11#,FA100,115
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55031-95220 |
DA11#..LHD |
1 | ||
| 55301-95235 |
DA11#..LHD |
1 | ||
| 55301-95237 |
FA100,11#,FC100..LHD |
1 | ||
| 55031-95228 |
DA11#..LHD W/HAZARD SWITCH |
1 | ||
| 55031-95245 |
DA11#..LHD |
1 | ||
| 55302-95214 |
DA11#..LHD |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55401-95225 |
DA11# |
1 | ||
| 55401-95222 |
FA100,11#,FC100 |
1 | ||
| 55401-95227 |
DA11#..BTR W/TACHOMETER |
1 | ||
| 55401-95232 |
DA11#..BTR |
1 | ||
| 55401-95221 |
DA11# |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-95211 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55405-95210 |
DA11#,FA100,115..LHD LH |
1 | ||
| 55406-95210 |
DA11#,FA100,115..LHD RH |
1 | ||
| 55404-95212 |
DA11#,FA100,115 CTR |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55405-95210 |
DA11#,FA100,115..LHD LH |
1 | ||
| 55406-95210 |
DA11#,FA100,115..LHD RH |
1 | ||
| 55404-95212 |
DA11#,FA100,115 CTR |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55405-95210 |
DA11#,FA100,115..LHD LH |
1 | ||
| 55406-95210 |
DA11#,FA100,115..LHD RH |
1 | ||
| 55404-95212 |
DA11#,FA100,115 CTR |
1 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55431-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55431-95213 |
DA11#,FA100,115 |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55471-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55481-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55482 - COVER, INSTRUMENT PANEL ASH | ||||
| 55457-95210 |
DA11#,FA100,115 |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55507-95212 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-95215 |
DA11#,FA100,115 |
1 | ||
| 55501-95214 |
DA11#,FA100,11#,FC100 ISO |
1 | ||
| 55510C - PAD, GLOVE COMPARTMENT DOOR | ||||
| 55505-95210 |
DA11#,FA100,115 |
1 | ||
| 55560 - STOP SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-95210 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55562 - SPRING, GLOVE COMPARTMENT DOOR STOP | ||||
| 55545-95212 |
DA11#,FA100,11#,FC100 |
1 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55950-95213 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55960-95213 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 55971 - COVER, CENTER DEFROSTER HOLE | ||||
| 55971-95212 |
DA11#,FA100,115 |
1 | ||
| Common parts | ||||
| 90179-04092 | ||||
| 90179-05095 | ||||
| 90183-04045 | ||||
| 90339-02008 | ||||
| 90950-01027 | ||||
| 90950-01073 | ||||
| 91111-40614 | ||||
| 93219-15012 | ||||
| 93229-55020 | ||||
| 93249-55016 | ||||
| 93319-15012 | ||||
| 93530-54014 | ||||
| 93530-54016 | ||||
| 93540-55010 | ||||
| 93560-14014 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94612-10500 | ||||
| 94612-10601 | ||||
| Linked diagrams | ||||
| 7456 | ||||
