DA110L-Q (1969)
Toyota Heavy Duty Truck
(6903- )DA11#,FA100,11#,FC100..GEN

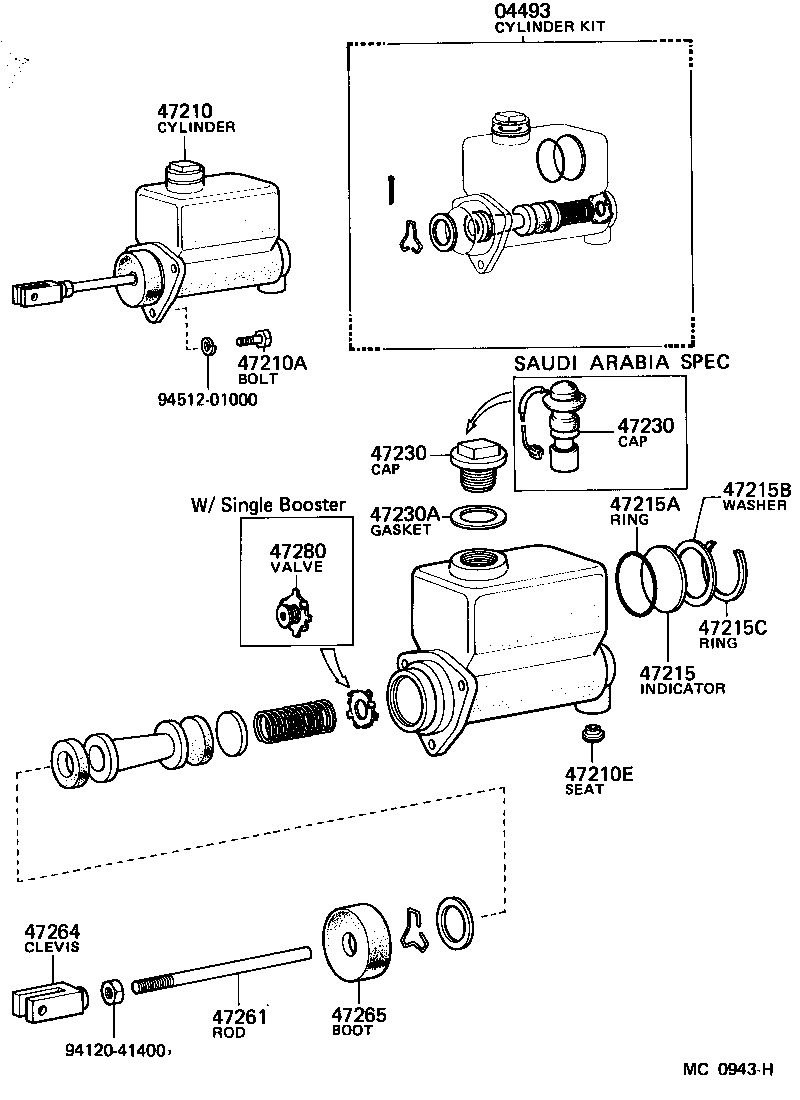

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04471-55031 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 04471-55022 |
DA11#,DB10#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 04471-55031 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 04471-55040 |
DA110..LHD..BTR..1SR OMAN SPEC |
1 | ||
| 04471-55040 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-55053 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47200-55130 |
DA110..LHD..BTR..1SR OMAN SPEC |
1 | ||
| 47200-55100 |
DA11#,FA100,115..GEN W/SPLIT BOOSTER |
1 | ||
| 47200-55054 |
DA11#,FA100,11#,FC100 W/SINGLE BOOSTER |
1 | ||
| 47200-55072 |
DA11#,FA100,115..LHD W/SPLIT BOOSTER |
1 | ||
| 47200-55120 |
DA11#..GEN W/AIR SERVO BRAKE |
1 | ||
| 47200-55072 |
DA11#,FA100,115 W/SPLIT BOOSTER |
1 | ||
| 47200-55110 |
DA11#,FA100,115 W/SINGLE BOOSTER |
1 | ||
| 47210A - BOLT OR STUD BOLT(FOR BRAKE MASTER CYLINDER SETTING) | ||||
| 91112-41035 |
DA11# |
3 | ||
| 91111-41035 |
DA11#,FA100,115..GEN |
3 | ||
| 91111-41036 |
DA11#,FA100,11#,FC100 |
3 | ||
| 47210E - SEAT, UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90410-05010 |
DA11#,FA100,11#,FC100..GEN |
2 | ||
| 47215 - INDICATOR, BRAKE FLUID | ||||
| 47215-55010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 47215-55011 |
DA11#,DB105,FA100,115..GEN |
1 | ||
| 47215A - RING, O(FOR BRAKE FLUID INDICATOR) | ||||
| 90301-42071 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 47215B - WASHER, PLATE(FOR BRAKE FLUID INDICATOR) | ||||
| 90560-40160 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 47215C - RING, HOLE SNAP(FOR BRAKE FLUID INDICATOR) | ||||
| 90521-50035 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-55010 |
DA110..LHD..BTR..1SR OMAN SPEC |
1 | ||
| 47230-55011 |
DA11#,FA100,11#,FC100..GEN |
1 | ||
| 47230-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 84460-55010 |
DA110..LHD..BTR..1SR OMAN SPEC |
1 | ||
| 47230-55011 |
DA11#,FA100,11#,FC100..GEN |
1 | ||
| 47230-55010 |
DA11#,FA100,11#,FC100 |
1 | ||
| 47230A - GASKET(FOR RESERVOIR CAP) | ||||
| 90430-32051 |
DA11#,FA100,11#,FC100..GEN |
1 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 47261-55020 |
DA11#,FA100,11#,FC100..GEN |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-55021 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-55030 |
DA11#,DB10#,FA100,11#,FC100..GEN |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-55010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 47280-59410 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| Common parts | ||||
| 94120-41400 | ||||
| 94512-01000 | ||||
