DA110L-Q (1969)
Toyota Heavy Duty Truck

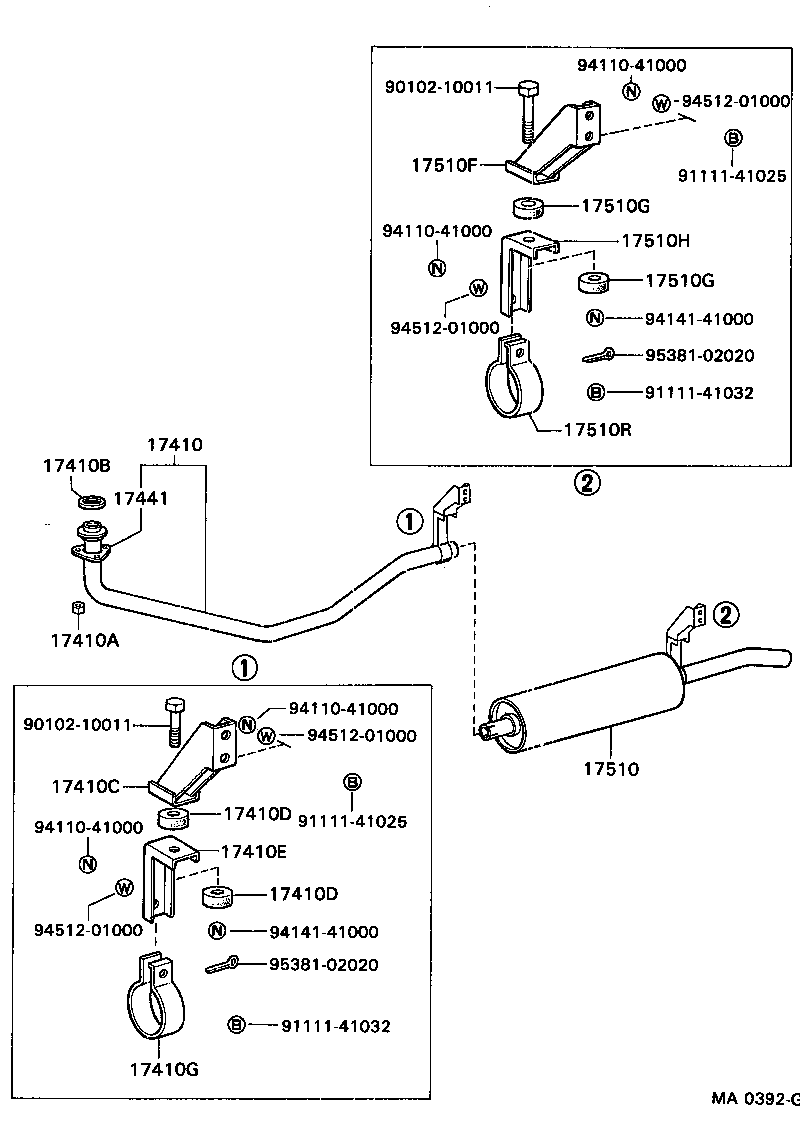

(6903-7608)2D..DA110 ; (7404-7608)2D..DA115,116..2SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-60160 |
F..FA100,11#,FC100 |
1 | ||
| 17401-76030 |
2D..DA11# |
1 | ||
| 17401-76040 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77060 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77050 |
2D..DA11# |
1 | ||
| 17401-77080 |
2D..DA11# |
1 | ||
| 17401-77070 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90170-10199 |
F,2D..DA11#,DB10#,FA100,11#,FC100 |
3 | ||
| 90170-10049 |
F,2D..DA11#,DB10#,FA100,11#,FB100,FC100 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06003 |
2D..DA11#,DB10# |
1 | ||
| 90917-06003 |
F,2D..DA11#,DB105,FA100,115 |
1 | ||
| 90917-06005 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-76031 |
2D..DA11# |
1 | ||
| 17561-60030 |
F..FA100,11#,FC100 |
1 | ||
| 17571-77010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17410D - CUSHION, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90540-10011 |
2D..DA11#,DB10# T=14.5 |
2 | ||
| 90917-08010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17410D - CUSHION, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90540-10011 |
2D..DA11#,DB10# T=14.5 |
2 | ||
| 90917-08010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04002 |
F..FA100,11#,FC100 |
1 | ||
| 17561-76012 |
2D..DA11# |
1 | ||
| 17410G - CLAMP NO.2, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90461-23011 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90461-23245 |
2D..DA11# |
1 | ||
| 90461-23245 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17441 - FLANGE, EXHAUST PIPE | ||||
| 17441-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 17441-76010 |
2D..DA11#,DB10# |
1 | ||
| 17510 - MUFFLER ASSY | ||||
| 17510-60041 |
F..FA100,11#,FC100 |
1 | ||
| 17510-76030 |
2D..DA110;2D..DA115..2SR |
1 | ||
| 17510-77030 |
2D..DA11#..1SR STD DIFF |
1 | ||
| 17510-77030 |
2D..DA110,116..LHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 17510-77030 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17510-76030 |
2D..DA110;2D..DA115,116..2SR |
1 | ||
| 17510-77030 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17510F - BRACKET, MUFFLER, REAR | ||||
| 17571-76031 |
2D..DA11# |
1 | ||
| 17563-60020 |
F..FA100,11# |
1 | ||
| 17572-77010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17510G - CUSHION, MUFFLER, REAR | ||||
| 90917-08010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90540-10011 |
2D..DA11#,DB10# T=14.5 |
2 | ||
| 17510G - CUSHION, MUFFLER, REAR | ||||
| 90917-08010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90540-10011 |
2D..DA11#,DB10# T=14.5 |
2 | ||
| 17510H - CLAMP NO.1, MUFFLER, REAR | ||||
| 17561-76012 |
2D..DA11# |
1 | ||
| 90917-04003 |
F..FA100,11# |
1 | ||
| 17510R - CLAMP NO.2, MUFFLER, REAR | ||||
| 90461-23243 |
2D..DA110;2D..DA115,116..2SR |
1 | ||
| 90461-23244 |
2D..DA110;2D..DA115,116..1SR |
1 | ||
| 90461-23244 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 90461-23244 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| Common parts | ||||
| 90102-10011 | ||||
| 91111-41025 | ||||
| 91111-41032 | ||||
| 94110-41000 | ||||
| 94141-41000 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

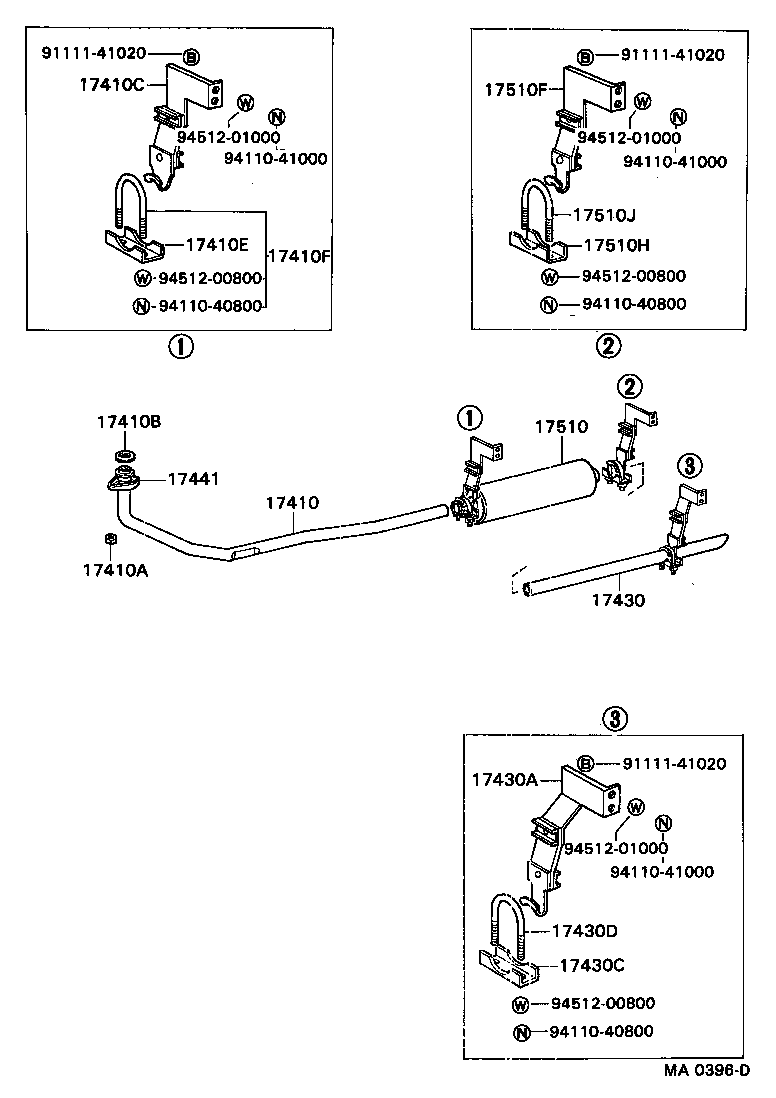

(6903-7608)F..FA100,11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-60160 |
F..FA100,11#,FC100 |
1 | ||
| 17401-76030 |
2D..DA11# |
1 | ||
| 17401-76040 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77060 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77050 |
2D..DA11# |
1 | ||
| 17401-77080 |
2D..DA11# |
1 | ||
| 17401-77070 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90170-10199 |
F,2D..DA11#,DB10#,FA100,11#,FC100 |
3 | ||
| 90170-10049 |
F,2D..DA11#,DB10#,FA100,11#,FB100,FC100 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06003 |
2D..DA11#,DB10# |
1 | ||
| 90917-06003 |
F,2D..DA11#,DB105,FA100,115 |
1 | ||
| 90917-06005 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-76031 |
2D..DA11# |
1 | ||
| 17561-60030 |
F..FA100,11#,FC100 |
1 | ||
| 17571-77010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04002 |
F..FA100,11#,FC100 |
1 | ||
| 17561-76012 |
2D..DA11# |
1 | ||
| 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90118-08089 |
F..FA100,11#,FC100 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17431-60021 |
F..FA100,11#,FC100 |
1 | ||
| 17431-77070 |
F,2D..DA110,FA100..1SR |
1 | ||
| 17431-77080 |
2D..DA110 SOUTH AFRICA SPEC |
1 | ||
| 17431-77100 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17431-77100 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17562-60030 |
F..FA100,11#,FC100 |
1 | ||
| 17572-77012 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17574-77010 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90917-04003 |
F..FA100,11#,FC100 |
1 | ||
| 90917-04001 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90117-08009 |
F..FA100,11#,FC100 |
1 | ||
| 90118-08078 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17441 - FLANGE, EXHAUST PIPE | ||||
| 17441-60010 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 17441-76010 |
2D..DA11#,DB10# |
1 | ||
| 17510 - MUFFLER ASSY | ||||
| 17510-60041 |
F..FA100,11#,FC100 |
1 | ||
| 17510-76030 |
2D..DA110;2D..DA115..2SR |
1 | ||
| 17510-77030 |
2D..DA11#..1SR STD DIFF |
1 | ||
| 17510-77030 |
2D..DA110,116..LHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 17510-77030 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17510-76030 |
2D..DA110;2D..DA115,116..2SR |
1 | ||
| 17510-77030 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17510F - BRACKET, MUFFLER, REAR | ||||
| 17571-76031 |
2D..DA11# |
1 | ||
| 17563-60020 |
F..FA100,11# |
1 | ||
| 17572-77010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17510H - CLAMP NO.1, MUFFLER, REAR | ||||
| 17561-76012 |
2D..DA11# |
1 | ||
| 90917-04003 |
F..FA100,11# |
1 | ||
| 17510J - BOLT OR RING, MUFFLER, REAR | ||||
| 90117-08009 |
F..FA100,11# |
1 | ||
| Common parts | ||||
| 91111-41020 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
(7608-8002)F,2D..DA11#,FA100,115..1SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-60160 |
F..FA100,11#,FC100 |
1 | ||
| 17401-76030 |
2D..DA11# |
1 | ||
| 17401-76040 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77060 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77050 |
2D..DA11# |
1 | ||
| 17401-77080 |
2D..DA11# |
1 | ||
| 17401-77070 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90170-10199 |
F,2D..DA11#,DB10#,FA100,11#,FC100 |
3 | ||
| 90170-10049 |
F,2D..DA11#,DB10#,FA100,11#,FB100,FC100 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06003 |
2D..DA11#,DB10# |
1 | ||
| 90917-06003 |
F,2D..DA11#,DB105,FA100,115 |
1 | ||
| 90917-06005 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-76031 |
2D..DA11# |
1 | ||
| 17561-60030 |
F..FA100,11#,FC100 |
1 | ||
| 17571-77010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17410D - CUSHION, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90540-10011 |
2D..DA11#,DB10# T=14.5 |
2 | ||
| 90917-08010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17410G - CLAMP NO.2, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90461-23011 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90461-23245 |
2D..DA11# |
1 | ||
| 90461-23245 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17431-60021 |
F..FA100,11#,FC100 |
1 | ||
| 17431-77070 |
F,2D..DA110,FA100..1SR |
1 | ||
| 17431-77080 |
2D..DA110 SOUTH AFRICA SPEC |
1 | ||
| 17431-77100 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17431-77100 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17562-60030 |
F..FA100,11#,FC100 |
1 | ||
| 17572-77012 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17574-77010 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90917-08013 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 90540-10011 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90917-04003 |
F..FA100,11#,FC100 |
1 | ||
| 90917-04001 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90117-08009 |
F..FA100,11#,FC100 |
1 | ||
| 90118-08078 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17562-77010 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-76012 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90540-10011 |
F,2D..DA11#,FA100,115..1SR |
2 | ||
| 17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-04001 |
2D..DB105;F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90118-08078 |
2D..DB105;F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17510 - MUFFLER ASSY | ||||
| 17510-60041 |
F..FA100,11#,FC100 |
1 | ||
| 17510-76030 |
2D..DA110;2D..DA115..2SR |
1 | ||
| 17510-77030 |
2D..DA11#..1SR STD DIFF |
1 | ||
| 17510-77030 |
2D..DA110,116..LHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 17510-77030 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17510-76030 |
2D..DA110;2D..DA115,116..2SR |
1 | ||
| 17510-77030 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17510F - BRACKET, MUFFLER, REAR | ||||
| 17571-76031 |
2D..DA11# |
1 | ||
| 17563-60020 |
F..FA100,11# |
1 | ||
| 17572-77010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17510G - CUSHION, MUFFLER, REAR | ||||
| 90917-08010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90540-10011 |
2D..DA11#,DB10# T=14.5 |
2 | ||
| 17510R - CLAMP NO.2, MUFFLER, REAR | ||||
| 90461-23243 |
2D..DA110;2D..DA115,116..2SR |
1 | ||
| 90461-23244 |
2D..DA110;2D..DA115,116..1SR |
1 | ||
| 90461-23244 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 90461-23244 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| Common parts | ||||
| 90102-10011 | ||||
| 90215-11007 | ||||
| 91111-40830 | ||||
| 91111-40835 | ||||
| 91111-41025 | ||||
| 91111-41030 | ||||
| 91661-40840 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

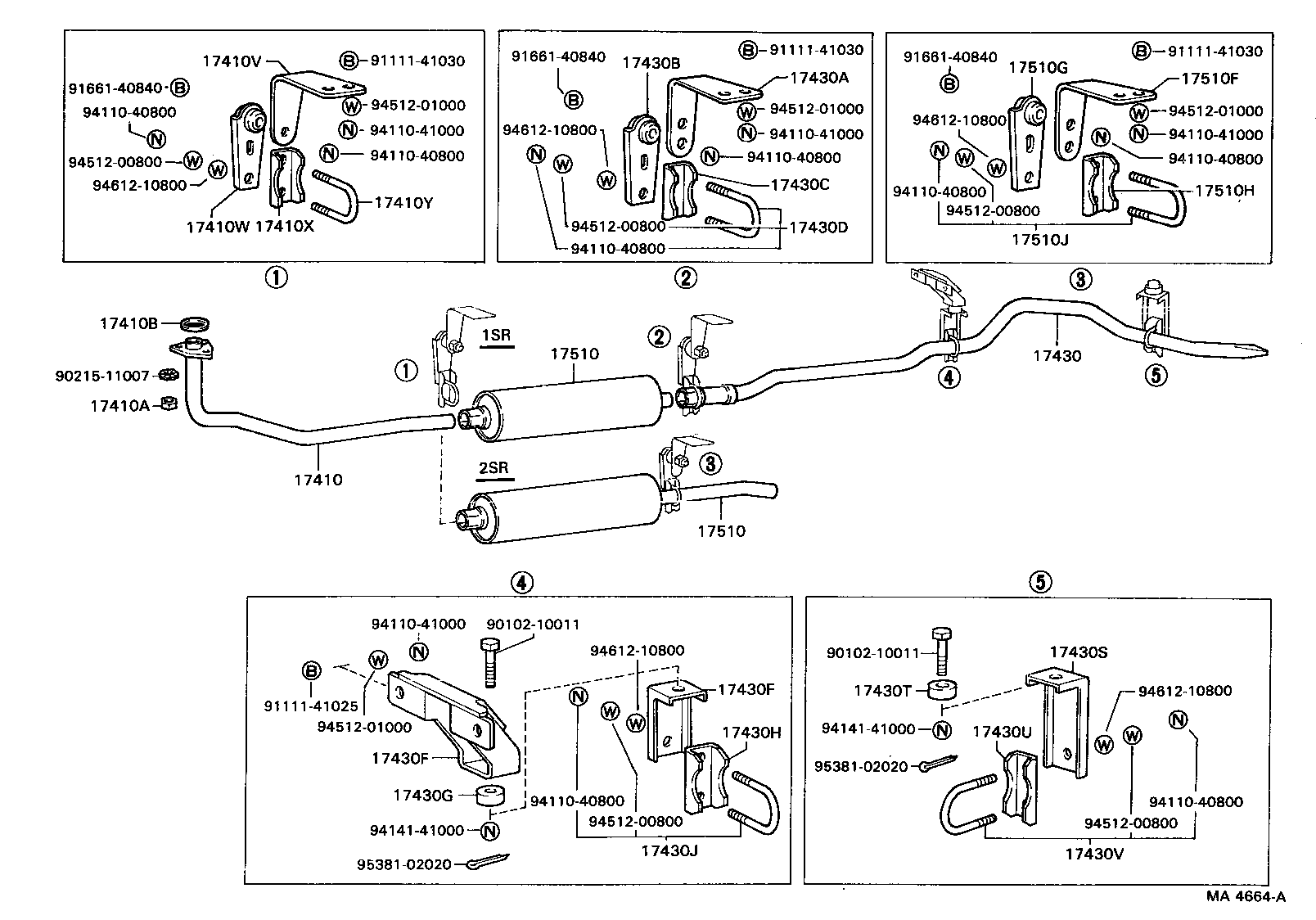

(8002- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-60160 |
F..FA100,11#,FC100 |
1 | ||
| 17401-76030 |
2D..DA11# |
1 | ||
| 17401-76040 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77060 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77050 |
2D..DA11# |
1 | ||
| 17401-77080 |
2D..DA11# |
1 | ||
| 17401-77070 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90170-10199 |
F,2D..DA11#,DB10#,FA100,11#,FC100 |
3 | ||
| 90170-10049 |
F,2D..DA11#,DB10#,FA100,11#,FB100,FC100 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06003 |
2D..DA11#,DB10# |
1 | ||
| 90917-06003 |
F,2D..DA11#,DB105,FA100,115 |
1 | ||
| 90917-06005 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17571-77012 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17571-77012 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17571-77012 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17410W - CUSHION, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 90917-08013 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90917-08013 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90917-08013 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17410X - CLAMP NO.1, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 90917-04050 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90917-04050 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90917-04050 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 90117-08019 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90117-08019 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90117-08019 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17431-60021 |
F..FA100,11#,FC100 |
1 | ||
| 17431-77070 |
F,2D..DA110,FA100..1SR |
1 | ||
| 17431-77080 |
2D..DA110 SOUTH AFRICA SPEC |
1 | ||
| 17431-77100 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17431-77100 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17562-60030 |
F..FA100,11#,FC100 |
1 | ||
| 17572-77012 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17574-77010 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 90917-08013 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 90540-10011 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90917-04003 |
F..FA100,11#,FC100 |
1 | ||
| 90917-04001 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90117-08009 |
F..FA100,11#,FC100 |
1 | ||
| 90118-08078 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17574-77011 |
F,2D..DA11#,FA100,115..1SR UPR |
1 | ||
| 17562-77010 |
F,2D..DA11#,FA100,115..1SR LWR |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17574-77011 |
F,2D..DA11#,FA100,115..1SR UPR |
1 | ||
| 17562-77010 |
F,2D..DA11#,FA100,115..1SR LWR |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90540-10011 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430H - CLAMP NO.1, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90917-04001 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90118-08078 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17561-76012 |
F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90540-10011 |
F,2D..DA11#,FA100,115..1SR |
2 | ||
| 17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-04001 |
2D..DB105;F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90118-08078 |
2D..DB105;F,2D..DA11#,FA100,115..1SR |
1 | ||
| 17510 - MUFFLER ASSY | ||||
| 17510-76030 |
2D..DA110;2D..DA115..2SR |
1 | ||
| 17510-60041 |
F..FA100,11#,FC100 |
1 | ||
| 17510-77030 |
2D..DA11#..1SR STD DIFF |
1 | ||
| 17510-77030 |
2D..DA110,116..LHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 17510-77030 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17510-76030 |
2D..DA110;2D..DA115,116..2SR |
1 | ||
| 17510-77030 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17510 - MUFFLER ASSY | ||||
| 17510-76030 |
2D..DA110;2D..DA115..2SR |
1 | ||
| 17510-60041 |
F..FA100,11#,FC100 |
1 | ||
| 17510-77030 |
2D..DA11#..1SR STD DIFF |
1 | ||
| 17510-77030 |
2D..DA110,116..LHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 17510-77030 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17510-76030 |
2D..DA110;2D..DA115,116..2SR |
1 | ||
| 17510-77030 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17510F - BRACKET, MUFFLER, REAR | ||||
| 17571-76031 |
2D..DA11# |
1 | ||
| 17563-60020 |
F..FA100,11# |
1 | ||
| 17572-77010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17510G - CUSHION, MUFFLER, REAR | ||||
| 90917-08010 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90540-10011 |
2D..DA11#,DB10# T=14.5 |
2 | ||
| 17510H - CLAMP NO.1, MUFFLER, REAR | ||||
| 17561-76012 |
2D..DA11# |
1 | ||
| 90917-04003 |
F..FA100,11# |
1 | ||
| 17510J - BOLT OR RING, MUFFLER, REAR | ||||
| 90117-08009 |
F..FA100,11# |
1 | ||
| Common parts | ||||
| 90102-10011 | ||||
| 90215-11007 | ||||
| 91111-41025 | ||||
| 91111-41030 | ||||
| 91661-40840 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 95381-02020 | ||||

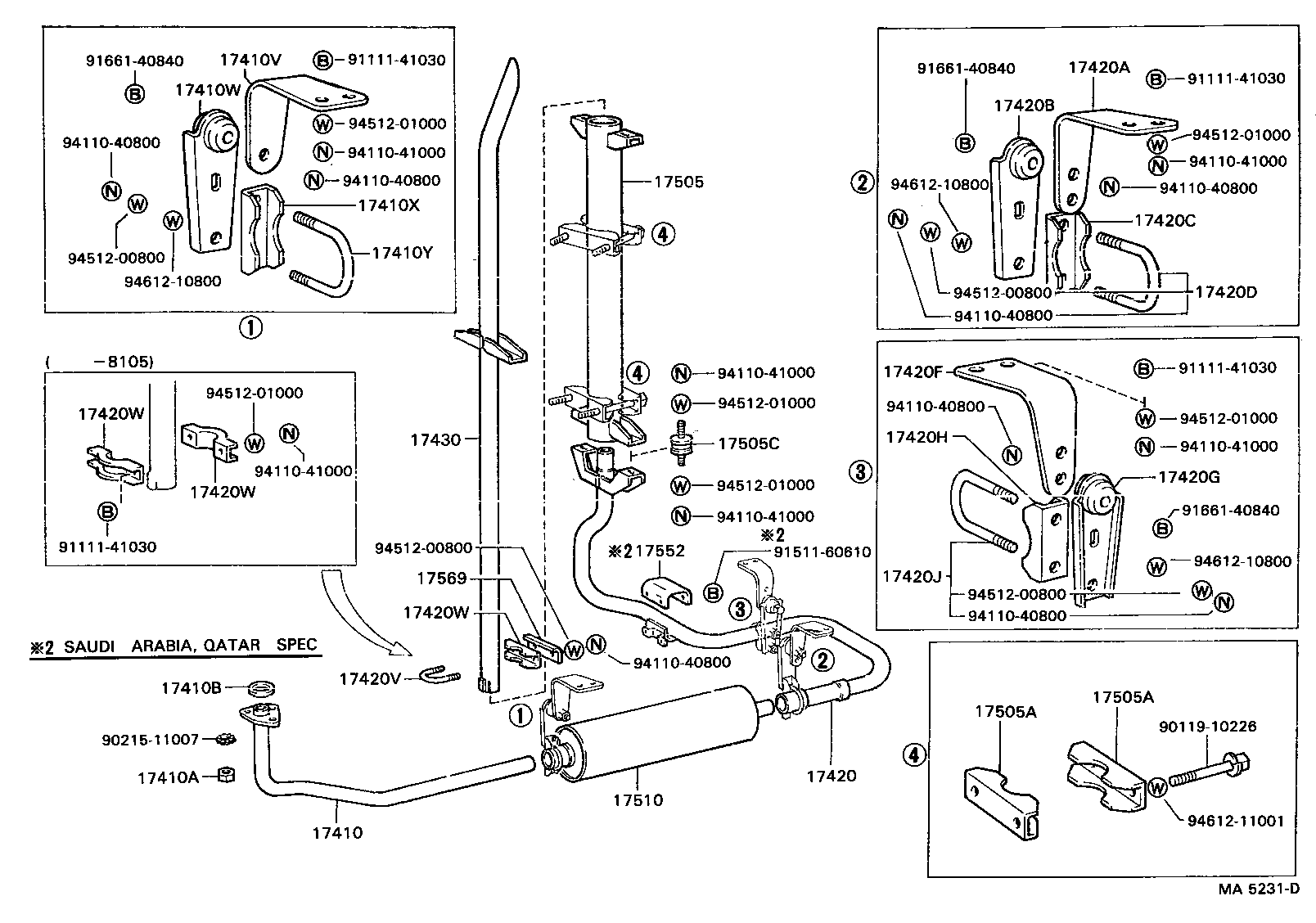

(8102- )2D..DA110,115..LHD ; (8308- )2D..DA116..LHD..5FD..1SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-60160 |
F..FA100,11#,FC100 |
1 | ||
| 17401-76030 |
2D..DA11# |
1 | ||
| 17401-76040 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77060 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17401-77050 |
2D..DA11# |
1 | ||
| 17401-77080 |
2D..DA11# |
1 | ||
| 17401-77070 |
2D..DA11# W/EXHAUST BRAKE |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90170-10199 |
F,2D..DA11#,DB10#,FA100,11#,FC100 |
3 | ||
| 90170-10049 |
F,2D..DA11#,DB10#,FA100,11#,FB100,FC100 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06003 |
2D..DA11#,DB10# |
1 | ||
| 90917-06003 |
F,2D..DA11#,DB105,FA100,115 |
1 | ||
| 90917-06005 |
F..FA100,11#,FB100,FC100 |
1 | ||
| 17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 17571-77012 |
F,2D..DA11#,FA100,115 |
1 | ||
| 17571-77012 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17571-77012 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17410W - CUSHION, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 90917-08013 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90917-08013 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90917-08013 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17410X - CLAMP NO.1, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 90917-04050 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90917-04050 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90917-04050 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) | ||||
| 90117-08019 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90117-08019 |
F,2D..DA11#,FA100,115 |
1 | ||
| 90117-08019 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-77021 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17403-77030 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17403-77030 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17420A - BRACKET, EXHAUST PIPE CENTER, FRONT | ||||
| 17572-77012 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17572-77012 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17420B - CUSHION, EXHAUST PIPE CENTER, FRONT | ||||
| 90917-08013 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90917-08013 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17420C - CLAMP NO.1, EXHAUST PIPE CENTER, FRONT | ||||
| 90917-04001 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90917-04001 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT | ||||
| 90118-08078 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 90118-08078 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17420F - BRACKET, EXHAUST PIPE, CENTER | ||||
| 17572-77012 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17572-77012 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17420G - CUSHION, EXHAUST PIPE CENTER, CENTER | ||||
| 90917-08013 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 90917-08013 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER | ||||
| 90917-04001 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 90917-04001 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17420J - BOLT OR RING, EXHAUST PIPE CENTER | ||||
| 90118-08078 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90118-08078 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17420V - BOLT OR RING, EXHAUST PIPE CENTER, REAR | ||||
| 90118-08078 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90118-08078 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17420W - CLAMP NO.2, EXHAUST PIPE CENTER, REAR | ||||
| 90917-04028 |
2D..DA110,115..LHD..1SR QATAR SPEC |
2 | ||
| 90917-04001 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90917-04001 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 90917-04001 |
2D..DA11#..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17420W - CLAMP NO.2, EXHAUST PIPE CENTER, REAR | ||||
| 90917-04028 |
2D..DA110,115..LHD..1SR QATAR SPEC |
2 | ||
| 90917-04001 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90917-04001 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 90917-04001 |
2D..DA11#..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17420W - CLAMP NO.2, EXHAUST PIPE CENTER, REAR | ||||
| 90917-04028 |
2D..DA110,115..LHD..1SR QATAR SPEC |
2 | ||
| 90917-04001 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 90917-04001 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 90917-04001 |
2D..DA11#..LHD..1SR QATAR SPEC,IV3 |
1 | ||

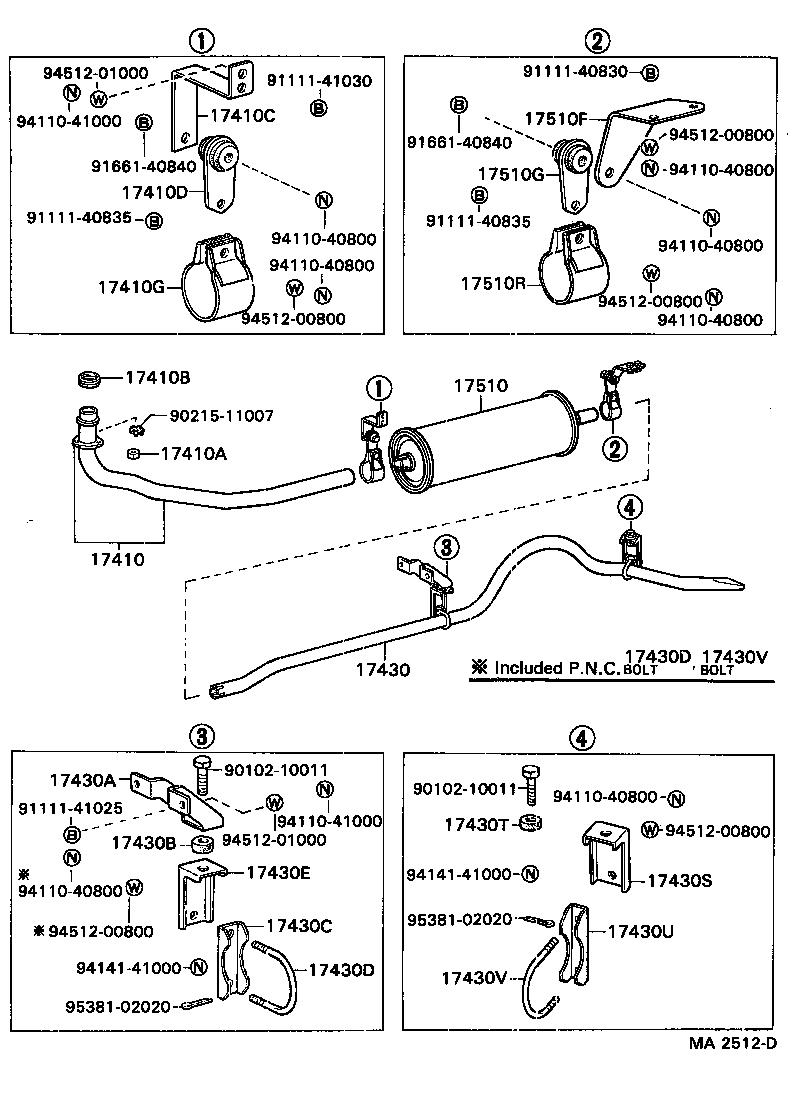

| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17431-60021 |
F..FA100,11#,FC100 |
1 | ||
| 17431-77070 |
F,2D..DA110,FA100..1SR |
1 | ||
| 17431-77080 |
2D..DA110 SOUTH AFRICA SPEC |
1 | ||
| 17431-77100 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17431-77100 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17505 - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1 | ||||
| 17505-77020 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17505-77020 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 90917-04029 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
2 | ||
| 90917-04029 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
2 | ||
| 17505A - CLAMP, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 90917-04029 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
2 | ||
| 90917-04029 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
2 | ||
| 17505C - CUSHION, EXHAUST PIPE(FOR HEAT INSULATOR) | ||||
| 90917-08011 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
4 | ||
| 90917-08011 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
4 | ||
| 17510 - MUFFLER ASSY | ||||
| 17510-76030 |
2D..DA110;2D..DA115..2SR |
1 | ||
| 17510-60041 |
F..FA100,11#,FC100 |
1 | ||
| 17510-77030 |
2D..DA11#..1SR STD DIFF |
1 | ||
| 17510-77030 |
2D..DA110,116..LHD..1SR SOUTH AFRICA SPEC |
1 | ||
| 17510-77030 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17510-76030 |
2D..DA110;2D..DA115,116..2SR |
1 | ||
| 17510-77030 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17552-77010 |
2D..DA110..LHD..1SR *BB(SINGLE)QATAR SPEC,IV3 |
1 | ||
| 17552-77010 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| 17569 - PLATE, EXHAUST PIPE SUPPORT | ||||
| 17569-77010 |
2D..DA110..LHD..1SR QATAR SPEC,IV3 |
1 | ||
| 17569-77010 |
2D..DA11#..LHD..1SR SAUDI ARABIA SPEC,IV3 |
1 | ||
| Common parts | ||||
| 90119-10226 | ||||
| 90215-11007 | ||||
| 91111-41030 | ||||
| 91511-60610 | ||||
| 91661-40840 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94612-11001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
