DA110L-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )

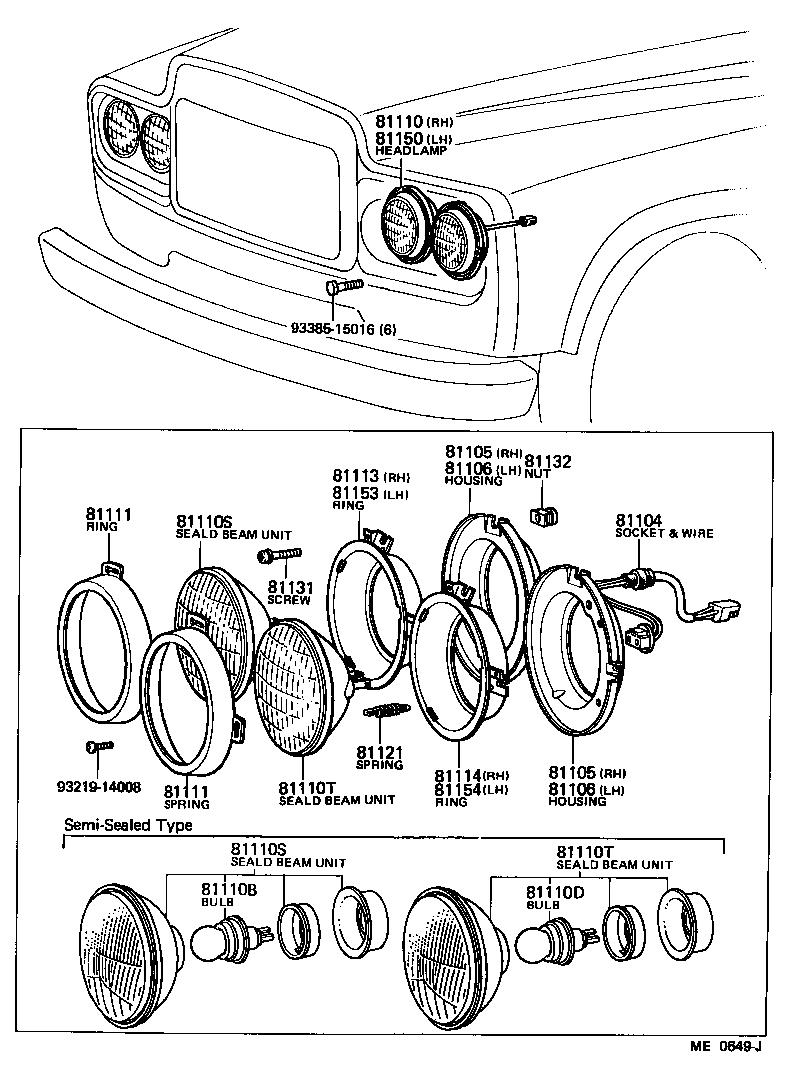

Click highlighted areas on diagram

diagram 81104 81105 81105 81106 81106 81110 81110B 81110D 81110S 81110S 81110T 81110T 81111 81111 81113 81114 81121 81131 81132 81150 81153 81154 9321914008 9338515016
Part # Description Qty Price
81104 - SOCKET & WIRE SUB-ASSY, HEADLAMP
81104-55020

DA11#,FA100,11#,FC100

 2
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-55110

DA11#,FA100,11#,FC100

 2
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-55110

DA11#,FA100,11#,FC100

 2
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81105-55110

DA11#,FA100,11#,FC100

 2
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81105-55110

DA11#,FA100,11#,FC100

 2
81110 - HEADLAMP ASSY, RH
81110-55140

FA100,11#,FC100..LHD

 1
81110-55130

DA11#..LHD

 1
81110-55150

DA11#..LHD

SEMI-SEALED,YELLOW

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-17009

DA11#..LHD

24V 55/50W,YELLOW,24V 55/50W,YELLOW

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-17009

DA11#..LHD

24V 55/50W,YELLOW,24V 55/50W,YELLOW

 2
81110S - SEALED BEAM UNIT, NO.1
90981-08007

DA11#..LHD

24V 40W,*WB,24V 40W

 2
90981-02011

FA100,11#,FC100..LHD

12V 37.5W,*WB,12V 37.5W

 2
90981-02011

FA100,11#,FC100

12V 37.5W,*WB,12V 37.5W

 2
90981-08012

DA11#..LHD

24V 55/50W,*YSB,24V 55W,SEMI-SEALED,YELLOW

 2
90981-08007

DA11#,DB10#

24V 40W,*WB,24V 40W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-08007

DA11#..LHD

24V 40W,*WB,24V 40W

 2
90981-02011

FA100,11#,FC100..LHD

12V 37.5W,*WB,12V 37.5W

 2
90981-02011

FA100,11#,FC100

12V 37.5W,*WB,12V 37.5W

 2
90981-08012

DA11#..LHD

24V 55/50W,*YSB,24V 55W,SEMI-SEALED,YELLOW

 2
90981-08007

DA11#,DB10#

24V 40W,*WB,24V 40W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02013

FA100,11#,FC100..LHD

12V 37.5/50W,*WB,12V 37.5/ 50W

 2
90981-08009

DA11#..LHD

24V 40/60W,*WB,24V 40/60W

 2
90981-08013

DA11#..LHD

24V 55/50W,*YSB,24V 55/50W,SEMI-SEALED,YELLOW

 2
81110T - SEALED BEAM UNIT, NO.2
90981-02013

FA100,11#,FC100..LHD

12V 37.5/50W,*WB,12V 37.5/ 50W

 2
90981-08009

DA11#..LHD

24V 40/60W,*WB,24V 40/60W

 2
90981-08013

DA11#..LHD

24V 55/50W,*YSB,24V 55/50W,SEMI-SEALED,YELLOW

 2
81111 - RING, SEALED BEAM RETAINING
81111-20042

DA11#,DB10#,FA100,11#,FC100

 4
81111-20170

DA11#,FA100,115

 4
81111 - RING, SEALED BEAM RETAINING
81111-20042

DA11#,DB10#,FA100,11#,FC100

 4
81111-20170

DA11#,FA100,115

 4
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-30031

DA11#,DB10#,FA100,11#,FC100

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-30031

DA11#,DB10#,FA100,11#,FC100

 1
81121 - SPRING, HEADLAMP TENSION
90506-16019

DA11#,DB10#,FA100,11#,FC100

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-10022

DA11#,DB10#,FA100,11#,FC100

 8
81132 - NUT, HEADLAMP SELF LOCKING
81132-30031

DA11#,DB10#,FA100,11#,FC100

 8
81150 - HEADLAMP ASSY, LH
81150-55050

FA100,11#,FC100..LHD

 1
81150-55040

DA11#..LHD

 1
81150-55060

DA11#..LHD

SEMI-SEALED,YELLOW

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-30021

DA11#,DB10#,FA100,11#,FC100

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-30021

DA11#,DB10#,FA100,11#,FC100

 1
Common parts
93219-14008
93385-15016
