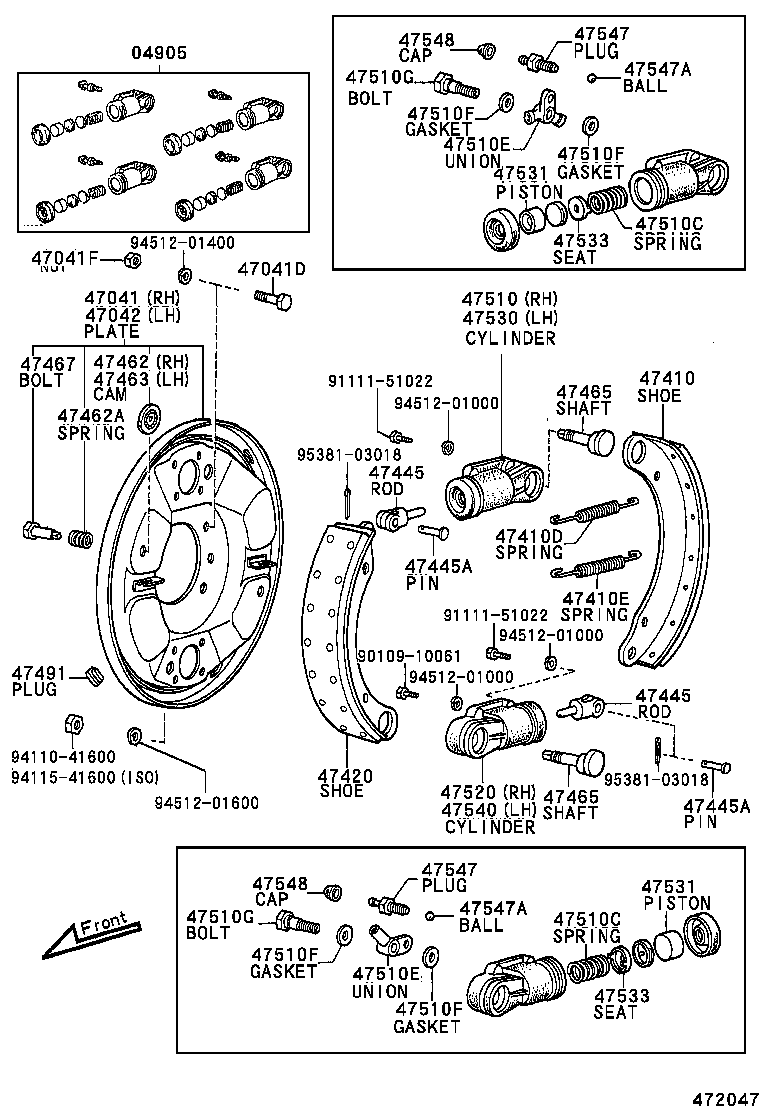

DA110L-H (1969)
Toyota Heavy Duty Truck
(6903-7003)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-55031 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 04905-55040 |
DA11#,FA100,11#,FB100 |
1 | ||
| 04905-55042 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 04905-55034 |
DA11#,FA100,115 |
1 | ||
| 04905-55034 |
DA11#,DB10#,FA100,11# |
1 | ||
| 04905-55035 |
DA11#,FA100,115 |
1 | ||
| 04905-55050 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-55020 |
DA11#,FA100,115 |
1 | ||
| 47050-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47050-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47041-55021 |
DA11#,FA100,115 |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 91112-71435 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 90101-14001 |
DA11#,FA100,115 |
12 | ||
| 91112-51436 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-41400 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 94115-51400 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 90170-14002 |
DA11#,FA100,115 |
12 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-55010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47042-55011 |
DA11#,FA100,115 |
1 | ||
| 47060-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47410 - SHOE ASSY, FRONT BRAKE(FOR FRONT OR UPPER SIDE) | ||||
| 47410-55030 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-55031 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-56011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47410-55033 |
DA11# |
2 | ||
| 47410-55032 |
DA11#,FA100,115 |
2 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29001 |
DA11#,FA100,115 |
2 | ||
| 90506-29304 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 90507-32002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-29304 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 90507-29001 |
DA11#,FA100,115 |
2 | ||
| 90507-32002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47420 - SHOE ASSY, FRONT BRAKE(FOR REAR OR LOWER SIDE) | ||||
| 47410-55030 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-56011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47410-55031 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-55032 |
DA11#,FA100,115 |
2 | ||
| 47410-55033 |
DA11# |
2 | ||
| 47445 - ROD, WHEEL CYLINDER | ||||
| 47445-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47445 - ROD, WHEEL CYLINDER | ||||
| 47445-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47445A - PIN, WHEEL CYLINDER ROD | ||||
| 90240-11057 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47445A - PIN, WHEEL CYLINDER ROD | ||||
| 90240-11057 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47462 - CAM, FRONT BRAKE SHOE ADJUSTING, RH | ||||
| 47464-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47464-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47462A - SPRING, FRONT BRAKE SHOE ADJUSTING CAM | ||||
| 90501-60580 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-55183 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47463 - CAM, FRONT BRAKE SHOE ADJUSTING, LH | ||||
| 47465-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47465-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47465 - SHAFT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47466-55041 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47465 - SHAFT, FRONT BRAKE SHOE ADJUSTING | ||||
| 47466-55041 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47467 - BOLT, FRONT BRAKE SHOE ADJUSTING CAM | ||||
| 47467-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
9 | ||
| 47491-20010 |
DA11#,DB10#,FA100,11#,FB100 |
9 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47510-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47510-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47510-55051 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47510-55043 |
DA11#,FA100,115 |
1 | ||
| 47510-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-12159 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90502-12001 |
DA11#,FA100,115..GEN |
4 | ||
| 90502-10038 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-10759 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 90502-09059 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-12159 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90502-12001 |
DA11#,FA100,115..GEN |
4 | ||
| 90502-10038 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-10759 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 90502-09059 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47510E - UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90405-10062 |
DA11#,DB10#,FA100,11#,FB100,FC100 UPR,RH |
1 | ||
| 90405-10066 |
DA11#,DB10#,FA100,11#,FB100,FC100 LWR |
2 | ||
| 90405-10063 |
DA11#,DB10#,FA100,11#,FB100,FC100 UPR,LH |
1 | ||
| 47510E - UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90405-10062 |
DA11#,DB10#,FA100,11#,FB100,FC100 UPR,RH |
1 | ||
| 90405-10066 |
DA11#,DB10#,FA100,11#,FB100,FC100 LWR |
2 | ||
| 90405-10063 |
DA11#,DB10#,FA100,11#,FB100,FC100 UPR,LH |
1 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
4 | ||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
4 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
4 | ||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
4 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
4 | ||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
4 | ||
| 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90430-12110 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=12.1,OD=20.5 |
4 | ||
| 90430-15112 |
DA11#,DB10#,FA100,11#,FB100,FC100 ID=15.1,OD=20.5 |
4 | ||
| 47510G - BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47510G - BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90401-12030 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47510-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47510-55043 |
DA11#,FA100,115 |
1 | ||
| 47510-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47510-55051 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47510-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47530-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47530-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47530-55051 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47530-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47530-55043 |
DA11#,FA100,115..GEN |
1 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-55070 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47531-55053 |
DA11#,FA100,115..GEN |
4 | ||
| 47531-55051 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47531-55052 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47531-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-55070 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47531-55053 |
DA11#,FA100,115..GEN |
4 | ||
| 47531-55051 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47531-55052 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47531-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47537-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47533-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47533-36020 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47533-36011 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47537-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47533-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47533-36020 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47533-36011 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47530-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47530-55043 |
DA11#,FA100,115..GEN |
1 | ||
| 47530-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47540-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47530-55051 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47530-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47547-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47547-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47547A - BALL, BLEEDER PLUG(FOR REAR DRUM BRAKE) | ||||
| 90360-08009 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47547A - BALL, BLEEDER PLUG(FOR REAR DRUM BRAKE) | ||||
| 90360-08009 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 47548-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 31478-30010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 47548-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 31478-30010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| Common parts | ||||
| 90109-10061 | ||||
| 91111-51022 | ||||
| 94110-41600 | ||||
| 94115-41600 | ||||
| 94512-01000 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
| 95381-03018 | ||||
(7003- )DA11#,DB10#,FA100,11#,FB100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-55050 |
DA11#,FA100,115..GEN |
4 | ||
| 04473-55040 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
4 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-55031 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 04905-55040 |
DA11#,FA100,11#,FB100 |
1 | ||
| 04905-55042 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 04905-55034 |
DA11#,FA100,115 |
1 | ||
| 04905-55034 |
DA11#,DB10#,FA100,11# |
1 | ||
| 04905-55035 |
DA11#,FA100,115 |
1 | ||
| 04905-55050 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-55020 |
DA11#,FA100,115 |
1 | ||
| 47050-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47050-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47041-55021 |
DA11#,FA100,115 |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-55020 |
DA11#,FA100,115 |
1 | ||
| 47050-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47050-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47041-55021 |
DA11#,FA100,115 |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 91112-71435 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 90101-14001 |
DA11#,FA100,115 |
12 | ||
| 91112-51436 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-41400 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 94115-51400 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 90170-14002 |
DA11#,FA100,115 |
12 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-55010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47042-55011 |
DA11#,FA100,115 |
1 | ||
| 47060-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-55010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47042-55011 |
DA11#,FA100,115 |
1 | ||
| 47060-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47332B - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE) | ||||
| 90413-12094 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47334B - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE) | ||||
| 90413-12095 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47410 - SHOE ASSY, FRONT BRAKE(FOR FRONT OR UPPER SIDE) | ||||
| 47410-55030 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-55031 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-56011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47410-55033 |
DA11# |
2 | ||
| 47410-55032 |
DA11#,FA100,115 |
2 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-29581 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-26581 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29001 |
DA11#,FA100,115 |
2 | ||
| 90506-29304 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 90507-32002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-29304 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 90507-29001 |
DA11#,FA100,115 |
2 | ||
| 90507-32002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47420 - SHOE ASSY, FRONT BRAKE(FOR REAR OR LOWER SIDE) | ||||
| 47410-55030 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-56011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47410-55031 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-55032 |
DA11#,FA100,115 |
2 | ||
| 47410-55033 |
DA11# |
2 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-55011 |
DA11#,FA100,115 |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-55010 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-55010 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| 47456 - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-55010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47462 - CAM, FRONT BRAKE SHOE ADJUSTING, RH | ||||
| 47464-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47464-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47462A - SPRING, FRONT BRAKE SHOE ADJUSTING CAM | ||||
| 90501-60580 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-55183 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47462B - WASHER, ADJUSTING CAM(FOR FRONT BRAKE) | ||||
| 47469-55010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47462C - WASHER, CLAW(FOR FRONT BRAKE) | ||||
| 90214-12019 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47462D - WASHER, PLATE(FOR FRONT BRAKE) | ||||
| 90201-12336 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47462E - RING, E(FOR FRONT BRAKE) | ||||
| 90523-10018 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47463 - CAM, FRONT BRAKE SHOE ADJUSTING, LH | ||||
| 47465-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47465-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
9 | ||
| 47491-20010 |
DA11#,DB10#,FA100,11#,FB100 |
9 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47510-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47510-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47510-55051 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47510-55043 |
DA11#,FA100,115 |
1 | ||
| 47510-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-12159 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90502-12001 |
DA11#,FA100,115..GEN |
4 | ||
| 90502-10038 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-10759 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 90502-09059 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-12159 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90502-12001 |
DA11#,FA100,115..GEN |
4 | ||
| 90502-10038 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-10759 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 90502-09059 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47510H - SPRING(FOR FRONT WHEEL CYLINDER PISTON SUB SPRING) | ||||
| 90506-16302 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47510-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47510-55043 |
DA11#,FA100,115 |
1 | ||
| 47510-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47510-55051 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47510-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47530-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47530-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47530-55051 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47530-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47530-55043 |
DA11#,FA100,115..GEN |
1 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-55070 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47531-55053 |
DA11#,FA100,115..GEN |
4 | ||
| 47531-55051 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47531-55052 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47531-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-55070 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47531-55053 |
DA11#,FA100,115..GEN |
4 | ||
| 47531-55051 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47531-55052 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47531-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47531A - INSERT, WHEEL CYLINDER PISTON(FOR FRONT BRAKE) | ||||
| 47532-55010 |
DA11#,FA100,115..GEN |
4 | ||
| 47531B - CUSION(FOR FRONT WHEEL BRAKE PISTON CYLINDER) | ||||
| 90541-22001 |
DA11#,FA100,115..GEN |
4 | ||
| 47531C - RING(FOR FRONT WHEEL BRAKE PISTON CYLINDER) | ||||
| 90562-16002 |
DA11#,FA100,115..GEN |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47537-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47533-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47533-36020 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47533-36011 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47530-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47530-55043 |
DA11#,FA100,115..GEN |
1 | ||
| 47530-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47540-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47530-55051 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47530-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47547-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47547-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 47548-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 31478-30010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 47548-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 31478-30010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47574 - SHIELD, WHEEL CYLINDER HEAT(FOR FRONT BRAKE) | ||||
| 47574-55010 |
DA11#,DB10#,FA100,11#,FB100 LH |
2 | ||
| 47572-55020 |
DA11#,DB10#,FA100,11#,FB100 RH |
2 | ||
| 47574 - SHIELD, WHEEL CYLINDER HEAT(FOR FRONT BRAKE) | ||||
| 47574-55010 |
DA11#,DB10#,FA100,11#,FB100 LH |
2 | ||
| 47572-55020 |
DA11#,DB10#,FA100,11#,FB100 RH |
2 | ||
| Common parts | ||||
| 90109-14390 | ||||
| 90119-08049 | ||||
| 90119-10050 | ||||
| 90201-14005 | ||||
| 94125-41200 | ||||
| 94511-01200 | ||||
| 94512-01400 | ||||

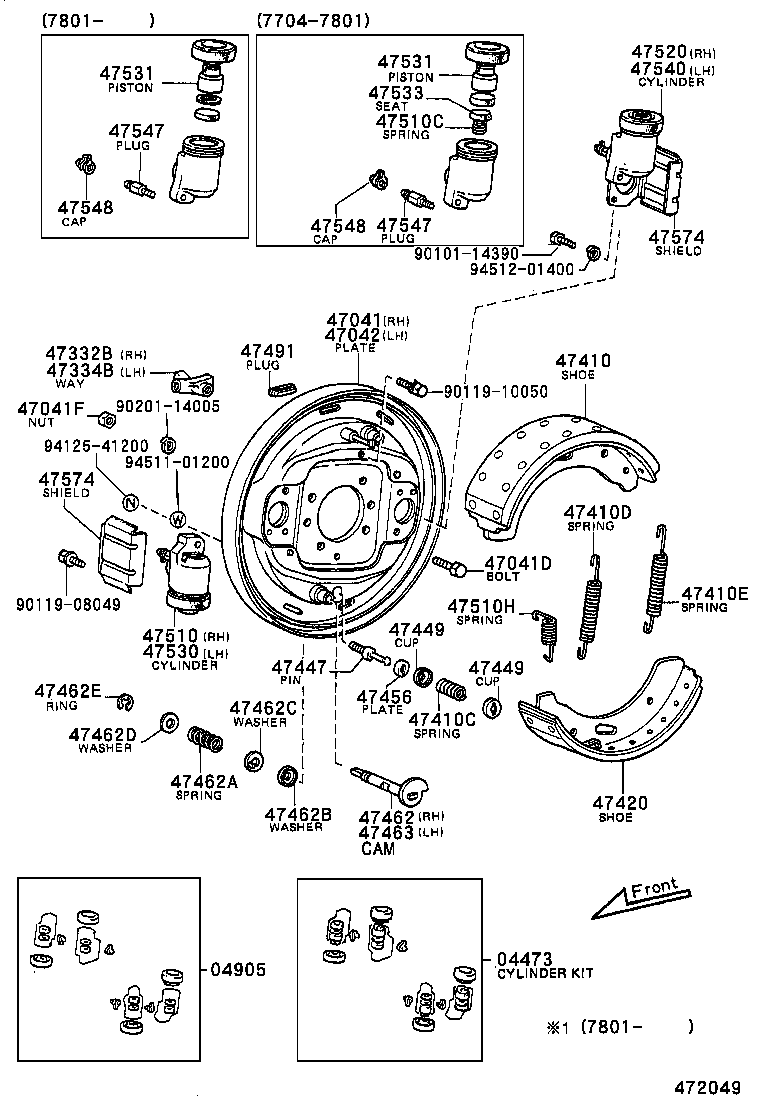

(7704- )DA11#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04473 - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-55050 |
DA11#,FA100,115..GEN |
4 | ||
| 04473-55040 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
4 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-55031 |
DA11#,FA100,11#,FB100,FC100 |
1 | ||
| 04905-55040 |
DA11#,FA100,11#,FB100 |
1 | ||
| 04905-55042 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 04905-55034 |
DA11#,FA100,115 |
1 | ||
| 04905-55034 |
DA11#,DB10#,FA100,11# |
1 | ||
| 04905-55035 |
DA11#,FA100,115 |
1 | ||
| 04905-55050 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-55020 |
DA11#,FA100,115 |
1 | ||
| 47050-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47050-55040 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47041-55021 |
DA11#,FA100,115 |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 91112-71435 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 90101-14001 |
DA11#,FA100,115 |
12 | ||
| 91112-51436 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-41400 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 94115-51400 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
12 | ||
| 90170-14002 |
DA11#,FA100,115 |
12 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-55010 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47042-55011 |
DA11#,FA100,115 |
1 | ||
| 47060-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47332B - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE) | ||||
| 90413-12094 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47334B - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE) | ||||
| 90413-12095 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47410 - SHOE ASSY, FRONT BRAKE(FOR FRONT OR UPPER SIDE) | ||||
| 47410-55030 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-55031 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-56011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47410-55033 |
DA11# |
2 | ||
| 47410-55032 |
DA11#,FA100,115 |
2 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-29581 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-26581 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90507-29001 |
DA11#,FA100,115 |
2 | ||
| 90506-29304 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 90507-32002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-29304 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 90507-29001 |
DA11#,FA100,115 |
2 | ||
| 90507-32002 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47420 - SHOE ASSY, FRONT BRAKE(FOR REAR OR LOWER SIDE) | ||||
| 47410-55030 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-56011 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47410-55031 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47410-55032 |
DA11#,FA100,115 |
2 | ||
| 47410-55033 |
DA11# |
2 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-55011 |
DA11#,FA100,115 |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-55010 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-55010 |
DA11#,DB10#,FA100,11#,FB100 |
8 | ||
| 47456 - PLATE, FRONT BRAKE SHOE GUIDE | ||||
| 47456-55010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47462 - CAM, FRONT BRAKE SHOE ADJUSTING, RH | ||||
| 47464-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47464-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47462A - SPRING, FRONT BRAKE SHOE ADJUSTING CAM | ||||
| 90501-60580 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-55183 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47462B - WASHER, ADJUSTING CAM(FOR FRONT BRAKE) | ||||
| 47469-55010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47462C - WASHER, CLAW(FOR FRONT BRAKE) | ||||
| 90214-12019 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47462D - WASHER, PLATE(FOR FRONT BRAKE) | ||||
| 90201-12336 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47462E - RING, E(FOR FRONT BRAKE) | ||||
| 90523-10018 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47463 - CAM, FRONT BRAKE SHOE ADJUSTING, LH | ||||
| 47465-56010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
2 | ||
| 47465-55020 |
DA11#,DB10#,FA100,11#,FB100 |
2 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-55010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
9 | ||
| 47491-20010 |
DA11#,DB10#,FA100,11#,FB100 |
9 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47510-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47510-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47510-55051 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47510-55043 |
DA11#,FA100,115 |
1 | ||
| 47510-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-12159 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 90502-12001 |
DA11#,FA100,115..GEN |
4 | ||
| 90502-10038 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 90501-10759 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 90502-09059 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47510H - SPRING(FOR FRONT WHEEL CYLINDER PISTON SUB SPRING) | ||||
| 90506-16302 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47510-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47510-55043 |
DA11#,FA100,115 |
1 | ||
| 47510-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47510-55051 |
DA11#..GEN W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47510-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47530-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47530-55030 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47530-55051 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47530-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47530-55043 |
DA11#,FA100,115..GEN |
1 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-55070 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47531-55053 |
DA11#,FA100,115..GEN |
4 | ||
| 47531-55051 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47531-55052 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47531-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-55070 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47531-55053 |
DA11#,FA100,115..GEN |
4 | ||
| 47531-55051 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47531-55052 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47531-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47537-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47533-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47533-36020 |
DA11#,DB10#,FA100,11# |
4 | ||
| 47533-36011 |
DA11# W/AIR SERVO BRAKE |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47530-55041 |
DA11#,DB10#,FA100,11#,FB100 |
1 | ||
| 47530-55043 |
DA11#,FA100,115..GEN |
1 | ||
| 47530-55050 |
DA11# W/AIR SERVO BRAKE |
1 | ||
| 47540-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
1 | ||
| 47530-55051 |
DA11# W/AIR SERVO OR AIR OVER BRAKE |
1 | ||
| 47530-55042 |
DA11#,DB10#,FA100,11# |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47547-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 47547-55020 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 47548-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 31478-30010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 47548-37010 |
DA11#,DB10#,FA100,11#,FB100 |
4 | ||
| 31478-30010 |
DA11#,DB10#,FA100,11#,FB100,FC100 |
4 | ||
| 47574 - SHIELD, WHEEL CYLINDER HEAT(FOR FRONT BRAKE) | ||||
| 47574-55010 |
DA11#,DB10#,FA100,11#,FB100 LH |
2 | ||
| 47572-55020 |
DA11#,DB10#,FA100,11#,FB100 RH |
2 | ||
| 47574 - SHIELD, WHEEL CYLINDER HEAT(FOR FRONT BRAKE) | ||||
| 47574-55010 |
DA11#,DB10#,FA100,11#,FB100 LH |
2 | ||
| 47572-55020 |
DA11#,DB10#,FA100,11#,FB100 RH |
2 | ||
| Common parts | ||||
| 90101-14390 | ||||
| 90119-08049 | ||||
| 90119-10050 | ||||
| 90201-14005 | ||||
| 94125-41200 | ||||
| 94511-01200 | ||||
| 94512-01400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
