DA110L-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )DA11#,FA100,11#,FC100

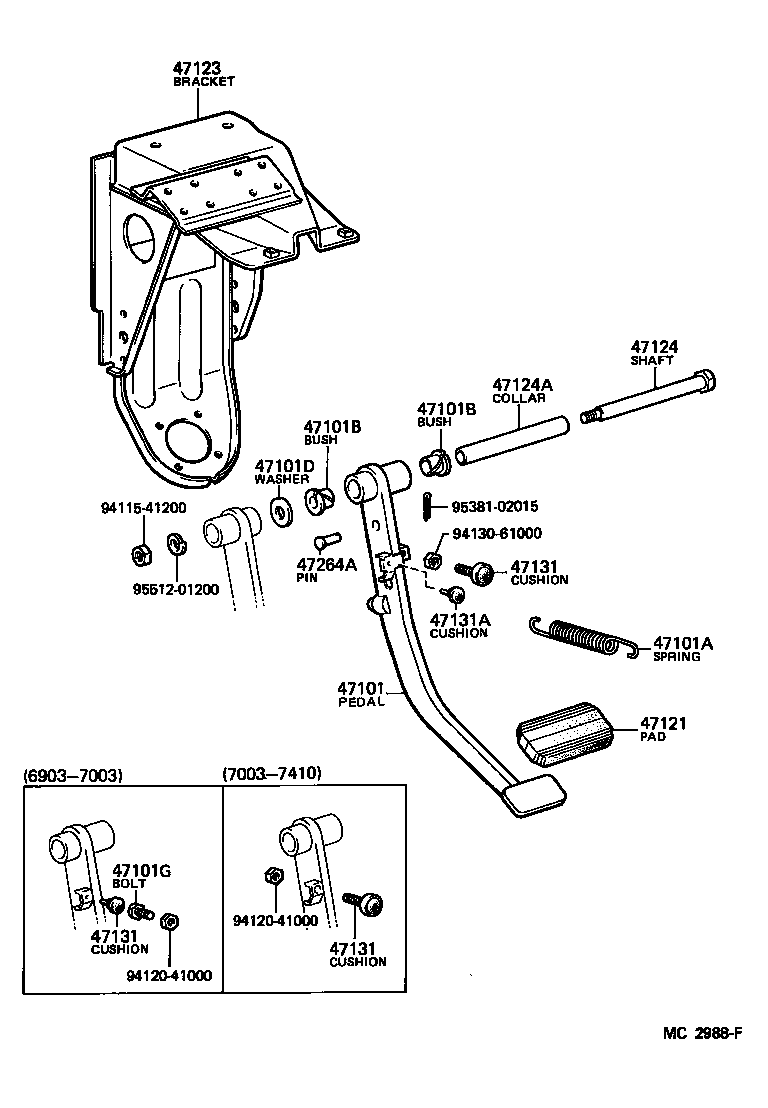

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47101D 47101G 47121 47123 47124 47124A 47131 47131 47131 47131A 47264A 9411541200 9412041000 9412041000 9413061000 9538102015 9551201200
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47111-55063

DA11#,FA100,115..LHD

 1
47111-55061

DA11#,FA100,11#,FC100..LHD

 1
47111-55062

DA11#,FA100,11#,FC100..LHD

 1
47111-55064

DA11#,FA100,115..LHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-20036

DA11#

W/AIR OVER BRAKE

 1
90506-26033

DA11#,FA100,11#,FB100,FC100..GEN

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-20037

DA11#,DB10#,FA100,11#,FC100

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-20037

DA11#,DB10#,FA100,11#,FC100

 2
47101D - WASHER(FOR PEDAL SHAFT)
94612-12000

DA11#,FA100,11#,FC100

 1
47101G - BOLT, BRAKE PEDAL STOP, NO.1
90050-80030

DA11#,FA100,11#,FC100

 1
47121 - PAD, BRAKE PEDAL
47121-55010

DA11#,FA100,11#,FC100..GEN

 1
47123 - BRACKET, BRAKE PEDAL
55160-95220

DA11#,FA100,115..LHD

 1
55160-95211

DA11#,FA100,115..LHD

 1
55160-95222

DA11#..LHD

W/AIR OVER BRAKE

 1
47124 - SHAFT, BRAKE PEDAL
31324-55042

DA11#,FA100,11#,FC100

 1
31324-55041

DA11#,FA100,11#,FC100

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90440-20016

DA11#,FA100,11#,FC100

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
47131-55011

DA11#,DB10#,FA100,11#,FC100

 1
90541-06008

DA11#,DB10#,FA100,11#,FC100

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
47131-55011

DA11#,DB10#,FA100,11#,FC100

 1
90541-06008

DA11#,DB10#,FA100,11#,FC100

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
47131-55011

DA11#,DB10#,FA100,11#,FC100

 1
90541-06008

DA11#,DB10#,FA100,11#,FC100

 1
47131A - CUSHION(FOR BRAKE PADAL STOPPER)
90541-06008

DA11#,FA100,115

 1
47264A - PIN(FOR PUSH ROD)
90240-10042

DA11#,FA100,11#,FC100..LHD

 1
90240-10027

DA11#,DB105,FA100,115

 1
Common parts
94115-41200
94120-41000
94130-61000
95381-02015
95512-01200

(8002- )DA11#

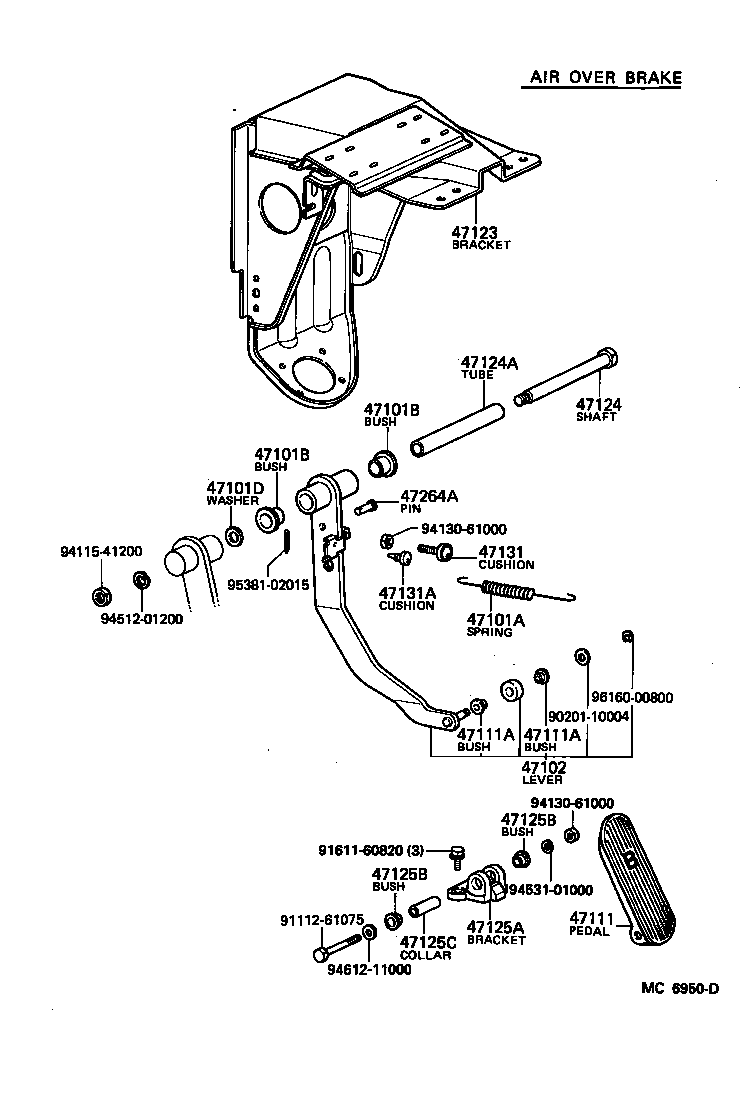

Click highlighted areas on diagram

diagram 47101A 47101B 47101B 47101D 47102 47111 47111A 47111A 47123 47124 47124A 47125A 47125B 47125B 47125C 47131 47131A 47264A 9020110004 9111261075 9161160820 9411541200 9413061000 9413061000 9451201200 9453101000 9461211000 9538102015 9616000800
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-20036

DA11#

W/AIR OVER BRAKE

 1
90506-26033

DA11#,FA100,11#,FB100,FC100..GEN

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-20037

DA11#,DB10#,FA100,11#,FC100

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-20037

DA11#,DB10#,FA100,11#,FC100

 2
47101D - WASHER(FOR PEDAL SHAFT)
94612-12000

DA11#,FA100,11#,FC100

 1
47102 - LEVER SUB-ASSY, BRAKE PEDAL
47102-55080

DA11#..LHD

W/AIR OVER BRAKE

 1
47111 - PEDAL, BRAKE
47111-55110

DA11#

 1
47111A - BUSH(FOR BRAKE PEDAL)
90386-10193

DA11#

 1
47111A - BUSH(FOR BRAKE PEDAL)
90386-10193

DA11#

 1
47123 - BRACKET, BRAKE PEDAL
55160-95220

DA11#,FA100,115..LHD

 1
55160-95211

DA11#,FA100,115..LHD

 1
55160-95222

DA11#..LHD

W/AIR OVER BRAKE

 1
47124 - SHAFT, BRAKE PEDAL
31324-55042

DA11#,FA100,11#,FC100

 1
31324-55041

DA11#,FA100,11#,FC100

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90440-20016

DA11#,FA100,11#,FC100

 1
47125A - BRACKET, BRAKE PEDAL
47125-55020

DA11#

 1
47125B - BUSH(FOR BRAKE PEDAL BRACKET)
90386-13007

DA11#

 1
47125B - BUSH(FOR BRAKE PEDAL BRACKET)
90386-13007

DA11#

 1
47125C - COLLAR(FOR BRAKE PEDAL BRACKET)
90387-10041

DA11#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
47131-55011

DA11#,DB10#,FA100,11#,FC100

 1
90541-06008

DA11#,DB10#,FA100,11#,FC100

 1
47131A - CUSHION(FOR BRAKE PADAL STOPPER)
90541-06008

DA11#,FA100,115

 1
47264A - PIN(FOR PUSH ROD)
90240-10042

DA11#,FA100,11#,FC100..LHD

 1
90240-10027

DA11#,DB105,FA100,115

 1
Common parts
90201-10004
91112-61075
91611-60820
94115-41200
94130-61000
94512-01200
94531-01000
94612-11000
95381-02015
96160-00800
