DA110L-H (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(6903-7403)2D

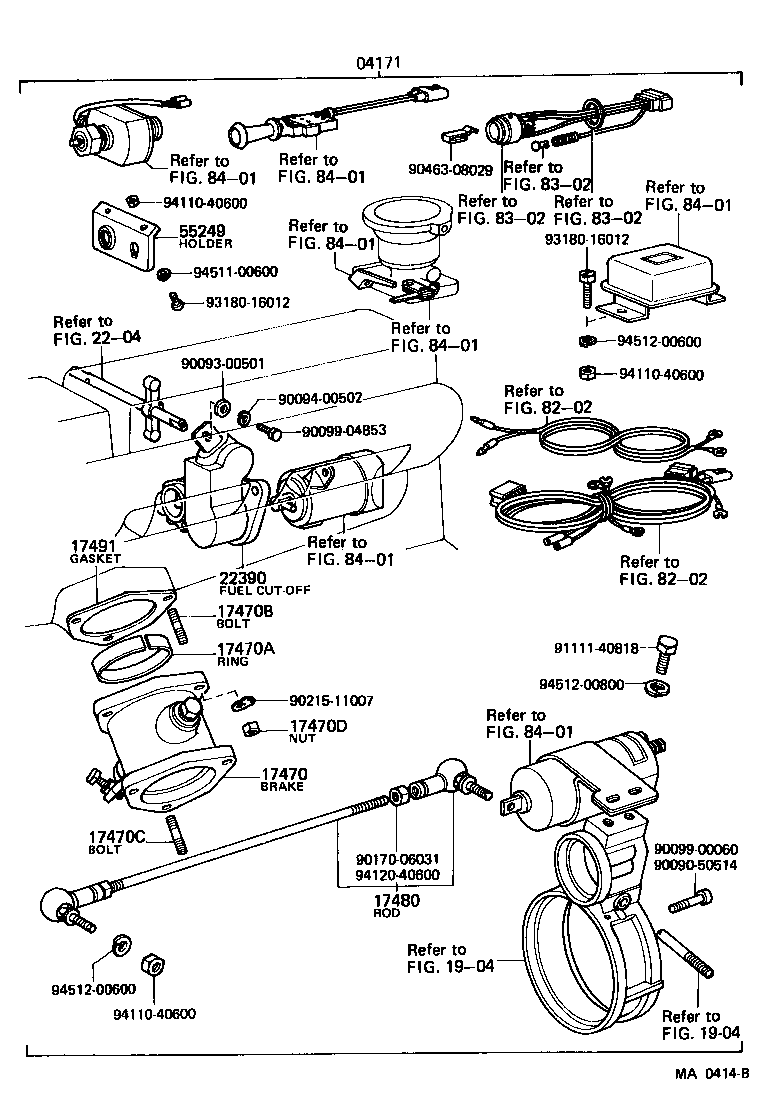

Click highlighted areas on diagram

diagram 04171 17470 17470A 17470B 17470C 17470D 17480 17491 1904 1904 2204 22390 55249 8202 8202 8302 8302 8302 8401 8401 8401 8401 8401 8401 8401 9009050514 9009300501 9009400502 9009900060 9009904853 9017006031 9021511007 9046308029 9111140818 9318016012 9318016012 9411040600 9411040600 9411040600 9412040600 9451100600 9451200600 9451200600 9451200800
Part # Description Qty Price
04171 - EXHAUST BRAKE KIT
04171-76041

2D..DA11#..LHD

 1
17470 - BRAKE ASSY, EXHAUST
17470-76010

2D..DA11#,DB10#

 1
46710-55010

2D..DA11#

 1
17470A - RING, SET(FOR EXHAUST BRAKE)
90522-64010

2D..DA11#,DB10#

 1
17470B - BOLT, STUD(FOR EXHAUST BRAKE TO MANIFOLD)
90116-10123

2D..DA11#,DB10#

 3
17470C - BOLT, STUD(FOR EXHAUST BRAKE TO EXHAUST PIPE)
90116-10123

2D..DA11#

 3
90116-10029

2D..DA11#,DB10#

 3
17470D - NUT(FOR EXHAUST BRAKE TO EXHAUST PIPE BOLT)
90179-10118

2D..DA11#,DB10#

 3
17480 - ROD SUB-ASSY, EXHAUST BRAKE
46730-55010

2D..DA11#

 1
17480-76010

2D..DA11#,DB10#

 1
17491 - GASKET, EXHAUST BRAKE
17491-76010

2D..DA11#,DB10#

 1
22390 - FUEL CUT OFF ASSY, ENGINE EXHAUST BRAKE
22390-77091

2D..DA11#,DB10#

 1
55249 - HOLDER, EXHAUST BRAKE
55349-95210

DA11#

 1
Common parts
90090-50514
90093-00501
90094-00502
90099-00060
90099-04853
90170-06031
90215-11007
90463-08029
91111-40818
93180-16012
94110-40600
94120-40600
94511-00600
94512-00600
94512-00800
Linked diagrams
1904
2204
8202
8302
8401

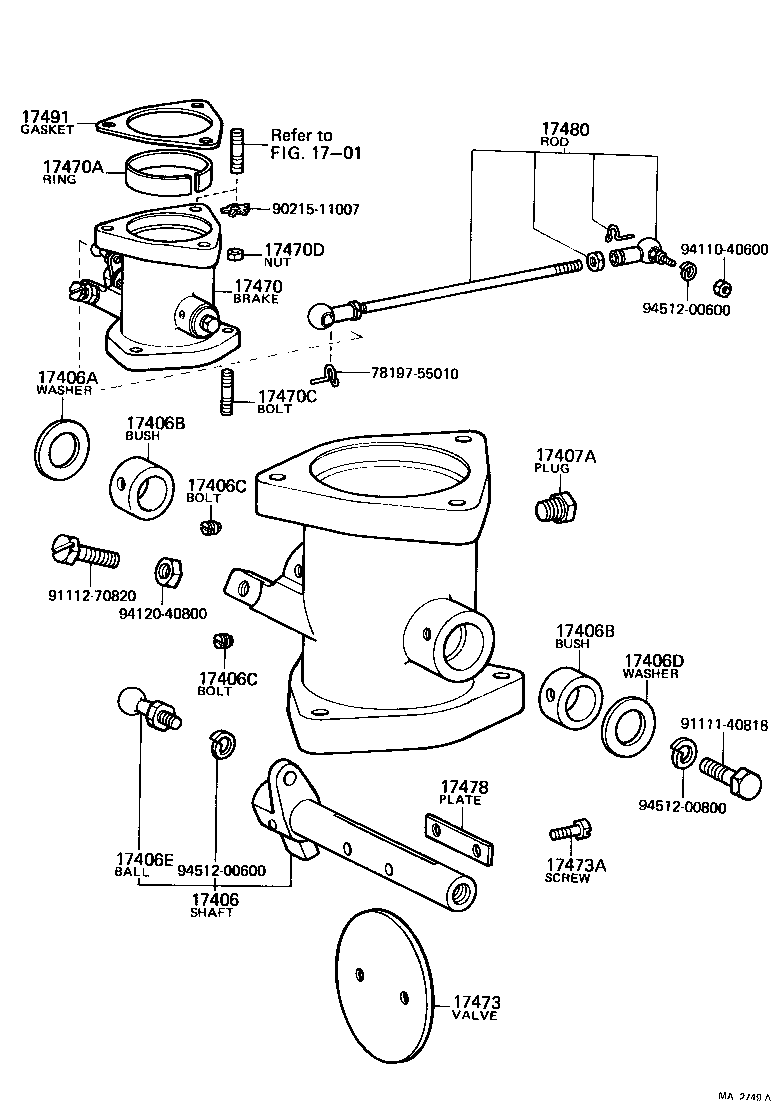

ILLUST NO. 2 OF 3(6903-7704)2D

Click highlighted areas on diagram

diagram 17406 17406A 17406B 17406B 17406C 17406C 17406D 17407A 17470 17470A 17470B 17470C 17470D 17473 17473A 17478 17480 17491 9017006031 9021511007 9111140818 9111270820 9411040600 9412040800 9451200600 9451200800
Part # Description Qty Price
17406 - SHAFT SUB-ASSY, EXHAUST BRAKE
46705-55010

2D..DA11#

 1
17406-76011

2D..DA11#,DB10#

 1
17406A - WASHER, PLATE(FOR EXHAUST BRAKE SHAFT)
90201-16231

2D..DA11#,DB10#

 1
17406B - BUSH(FOR EXHAUST BRAKE SHAFT)
90380-16073

2D..DA11#,DB10#

 2
17406B - BUSH(FOR EXHAUST BRAKE SHAFT)
90380-16073

2D..DA11#,DB10#

 2
17406C - BOLT, SET(FOR EXHAUST BRAKE SHAFT BUSH)
90113-04030

2D..DA11#,DB10#

0.7P

 2
17406C - BOLT, SET(FOR EXHAUST BRAKE SHAFT BUSH)
90113-04030

2D..DA11#,DB10#

0.7P

 2
17406D - WASHER, PLATE(FOR EXHAUST BRAKE SHAFT STOPPER)
90201-08230

2D..DA11#,DB10#

 1
17407A - PLUG(FOR EXHAUST BRAKE HOUSING)
90345-51005

2D..DA11#,DB10#

 1
90345-51006

2D..DA11#

 1
90345-51025

2D..DA11#

 1
17470 - BRAKE ASSY, EXHAUST
17470-76010

2D..DA11#,DB10#

 1
46710-55010

2D..DA11#

 1
17470A - RING, SET(FOR EXHAUST BRAKE)
90522-64010

2D..DA11#,DB10#

 1
17470B - BOLT, STUD(FOR EXHAUST BRAKE TO MANIFOLD)
90116-10123

2D..DA11#,DB10#

 3
17470C - BOLT, STUD(FOR EXHAUST BRAKE TO EXHAUST PIPE)
90116-10123

2D..DA11#

 3
90116-10029

2D..DA11#,DB10#

 3
17470D - NUT(FOR EXHAUST BRAKE TO EXHAUST PIPE BOLT)
90179-10118

2D..DA11#,DB10#

 3
17473 - VALVE, EXHAUST BRAKE
17473-76010

2D..DA11#,DB10#

 1
17473A - SCREW, SLOTTED HEXAGON(FOR EXHAUST BRAKE VALVE)
90143-50015

2D..DA11#,DB10#

 2
17478 - PLATE, LOCK, EXHAUST BRAKE
17478-76010

2D..DA11#,DB10#

 1
17480 - ROD SUB-ASSY, EXHAUST BRAKE
46730-55010

2D..DA11#

 1
17480-76010

2D..DA11#,DB10#

 1
17491 - GASKET, EXHAUST BRAKE
17491-76010

2D..DA11#,DB10#

 1
Common parts
90170-06031
90215-11007
91111-40818
91112-70820
94110-40600
94120-40800
94512-00600
94512-00800

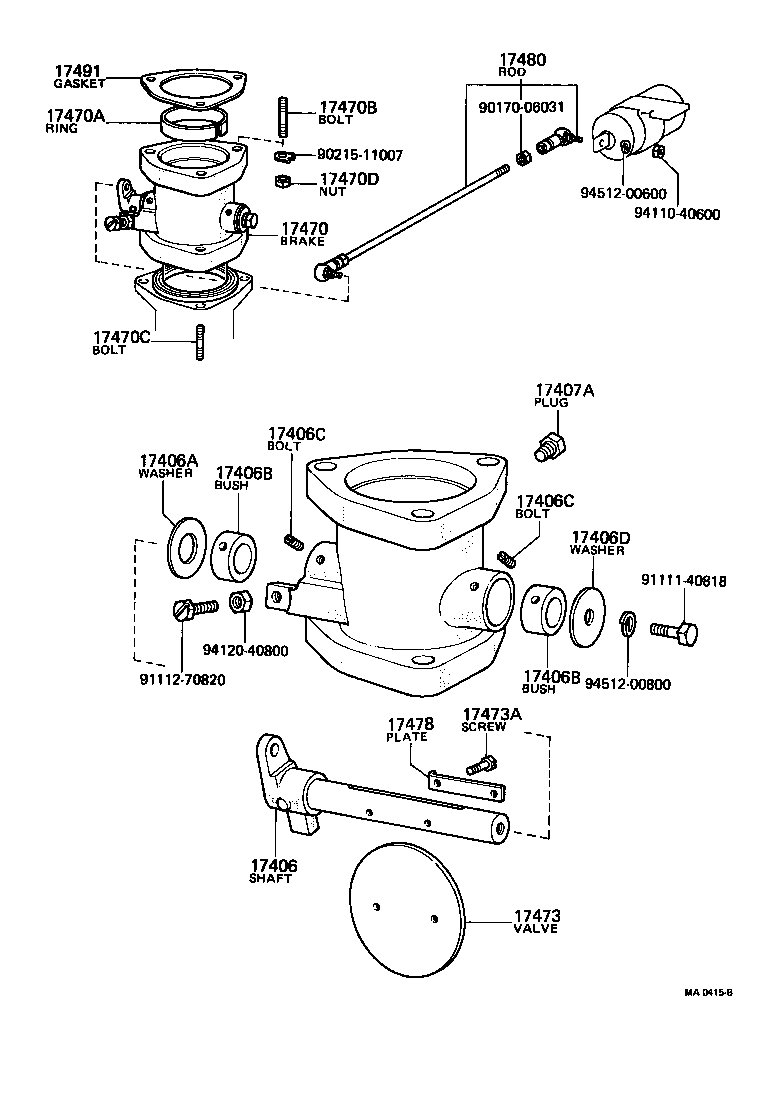

ILLUST NO. 3 OF 3(6903-7704)2D

Click highlighted areas on diagram

diagram 2204 2204 2204 2204 22309 22390 22391 22392 22393 22394 9009100817 9009200801 9009300501 9009300501 9009300501 9009300501 9009300501 9009300501 9009300501 9009300501 9009300501 9009300801 9009400502 9009400502 9009400502 9009400801 9009400801 9009502004 9009502004 9009904853 9009904856 9009904857 9009950001
Part # Description Qty Price
22309 - FLANGE SUB-ASSY, W/LINK
22309-77091

2D..DA11#,DB10#

 1
22390 - FUEL CUT OFF ASSY, ENGINE EXHAUST BRAKE
22390-77091

2D..DA11#,DB10#

 1
22391 - FORK, CONNECTING
22391-77090

2D..DA11#,DB10#

 1
22392 - COVER, LINK(FOR FUEL CUT OFF)
22392-77090

2D..DA11#,DB10#

 1
22393 - FLANGE, HOLDING MAGNET
22393-77091

2D..DA11#,DB10#

 1
22394 - ROD, CONNECTING(FOR FUEL CUT OFF)
22394-77090

2D..DA11#,DB10#

 1
Common parts
90091-00817
90092-00801
90093-00501
90093-00801
90094-00502
90094-00801
90095-02004
90099-04853
90099-04856
90099-04857
90099-50001
Linked diagrams
2204

(7704- )2D

Click highlighted areas on diagram

diagram 1701 17406 17406A 17406B 17406B 17406C 17406C 17406D 17406E 17407A 17470 17470A 17470C 17470D 17473 17473A 17478 17480 17491 7819755010 9021511007 9111140818 9111270820 9411040600 9412040800 9451200600 9451200600 9451200800
Part # Description Qty Price
17406 - SHAFT SUB-ASSY, EXHAUST BRAKE
46705-55010

2D..DA11#

 1
17406-76011

2D..DA11#,DB10#

 1
17406A - WASHER, PLATE(FOR EXHAUST BRAKE SHAFT)
90201-16231

2D..DA11#,DB10#

 1
17406B - BUSH(FOR EXHAUST BRAKE SHAFT)
90380-16073

2D..DA11#,DB10#

 2
17406B - BUSH(FOR EXHAUST BRAKE SHAFT)
90380-16073

2D..DA11#,DB10#

 2
17406C - BOLT, SET(FOR EXHAUST BRAKE SHAFT BUSH)
90113-04030

2D..DA11#,DB10#

0.7P

 2
17406C - BOLT, SET(FOR EXHAUST BRAKE SHAFT BUSH)
90113-04030

2D..DA11#,DB10#

0.7P

 2
17406D - WASHER, PLATE(FOR EXHAUST BRAKE SHAFT STOPPER)
90201-08230

2D..DA11#,DB10#

 1
17406E - BALL, EXHAUST RETARDER ROD
46733-55010

2D..DA11#

 1
17407A - PLUG(FOR EXHAUST BRAKE HOUSING)
90345-51005

2D..DA11#,DB10#

 1
90345-51006

2D..DA11#

 1
90345-51025

2D..DA11#

 1
17470 - BRAKE ASSY, EXHAUST
17470-76010

2D..DA11#,DB10#

 1
46710-55010

2D..DA11#

 1
17470A - RING, SET(FOR EXHAUST BRAKE)
90522-64010

2D..DA11#,DB10#

 1
17470C - BOLT, STUD(FOR EXHAUST BRAKE TO EXHAUST PIPE)
90116-10123

2D..DA11#

 3
90116-10029

2D..DA11#,DB10#

 3
17470D - NUT(FOR EXHAUST BRAKE TO EXHAUST PIPE BOLT)
90179-10118

2D..DA11#,DB10#

 3
17473 - VALVE, EXHAUST BRAKE
17473-76010

2D..DA11#,DB10#

 1
17473A - SCREW, SLOTTED HEXAGON(FOR EXHAUST BRAKE VALVE)
90143-50015

2D..DA11#,DB10#

 2
17478 - PLATE, LOCK, EXHAUST BRAKE
17478-76010

2D..DA11#,DB10#

 1
17480 - ROD SUB-ASSY, EXHAUST BRAKE
46730-55010

2D..DA11#

 1
17480-76010

2D..DA11#,DB10#

 1
17491 - GASKET, EXHAUST BRAKE
17491-76010

2D..DA11#,DB10#

 1
Common parts
78197-55010
90215-11007
91111-40818
91112-70820
94110-40600
94120-40800
94512-00600
94512-00800
Linked diagrams
1701
