Toyota Heavy duty truck DA110 HORN

DA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(6903- )

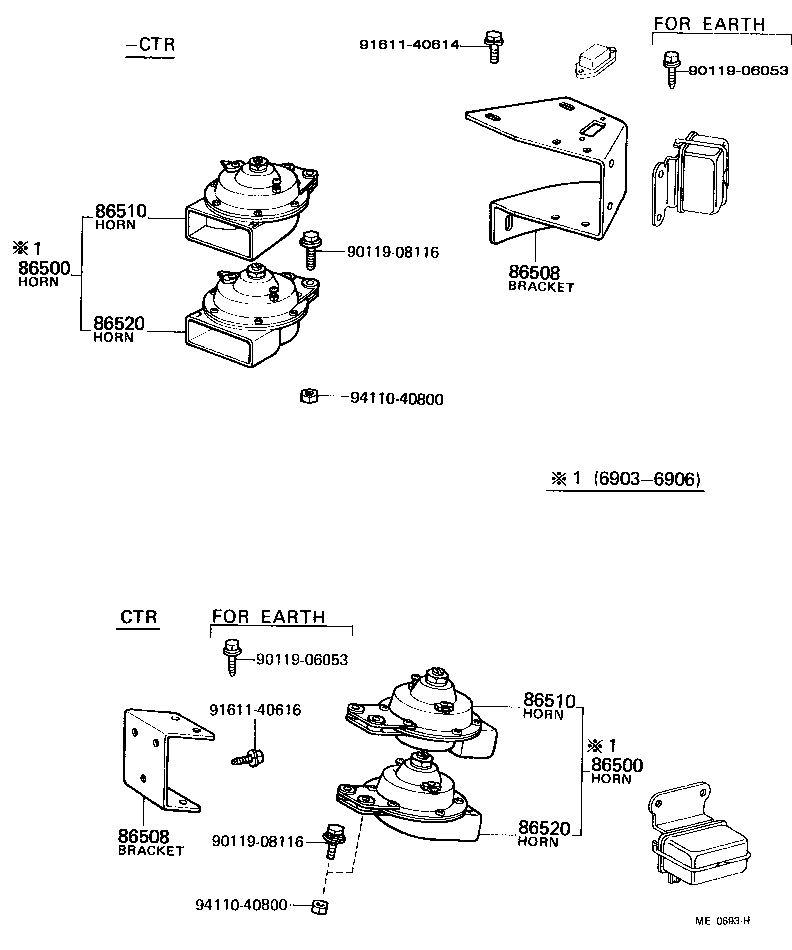

Click highlighted areas on diagram

Part #	Description	Period	Qty
86500 - HORN ASSY
86500-55031	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86500-30021	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86500-30031	FA100,11#,FC100 DENSO	03/1969 - 06/1969	1
86500 - HORN ASSY
86500-55031	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86500-30021	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86500-30031	FA100,11#,FC100 DENSO	03/1969 - 06/1969	1
86508 - BRACKET SUB-ASSY, HORN
55209-95211	DA11#,FA100,11#,FC100..LHD	03/1969 - 05/1974	1
55209-95211	DA11#,FA100,115..LHD	05/1974 - 12/2001	1
86508 - BRACKET SUB-ASSY, HORN
55209-95211	DA11#,FA100,11#,FC100..LHD	03/1969 - 05/1974	1
55209-95211	DA11#,FA100,115..LHD	05/1974 - 12/2001	1
86510 - HORN ASSY, HIGH PITCHED
86510-55030	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86510-30020	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86510-30030	FA100,11#,FB100,FC100 DENSO	03/1969 - 06/1969	1
86510-35010	FA100,11#,FB100,FC100 DENSO	06/1969 - 07/1982	1
86510-35020	FA100,11#,FB100,FC100 MARUKO	06/1969 - 07/1982	1
86510-36020	DA11#,DB10# MARUKO	06/1969 - 12/2001	1
86510-55070	DA11#..LHD..1SR SAUDI ARABIA OR GULF SPEC	09/1985 - 12/2001	1
86510-55061	DA11#..GEN PLATED,MARUKO	02/1980 - 12/2001	1
86510 - HORN ASSY, HIGH PITCHED
86510-55030	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86510-30020	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86510-30030	FA100,11#,FB100,FC100 DENSO	03/1969 - 06/1969	1
86510-35010	FA100,11#,FB100,FC100 DENSO	06/1969 - 07/1982	1
86510-35020	FA100,11#,FB100,FC100 MARUKO	06/1969 - 07/1982	1
86510-36020	DA11#,DB10# MARUKO	06/1969 - 12/2001	1
86510-55070	DA11#..LHD..1SR SAUDI ARABIA OR GULF SPEC	09/1985 - 12/2001	1
86510-55061	DA11#..GEN PLATED,MARUKO	02/1980 - 12/2001	1
86520 - HORN ASSY, LOW PITCHED
86520-55030	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86520-35020	FA100,11#,FB100,FC100 MARUKO	06/1969 - 07/1982	1
86520-30020	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86520-30030	FA100,11#,FB100,FC100 DENSO	03/1969 - 06/1969	1
86520-35010	FA100,11#,FB100,FC100 DENSO	06/1969 - 07/1982	1
86520-55061	DA11#..GEN PLATED,MARUKO	02/1980 - 12/2001	1
86520-55070	DA11#..LHD..1SR SAUDI ARABIA OR GULF SPEC	09/1985 - 12/2001	1
86520-36020	DA11#,DB10# MARUKO	06/1969 - 12/2001	1
86520 - HORN ASSY, LOW PITCHED
86520-55030	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86520-35020	FA100,11#,FB100,FC100 MARUKO	06/1969 - 07/1982	1
86520-30020	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86520-30030	FA100,11#,FB100,FC100 DENSO	03/1969 - 06/1969	1
86520-35010	FA100,11#,FB100,FC100 DENSO	06/1969 - 07/1982	1
86520-55061	DA11#..GEN PLATED,MARUKO	02/1980 - 12/2001	1
86520-55070	DA11#..LHD..1SR SAUDI ARABIA OR GULF SPEC	09/1985 - 12/2001	1
86520-36020	DA11#,DB10# MARUKO	06/1969 - 12/2001	1
Common parts
90119-06053
90119-08116
91611-40614
91611-40616
94110-40800

(8308- )

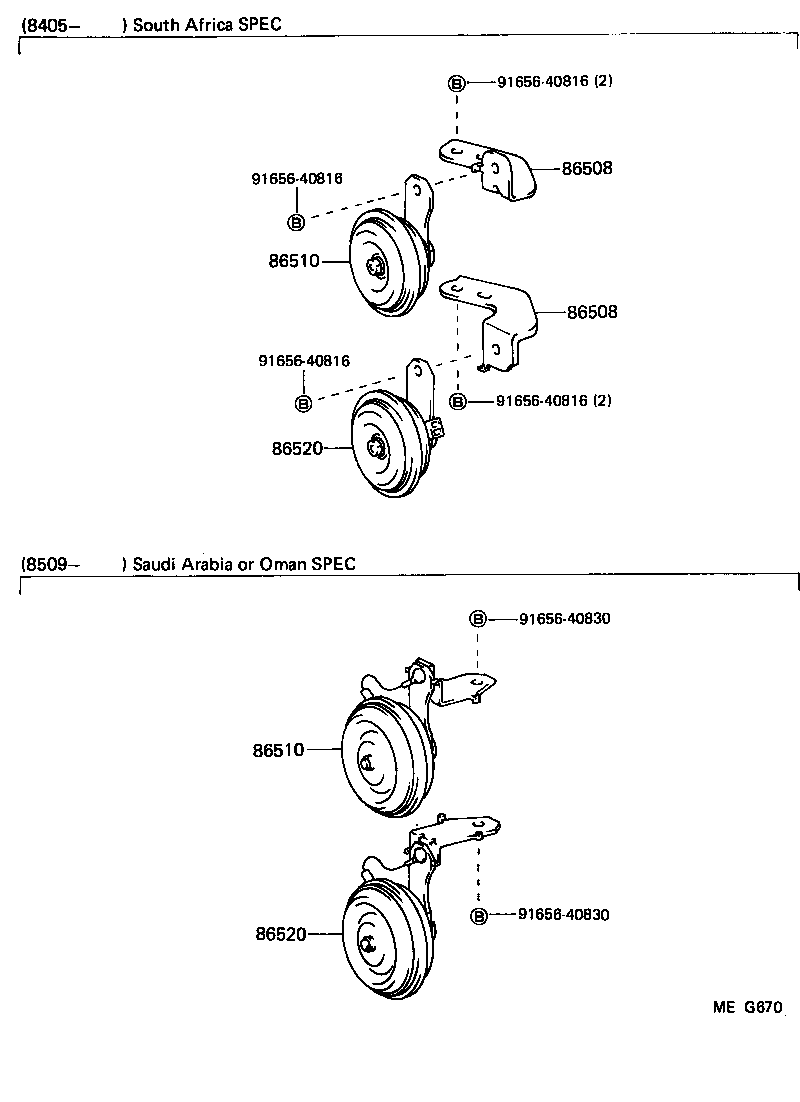

Click highlighted areas on diagram

Part #	Description	Period	Qty
86508 - BRACKET SUB-ASSY, HORN
55209-95211	DA11#,FA100,11#,FC100..LHD	03/1969 - 05/1974	1
55209-95211	DA11#,FA100,115..LHD	05/1974 - 12/2001	1
86508 - BRACKET SUB-ASSY, HORN
55209-95211	DA11#,FA100,11#,FC100..LHD	03/1969 - 05/1974	1
55209-95211	DA11#,FA100,115..LHD	05/1974 - 12/2001	1
86510 - HORN ASSY, HIGH PITCHED
86510-55030	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86510-30020	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86510-30030	FA100,11#,FB100,FC100 DENSO	03/1969 - 06/1969	1
86510-35010	FA100,11#,FB100,FC100 DENSO	06/1969 - 07/1982	1
86510-35020	FA100,11#,FB100,FC100 MARUKO	06/1969 - 07/1982	1
86510-36020	DA11#,DB10# MARUKO	06/1969 - 12/2001	1
86510-55070	DA11#..LHD..1SR SAUDI ARABIA OR GULF SPEC	09/1985 - 12/2001	1
86510-55061	DA11#..GEN PLATED,MARUKO	02/1980 - 12/2001	1
86510 - HORN ASSY, HIGH PITCHED
86510-55030	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86510-30020	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86510-30030	FA100,11#,FB100,FC100 DENSO	03/1969 - 06/1969	1
86510-35010	FA100,11#,FB100,FC100 DENSO	06/1969 - 07/1982	1
86510-35020	FA100,11#,FB100,FC100 MARUKO	06/1969 - 07/1982	1
86510-36020	DA11#,DB10# MARUKO	06/1969 - 12/2001	1
86510-55070	DA11#..LHD..1SR SAUDI ARABIA OR GULF SPEC	09/1985 - 12/2001	1
86510-55061	DA11#..GEN PLATED,MARUKO	02/1980 - 12/2001	1
86520 - HORN ASSY, LOW PITCHED
86520-55030	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86520-35020	FA100,11#,FB100,FC100 MARUKO	06/1969 - 07/1982	1
86520-30020	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86520-30030	FA100,11#,FB100,FC100 DENSO	03/1969 - 06/1969	1
86520-35010	FA100,11#,FB100,FC100 DENSO	06/1969 - 07/1982	1
86520-55061	DA11#..GEN PLATED,MARUKO	02/1980 - 12/2001	1
86520-55070	DA11#..LHD..1SR SAUDI ARABIA OR GULF SPEC	09/1985 - 12/2001	1
86520-36020	DA11#,DB10# MARUKO	06/1969 - 12/2001	1
86520 - HORN ASSY, LOW PITCHED
86520-55030	DA11#,DB10# MARUKO	03/1969 - 06/1969	1
86520-35020	FA100,11#,FB100,FC100 MARUKO	06/1969 - 07/1982	1
86520-30020	FA100,11#,FB100,FC100 MARUKO	03/1969 - 06/1969	1
86520-30030	FA100,11#,FB100,FC100 DENSO	03/1969 - 06/1969	1
86520-35010	FA100,11#,FB100,FC100 DENSO	06/1969 - 07/1982	1
86520-55061	DA11#..GEN PLATED,MARUKO	02/1980 - 12/2001	1
86520-55070	DA11#..LHD..1SR SAUDI ARABIA OR GULF SPEC	09/1985 - 12/2001	1
86520-36020	DA11#,DB10# MARUKO	06/1969 - 12/2001	1
Common parts
91656-40816
91656-40830

DA110L- (1969)

(6903- )

(8308- )
