DA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

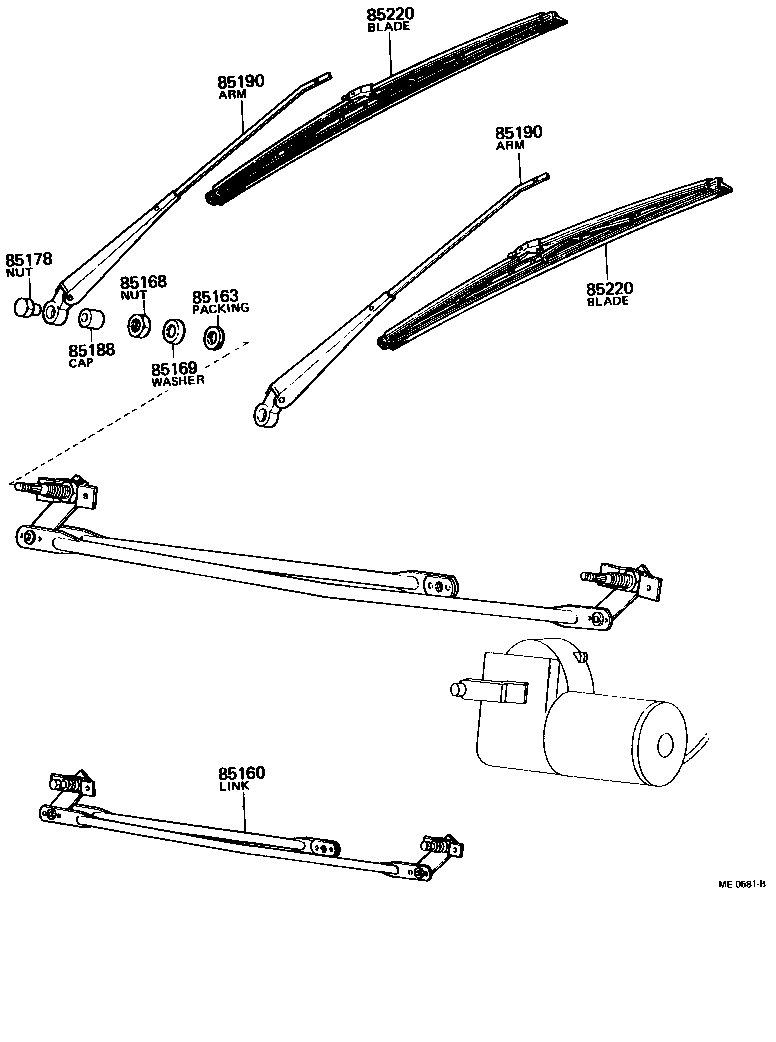

ILLUST NO. 1 OF 2(6903-8002)DA11#,FA100,11#,FC100

Click highlighted areas on diagram

diagram 85160 85163 85168 85169 85178 85188 85190 85190 85220 85220
Part # Description Qty Price
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95200

DA11#,FA100,11#,FC100

 1
85160-95211

DA11#,FA100,115

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-25040

DA11#,FA100,11#,FC100

 2
85185-95A00

DA11#,FA100,115

 3
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-55010

DA11#,FA100,11#,FC100

 2
90170-14004

DA11#,FA100,115

 3
90170-12001

DA11#,FA100,115

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95A00

DA11#,FA100,115

 3
85169-55010

DA11#,FA100,11#,FC100

 2
90209-12002

DA11#,FA100,115

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90099-05129

DA11#,FA100,115

 3
85182-60040

DA11#,FA100,11#,FC100

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95A00

DA11#,FA100,115

 3
85135-55010

DA11#,FA100,11#,FC100

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95202

DA11#,FA100,11#,FC100..LHD

 2
85190-95212

DA11#,FA100,115..LHD

 3
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95202

DA11#,FA100,11#,FC100..LHD

 2
85190-95212

DA11#,FA100,115..LHD

 3
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95210

DA11#,FA100,115

 3
85220-95403

DA11#,FA100,11#,FC100

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95210

DA11#,FA100,115

 3
85220-95403

DA11#,FA100,11#,FC100

 2

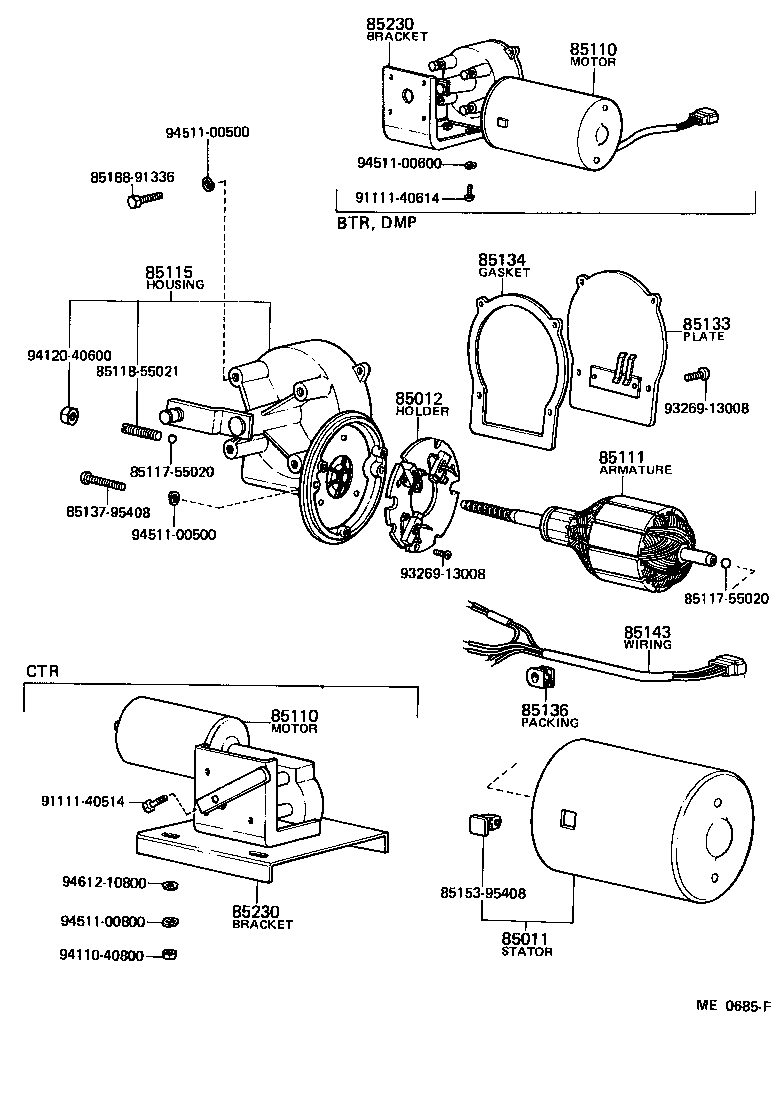

ILLUST NO. 2 OF 2(6903-8002)DA11#,FA100,11#,FC100

Click highlighted areas on diagram

diagram 85011 85012 85110 85110 85111 85115 8511755020 8511755020 8511855021 85133 85134 85136 8513795408 85143 8515395408 8518891336 85230 85230 9111140514 9111140614 9326913008 9326913008 9411040800 9412040600 9451100500 9451100500 9451100600 9451100800 9461210800
Part # Description Qty Price
85011 - STATOR SUB-ASSY, WINDSHIELD WIPER MOTOR
85011-95408

DA11#,FA100,11#,FC100

 1
85012 - HOLDER SUB-ASSY, WINDSHIELD WIPER MOTOR BRUSH
85012-95408

DA11#,FA100,11#,FC100

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-95201

FA100,11#,FC100

 1
85110-95200

DA11#

 1
85110-95211

DA11#

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-95201

FA100,11#,FC100

 1
85110-95200

DA11#

 1
85110-95211

DA11#

 1
85111 - ARMATURE, WINDSHIELD WIPER MOTOR
85111-95408

FA100,11#,FC100

 1
85111-95410

DA11#

 1
85115 - HOUSING, WINDSHIELD WIPER MOTOR GEAR
85115-95200

DA11#,FA100,11#,FC100

 1
85133 - PLATE, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
85133-95408

DA11#,FA100,11#,FC100

 1
85134 - GASKET, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
85134-55021

DA11#,FA100,11#,FC100

 1
85136 - PACKING, WINDSHIELD WIPER MOTOR WIRE
85136-95404

DA11#,FA100,11#,FC100

 1
85143 - WIRING, WINDSHIELD WIPER MOTOR LEAD
85143-95408

DA11#,FA100,11#,FC100

 1
85230 - BRACKET ASSY, WINDSHIELD WIPER
85230-95211

DA11#,FA100,115

 1
85230-95210

DA11#,FA100,11#,FC100

 1
85230 - BRACKET ASSY, WINDSHIELD WIPER
85230-95211

DA11#,FA100,115

 1
85230-95210

DA11#,FA100,11#,FC100

 1
Common parts
85117-55020
85118-55021
85137-95408
85153-95408
85188-91336
91111-40514
91111-40614
93269-13008
94110-40800
94120-40600
94511-00500
94511-00600
94511-00800
94612-10800

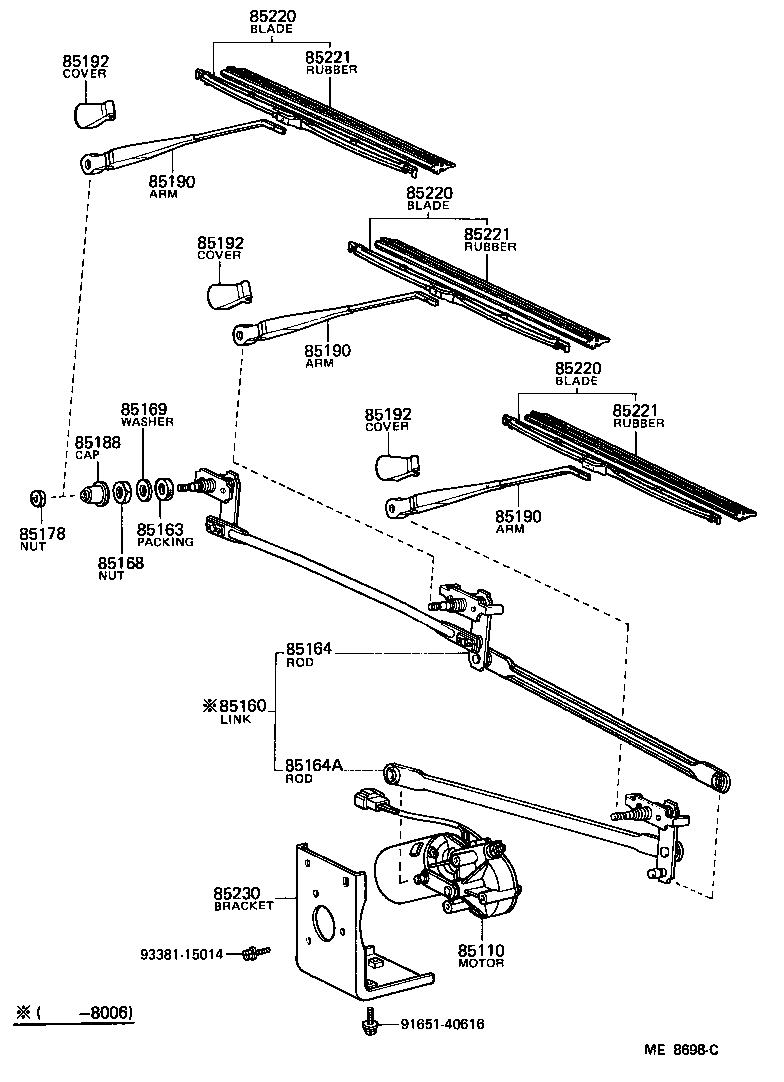

ILLUST NO. 1 OF 2(8002- )

Click highlighted areas on diagram

diagram 85110 85160 85163 85164 85164A 85168 85169 85178 85188 85190 85190 85190 85192 85192 85192 85220 85220 85220 85221 85221 85221 85230 9165140616 9338115014
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-95201

FA100,11#,FC100

 1
85110-95200

DA11#

 1
85110-95211

DA11#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-95200

DA11#,FA100,11#,FC100

 1
85160-95211

DA11#,FA100,115

 1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-25040

DA11#,FA100,11#,FC100

 2
85185-95A00

DA11#,FA100,115

 3
85164 - ROD, WINDSHIELD WIPER LINK, NO.1
85102-95210

DA11#,FA100,115

 1
85164A - ROD, WINDSHIELD WIPER LINK, NO.2
85101-95210

DA11#,FA100,115

 1
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-55010

DA11#,FA100,11#,FC100

 2
90170-14004

DA11#,FA100,115

 3
90170-12001

DA11#,FA100,115

 2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-95A00

DA11#,FA100,115

 3
85169-55010

DA11#,FA100,11#,FC100

 2
90209-12002

DA11#,FA100,115

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90099-05129

DA11#,FA100,115

 3
85182-60040

DA11#,FA100,11#,FC100

 2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85135-95A00

DA11#,FA100,115

 3
85135-55010

DA11#,FA100,11#,FC100

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95202

DA11#,FA100,11#,FC100..LHD

 2
85190-95212

DA11#,FA100,115..LHD

 3
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95202

DA11#,FA100,11#,FC100..LHD

 2
85190-95212

DA11#,FA100,115..LHD

 3
85190 - ARM ASSY, WINDSHIELD WIPER
85190-95202

DA11#,FA100,11#,FC100..LHD

 2
85190-95212

DA11#,FA100,115..LHD

 3
85192 - COVER, WINDSHIELD WIPER ARM
85195-95700

DA11#,FA100,115

 3
85192 - COVER, WINDSHIELD WIPER ARM
85195-95700

DA11#,FA100,115

 3
85192 - COVER, WINDSHIELD WIPER ARM
85195-95700

DA11#,FA100,115

 3
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95210

DA11#,FA100,115

 3
85220-95403

DA11#,FA100,11#,FC100

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95210

DA11#,FA100,115

 3
85220-95403

DA11#,FA100,11#,FC100

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-95210

DA11#,FA100,115

 3
85220-95403

DA11#,FA100,11#,FC100

 2
85221 - BLADE, WINDSHIELD WIPER
85221-95210

DA11#,FA100,115

 3
85221 - BLADE, WINDSHIELD WIPER
85221-95210

DA11#,FA100,115

 3
85221 - BLADE, WINDSHIELD WIPER
85221-95210

DA11#,FA100,115

 3
85230 - BRACKET ASSY, WINDSHIELD WIPER
85230-95211

DA11#,FA100,115

 1
85230-95210

DA11#,FA100,11#,FC100

 1
Common parts
91651-40616
93381-15014
