Toyota Heavy duty truck DA110 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
HEAVY DUTY TRUCK
DA110L- (1969)
8401 - SWITCH & RELAY & COMPUTER

DA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001

Engine 2D

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

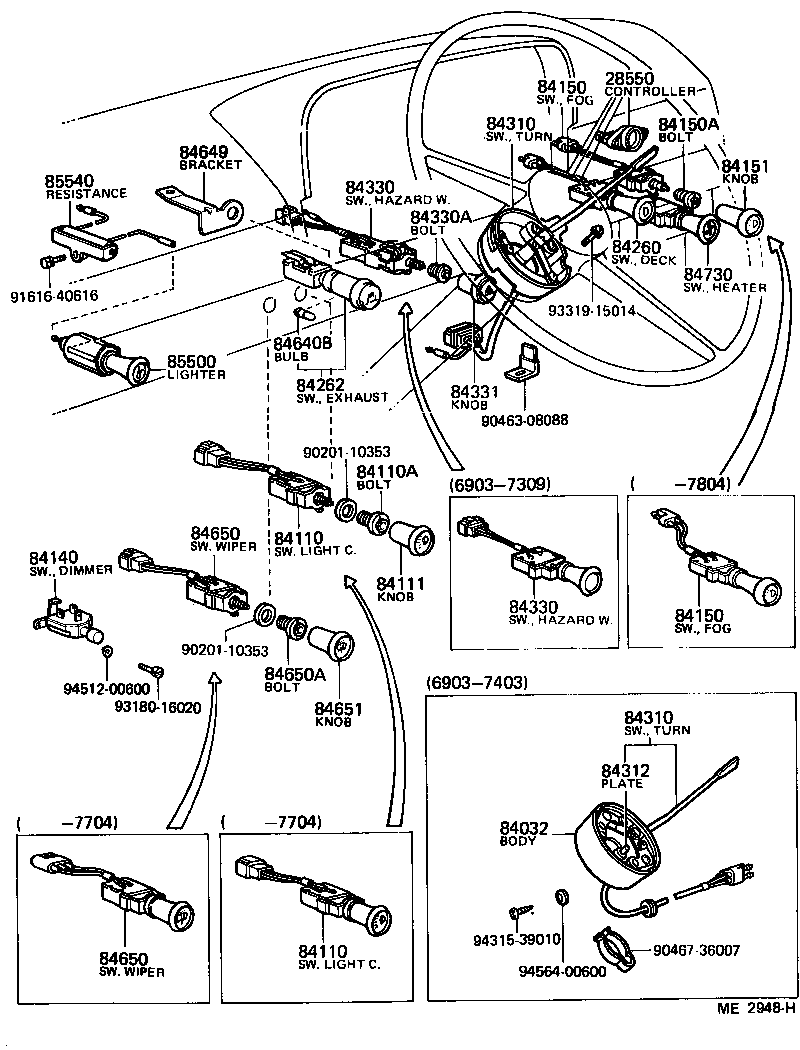

ILLUST NO. 3 OF 5(6903-8002)DA11#,FA100,11#,FC100

Click highlighted areas on diagram

Part #	Description	Period	Qty
28550 - CONTROLLER ASSY, GLOW PLUG
28550-77010	2D..DA11#	01/1979 - 02/1980	1
28550-76010	2D..DA11#,DB10#	03/1969 - 05/1972	1
28550-47011	2D..DA11#,DB10#	05/1972 - 01/1979	1
28550-77020	2D..DA11#	02/1980 - 12/2001	1
84032 - BODY SUB-ASSY, TURN SIGNAL SWITCH INNER
84032-55010	DA11#,DB10#,FA100,11#,FC100	03/1969 - 03/1974	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-59025	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84110-55040	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 04/1977	1
84112-11020	DA11#,FA100,115	04/1977 - 02/1980	1
84112-59026	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-59025	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84110-55040	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 04/1977	1
84112-11020	DA11#,FA100,115	04/1977 - 02/1980	1
84112-59026	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84110A - BOLT OR NUT, LIGHT CONTROL SWITCH SET
55359-95211	DA11#,FA100,11#,FC100	03/1969 - 12/1969	1
90201-10353	DA11#,FA100,11#,FC100	12/1969 - 03/1974	1
90984-01007	DA11#,FA100,115	04/1977 - 02/1980	1
84111 - KNOB, LIGHT CONTROL SWITCH
84111-20031	DA11#,FA100,115	04/1977 - 02/1980	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-55021	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
84150 - SWITCH ASSY, FOG LAMP
84160-55030	DA11#,FA100,115	04/1977 - 04/1978	1
84162-60010	DA11#,FA100,115..GEN	04/1978 - 12/2001	1
84160-55021	DA11#,DB10#,FA100,11#,FC100	03/1969 - 04/1977	1
84150 - SWITCH ASSY, FOG LAMP
84160-55030	DA11#,FA100,115	04/1977 - 04/1978	1
84162-60010	DA11#,FA100,115..GEN	04/1978 - 12/2001	1
84160-55021	DA11#,DB10#,FA100,11#,FC100	03/1969 - 04/1977	1
84150A - BOLT, FOG LAMP SWITCH
90984-01007	DA11#,FA100,115..GEN	04/1978 - 12/2001	1
84151 - KNOB, FOG LAMP SWITCH
84161-37010	DA11#,FA100,115..GEN	04/1978 - 12/2001	1
84262 - SWITCH ASSY, EXHAUST BRAKE
84640-37010	DA11#	04/1977 - 02/1980	1
84270-55010	DA11#	06/1969 - 03/1974	1
84260-55020	DA11#	03/1969 - 06/1969	1
84640-37030	DA11#..LHD	02/1980 - 12/2001	1
84270-55010	DA11#,DB105	04/1974 - 04/1977	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-55060	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84310-55041	DA11#,FA100,115..LHD	04/1977 - 02/1980	1
84310-55040	DA11#,DB105,FA100,115..LHD	04/1974 - 04/1977	1
84031-55011	DA11#,DB10#,FA100,11#,FC100	03/1969 - 03/1974	1
84310-55061	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-55060	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84310-55041	DA11#,FA100,115..LHD	04/1977 - 02/1980	1
84310-55040	DA11#,DB105,FA100,115..LHD	04/1974 - 04/1977	1
84031-55011	DA11#,DB10#,FA100,11#,FC100	03/1969 - 03/1974	1
84310-55061	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84312 - PLATE, HORN CONTACT
84312-55010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
84312-20011	DA11#,FA100,115	02/1980 - 12/2001	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-12010	DA11#,FA100,11#,FC100	01/1971 - 04/1977	1
84332-59025	DA11#,FA100,115..LHD	02/1980 - 12/2001	1
84332-55021	DA11#,FA100,115	04/1977 - 02/1980	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-12010	DA11#,FA100,11#,FC100	01/1971 - 04/1977	1
84332-59025	DA11#,FA100,115..LHD	02/1980 - 12/2001	1
84332-55021	DA11#,FA100,115	04/1977 - 02/1980	1
84330A - BOLT OR NUT, HAZARD WARNING SIGNAL SWITCH SET
90984-01007	DA11#,FA100,115	04/1977 - 02/1980	1
84331 - KNOB, HAZARD WARNING SIGNAL SWITCH
84331-20012	DA11#,FA100,115	04/1977 - 02/1980	1
84640B - BULB, EXHAUST BRAKE SWITCH
84999-10080	DA11#	04/1977 - 02/1980	1
84649 - BRACKET, EXHAUST BRAKE SWITCH
84643-55010	DA11# MECHANICAL GOVERNOR	06/1971 - 04/1977	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-59026	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84650-55021	DA11#,FA100,11#,FC100	03/1969 - 01/1975	1
84652-55010	DA11#,FA100,115	04/1977 - 02/1980	1
84652-59025	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84650-55021	DA11#,DB105,FA100,115	01/1975 - 04/1977	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-59026	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84650-55021	DA11#,FA100,11#,FC100	03/1969 - 01/1975	1
84652-55010	DA11#,FA100,115	04/1977 - 02/1980	1
84652-59025	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84650-55021	DA11#,DB105,FA100,115	01/1975 - 04/1977	1
84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET
90984-01007	DA11#,FA100,115	04/1977 - 02/1980	1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-20031	DA11#,FA100,115	04/1977 - 02/1980	1
84730 - SWITCH ASSY, HEATER BLOWER
84730-36010	DA11#,FA100,115	04/1974 - 12/2001	1
85500 - LIGHTER ASSY, CIGARETTE
85500-20042	DA11#,FA100,115..GEN	08/1974 - 12/2001	1
85500-20042	FA100,11#,FC100	03/1969 - 08/1974	1
85540 - RESISTANCE ASSY, CIGARETTE LIGHTER
85540-36030	DA11#..GEN	08/1974 - 12/2001	1
Common parts
90201-10353
90463-08088
90467-36007
91616-40616
93180-16020
93319-15014
94315-39010
94512-00600
94564-00600

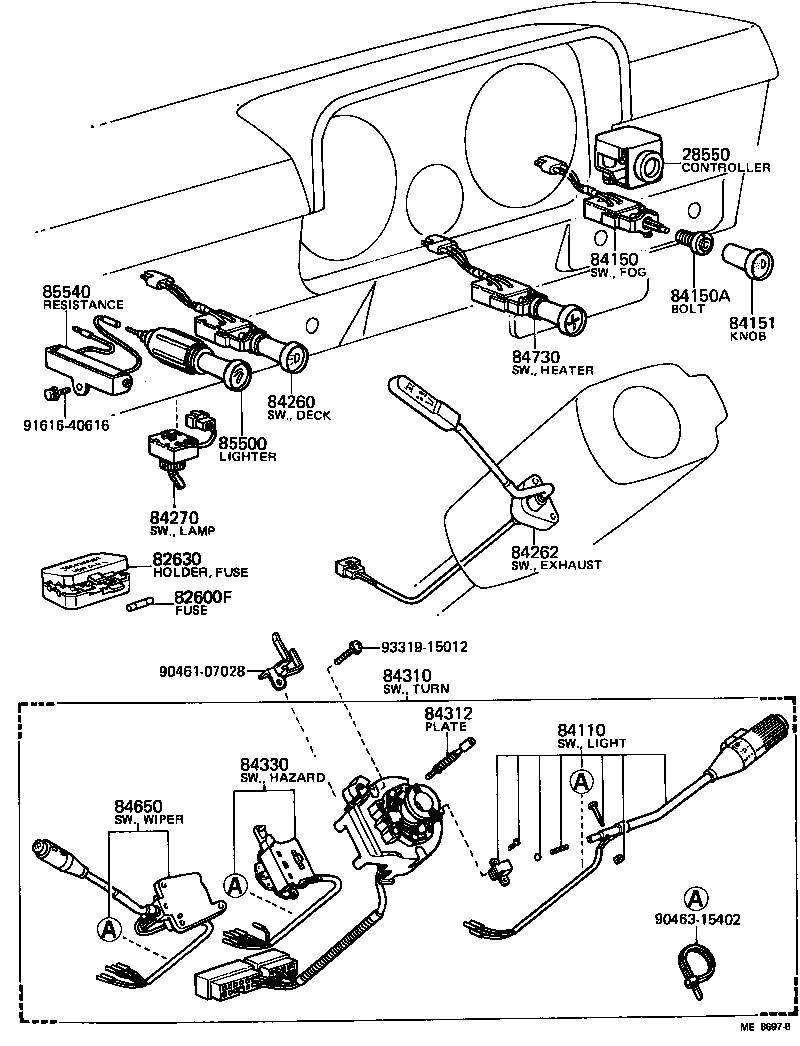

ILLUST NO. 3 OF 5(8002- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
28550 - CONTROLLER ASSY, GLOW PLUG
28550-77010	2D..DA11#	01/1979 - 02/1980	1
28550-76010	2D..DA11#,DB10#	03/1969 - 05/1972	1
28550-47011	2D..DA11#,DB10#	05/1972 - 01/1979	1
28550-77020	2D..DA11#	02/1980 - 12/2001	1
82600F - FUSE, FUSE BLOCK
99118-62930	DA11#,FA100,115 30A,W/EXHAUST BRAKE	02/1980 - 12/2001	1
99118-62920	DA11#,DB10#,FA100,11#,FB100,FC100 20A,20A	03/1969 - 12/2001	2
99118-62905	DA11#,DB10#,FA100,11#,FB100,FC100 5A,5A	03/1969 - 12/2001	1
99118-62910	DA11#,DB10#,FA100,11#,FB100,FC100 10A	03/1969 - 12/2001	6
99118-62915	DA11#,DB10#,FA100,11#,FB100,FC100 15A,15A	03/1969 - 12/2001	3
82630 - HOLDER ASSY, FUSE
82614-95210	DA11#,FA100,115..GEN	02/1980 - 12/2001	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-59025	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84110-55040	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 04/1977	1
84112-11020	DA11#,FA100,115	04/1977 - 02/1980	1
84112-59026	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84150 - SWITCH ASSY, FOG LAMP
84160-55030	DA11#,FA100,115	04/1977 - 04/1978	1
84162-60010	DA11#,FA100,115..GEN	04/1978 - 12/2001	1
84160-55021	DA11#,DB10#,FA100,11#,FC100	03/1969 - 04/1977	1
84150A - BOLT, FOG LAMP SWITCH
90984-01007	DA11#,FA100,115..GEN	04/1978 - 12/2001	1
84151 - KNOB, FOG LAMP SWITCH
84161-37010	DA11#,FA100,115..GEN	04/1978 - 12/2001	1
84262 - SWITCH ASSY, EXHAUST BRAKE
84640-37010	DA11#	04/1977 - 02/1980	1
84270-55010	DA11#	06/1969 - 03/1974	1
84260-55020	DA11#	03/1969 - 06/1969	1
84640-37030	DA11#..LHD	02/1980 - 12/2001	1
84270-55010	DA11#,DB105	04/1974 - 04/1977	1
84270 - SWITCH ASSY, DASH LAMP
84280-55010	DA11#,FA100,115	02/1980 - 12/2001	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-55060	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84310-55041	DA11#,FA100,115..LHD	04/1977 - 02/1980	1
84310-55040	DA11#,DB105,FA100,115..LHD	04/1974 - 04/1977	1
84031-55011	DA11#,DB10#,FA100,11#,FC100	03/1969 - 03/1974	1
84310-55061	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84312 - PLATE, HORN CONTACT
84312-55010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
84312-20011	DA11#,FA100,115	02/1980 - 12/2001	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84330-12010	DA11#,FA100,11#,FC100	01/1971 - 04/1977	1
84332-59025	DA11#,FA100,115..LHD	02/1980 - 12/2001	1
84332-55021	DA11#,FA100,115	04/1977 - 02/1980	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-59026	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84650-55021	DA11#,FA100,11#,FC100	03/1969 - 01/1975	1
84652-55010	DA11#,FA100,115	04/1977 - 02/1980	1
84652-59025	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84650-55021	DA11#,DB105,FA100,115	01/1975 - 04/1977	1
84730 - SWITCH ASSY, HEATER BLOWER
84730-36010	DA11#,FA100,115	04/1974 - 12/2001	1
85500 - LIGHTER ASSY, CIGARETTE
85500-20042	DA11#,FA100,115..GEN	08/1974 - 12/2001	1
85500-20042	FA100,11#,FC100	03/1969 - 08/1974	1
85540 - RESISTANCE ASSY, CIGARETTE LIGHTER
85540-36030	DA11#..GEN	08/1974 - 12/2001	1
Common parts
90461-07028
90463-15402
91616-40616
93319-15012

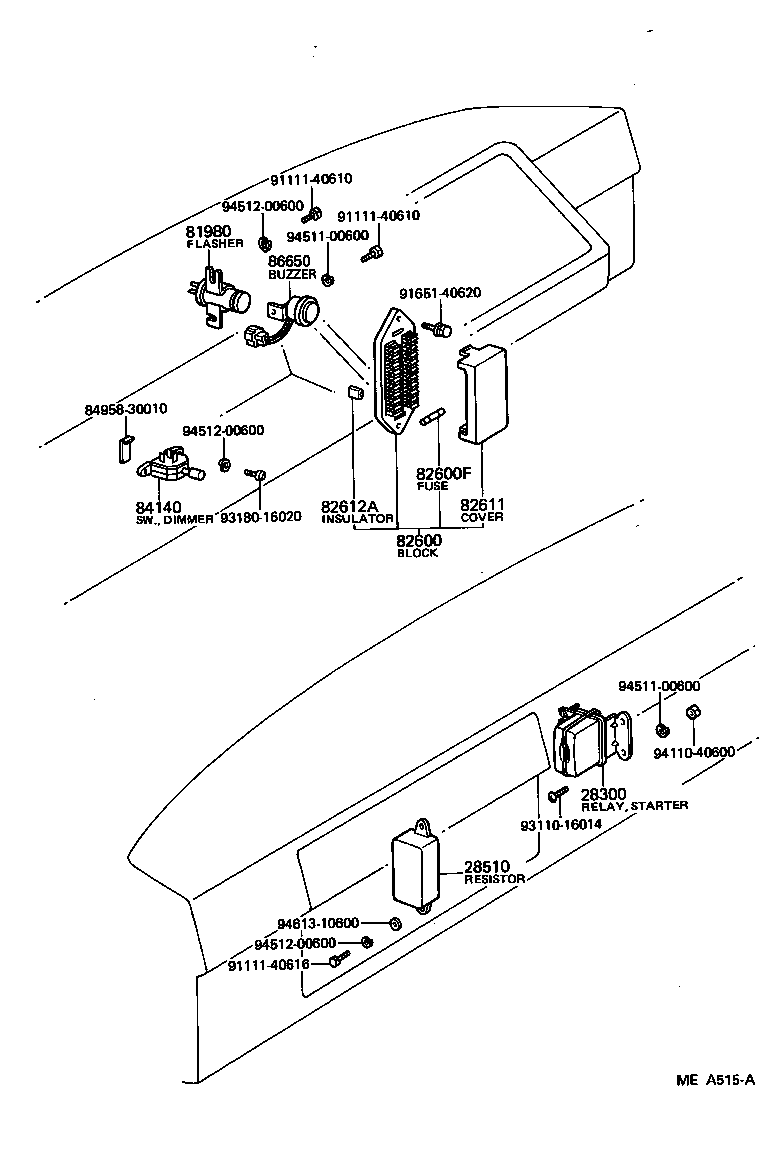

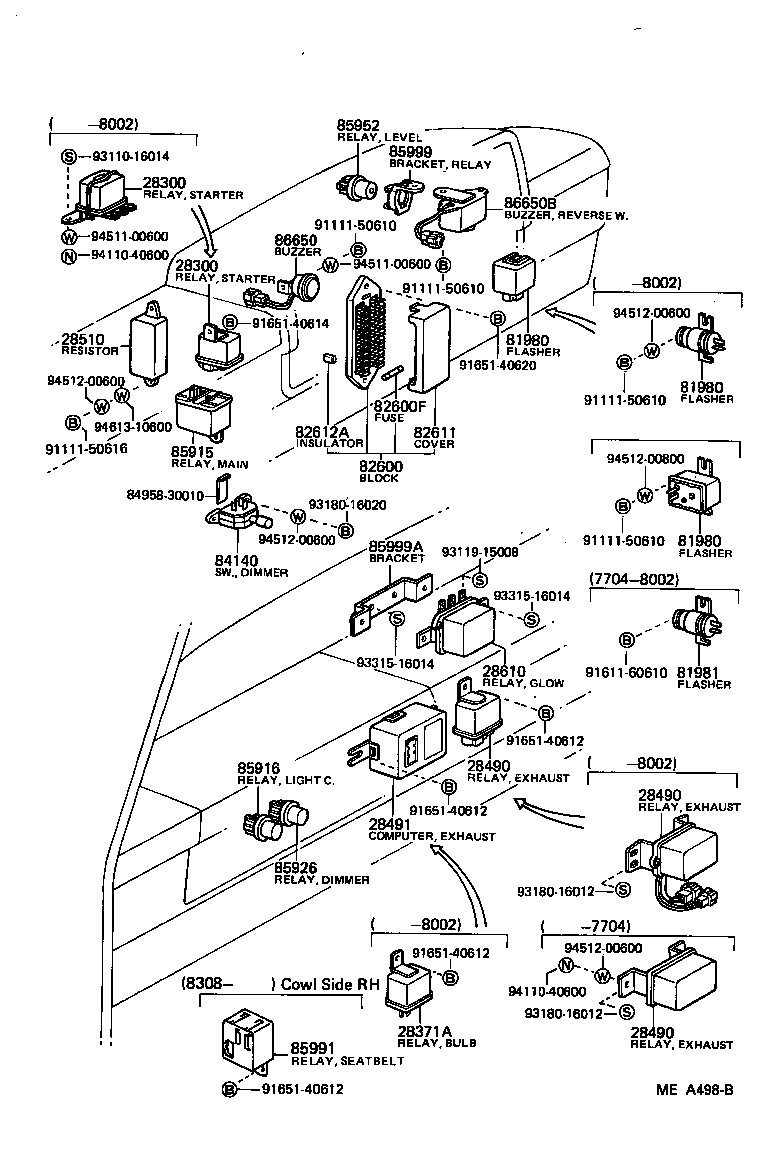

ILLUST NO. 4 OF 5(6903- )DA11#,FA100,11#,FC100

Click highlighted areas on diagram

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-76020	2D..DA11#,DB10#	03/1969 - 02/1980	1
28300-56010	2D..DA11#	02/1980 - 12/2001	1
28300 - RELAY ASSY, STARTER
28300-76020	2D..DA11#,DB10#	03/1969 - 02/1980	1
28300-56010	2D..DA11#	02/1980 - 12/2001	1
28371A - RELAY, BULB CHECK
85916-36010	2D..DA11# OIL FILTER BULB	04/1977 - 02/1980	1
28490 - RELAY ASSY, EXHAUST BRAKE
28490-77011	2D..DA11#..GEN	02/1980 - 12/2001	1
28490-77010	2D..DA11#	04/1977 - 02/1980	1
28490-55011	2D..DA11#	03/1969 - 04/1977	1
28490 - RELAY ASSY, EXHAUST BRAKE
28490-77011	2D..DA11#..GEN	02/1980 - 12/2001	1
28490-77010	2D..DA11#	04/1977 - 02/1980	1
28490-55011	2D..DA11#	03/1969 - 04/1977	1
28490 - RELAY ASSY, EXHAUST BRAKE
28490-77011	2D..DA11#..GEN	02/1980 - 12/2001	1
28490-77010	2D..DA11#	04/1977 - 02/1980	1
28490-55011	2D..DA11#	03/1969 - 04/1977	1
28491 - COMPUTER, EXHAUST BRAKE
28491-77020	2D..DA11#..GEN	02/1980 - 12/2001	1
28510 - RESISTOR ASSY, STARTER BRUSH
28510-76010	2D..DA11#,DB10#	03/1969 - 05/1972	1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-46040	2D..DA11#	01/1979 - 12/2001	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-55050	DA11#,DB10#	03/1969 - 11/1975	1
81980-36010	DA11#,DB105	11/1975 - 02/1980	1
81980-55040	FA100,11#,FB100,FC100	03/1969 - 11/1975	1
81980-36060	DA11#	02/1980 - 12/2001	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-55050	DA11#,DB10#	03/1969 - 11/1975	1
81980-36010	DA11#,DB105	11/1975 - 02/1980	1
81980-55040	FA100,11#,FB100,FC100	03/1969 - 11/1975	1
81980-36060	DA11#	02/1980 - 12/2001	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-55050	DA11#,DB10#	03/1969 - 11/1975	1
81980-36010	DA11#,DB105	11/1975 - 02/1980	1
81980-55040	FA100,11#,FB100,FC100	03/1969 - 11/1975	1
81980-36060	DA11#	02/1980 - 12/2001	1
81981 - FLASHER ASSY, HAZARD WARNING SIGNAL
81980-36030	DA11#	04/1977 - 02/1980	1
82600 - BLOCK ASSY, FUSE
82600-10020	DA11#,DB10#,FA100,11#,FC100	03/1969 - 12/2001	1
82600F - FUSE, FUSE BLOCK
99118-62930	DA11#,FA100,115 30A,W/EXHAUST BRAKE	02/1980 - 12/2001	1
99118-62920	DA11#,DB10#,FA100,11#,FB100,FC100 20A,20A	03/1969 - 12/2001	2
99118-62905	DA11#,DB10#,FA100,11#,FB100,FC100 5A,5A	03/1969 - 12/2001	1
99118-62910	DA11#,DB10#,FA100,11#,FB100,FC100 10A	03/1969 - 12/2001	6
99118-62915	DA11#,DB10#,FA100,11#,FB100,FC100 15A,15A	03/1969 - 12/2001	3
82611 - COVER, FUSE BLOCK
82611-10020	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 12/2001	1
82612A - INSULATOR, FUSE BLOCK TERMINAL, B
82612-22020	DA11#,DB10#,FA100,11#,FB100,FC100	08/1969 - 12/2001	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-55021	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
85916 - RELAY, LIGHT CONTROL
90987-01002	DA11#	02/1980 - 11/1983	1
90987-01004	DA11#	11/1983 - 12/2001	1
85926 - RELAY, HEADLAMP DIMMER
90987-01004	DA11#	11/1983 - 12/2001	1
90987-01002	DA11#	02/1980 - 11/1983	1
85952 - RELAY, LEVEL WARNING
90987-01002	DA11#	02/1980 - 11/1983	1
90987-01004	DA11#	11/1983 - 12/2001	1
85991 - RELAY, SEAT BELT WARNING
85991-55010	DA11#..LHD..1SR	08/1983 - 12/2001	1
85999 - BRACKET, COMBINATION RELAY
85999-26010	DA11#,FA100,115 LEVEL WARNING RELAY	02/1980 - 06/1980	1
85999-26010	DA11# LEVEL WARNING RELAY	06/1980 - 11/1983	1
85999-12050	DA11# LEVEL WARNING RELAY	11/1983 - 12/2001	1
85999A - BRACKET, RELAY, NO.2
82956-95211	DA11#	01/1979 - 12/2001	1
86650 - BUZZER ASSY, VACUUM INDICATOR
86650-55010	FA100,11#,FB100,FC100	03/1969 - 06/1970	1
86650-55021	DA11#,DB10#	06/1970 - 04/1977	1
86650-55020	DA11#,DB10#	03/1969 - 06/1970	1
86650-25040	DA11#	04/1977 - 12/2001	1
86650-55011	FA100,11#,FB100,FC100	06/1970 - 04/1977	1
86650B - BUZZER ASSY, REVERSE WARNING
86650-55070	DA11#	03/1978 - 12/2001	1
Common parts
84958-30010
91111-50610
91111-50616
91611-60610
91651-40612
91651-40614
91651-40620
93110-16014
93119-15008
93180-16012
93180-16020
93315-16014
94110-40600
94511-00600
94512-00600
94512-00800
94613-10600

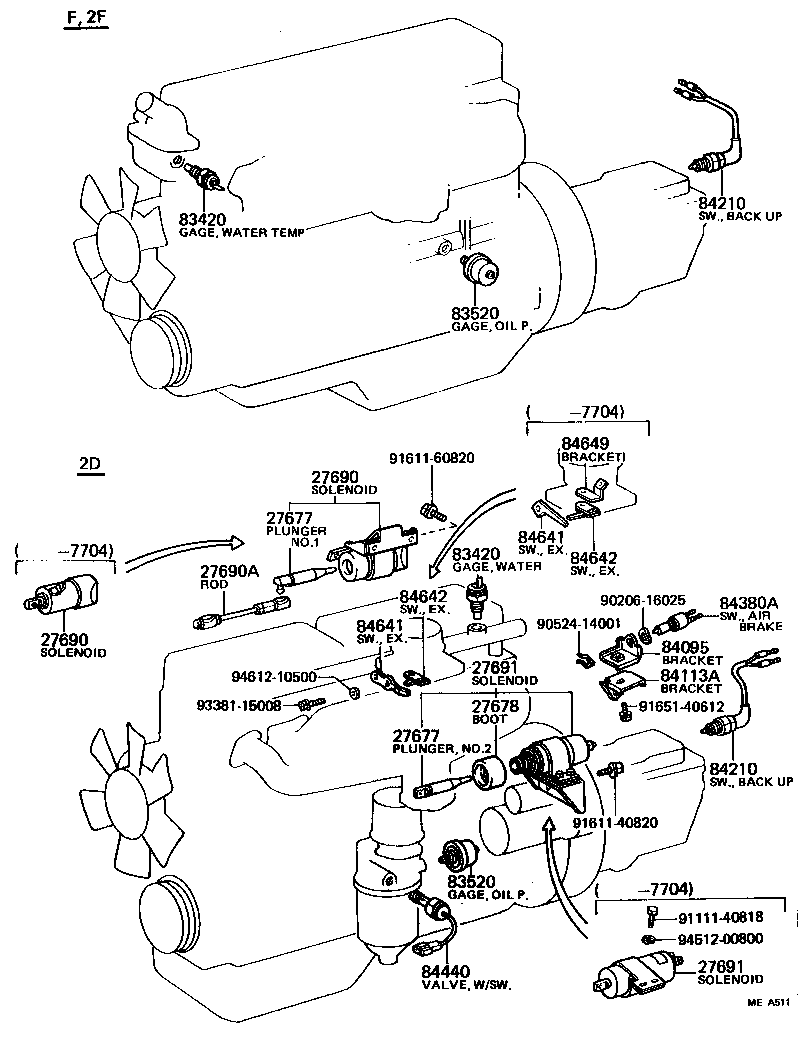

ILLUST NO. 1 OF 5(6903- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
27677 - PLUNGER, SOLENOID INNER VALVE SWITING
27677-77010	2D..DA11#..GEN NO.2	05/1978 - 12/2001	1
27677-77020	2D..DA11# NO.1	05/1978 - 10/1979	1
27677-77021	2D..DA11#..GEN NO.1	10/1979 - 12/2001	1
27677 - PLUNGER, SOLENOID INNER VALVE SWITING
27677-77010	2D..DA11#..GEN NO.2	05/1978 - 12/2001	1
27677-77020	2D..DA11# NO.1	05/1978 - 10/1979	1
27677-77021	2D..DA11#..GEN NO.1	10/1979 - 12/2001	1
27678 - BOOT, EXHAUST RETARDER SOLENOID
27678-77010	2D..DA11#..GEN	05/1978 - 12/2001	1
27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-55020	2D..DA11#,DB10#	03/1969 - 04/1977	1
27690-77021	2D..DA11#	04/1977 - 10/1979	1
27690-77022	2D..DA11#..GEN	10/1979 - 12/2001	1
27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-55020	2D..DA11#,DB10#	03/1969 - 04/1977	1
27690-77021	2D..DA11#	04/1977 - 10/1979	1
27690-77022	2D..DA11#..GEN	10/1979 - 12/2001	1
27690A - ROD SUB-ASSY, CONNECTING
84508-55010	2D..DA11#..GEN	04/1977 - 12/2001	1
27691 - SOLENOID ASSY, EXHAUST BRAKE
27690-55010	2D..DA11#,DB10#	03/1969 - 04/1977	1
27690-77010	2D..DA11#..GEN	04/1977 - 12/2001	1
27691 - SOLENOID ASSY, EXHAUST BRAKE
27690-55010	2D..DA11#,DB10#	03/1969 - 04/1977	1
27690-77010	2D..DA11#..GEN	04/1977 - 12/2001	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 12/2001	1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 12/2001	1
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-55010	FA100,11#,FB100,FC100	03/1969 - 05/1980	1
83520-55020	DA11#,DB10#	03/1969 - 12/2001	1
83520 - GAGE ASSY,OIL PRESSURE SENDER
83520-55010	FA100,11#,FB100,FC100	03/1969 - 05/1980	1
83520-55020	DA11#,DB10#	03/1969 - 12/2001	1
84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84956-55020	DA11#..LHD	04/1977 - 02/1980	1
84956-55020	DA11#,FA100,115..LHD	02/1980 - 12/2001	1
84113A - BRACKET, SWITCH, NO.1
84113-55020	DA11#,FA100,115..LHD..5F	02/1980 - 12/2001	1
84113-55020	DA11#..LHD	04/1977 - 02/1980	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-55050	DA11#,FA100,115..5F	02/1980 - 12/2001	1
84210-57012	DA11#,DB10#,FA100,11#..5F	03/1969 - 02/1980	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-55050	DA11#,FA100,115..5F	02/1980 - 12/2001	1
84210-57012	DA11#,DB10#,FA100,11#..5F	03/1969 - 02/1980	1
84380A - SWITCH AIR-BRAKE WARNING
84210-10040	DA11#	04/1977 - 02/1980	1
84550-55010	DA11#,FA100,115	02/1980 - 12/2001	1
84440 - BY-PASS VALVE ASSY, WITH SWITCH
84440-55010	DA11# OIL FILTER	04/1977 - 12/2001	1
84641 - SWITCH, EXHAUST BRAKE, NO.1
84641-55010	DA11#,DB10# NO.35	03/1969 - 04/1977	1
84641-55030	DA11#,DB10# NO.30	03/1969 - 04/1977	1
84641-55040	DA11# NO.35	04/1977 - 02/1980	1
84641-55020	DA11#,DB10# NO.25	03/1969 - 04/1977	1
84641 - SWITCH, EXHAUST BRAKE, NO.1
84641-55010	DA11#,DB10# NO.35	03/1969 - 04/1977	1
84641-55030	DA11#,DB10# NO.30	03/1969 - 04/1977	1
84641-55040	DA11# NO.35	04/1977 - 02/1980	1
84641-55020	DA11#,DB10# NO.25	03/1969 - 04/1977	1
84642 - SWITCH, EXHAUST BRAKE, NO.2
84642-55010	DA11#	03/1969 - 03/1974	1
84642-55010	DA11#,DB105	04/1974 - 02/1980	1
84642 - SWITCH, EXHAUST BRAKE, NO.2
84642-55010	DA11#	03/1969 - 03/1974	1
84642-55010	DA11#,DB105	04/1974 - 02/1980	1
84649 - BRACKET, EXHAUST BRAKE SWITCH
84643-55010	DA11# MECHANICAL GOVERNOR	06/1971 - 04/1977	1
Common parts
90206-16025
90524-14001
91111-40818
91611-40820
91611-60820
91651-40612
93381-15008
94512-00800
94612-10500

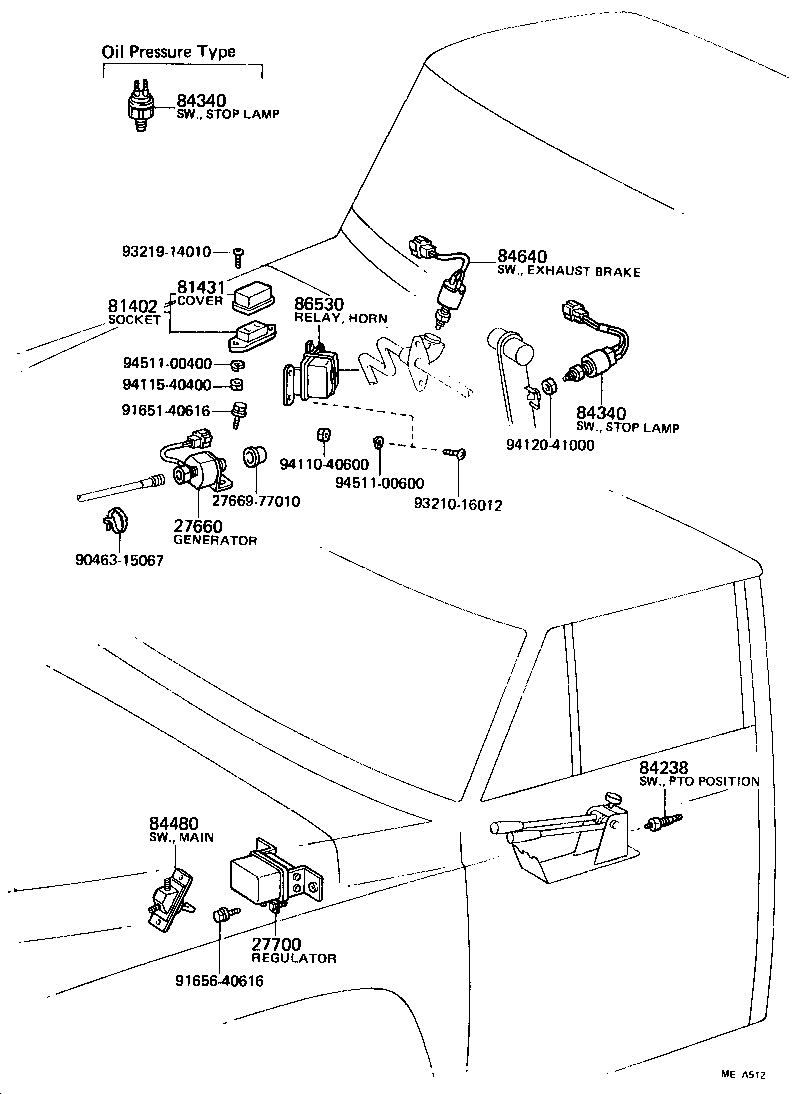

ILLUST NO. 2 OF 5(6903- )DA11#,FA100,11#,FC100

Click highlighted areas on diagram

Part #	Description	Period	Qty
27660 - GENERATOR ASSY, EXHAUST BRAKE
27660-77010	2D..DA11#,DB10#	03/1969 - 04/1977	1
27660-77021	2D..DA11#	04/1977 - 09/1977	1
27660-77020	2D..DA11# W/MECHANICAL GAVERNOR	06/1971 - 04/1977	1
27660-77023	2D..DA11#..GEN	02/1980 - 12/2001	1
27660-77022	2D..DA11#	09/1977 - 02/1980	1
27700 - REGULATOR ASSY, GENERATOR
27700-77050	2D..DA11#	04/1977 - 03/1989	1
27700-47010	2D..DA11#,DB10#	03/1969 - 04/1977	1
27700-40011	F..FA100,11#,FB100,FC100	03/1969 - 04/1977	1
27700-77051	2D..DA11#	03/1989 - 12/2001	1
81402 - SOCKET SUB-ASSY, INSPECTION LAMP, NO.1
81402-29016	DA11#,FA100,115	12/1977 - 12/2001	2
81402-29015	DA11#,DB105,FA100,115	10/1974 - 12/1977	2
81420-35010	DA11#,DB10#,FA100,11#,FC100	03/1969 - 10/1974	2
81431 - COVER, INSPECTION LAMP CONSENT
81431-39610	DA11#,DB10#,FA100,11#,FC100	03/1969 - 10/1974	2
84340 - SWITCH ASSY, STOP LAMP
84340-30013	DA11#,DB10#,FA100,11#,FC100	12/1972 - 04/1977	1
84340-30012	DA11#,DB10#,FA100,11#,FB100,FC100	08/1970 - 12/1972	1
84340-22072	DA11#,FA100,115	02/1982 - 12/2001	1
84340-22071	DA11#,FA100,115	02/1980 - 02/1982	1
84340-30011	DA11#,DB10#,FA100,11#,FB100,FC100	03/1970 - 07/1970	1
84340-25010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1970	1
84340-35010	DA11#,FA100,115	04/1977 - 02/1980	1
84340 - SWITCH ASSY, STOP LAMP
84340-30013	DA11#,DB10#,FA100,11#,FC100	12/1972 - 04/1977	1
84340-30012	DA11#,DB10#,FA100,11#,FB100,FC100	08/1970 - 12/1972	1
84340-22072	DA11#,FA100,115	02/1982 - 12/2001	1
84340-22071	DA11#,FA100,115	02/1980 - 02/1982	1
84340-30011	DA11#,DB10#,FA100,11#,FB100,FC100	03/1970 - 07/1970	1
84340-25010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1970	1
84340-35010	DA11#,FA100,115	04/1977 - 02/1980	1
84480 - SWITCH ASSY, MAIN
84480-55010	DA11#,DB10# ENGINE SIDE	03/1969 - 03/1974	1
84640 - SWITCH ASSY, EXHAUST BRAKE
84640-67010	DA11# CLUTCH	04/1977 - 02/1980	1
84640-36020	DA11#..GEN CLUTCH	02/1980 - 12/2001	1
86530 - RELAY ASSY, HORN
86530-20040	FA100,11#,FC100 DENSO	03/1969 - 08/1974	1
86530-55010	DA11# DENSO	03/1969 - 08/1974	1
86530-55031	DA11#,DB10# MARUKO	03/1969 - 08/1974	1
86530-20031	FA100,11#,FB100,FC100 MARUKO	03/1969 - 08/1974	1
86530-36010	DA11# DENSO	08/1974 - 12/2001	1
86530-36020	DA11#,DB105 MARUKO	08/1974 - 12/2001	1
Common parts
27669-77010
90463-15067
91651-40616
91656-40616
93210-16012
93219-14010
94110-40600
94115-40400
94120-41000
94511-00400
94511-00600

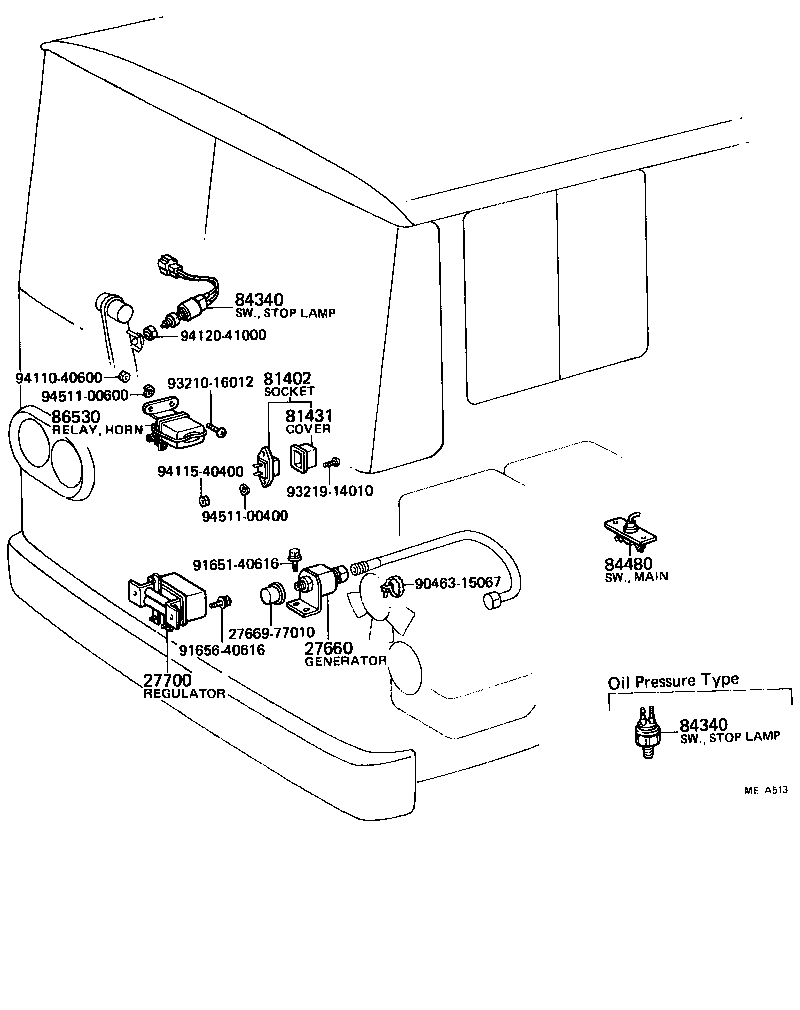

ILLUST NO. 2 OF 5(6903-7703)

Click highlighted areas on diagram

Part #	Description	Period	Qty
27660 - GENERATOR ASSY, EXHAUST BRAKE
27660-77010	2D..DA11#,DB10#	03/1969 - 04/1977	1
27660-77021	2D..DA11#	04/1977 - 09/1977	1
27660-77020	2D..DA11# W/MECHANICAL GAVERNOR	06/1971 - 04/1977	1
27660-77023	2D..DA11#..GEN	02/1980 - 12/2001	1
27660-77022	2D..DA11#	09/1977 - 02/1980	1
27700 - REGULATOR ASSY, GENERATOR
27700-77050	2D..DA11#	04/1977 - 03/1989	1
27700-47010	2D..DA11#,DB10#	03/1969 - 04/1977	1
27700-40011	F..FA100,11#,FB100,FC100	03/1969 - 04/1977	1
27700-77051	2D..DA11#	03/1989 - 12/2001	1
81402 - SOCKET SUB-ASSY, INSPECTION LAMP, NO.1
81402-29016	DA11#,FA100,115	12/1977 - 12/2001	2
81402-29015	DA11#,DB105,FA100,115	10/1974 - 12/1977	2
81420-35010	DA11#,DB10#,FA100,11#,FC100	03/1969 - 10/1974	2
81431 - COVER, INSPECTION LAMP CONSENT
81431-39610	DA11#,DB10#,FA100,11#,FC100	03/1969 - 10/1974	2
84340 - SWITCH ASSY, STOP LAMP
84340-30013	DA11#,DB10#,FA100,11#,FC100	12/1972 - 04/1977	1
84340-30012	DA11#,DB10#,FA100,11#,FB100,FC100	08/1970 - 12/1972	1
84340-22072	DA11#,FA100,115	02/1982 - 12/2001	1
84340-22071	DA11#,FA100,115	02/1980 - 02/1982	1
84340-30011	DA11#,DB10#,FA100,11#,FB100,FC100	03/1970 - 07/1970	1
84340-25010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1970	1
84340-35010	DA11#,FA100,115	04/1977 - 02/1980	1
84340 - SWITCH ASSY, STOP LAMP
84340-30013	DA11#,DB10#,FA100,11#,FC100	12/1972 - 04/1977	1
84340-30012	DA11#,DB10#,FA100,11#,FB100,FC100	08/1970 - 12/1972	1
84340-22072	DA11#,FA100,115	02/1982 - 12/2001	1
84340-22071	DA11#,FA100,115	02/1980 - 02/1982	1
84340-30011	DA11#,DB10#,FA100,11#,FB100,FC100	03/1970 - 07/1970	1
84340-25010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1970	1
84340-35010	DA11#,FA100,115	04/1977 - 02/1980	1
84480 - SWITCH ASSY, MAIN
84480-55010	DA11#,DB10# ENGINE SIDE	03/1969 - 03/1974	1
86530 - RELAY ASSY, HORN
86530-20040	FA100,11#,FC100 DENSO	03/1969 - 08/1974	1
86530-55010	DA11# DENSO	03/1969 - 08/1974	1
86530-55031	DA11#,DB10# MARUKO	03/1969 - 08/1974	1
86530-20031	FA100,11#,FB100,FC100 MARUKO	03/1969 - 08/1974	1
86530-36010	DA11# DENSO	08/1974 - 12/2001	1
86530-36020	DA11#,DB105 MARUKO	08/1974 - 12/2001	1
Common parts
27669-77010
90463-15067
91651-40616
91656-40616
93210-16012
93219-14010
94110-40600
94115-40400
94120-41000
94511-00400
94511-00600

ILLUST NO. 4 OF 5(6903-7703)

Click highlighted areas on diagram

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-76020	2D..DA11#,DB10#	03/1969 - 02/1980	1
28300-56010	2D..DA11#	02/1980 - 12/2001	1
28510 - RESISTOR ASSY, STARTER BRUSH
28510-76010	2D..DA11#,DB10#	03/1969 - 05/1972	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-55050	DA11#,DB10#	03/1969 - 11/1975	1
81980-36010	DA11#,DB105	11/1975 - 02/1980	1
81980-55040	FA100,11#,FB100,FC100	03/1969 - 11/1975	1
81980-36060	DA11#	02/1980 - 12/2001	1
82600 - BLOCK ASSY, FUSE
82600-10020	DA11#,DB10#,FA100,11#,FC100	03/1969 - 12/2001	1
82600F - FUSE, FUSE BLOCK
99118-62930	DA11#,FA100,115 30A,W/EXHAUST BRAKE	02/1980 - 12/2001	1
99118-62920	DA11#,DB10#,FA100,11#,FB100,FC100 20A,20A	03/1969 - 12/2001	2
99118-62905	DA11#,DB10#,FA100,11#,FB100,FC100 5A,5A	03/1969 - 12/2001	1
99118-62910	DA11#,DB10#,FA100,11#,FB100,FC100 10A	03/1969 - 12/2001	6
99118-62915	DA11#,DB10#,FA100,11#,FB100,FC100 15A,15A	03/1969 - 12/2001	3
82611 - COVER, FUSE BLOCK
82611-10020	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 12/2001	1
82612A - INSULATOR, FUSE BLOCK TERMINAL, B
82612-22020	DA11#,DB10#,FA100,11#,FB100,FC100	08/1969 - 12/2001	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-55021	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
86650 - BUZZER ASSY, VACUUM INDICATOR
86650-55010	FA100,11#,FB100,FC100	03/1969 - 06/1970	1
86650-55021	DA11#,DB10#	06/1970 - 04/1977	1
86650-55020	DA11#,DB10#	03/1969 - 06/1970	1
86650-25040	DA11#	04/1977 - 12/2001	1
86650-55011	FA100,11#,FB100,FC100	06/1970 - 04/1977	1
Common parts
84958-30010
91111-40610
91111-40616
91651-40620
93110-16014
93180-16020
94110-40600
94511-00600
94512-00600
94613-10600

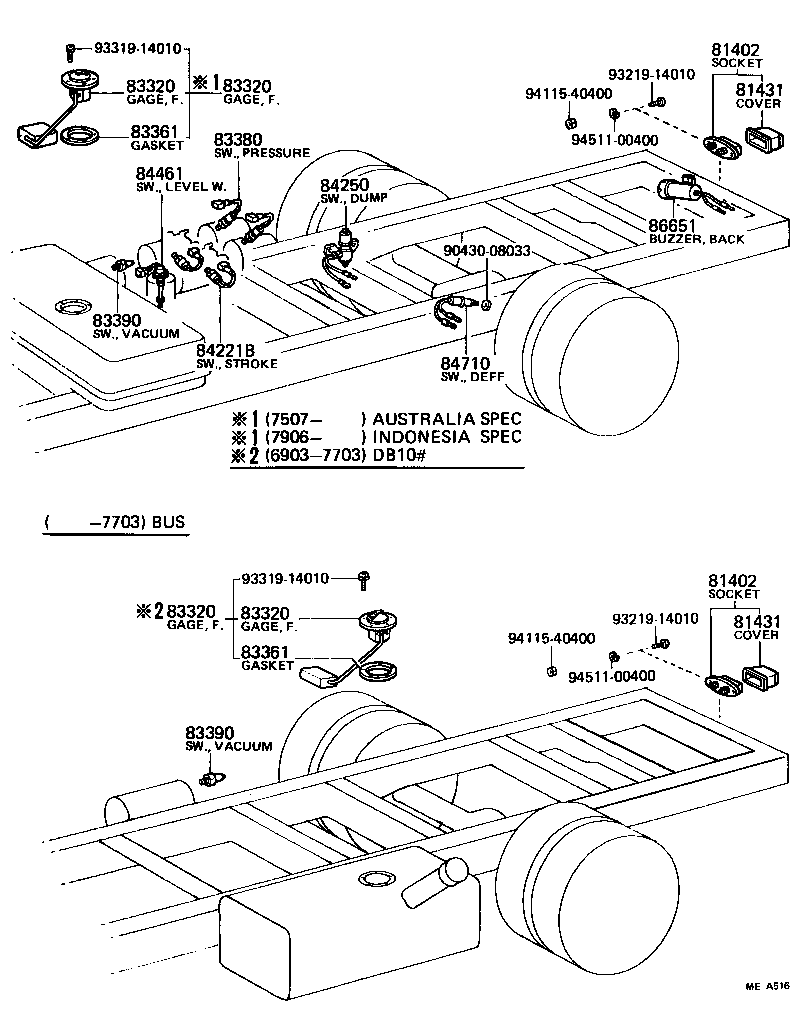

ILLUST NO. 5 OF 5(6903- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81402 - SOCKET SUB-ASSY, INSPECTION LAMP, NO.1
81402-29016	DA11#,FA100,115	12/1977 - 12/2001	2
81402-29015	DA11#,DB105,FA100,115	10/1974 - 12/1977	2
81420-35010	DA11#,DB10#,FA100,11#,FC100	03/1969 - 10/1974	2
81402 - SOCKET SUB-ASSY, INSPECTION LAMP, NO.1
81402-29016	DA11#,FA100,115	12/1977 - 12/2001	2
81402-29015	DA11#,DB105,FA100,115	10/1974 - 12/1977	2
81420-35010	DA11#,DB10#,FA100,11#,FC100	03/1969 - 10/1974	2
81431 - COVER, INSPECTION LAMP CONSENT
81431-39610	DA11#,DB10#,FA100,11#,FC100	03/1969 - 10/1974	2
81431 - COVER, INSPECTION LAMP CONSENT
81431-39610	DA11#,DB10#,FA100,11#,FC100	03/1969 - 10/1974	2
83320 - GAGE ASSY, FUEL SENDER
83320-55021	DA11#,FA100,11#,FB100,FC100..GEN	03/1969 - 12/2001	1
83320 - GAGE ASSY, FUEL SENDER
83320-55021	DA11#,FA100,11#,FB100,FC100..GEN	03/1969 - 12/2001	1
83320 - GAGE ASSY, FUEL SENDER
83320-55021	DA11#,FA100,11#,FB100,FC100..GEN	03/1969 - 12/2001	1
83320 - GAGE ASSY, FUEL SENDER
83320-55021	DA11#,FA100,11#,FB100,FC100..GEN	03/1969 - 12/2001	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 12/2001	1
83361 - GASKET, FUEL SENDER GAGE
83361-20030	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 12/2001	1
83380 - SWITCH ASSY, PRESURE
83380-55020	DA11# W/AIR OVER BRAKE	02/1980 - 12/2001	2
83380-55011	DA11# W/AIR SERVO BRAKE	06/1977 - 02/1980	1
83380-55020	DA11#..LHD SAUDI ARABIA OR GULF SPEC	11/1982 - 12/2001	1
83380-55010	DA11# W/AIR SERVO BRAKE	04/1977 - 06/1977	1
83380-55020	DA11#..GEN W/AIR SERVO BRAKE	02/1980 - 12/2001	1
83390 - SWITCH ASSY, VACUUM WARNING
83390-55020	DA11#,DB10#,FA100,11#,FC100	03/1969 - 01/1970	1
83390-55020	FA100,11#,FC100	01/1970 - 04/1977	1
83390-55040	DA11#,FA100,115	04/1977 - 02/1980	1
83390-55040	DA11#,DB10#	01/1970 - 04/1977	1
83390-60010	DA11#,FA100,115..GEN	02/1980 - 12/2001	1
83390 - SWITCH ASSY, VACUUM WARNING
83390-55020	DA11#,DB10#,FA100,11#,FC100	03/1969 - 01/1970	1
83390-55020	FA100,11#,FC100	01/1970 - 04/1977	1
83390-55040	DA11#,FA100,115	04/1977 - 02/1980	1
83390-55040	DA11#,DB10#	01/1970 - 04/1977	1
83390-60010	DA11#,FA100,115..GEN	02/1980 - 12/2001	1
84221B - SWITCH, STOROKE INDICATOR
84221-55010	DA11# W/AIR OVER BRAKE	02/1980 - 12/2001	2
84461 - SWITCH, LEVEL WARNING
84461-60020	DA11# REED WIRE,L=25	08/1986 - 12/2001	1
84461-30040	DA11#	02/1980 - 08/1986	1
86651 - BUZZER ASSY, BACK
86650-95400	DA11#	04/1977 - 12/2001	1
86650-55050	DA11#	04/1974 - 04/1977	1
Common parts
90430-08033
93219-14010
93319-14010
94115-40400
94511-00400

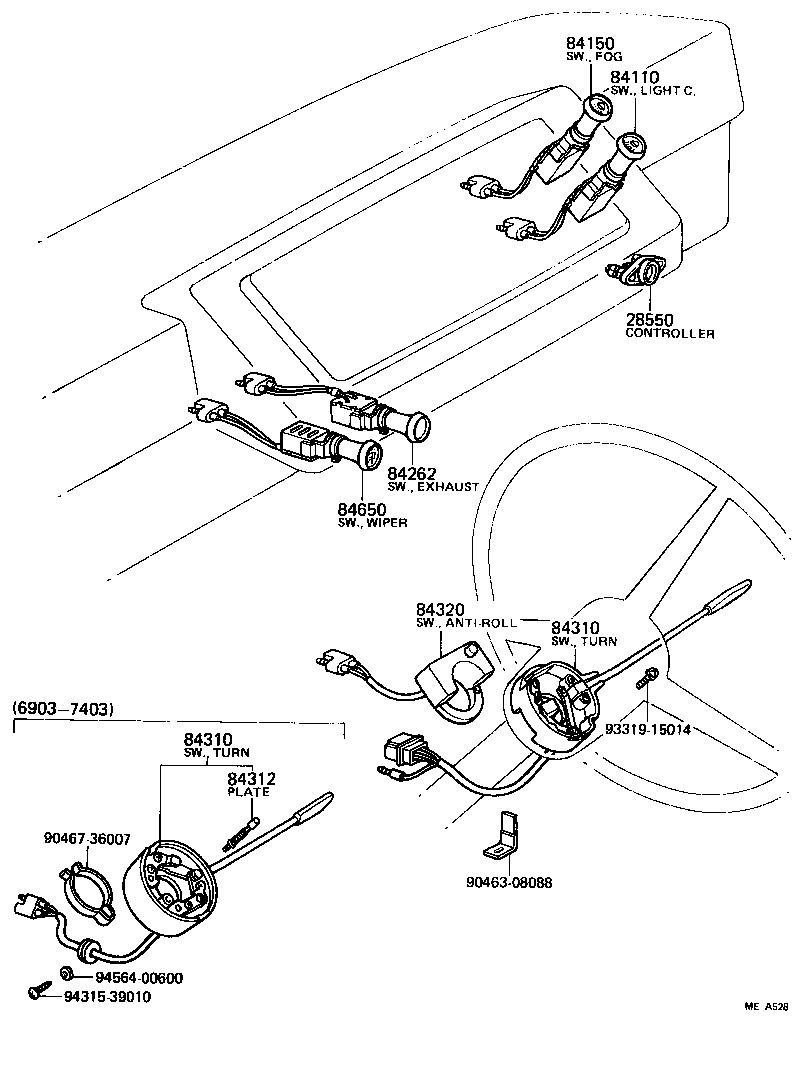

ILLUST NO. 3 OF 5(6903-7703)

Click highlighted areas on diagram

Part #	Description	Period	Qty
28550 - CONTROLLER ASSY, GLOW PLUG
28550-77010	2D..DA11#	01/1979 - 02/1980	1
28550-76010	2D..DA11#,DB10#	03/1969 - 05/1972	1
28550-47011	2D..DA11#,DB10#	05/1972 - 01/1979	1
28550-77020	2D..DA11#	02/1980 - 12/2001	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-59025	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84110-55040	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 04/1977	1
84112-11020	DA11#,FA100,115	04/1977 - 02/1980	1
84112-59026	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84150 - SWITCH ASSY, FOG LAMP
84160-55030	DA11#,FA100,115	04/1977 - 04/1978	1
84162-60010	DA11#,FA100,115..GEN	04/1978 - 12/2001	1
84160-55021	DA11#,DB10#,FA100,11#,FC100	03/1969 - 04/1977	1
84262 - SWITCH ASSY, EXHAUST BRAKE
84640-37010	DA11#	04/1977 - 02/1980	1
84270-55010	DA11#	06/1969 - 03/1974	1
84260-55020	DA11#	03/1969 - 06/1969	1
84640-37030	DA11#..LHD	02/1980 - 12/2001	1
84270-55010	DA11#,DB105	04/1974 - 04/1977	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-55060	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84310-55041	DA11#,FA100,115..LHD	04/1977 - 02/1980	1
84310-55040	DA11#,DB105,FA100,115..LHD	04/1974 - 04/1977	1
84031-55011	DA11#,DB10#,FA100,11#,FC100	03/1969 - 03/1974	1
84310-55061	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-55060	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84310-55041	DA11#,FA100,115..LHD	04/1977 - 02/1980	1
84310-55040	DA11#,DB105,FA100,115..LHD	04/1974 - 04/1977	1
84031-55011	DA11#,DB10#,FA100,11#,FC100	03/1969 - 03/1974	1
84310-55061	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84312 - PLATE, HORN CONTACT
84312-55010	DA11#,DB10#,FA100,11#,FB100,FC100	03/1969 - 03/1974	1
84312-20011	DA11#,FA100,115	02/1980 - 12/2001	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-59026	DA11#,FA100,115..LHD	08/1980 - 12/2001	1
84650-55021	DA11#,FA100,11#,FC100	03/1969 - 01/1975	1
84652-55010	DA11#,FA100,115	04/1977 - 02/1980	1
84652-59025	DA11#,FA100,115..LHD	02/1980 - 08/1980	1
84650-55021	DA11#,DB105,FA100,115	01/1975 - 04/1977	1
Common parts
90463-08088
90467-36007
93319-15014
94315-39010
94564-00600

DA110L- (1969)

ILLUST NO. 3 OF 5(6903-8002)DA11#,FA100,11#,FC100

ILLUST NO. 3 OF 5(8002- )

ILLUST NO. 4 OF 5(6903- )DA11#,FA100,11#,FC100

ILLUST NO. 1 OF 5(6903- )

ILLUST NO. 2 OF 5(6903- )DA11#,FA100,11#,FC100

ILLUST NO. 2 OF 5(6903-7703)

ILLUST NO. 4 OF 5(6903-7703)

ILLUST NO. 5 OF 5(6903- )

ILLUST NO. 3 OF 5(6903-7703)

Part Price Details
