DA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8207)FA100,11#,FB100,FC100

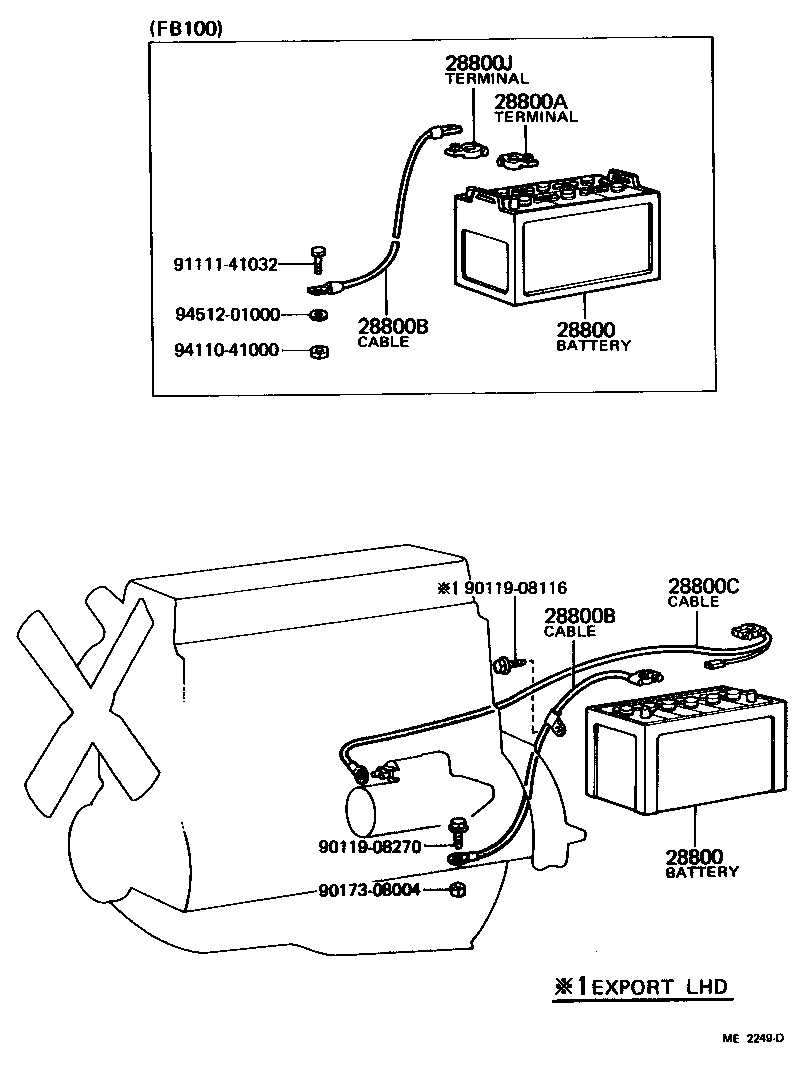

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800B 28800B 28800C 28800J 9011908116 9011908270 9017308004 9111141032 9411041000 9451201000
Part # Description Qty Price
28800 - BATTERY
28800-30082

F..FA100,11#,FC100

48D26R,48D26R(N50)

 1
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-30081

F..FA100,11#,FC100

48D26R(N50)

 1
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800 - BATTERY
28800-30082

F..FA100,11#,FC100

48D26R,48D26R(N50)

 1
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-30081

F..FA100,11#,FC100

48D26R(N50)

 1
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800A - TERMINAL, BATTERY POSITIVE
99142-87175

2D..DA11#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02020

2D..DA11#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02020

2D..DA11#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01047

2D..DA11#

 1
90982-01002

F..FA100,11#,FC100..LHD

 1
90982-01172

2D..DA11#

 1
Common parts
90119-08116
90119-08270
90173-08004
91111-41032
94110-41000
94512-01000

(6903- )DA11#

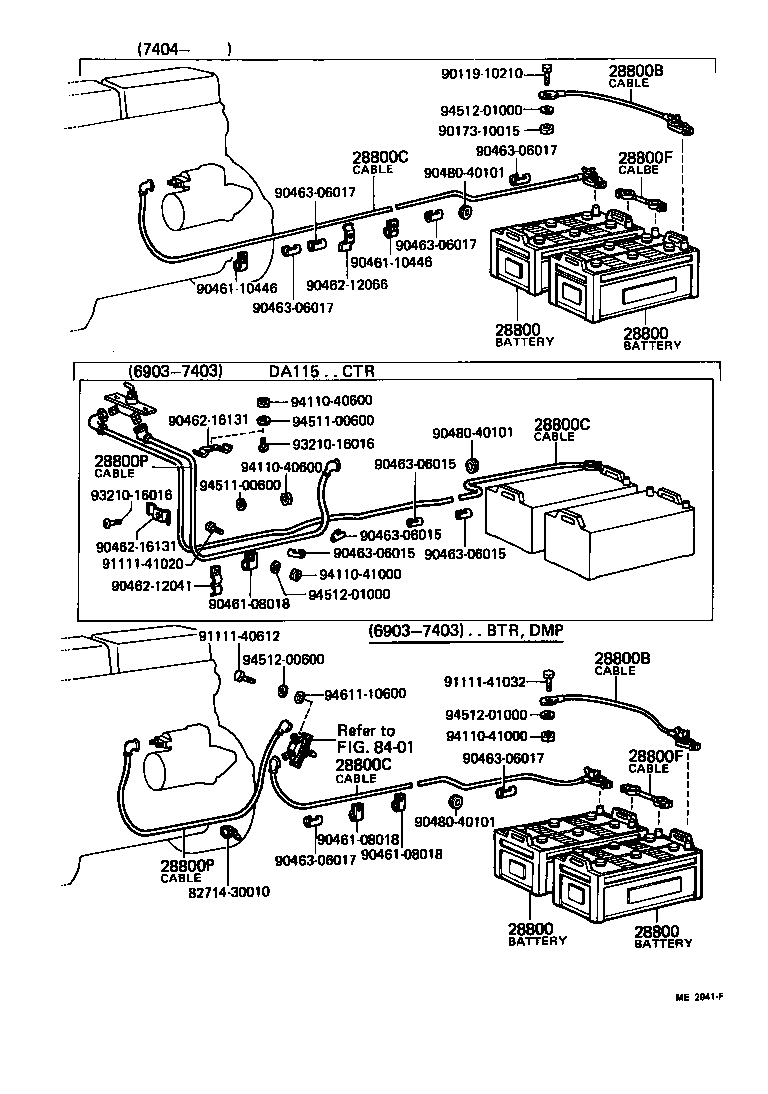

Click highlighted areas on diagram

diagram 28800 28800 28800 28800 28800B 28800B 28800C 28800C 28800C 28800F 28800F 28800P 28800P 8271430010 8401 9011910210 9017310005 9046108018 9046108018 9046108018 9046110446 9046110446 9046212041 9046212066 9046216131 9046216131 9046306015 9046306015 9046306015 9046306015 9046306017 9046306017 9046306017 9046306017 9046306017 9046306017 9048040101 9048040101 9048040101 9111140612 9111141020 9111141032 9321016016 9321016016 9411040600 9411040600 9411041000 9411041000 9451100600 9451100600 9451200600 9451201000 9451201000 9451201000 9461110600
Part # Description Qty Price
28800 - BATTERY
28800-30082

F..FA100,11#,FC100

48D26R,48D26R(N50)

 1
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-30081

F..FA100,11#,FC100

48D26R(N50)

 1
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800 - BATTERY
28800-30082

F..FA100,11#,FC100

48D26R,48D26R(N50)

 1
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-30081

F..FA100,11#,FC100

48D26R(N50)

 1
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800 - BATTERY
28800-30082

F..FA100,11#,FC100

48D26R,48D26R(N50)

 1
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-30081

F..FA100,11#,FC100

48D26R(N50)

 1
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800 - BATTERY
28800-30082

F..FA100,11#,FC100

48D26R,48D26R(N50)

 1
28800-76020

2D..DA11#,DB10#

115F51,115F51(N120),GS

 2
28800-30081

F..FA100,11#,FC100

48D26R(N50)

 1
28800-76030

2D..DA11#,DB10#

115F51,115F51(N120),KOBE

 2
28800B - CABLE, BATTERY TO GROUND
90982-02020

2D..DA11#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02020

2D..DA11#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01047

2D..DA11#

 1
90982-01002

F..FA100,11#,FC100..LHD

 1
90982-01172

2D..DA11#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01047

2D..DA11#

 1
90982-01002

F..FA100,11#,FC100..LHD

 1
90982-01172

2D..DA11#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01047

2D..DA11#

 1
90982-01002

F..FA100,11#,FC100..LHD

 1
90982-01172

2D..DA11#

 1
28800F - CABLE, BATTERY TO BATTERY
90982-03006

2D..DA11#,DB10#

 1
28800F - CABLE, BATTERY TO BATTERY
90982-03006

2D..DA11#,DB10#

 1
28800P - CABLE, BATTERY TO STARTER(FOR MAIN SWITCH TO STARTER)
90982-01017

2D..DA11#,DB10#

 1
28800P - CABLE, BATTERY TO STARTER(FOR MAIN SWITCH TO STARTER)
90982-01017

2D..DA11#,DB10#

 1
Common parts
82714-30010
90119-10210
90173-10005
90461-08018
90461-10446
90462-12041
90462-12066
90462-16131
90463-06015
90463-06017
90480-40101
91111-40612
91111-41020
91111-41032
93210-16016
94110-40600
94110-41000
94511-00600
94512-00600
94512-01000
94611-10600
Linked diagrams
8401
