DA110L- (1969)

Toyota Heavy Duty Truck

Production Mar 1969 - Dec 2001
Engine 2D
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903- )BTR

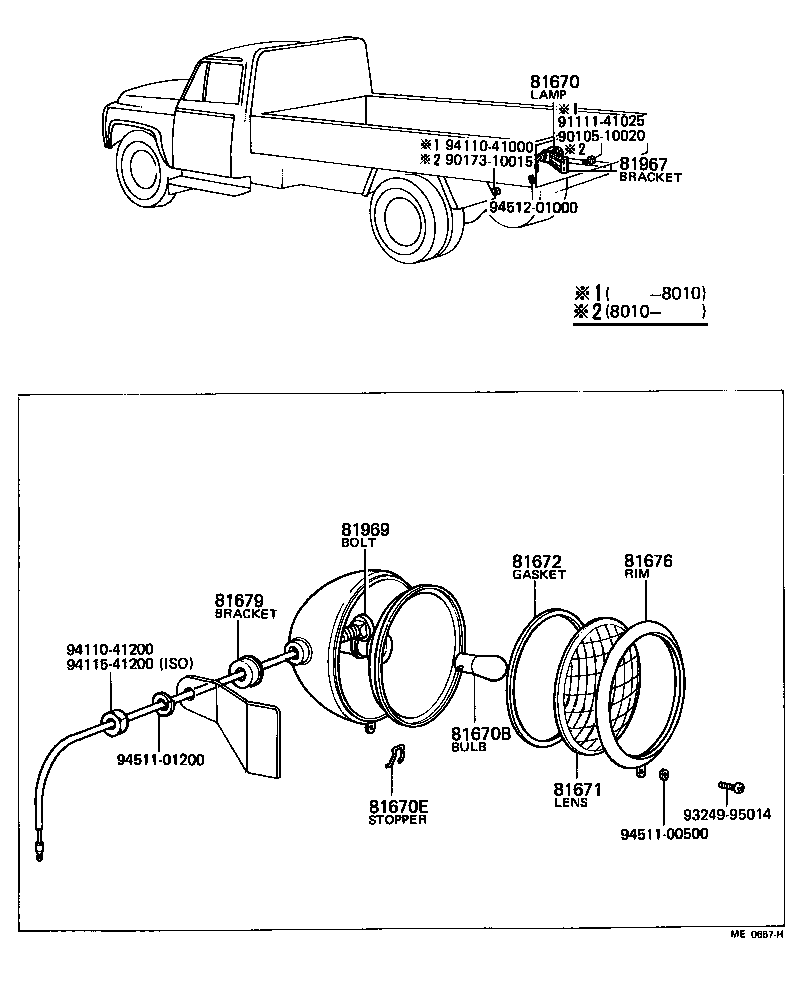

Click highlighted areas on diagram

diagram 81670 81670B 81670E 81671 81672 81676 81679 81967 81969 9010510020 9017310015 9111141025 9324995014 9411041000 9411041200 9411541200 9451100500 9451101200 9451201000
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81680-55010

FA100,11#,FC100..LHD..BTR

 1
81680-55020

DA11#..LHD..BTR

 1
81670B - BULB(FOR BACK-UP LAMP)
99134-11250

DA11#

24V 25W,24V 25W

 1
99132-11230

FA100,11#,FC100

12V 23W,12V 23W

 1
99132-11250

FA100,11#,FC100

12V 25W

 1
81670E - STOPPER, BACK-UP LAMP REFLECTOR
81517-20010

DA11#,FA100,11#,FC100..BTR

 4
81671 - LENS, BACK-UP LAMP, RH
81671-55010

DA11#,FA100,11#,FC100..BTR

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81512-20010

DA11#,FA100,11#,FC100..BTR

 1
81676 - RIM, BACK-UP LAMP, RH
81676-55010

DA11#,FA100,11#,FC100..BTR

 1
81679 - BRACKET, BACK UP LAMP BODY
81678-55010

DA11#,FA100,11#,FC100..BTR

 1
81967 - BRACKET, BACK UP LAMP
81967-55010

DA11#,FA100,11#,FC100..BTR

 1
81969 - BOLT, BACK UP LAMP MOUNTING
81679-55010

DA11#,FA100,11#,FC100..BTR

 1
Common parts
90105-10020
90173-10015
91111-41025
93249-95014
94110-41000
94110-41200
94115-41200
94511-00500
94511-01200
94512-01000
