DA110L- (1969)
Toyota Heavy Duty Truck

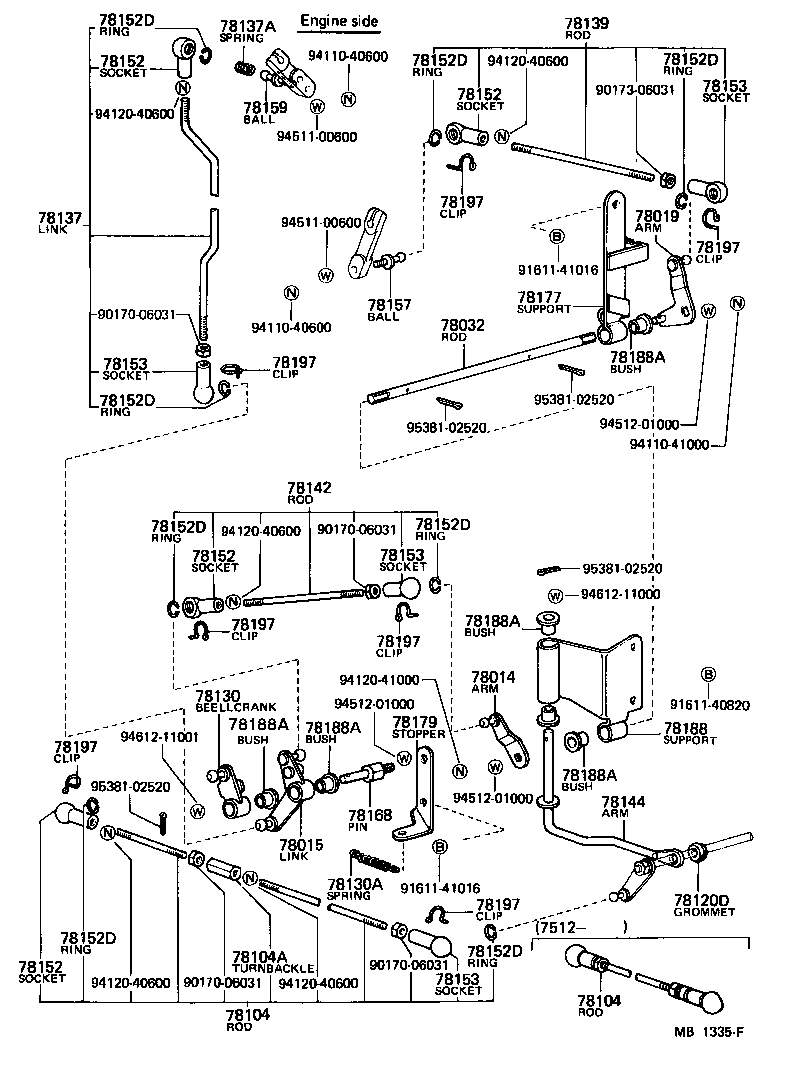

ILLUST NO. 1 OF 3(6903- )DB10# ; (6903- )DA11#..RHD ; (7303- )DA11#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78014 - ARM SUB-ASSY(FOR PNEUMATIC GOVERNOR COUNTER ROD) | ||||
| 78106-55020 |
DA11#,DB10# |
1 | ||
| 78015 - LINK SUB-ASSY, ENGINE SIDE ACCELERATOR | ||||
| 78016-55030 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78016-55020 |
DA11#,DB10# |
1 | ||
| 78016-55021 |
DA11#,DB10# |
1 | ||
| 78019 - ARM SUB-ASSY, THROTTLE WIRE | ||||
| 78106-55050 |
DA11#..LHD MECHANICAL GOVERNOR |
1 | ||
| 78106-55051 |
DA11#..LHD MECHANICAL GOVERNOR |
1 | ||
| 78019-55030 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78019-55010 |
DA11#,DB10# |
1 | ||
| 78032 - ROD, PNEUMATIC GOVERNOR COUNTER | ||||
| 78132-55020 |
DA11#,DB10# |
1 | ||
| 78103-55050 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78109-55060 |
FA100,11#,FC100 |
1 | ||
| 78109-55021 |
DA11#,DB105 |
1 | ||
| 78109-55020 |
DA11#,DB10# |
1 | ||
| 78109-55050 |
FA100,11#,FC100..LHD |
1 | ||
| 78109-55022 |
DA11# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78109-55060 |
FA100,11#,FC100 |
1 | ||
| 78109-55021 |
DA11#,DB105 |
1 | ||
| 78109-55020 |
DA11#,DB10# |
1 | ||
| 78109-55050 |
FA100,11#,FC100..LHD |
1 | ||
| 78109-55022 |
DA11# |
1 | ||
| 78104A - TURNBUCKLE, ACCELERATOR LINK CONNECTING ROD | ||||
| 90587-06006 |
DA11#,DB10#;FA100,11#,FC100..RHD |
2 | ||
| 78120D - GROMMET (FOR ACCELERATOR LINK ROD) | ||||
| 90386-10085 |
DA11#,DB10# |
2 | ||
| 90386-10085 |
FA100,11#,FC100 |
2 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78105-55033 |
FA100,11#,FC100..LHD ISO |
1 | ||
| 78105-55070 |
FA100,11#,FC100 ISO |
1 | ||
| 78105-55011 |
DA11# |
1 | ||
| 78105-55010 |
DA11#,DB10# |
1 | ||
| 78105-55042 |
DA11#..LHD ISO |
1 | ||
| 78105-55021 |
FA100,11#,FC100 ISO |
1 | ||
| 78105-55061 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78130A - SPRING (FOR ACCELERATOR ROD RETURN) | ||||
| 90506-14178 |
DA11#,DB10# |
1 | ||
| 90506-09042 |
FA100,11#,FC100 |
1 | ||
| 90506-16399 |
DA11#,DB10# |
1 | ||
| 78137 - LINK, ENGINE SIDE ACCELERATOR, NO.1 | ||||
| 78015-55020 |
DA11#,DB10# |
1 | ||
| 78138-55021 |
FA100,11#,FC100 |
1 | ||
| 78138-55060 |
FA100,11#,FC100 |
1 | ||
| 78015-55021 |
DA11# |
1 | ||
| 78137A - SPRING, ACCELERATOR LINK PIN | ||||
| 90501-12010 |
DA11#,DB10# |
1 | ||
| 90501-08086 |
FA100,11#,FC100 |
1 | ||
| 78139 - ROD, PNEUMATIC GOVERNOR CONNECTING, RH | ||||
| 78103-55021 |
DA11#,DB105 |
1 | ||
| 78103-55020 |
DA11#,DB10# |
1 | ||
| 78142 - ROD, PNEUMATIC GOVERNOR CONNECTING, LH | ||||
| 78104-55030 |
DA11#,DB10# |
1 | ||
| 78144 - ARM, ACCELERATOR ROD SUPPORT | ||||
| 78144-55012 |
DA11# |
1 | ||
| 78144-55011 |
DA11#,DB10# |
1 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-55020 |
DA11#,FA100,115 |
1 | ||
| 78159 - BALL, ACCELERATOR JOINT, NO.2 | ||||
| 78157-55020 |
DA11#,DB10# |
3 | ||
| 78168 - PIN, ACCELERATOR LINK ARM | ||||
| 78168-55010 |
FA100,11#,FC100 |
1 | ||
| 78168-55040 |
FA100,11#,FC100 |
1 | ||
| 78168-55020 |
DA11# |
1 | ||
| 78168-55030 |
FA100,11#,FC100..LHD |
1 | ||
| 78168-55021 |
DA11# |
1 | ||
| 78177 - SUPPORT, PNEUMATIC GOVERNOR CONNECTING ROD | ||||
| 78107-55011 |
DA11#,DB10# |
1 | ||
| 78179 - STOPPER, ACCELERATOR LINK ARM | ||||
| 78179-55010 |
FA100,11#,FB100,FC100 |
1 | ||
| 78196-55031 |
DA11#,DB10# |
1 | ||
| 78188 - SUPPORT, PNEUMATIC GOVERNOR LINK ROD, LH | ||||
| 78184-55010 |
DA11#,DB10# |
1 | ||
| 78184-55011 |
DA11# |
1 | ||
| 78188A - BUSH, ACCELERATOR LINK | ||||
| 90386-10038 |
DA11#,DB10# |
6 | ||
| 78188A - BUSH, ACCELERATOR LINK | ||||
| 90386-10038 |
DA11#,DB10# |
6 | ||
| 78188A - BUSH, ACCELERATOR LINK | ||||
| 90386-10038 |
DA11#,DB10# |
6 | ||
| 78188A - BUSH, ACCELERATOR LINK | ||||
| 90386-10038 |
DA11#,DB10# |
6 | ||
| 78188A - BUSH, ACCELERATOR LINK | ||||
| 90386-10038 |
DA11#,DB10# |
6 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| Common parts | ||||
| 90170-06031 | ||||
| 90173-06031 | ||||
| 91611-40820 | ||||
| 91611-41016 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94120-40600 | ||||
| 94120-41000 | ||||
| 94511-00600 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||
| 94612-11001 | ||||
| 95381-02520 | ||||

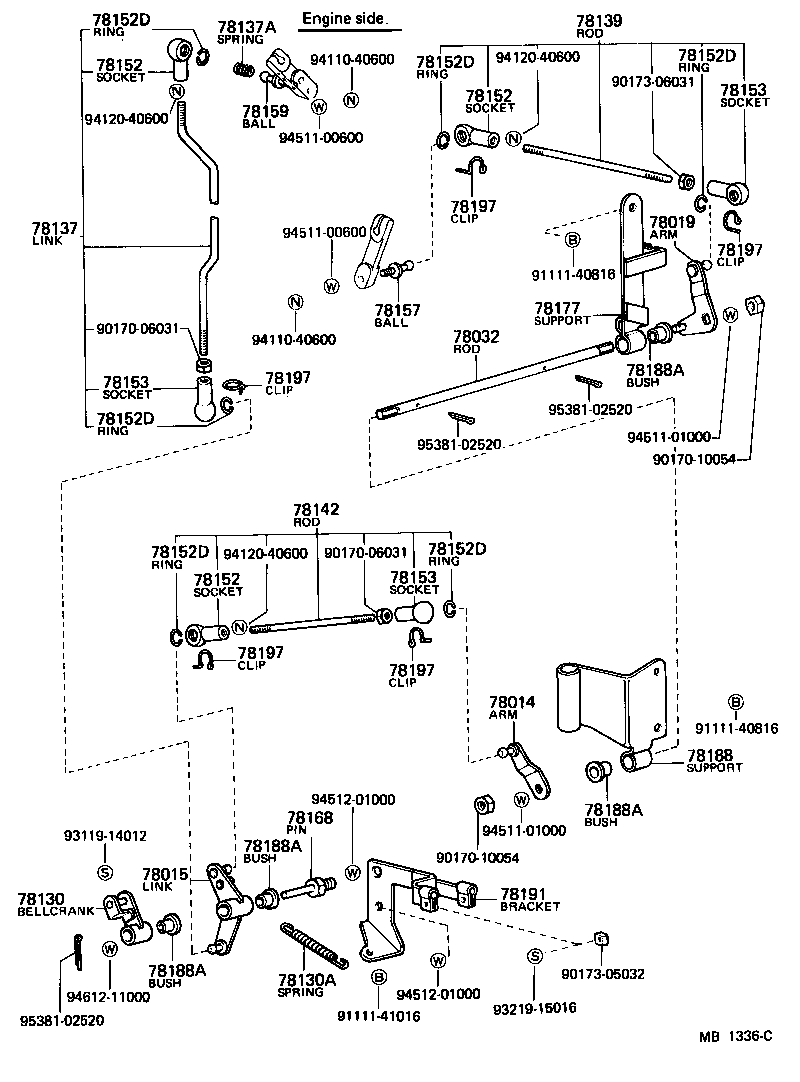

ILLUST NO. 1 OF 3(6903-7303)DA11#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78014 - ARM SUB-ASSY(FOR PNEUMATIC GOVERNOR COUNTER ROD) | ||||
| 78106-55020 |
DA11#,DB10# |
1 | ||
| 78015 - LINK SUB-ASSY, ENGINE SIDE ACCELERATOR | ||||
| 78016-55030 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78016-55020 |
DA11#,DB10# |
1 | ||
| 78016-55021 |
DA11#,DB10# |
1 | ||
| 78019 - ARM SUB-ASSY, THROTTLE WIRE | ||||
| 78106-55050 |
DA11#..LHD MECHANICAL GOVERNOR |
1 | ||
| 78106-55051 |
DA11#..LHD MECHANICAL GOVERNOR |
1 | ||
| 78019-55030 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78019-55010 |
DA11#,DB10# |
1 | ||
| 78032 - ROD, PNEUMATIC GOVERNOR COUNTER | ||||
| 78132-55020 |
DA11#,DB10# |
1 | ||
| 78103-55050 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78105-55033 |
FA100,11#,FC100..LHD ISO |
1 | ||
| 78105-55070 |
FA100,11#,FC100 ISO |
1 | ||
| 78105-55011 |
DA11# |
1 | ||
| 78105-55010 |
DA11#,DB10# |
1 | ||
| 78105-55042 |
DA11#..LHD ISO |
1 | ||
| 78105-55021 |
FA100,11#,FC100 ISO |
1 | ||
| 78105-55061 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78130A - SPRING (FOR ACCELERATOR ROD RETURN) | ||||
| 90506-14178 |
DA11#,DB10# |
1 | ||
| 90506-09042 |
FA100,11#,FC100 |
1 | ||
| 90506-16399 |
DA11#,DB10# |
1 | ||
| 78137 - LINK, ENGINE SIDE ACCELERATOR, NO.1 | ||||
| 78015-55020 |
DA11#,DB10# |
1 | ||
| 78138-55021 |
FA100,11#,FC100 |
1 | ||
| 78138-55060 |
FA100,11#,FC100 |
1 | ||
| 78015-55021 |
DA11# |
1 | ||
| 78137A - SPRING, ACCELERATOR LINK PIN | ||||
| 90501-12010 |
DA11#,DB10# |
1 | ||
| 90501-08086 |
FA100,11#,FC100 |
1 | ||
| 78139 - ROD, PNEUMATIC GOVERNOR CONNECTING, RH | ||||
| 78103-55021 |
DA11#,DB105 |
1 | ||
| 78103-55020 |
DA11#,DB10# |
1 | ||
| 78142 - ROD, PNEUMATIC GOVERNOR CONNECTING, LH | ||||
| 78104-55030 |
DA11#,DB10# |
1 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-55020 |
DA11#,FA100,115 |
1 | ||
| 78159 - BALL, ACCELERATOR JOINT, NO.2 | ||||
| 78157-55020 |
DA11#,DB10# |
3 | ||
| 78168 - PIN, ACCELERATOR LINK ARM | ||||
| 78168-55010 |
FA100,11#,FC100 |
1 | ||
| 78168-55040 |
FA100,11#,FC100 |
1 | ||
| 78168-55020 |
DA11# |
1 | ||
| 78168-55030 |
FA100,11#,FC100..LHD |
1 | ||
| 78168-55021 |
DA11# |
1 | ||
| 78177 - SUPPORT, PNEUMATIC GOVERNOR CONNECTING ROD | ||||
| 78107-55011 |
DA11#,DB10# |
1 | ||
| 78188 - SUPPORT, PNEUMATIC GOVERNOR LINK ROD, LH | ||||
| 78184-55010 |
DA11#,DB10# |
1 | ||
| 78184-55011 |
DA11# |
1 | ||
| 78188A - BUSH, ACCELERATOR LINK | ||||
| 90386-10038 |
DA11#,DB10# |
6 | ||
| 78188A - BUSH, ACCELERATOR LINK | ||||
| 90386-10038 |
DA11#,DB10# |
6 | ||
| 78188A - BUSH, ACCELERATOR LINK | ||||
| 90386-10038 |
DA11#,DB10# |
6 | ||
| 78188A - BUSH, ACCELERATOR LINK | ||||
| 90386-10038 |
DA11#,DB10# |
6 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78014-55020 |
FA100,11#,FC100..LHD |
1 | ||
| 78041-55031 |
DA11#..LHD |
1 | ||
| 78041-55030 |
DA11#..LHD |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| Common parts | ||||
| 90170-06031 | ||||
| 90170-10054 | ||||
| 90173-05032 | ||||
| 90173-06031 | ||||
| 91111-40816 | ||||
| 91111-41016 | ||||
| 93119-14012 | ||||
| 93219-15016 | ||||
| 94110-40600 | ||||
| 94120-40600 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||
| 95381-02520 | ||||

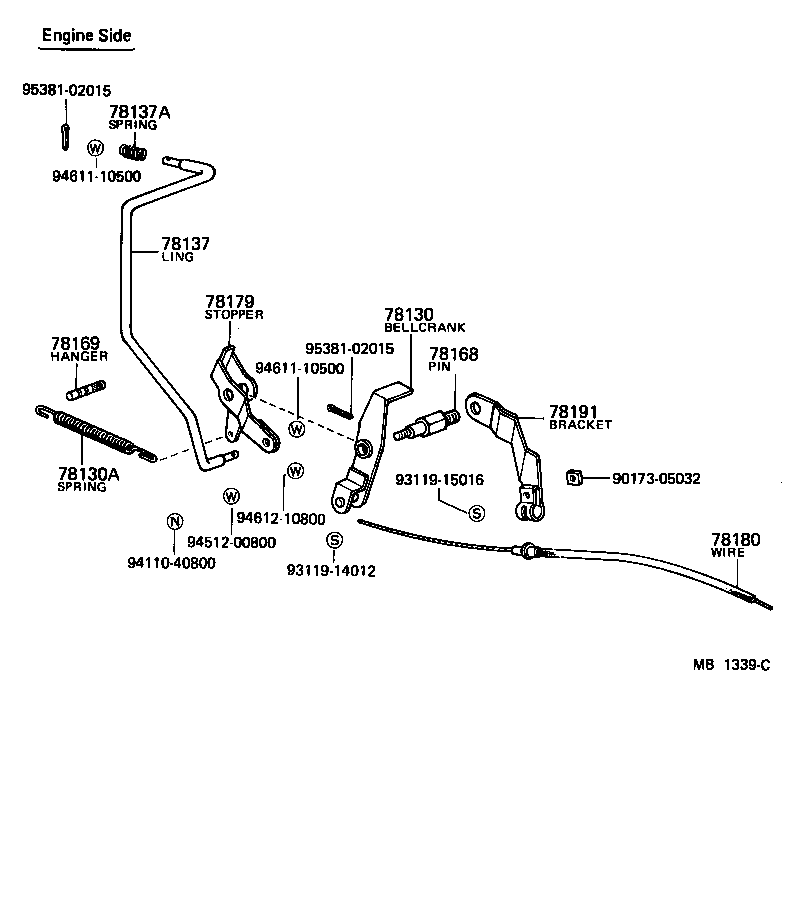

ILLUST NO. 1 OF 3(6903-7108)FA100,11#,FB100,FC100..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78105-55033 |
FA100,11#,FC100..LHD ISO |
1 | ||
| 78105-55070 |
FA100,11#,FC100 ISO |
1 | ||
| 78105-55011 |
DA11# |
1 | ||
| 78105-55010 |
DA11#,DB10# |
1 | ||
| 78105-55042 |
DA11#..LHD ISO |
1 | ||
| 78105-55021 |
FA100,11#,FC100 ISO |
1 | ||
| 78105-55061 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78130A - SPRING (FOR ACCELERATOR ROD RETURN) | ||||
| 90506-14178 |
DA11#,DB10# |
1 | ||
| 90506-09042 |
FA100,11#,FC100 |
1 | ||
| 90506-16399 |
DA11#,DB10# |
1 | ||
| 78137 - LINK, ENGINE SIDE ACCELERATOR, NO.1 | ||||
| 78015-55020 |
DA11#,DB10# |
1 | ||
| 78138-55021 |
FA100,11#,FC100 |
1 | ||
| 78138-55060 |
FA100,11#,FC100 |
1 | ||
| 78015-55021 |
DA11# |
1 | ||
| 78137A - SPRING, ACCELERATOR LINK PIN | ||||
| 90501-12010 |
DA11#,DB10# |
1 | ||
| 90501-08086 |
FA100,11#,FC100 |
1 | ||
| 78168 - PIN, ACCELERATOR LINK ARM | ||||
| 78168-55010 |
FA100,11#,FC100 |
1 | ||
| 78168-55040 |
FA100,11#,FC100 |
1 | ||
| 78168-55020 |
DA11# |
1 | ||
| 78168-55030 |
FA100,11#,FC100..LHD |
1 | ||
| 78168-55021 |
DA11# |
1 | ||
| 78169 - HANGER, ACCELERATOR SPRING | ||||
| 78169-55010 |
FA100,11#,FC100 |
1 | ||
| 78179 - STOPPER, ACCELERATOR LINK ARM | ||||
| 78179-55010 |
FA100,11#,FB100,FC100 |
1 | ||
| 78196-55031 |
DA11#,DB10# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78120-55030 |
FA100,11#,FC100..LHD |
1 | ||
| 78120-55020 |
DA11#..LHD |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78014-55020 |
FA100,11#,FC100..LHD |
1 | ||
| 78041-55031 |
DA11#..LHD |
1 | ||
| 78041-55030 |
DA11#..LHD |
1 | ||
| Common parts | ||||
| 90173-05032 | ||||
| 93119-14012 | ||||
| 93119-15016 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94611-10500 | ||||
| 94612-10800 | ||||
| 95381-02015 | ||||

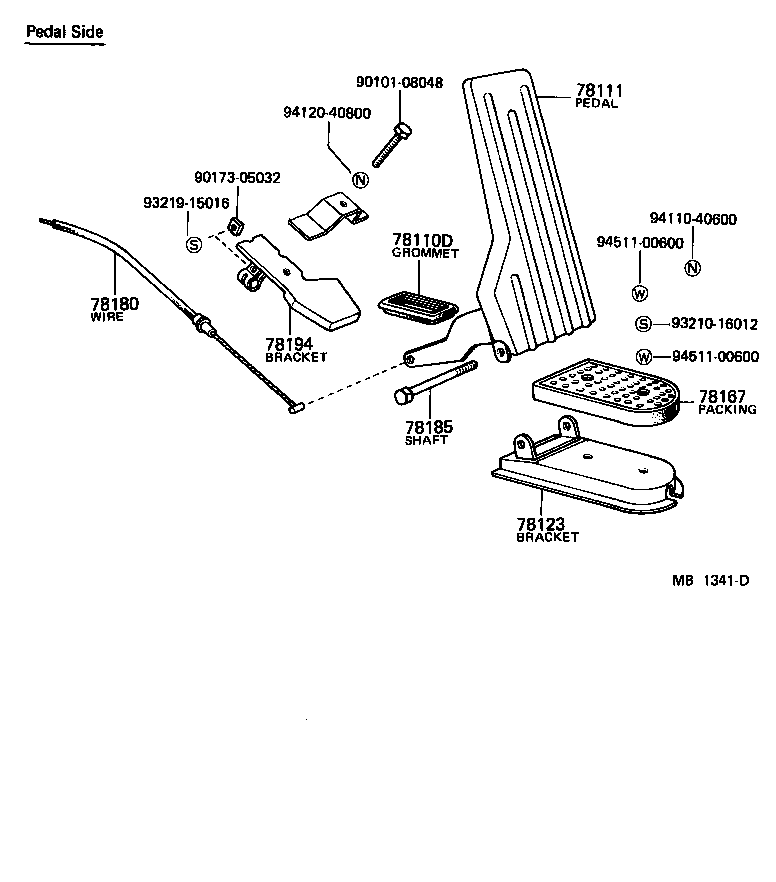

ILLUST NO. 2 OF 3(6903-7108)FA100,11#,FB100,FC100..LHD ; (6903-7303)DA11#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110D - GROMMET (FOR ACCELERATOR PEDAL ROD) | ||||
| 78119-95210 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78101-95211 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 78101-95220 |
DA11#,FA100,115..LHD |
1 | ||
| 78101-95216 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 58209-95211 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 78167 - PACKING, ACCELERATOR PEDAL HINGE | ||||
| 78740-95010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78120-55030 |
FA100,11#,FC100..LHD |
1 | ||
| 78120-55020 |
DA11#..LHD |
1 | ||
| 78185 - SHAFT, ACCELERATOR PEDAL SUPPORT | ||||
| 78113-95213 |
DA11#,FA100,115 |
1 | ||
| 78113-95210 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2 | ||||
| 78187-95210 |
DA11#..LHD |
1 | ||
| 78187-95210 |
FA100,11#,FC100..LHD |
1 | ||
| Common parts | ||||
| 90101-08048 | ||||
| 90173-05032 | ||||
| 93210-16012 | ||||
| 93219-15016 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94511-00600 | ||||

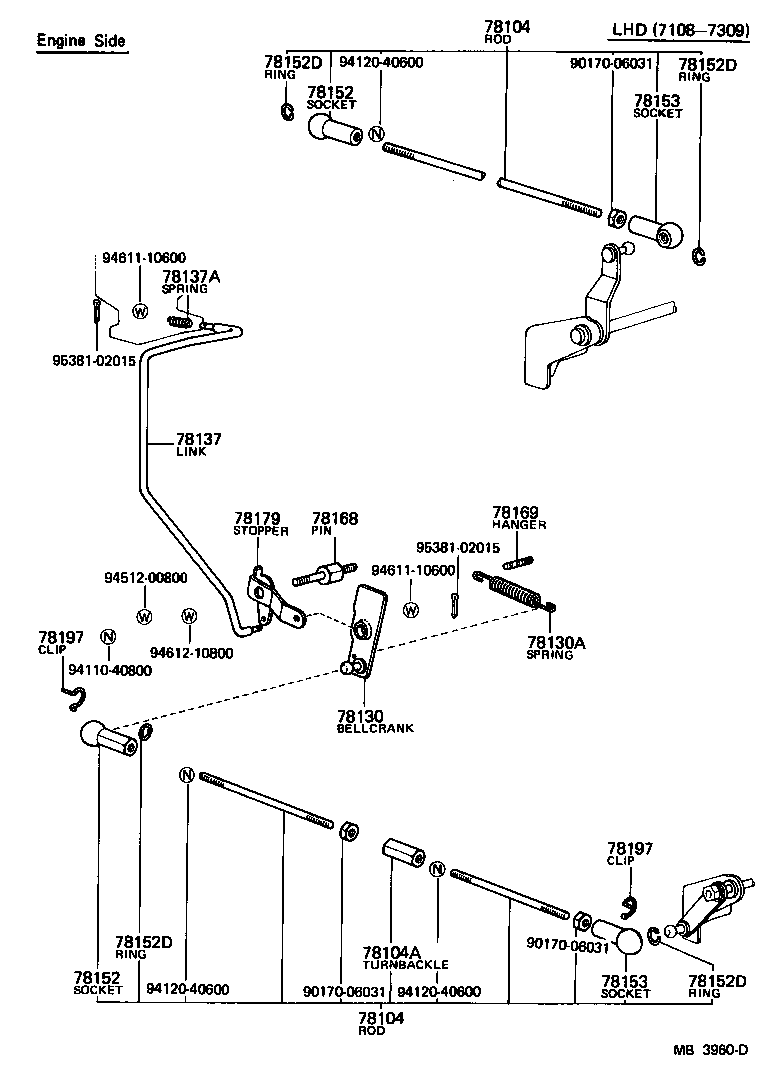

ILLUST NO. 1 OF 3(6903-7501)FA100,11#,FC100..RHD ; (7108-7501)FA100,11#,FC100..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78109-55060 |
FA100,11#,FC100 |
1 | ||
| 78109-55021 |
DA11#,DB105 |
1 | ||
| 78109-55020 |
DA11#,DB10# |
1 | ||
| 78109-55050 |
FA100,11#,FC100..LHD |
1 | ||
| 78109-55022 |
DA11# |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78109-55060 |
FA100,11#,FC100 |
1 | ||
| 78109-55021 |
DA11#,DB105 |
1 | ||
| 78109-55020 |
DA11#,DB10# |
1 | ||
| 78109-55050 |
FA100,11#,FC100..LHD |
1 | ||
| 78109-55022 |
DA11# |
1 | ||
| 78104A - TURNBUCKLE, ACCELERATOR LINK CONNECTING ROD | ||||
| 90587-06006 |
DA11#,DB10#;FA100,11#,FC100..RHD |
2 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78105-55033 |
FA100,11#,FC100..LHD ISO |
1 | ||
| 78105-55070 |
FA100,11#,FC100 ISO |
1 | ||
| 78105-55011 |
DA11# |
1 | ||
| 78105-55010 |
DA11#,DB10# |
1 | ||
| 78105-55042 |
DA11#..LHD ISO |
1 | ||
| 78105-55021 |
FA100,11#,FC100 ISO |
1 | ||
| 78105-55061 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78130A - SPRING (FOR ACCELERATOR ROD RETURN) | ||||
| 90506-14178 |
DA11#,DB10# |
1 | ||
| 90506-09042 |
FA100,11#,FC100 |
1 | ||
| 90506-16399 |
DA11#,DB10# |
1 | ||
| 78137 - LINK, ENGINE SIDE ACCELERATOR, NO.1 | ||||
| 78015-55020 |
DA11#,DB10# |
1 | ||
| 78138-55021 |
FA100,11#,FC100 |
1 | ||
| 78138-55060 |
FA100,11#,FC100 |
1 | ||
| 78015-55021 |
DA11# |
1 | ||
| 78137A - SPRING, ACCELERATOR LINK PIN | ||||
| 90501-12010 |
DA11#,DB10# |
1 | ||
| 90501-08086 |
FA100,11#,FC100 |
1 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78168 - PIN, ACCELERATOR LINK ARM | ||||
| 78168-55010 |
FA100,11#,FC100 |
1 | ||
| 78168-55040 |
FA100,11#,FC100 |
1 | ||
| 78168-55020 |
DA11# |
1 | ||
| 78168-55030 |
FA100,11#,FC100..LHD |
1 | ||
| 78168-55021 |
DA11# |
1 | ||
| 78169 - HANGER, ACCELERATOR SPRING | ||||
| 78169-55010 |
FA100,11#,FC100 |
1 | ||
| 78179 - STOPPER, ACCELERATOR LINK ARM | ||||
| 78179-55010 |
FA100,11#,FB100,FC100 |
1 | ||
| 78196-55031 |
DA11#,DB10# |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| Common parts | ||||
| 90170-06031 | ||||
| 94110-40800 | ||||
| 94120-40600 | ||||
| 94512-00800 | ||||
| 94611-10600 | ||||
| 94612-10800 | ||||
| 95381-02015 | ||||
ILLUST NO. 2 OF 3(7108-8002)FA100,11#,FC100..LHD ; (7303-8002)DA11#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78130-95212 |
FA100,11#,FC100..LHD |
1 | ||
| 78130-95213 |
DA11#..LHD |
1 | ||
| 78103-55041 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78130-95215 |
DA11#..LHD |
1 | ||
| 78130-95219 |
DA11#..LHD |
1 | ||
| 78103-55042 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78130-95222 |
DA11#..LHD |
1 | ||
| 78130-95214 |
FA100,11#,FC100..LHD |
1 | ||
| 78110D - GROMMET (FOR ACCELERATOR PEDAL ROD) | ||||
| 78119-95210 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 78120 - ROD, ACCELERATOR LINK | ||||
| 78103-95211 |
FA100,11#,FC100..LHD |
1 | ||
| 78103-95213 |
FA100,11#,FC100..LHD |
1 | ||
| 78103-95212 |
DA11#..LHD |
1 | ||
| 78103-95217 |
DA11#..LHD |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90501-08530 |
DA11#,DB10# |
1 | ||
| 90501-08530 |
FA100,11#,FC100 |
1 | ||
| 78120D - GROMMET (FOR ACCELERATOR LINK ROD) | ||||
| 90386-10085 |
DA11#,DB10# |
2 | ||
| 90386-10085 |
FA100,11#,FC100 |
2 | ||
| 78122 - BEARING, ACCELERATOR LINK, NO.2 | ||||
| 78184-55021 |
FA100,11#,FC100 |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 58209-95211 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 78124 - BEARING, ACCELERATOR LINK, NO.1 | ||||
| 78107-95210 |
DA11# |
1 | ||
| 78107-95210 |
FA100,11#,FC100 |
1 | ||
| 78107-95210 |
DA11#,FA100,115 |
1 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78167 - PACKING, ACCELERATOR PEDAL HINGE | ||||
| 78740-95010 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 78185 - SHAFT, ACCELERATOR PEDAL SUPPORT | ||||
| 78113-95213 |
DA11#,FA100,115 |
1 | ||
| 78113-95210 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| Common parts | ||||
| 78175-95210 | ||||
| 90170-06030 | ||||
| 90179-06158 | ||||
| 90202-10060 | ||||
| 90202-10062 | ||||
| 91111-40818 | ||||
| 91131-40870 | ||||
| 93210-16012 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94120-40600 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94612-11000 | ||||
| 94614-10800 | ||||
| 95381-02020 | ||||
| 95381-02022 | ||||

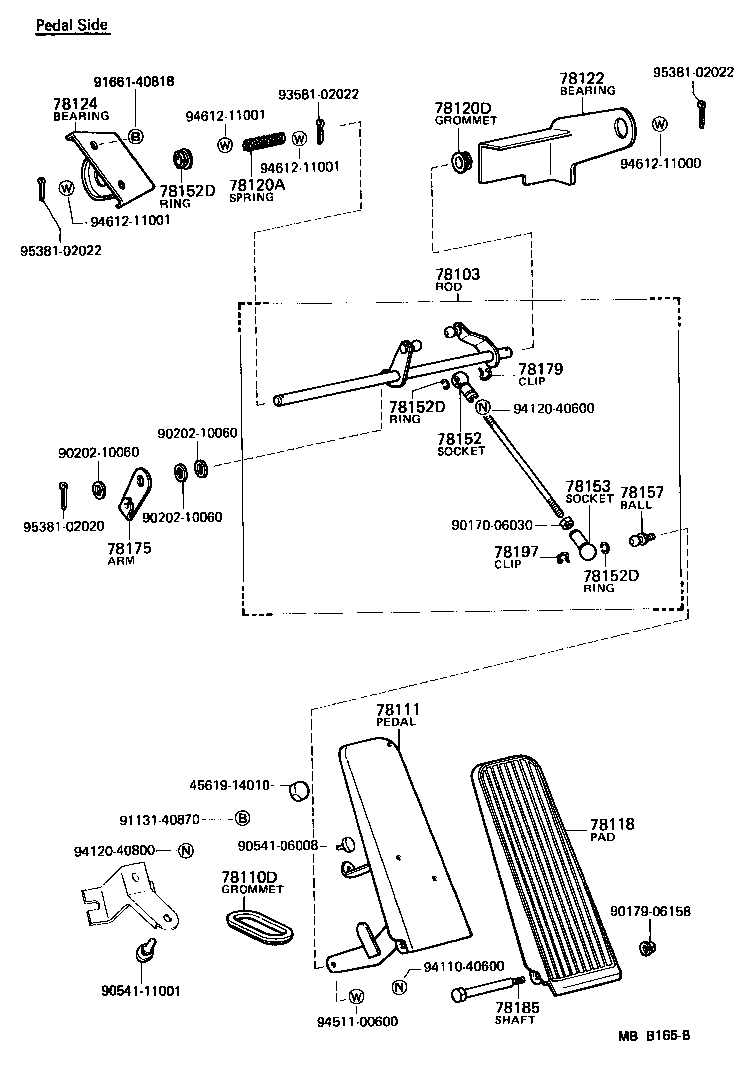

ILLUST NO. 2 OF 3(8002- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1 | ||||
| 78130-95212 |
FA100,11#,FC100..LHD |
1 | ||
| 78130-95213 |
DA11#..LHD |
1 | ||
| 78103-55041 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78130-95215 |
DA11#..LHD |
1 | ||
| 78130-95219 |
DA11#..LHD |
1 | ||
| 78103-55042 |
DA11# MECHANICAL GOVERNOR |
1 | ||
| 78130-95222 |
DA11#..LHD |
1 | ||
| 78130-95214 |
FA100,11#,FC100..LHD |
1 | ||
| 78110D - GROMMET (FOR ACCELERATOR PEDAL ROD) | ||||
| 78119-95210 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78101-95211 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 78101-95220 |
DA11#,FA100,115..LHD |
1 | ||
| 78101-95216 |
DA11#,FA100,11#,FC100..LHD |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78117-95211 |
DA11#,FA100,115 |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90501-08530 |
DA11#,DB10# |
1 | ||
| 90501-08530 |
FA100,11#,FC100 |
1 | ||
| 78120D - GROMMET (FOR ACCELERATOR LINK ROD) | ||||
| 90386-10085 |
DA11#,DB10# |
2 | ||
| 90386-10085 |
FA100,11#,FC100 |
2 | ||
| 78122 - BEARING, ACCELERATOR LINK, NO.2 | ||||
| 78184-55021 |
FA100,11#,FC100 |
1 | ||
| 78124 - BEARING, ACCELERATOR LINK, NO.1 | ||||
| 78107-95210 |
DA11# |
1 | ||
| 78107-95210 |
FA100,11#,FC100 |
1 | ||
| 78107-95210 |
DA11#,FA100,115 |
1 | ||
| 78152 - SOCKET, ACCELERATOR BALL JOINT, NO.1 | ||||
| 78152-55020 |
FA100,11#,FC100 |
2 | ||
| 78152-55020 |
DA11#,DB10# |
5 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78152D - RING, ACCELERATOR JOINT BALL CLIP SNAP | ||||
| 90520-09057 |
FA100,11#,FC100 |
4 | ||
| 90520-09057 |
DA11#,DB10# |
10 | ||
| 78153 - SOCKET, ACCELERATOR BALL JOINT, NO.2 | ||||
| 78153-55010 |
FA100,11#,FC100 |
2 | ||
| 78153-55010 |
DA11#,DB10# |
5 | ||
| 78157 - BALL, ACCELERATOR JOINT | ||||
| 78157-55020 |
DA11#,FA100,115 |
1 | ||
| 78175 - ARM, THROTTLE WIRE | ||||
| 78175-95212 |
DA11# |
1 | ||
| 78179 - STOPPER, ACCELERATOR LINK ARM | ||||
| 78179-55010 |
FA100,11#,FB100,FC100 |
1 | ||
| 78196-55031 |
DA11#,DB10# |
1 | ||
| 78185 - SHAFT, ACCELERATOR PEDAL SUPPORT | ||||
| 78113-95213 |
DA11#,FA100,115 |
1 | ||
| 78113-95210 |
DA11#,DB10#,FA100,11#,FC100 |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-55010 |
FA100,11#,FC100 |
4 | ||
| 78197-55010 |
DA11#,DB10# |
10 | ||
| Common parts | ||||
| 45619-14010 | ||||
| 90170-06030 | ||||
| 90179-06158 | ||||
| 90202-10060 | ||||
| 90541-06008 | ||||
| 90541-11001 | ||||
| 91131-40870 | ||||
| 91661-40818 | ||||
| 93581-02022 | ||||
| 94110-40600 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
| 94511-00600 | ||||
| 94612-11000 | ||||
| 94612-11001 | ||||
| 95381-02020 | ||||
| 95381-02022 | ||||

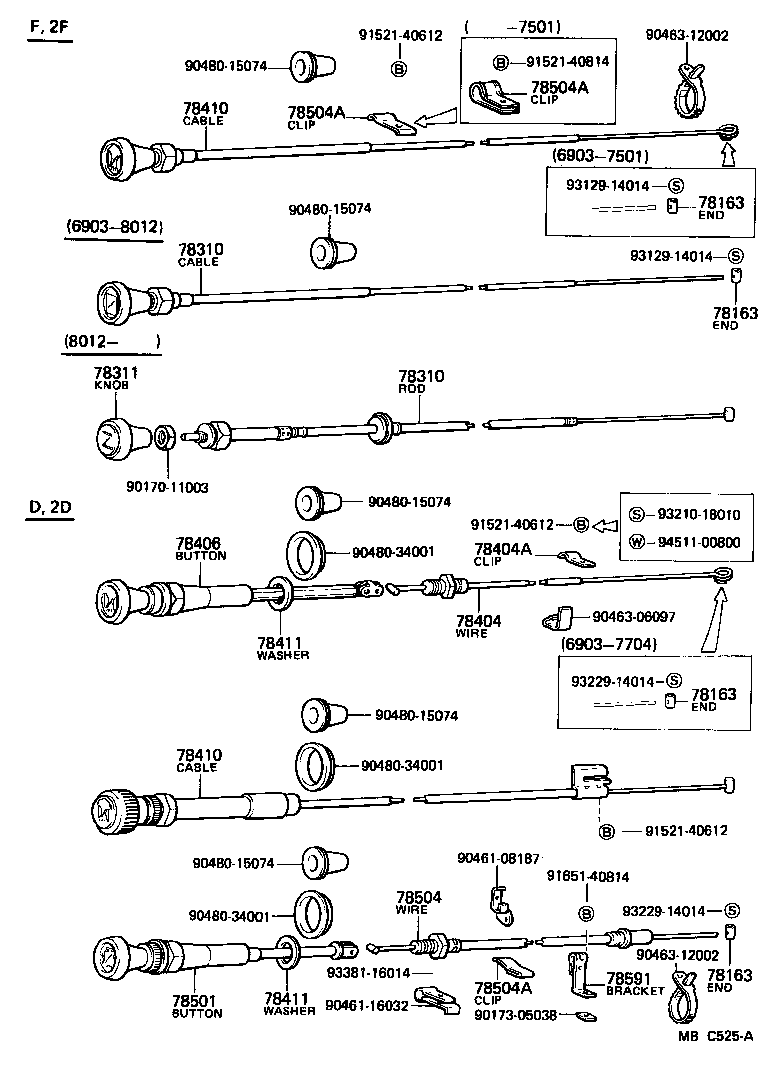

ILLUST NO. 3 OF 3(6903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78163 - END, FLEXIBLE WIRE | ||||
| 78163-55020 |
DA11#,DB10#,FA100,11#,FC100 ISO |
2 | ||
| 78163 - END, FLEXIBLE WIRE | ||||
| 78163-55020 |
DA11#,DB10#,FA100,11#,FC100 ISO |
2 | ||
| 78163 - END, FLEXIBLE WIRE | ||||
| 78163-55020 |
DA11#,DB10#,FA100,11#,FC100 ISO |
2 | ||
| 78163 - END, FLEXIBLE WIRE | ||||
| 78163-55020 |
DA11#,DB10#,FA100,11#,FC100 ISO |
2 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-95210 |
FA100,11#,FC100 |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-95210 |
FA100,11#,FC100 |
1 | ||
| 78404 - WIRE SUB-ASSY, THROTTLE FLEXIBLE | ||||
| 78404-95215 |
DA11#..LHD |
1 | ||
| 78404-95212 |
DA11#..LHD |
1 | ||
| 78504-95213 |
DA11#..LHD |
1 | ||
| 78404-95218 |
DA11#..LHD |
1 | ||
| 78404A - CLIP, THROTTLE FLEXIBLE WIRE | ||||
| 90462-23138 |
DA11#,FA100,115 |
1 | ||
| 78406 - BUTTON SUB-ASSY, THROTTLE | ||||
| 78406-36020 |
DA11#,DB10# |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-95216 |
DA11#..LHD |
1 | ||
| 78410-95212 |
FA100,11#,FC100 |
1 | ||
| 78410-95222 |
DA11#..LHD |
1 | ||
| 78410-95220 |
DA11#..LHD |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-95216 |
DA11#..LHD |
1 | ||
| 78410-95212 |
FA100,11#,FC100 |
1 | ||
| 78410-95222 |
DA11#..LHD |
1 | ||
| 78410-95220 |
DA11#..LHD |
1 | ||
| 78411 - WASHER, STOP AND THROTTLE BUTTON | ||||
| 90201-24355 |
DA11# |
2 | ||
| 78411 - WASHER, STOP AND THROTTLE BUTTON | ||||
| 90201-24355 |
DA11# |
2 | ||
| 78501 - BUTTON SUB-ASSY, STOP | ||||
| 78501-36020 |
DA11#,DB10# |
1 | ||
| 78504 - WIRE SUB-ASSY, STOP FLEXIBLE | ||||
| 78504-95211 |
DA11#..LHD |
1 | ||
| 78504-95220 |
DA11#..LHD |
1 | ||
| 78504-95214 |
DA11#..LHD |
1 | ||
| 78504A - CLIP (FOR STOP FLEXIBLE WIRE) | ||||
| 90461-06179 |
FA100,11#,FC100 |
1 | ||
| 78504A - CLIP (FOR STOP FLEXIBLE WIRE) | ||||
| 90461-06179 |
FA100,11#,FC100 |
1 | ||
| 78504A - CLIP (FOR STOP FLEXIBLE WIRE) | ||||
| 90461-06179 |
FA100,11#,FC100 |
1 | ||
| 78591 - BRACKET, STOP WIRE | ||||
| 78018-95210 |
DA11#..LHD |
1 | ||
| Common parts | ||||
| 90170-11003 | ||||
| 90173-05038 | ||||
| 90461-08187 | ||||
| 90461-16032 | ||||
| 90463-06097 | ||||
| 90463-12002 | ||||
| 90480-15074 | ||||
| 90480-34001 | ||||
| 91521-40612 | ||||
| 91521-40814 | ||||
| 91651-40814 | ||||
| 93129-14014 | ||||
| 93210-18010 | ||||
| 93229-14014 | ||||
| 93381-16014 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
